Availability:
3 in stock
Metric tapered roller bearing, 60 x 100 x 30 mm, cone and cup set, 116 kN dynamic and 171 kN static rating, separable for interference fitting.
List Price
$51.52
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| GTIN | 4012801154833 |
| Model | 33112 |
| Bearing Type | Tapered Roller Bearing, Open |
| ID | 60 mm |
| OD | 100 mm |
| Width | 30 mm |
| Material | Chrome Steel |
|---|---|
| Base Number | 33112 |
| Total Width | 30 mm |
| Bore Shaft Size | 60 mm |
| Mpn Variants | 33112; 33112-FAG; 33 112 |
| Arrangement Configuration | Cone and cup set, separable |
| Additional Attributes | Boundary dimensions to DIN ISO 355 / DIN 720 |
| Dynamic Load Rating | 116 kN |
| Static Load Rating | 171 kN |
| Series | 331 |
| Rolling Elements | Tapered rollers |
| Item Weight | 2.05 lb (0.93 kg) |
| Limiting Speed | 6300 |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Mounting Arrangement | Single |
| Design Units | Metric |
| Bearing Material | Chrome Steel |
| Part Number | 33112 |
| Cross Reference 1 | SKF 33112 (same envelope, ratings differ by maker) |
|---|---|
| Cross Reference 2 | NKE 33112 (same envelope, ratings differ by maker) |

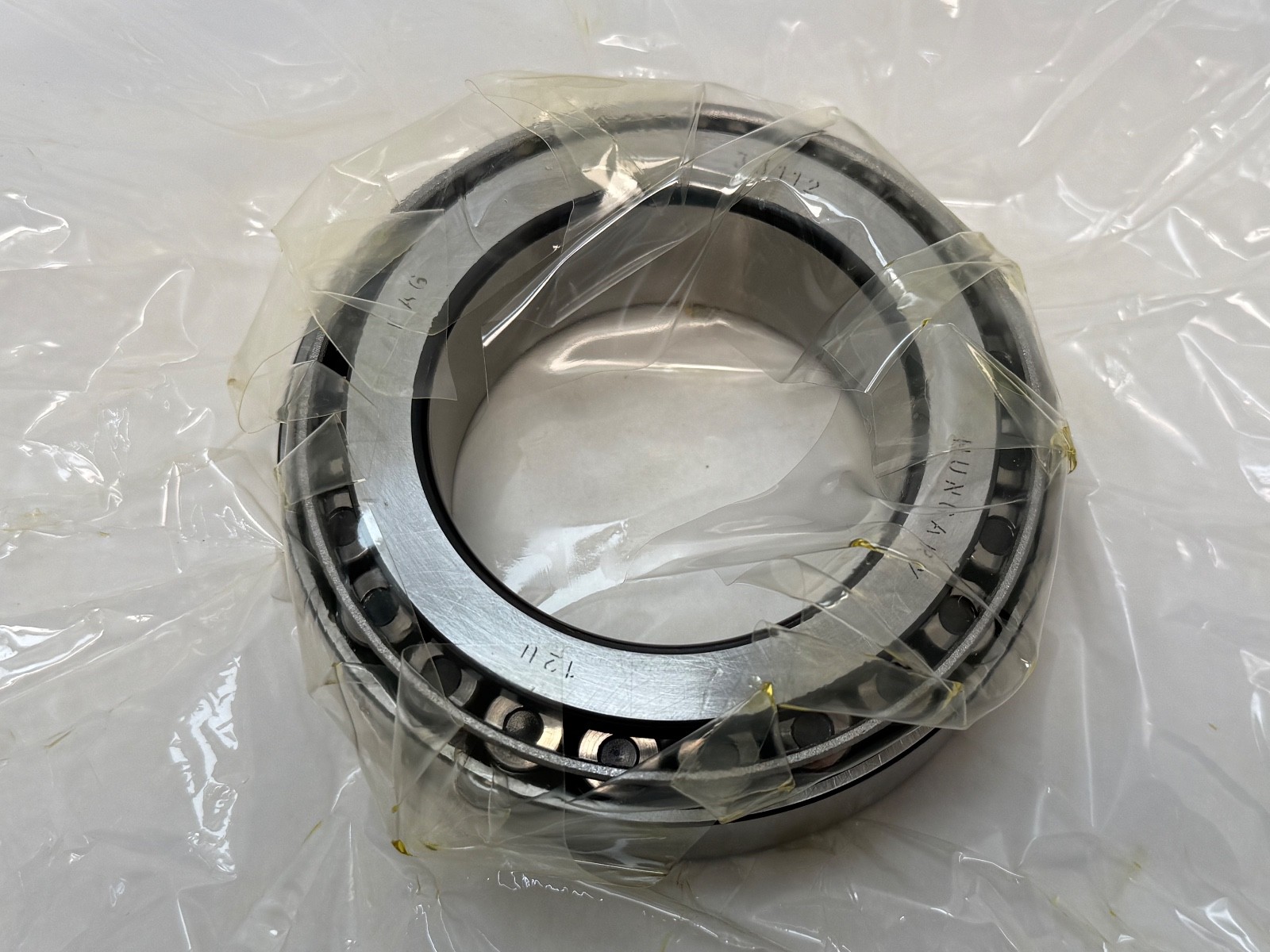

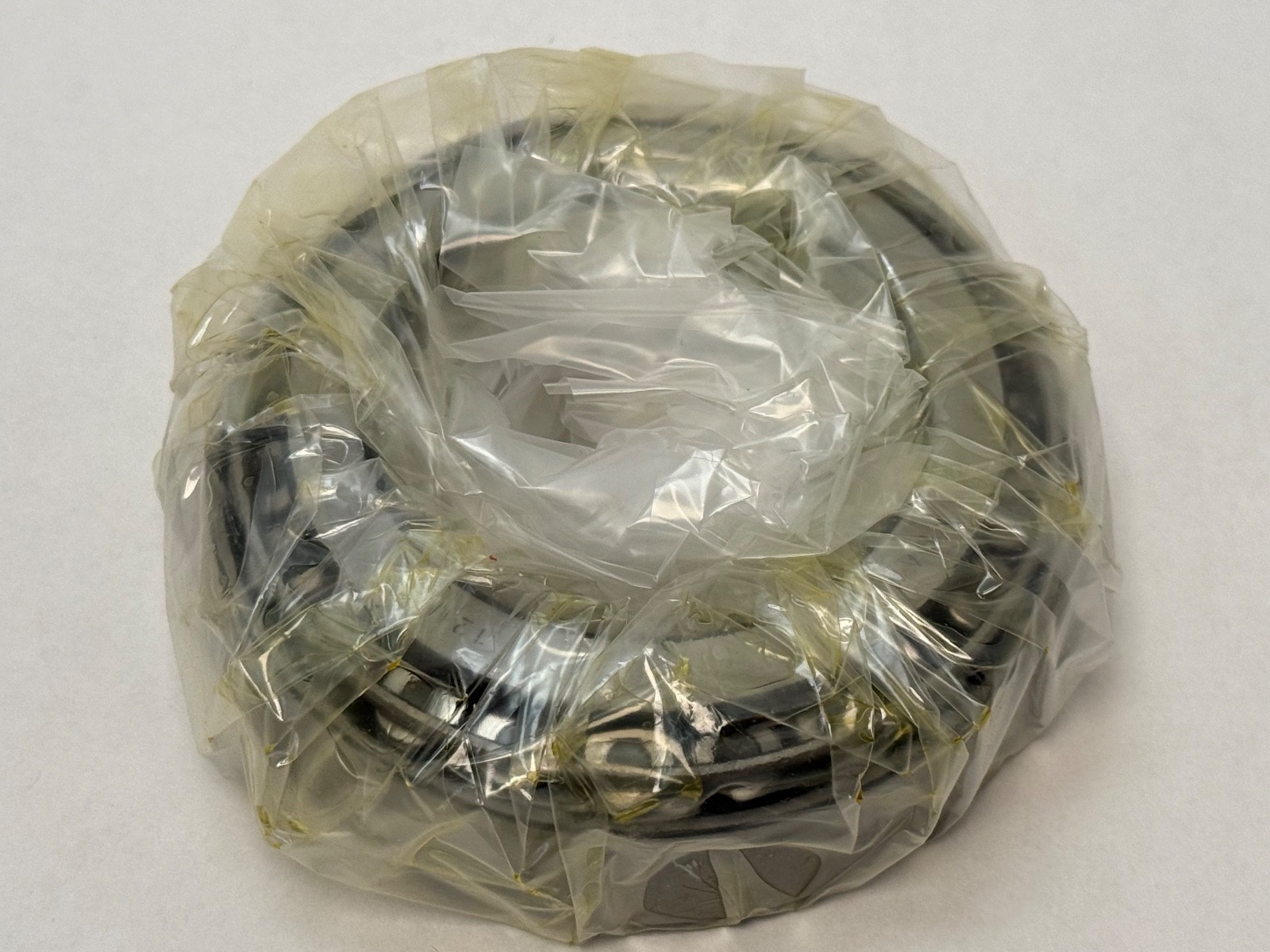

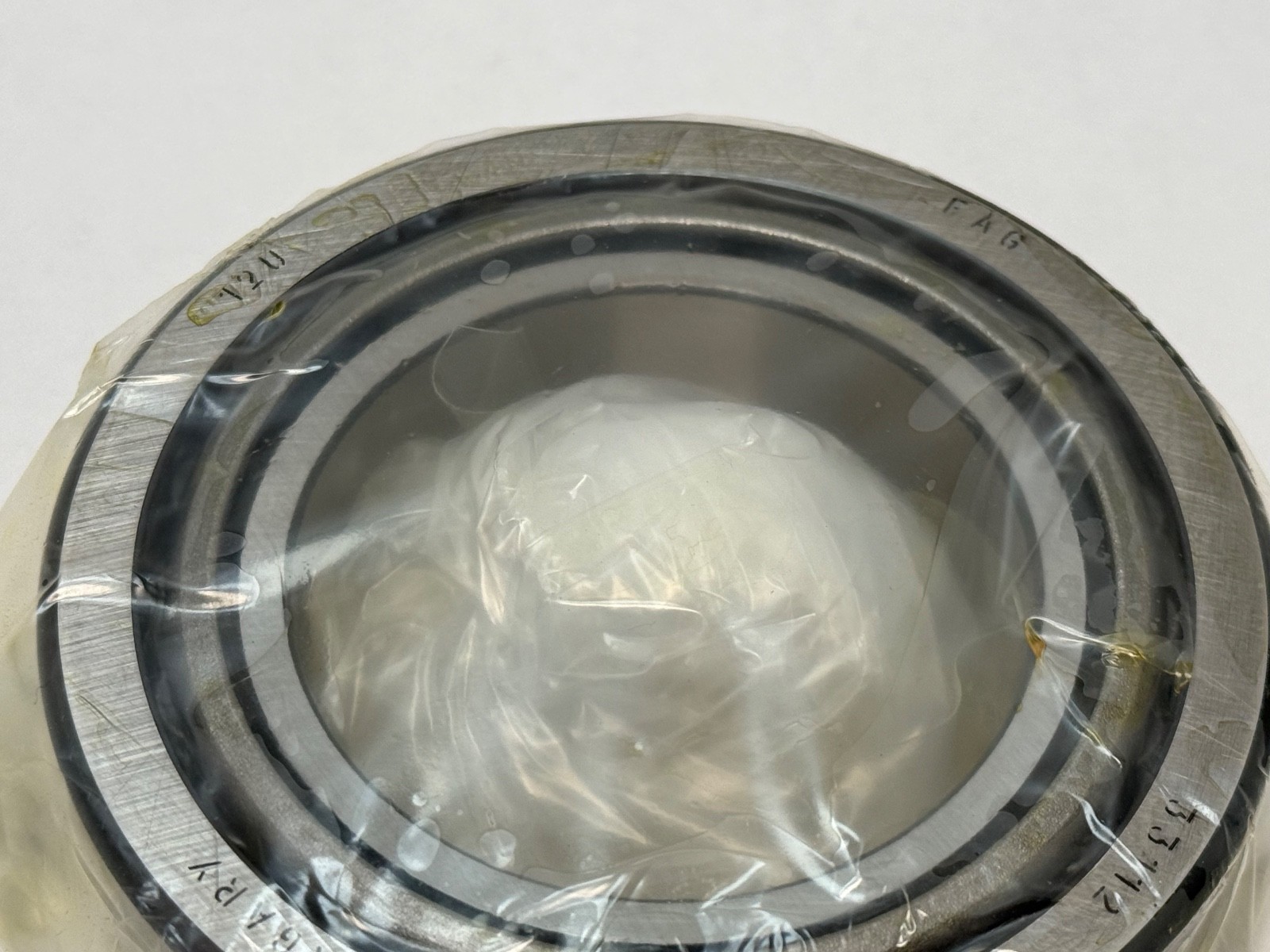

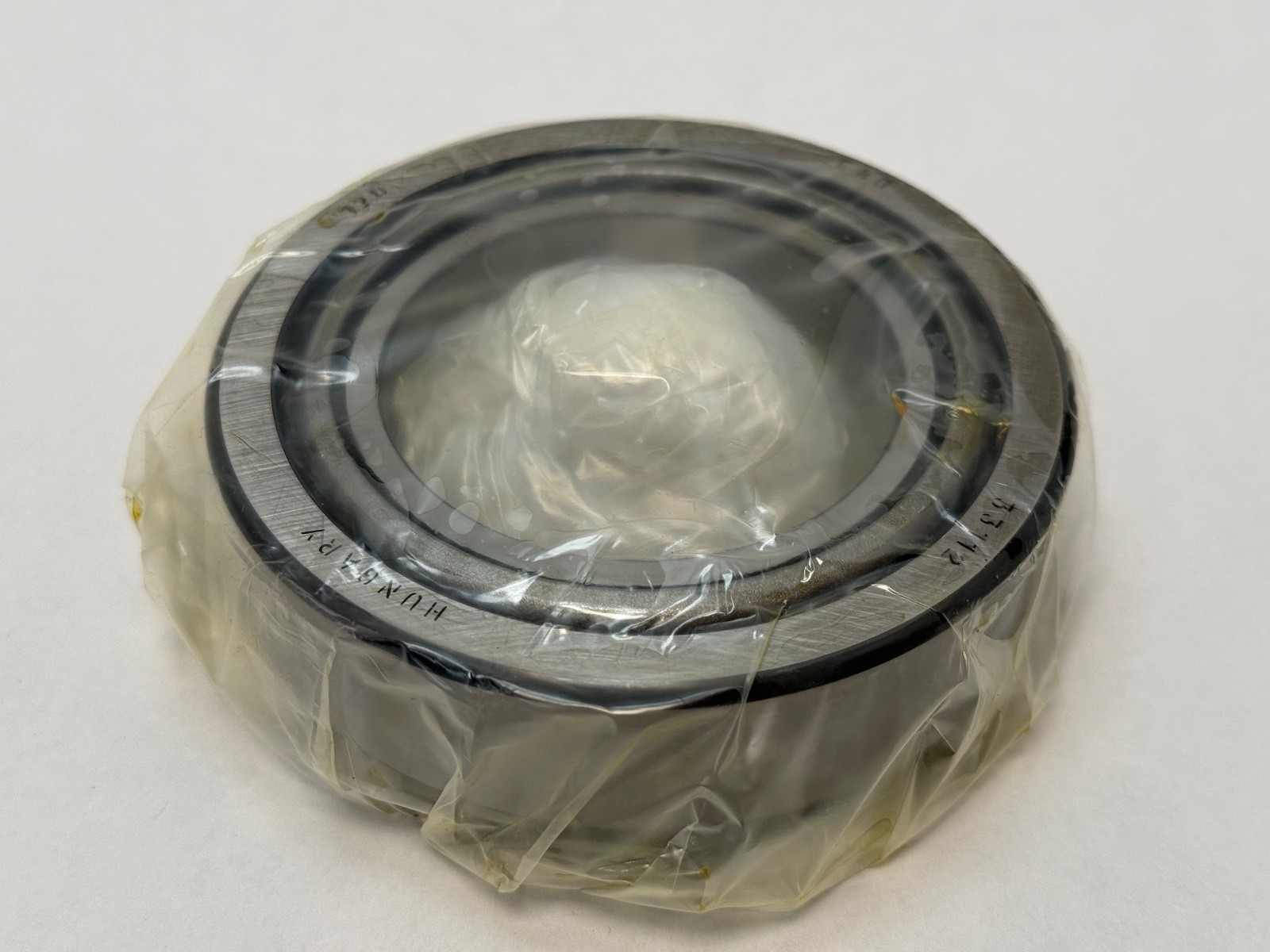

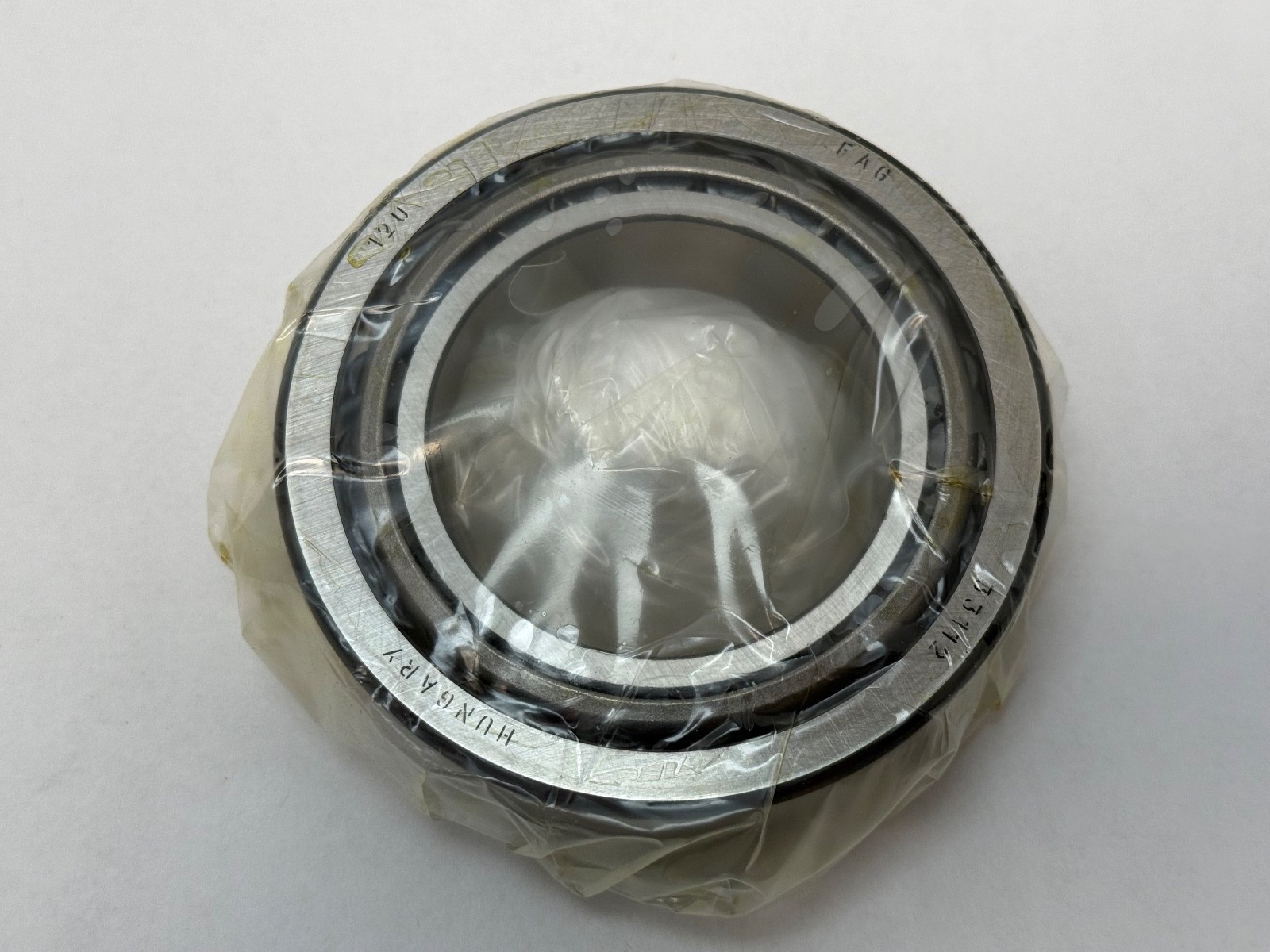

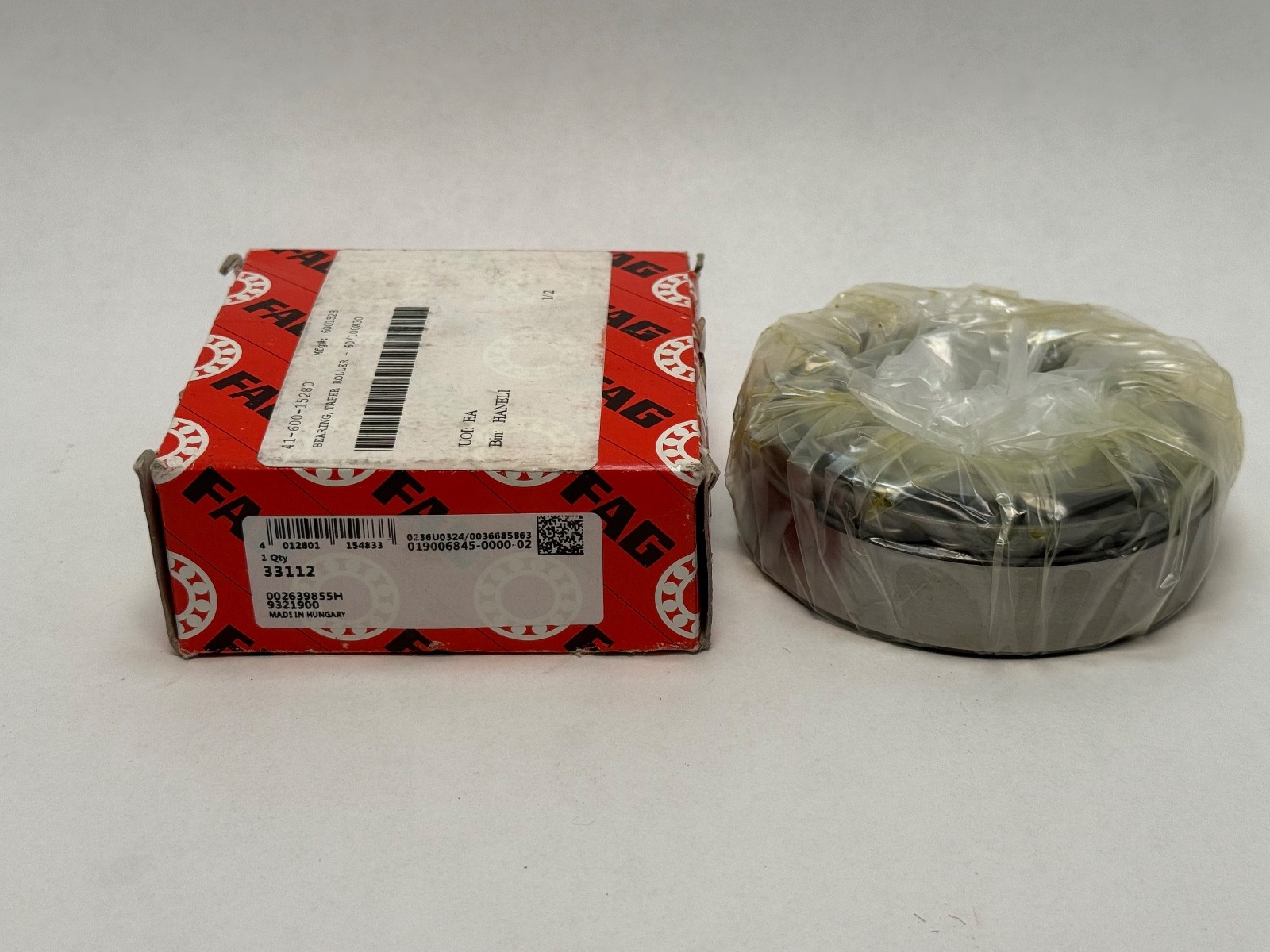

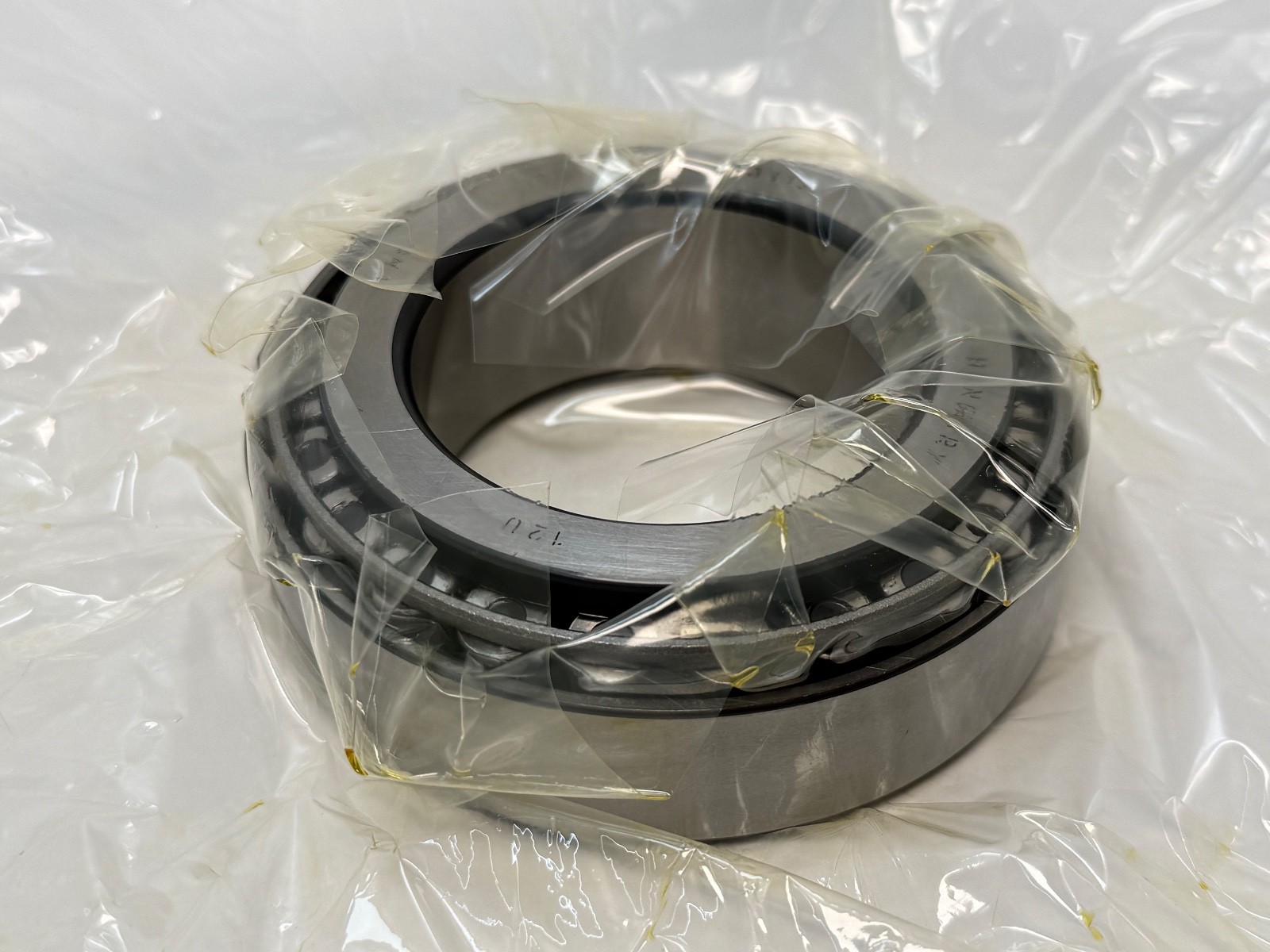

FAG 33112 single-row metric tapered roller bearing, cone and cup set. Bore: 60 mm. Outside Diameter: 100 mm. Assembly Width (T): 30 mm. Inner Ring Width (B): 30 mm. Number Of Rows: 1. Rolling Elements: Tapered rollers. Bore Type: Straight. Closure Type: Open. Bearing Material: Chrome steel. Dynamic Load Rating: 116 kN. Static Load Rating: 171 kN. Limiting Speed: 6 300 r/min. Item Weight: 0.93 kg (2.05 lb). GTIN: 4012801154833.
331 — the wide-section metric tapered roller dimension series to DIN ISO 355 / DIN 720.
12 — bore code 12, which is 60 mm.
No suffix — standard tolerance class, open, with a pressed steel cage carrying the roller set in the cone.
Tapered rollers put line contact on both raceways, which is why the static rating of 171 kN sits well above the dynamic rating of 116 kN. That relationship is normal for this bearing type and not a data conflict.
The bearing takes heavy radial load and heavy axial load in one direction at the same time. Two of them mounted face-to-face or back-to-back take axial load both ways and set the shaft position.
The wide 331 section gives more roller length than the standard 302/303 series at the same bore, which is where the higher capacity comes from.
Limiting Speed 6 300 r/min applies with adequate lubrication and a correctly set running clearance.
Cone and cup separate, so the cone can be pressed onto the shaft and the cup into the housing independently. Assembly Width (T): 30 mm sets the axial space envelope.
Unit Quantity: 1 Pc. One complete bearing: the cone with its roller and cage assembly, plus its matching cup.
SKF 33112 and NKE 33112 share the 60 x 100 x 30 mm envelope to DIN ISO 355. Load ratings differ between makers, so the 116 kN and 171 kN figures above are the FAG values.
Searchable designation forms: 33112, 33112-FAG, 33 112, 33112 cone and cup set.
