Availability:
4 in stock

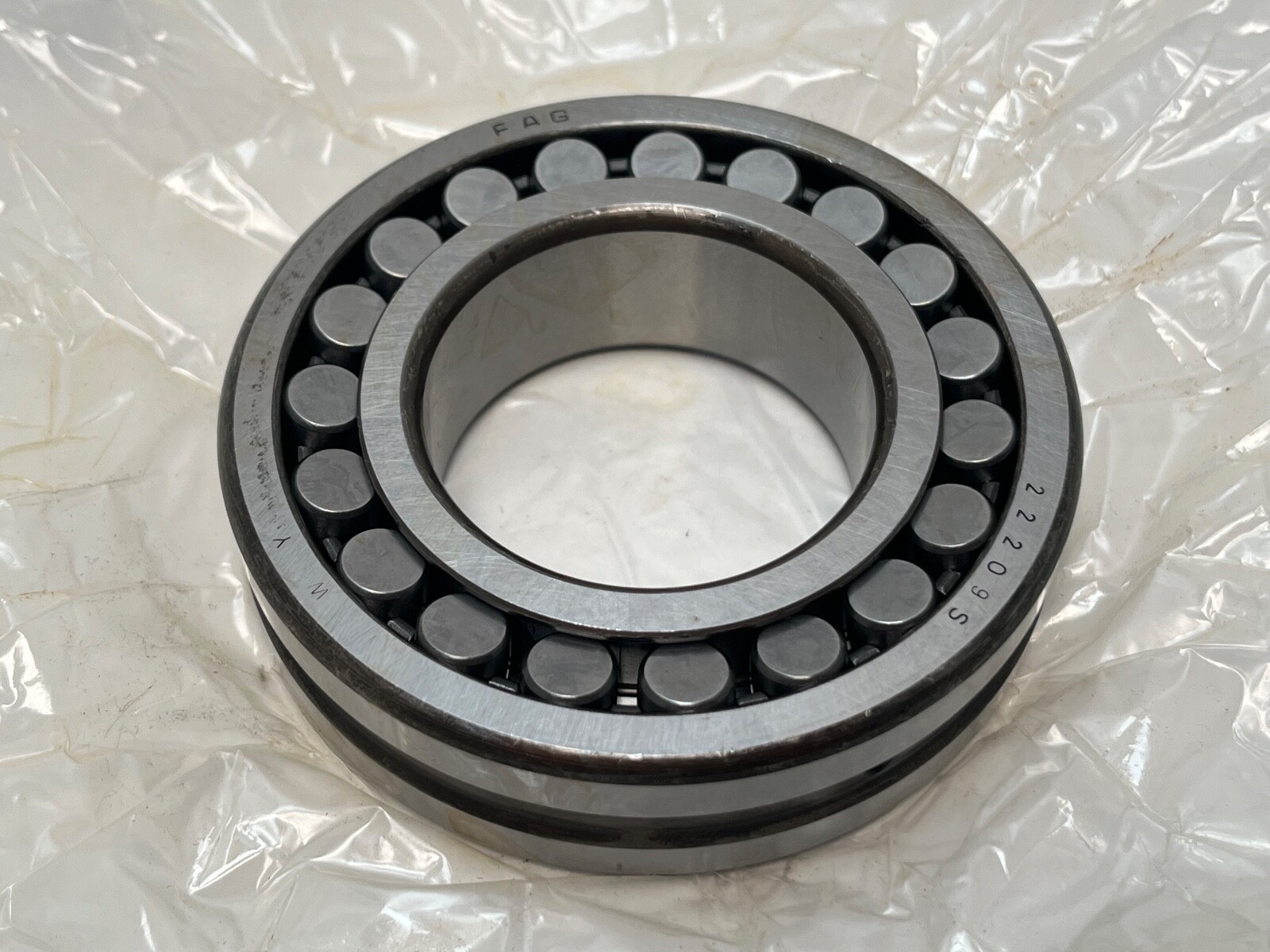

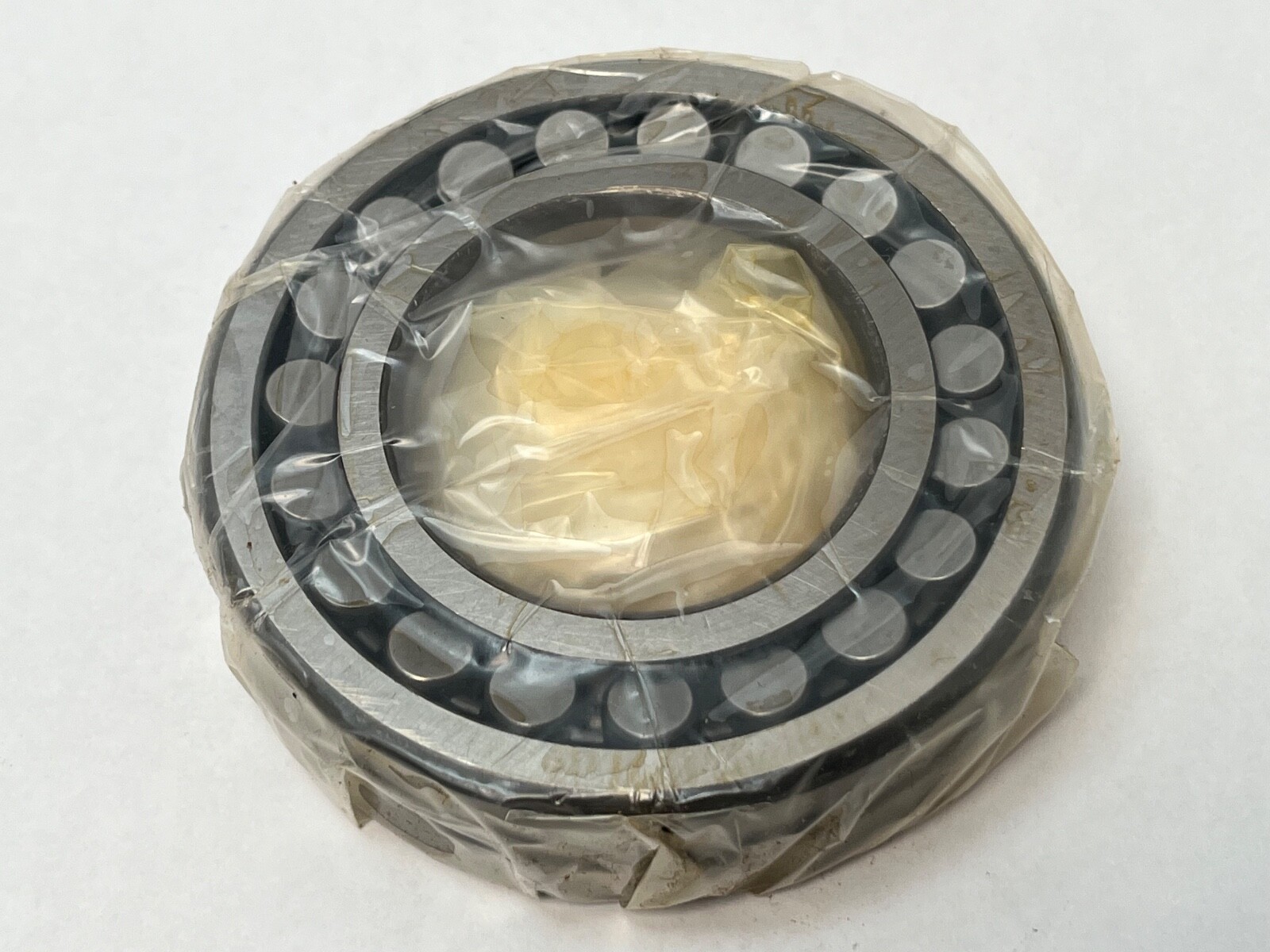

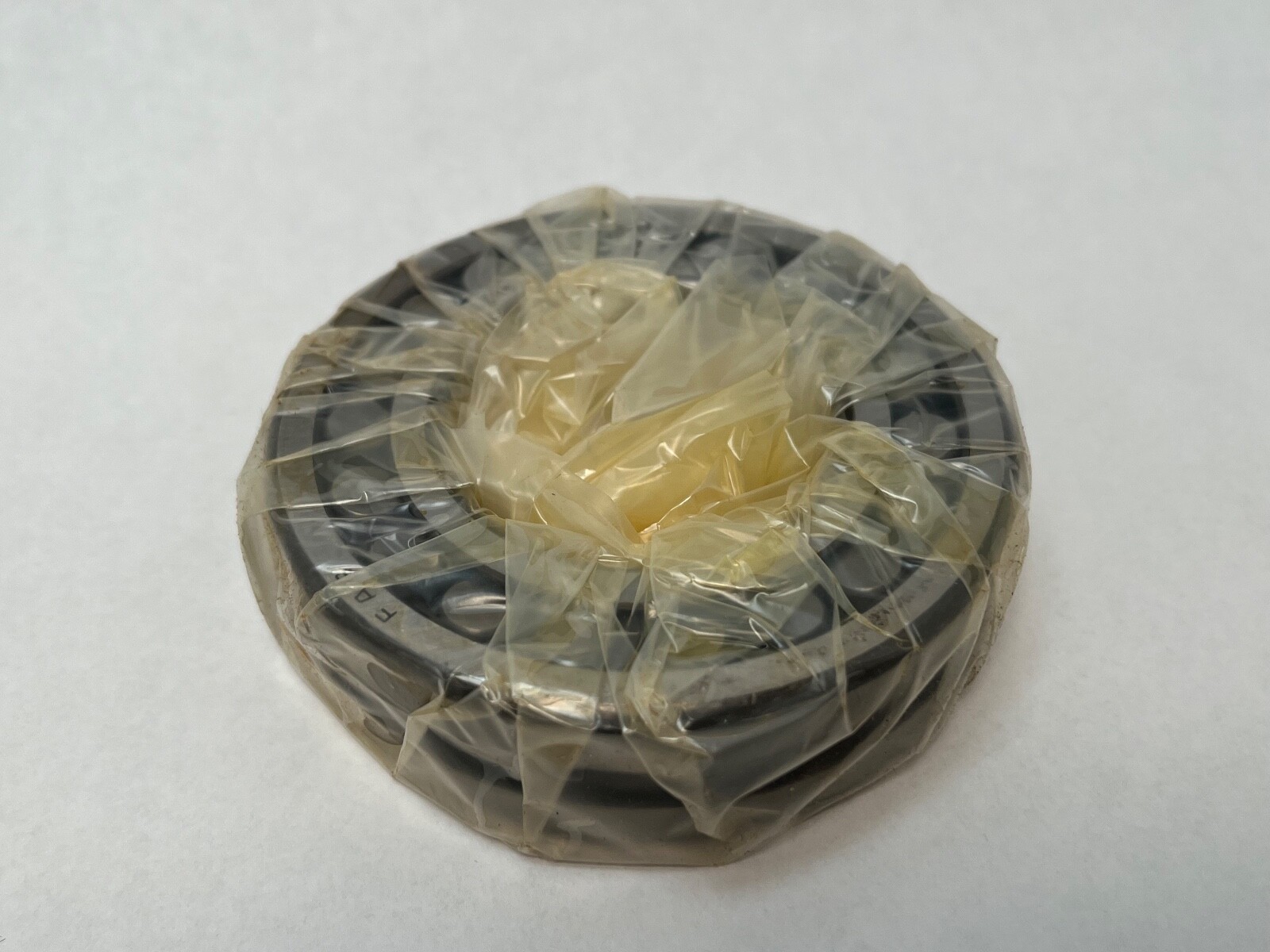

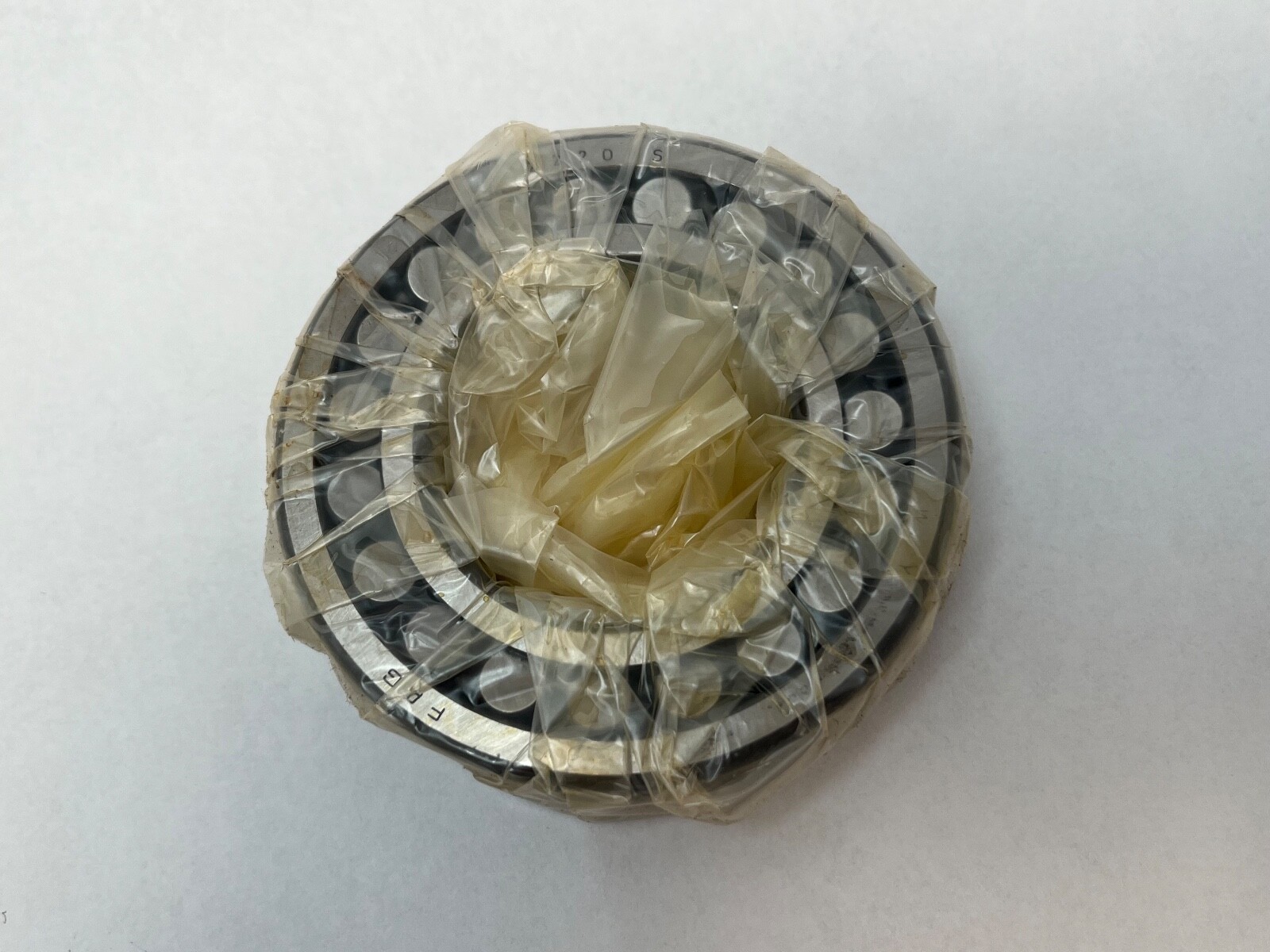

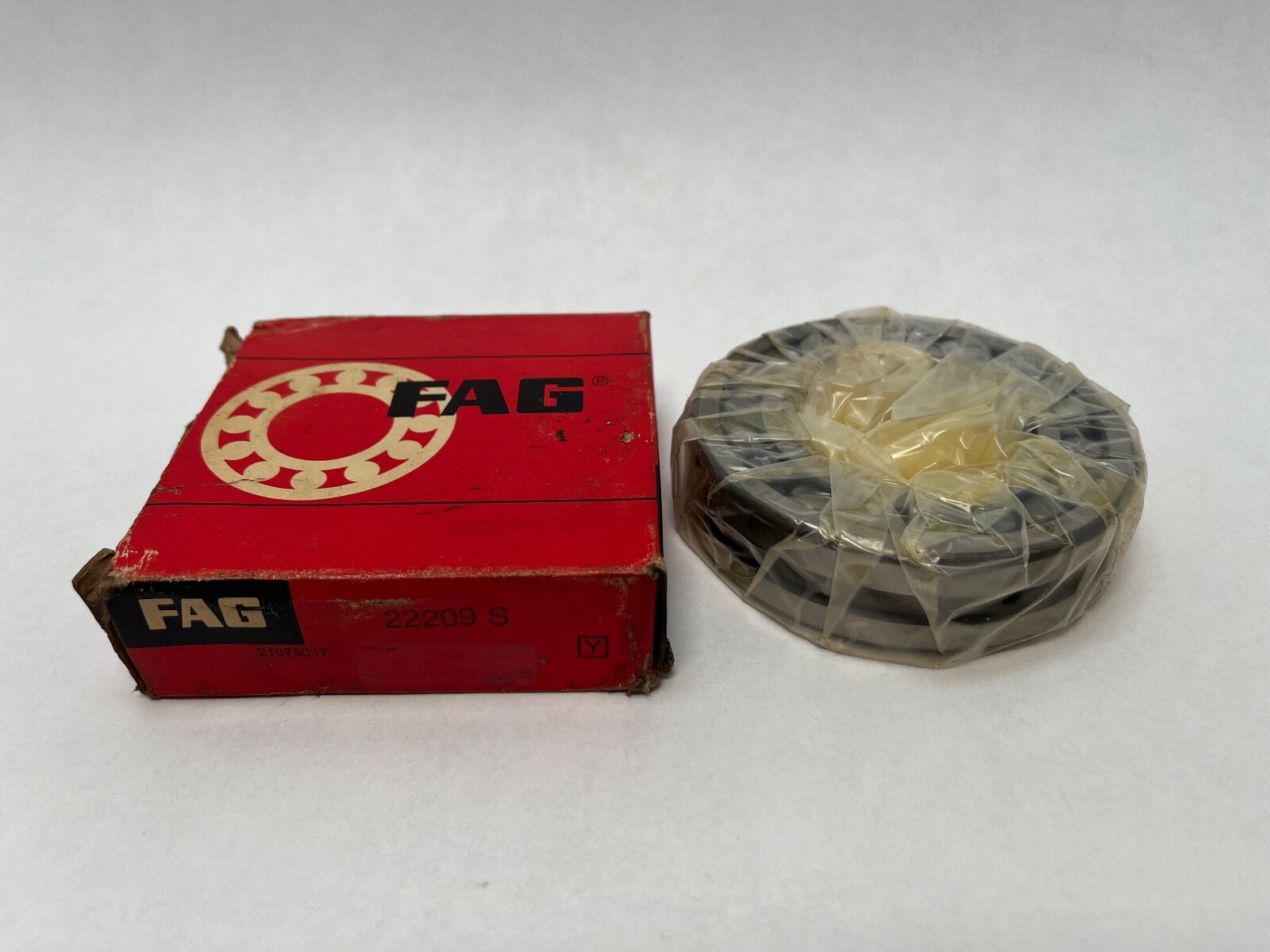

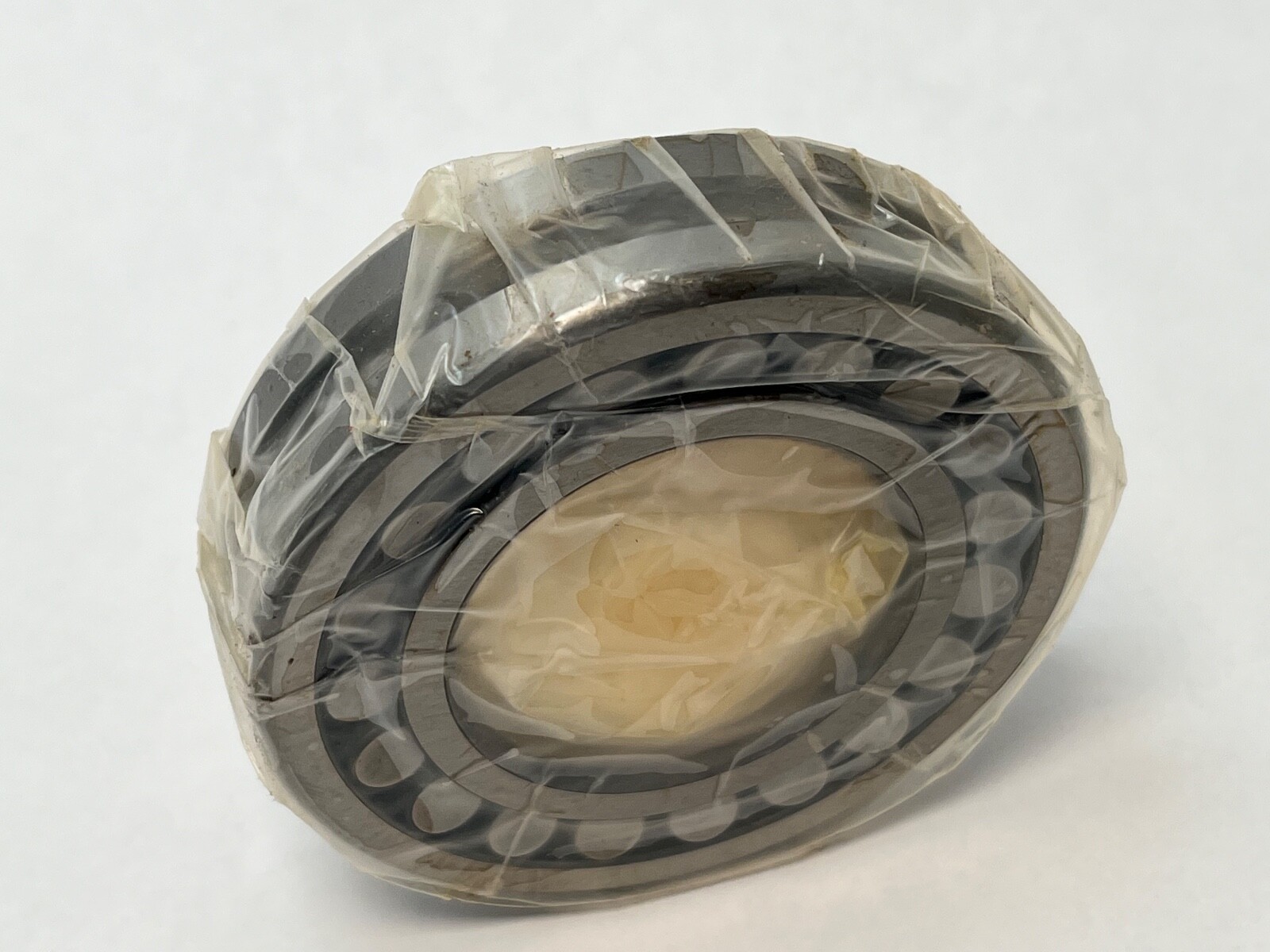

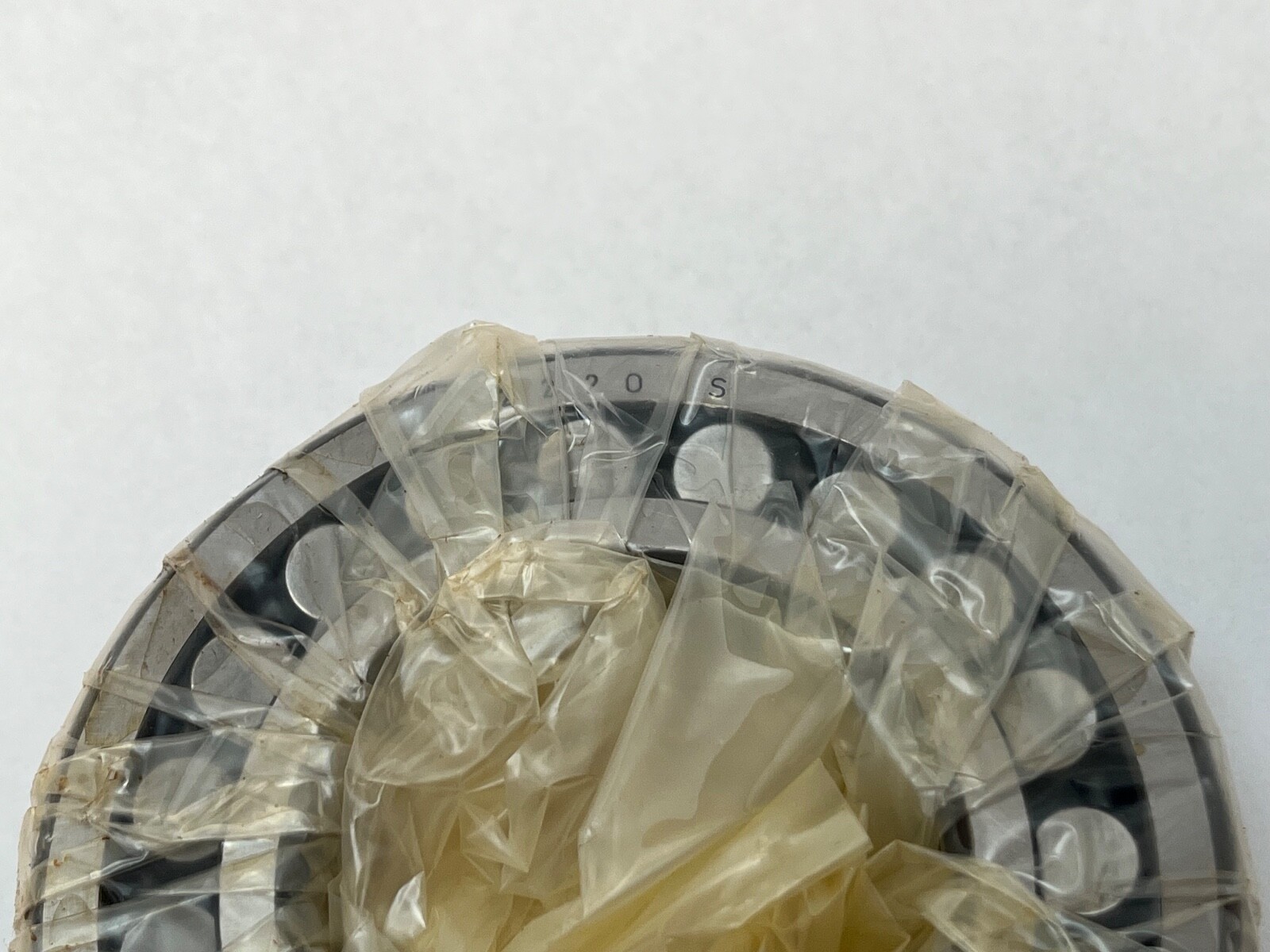

FAG 22209-S spherical roller bearing, 45 mm bore, 85 mm OD, 23 mm wide, outer ring lubrication groove and holes. Open, straight bore, normal clearance.
List Price
$43.42
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| Model | 22209-S |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 222 |
| Lubricant | grease or oil |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | CN |
| Base Number | 22209 |
| Overall Width | 23 mm |
| Mpn Variants | 22209S, 22209-S, 22209 S |
| Compatible With Replaces | Schaeffler successor 22209-E1-XL |
| Additional Attributes | Successor 22209-E1-XL data: Dynamic Load Rating 104,000 N; Static Load Rating 99,000 N; Limiting Speed 10,100 rpm; Reference Speed 5,600 rpm; Mass 0.56 kg |
| Cross Reference 1 | SKF 22209 E - E design, higher ratings |
|---|---|
| Cross Reference 2 | NSK 22209EAE4 - EA design, higher ratings |
| Cross Reference 3 | Timken 22209EJW33 - E design with W33 groove |
| Cross Reference 4 | NTN 22209EAD1 - EA design, higher ratings |
FAG 22209-S double-row spherical roller bearing from the 222 series. Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm. Bore Type: Straight. Internal Clearance: CN. Closure Type: Open. Number Of Rows: 2. Rolling Elements: Spherical Roller. Lubricant: grease or oil.
22209 — spherical roller bearing, 222 dimension series, bore code 09 = 45 mm.

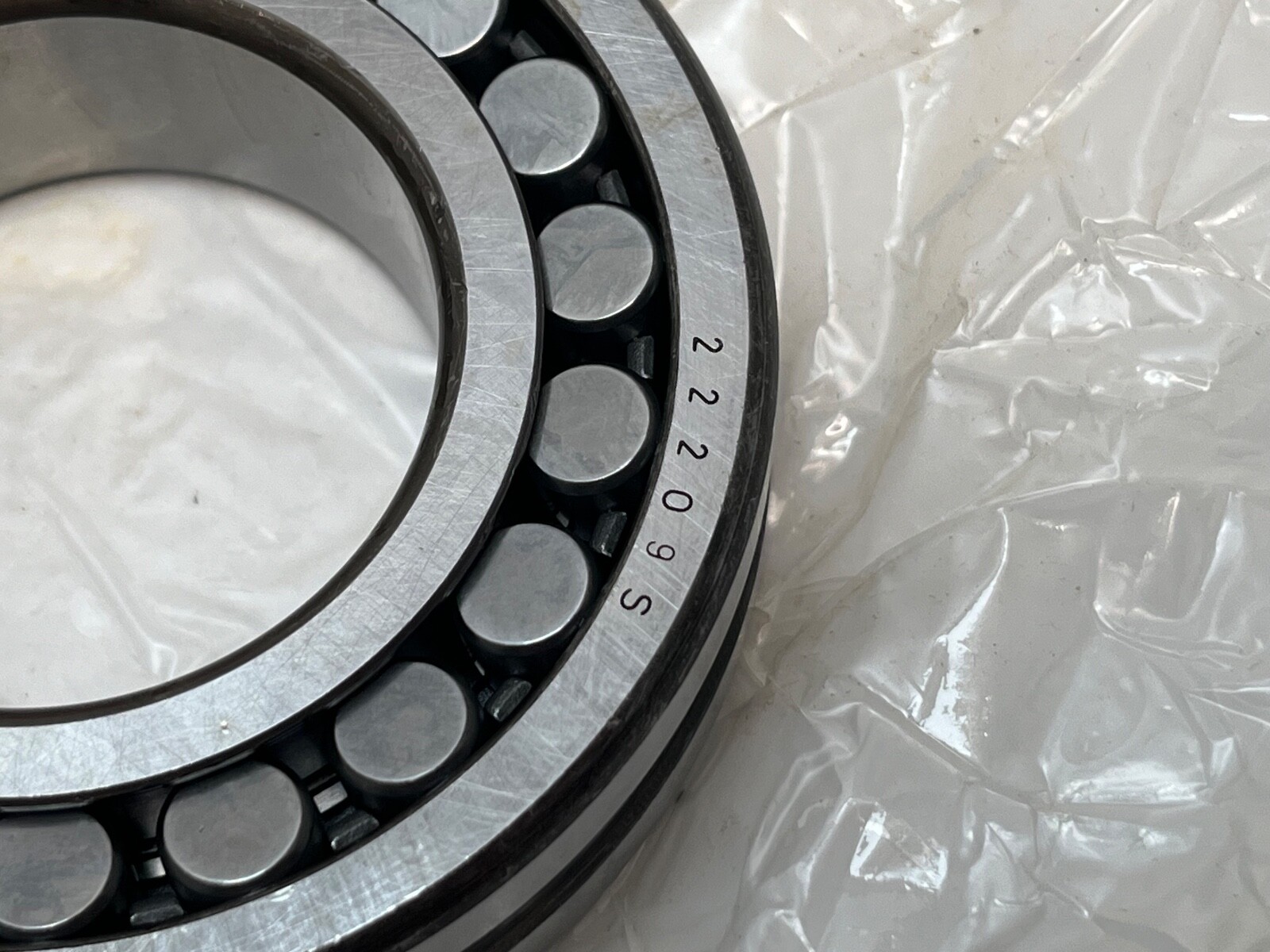

S — lubrication groove and radial lubrication holes in the outer ring, the FAG equivalent of W33.
Two rows of barrel rollers in a common spherical outer raceway carry heavy radial load plus axial load in both directions and self-align to shaft misalignment. The outer ring groove distributes grease or oil to both roller rows from the centre.
Successor 22209-E1-XL data: Dynamic Load Rating: 104,000 N. Static Load Rating: 99,000 N. Limiting Speed: 10,100 rpm. Reference Speed: 5,600 rpm. Item Weight: 0.56 kg (1.24 lb).
Successor 22209-E1-XL data: fillet radius r min: 1.1 mm. Abutment ra max: 1 mm. Abutment da min: 52 mm. Abutment Da max: 78 mm.
Unit Quantity: 1 Pc.
Compatible With / Replaces: Schaeffler successor 22209-E1-XL. Cross-references, 45 x 85 x 23 mm: SKF 22209 E, NSK 22209EAE4, Timken 22209EJW33, NTN 22209EAD1 (E designs, higher ratings than the S execution).
