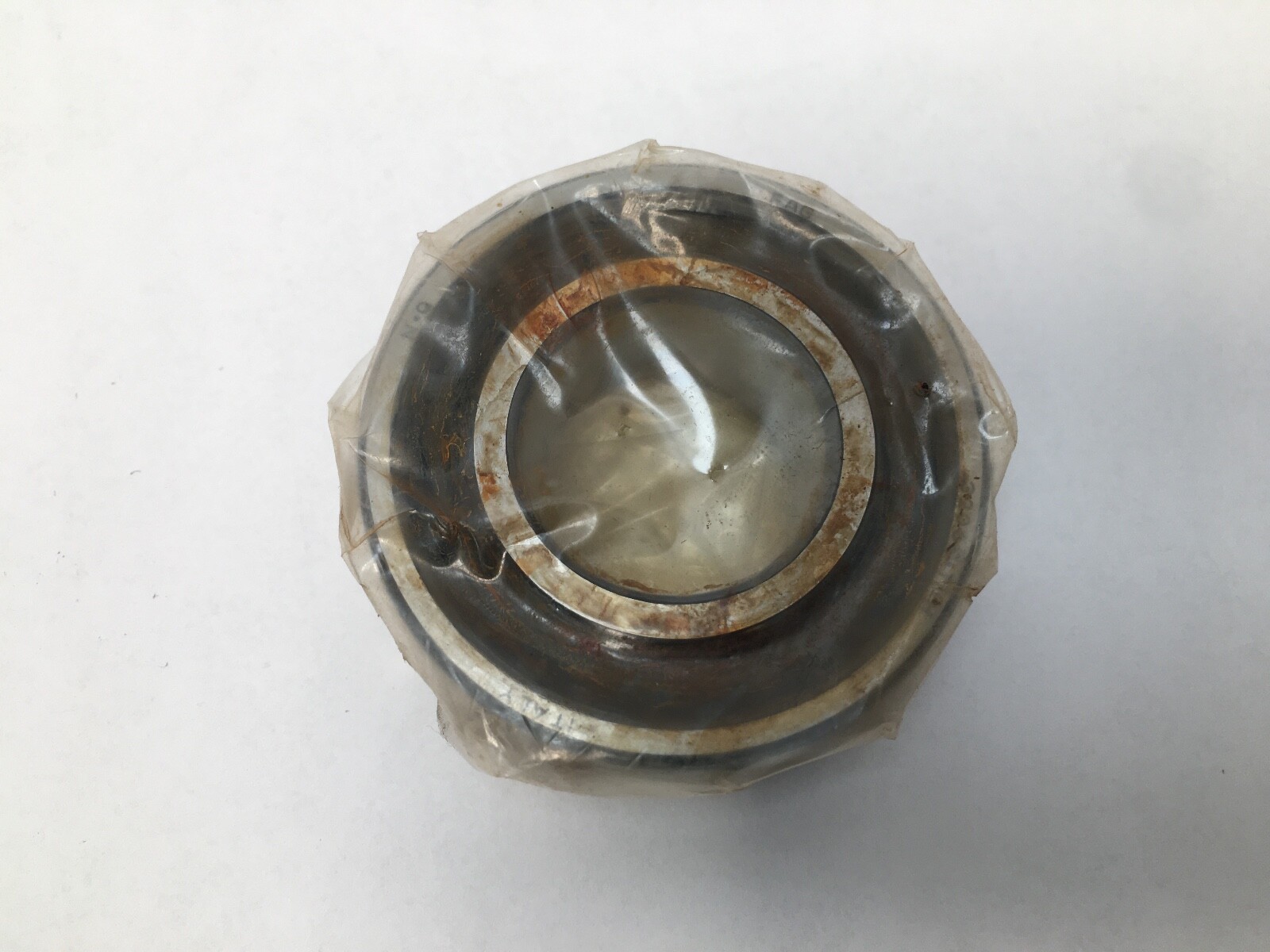

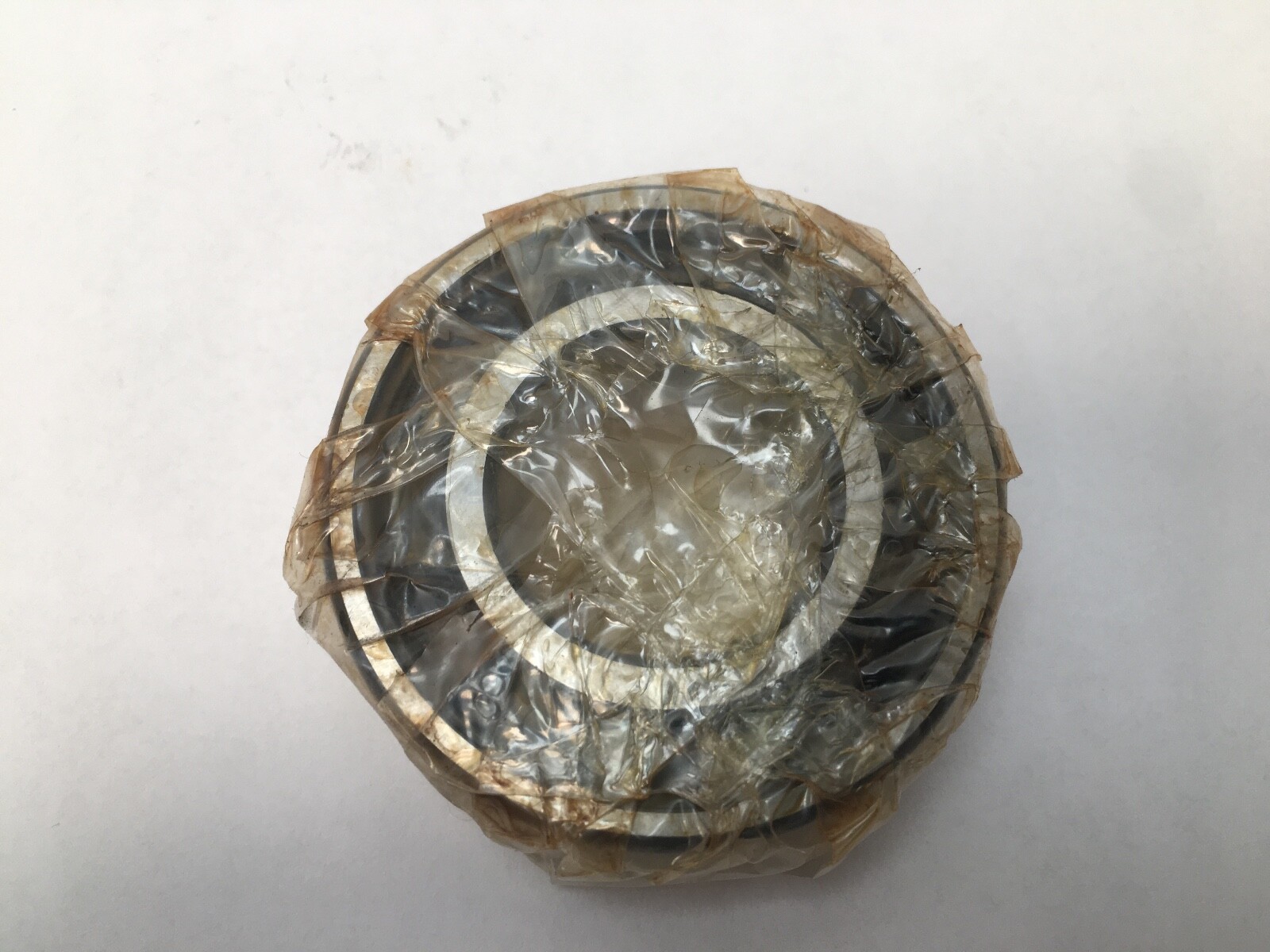

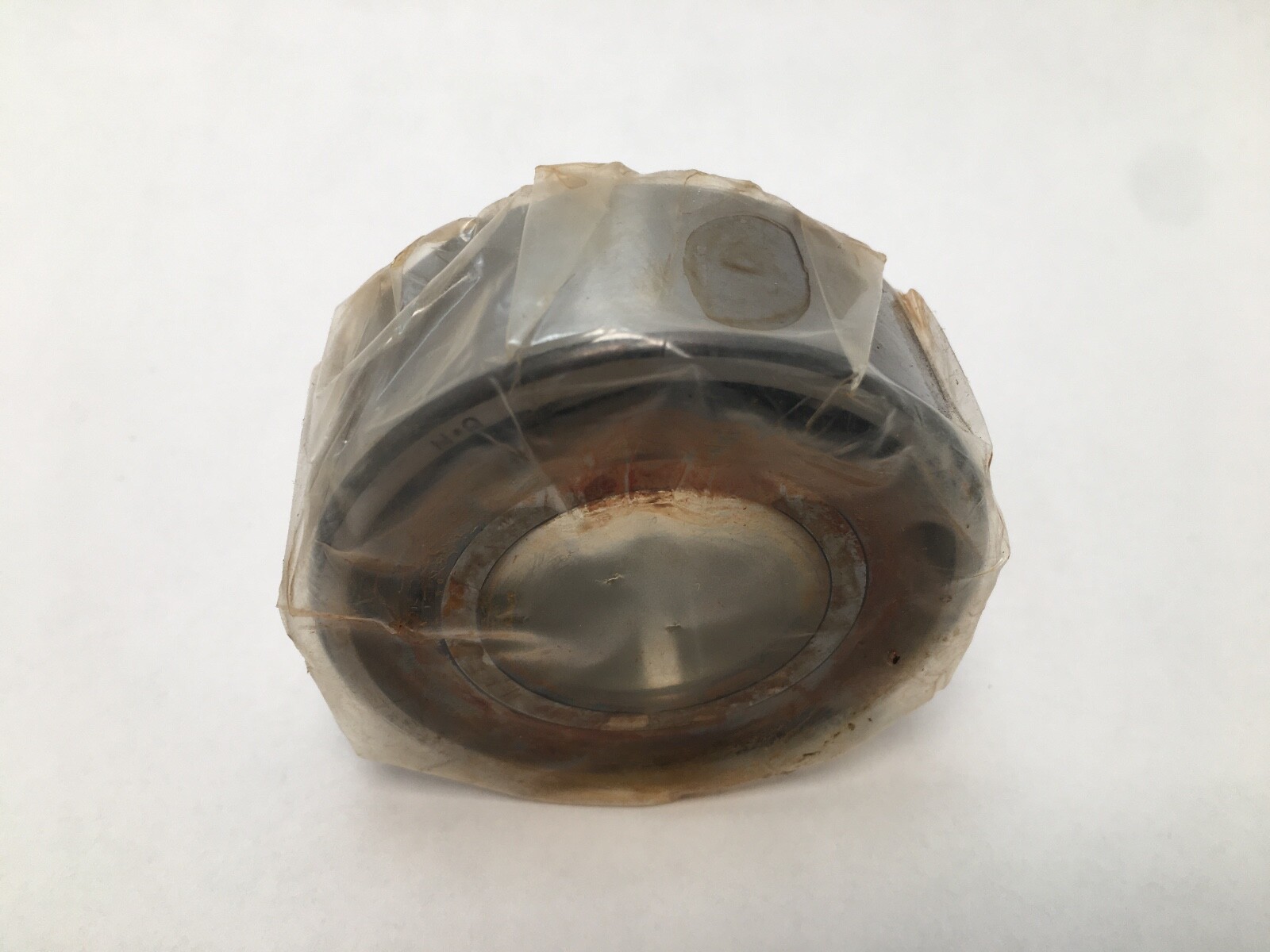

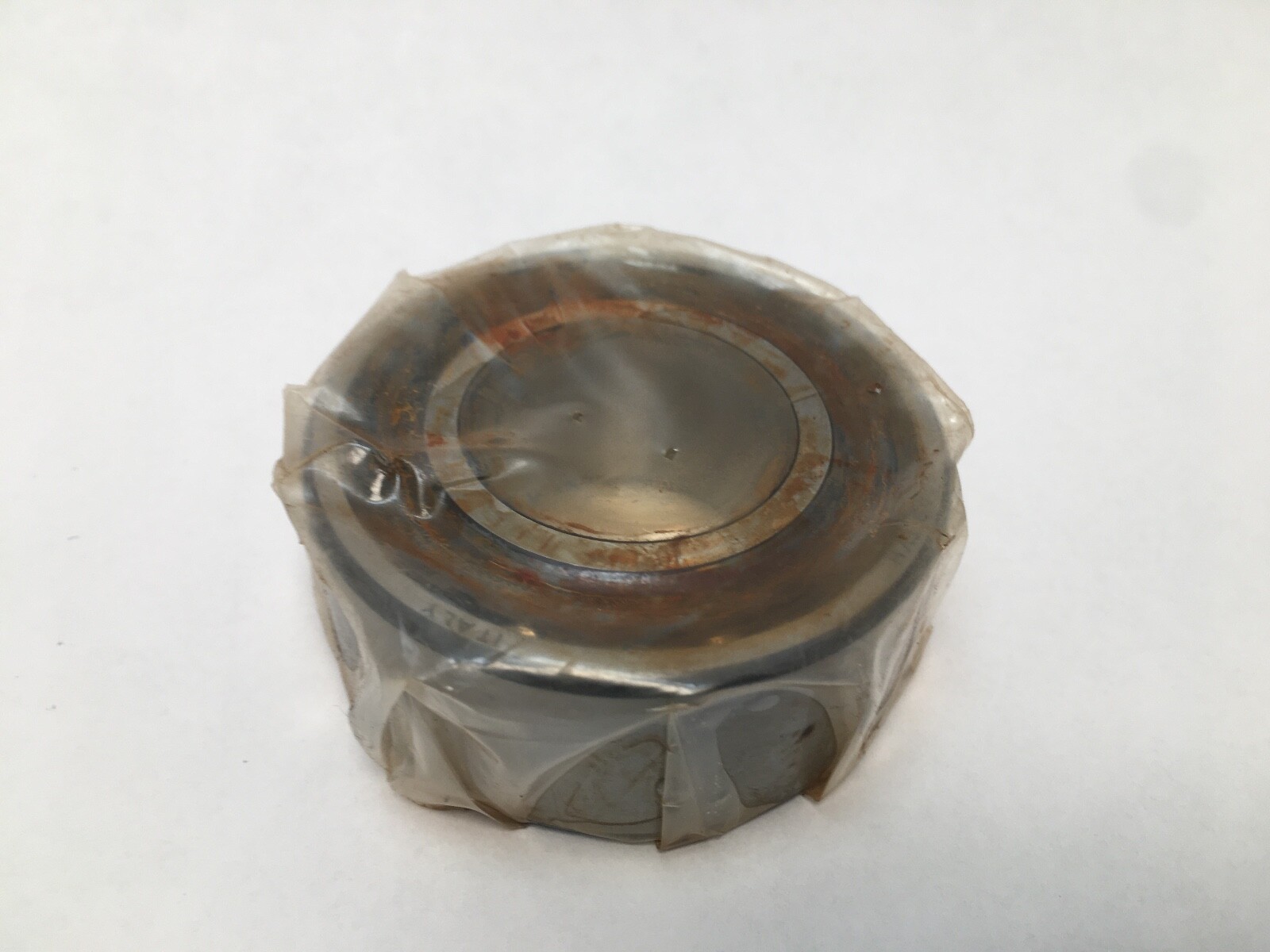

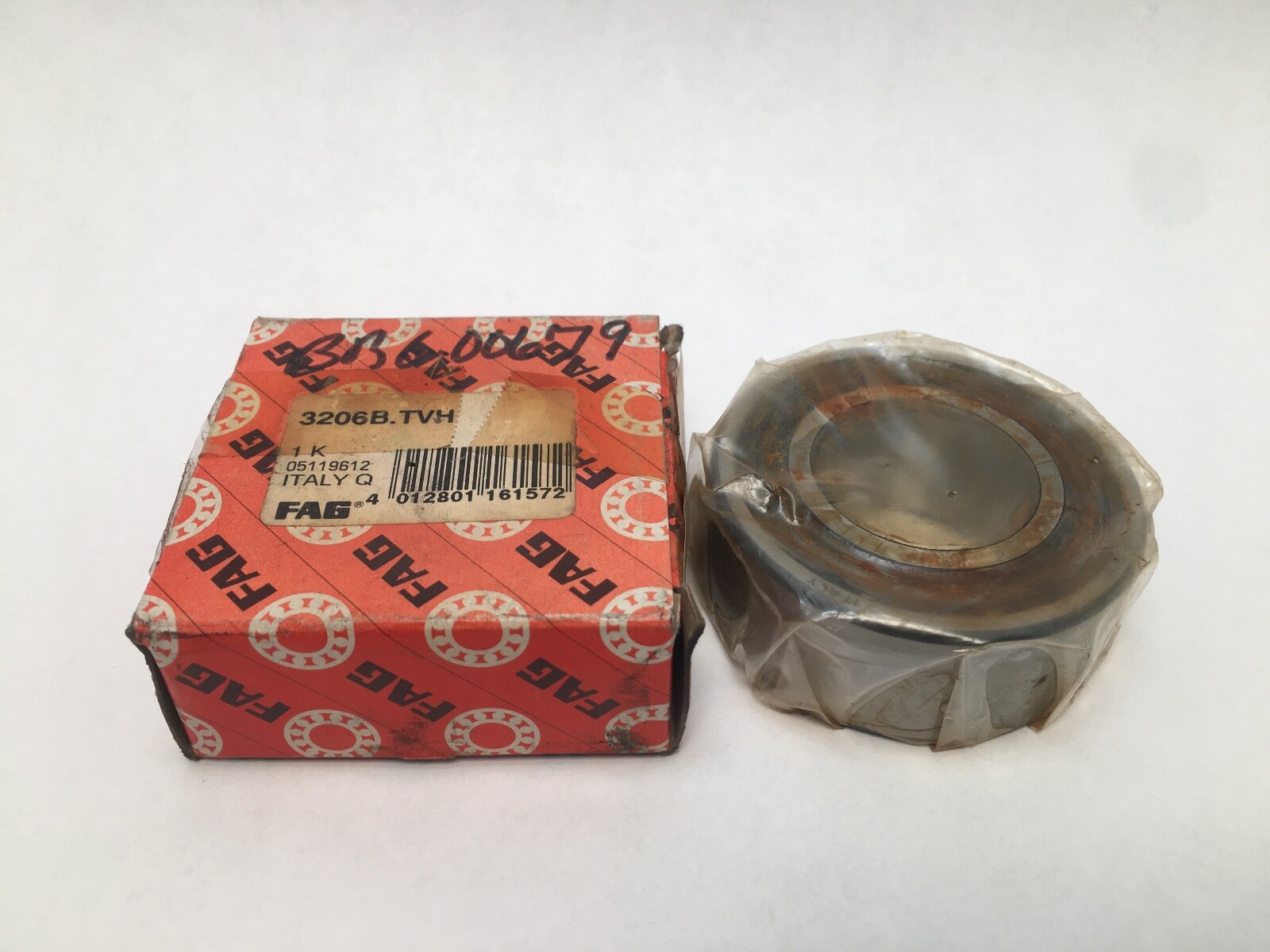

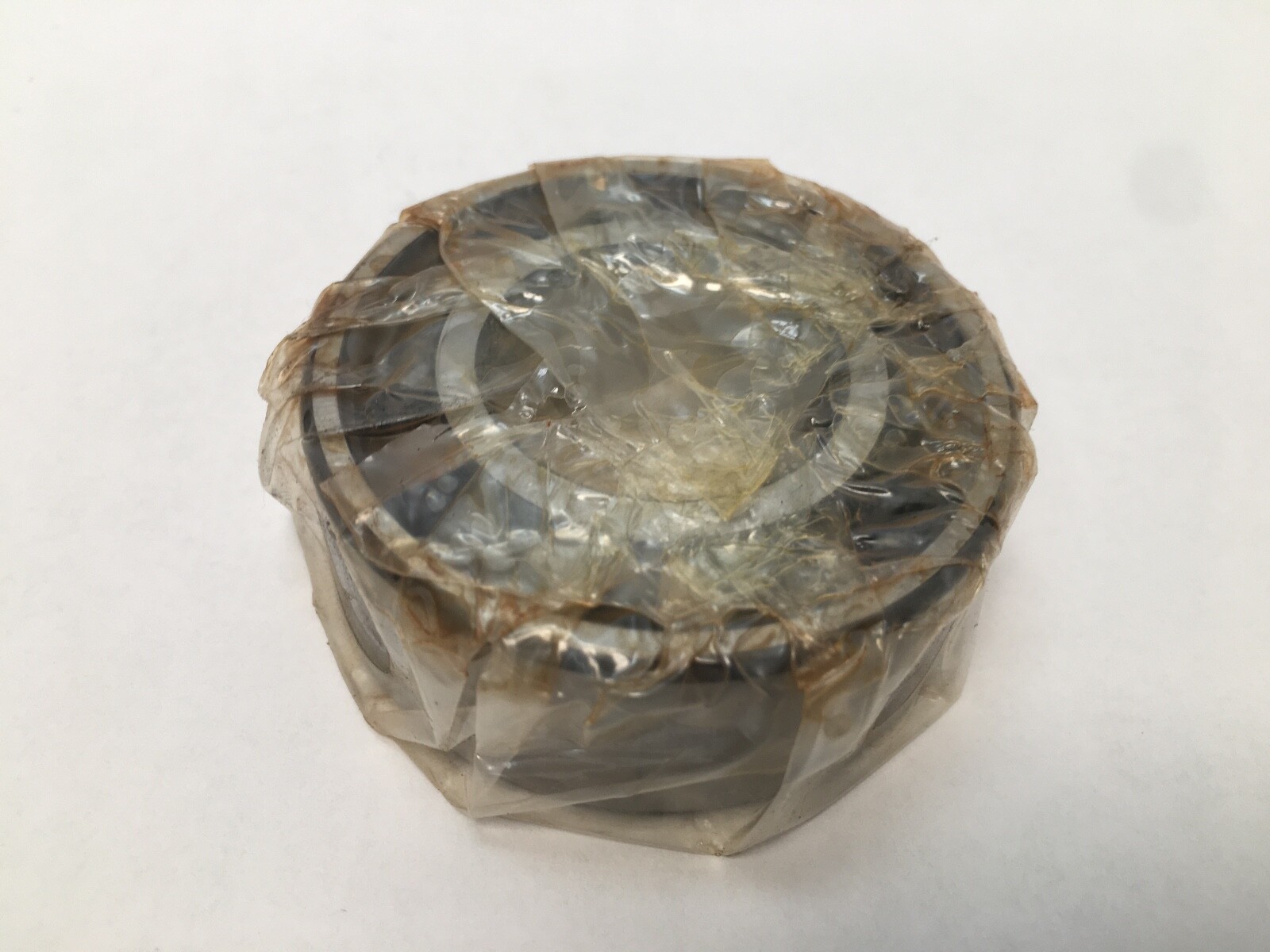

FAG 3206B.TVH double-row angular contact ball bearing, 30 mm bore x 62 mm OD x 23.8 mm (15/16 in) wide, open, polyamide cage. Also sold as 5206 size.
List Price
$30.39
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 3206BTVH |
| Model | 3206 B TVH 5206B |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 62 mm |
| Width | 23.8 mm (0.9370 in) |
| Series | 3200 |
|---|---|
| Condition | New |
| Closure Type | Open |
| Dynamic Load Rating | 31,000 N |
| Static Load Rating | 22,200 N |
| Rolling Elements | Ball |
| Item Weight | 0.278 kg (0.61 lb) |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 11,900 rpm |
| Base Number | 3206 |
| Industry Terms | double row angular contact ball bearing, 3200 series, 5200 series |
| Common Misspellings | 3206BTV, 3206 BTVH, 5206 B |
| Application Types | pumps, compressors, gearboxes, machine tool drives |
| Mpn Variants | 3206B.TVH, 3206-B-TVH, 3206BTVH, 3206B, 3206 B TVH 5206B, 5206B |
| Compatible With Replaces | Successor: FAG 3206-BD-XL-TVH |
| Additional Attributes | Successor 3206-BD-XL-TVH data: Dynamic Load Rating, Static Load Rating, Limiting Speed and Item Weight rows carry Schaeffler figures for 3206-BD-XL-TVH; successor contact angle 30 deg. |
| Cross Reference 1 | SKF 3206 A |
|---|---|
| Cross Reference 2 | NSK 3206 |
| Cross Reference 3 | Koyo 3206 |
| Cross Reference 4 | 5206 (same size, older numbering) |
| Cross Reference 5 | KOYO 3206 |
FAG 3206B.TVH double-row angular contact ball bearing, open, polyamide cage. Bore Diameter: 30 mm. Outside Diameter: 62 mm. Overall Width: 23.8 mm (15/16 in). Two rows of balls carry radial load and axial load in both directions.
32 — FAG 32 series double-row angular contact ball bearing.
06 — bore code; 06 × 5 = 30 mm bore.
B — FAG internal design generation for the 32 series.
TVH — solid cage of glass-fibre reinforced polyamide.
The current Schaeffler successor is 3206-BD-XL-TVH.
Successor 3206-BD-XL-TVH data: Dynamic Load Rating: 31,000 N. Static Load Rating: 22,200 N. Limiting Speed: 11,900 rpm. Contact Angle: 30°. Item Weight: 0.278 kg (0.61 lb). Number Of Rows: 2. Rolling Elements: Ball.
Successor 3206-BD-XL-TVH data: Minimum shaft shoulder diameter: 35.6 mm. Maximum housing shoulder diameter: 56.4 mm. Maximum fillet radius: 1 mm.
Same 30 x 62 x 23.8 mm envelope: SKF 3206 A, NSK 3206, Koyo 3206, 5206 (older numbering for the same size). Schaeffler successor: FAG 3206-BD-XL-TVH.
