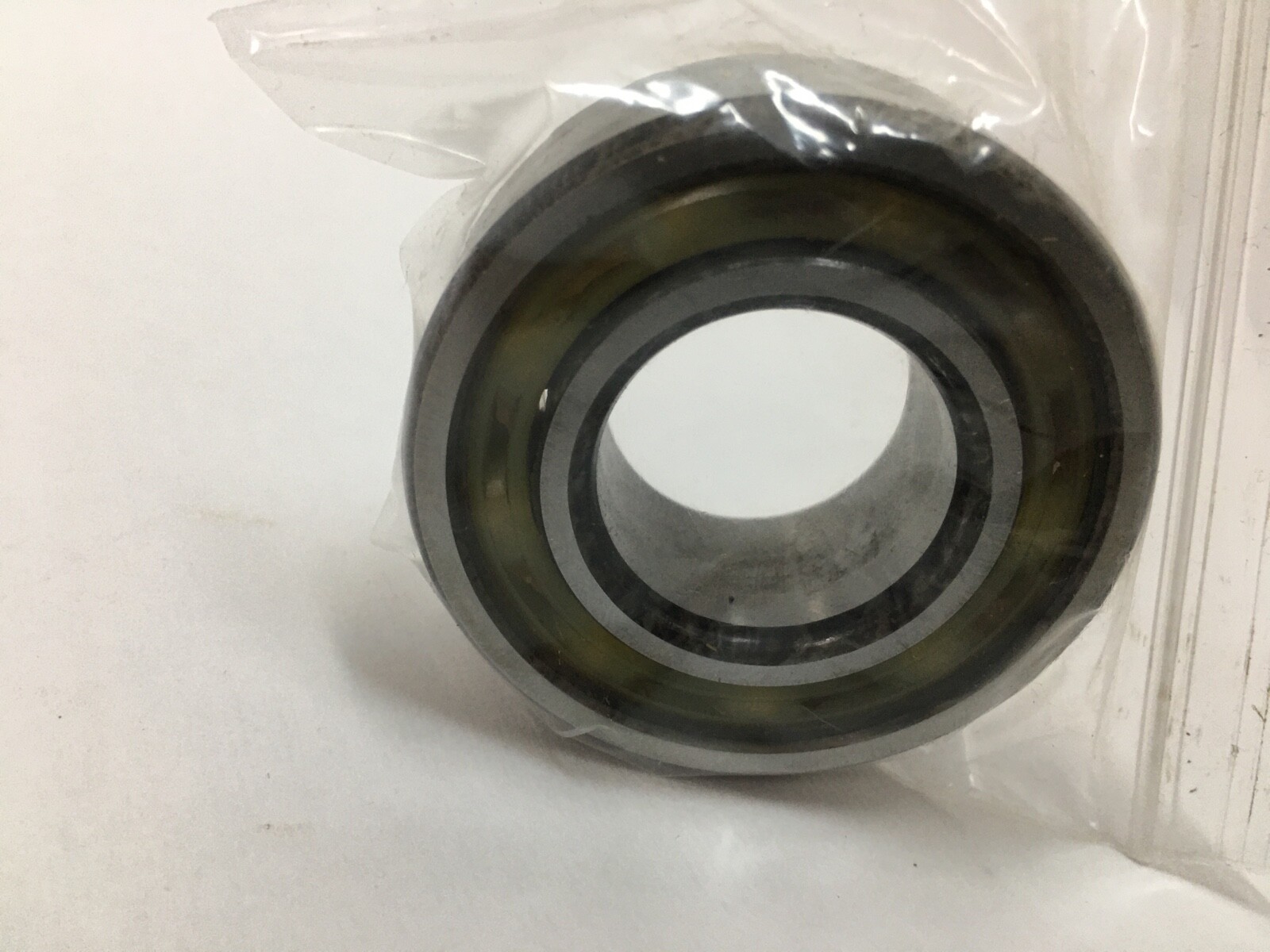

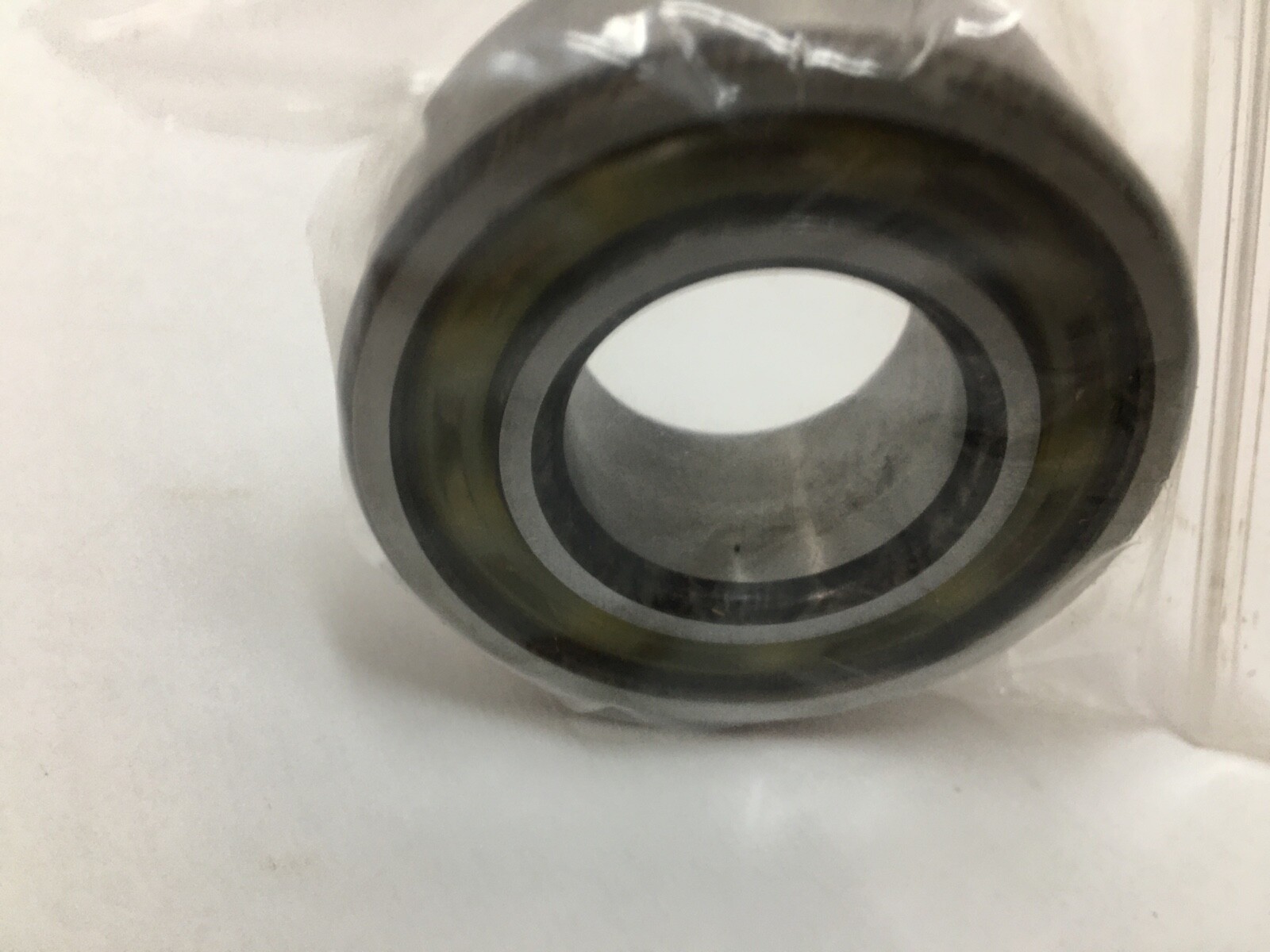

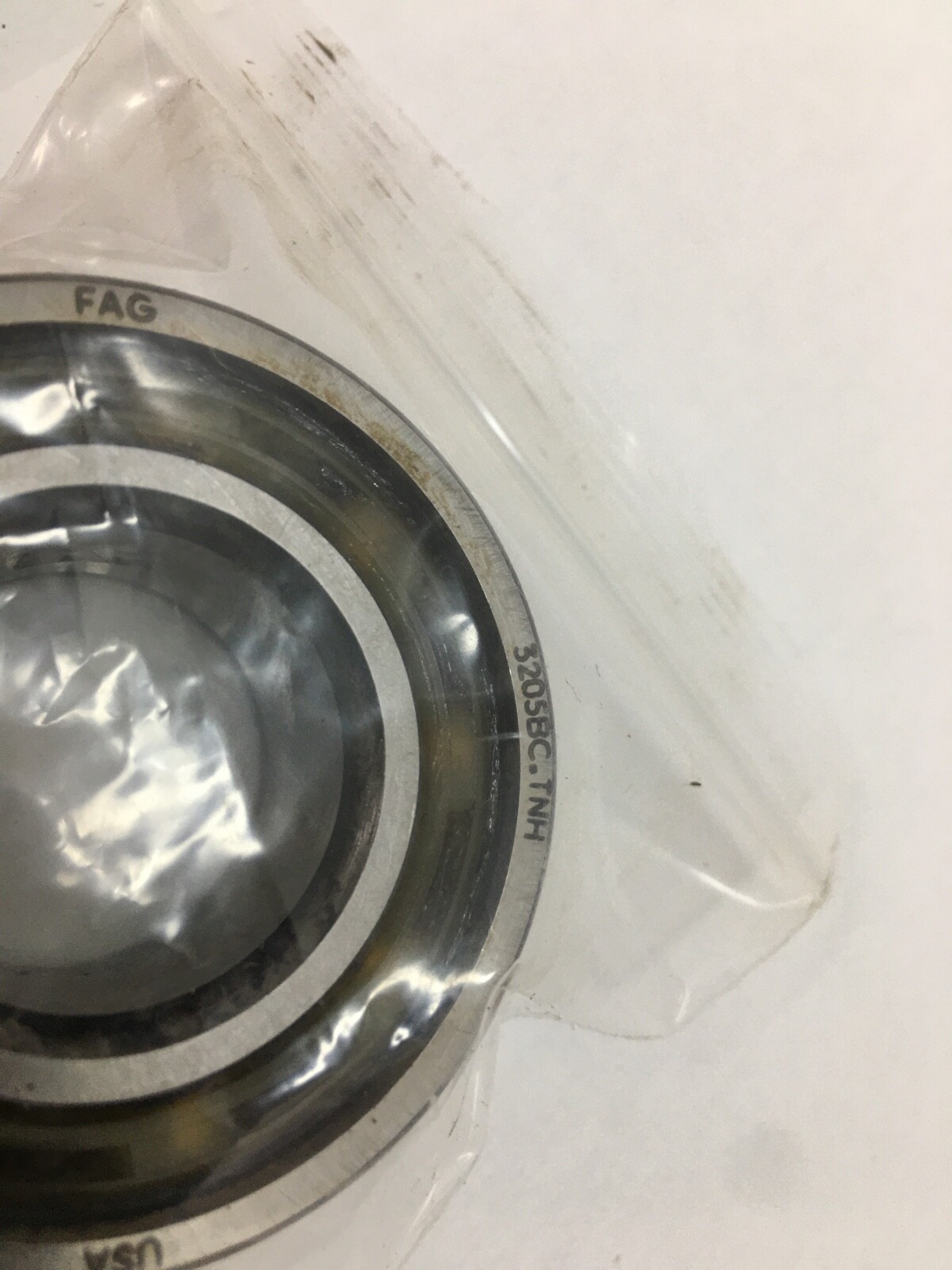

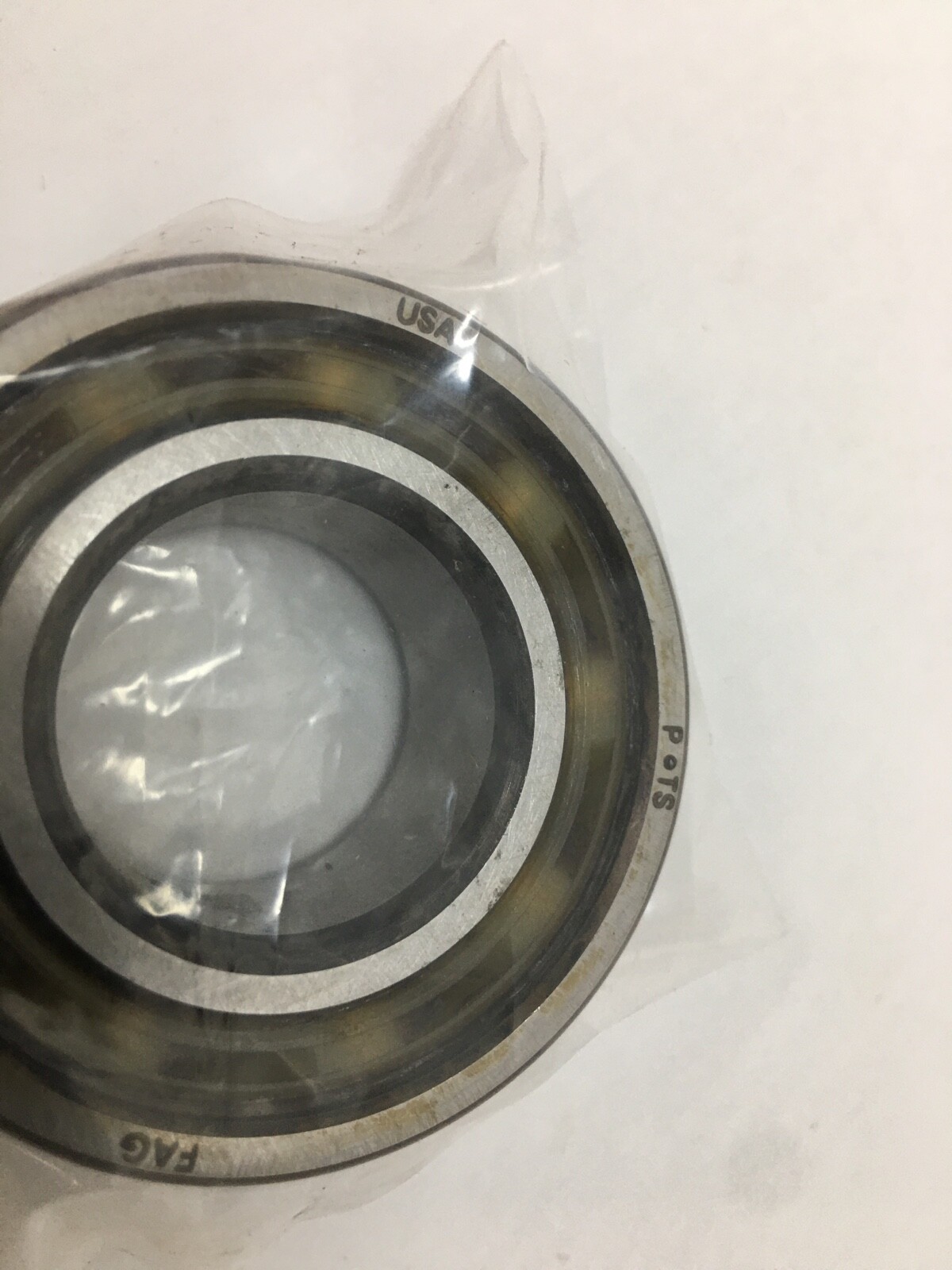

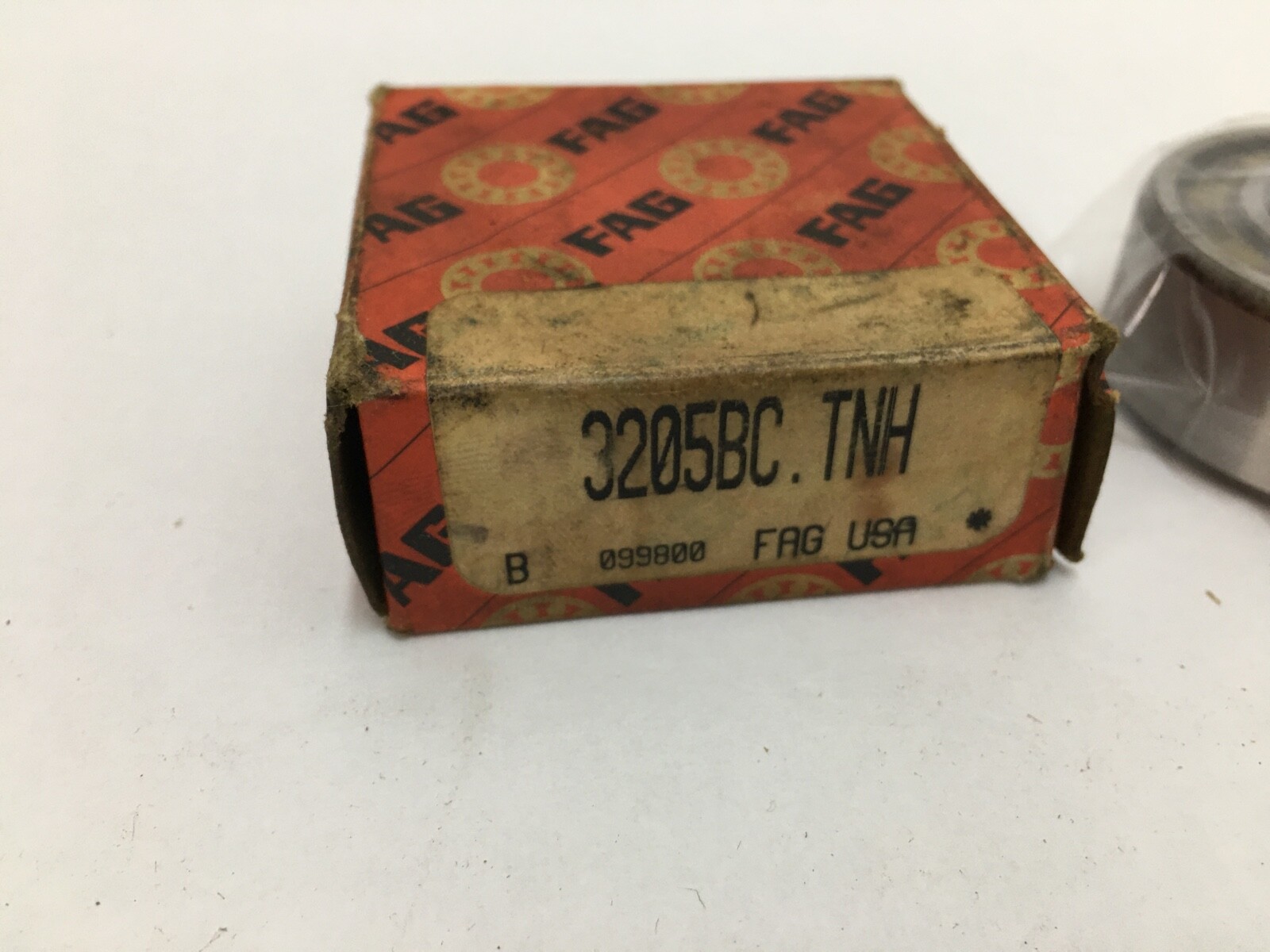

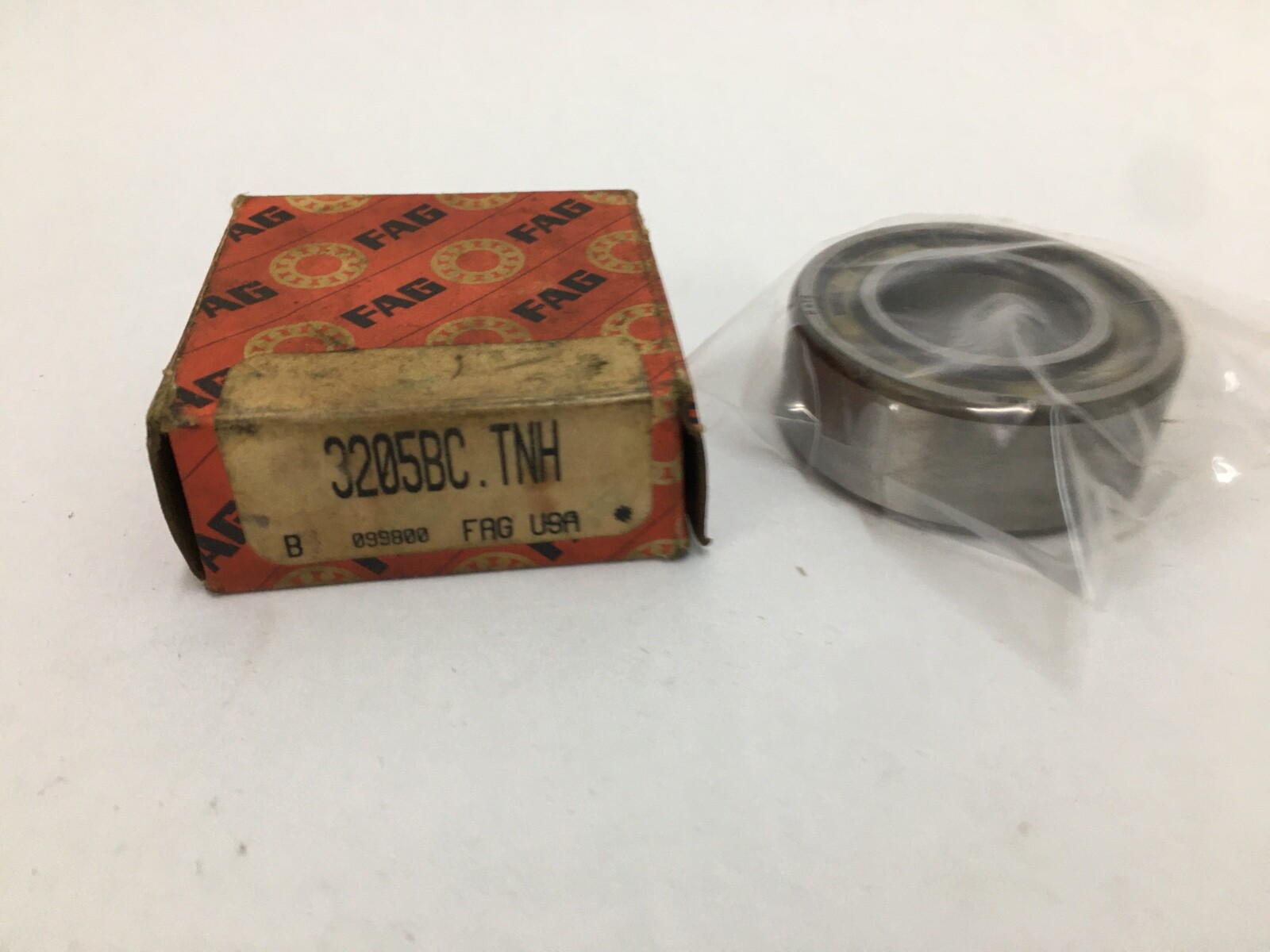

FAG 3205BC.TNH double-row angular contact ball bearing, 25 mm bore x 52 mm OD x 20.6 mm (13/16 in) wide, open, polyamide cage. Also sold as 5205 size.
List Price
$33.91
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 3205BC.TNH |
| Model | 3205-BC-TNH |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 52 mm |
| Width | 20.6 mm (0.8110 in) |
| Series | 3200 |
|---|---|
| Rolling Elements | Ball |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.1 |
| Base Number | 3205 |
| Industry Terms | double row angular contact ball bearing, 3200 series, 5200 series |
| Common Misspellings | 3205BCTNH, 3205 BC TNH, 5205BC |
| Application Types | pumps, compressors, gearboxes, machine tool drives |
| Mpn Variants | 3205BC.TNH, 3205.BC.TNH, 3205BC-TNH, 3205-BC-TNH, 3205BC, 5205 B C |
| Compatible With Replaces | FAG 3205-BD-XL-TVH (current catalogue 3205 size, different design) |
FAG 3205BC.TNH double-row angular contact ball bearing, open, polyamide cage. Bore Diameter: 25 mm. Outside Diameter: 52 mm. Overall Width: 20.6 mm (13/16 in). Two rows of balls carry radial load and axial load in both directions. Unit Quantity: 1 Pc.
32 — FAG 32 series double-row angular contact ball bearing (dimension series 32).
05 — bore code; 05 × 5 = 25 mm bore.
TNH — solid cage of glass-fibre reinforced polyamide.
Bearing Type: Double row angular contact ball bearing. Number Of Rows: 2. Rolling Elements: Ball. Bore Diameter: 25 mm. Outside Diameter: 52 mm. Overall Width: 20.6 mm (0.8110 in). Closure Type: Open. Cage Material: Polyamide. Bore Type: Straight. Series: 3200. Unit Quantity: 1 Pc.
Envelope: 25 x 52 x 20.6 mm. Straight cylindrical bore, open both sides.
Written 3205BC.TNH, 3205.BC.TNH, 3205BC-TNH and 3205-BC-TNH. The current Schaeffler catalogue 3205 size is FAG 3205-BD-XL-TVH, a different design with its own ratings. MPN Variants: 3205BC.TNH, 3205.BC.TNH, 3205BC-TNH, 3205-BC-TNH, 3205BC, 5205 B C.
Bore Diameter: 25 mm. Outside Diameter: 52 mm. Overall Width: 20.6 mm (13/16 in).
A solid cage of glass-fibre reinforced polyamide (TNH).
Open.
