Double-row angular contact ball bearing, 20 x 47 x 20.6 mm, 30° contact angle, P6 tolerance, polyamide TVH cage, open. Equivalent series name 5204.
List Price
$25.33
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 3204B.TVH.P6 |
| Model | 3204-B-TVH-P6 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 20 mm |
| OD | 47 mm |
| Width | 20.6 mm |
| Series | 3200 |
|---|---|
| Cage Type | Solid window cage, glass-fibre reinforced PA66 (TVH) |
| Dynamic Load Rating | 20,600 N |
| Static Load Rating | 12,900 N |
| Rolling Elements | Ball |
| Item Weight | 0.146 kg |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 16,100 rpm |
| Harmonization Code | 8482.10.5068 |
| Contact Angle | 30° |
| Overall Width | 20.6 mm |
| Mpn Variants | 3204B.TVH.P6, 3204-B-TVH-P6, 3204BTVHP6, 3204B, 3204 B TVH P6, 5204B, 5204 |
| Compatible With Replaces | Successor: FAG 3204-BD-XL-TVH |
| Precision Class | ABEC 3 / P6 |
| Additional Attributes | Successor 3204-BD-XL-TVH data: Reference speed 14,700 rpm; Operating temperature -30 to +120 °C; da min 25.6 mm; Da max 41.4 mm; r min 1 mm; supplied not greased. Own part: B = without filling slot. |
| Internal Clearance | CN |
| Closure Type | Open |
| Cross Reference 1 | SKF 3204 A |
|---|---|
| Cross Reference 2 | NSK 5204 |
| Cross Reference 3 | MRC 5204 |

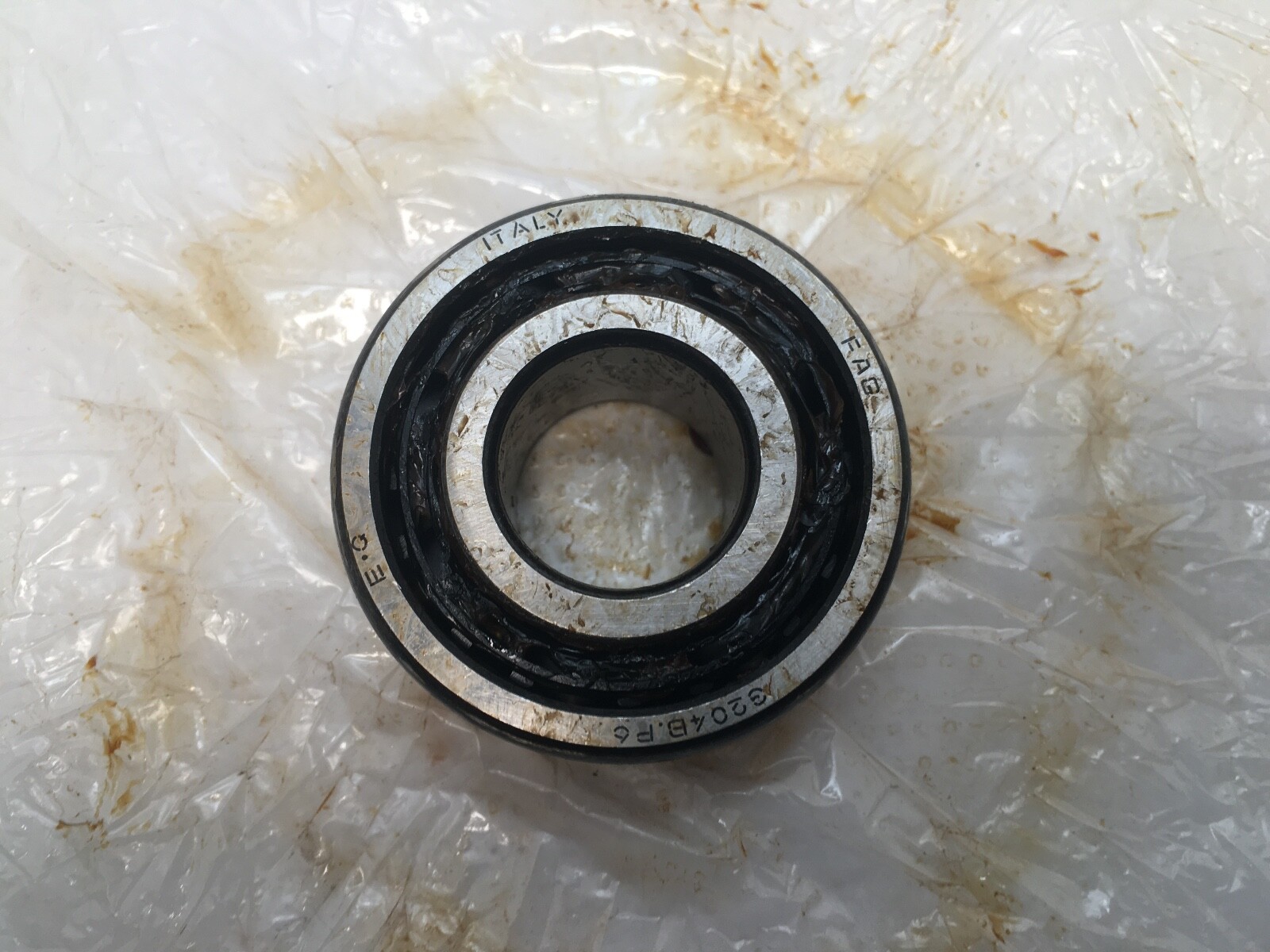

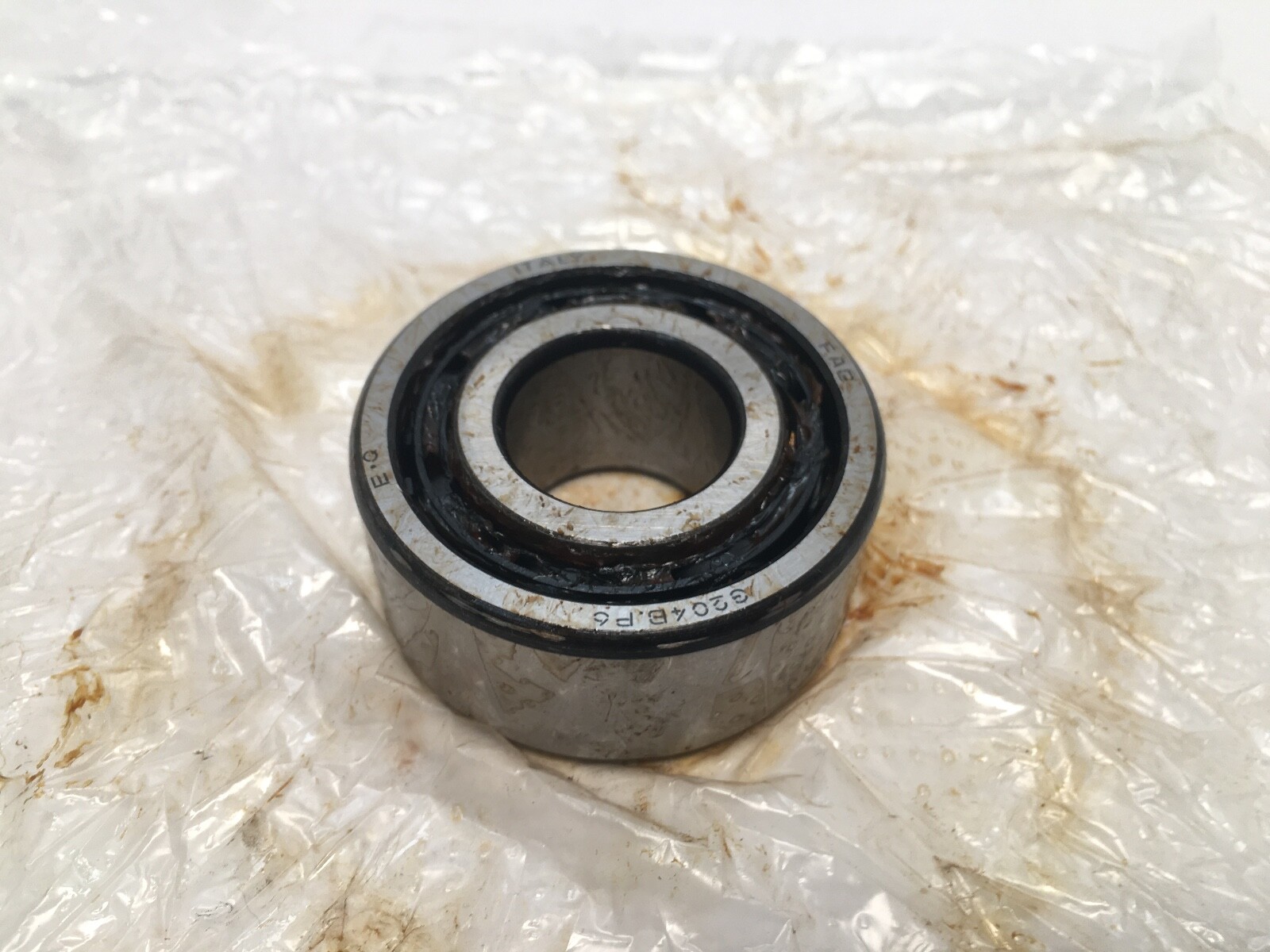

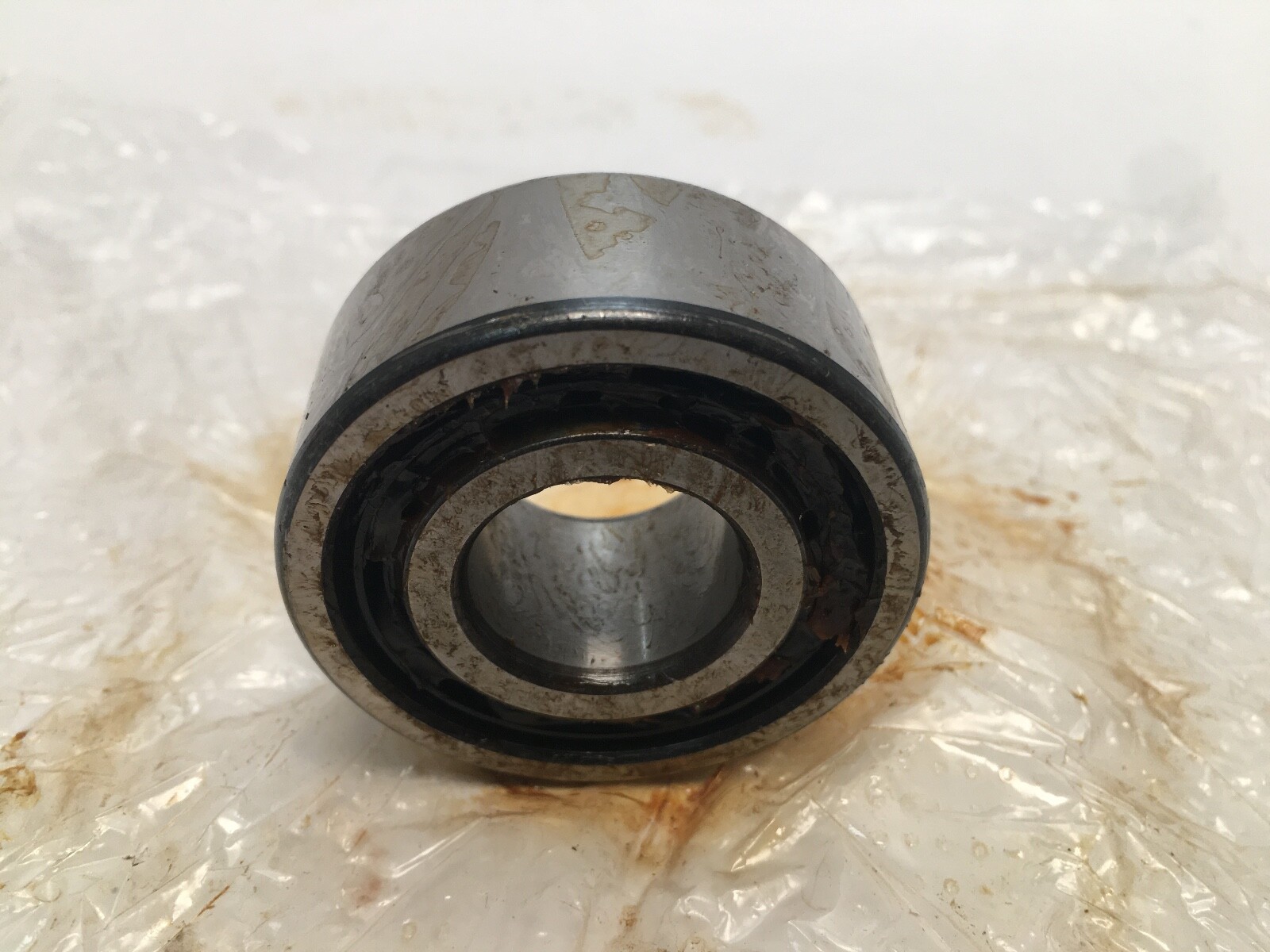

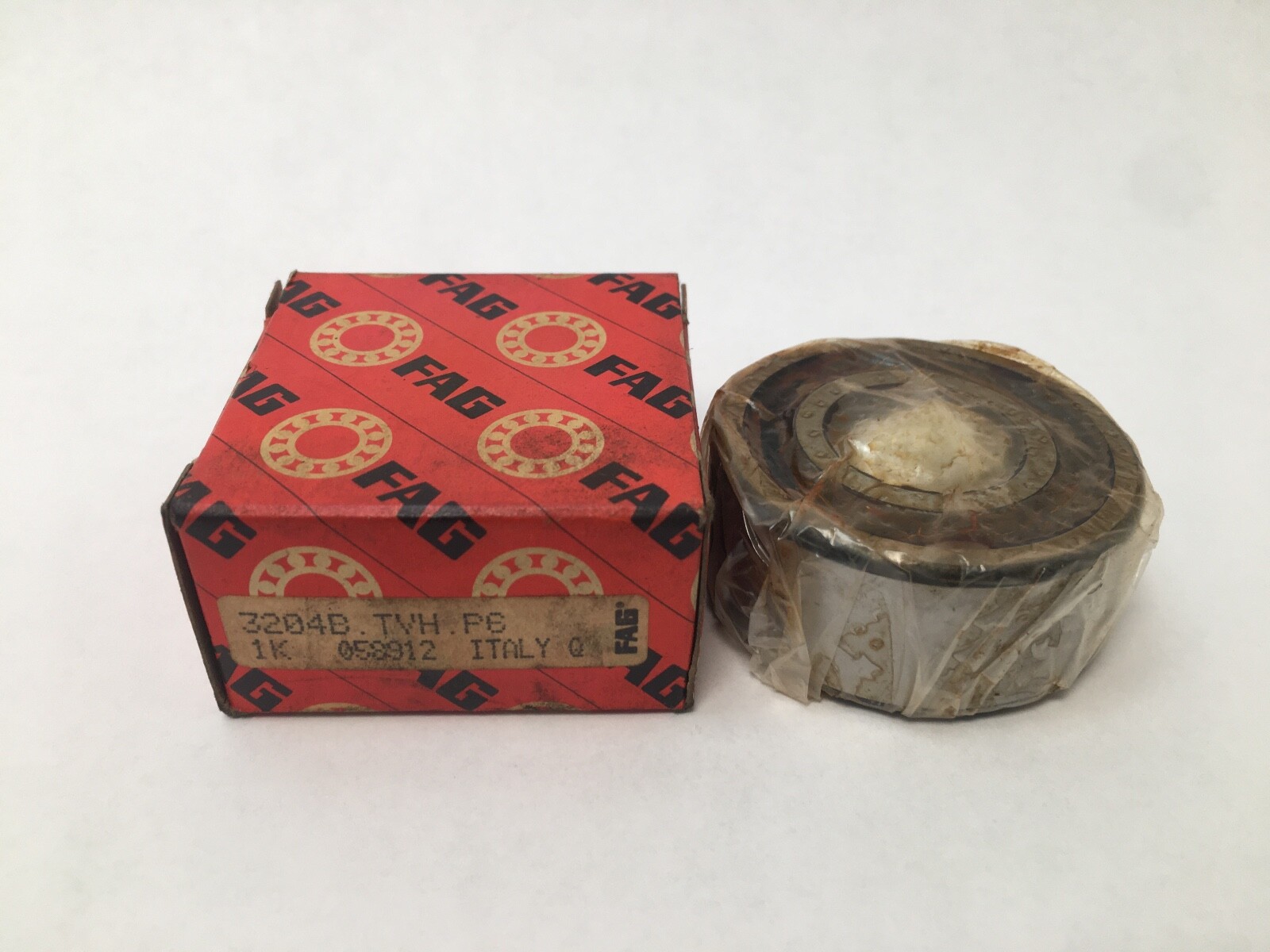

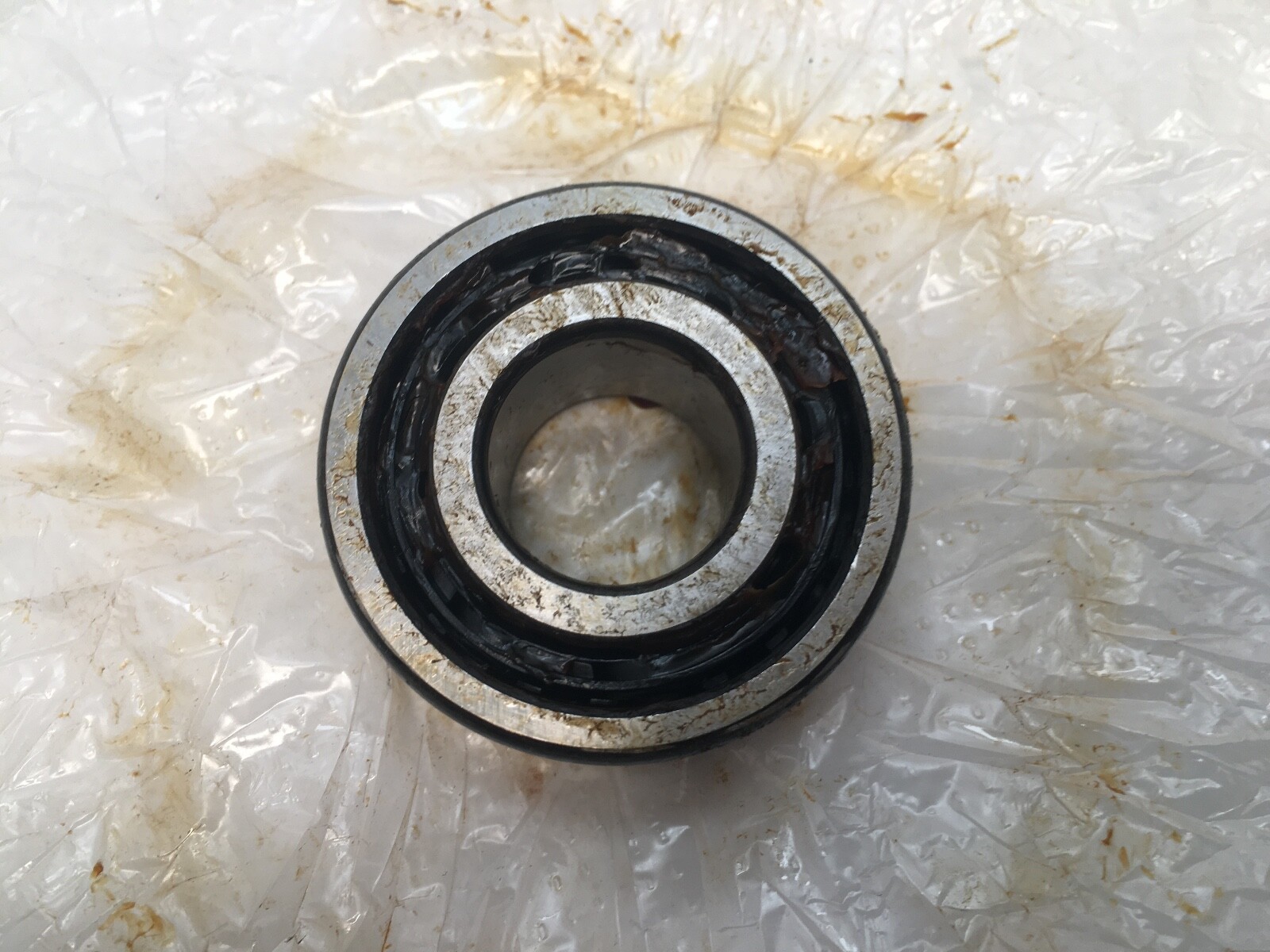

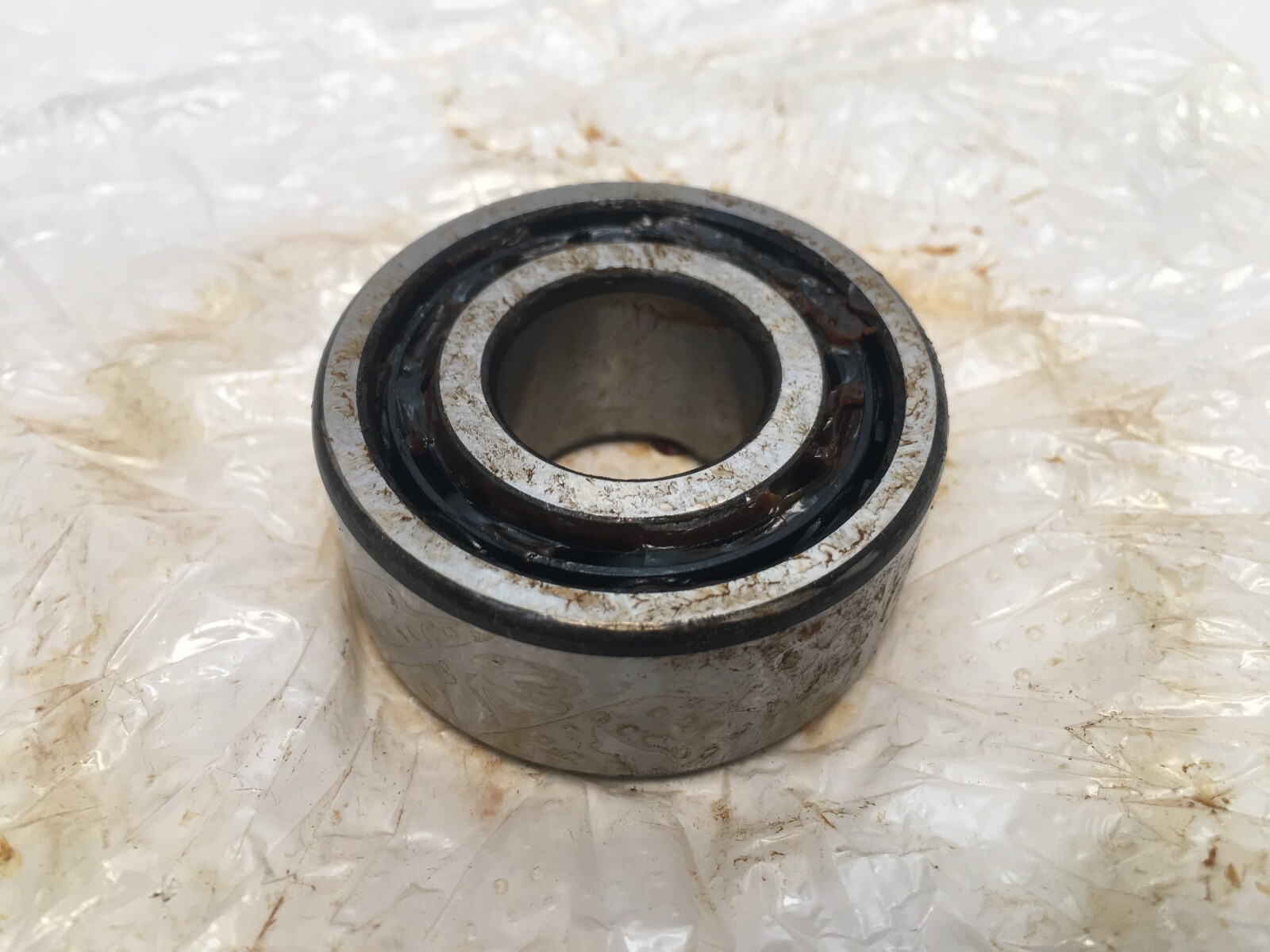

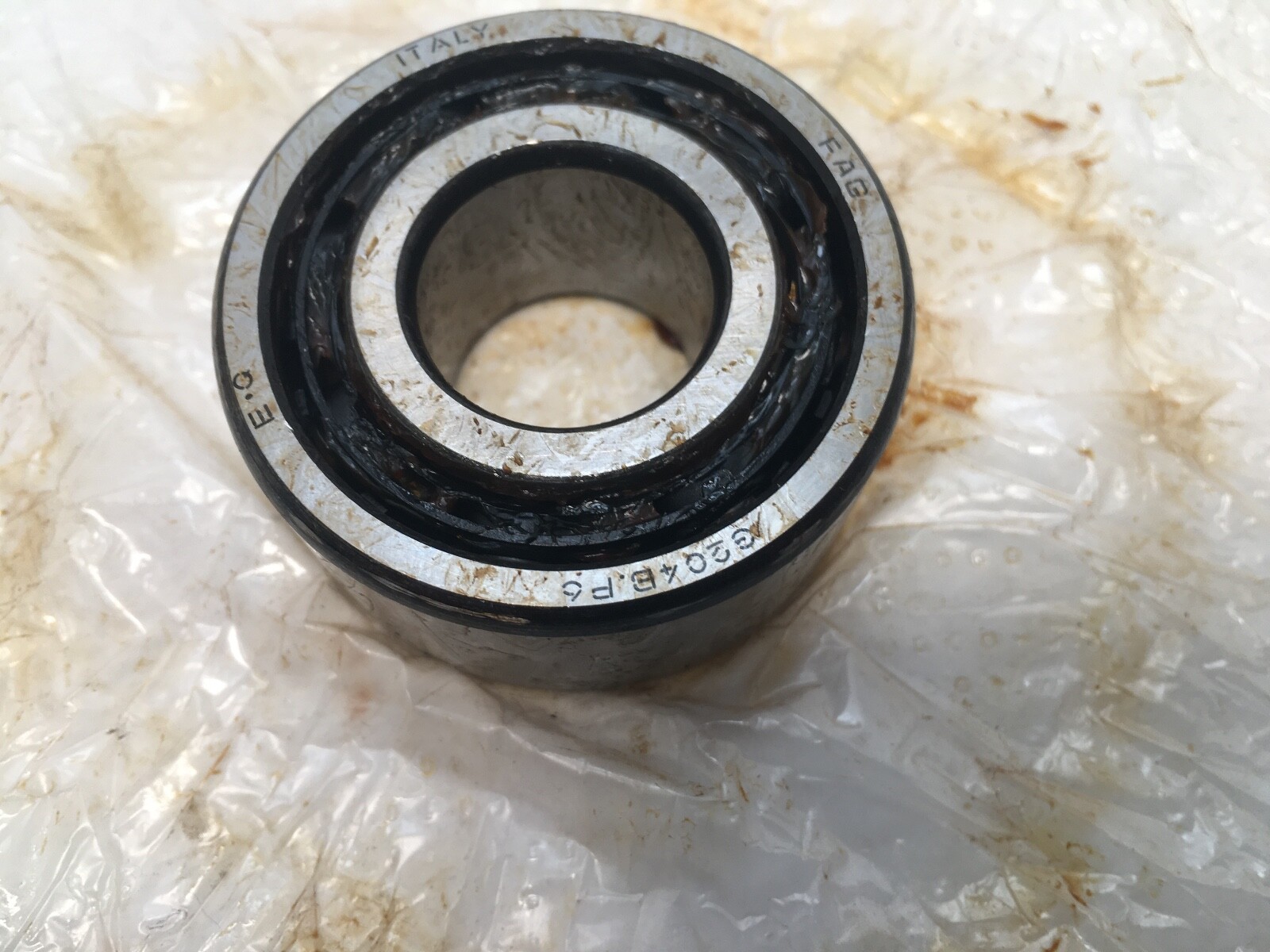

FAG 3204B.TVH.P6 (3204-B-TVH-P6) is a double-row angular contact ball bearing, 20 x 47 x 20.6 mm (13/16 in wide), P6 tolerance, polyamide TVH cage, open. Equivalent series name: 5204. Unit Quantity: 1 Pc.
3204 — double-row angular contact ball bearing, 3200 series, 20 mm bore, 20 x 47 x 20.6 mm.
B — design without filling slot.
TVH — solid window cage of glass-fibre reinforced polyamide PA66.
P6 — tolerance class P6, equivalent to ABEC 3.
Bore Diameter: 20 mm. Outside Diameter: 47 mm. Overall Width: 20.6 mm (13/16 in). Closure Type: Open. Rolling Elements: Ball. Number Of Rows: 2. Series: 3200. Precision Class: ABEC 3 / P6. Cage Material: Polyamide. Cage Type: Solid window cage, glass-fibre reinforced PA66 (TVH). Internal Clearance: CN (axial). Successor 3204-BD-XL-TVH data: Contact Angle: 30°. Dynamic Load Rating: 20,600 N. Static Load Rating: 12,900 N. Limiting Speed: 16,100 rpm. Reference Speed: 14,700 rpm. Item Weight: 0.146 kg. Operating temperature: -30 to +120 °C. Supplied not greased. Two rows of balls in an O arrangement carry radial load and axial load in both directions within one bearing width.
Successor 3204-BD-XL-TVH data: Shaft abutment diameter da min: 25.6 mm. Housing abutment diameter Da max: 41.4 mm. Chamfer dimension r min: 1 mm.
Current Schaeffler successor: 3204-BD-XL-TVH. Double-row cross-references with the 20 x 47 x 20.6 mm envelope: SKF 3204 A, NSK 5204, MRC 5204. Searchable variants: 3204B.TVH.P6, 3204-B-TVH-P6, 3204BTVHP6, 3204B, 3204 B TVH P6, 5204B, 5204.
20 mm bore, 47 mm outside diameter and 20.6 mm (13/16 in) width.
A solid window cage of glass-fibre reinforced polyamide PA66.
The design without a filling slot.
