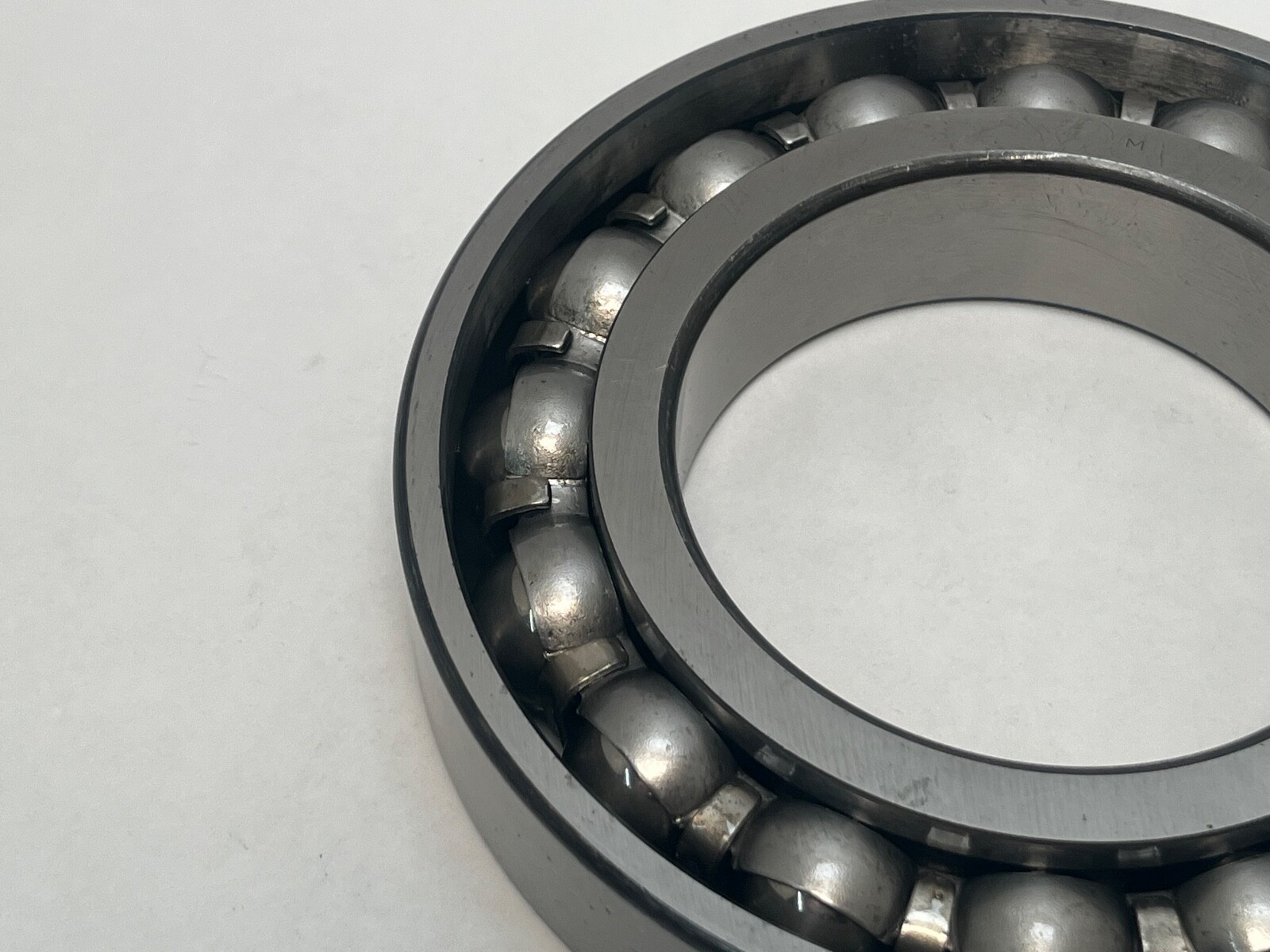

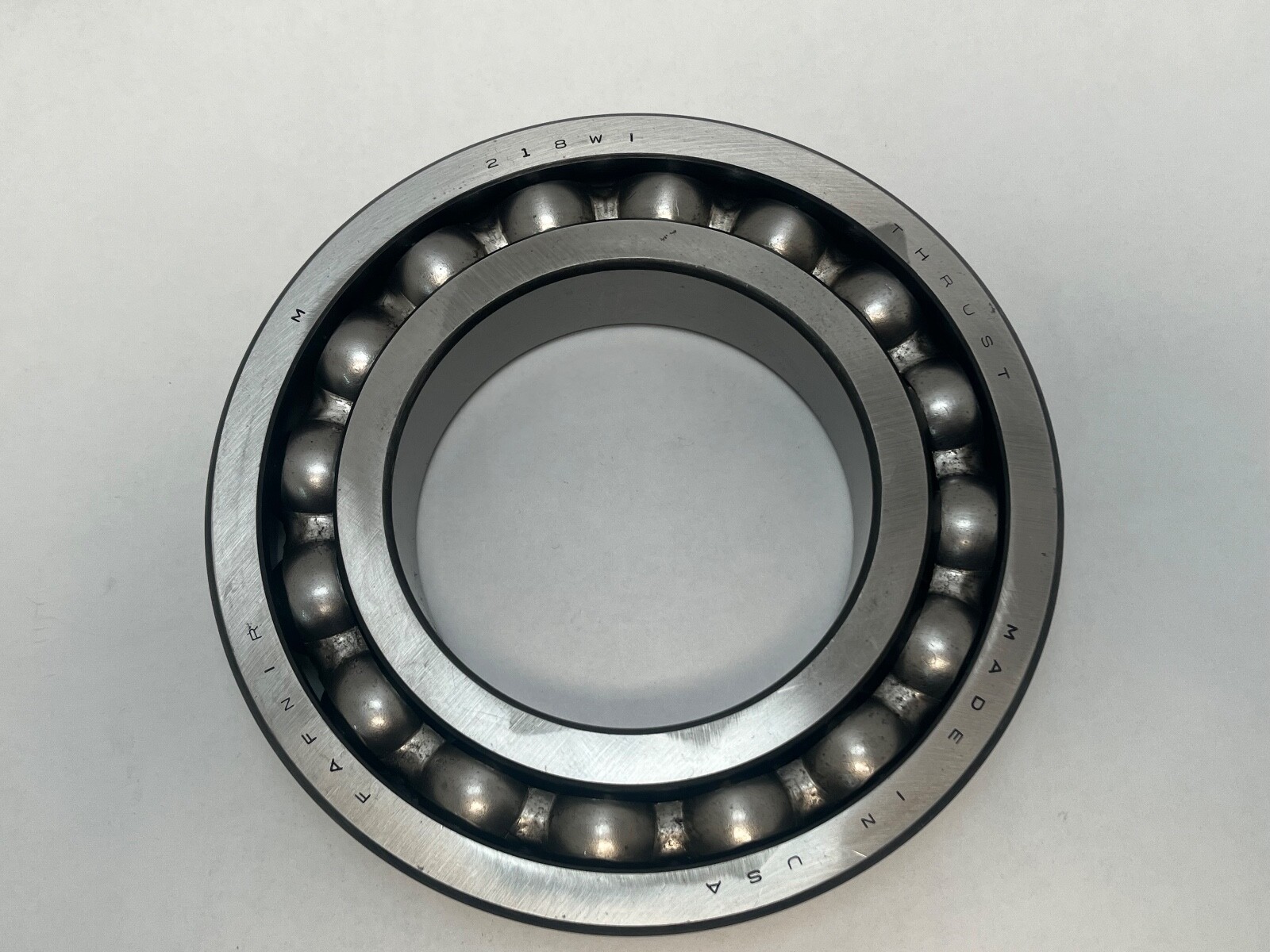

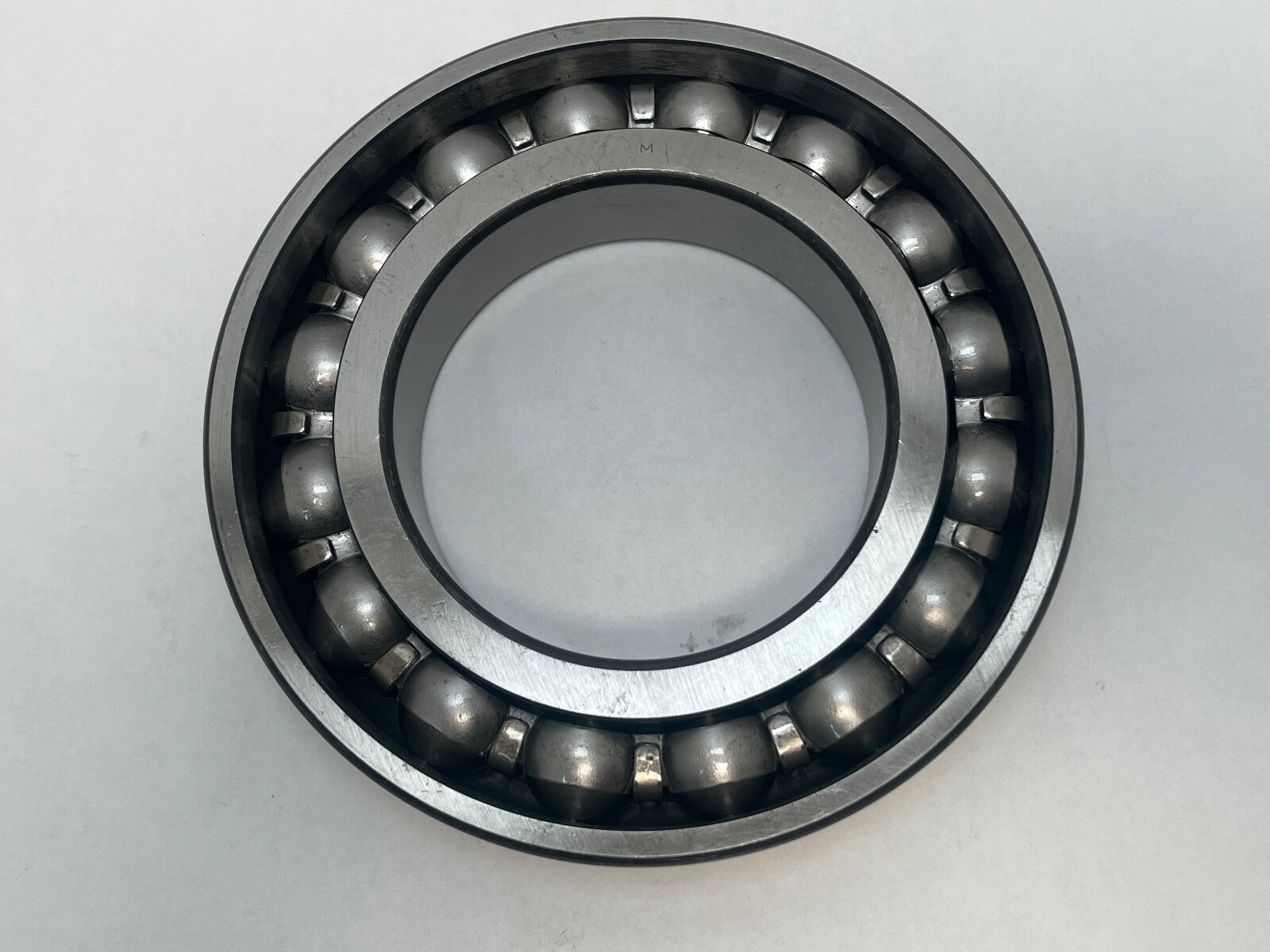

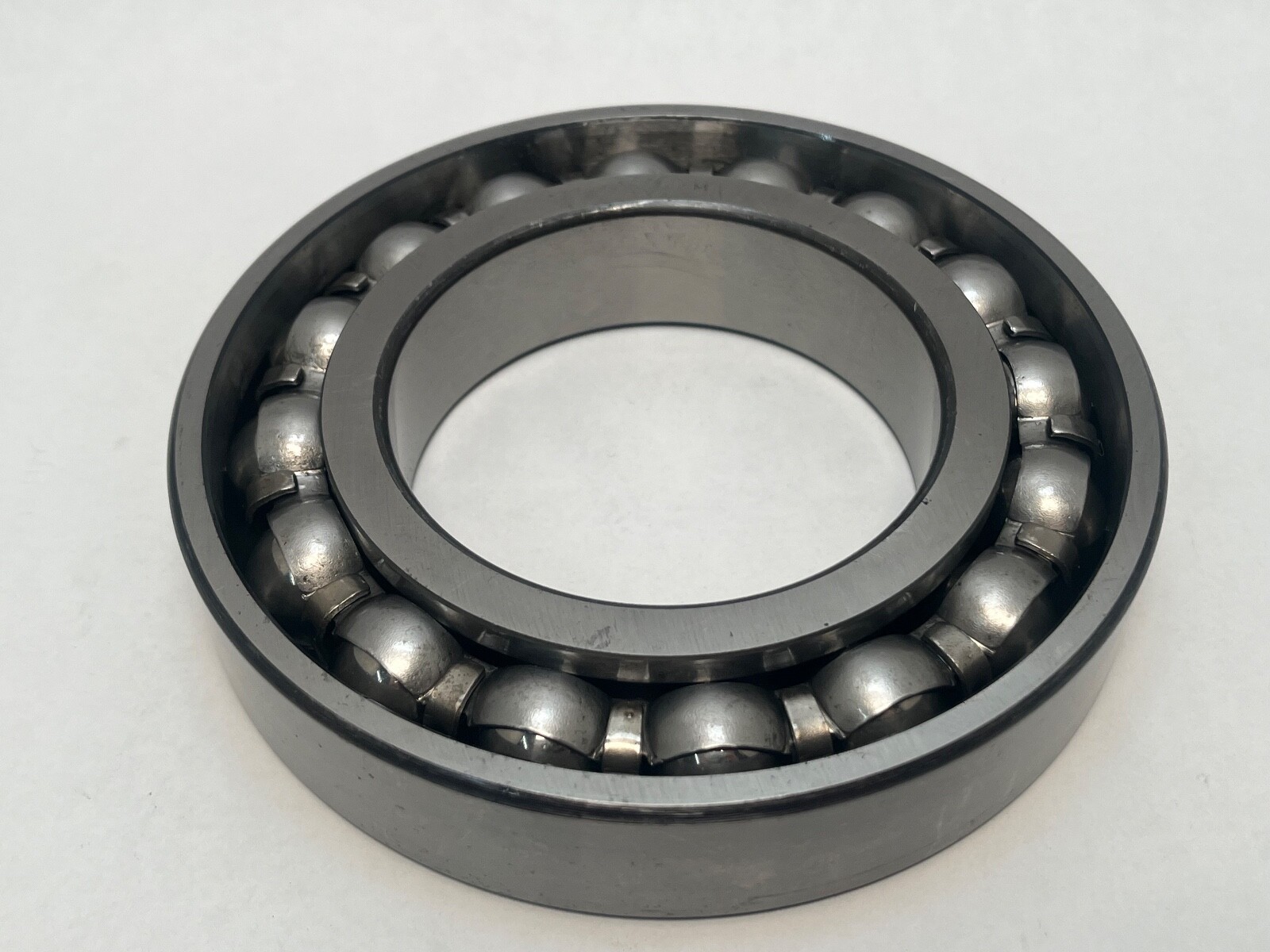

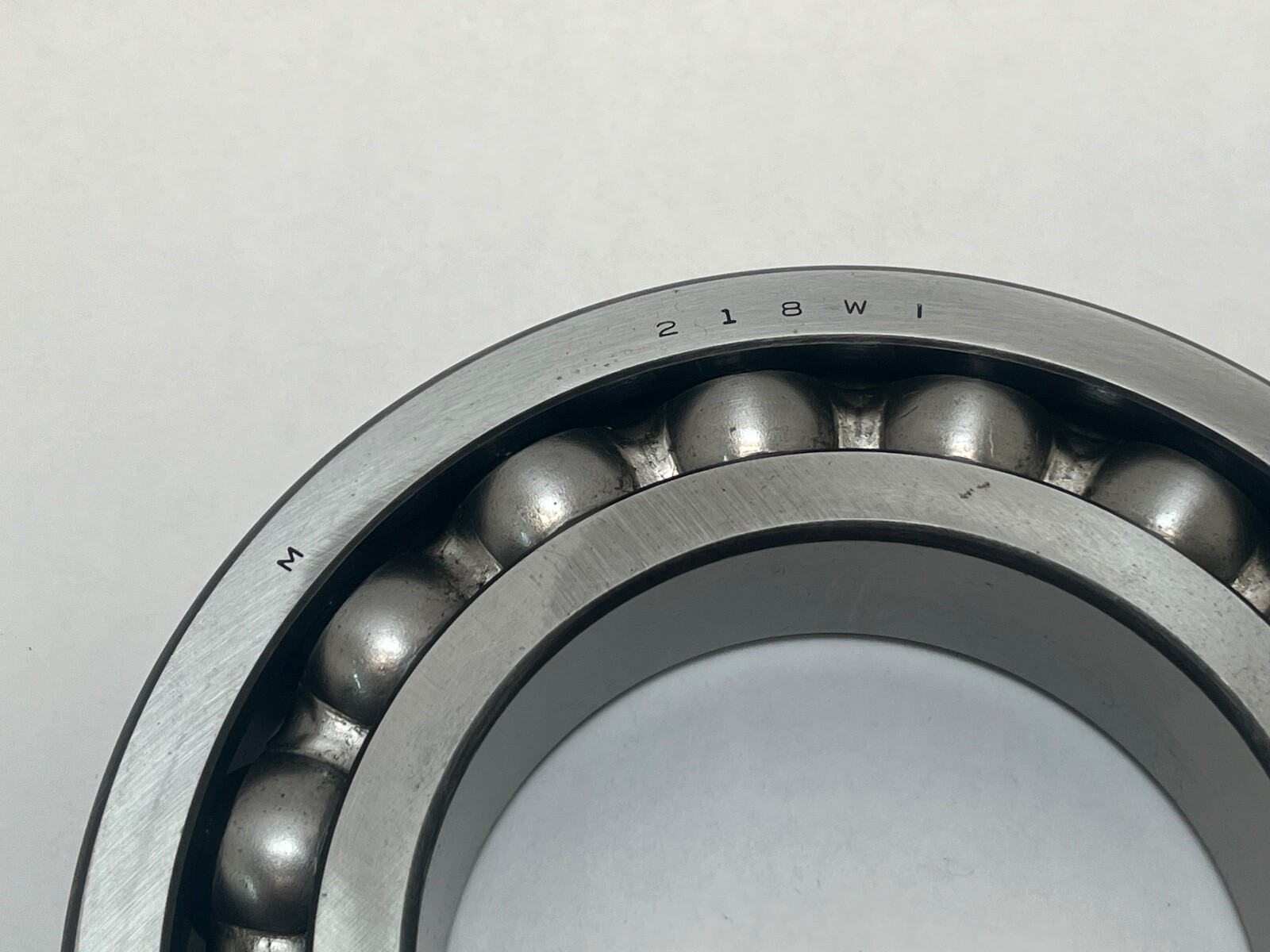

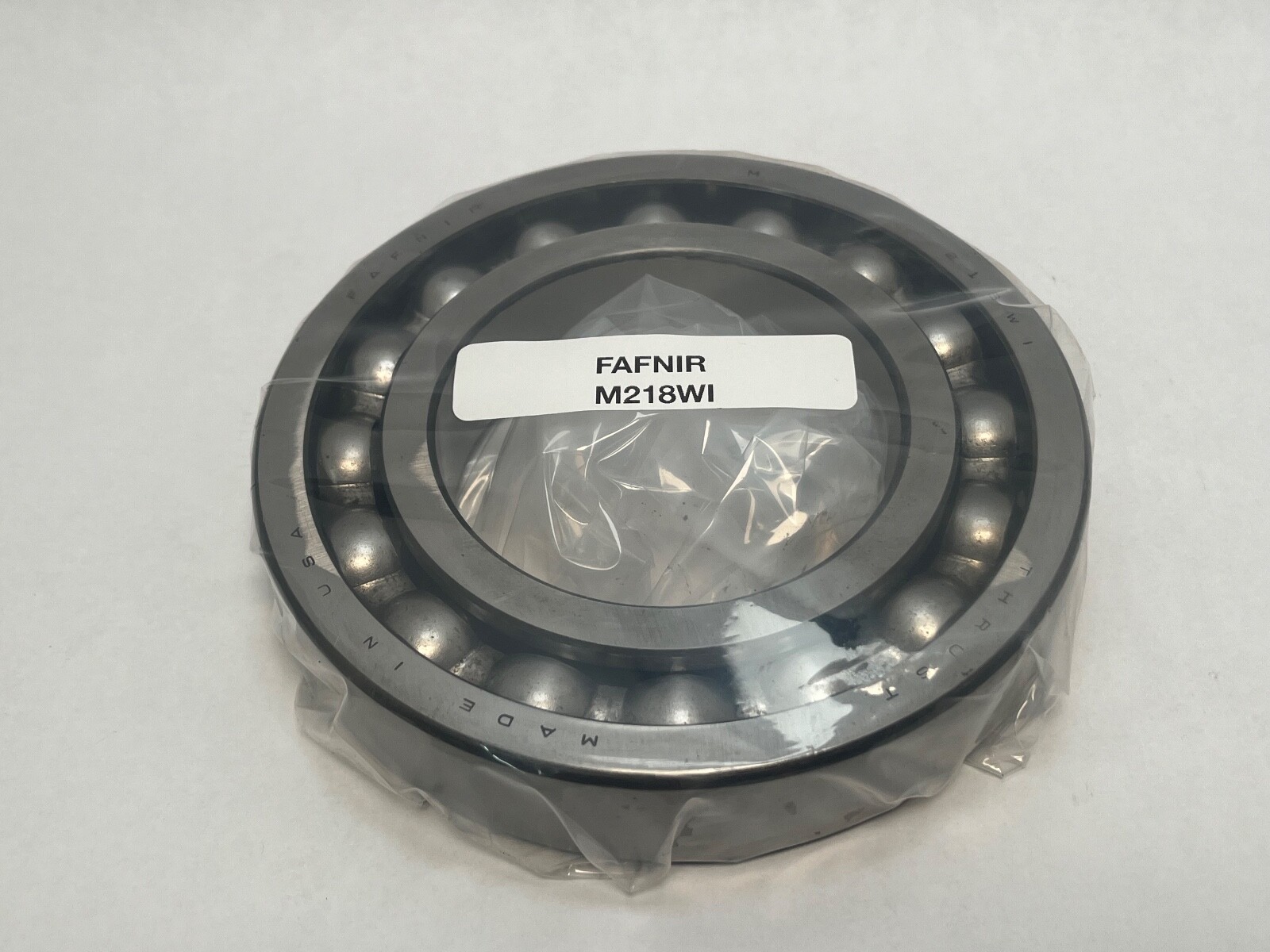

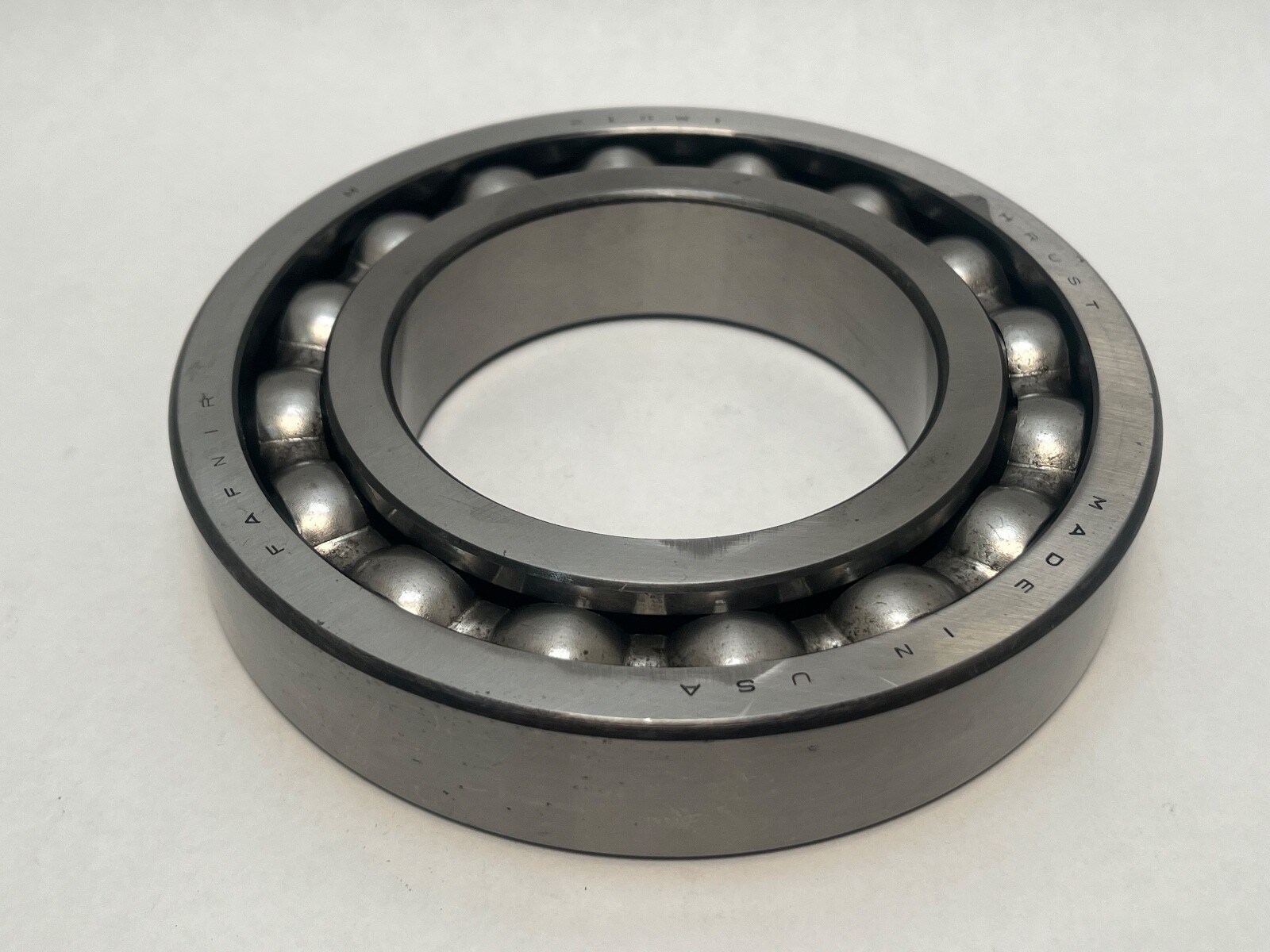

Fafnir 218WI angular contact ball bearing, 90 x 160 x 30 mm, straight bore, open, ABEC 3 / P6 precision, low-shoulder WI rings, phenolic cage.
List Price
$129.15
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing - 90 mm ID, 160 mm OD, 30 mm Width, 15° Contact Angle, Medium Preload, Phenolic Cage, ISO P4$220.92
Super-Precision Angular Contact Ball Bearing - 90 mm Bore, 160 mm OD, 30 mm Width, 15° Contact Angle, ABEC 7 / P4, Light Preload, Phenolic Cage$327.36
Super Precision Angular Contact Ball Bearing - Straight Bore, 90 mm ID, 160 mm OD, 30 mm Width, Open, 15° Contact Angle, Universal Medium Preload, ABEC 7 / P4$373.37
Super Precision Angular Contact Ball Bearing 90x160x30 mm, 15° Contact Angle, Duplex Light Preload, Phenolic Cage, 2 Pcs$748.29| MFR / Brand | Fafnir |
|---|---|
| Model | 7218 P6 / M 218 WI |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 90 mm |
| OD | 160 mm |
| Width | 30 mm |
| Material | Bearing Steel |
|---|---|
| Series | 218 |
| Base Number | 218WI |
| Industry Terms | Angular contact ball bearing, machine tool bearing, P6 precision, low shoulder, 7218, 218WI |
| Common Misspellings | Fafner, Faffnir, M218W1, M 218 WL, 7218 vs 71918 |
| Bore Shaft Size | 90 mm |
| Mpn Variants | M218WI, M-218-WI, M 218 WI, 218WI, 7218 P6 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Part Number | M218WI |
Fafnir M218WI angular contact ball bearing, 200WI series. Brand: Fafnir (Timken). Part Number: M218WI. Bore: 90 mm. Outside Diameter: 160 mm. Overall Width: 30 mm. Design Units: Metric. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Bearing Material: Chrome bearing steel. Item Weight: 4.84 lbs.
Precision Class: P6. Precision Rating: ABEC 3. The carton designation carries the ISO cross-reference 7218 alongside the P6 class, so this is the P6-tolerance execution of the 218WI rather than the P4S super-precision execution. WI marks a low shoulder on both rings, which is what lets the bearing be assembled with a high ball complement. Cage Material: Phenolic. Series: 200WI, carrying the 7218 envelope of 90 x 160 x 30 mm.
ABEC 3 / P6 holds running accuracy and bore and outside-diameter tolerance closer than a standard-class bearing, which shows up as lower shaft runout and quieter running. The 90 mm bore inside a 160 mm outside diameter is the medium 72-series section, so the bearing carries a heavier load for its bore than a 70- or 719-series part of the same shaft size. The phenolic cage runs light and holds lubricant against the ball pockets.
Unit Quantity: 1 Pc.
Cross-Reference: Timken 7218, on the 90 x 160 x 30 mm envelope. Harmonization Code: 8482.10.50.68.
MPN Variants: M218WI, M-218-WI, M 218 WI, 218WI, 7218 P6.
