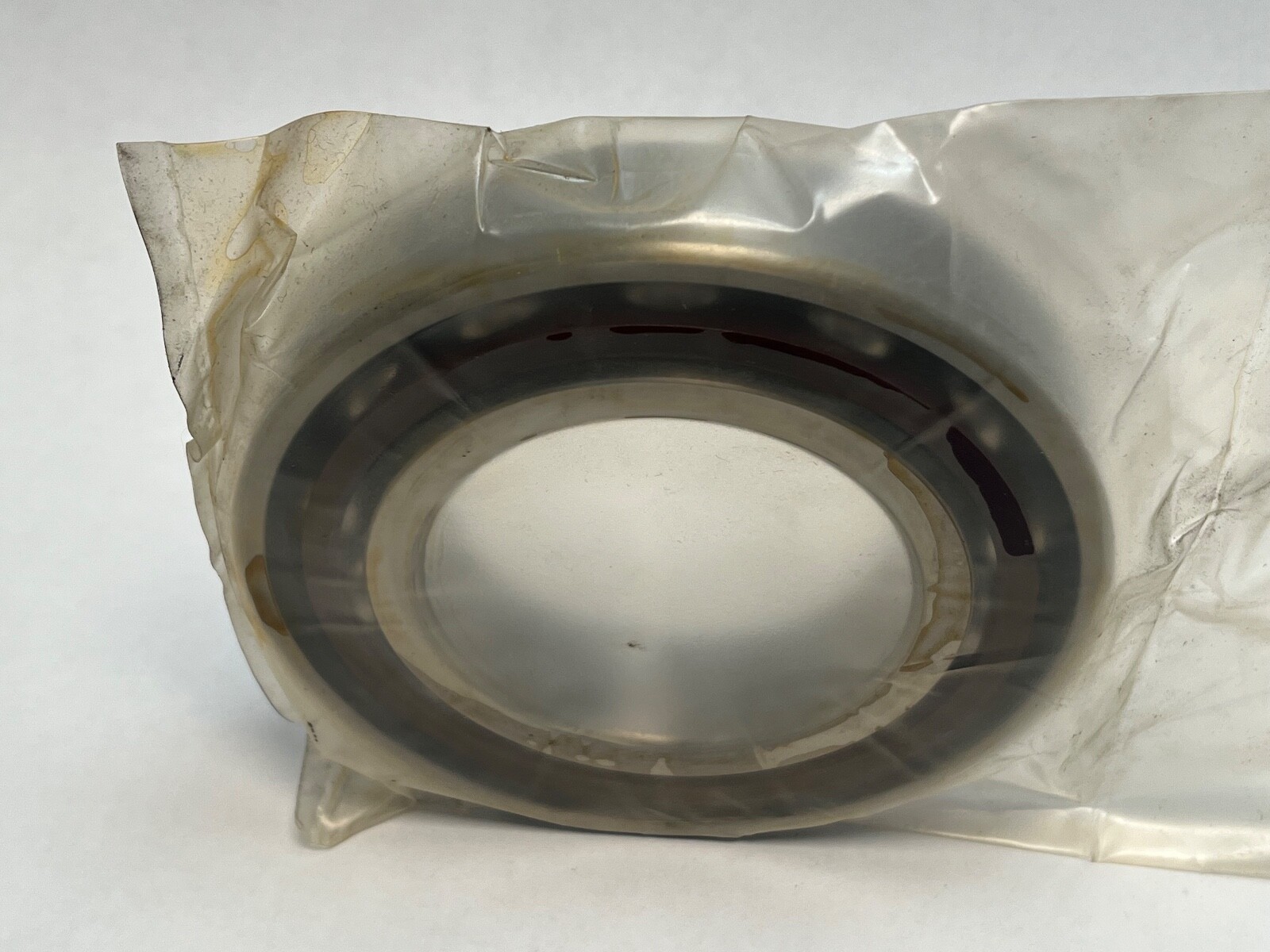

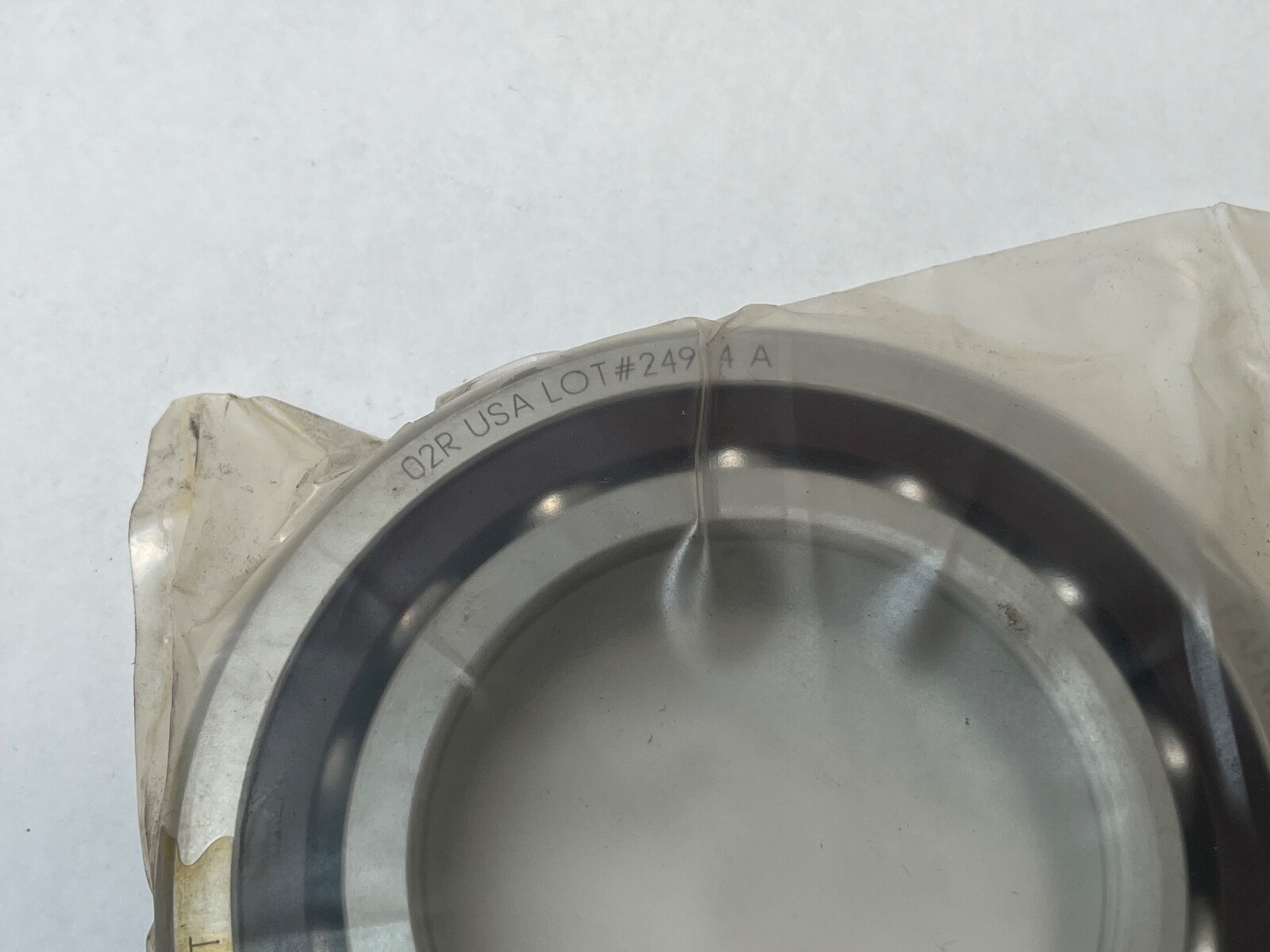

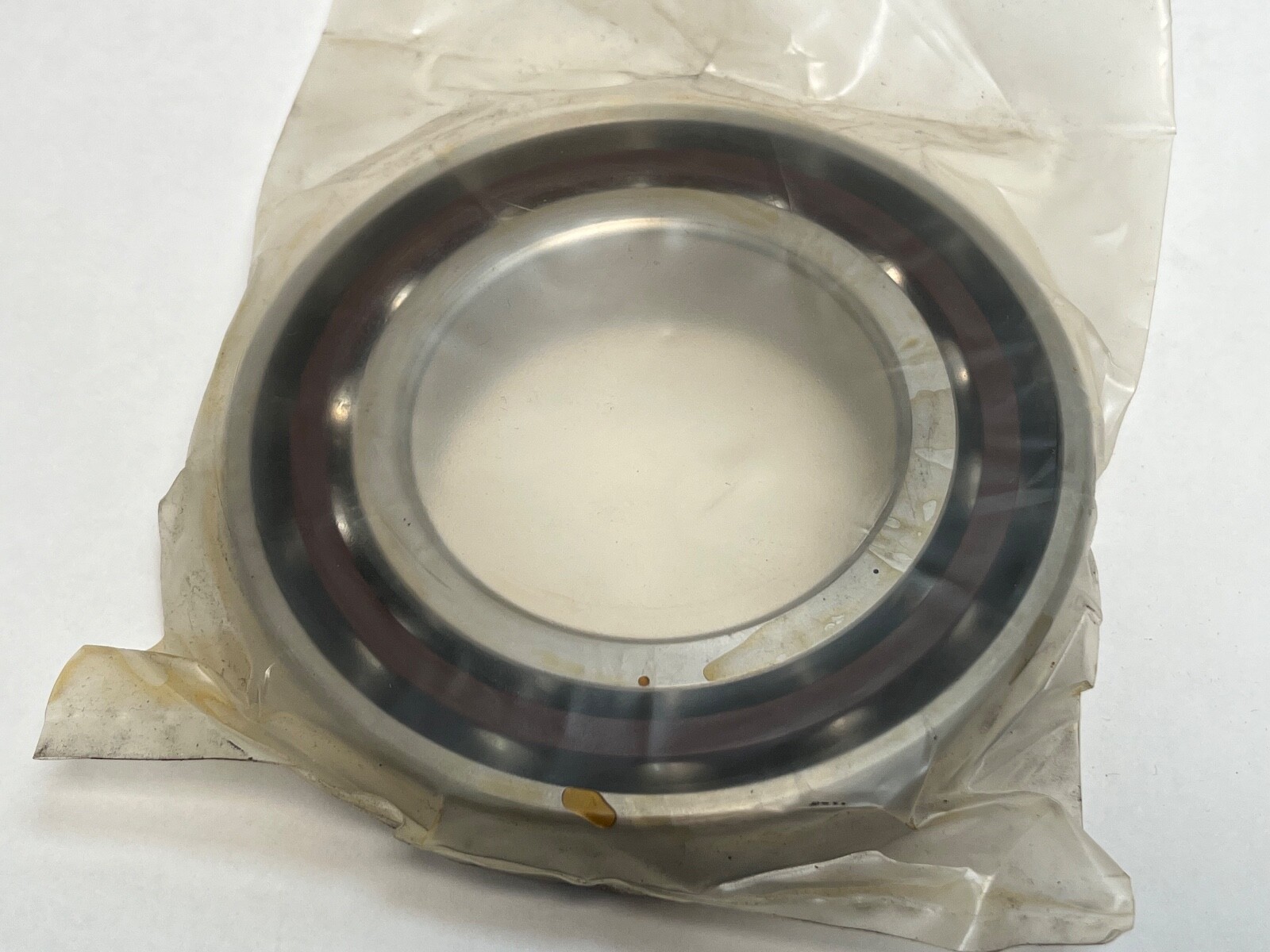

Angular contact ball bearing, 70 x 125 x 24 mm, 25° contact angle, light preload, phenolic outer-land-riding cage, ABEC 7/9 precision, steel balls.
List Price
$197.71
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 3MM214WI CR SUL |
| Model | 3MM 214 WI CR DUL / 7214 E/A5/ACD T DUL P4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 125 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | 200WI |
| Preload | Light |
| Base Number | 3MM214WI |
| Total Width | 24 mm |
| Overall Width | 24 mm |
| Mpn Variants | 3MM214WICRSUL; 3MM214WI-CR-SUL; 3MM 214 WI CR SUL; 3MM214WISUL; 3MM214WICRDUL |
| Precision Class | ABEC 7/9 / P4S |
| Dynamic Load Rating C1 | 80,200 N |
| Cage Type | Phenolic outer-land-riding |
| Dynamic Load Rating | 80,200 N |
| Static Load Rating | 57,400 N |
| Precision Rating | ABEC 7/9 / P4S |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Limiting Speed | 11,300 rpm grease; 20,600 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Lubricant | grease or oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Mounting Arrangement | Universal |
| Design Units | Metric |
| Bearing Material | Chrome steel |
| Cross Reference 1 | Timken 7214E-T-P4S-SUL |
|---|---|
| Cross Reference 2 | FAG B7214-E-T-P4S-UL |
| Cross Reference 3 | SKF 7214 ACD/P4A |
| Cross Reference 4 | NSK 7214A5TRSULP4 |
| Cross Reference 5 | IBC 7214-E-T-P4S-UL |
| Cross Reference 6 | 2MM214WI-CR-SUL - 15 deg contact angle, not 25 deg |

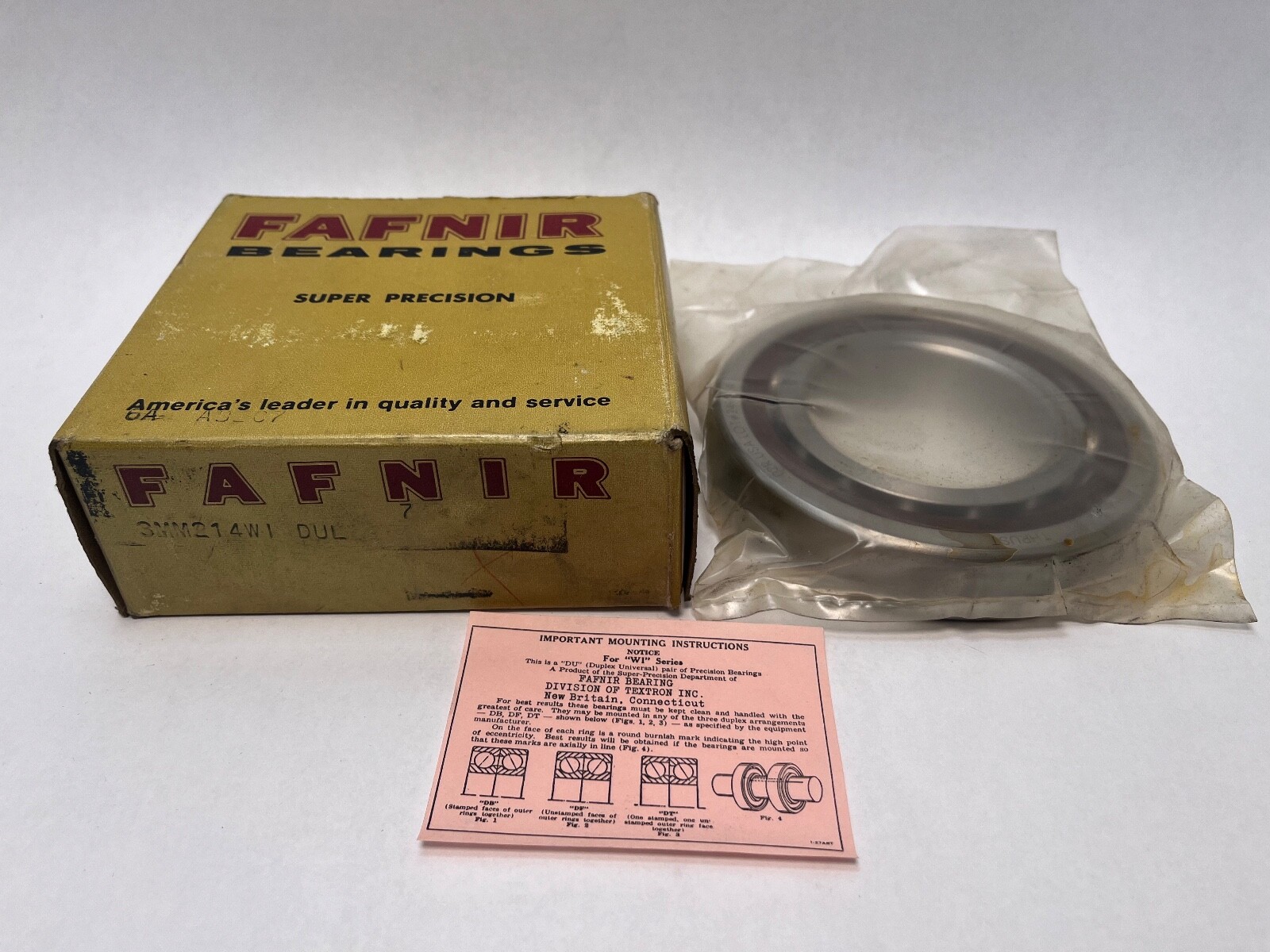

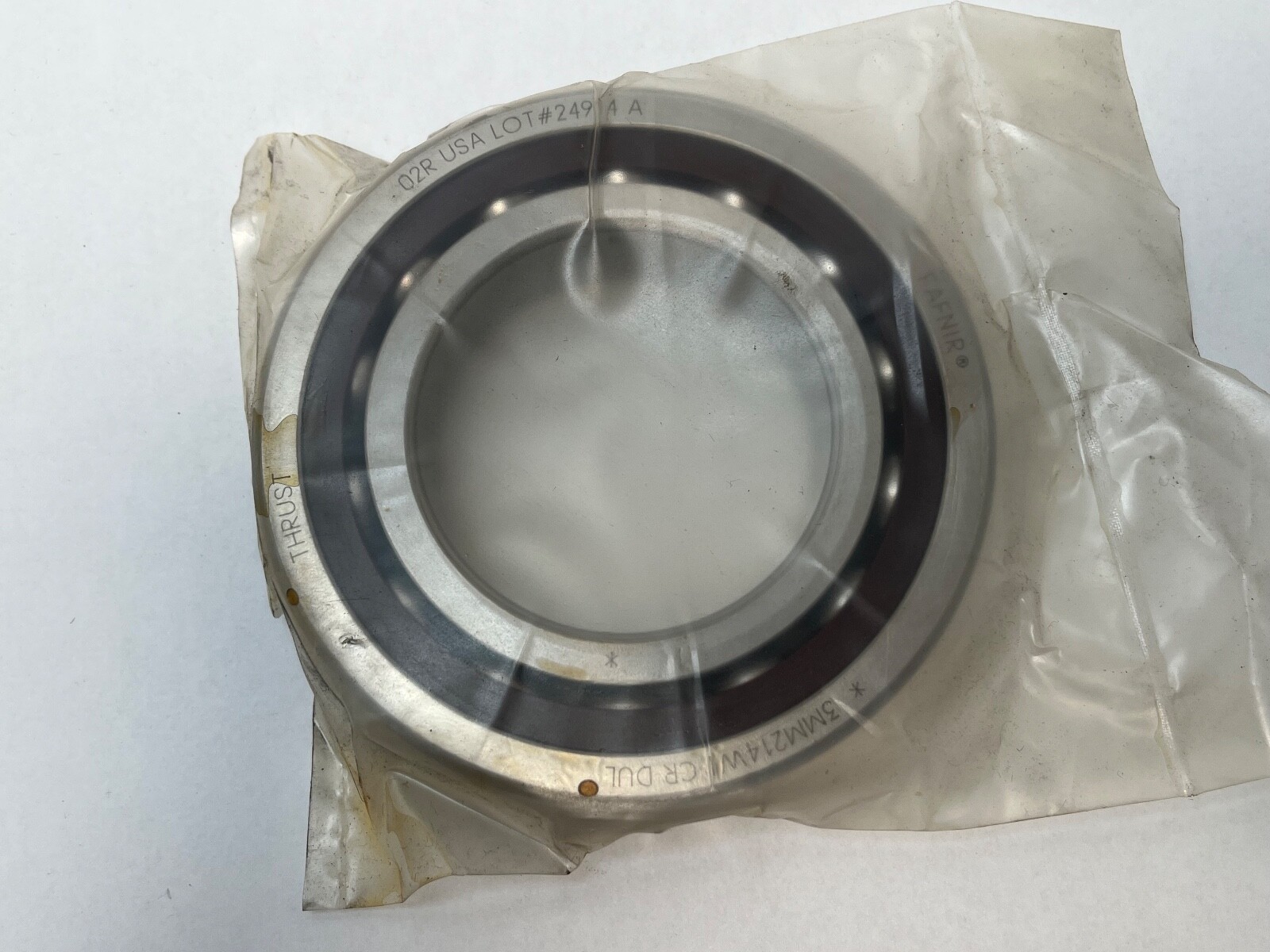

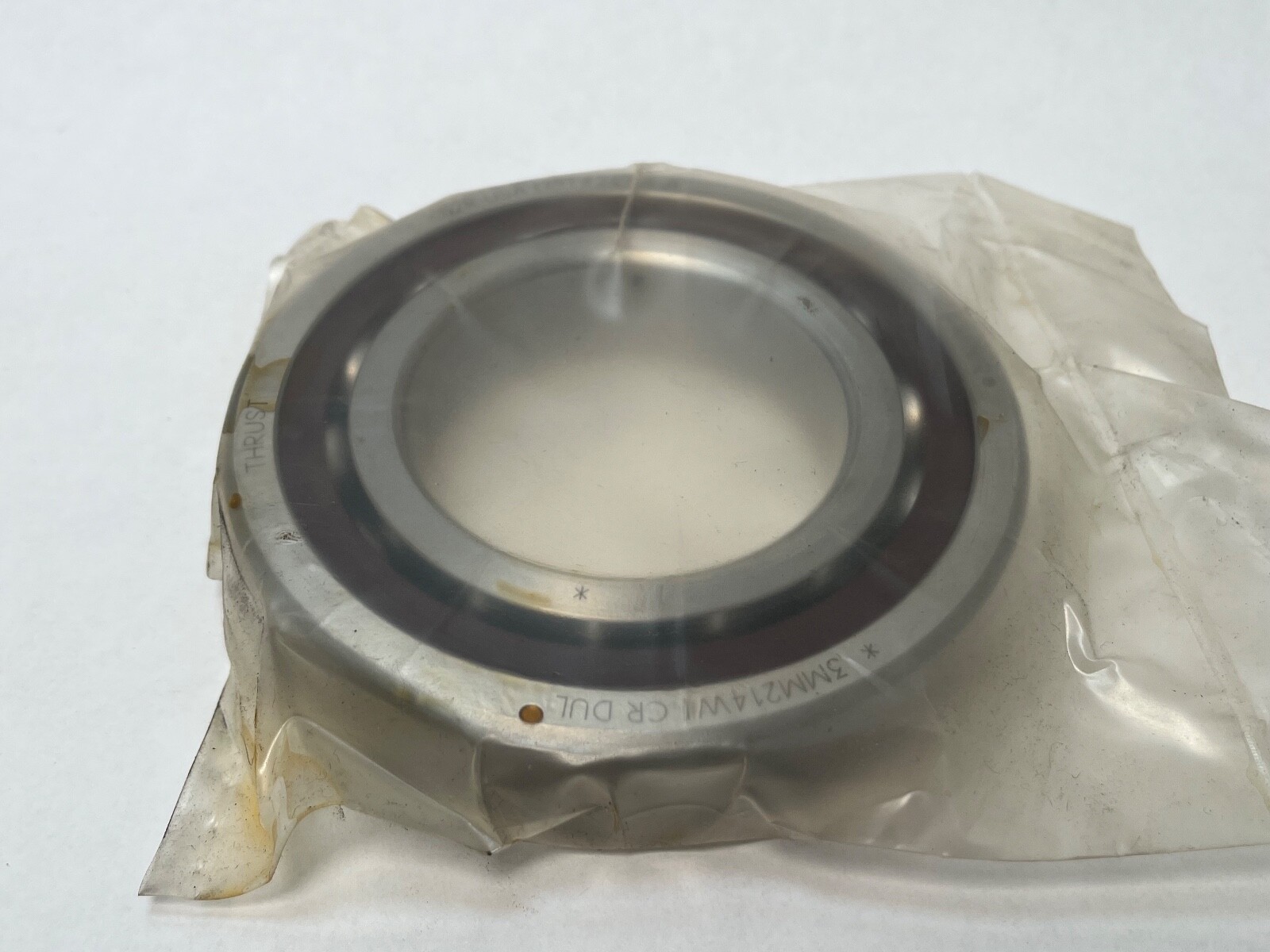

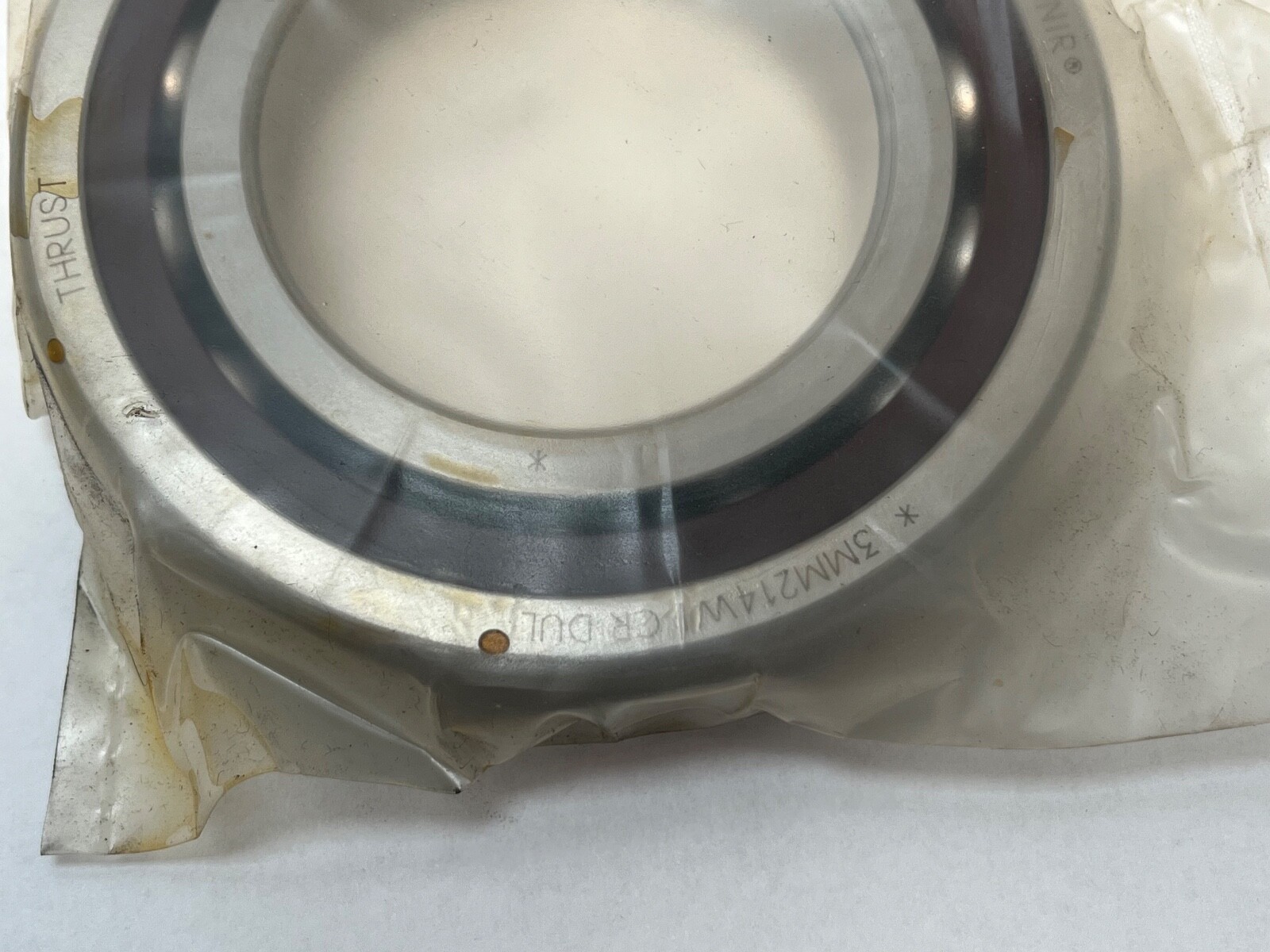

Fafnir 3MM214WI-CR-SUL super-precision angular contact ball bearing, 200WI spindle range, a single universally ground bearing set for light preload. Unit Quantity: 1 Pc.
3MM — 25° contact angle.
MM — Fafnir super-precision execution, ISO Class P4S, equivalent to ABEC 7/9.
214 — 200 spindle series, 70 mm bore, ISO 7214 envelope.
WI — low shoulder on both rings.
CR — phenolic outer-land-riding cage.
SUL — single universally ground bearing set for light preload.
Bearing Type: Angular Contact Ball Bearing. Series: 200WI. Base Number: 3MM214WI. Contact Angle: 25°. Precision Class: ABEC 7/9 / P4S. Preload: Light. Cage Type: Phenolic outer-land-riding. Cage Material: Phenolic. Rolling Elements: Ball, steel. Bearing Material: Chrome steel. Bore Type: Straight. Closure Type: Open. Number Of Rows: 1. Mounting Arrangement: Universal. Lubricant: grease or oil. Dynamic Load Rating: 80,200 N, rated over one million revolutions. Static Load Rating: 57,400 N. Limiting Speed: 11,300 rpm grease; 20,600 rpm oil. Design Units: Metric.
Bore Diameter: 70 mm. Outside Diameter: 125 mm. Overall Width: 24 mm. Total Width: 24 mm, the single-bearing stack height. Shaft Backing Shoulder Diameter: 80.3 mm. Housing Backing Shoulder Diameter: 115.8 mm. Maximum Housing Fillet Radius: 1.5 mm. Universally ground faces: it stacks with further SUL bearings back-to-back, face-to-face or in tandem at light preload.
Timken 7214E-T-P4S-SUL, FAG B7214-E-T-P4S-UL, SKF 7214 ACD/P4A, NSK 7214A5TRSULP4 and IBC 7214-E-T-P4S-UL. Fafnir 2MM214WI-CR-SUL shares the 70 x 125 x 24 mm envelope at 15° contact angle, not 25°. Searchable forms: 3MM214WICRSUL, 3MM214WI-CR-SUL, 3MM 214 WI CR SUL, 3MM214WISUL, 7214A, 7214E.
25°, from the 3MM prefix.
Dynamic Load Rating: 80,200 N. Static Load Rating: 57,400 N.
11,300 rpm grease; 20,600 rpm oil.
