Availability:
11 in stock
Super-precision angular contact ball bearing, 65 x 100 x 18 mm, 15° contact angle, heavy preload, phenolic outer-land-riding cage, ABEC 7/9.
List Price
$302.06
11 in stock
11 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM9113WIDUH |
| GTIN | 087796072664 |
| Model | 7013C T DUH P4 / 2MM 9113 WI CR DUH |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 65 mm |
| OD | 100 mm |
| Width | 18 mm |
| Material | Bearing Steel |
|---|---|
| Series | 9100 |
| Condition | New |
| Lubricant | Oil |
| Preload | Heavy Preload |
| Base Number | 2MM9113WI |
| Total Width | 36 mm |
| Bore Shaft Size | 65 mm |
| Mpn Variants | 2MM9113WI-DUH, 2MM9113WIDUH, 2MM9113WICRDUH, 2MM-9113-WI-CR-DUH, 2MM9113WI DUH |
| Arrangement Configuration | Universally ground duplex pair |
| Precision Class | ABEC 7/9 (ISO P4S) |
| Dynamic Load Rating C1 | 39,800 N per bearing |
| Additional Attributes | Ball type: steel. Shaft backing shoulder diameter: 72.1 mm. Housing backing shoulder diameter: 93.2 mm. Maximum shaft fillet radius: 1 mm. Outer ring to-clear radius: 1 mm. ISO dynamic radial rating per row: 36,200 N. |
| Cage Type | CR – Phenolic Outer Land Riding Cage |
| Dynamic Load Rating | 39,800 N per bearing |
| Static Load Rating | 32,600 N per bearing |
| Precision Rating | ISO P4S (ABEC 7/9) |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Limiting Speed | 12,700 rpm grease / 25,400 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal duplex – back-to-back, face-to-face or tandem |
| Bearing Material | Chrome steel |
| Cross Reference 1 | 7013C-T-P4S-DUH |
|---|

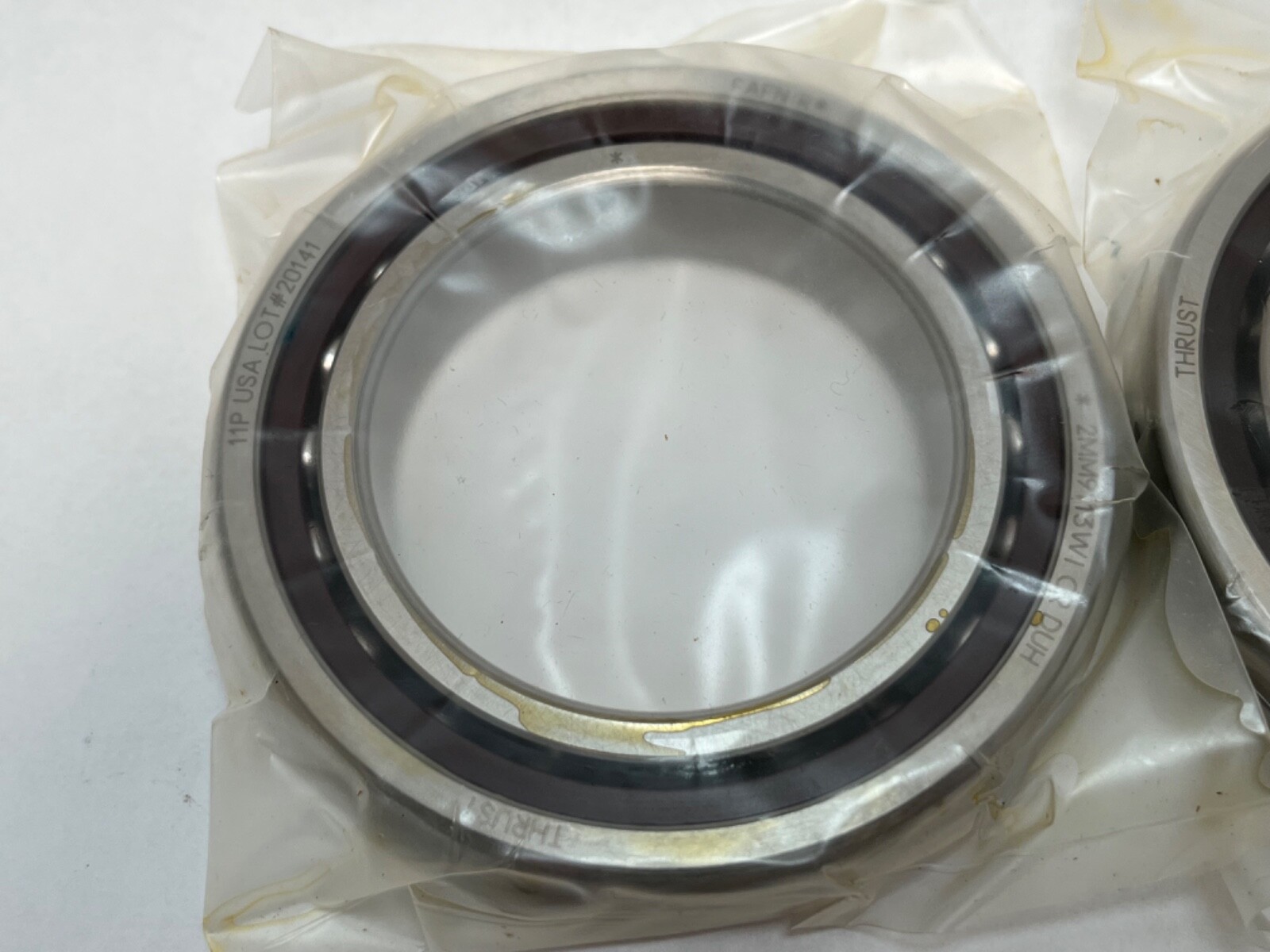

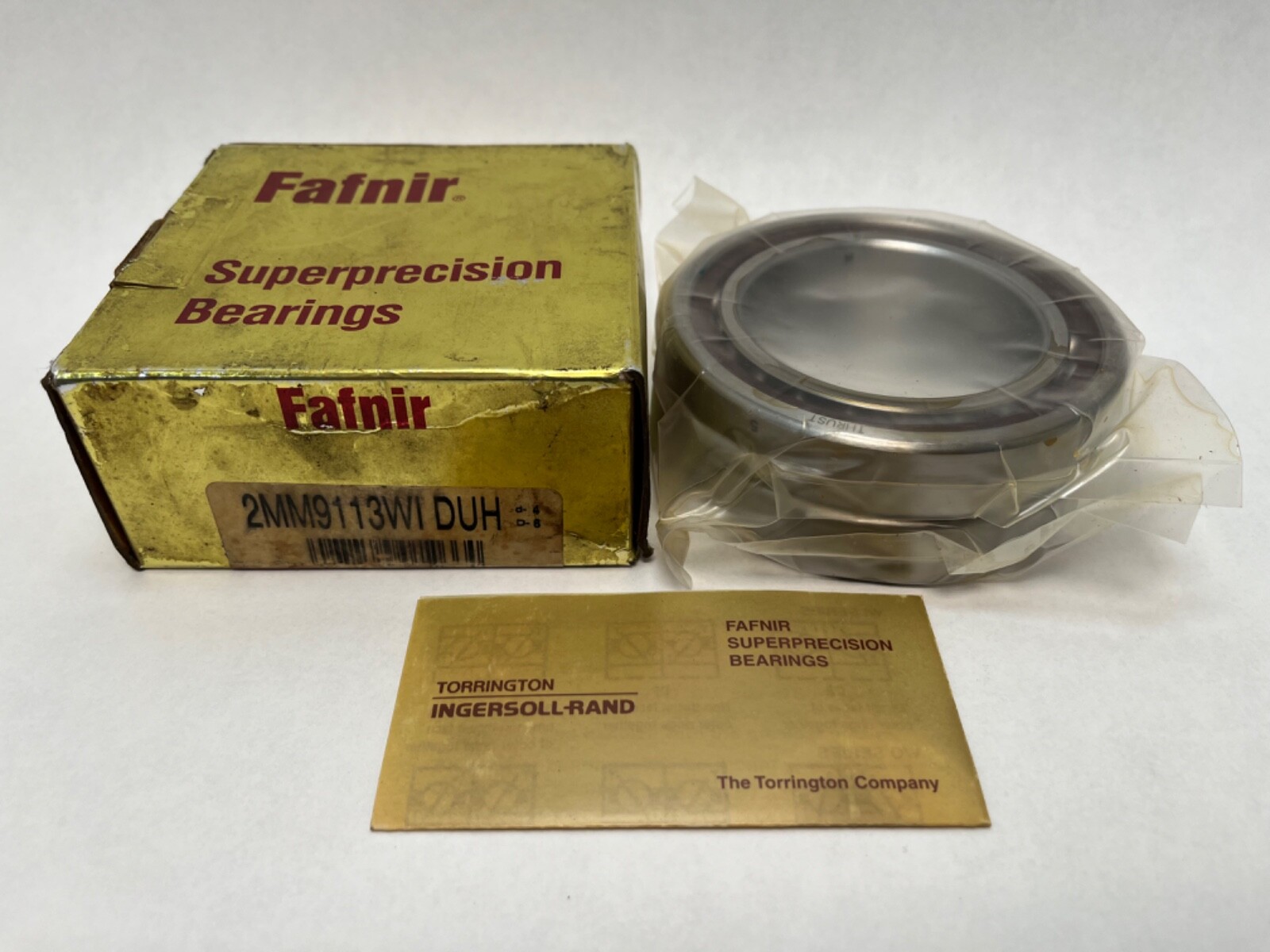

Fafnir 2MM9113WI-DUH super-precision angular contact ball bearing, built by Timken. Bore: 65 mm. Outside Diameter: 100 mm. Bearing Width: 18 mm. Total Width: 36 mm. Contact Angle: 15°. Precision Class: ISO P4S (ABEC 7/9). Preload: Heavy. Cage Material: Phenolic. Cage Type: outer-ring land riding, machined. Rolling Elements: steel balls. Closure Type: Open. Series: 9100. Bore Type: Straight.
2MM — Fafnir super-precision spindle execution at a 15° contact angle, ground to ISO P4S.
9113 — the 9100WI size series, ISO 7013 envelope, 65 x 100 x 18 mm.
WI — low shoulder on both rings.
CR — phenolic outer land riding cage.
DUH — universally ground duplex, heavy preload. Two single-row bearings ground as a matched set.
Dynamic Radial Load Rating (C1): 39,800 N per bearing. Static Radial Load Rating (C0): 32,600 N per bearing. ISO dynamic radial rating per row: 36,200 N. Limiting Speed: 12,700 rpm on grease, 25,400 rpm on oil. Lubricant: grease or oil.
A 15° contact angle favours speed and radial stiffness over thrust capacity. Heavy preload raises axial and radial rigidity and holds the ball complement loaded through speed and temperature changes, which is what a machine tool spindle held to close position tolerance needs. The phenolic cage is light, tolerates high surface speed and holds oil in its fabric base.

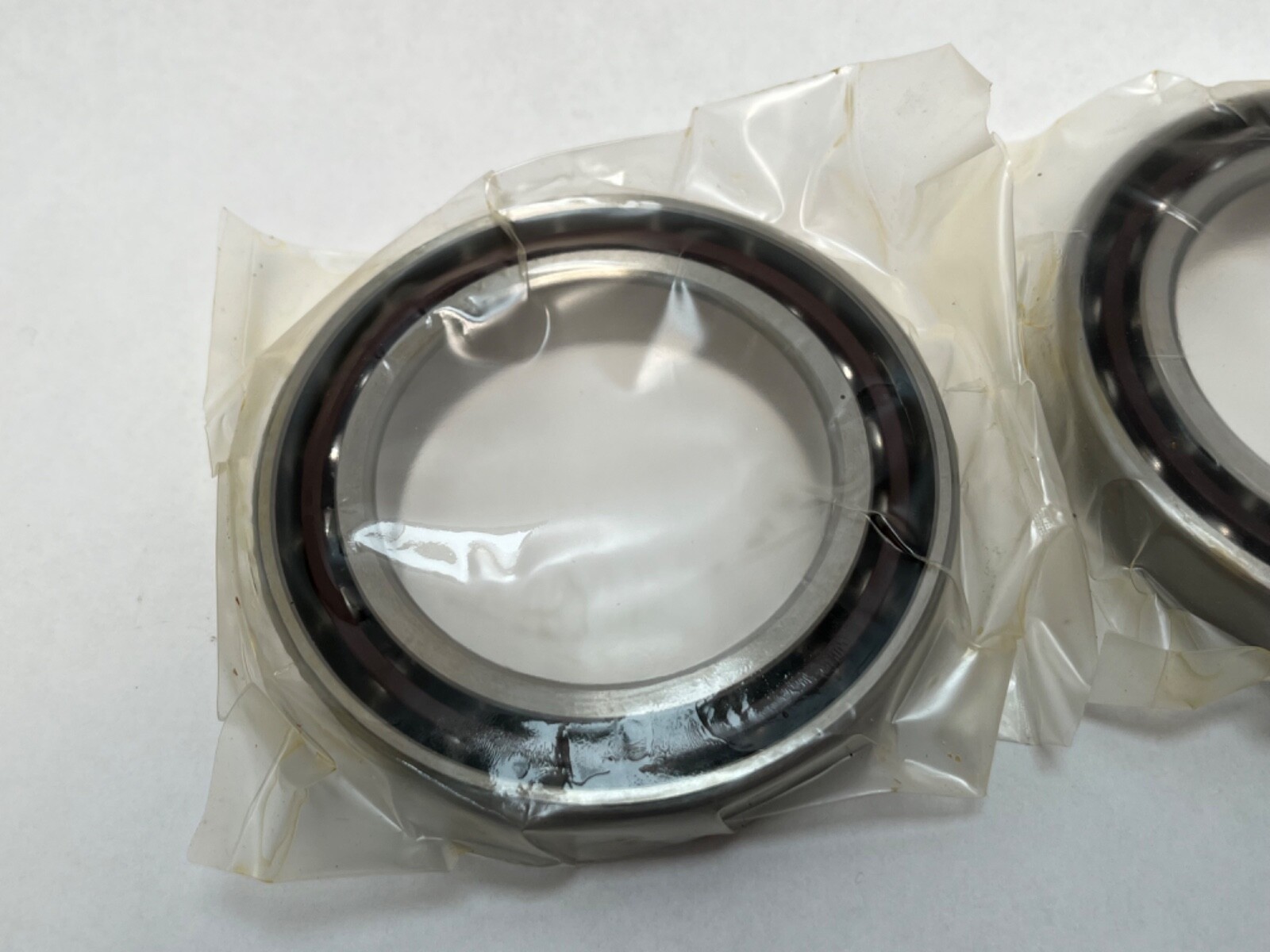

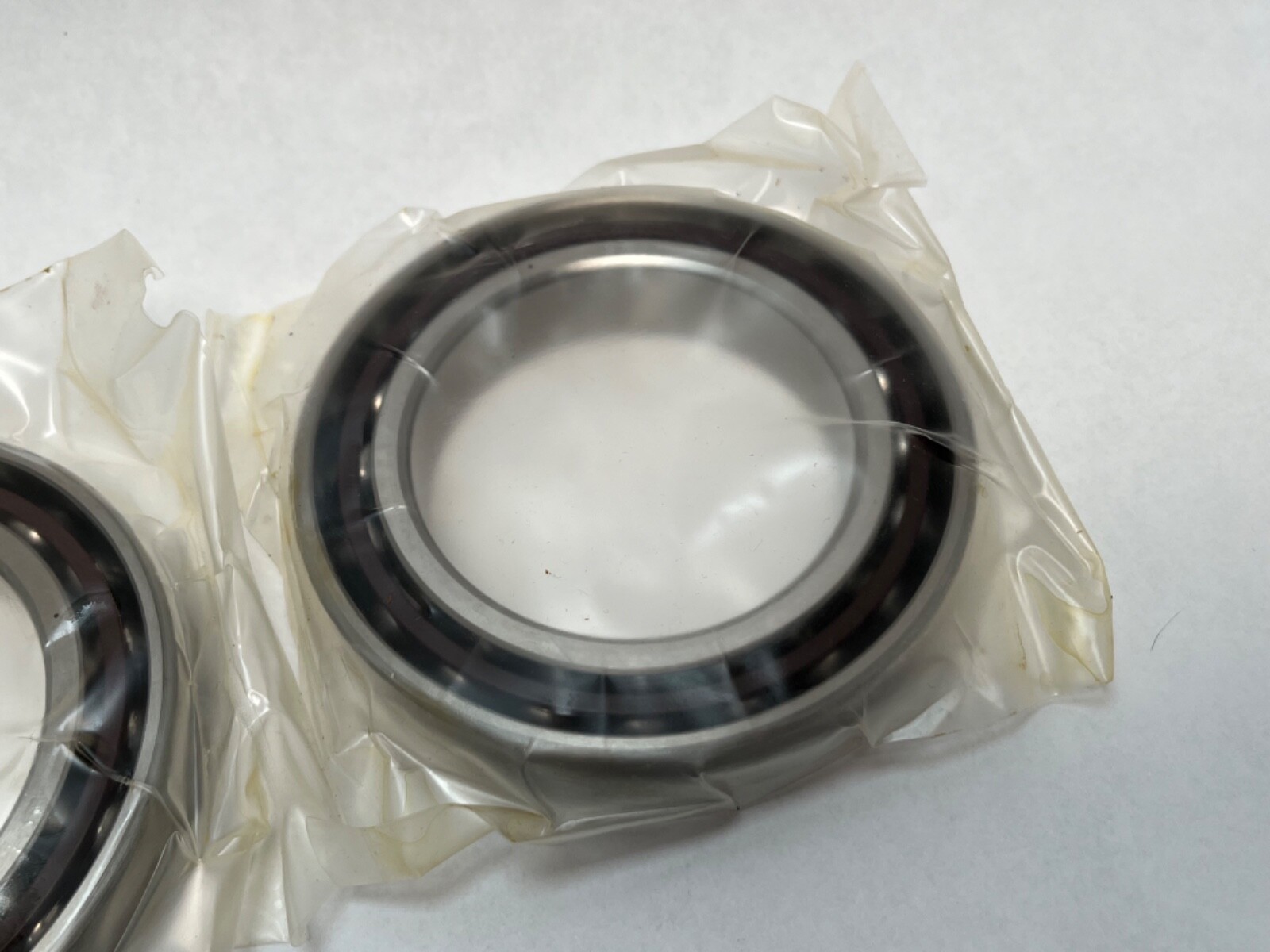

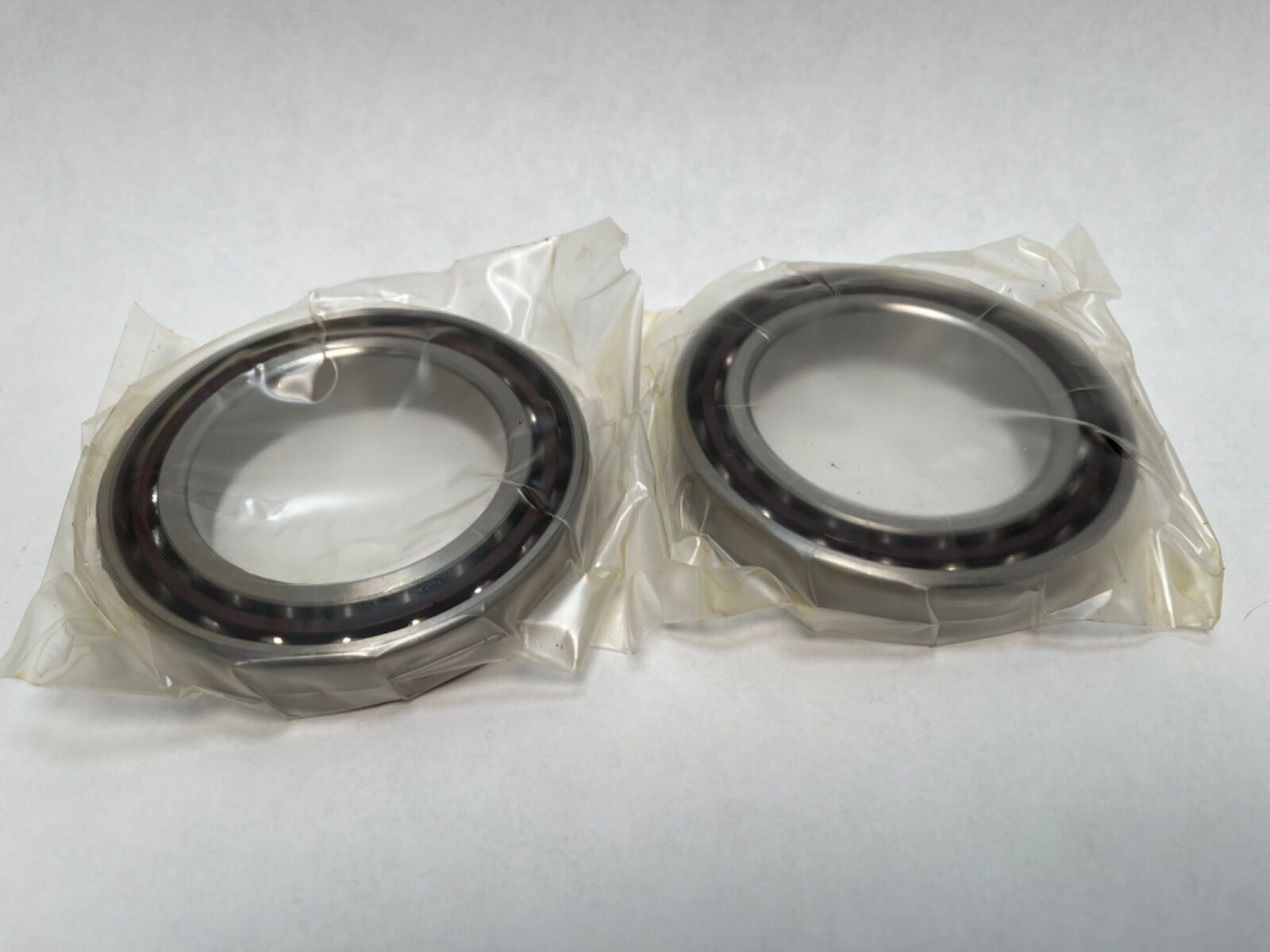

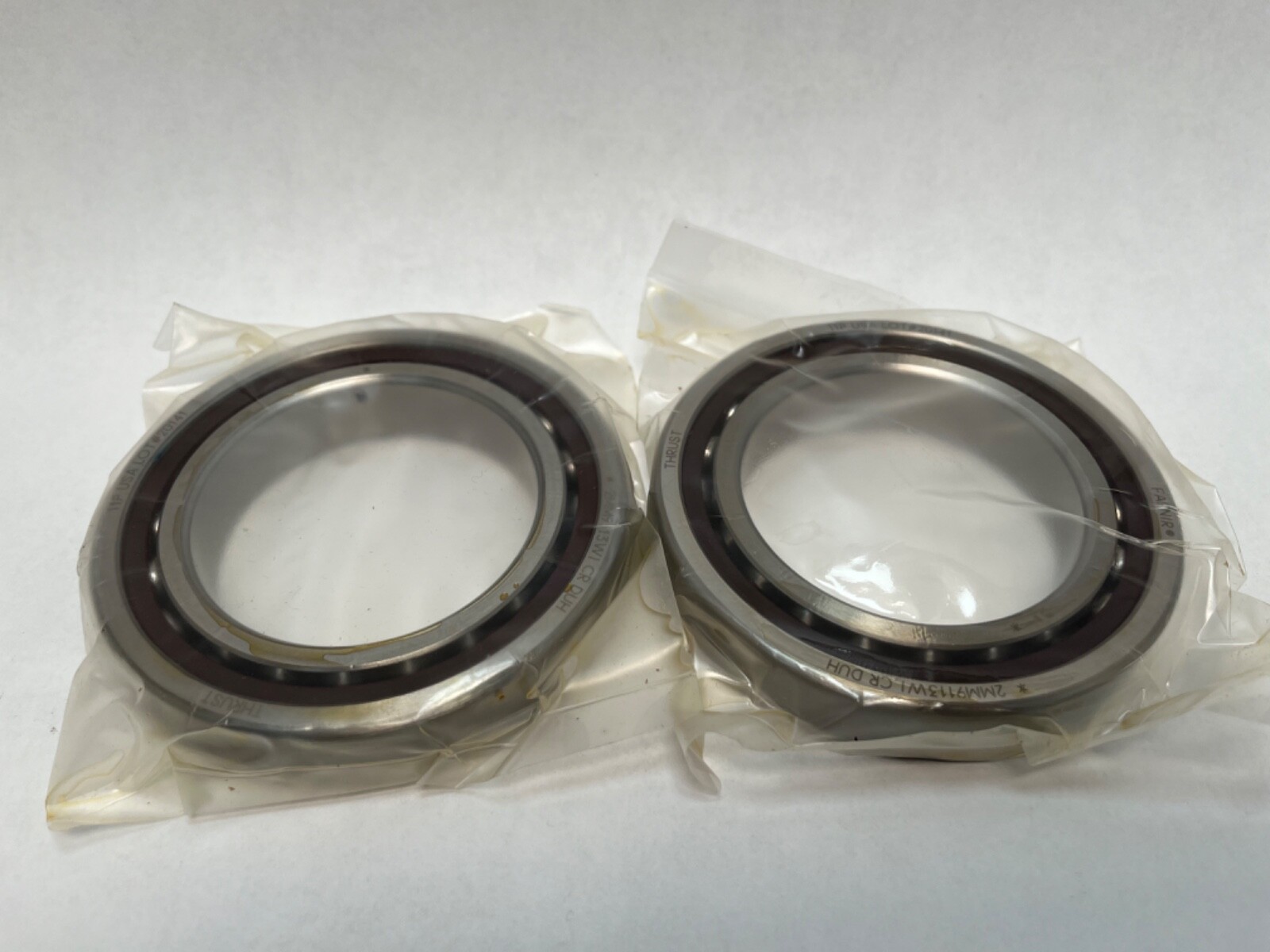

Unit Quantity: 2 Pcs. Universally ground duplex pair, mountable back-to-back, face-to-face or in tandem.
Shaft Backing Shoulder Diameter: 72.1 mm. Housing Backing Shoulder Diameter: 93.2 mm. Maximum Shaft Fillet Radius: 1 mm. Outer Ring To-Clear Radius: 1 mm.

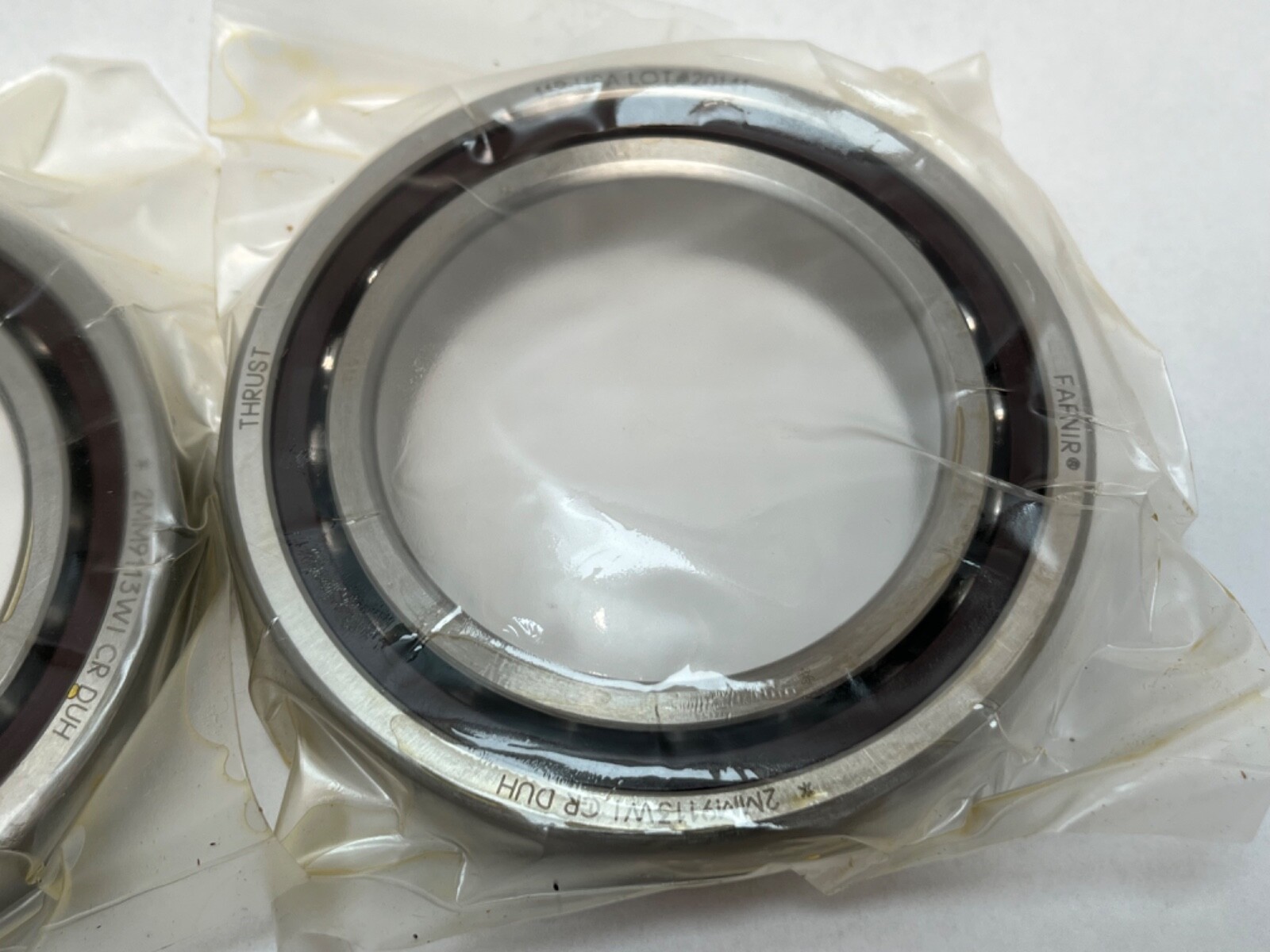

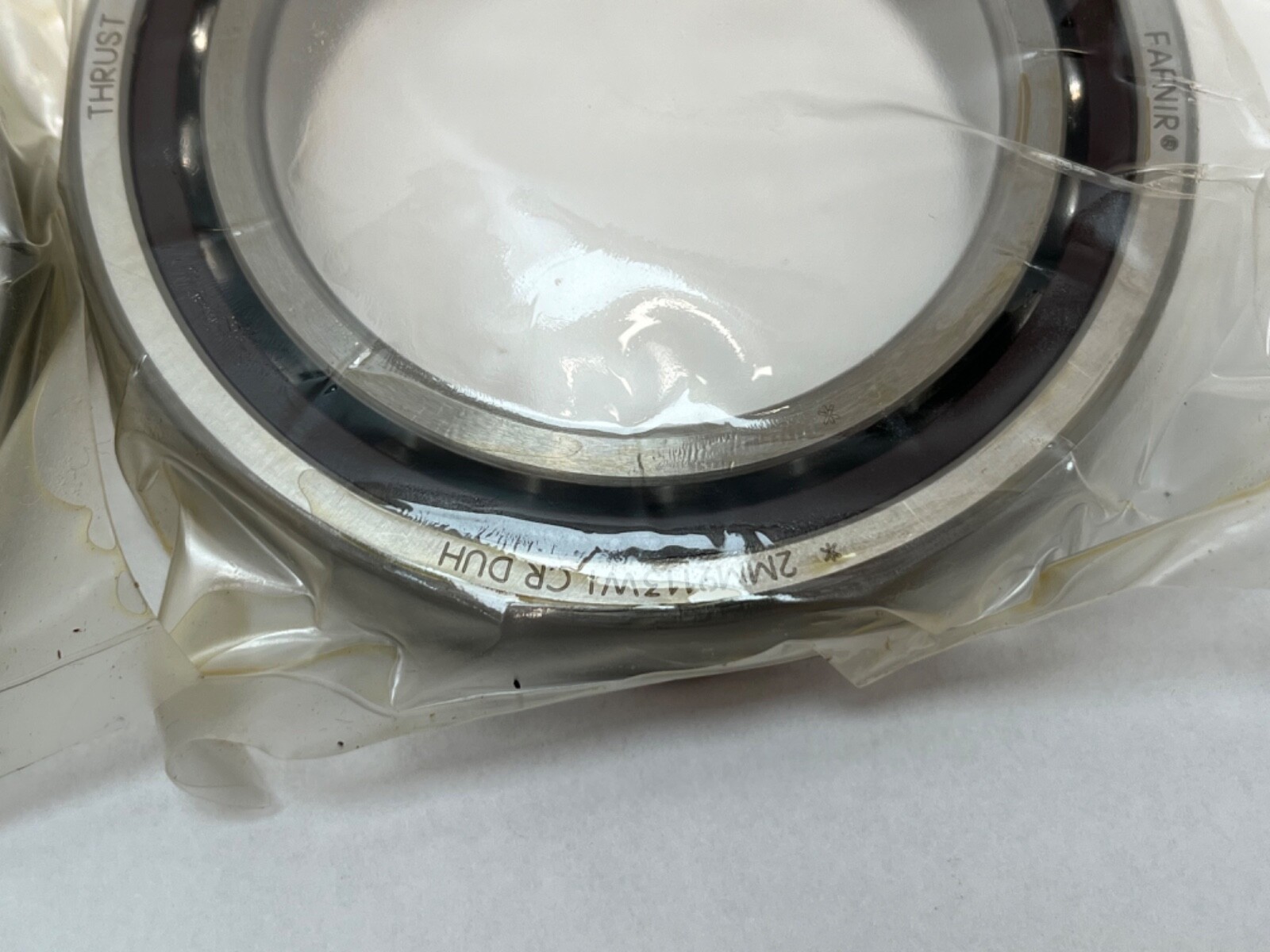

Timken world part number: 7013C-T-P4S-DUH. Manufacturing part number: 2MM9113WI DUH. The same bearing is written 2MM9113WIDUH, 2MM-9113-WI-CR-DUH and 2MM9113WICRDUH.
