Angular Contact Bearing - 65 mm ID, 120 mm OD, 23 mm Width, Open, 40° contact angle.$84.09| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM213WNDUL |
| Model | 2 MM 213 WN DUL / 7213 C T DUL P4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 65 mm |
| OD | 120 mm |
| Width | 23 mm |
| Material | Chrome Steel |
|---|---|
| Series | 200 |
| Preload | Light preload |
| Min Temp | -20 °C |
| Cage Type | Machined |
| Dynamic Load Rating | 75.2 kN / 16905 lbf |
| Static Load Rating | 60 kN / 13488 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 2.1 lbs |
| Cage Material | Phenolic |
| Limiting Speed | 12600 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal |
| Cross Reference 1 | SKF 7213 CD/P4ADGA |
|---|

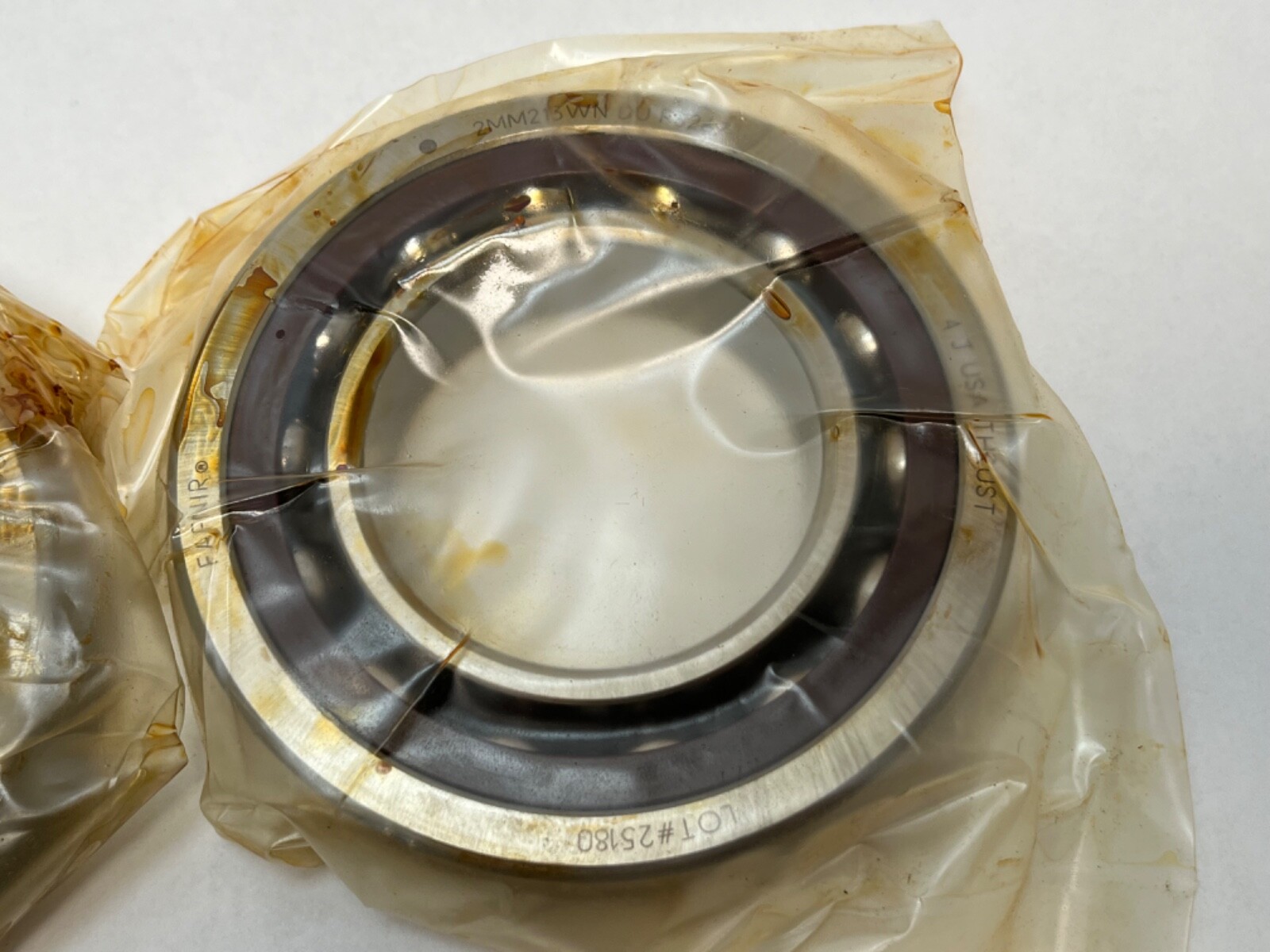

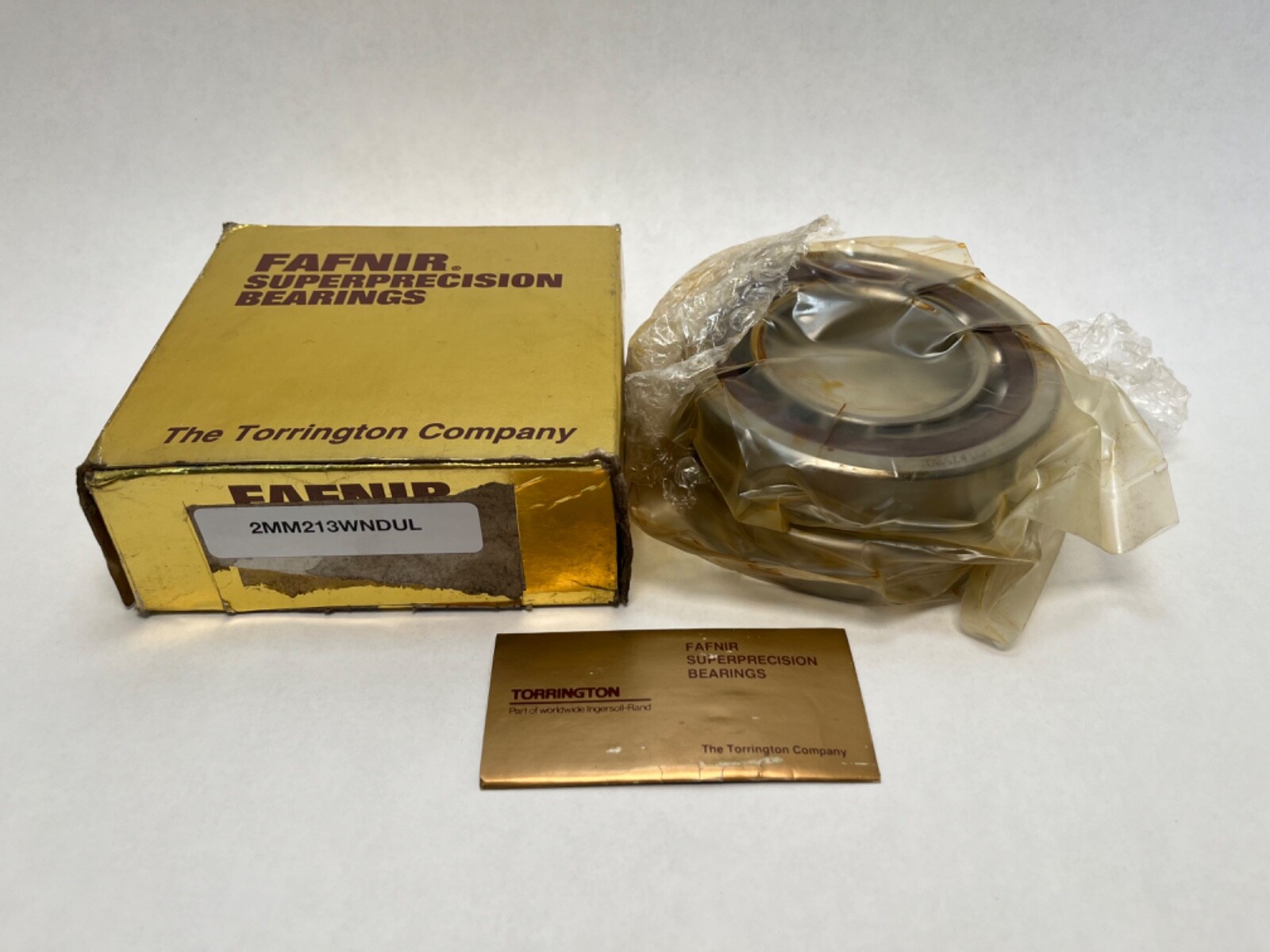

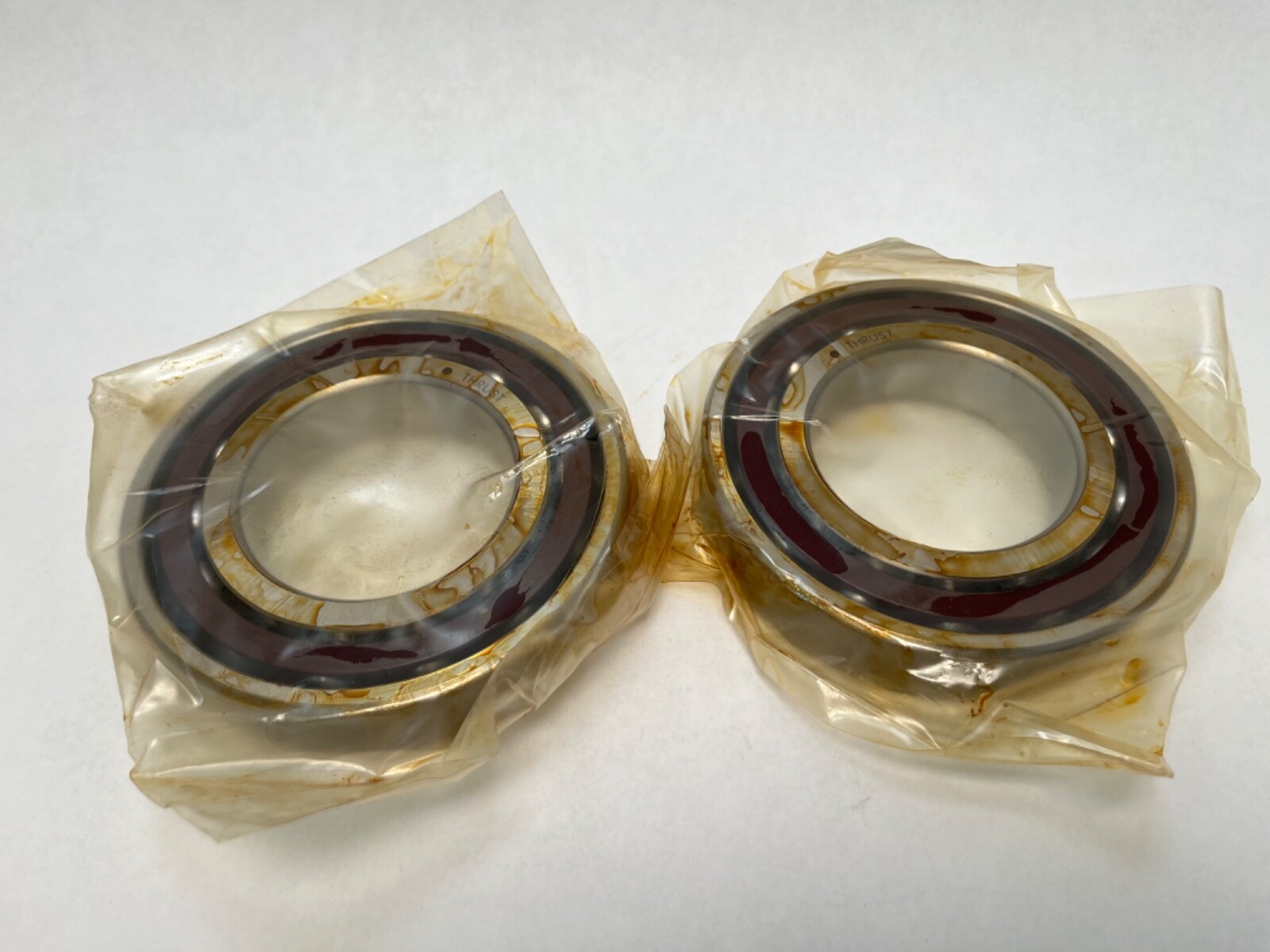

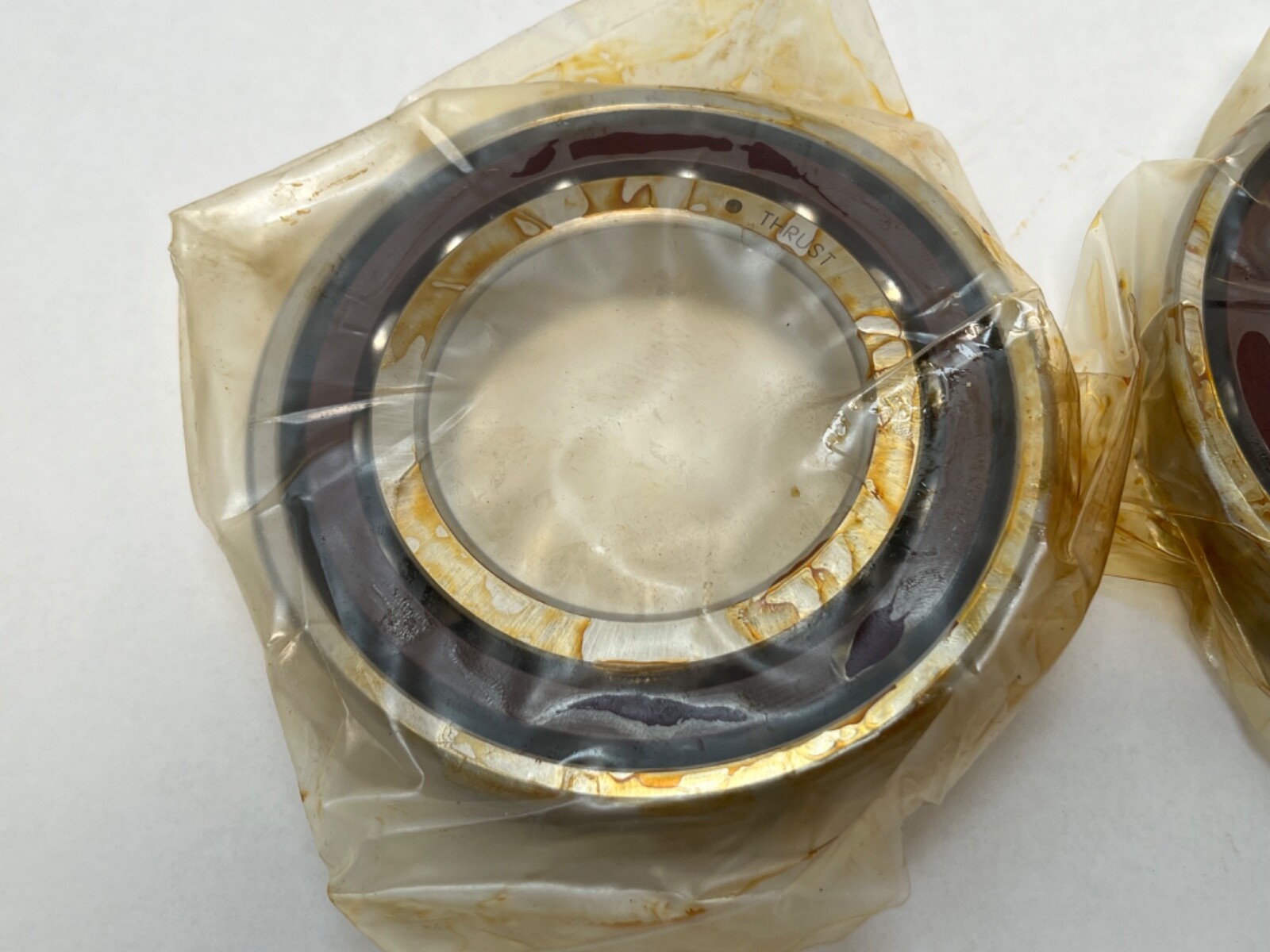

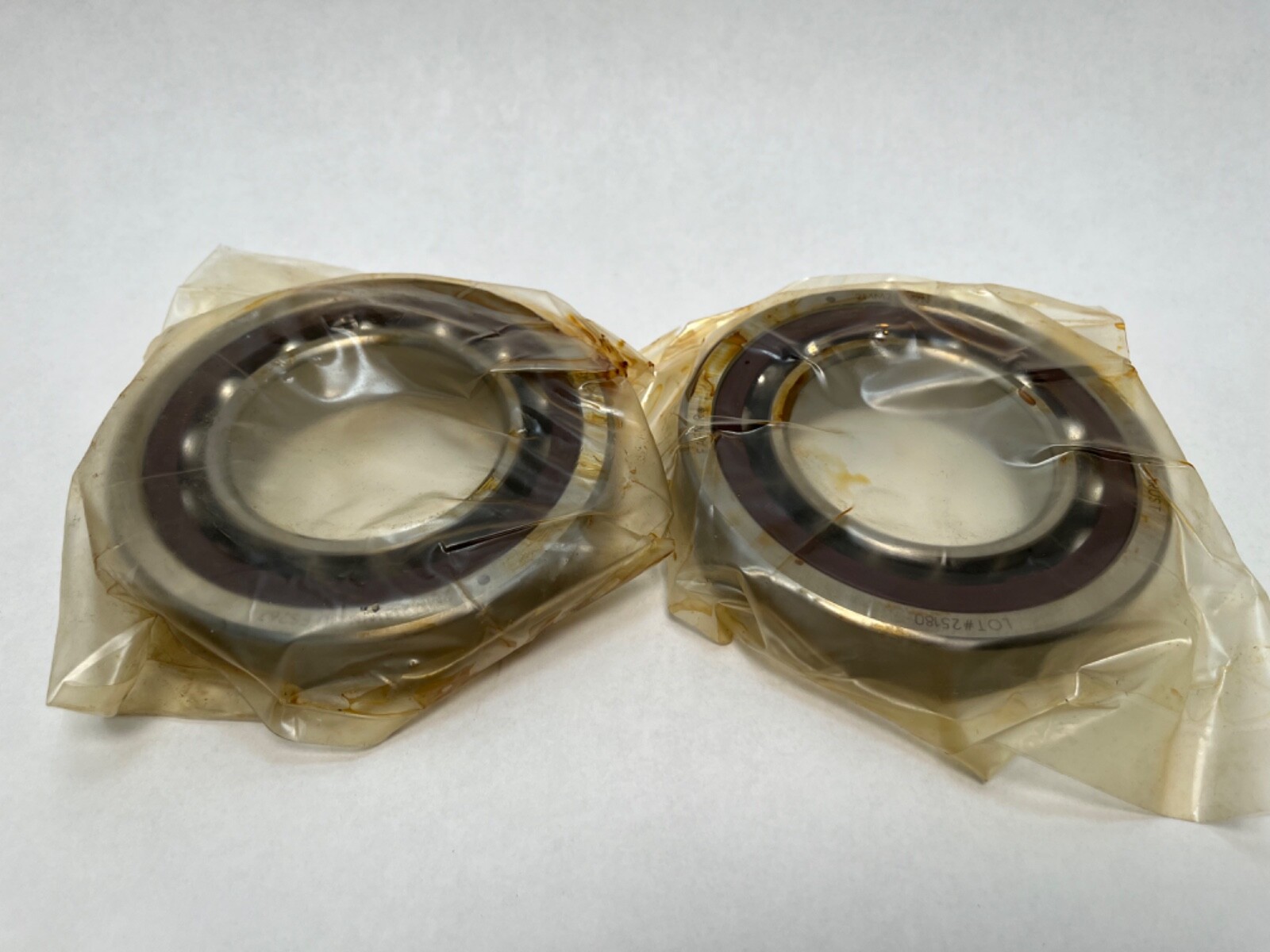

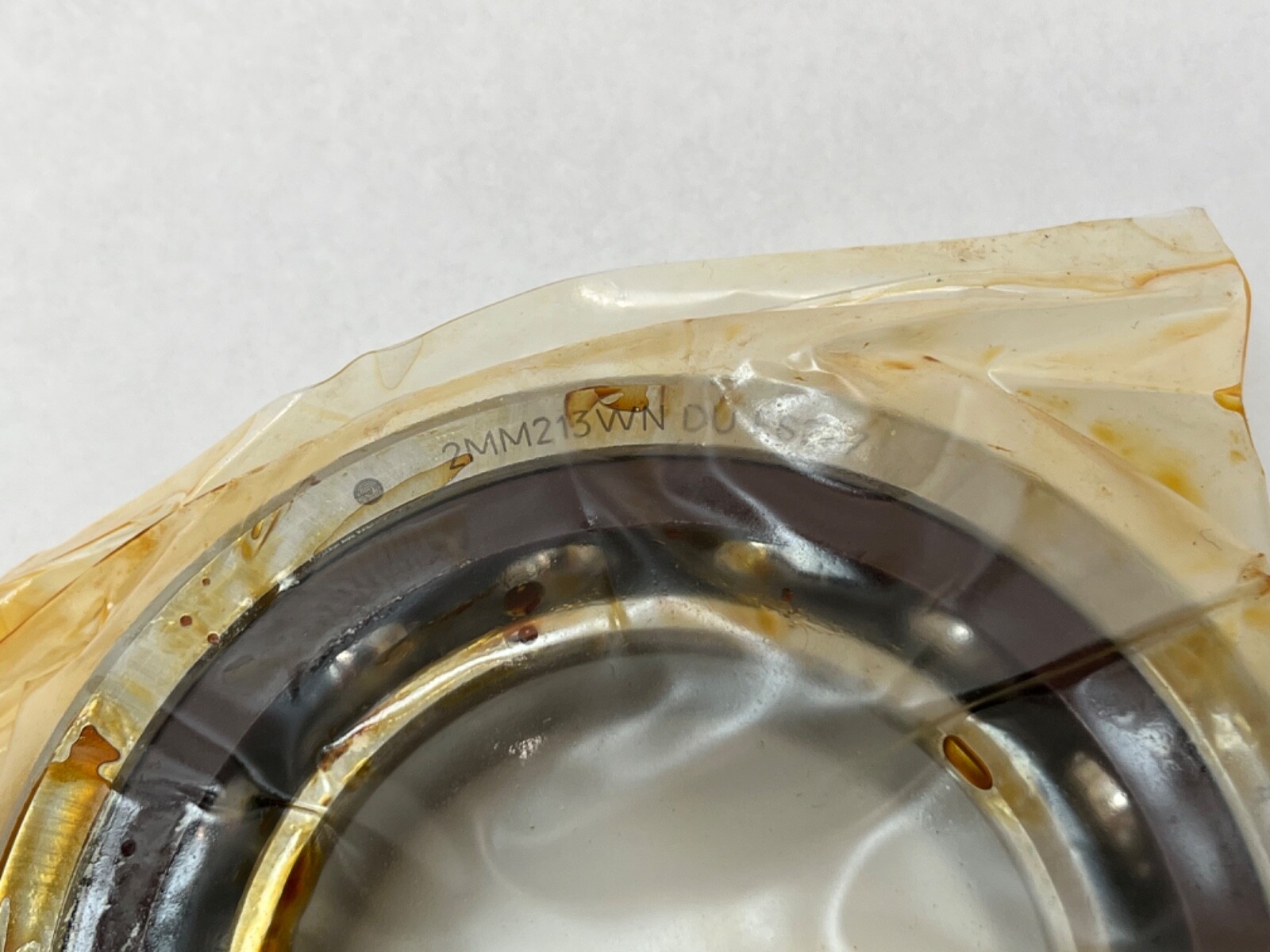

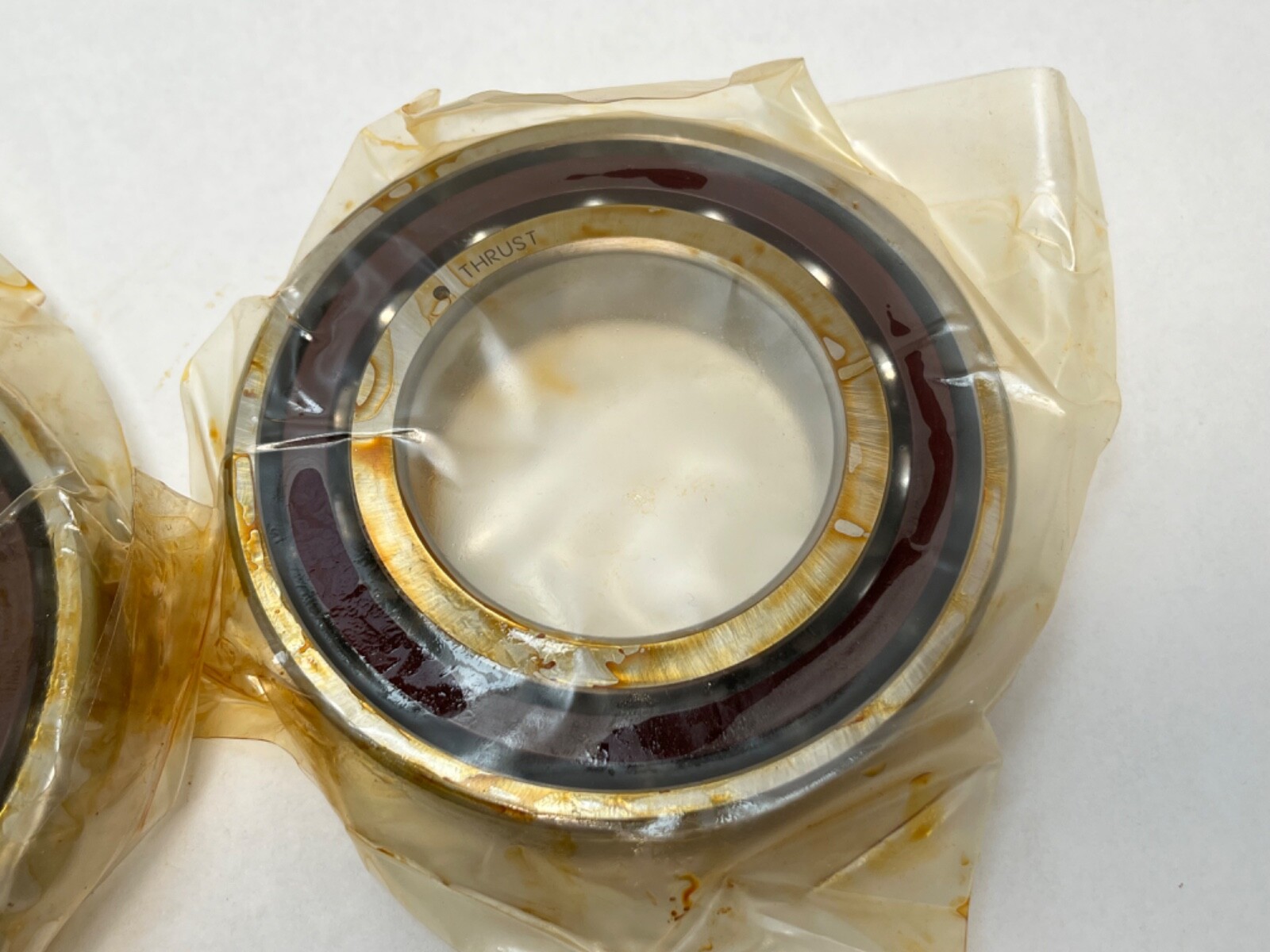

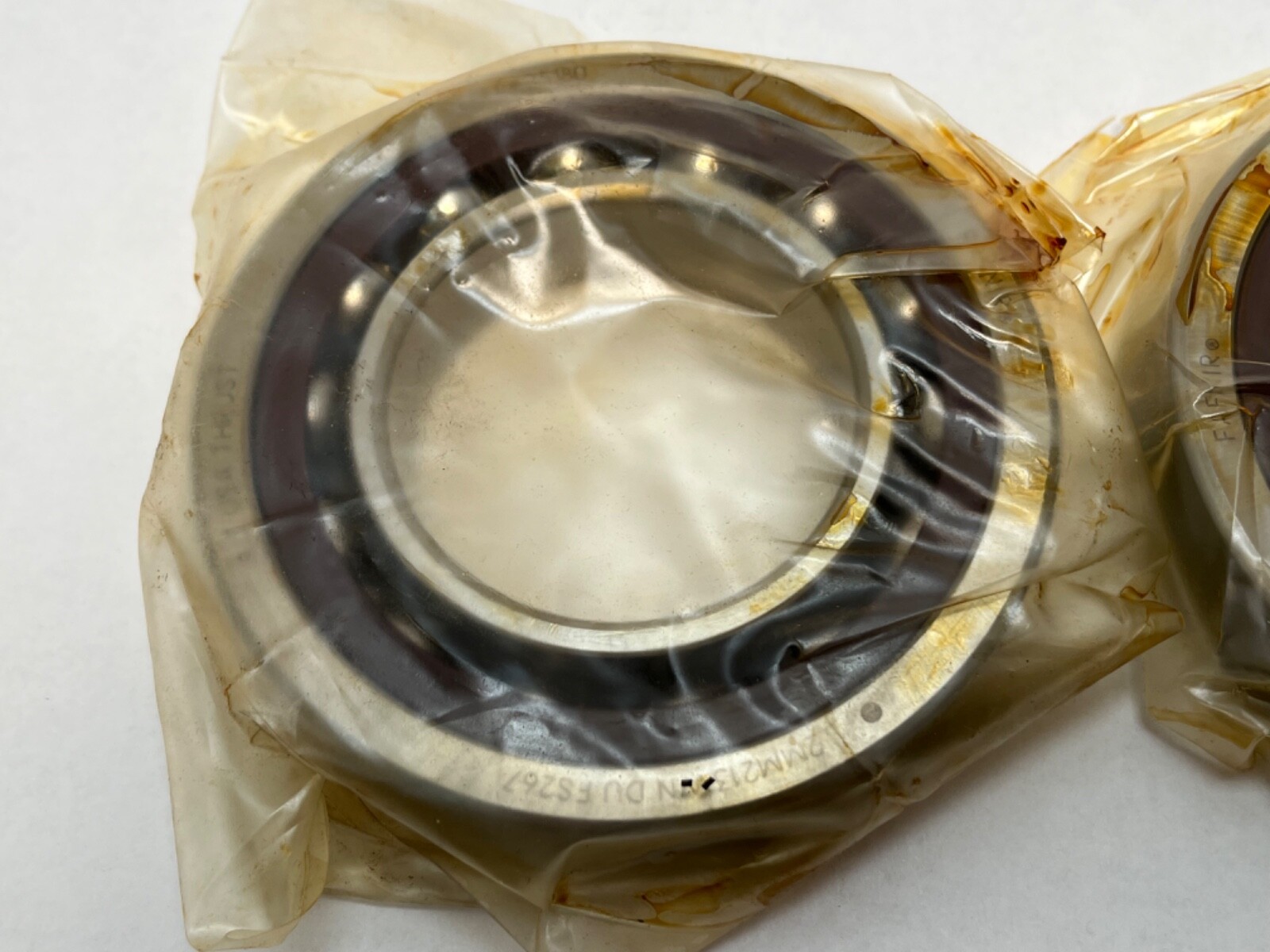

Experience superior performance and reliability with the Fafnir 2MM213WN-DUL Angular Bearing. Designed specifically for precision applications, this angular contact ball bearing measures 65 mm x 120 mm x 23 mm and is built to meet the highest industry standards. With a model number of 2 MM 213 WN DUL / 7213 C T DUL P4, this bearing boasts a durable construction that ensures long-lasting service. Manufactured in the United States, the Fafnir bearing is ideal for various applications, ranging from machinery to automotive components. Its angular contact design allows for greater load capacity and enhanced performance in both radial and axial directions. We are committed to providing our customers with the best service possible. If you need additional parts or have specific requirements, do not hesitate to contact us. We offer competitive pricing on all items and combine shipping for your convenience. Enjoy global shipping options, and benefit from our express shipping services with UPS, FedEx, and DHL. Experience same-day shipping on all items, and take advantage of next-day shipping available at checkout. Upgrade your equipment with the Fafnir 2MM213WN-DUL Angular Bearing and ensure reliability wherever it is employed.
