A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
2 in stock

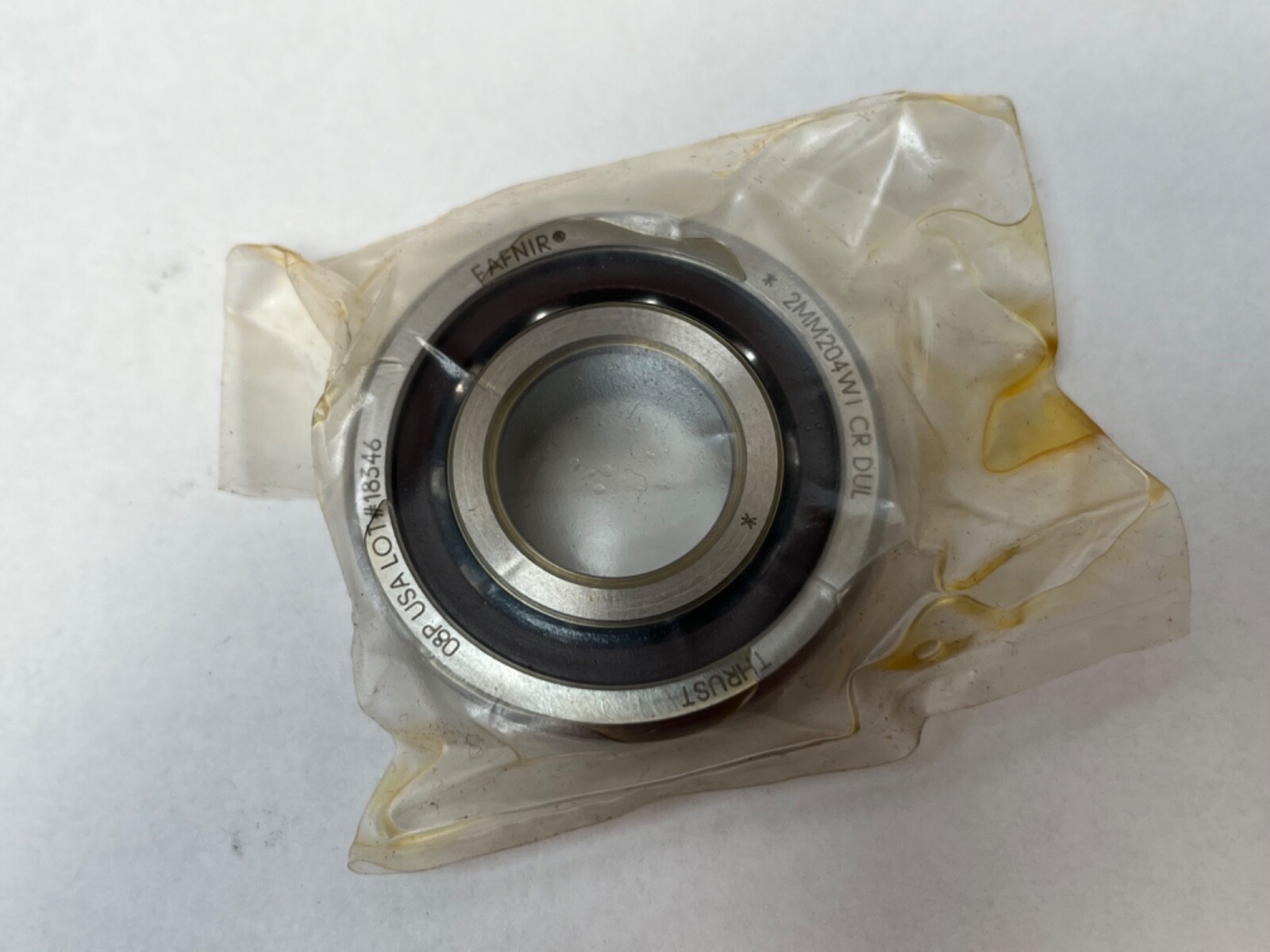

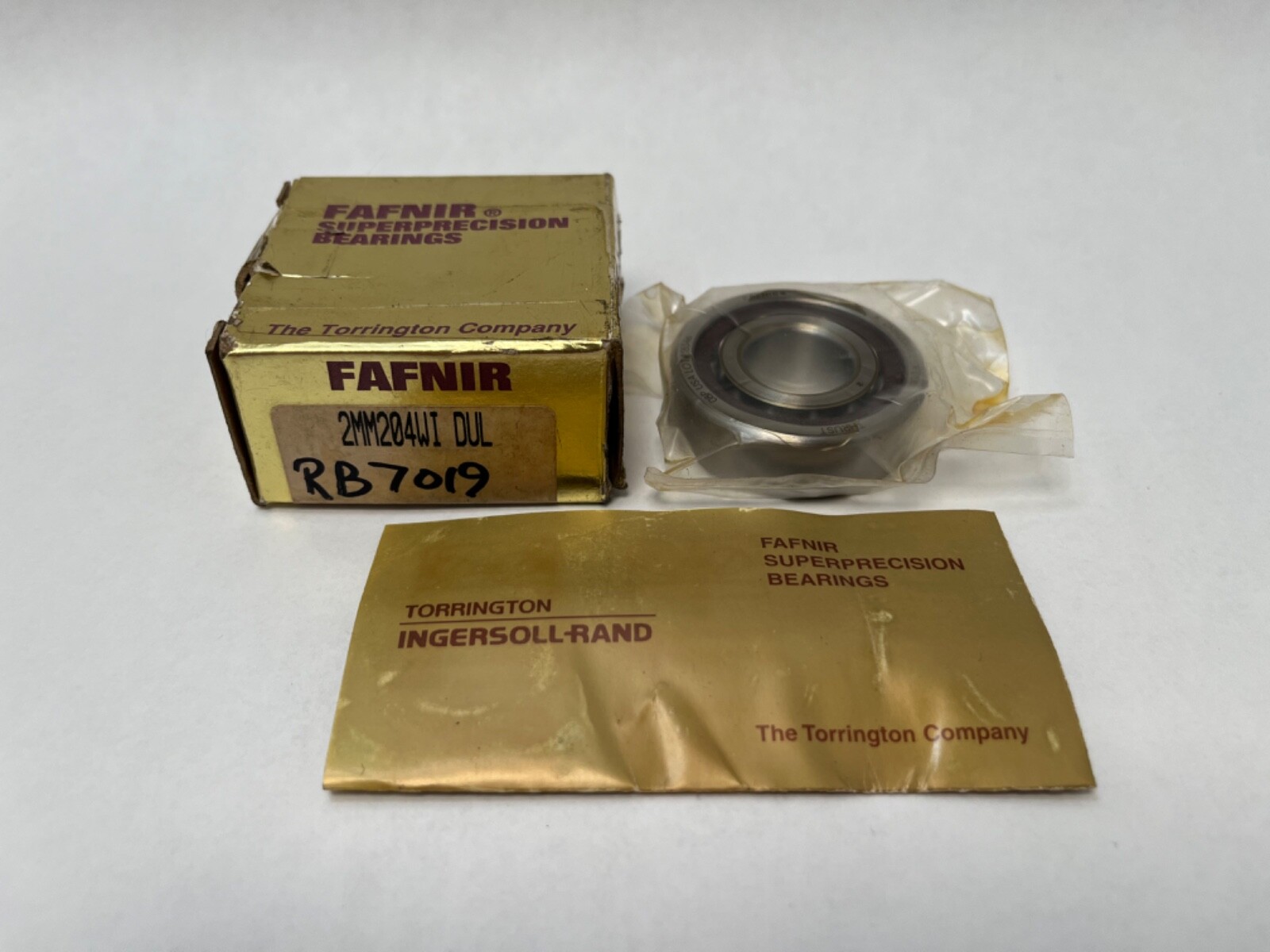

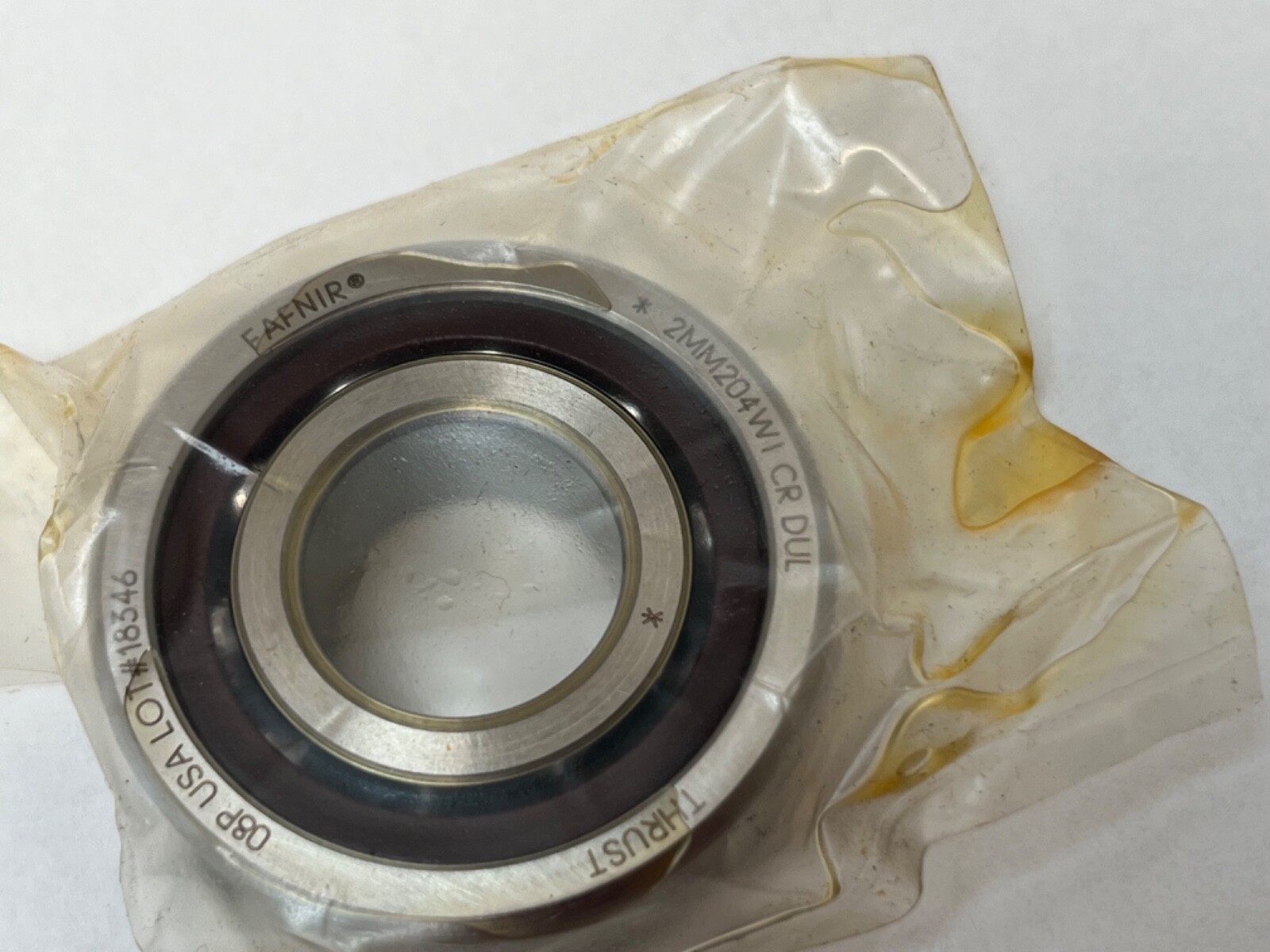

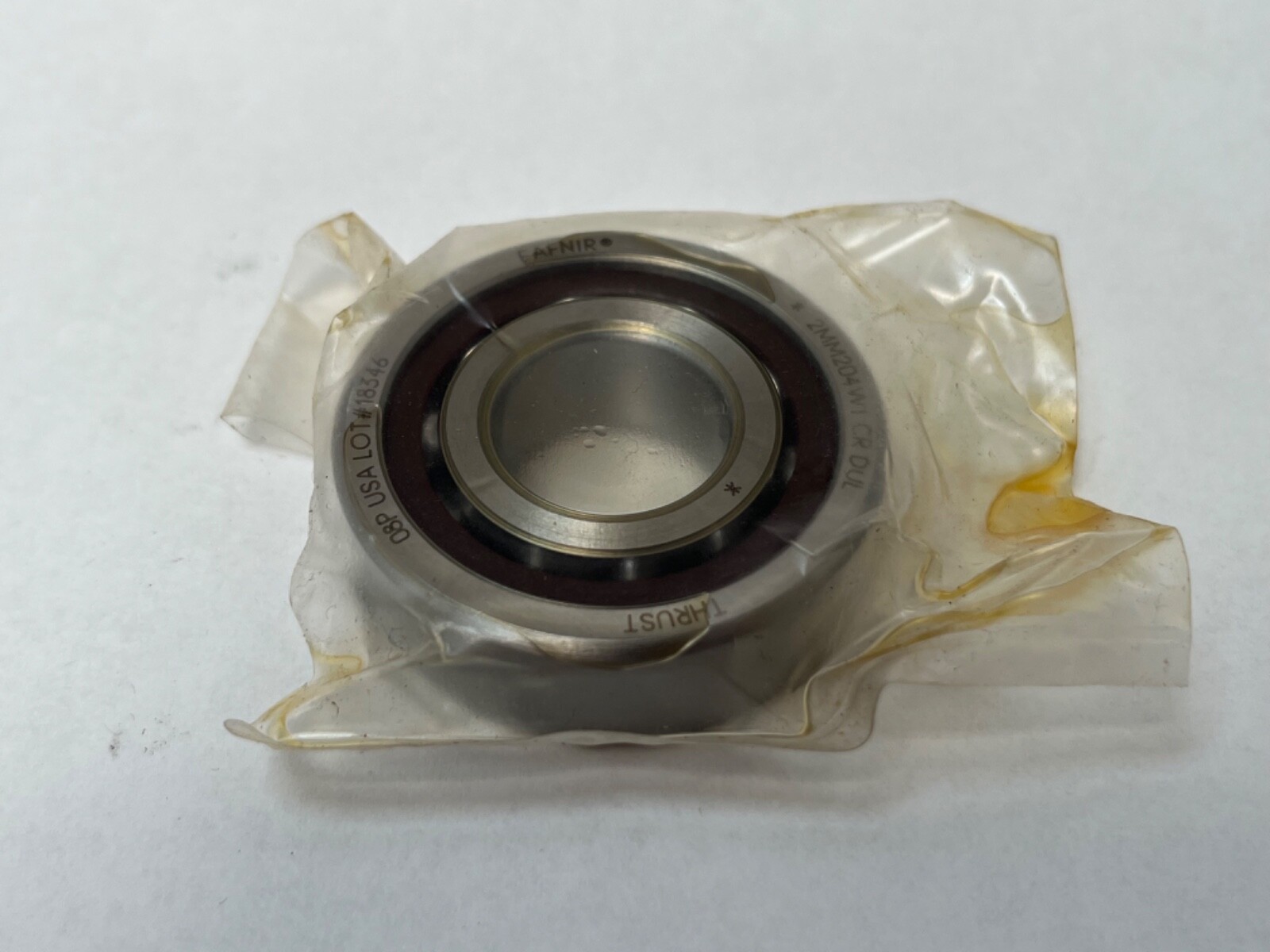

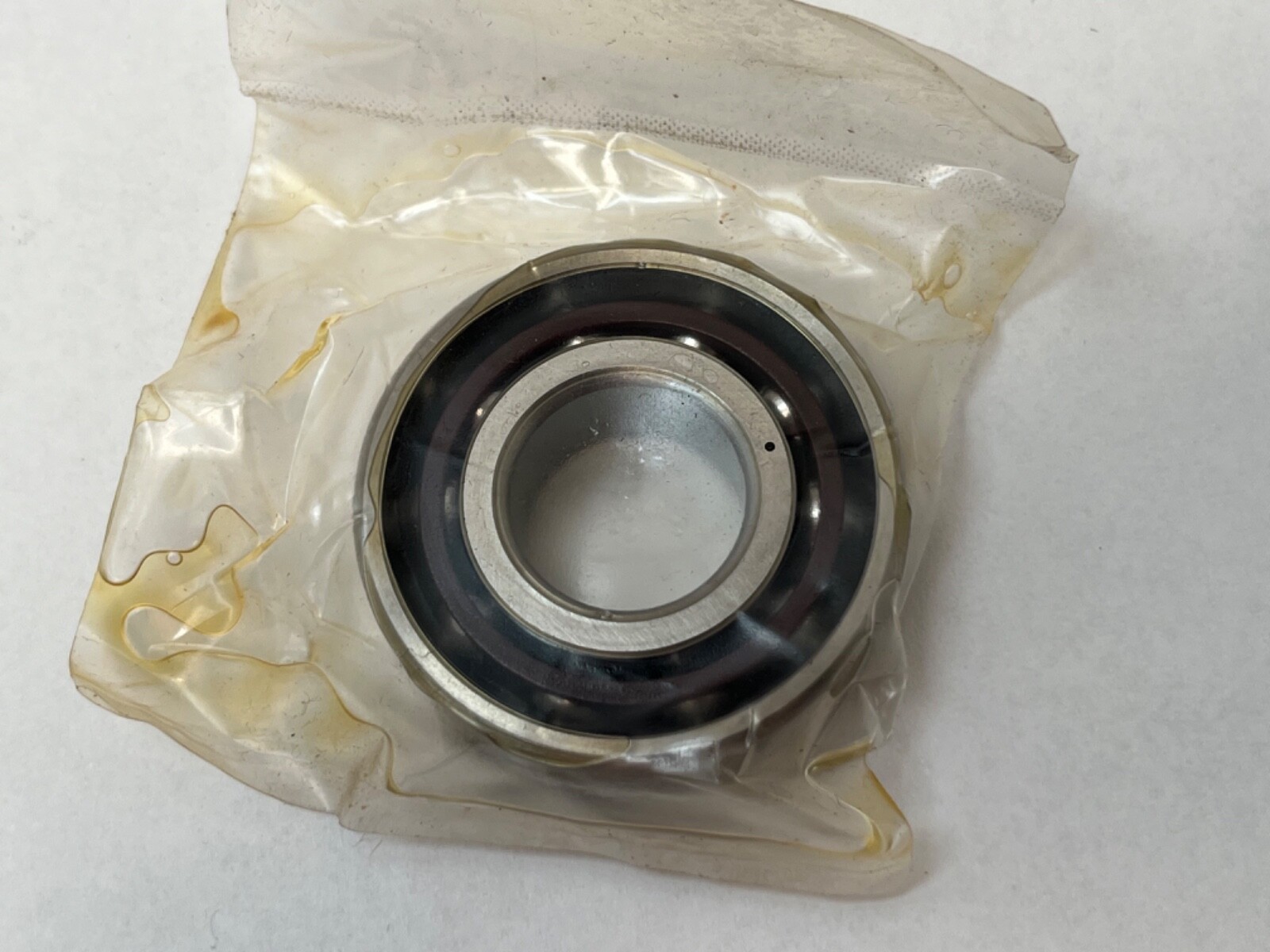

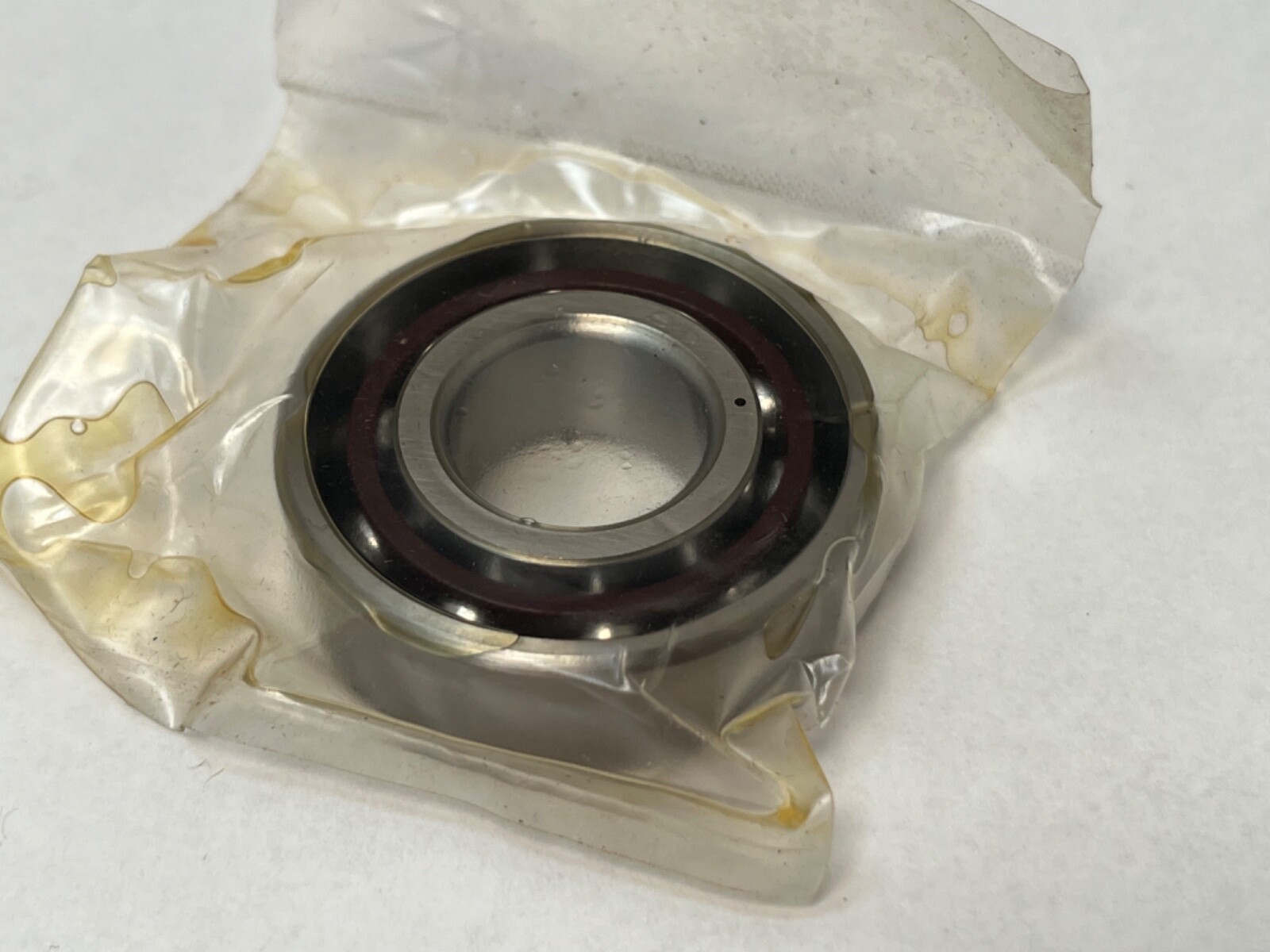

Super-precision angular contact ball bearing, 20 x 47 x 14 mm, 15-degree contact angle, light preload, phenolic cage, ABEC 7/9, 35,700 rpm grease.
List Price
$67.47
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM204WI-SUL |
| GTIN | 087796070073 |
| Model | 2MM 204 WI SUL / B 7204 C T P4 DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 20 mm |
| OD | 47 mm |
| Width | 14 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Lubricant | grease or oil |
| Preload | Light |
| Base Number | 7204 |
| Common Misspellings | 2M204WI-SUL; 2MM024WI-SUL; 2MM204W1-SUL; 2MM204WI SUL; 2MM204WIS UL |
| Total Width | 14 mm |
| Overall Width | 14 mm |
| Mpn Variants | 2MM204WI-SUL; 2MM204WICRSUL; 2MM204WI CR SUL; 2MM-204-WI-UL; 2MM204WISUL; 7204C-T-P4S-SUL; B 7204 C T P4 DUL |
| Arrangement Configuration | Single, universally ground |
| Precision Class | ABEC 7/9 / P4S |
| Dynamic Load Rating C1 | 16,100 N |
| Cage Type | Machined, outer-ring land-riding |
| Dynamic Load Rating | 14,600 N |
| Static Load Rating | 8,100 N |
| Precision Rating | ABEC 7/9 / P4S |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Limiting Speed | 35,700 rpm grease; 71,400 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Design Units | Metric |
| Bearing Material | Steel |
| Part Number | 2MM204WI-SUL |
| Cross Reference 1 | SKF 7204 CD/P4ADGA (light preload) |
|---|---|
| Cross Reference 2 | FAG B7204-C-T-P4S-UL (light preload) |
| Cross Reference 3 | NSK 7204CTYNSULP4 (light preload) |
| Cross Reference 4 | NTN 7204CG/GLP4 (light preload) |
| Cross Reference 5 | Koyo 7204C/GLP4 (light preload) |
| Cross Reference 6 | RHP 7204CTSUP4 (light preload) |
| Cross Reference 7 | IBC 7204-C-T-P4S-UL (light preload) |
| Cross Reference 8 | MRC 204R (15° counterbored outer ring) |
| Cross Reference 9 | Timken/Fafnir 7204C-T-P4S-SUL (world part number) |
The Fafnir 2MM204WI-SUL is a super-precision angular contact ball bearing built by The Timken Company, 20 mm bore, 47 mm outside diameter, 14 mm width, 15° contact angle, light preload. Timken world part number 7204C-T-P4S-SUL. Sold as 1 piece.
2MM — 15° contact angle in the Fafnir super-precision spindle range, ISO P4S, ABEC 7/9.
204 — 20 mm bore in the 72xx dimension series.
CR — phenolic outer-land-riding cage.
SUL — a single bearing, universally ground, at light preload; any two or more mount together back-to-back, face-to-face or in tandem.
Bore Diameter: 20 mm. Outside Diameter: 47 mm. Overall Width: 14 mm. Total Width: 14 mm. Contact Angle: 15°. Preload: Light. Precision Class: ABEC 7/9 / P4S. Cage Material: Phenolic. Cage Type: Machined, outer-ring land-riding. Bore Type: Straight. Number Of Rows: 1. Rolling Elements: Ball. Bearing Material: Steel. Closure Type: Open. Series: 7200. Base Number: 7204. Dynamic Load Rating: 14,600 N (ISO basis, per row). Dynamic Load Rating (C1): 16,100 N (Timken one-million-revolution basis). Static Load Rating: 8,100 N. Limiting Speed: 35,700 rpm grease; 71,400 rpm oil. Lubricant: grease or oil. Arrangement / Configuration: Single, universally ground. Unit Quantity: 1 Pc.
Shaft backing shoulder diameter: 25.8 mm. Housing backing shoulder diameter: 41.5 mm. Maximum shaft fillet radius: 1 mm. Outer ring to-clear radius: 1 mm. Ground faces allow matching pieces to be stacked in any duplex or triplex arrangement without a spacer.
15° light-preload equivalents on the same envelope: SKF 7204 CD/P4ADGA, FAG B7204-C-T-P4S-UL, NSK 7204CTYNSULP4, NTN 7204CG/GLP4, Koyo 7204C/GLP4, RHP 7204CTSUP4, IBC 7204-C-T-P4S-UL. MRC 204R is the 15° counterbored-outer design in the MRC R range. Searchable variants: 2MM204WI-SUL, 2MM204WICRSUL, 2MM204WI CR SUL, 2MM-204-WI-UL, 2MM204WISUL, 7204C-T-P4S-SUL, B 7204 C T P4 DUL.
What are the dimensions of the Fafnir 2MM204WI-SUL?20 mm bore, 47 mm outside diameter, 14 mm width.
What is the contact angle and preload?15° contact angle, light preload.
What is the limiting speed?35,700 rpm with grease, 71,400 rpm with oil.
