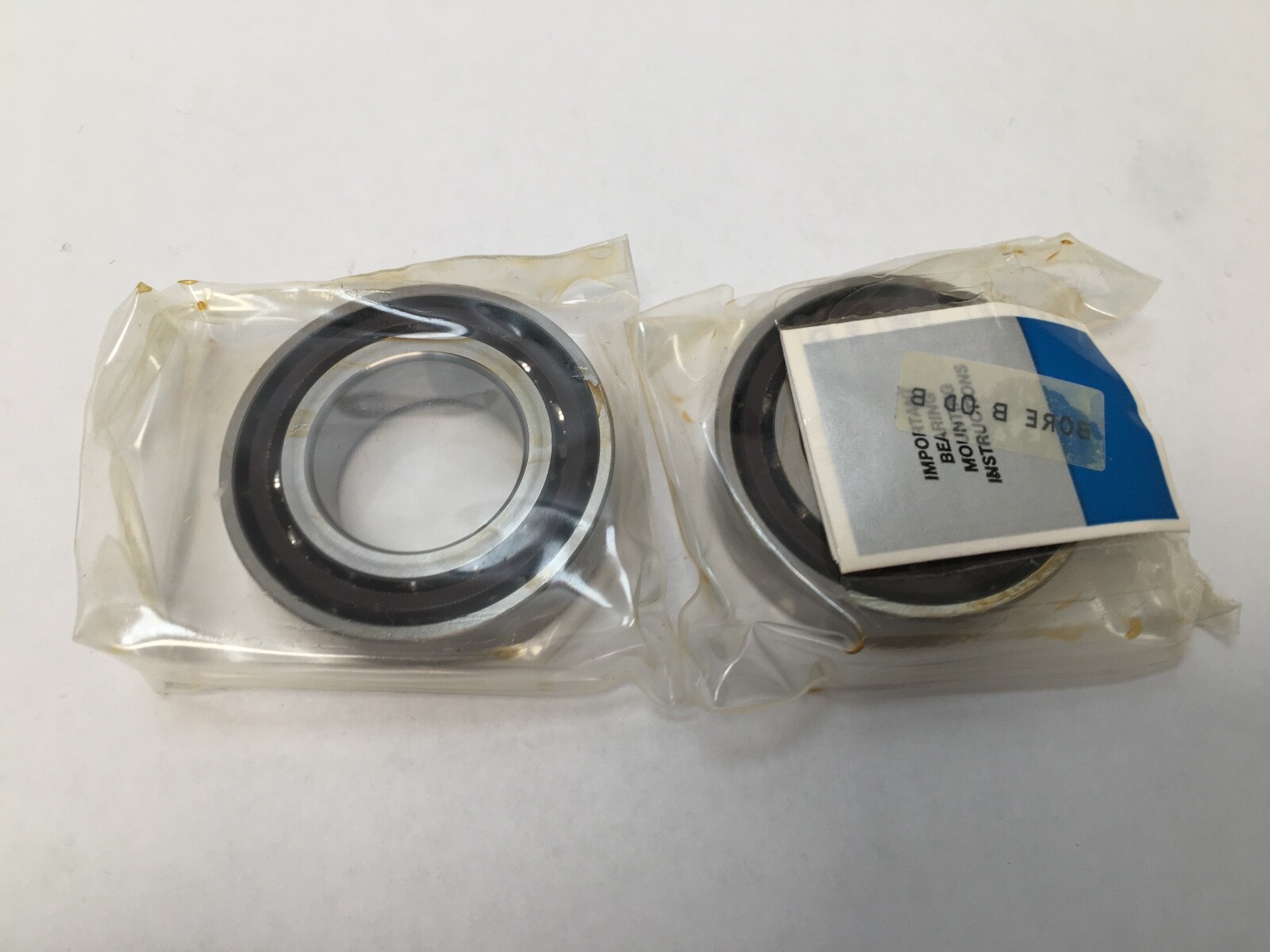

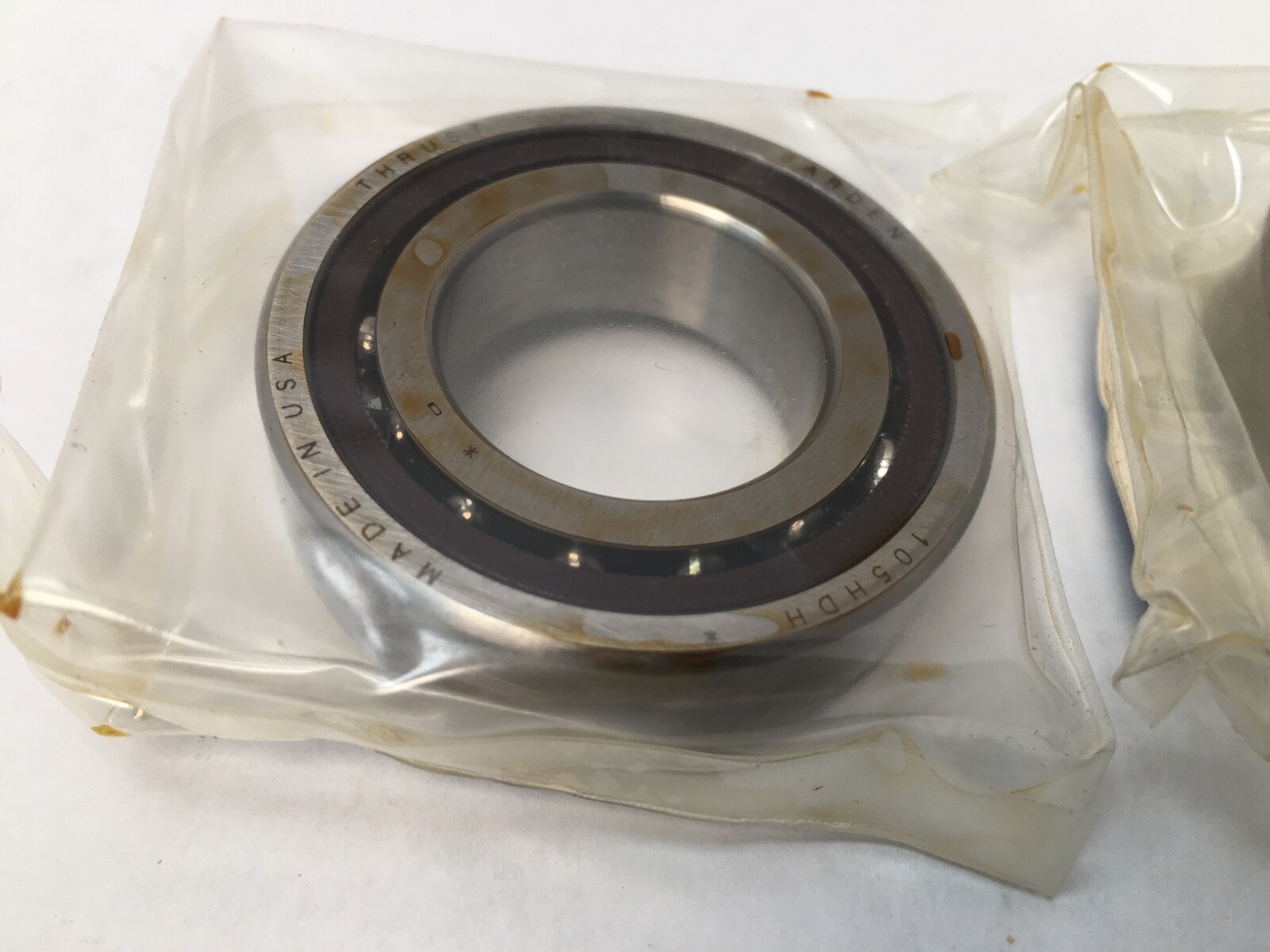

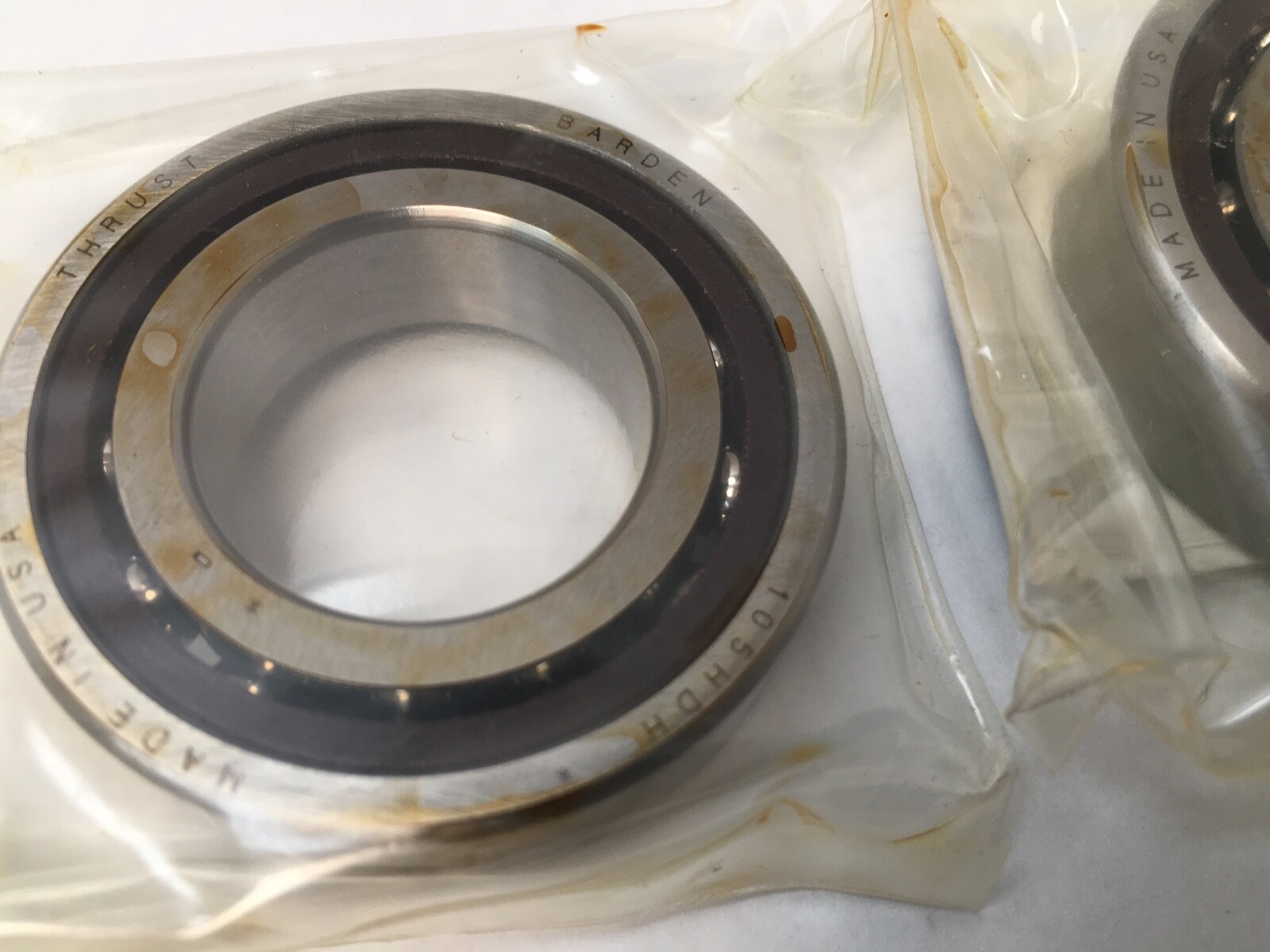

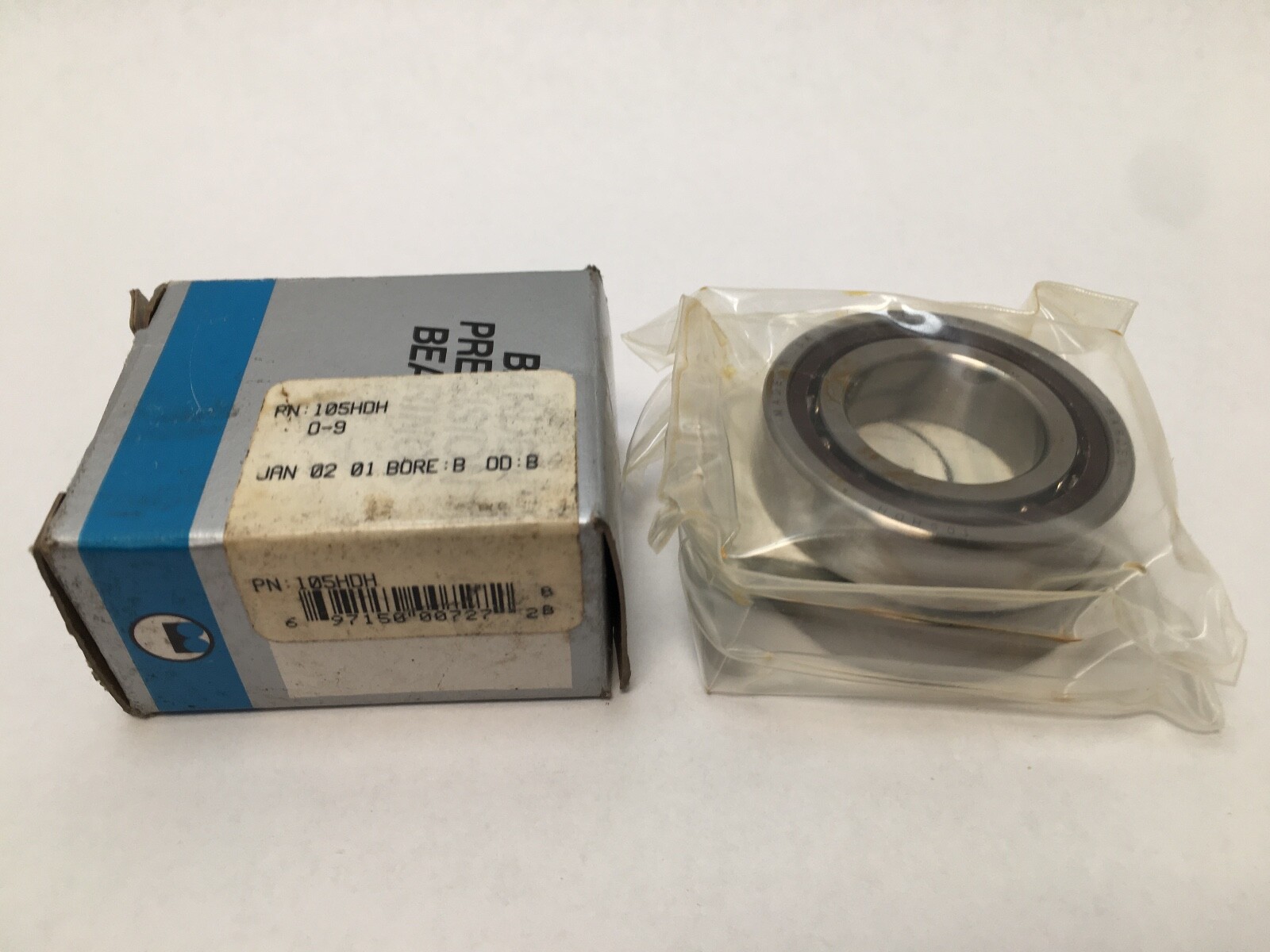

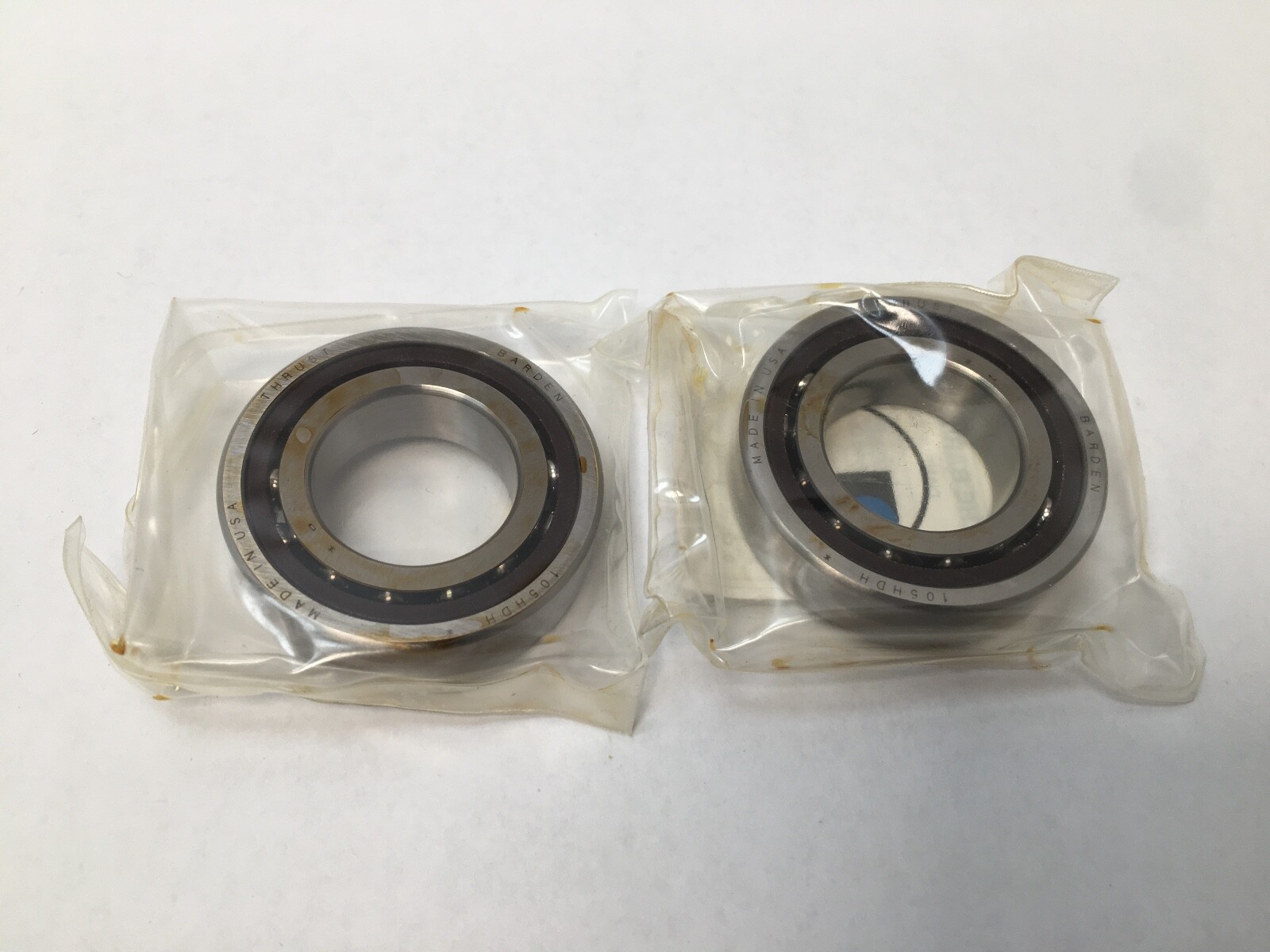

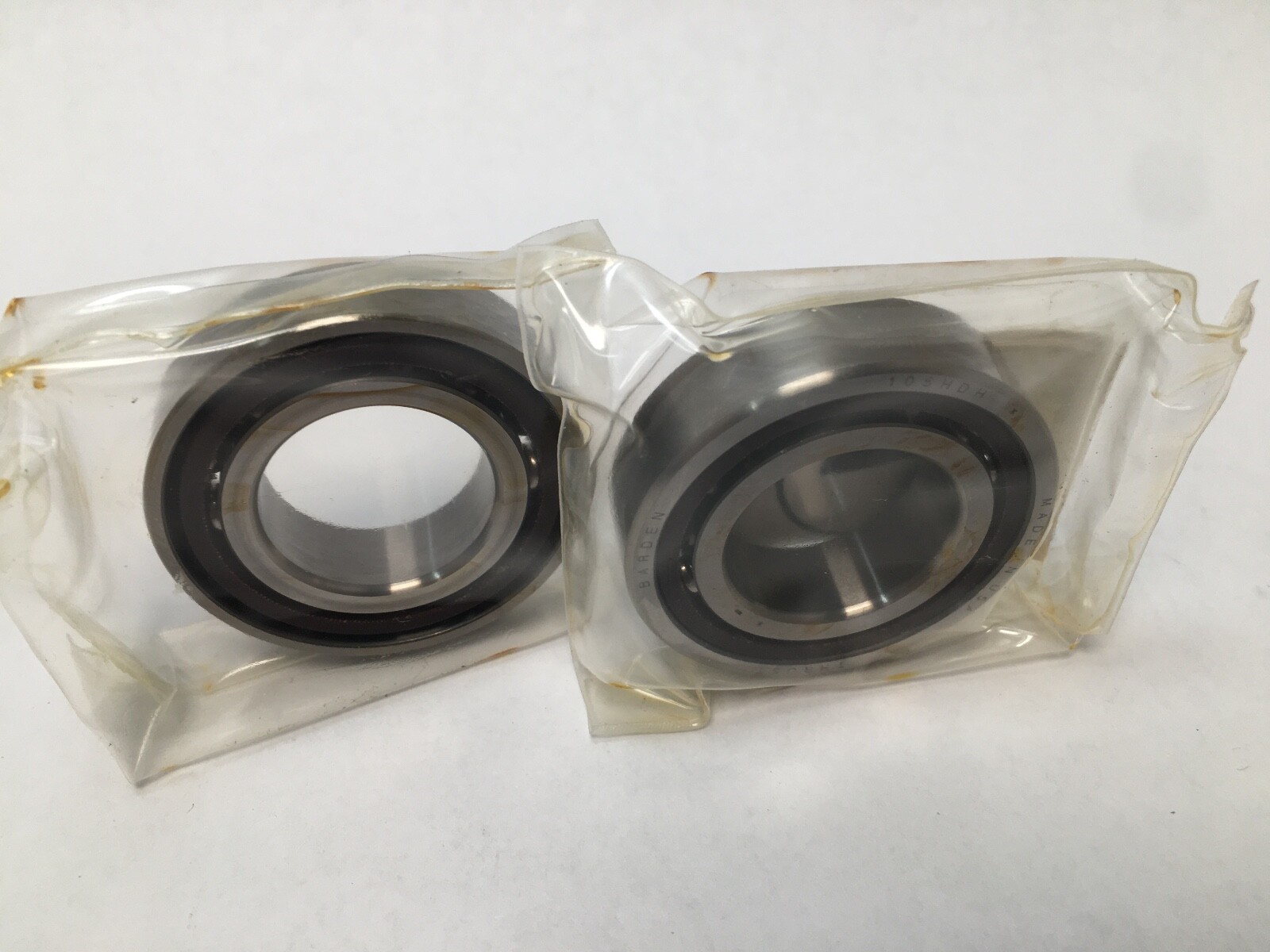

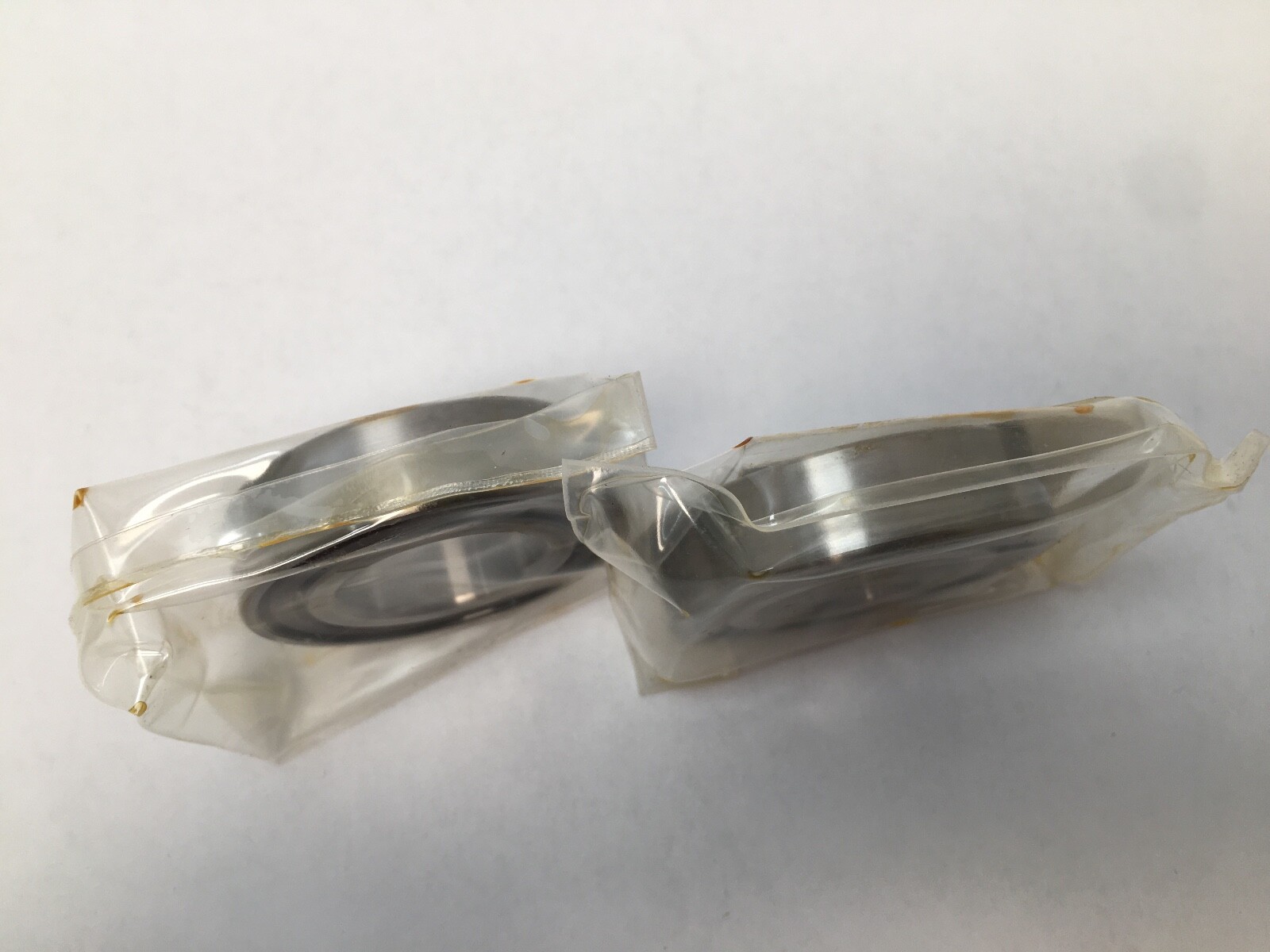

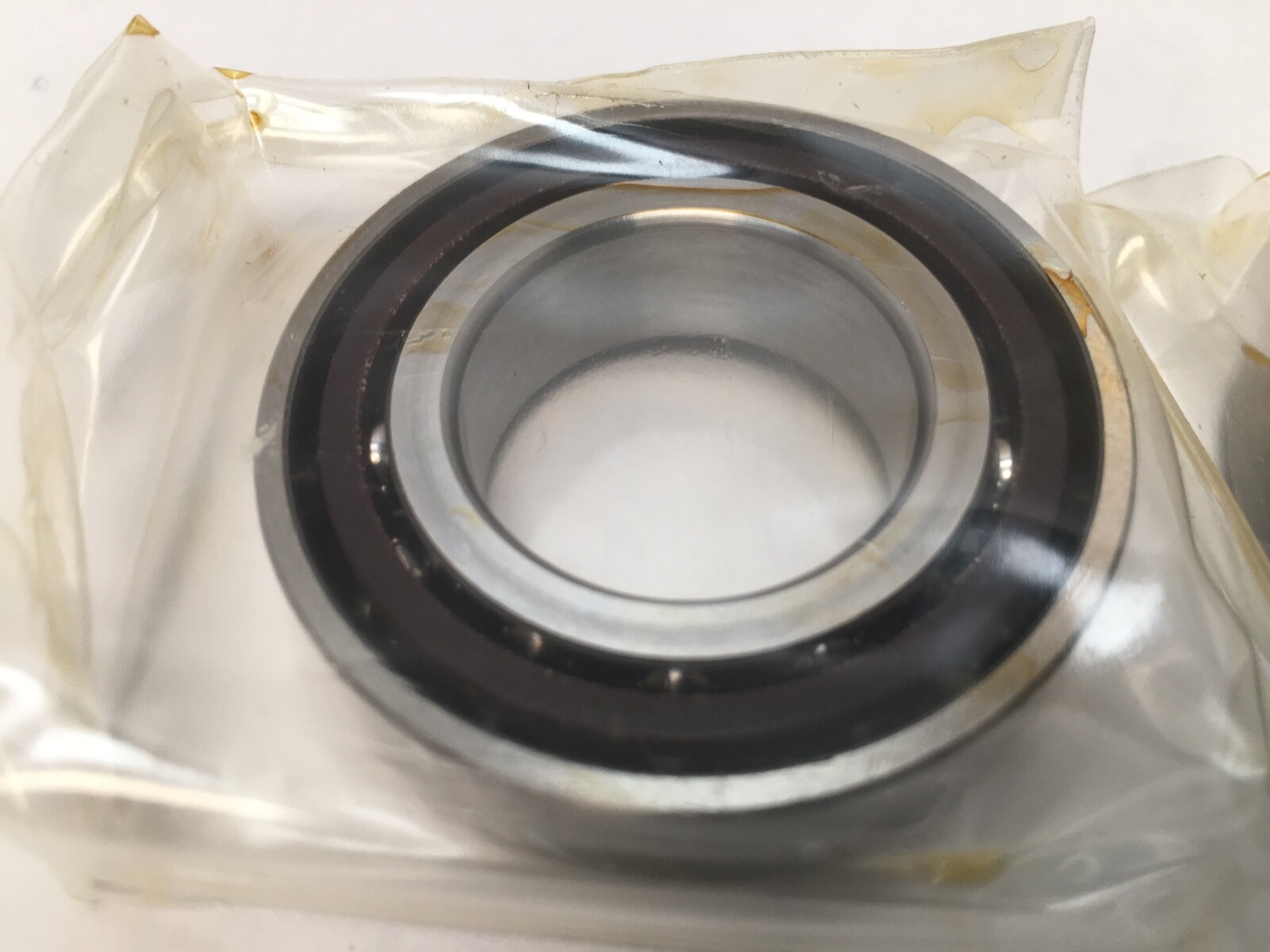

Barden 105HDH super precision angular contact ball bearing, 25 x 47 x 12 mm, 15 degree contact angle, ABEC 7 / P4S, universal duplex set, heavy preload.
List Price
$146.06
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Barden |
|---|---|
| MPN | 105HDH |
| GTIN | 697150007272 |
| Model | 105HDH |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 47 mm |
| Preload | Heavy (H), 265 N standard preload |
|---|---|
| Base Number | 105H |
| Industry Terms | super precision angular contact spindle bearing, machine tool spindle bearing, duplex bearing |
| Common Misspellings | Bardon 105HDH, Barden 105-H-DH |
| Application Types | Machine tool spindles, grinding spindles, high-speed motor spindles |
| Overall Width | 12 mm |
| Mpn Variants | 105HDH, 105-HDH, 105H DH, 105 HDH, 105 H DH |
| Arrangement Configuration | Universal duplex set of 2 (D), mounts DB, DF or DT |
| Precision Class | ABEC 7 / P4S |
| Additional Attributes | Cage type: one-piece halo, phenolic, outer ring guided. Max fillet radius r1: 0.64 mm; r2 (non-thrust side): 0.38 mm. Barden standard preload range: Light 50 N, Medium 130 N, Heavy 265 N. |
| Cage Type | One-piece halo, outer ring guided |
| Dynamic Load Rating | 11,379 N |
| Static Load Rating | 8,058 N |
| Precision Rating | ABEC 7 / P4S |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 33,000 rpm grease; 51,000 rpm oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Bearing Material | 100Cr6 (SAE 52100) chrome steel rings, steel balls |
| Rolling Elements | Ball |
| Lubricant | Grease or oil |
| Closure Type | Open |
| Cross Reference 1 | FAG B7005C.T.P4S |
|---|---|
| Cross Reference 2 | SKF 7005 CD/P4A |
| Cross Reference 3 | NSK 7005C P4 |
| Cross Reference 4 | Timken 2MM9105WI |
Barden 105HDH super precision angular contact ball bearing from the Barden 100 metric spindle series, supplied as a universal duplex set of 2 bearings with heavy preload, built for machine tool spindle service. Unit Quantity: 1 Set (2 Pcs).
105 — 100 series metric spindle bearing, bore code 05 = 25 mm bore.
H (first) — one-piece reinforced phenolic halo cage, outer ring guided.
D — universal mounting: inner and outer rings of equal width, so the set installs back-to-back (DB), face-to-face (DF) or tandem (DT).
H (final) — heavy preload; no numerals follow, so Barden standard heavy preload applies.
Contact Angle: 15°. Dynamic Load Rating: 11,379 N. Static Load Rating: 8,058 N. Limiting Speed: 33,000 rpm grease; 51,000 rpm oil. Preload: Heavy (H), 265 N standard preload. Precision Class: ABEC 7 / P4S. Cage Material: Phenolic. Cage Type: One-piece halo, outer ring guided. Bearing Material: 100Cr6 (SAE 52100) chrome steel rings, steel balls. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Base Number: 105H. Harmonization Code: 8482.10.50.
Bore Diameter: 25 mm. Outside Diameter: 47 mm. Overall Width: 12 mm per bearing, the ISO 7005 envelope. Maximum fillet radius r1: 0.64 mm. Maximum fillet radius r2 (non-thrust side): 0.38 mm. Arrangement / Configuration: universal duplex set of 2 (D), mounts DB, DF or DT.
Cross-references on the same 25 x 47 x 12 mm envelope and 15° angle: FAG B7005C.T.P4S (listed by Barden as the FAG equivalent); SKF 7005 CD/P4A; NSK 7005C P4; Timken 2MM9105WI. MPN Variants: 105HDH; 105-HDH; 105H DH; 105 HDH; 105 H DH.
25 mm bore, 47 mm outside diameter and 12 mm width per bearing, the ISO 7005 envelope, with a 15° contact angle.
The first H is a one-piece reinforced phenolic halo cage, D is universal mounting for DB, DF or DT arrangements, and the final H is heavy preload.
The set holds 2 bearings (Unit Quantity: 1 Set). Per bearing the dynamic load rating is 11,379 N and the static load rating is 8,058 N; limiting speed is 33,000 rpm with grease and 51,000 rpm with oil.
