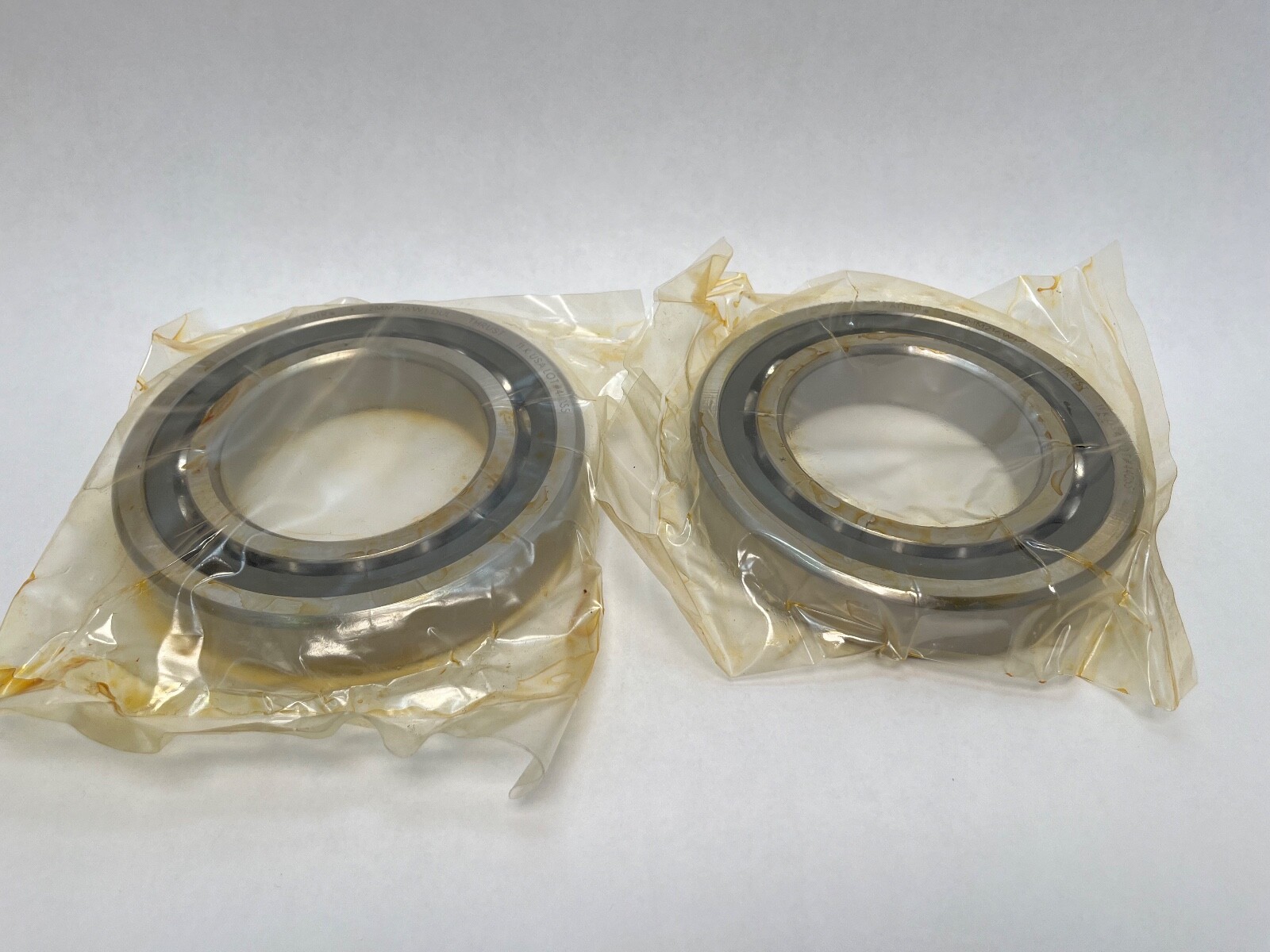

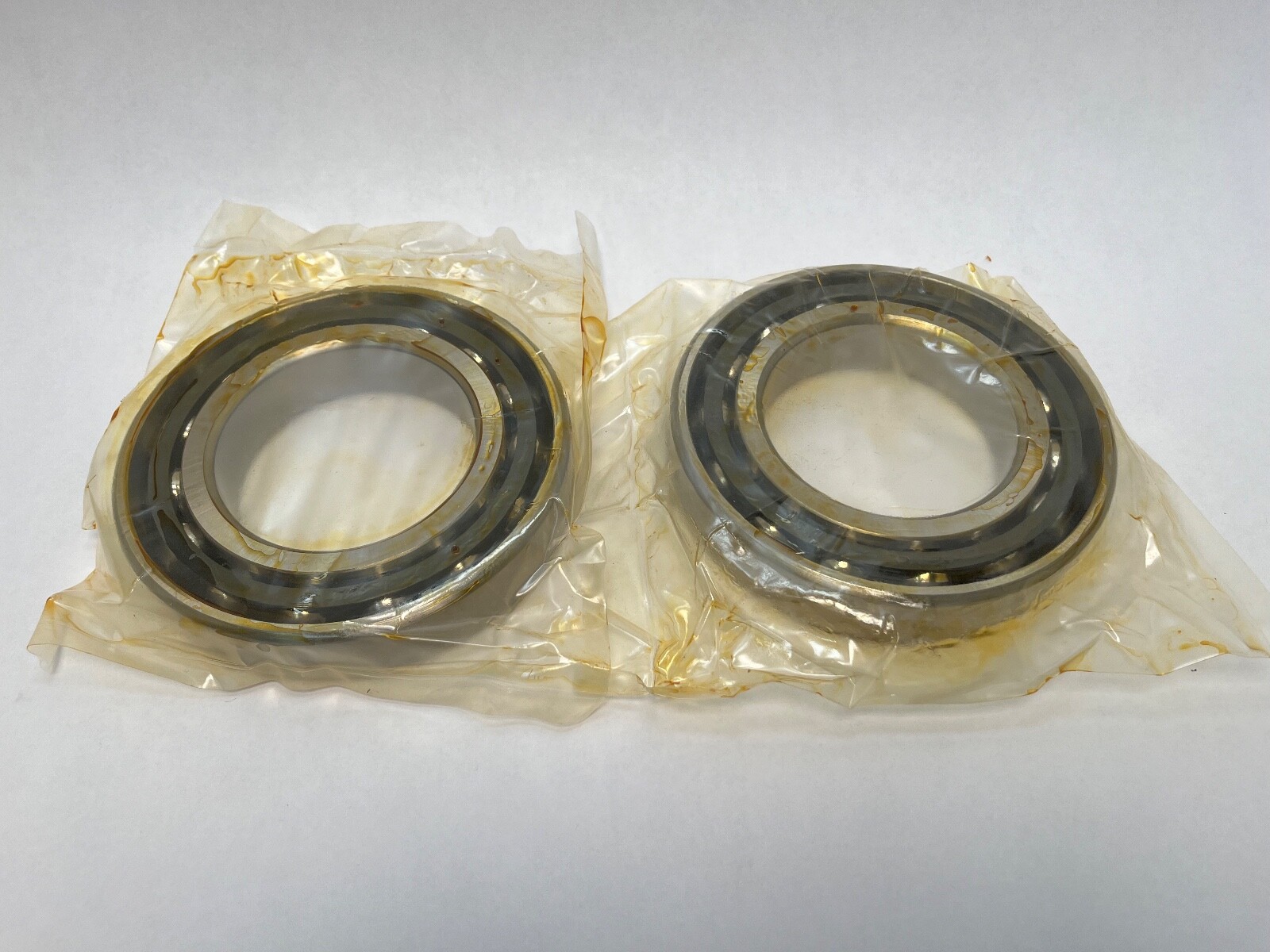

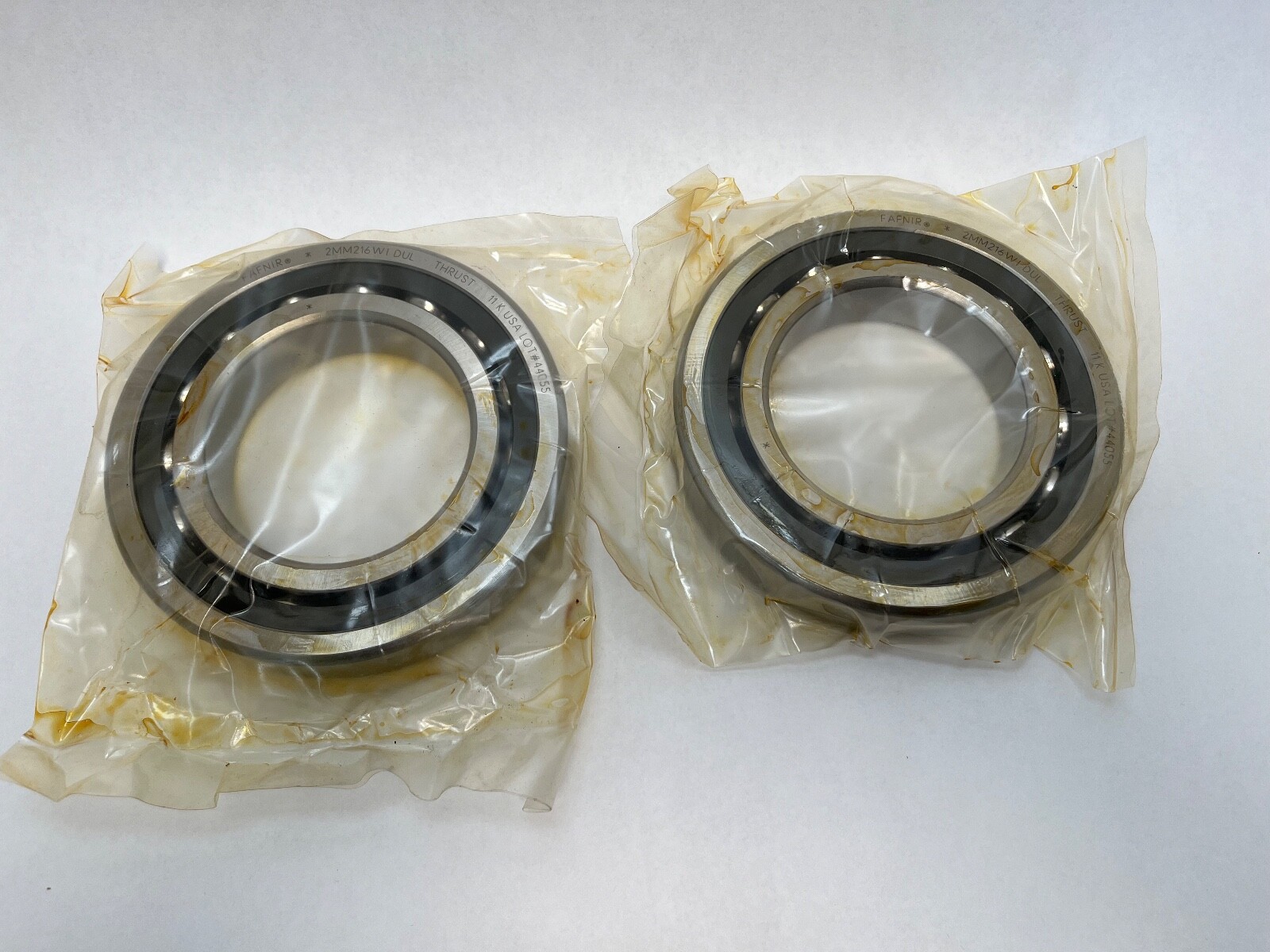

Matched duplex pair of super-precision angular contact ball bearings, 80 mm bore x 140 mm OD x 26 mm wide each, 15° contact angle, light preload. 2 Pcs.
List Price
$522.21
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM216WI DUL |
| GTIN | 087796070943 |
| Model | 2 MM 216 WI DUL / 7216 C D P4A DGB |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 80 mm |
| OD | 140 mm |
| Width | 26 mm |
| Material | Chrome Steel |
|---|---|
| Preload | Light |
| Base Number | 2MM216WI |
| Industry Terms | super precision spindle bearing set, matched pair angular contact, machine tool bearing, ABEC 9 duplex |
| Common Misspellings | 2MM216WIDUL, 2MM 216 WI DUL, Fafner, Faffnir, 2MM216W1-DUL |
| Application Types | Machine tool spindles, grinding spindles, precision gearboxes, rotary tables |
| Bore Shaft Size | 80 mm (3.150 in) |
| Mpn Variants | 2MM216WI-DUL, 2MM-216-WI-DUL, 2MM216WIDUL, 2MM 216 WI DUL, 2MM216WI-CR-DUL, 7216C |
| Precision Class | ABEC 7/9 / P4S |
| Rolling Elements | Ball |
| Number Of Rows | 1 per bearing |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Mounting Arrangement | Duplex universal (DU) |
| Part Number | 2MM216WI-DUL |
| Total Width | 52 mm |
| Overall Width | 26 mm |
| Closure Type | Open |
| Cross Reference 1 | RHP 7216CTDULP4 |
|---|---|
| Cross Reference 2 | FAG B7216C.T.P4S.UL |
| Cross Reference 3 | SKF 7216 CD/P4ADGA |
| Cross Reference 4 | NSK 7216CTRDULP4 |
| Cross Reference 5 | SNR 7216CG1DUJ74 |

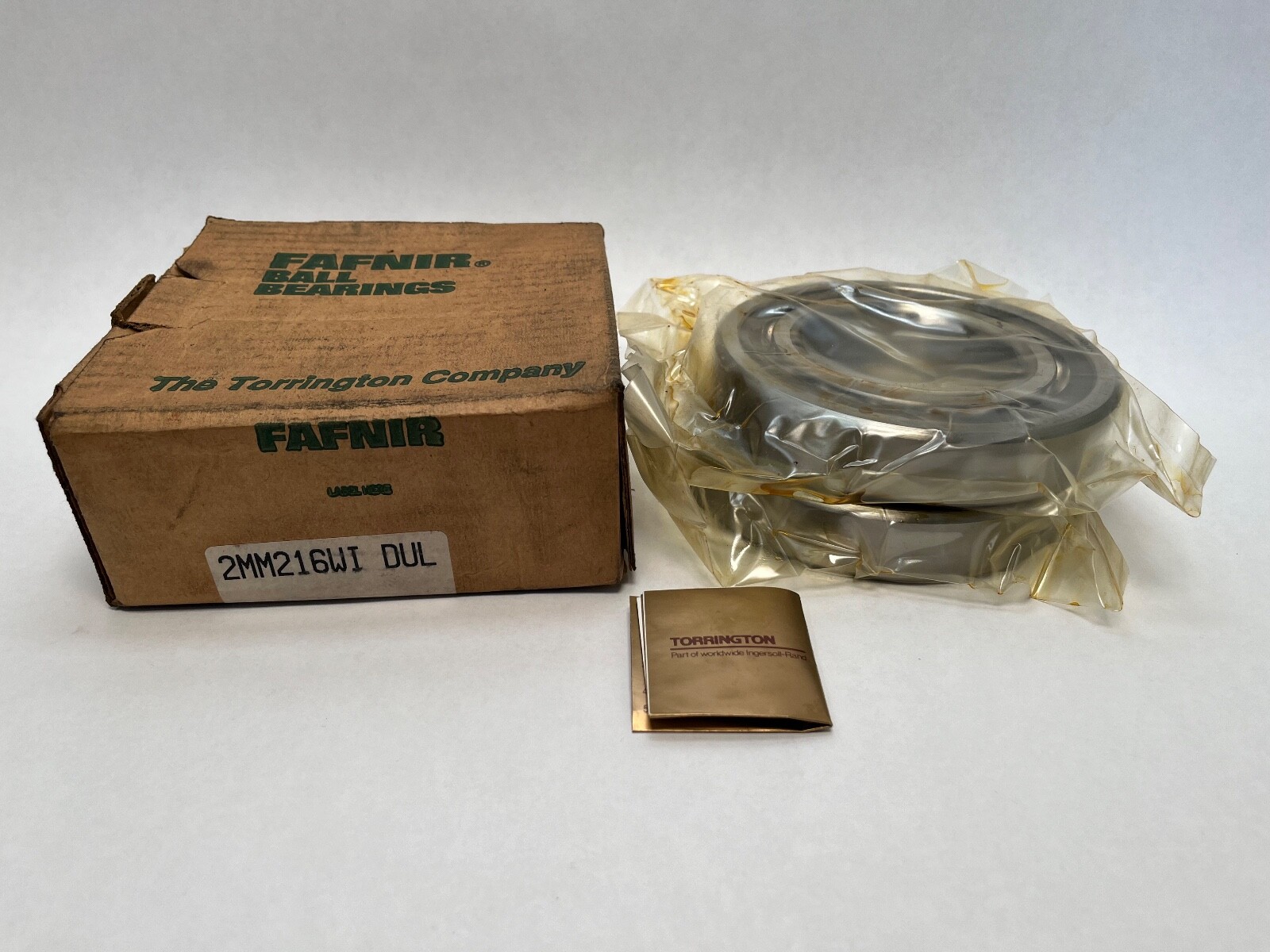

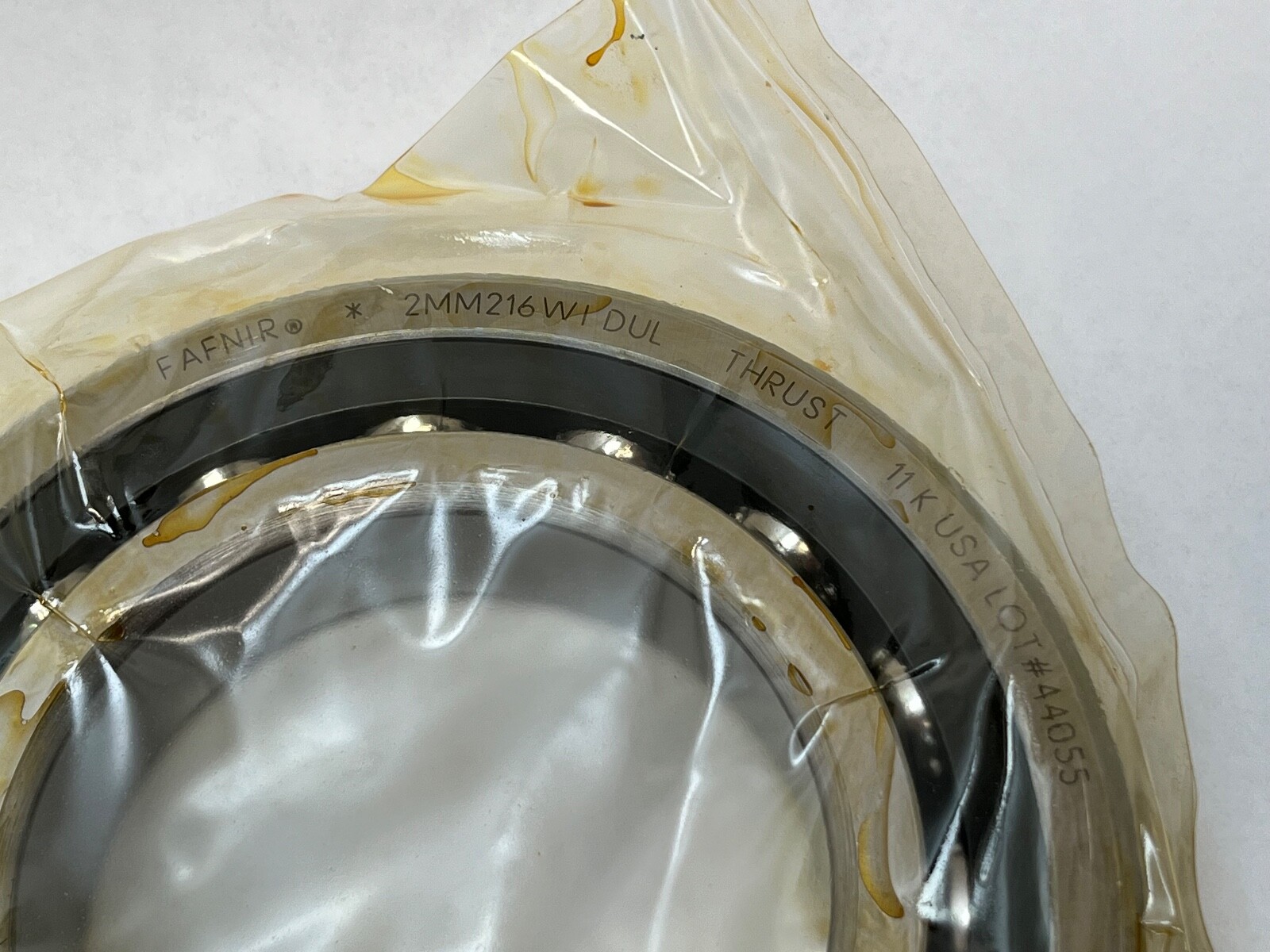

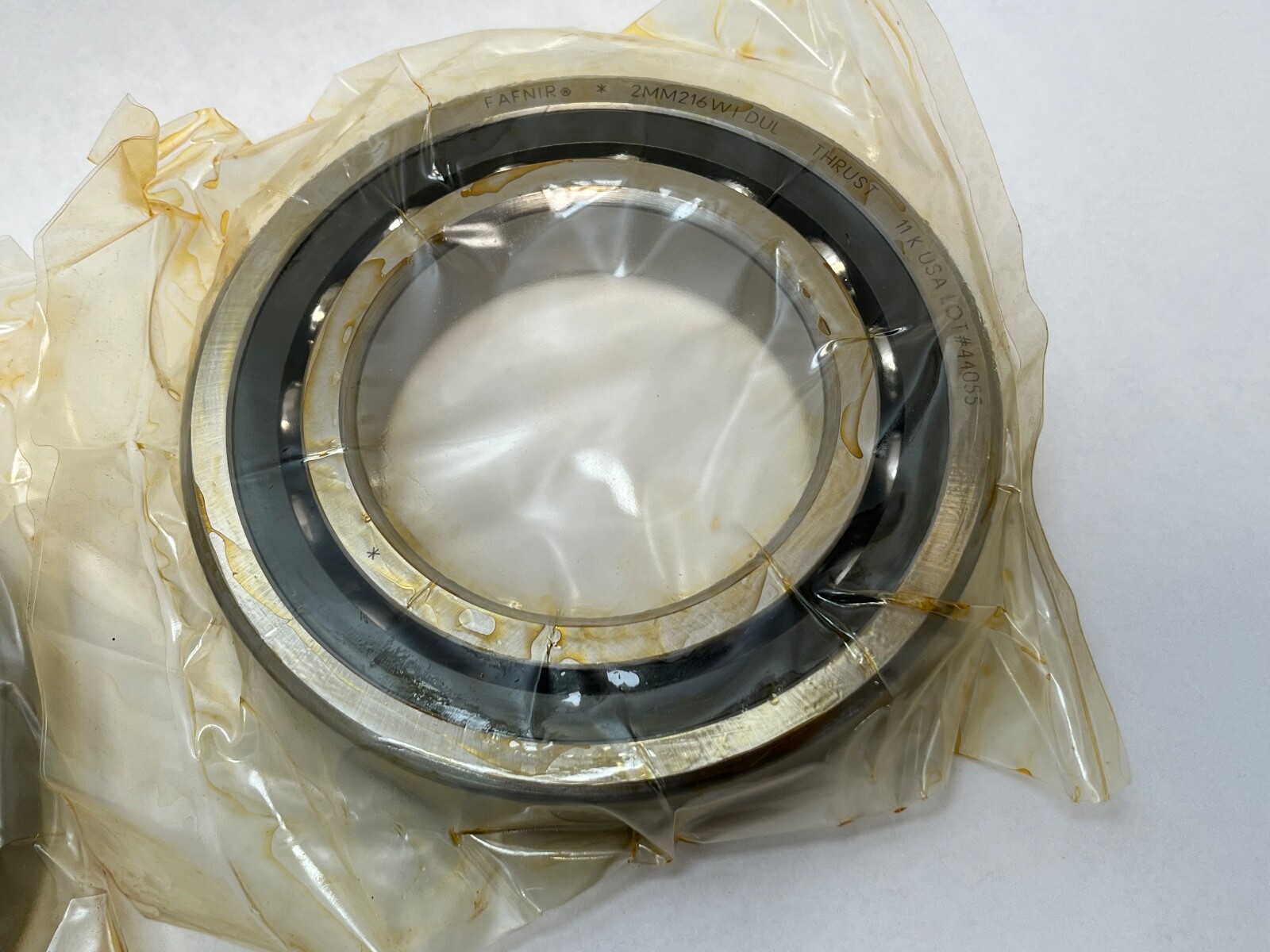

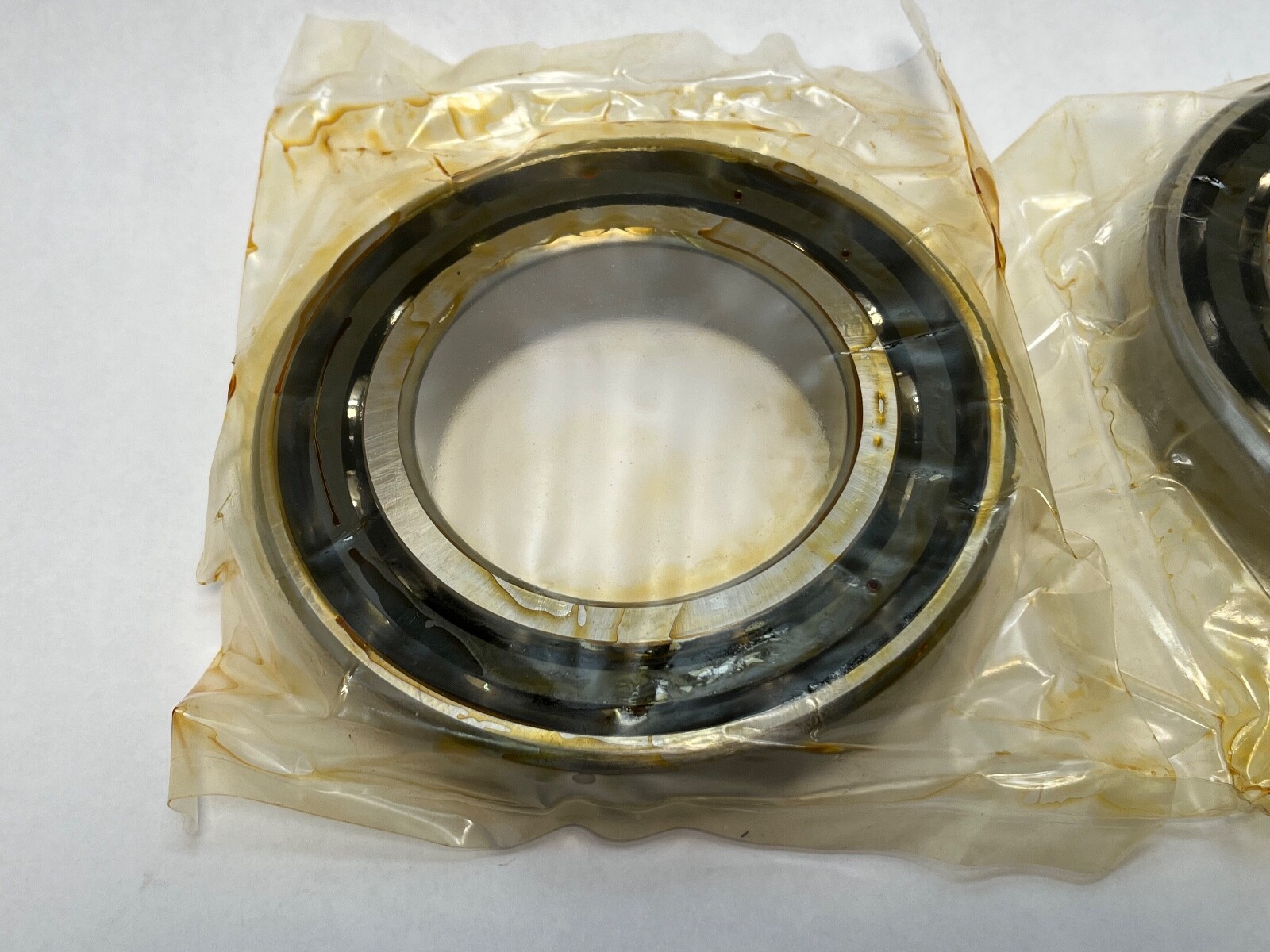

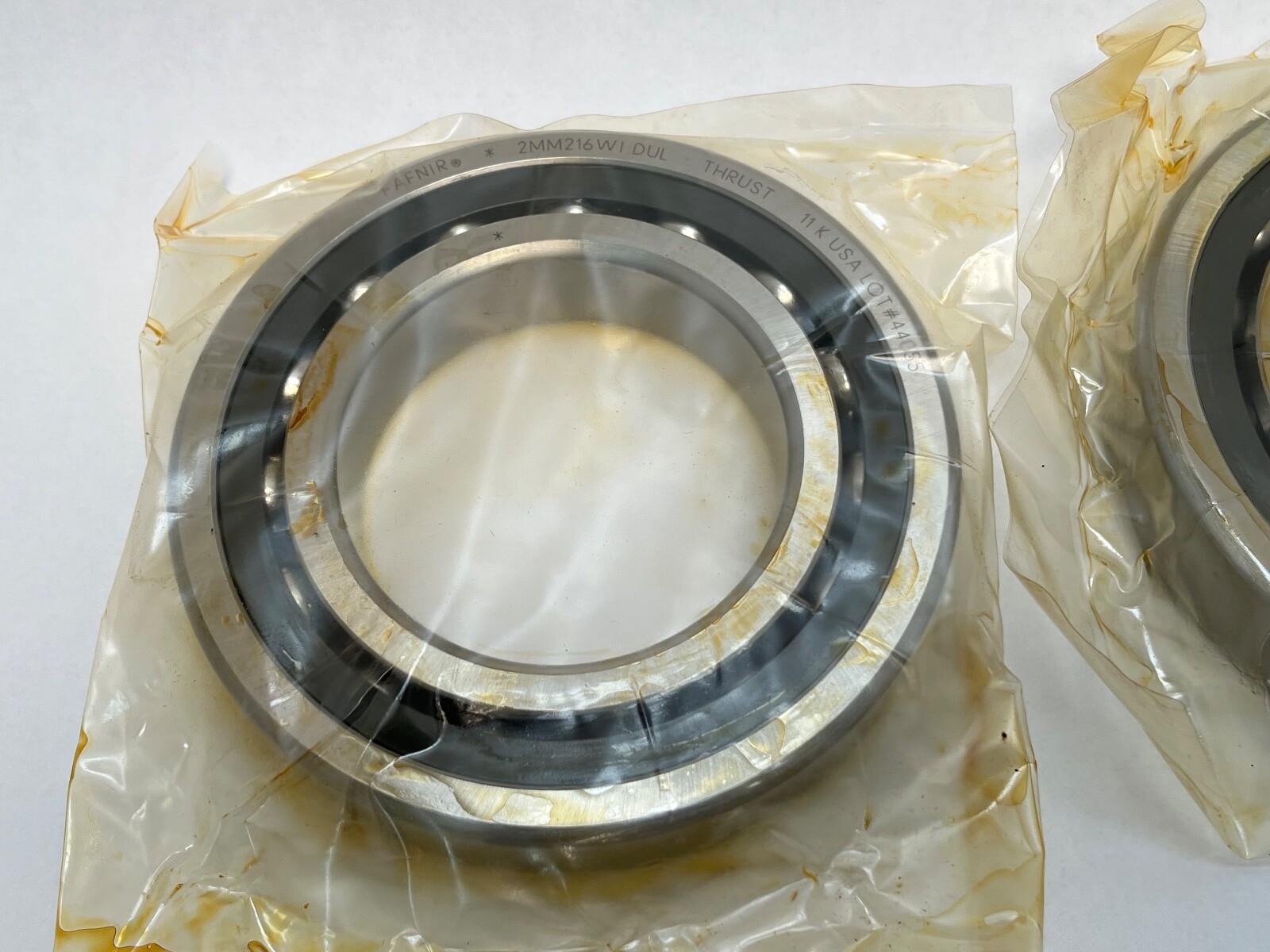

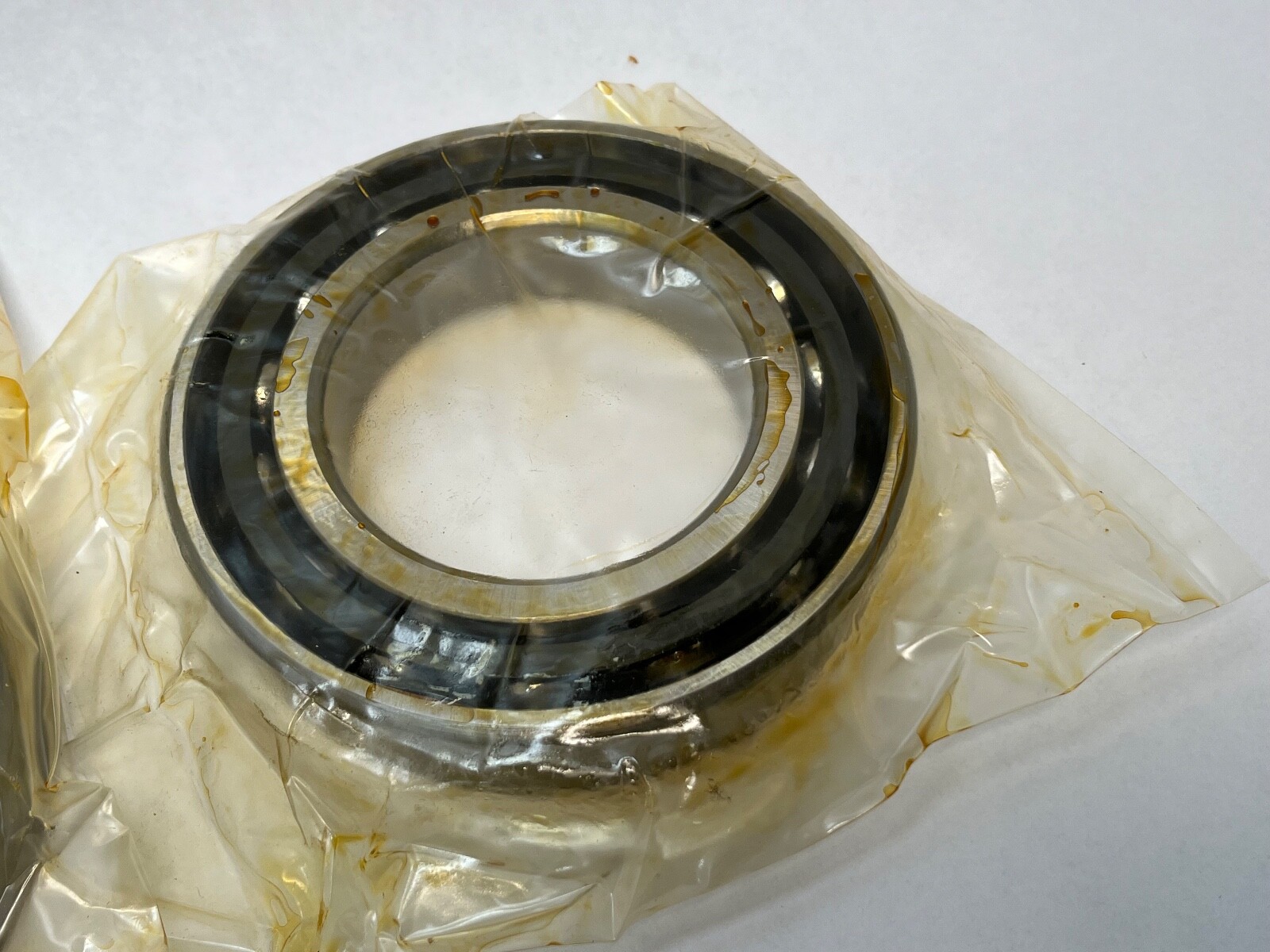

Fafnir 2MM216WI DUL matched duplex pair of super-precision single-row angular contact ball bearings, 2 Pcs. Each bearing is 80 mm bore, 140 mm outside diameter and 26 mm wide, 52 mm total stack width. Open on both faces, universally ground as a set.
2MM — Fafnir super-precision prefix with a 15° contact angle; the MM grade is P4S.
216 — 80 mm bore in the 72 medium series, ISO equivalent 7216-C.
WI — Timken Fafnir super-precision spindle bearing construction.
DU — duplex universal, two bearings ground as a matched set.
L — light preload.
Bore Diameter: 80 mm.
Outside Diameter: 140 mm.
Overall Width: 26 mm per bearing.
Total Width: 52 mm for the pair.
Contact Angle: 15°.
Precision Class: ABEC 7/9 / P4S.
Preload: Light.
Rolling Elements: Ball.
Number Of Rows: 1 per bearing.
Closure Type: Open.
Unit Quantity: 2 Pcs.
Bore: 80 mm (3.150 in). Outside Diameter: 140 mm. Width: 26 mm per bearing, 52 mm stacked. Mounting Arrangement: Duplex universal (DU).
Cross-references at 15°, super precision, light preload, matched pair: RHP 7216CTDULP4; FAG B7216C.T.P4S.UL; SKF 7216 CD/P4ADGA; NSK 7216CTRDULP4; SNR 7216CG1DUJ74. Part number variants: 2MM216WI-DUL, 2MM-216-WI-DUL, 2MM216WIDUL, 2MM 216 WI DUL, 7216C.
Each bearing is 80 mm bore, 140 mm outside diameter and 26 mm wide; the pair is 52 mm wide stacked.
2MM is the Fafnir 15° contact angle prefix. Contact Angle: 15°.
DU is duplex universal: two bearings ground as a matched set. L is light preload. Unit Quantity: 2 Pcs.
