Fafnir2MM9326WOCR SUMAngular Contact Bearing – 130 mm ID, 180 mm OD, 24 mm Width, Open, 15° Contact Angle

Product Description

What this part is:

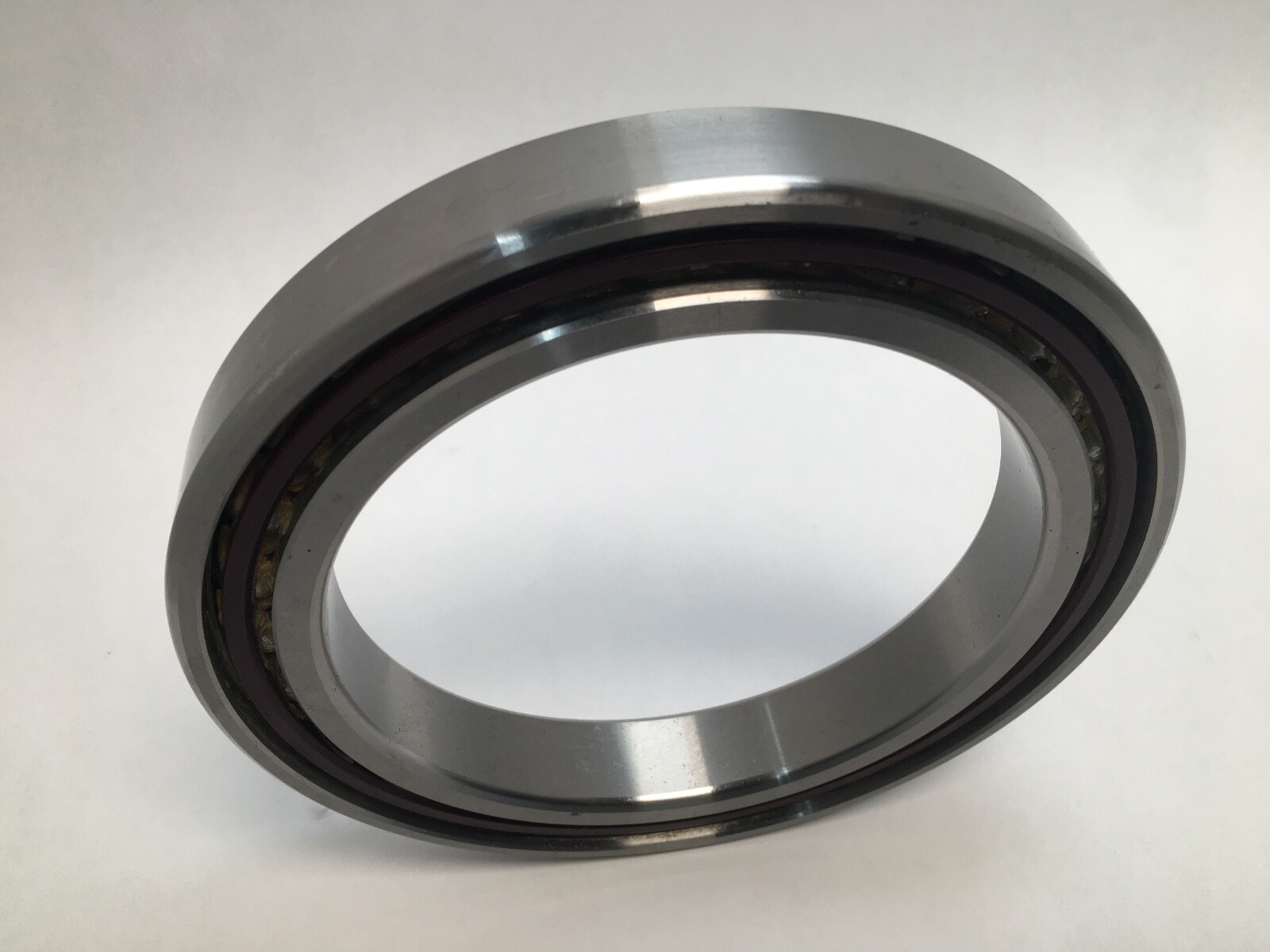

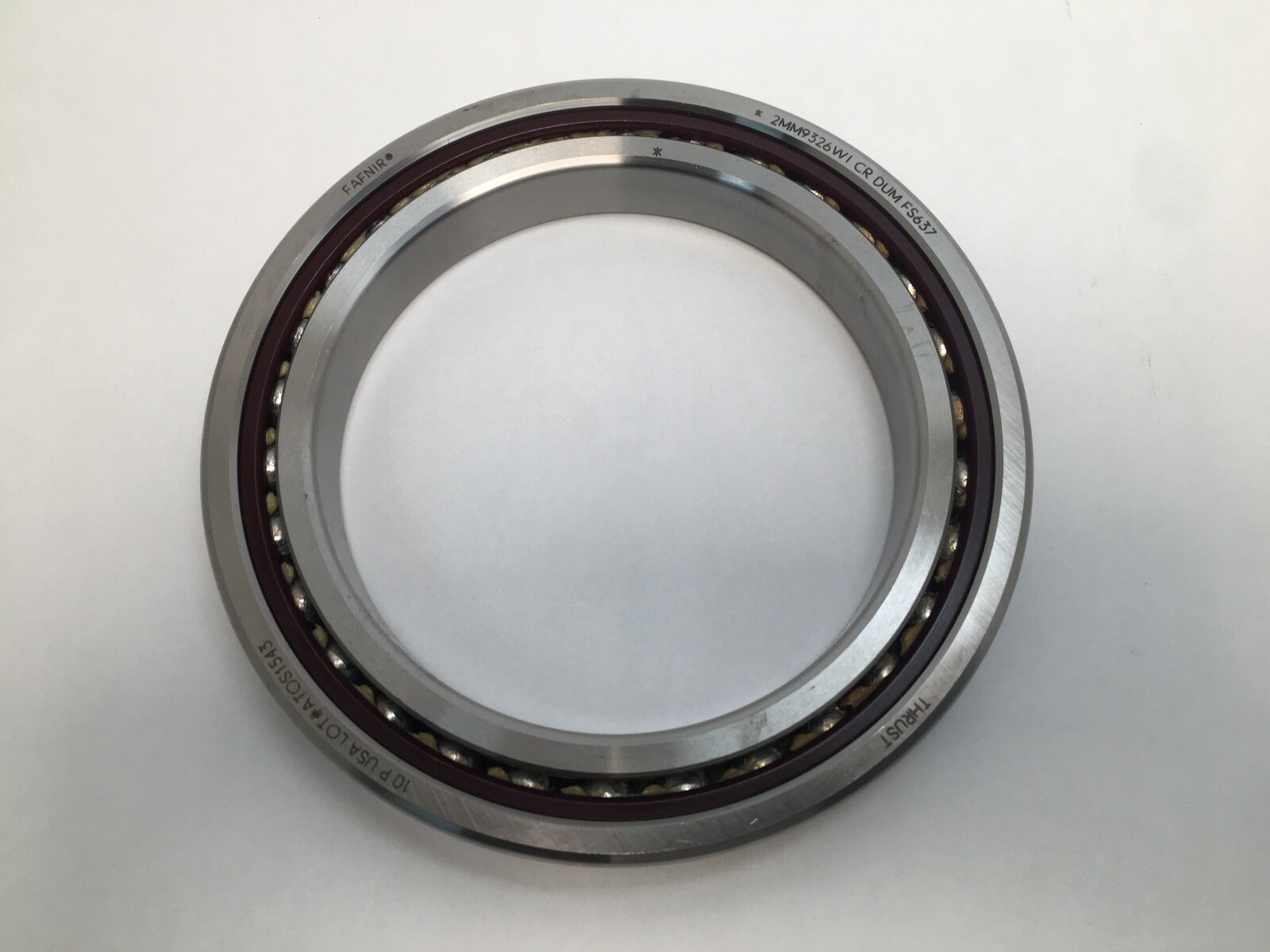

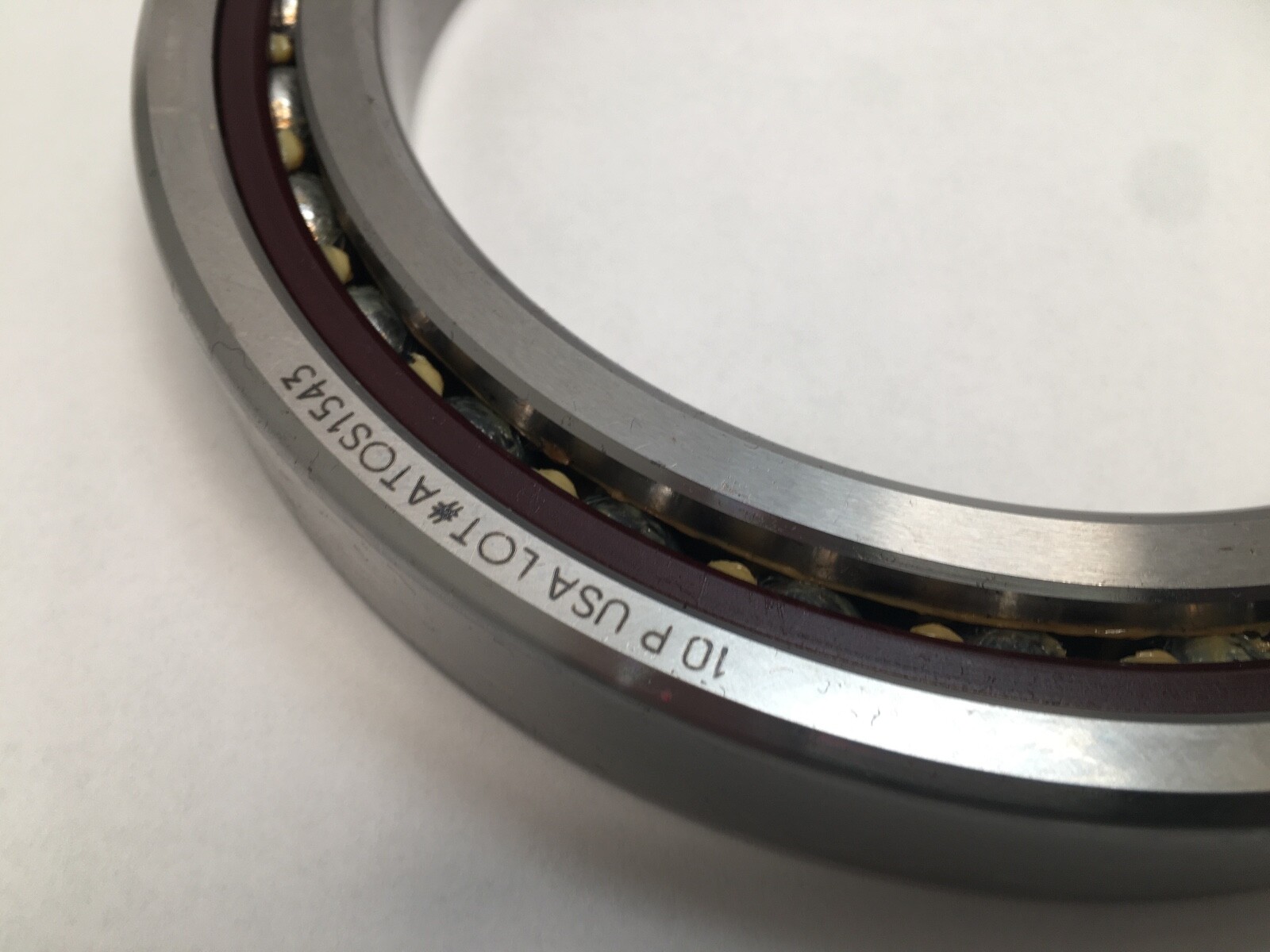

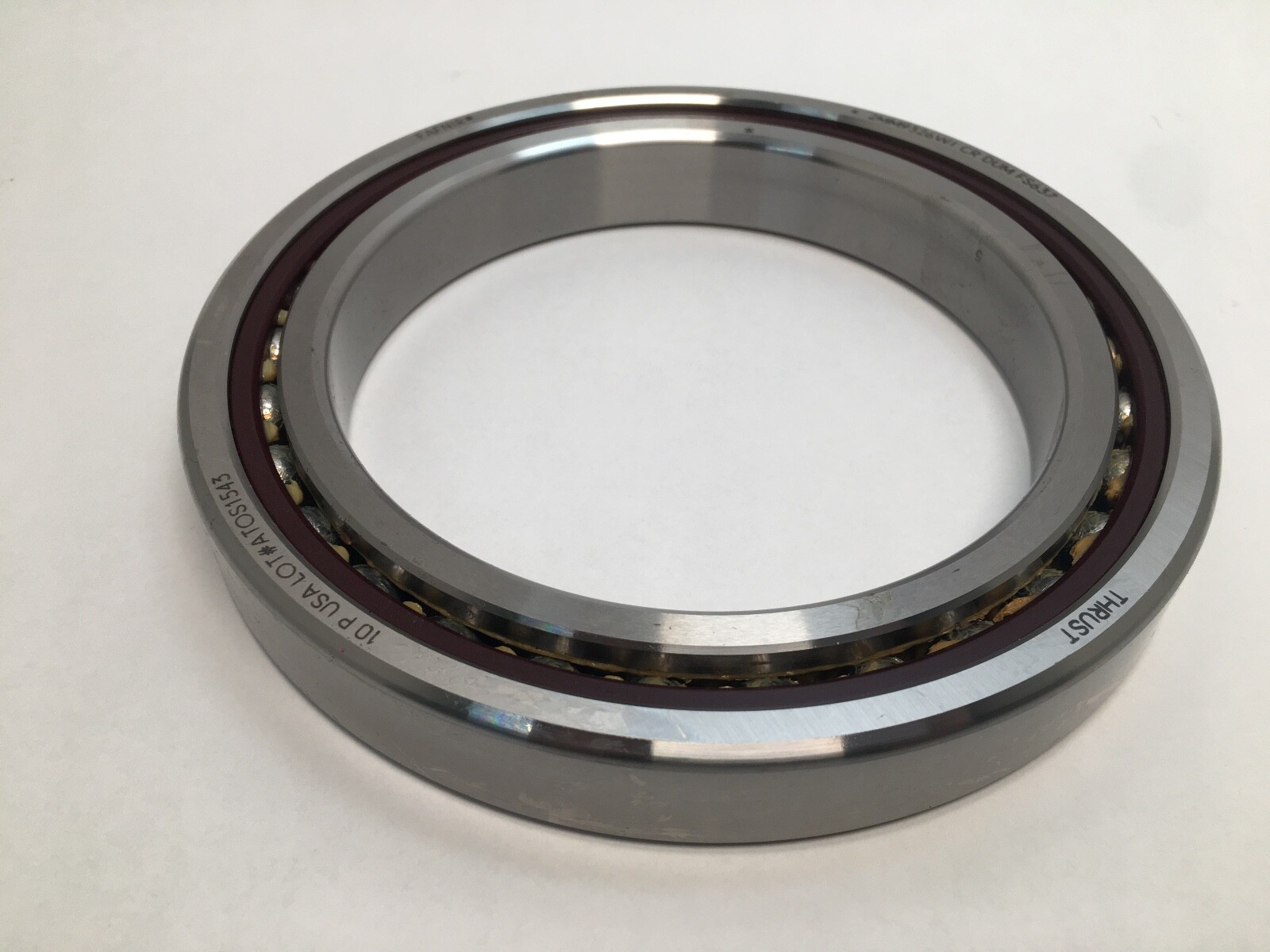

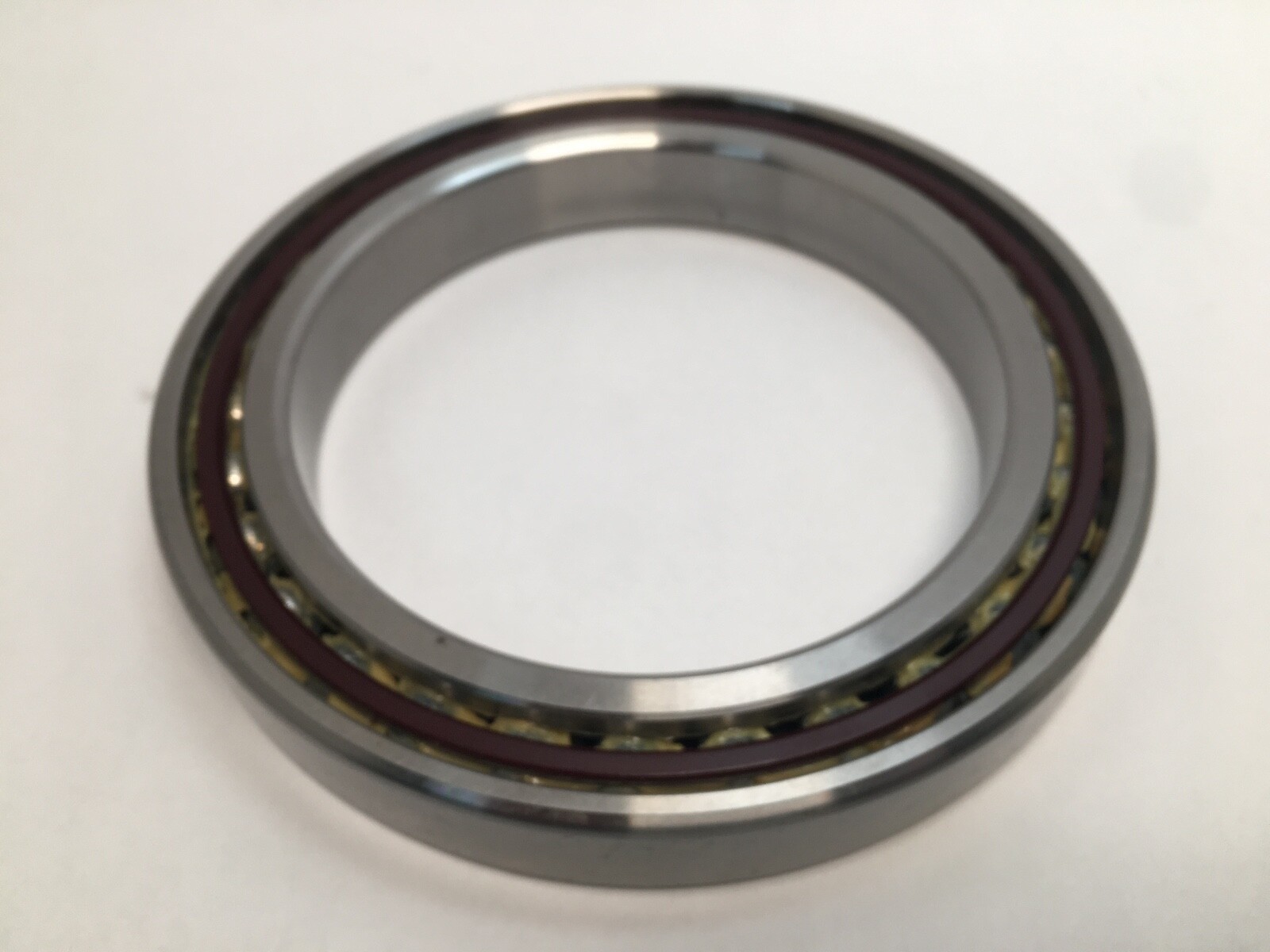

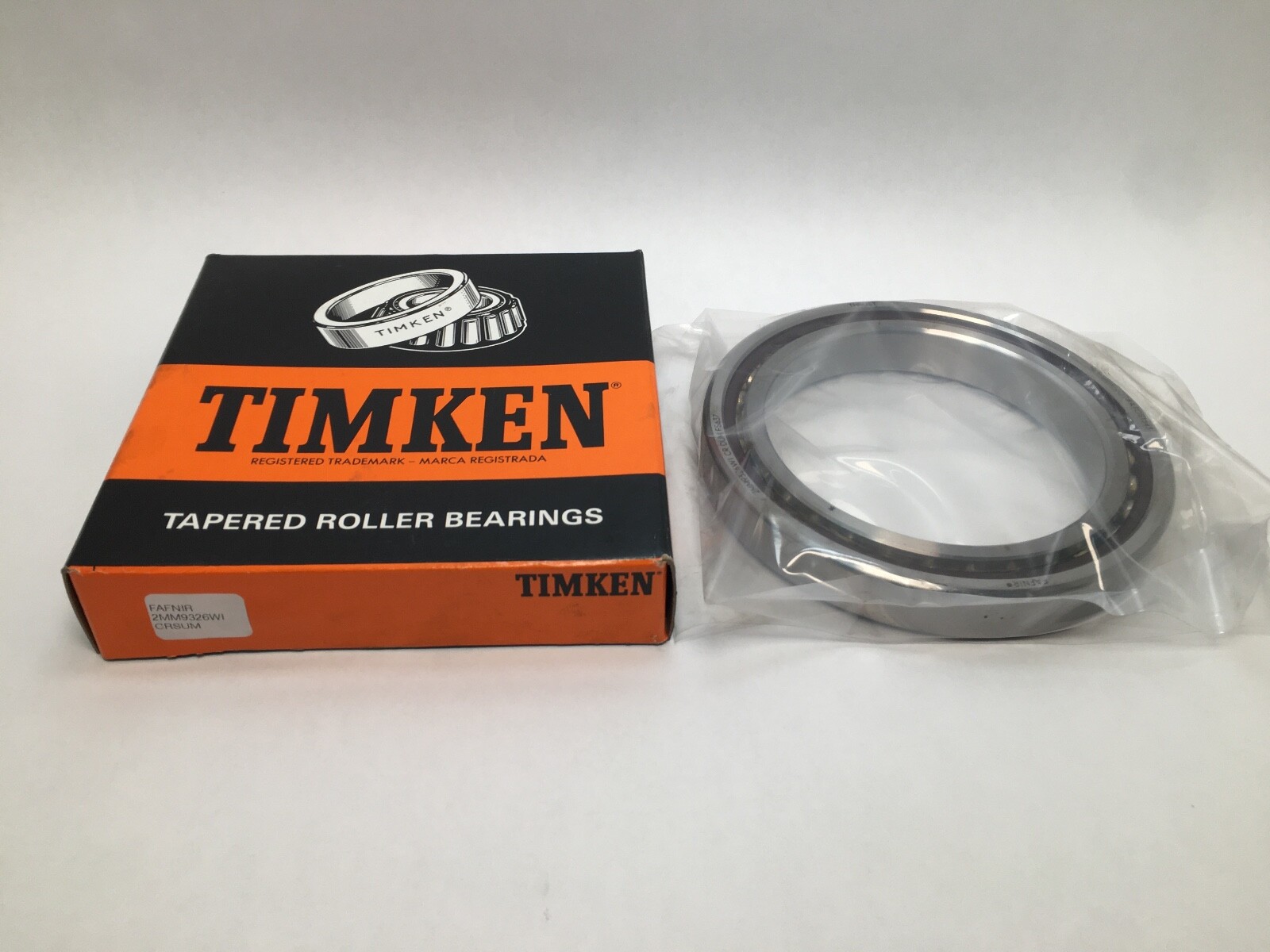

Fafnir 2MM9326WOCR SUM is a super precision single-row angular contact ball bearing, 130 mm bore by 180 mm outside diameter by 24 mm width, with a 15° contact angle. Universally ground single bearing at medium preload; the envelope is the ISO 71926 size. Unit Quantity: 1 Pc.

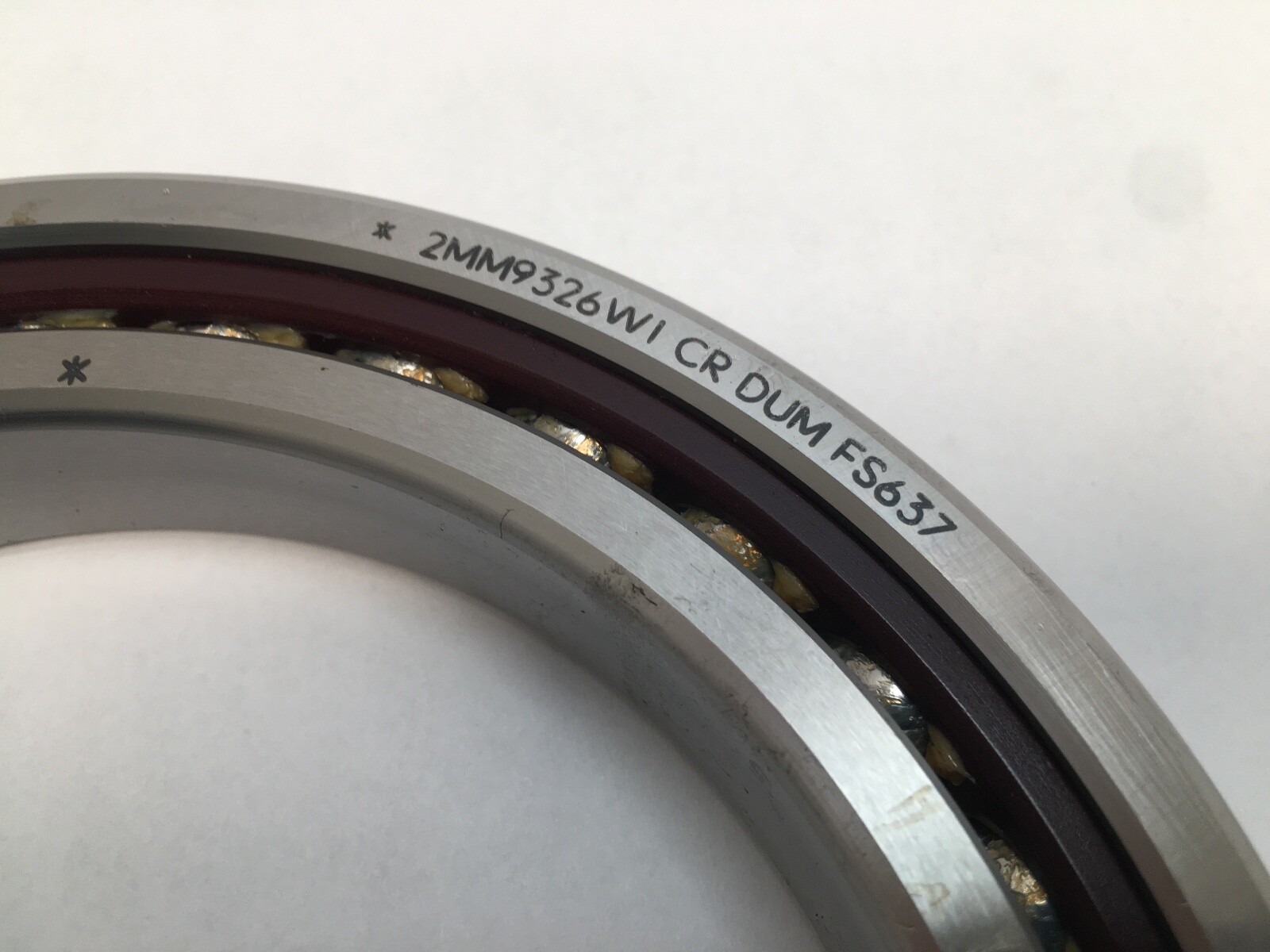

Decoding the designation:

2MM — Timken/Fafnir super precision class with a 15° contact angle, ISO P4 / ABEC 7.

9326 — the ISO 71926 size: 130 mm bore, 180 mm outside diameter, 24 mm width.

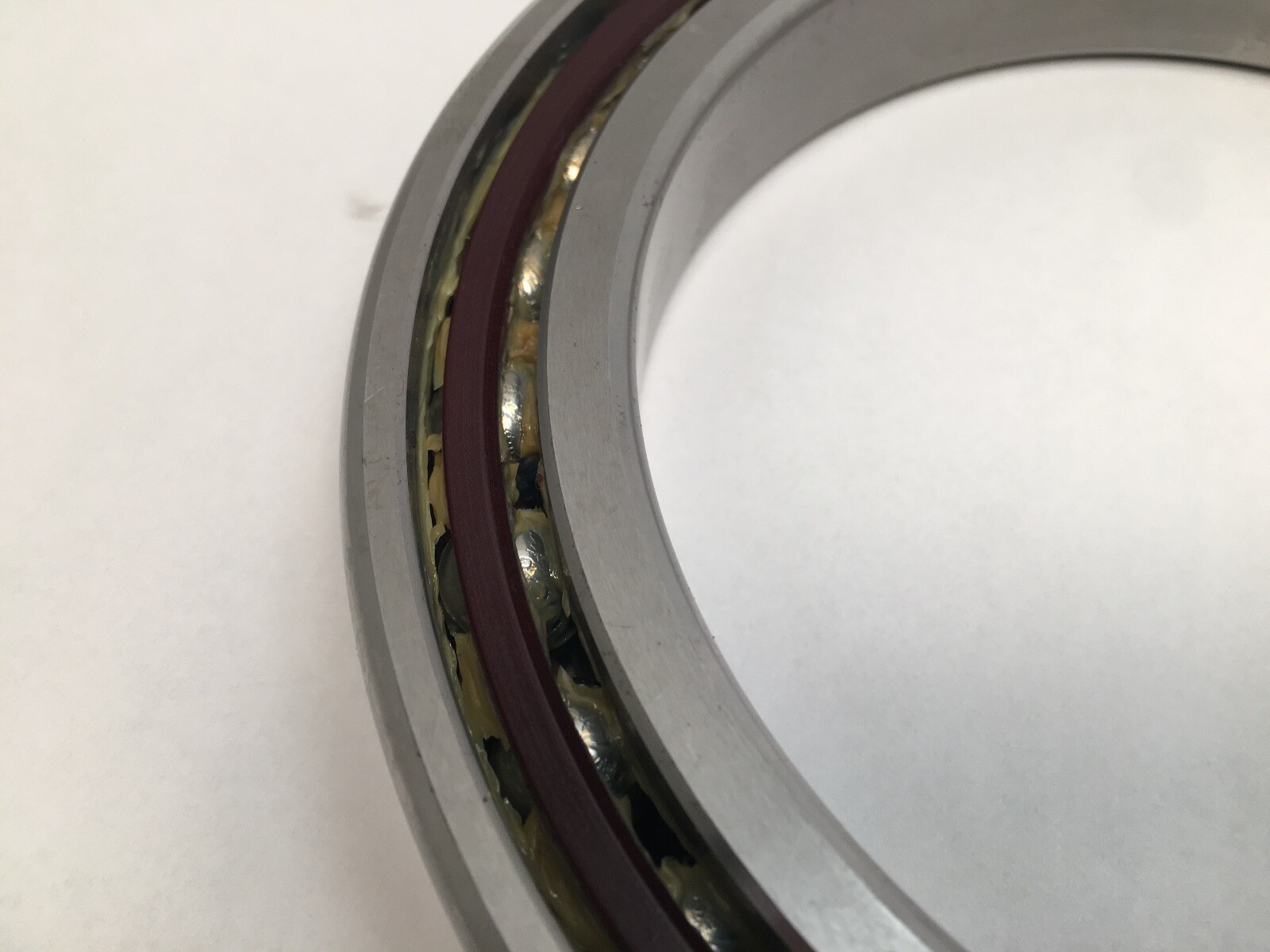

CR — machined phenolic cage.

SUM — universally ground single bearing, medium preload. Any two of the same execution mount as a matched pair back-to-back, face-to-face or in tandem.

Specifications:

Contact Angle: 15°. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Cage Type: Machined. Preload: Medium. Mounting Arrangement: Universal. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Bearing Material: Bearing Steel. Series: 9300. Harmonization Code: 8482.10.50.

Dimensions and mounting:

Bore Diameter: 130 mm. Outside Diameter: 180 mm. Overall Width: 24 mm.

Compatibility and replacement:

Cross-reference: GMN S61926CTA, same 130 x 180 x 24 mm envelope at 15° with a machined phenolic cage. MPN variants: 2MM9326WOCR-SUM, 2MM-9326-WO-CR-SUM, 2MM9326WOCRSUM, 2MM 9326 WO CR SUM, 2MM9326WOCR, 71926.

Frequently asked questions:

What are the dimensions of the Fafnir 2MM9326WOCR SUM?

Bore 130 mm, outside diameter 180 mm, width 24 mm.

What does SUM mean in 2MM9326WOCR SUM?

SUM is a universally ground single bearing with medium preload; any two of the same execution mount as a matched pair back-to-back, face-to-face or in tandem.

What contact angle and cage does the 2MM9326WOCR SUM have?

A 15° contact angle, set by the 2MM prefix, and a machined phenolic cage, set by the CR code.
