This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super-Precision Angular Contact Ball Bearing – 100 mm ID, 150 mm OD, 24 mm Width, Open, 15° Contact Angle, P4Y, Universally Ground Light Preload, Phenolic Cage$341.22
Super Precision Angular Contact Ball Bearing Pair - Straight Bore, 100 mm ID, 150 mm OD, 24 mm Width, Open, 15° Contact Angle, Extra Light Preload, Universally Matchable.$390.13
Super Precision Angular Contact Ball Bearing - Matched Pair, Straight Bore, 100 mm ID, 150 mm OD, 24 mm Width, Open, 15° Contact Angle, Universal Light Preload$644.17
Angular Contact Ball Bearing — Super-Precision, 100 mm ID, 150 mm OD, 24 mm Width, 15° Contact Angle, Extra Light Preload, P4A, Matched Pair$757.32| MFR / Brand | NSK |
|---|---|
| MPN | 7020CTRDULP4Y |
| Model | 7020C TR DUL P4Y 2MM9120WI-DUL 120KRDU 7020CT |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 100 mm |
| OD | 150 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Preload | Light |
| Min Temp | -30°C |
| Cage Type | Machined |
| Dynamic Load Rating | 74.0 kN |
| Static Load Rating | 80.0 kN |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Balls |
| Max Temp | 100°C |
| Item Weight | 2.56 lbs |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15°C |
| Mounting Arrangement | Universal |
| Internal Clearance | CN |
| Limiting Speed | 13600 rpm |
| Cross Reference 1 | SKF 7020 CD/P4ADGA |
|---|---|
| Cross Reference 2 | FAG B7020-C-T-P4S-DUL |
| Cross Reference 3 | Fafnir 2MM9120WI-DUL |
| Cross Reference 4 | RHP 7020CTDULP4 |

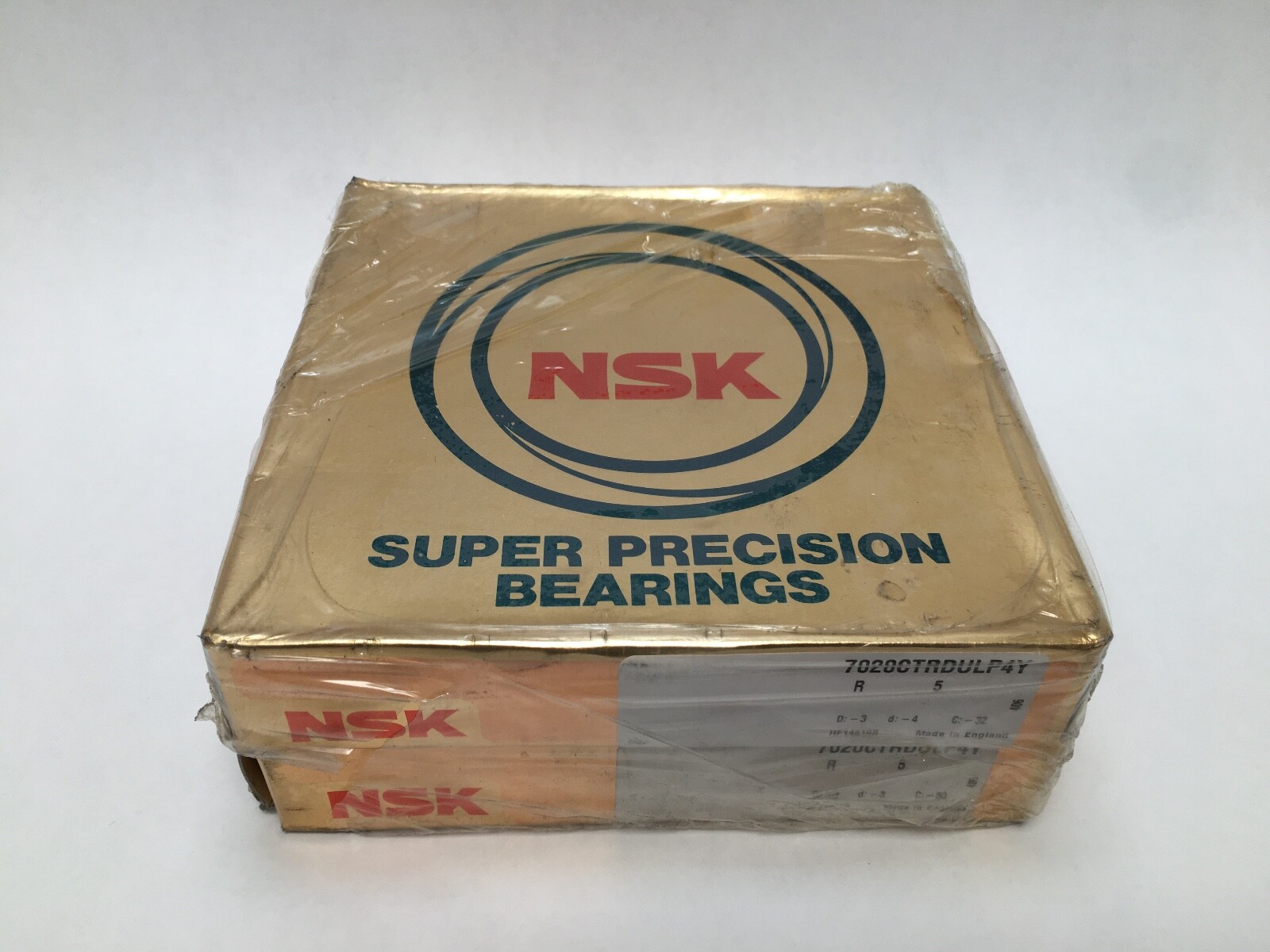

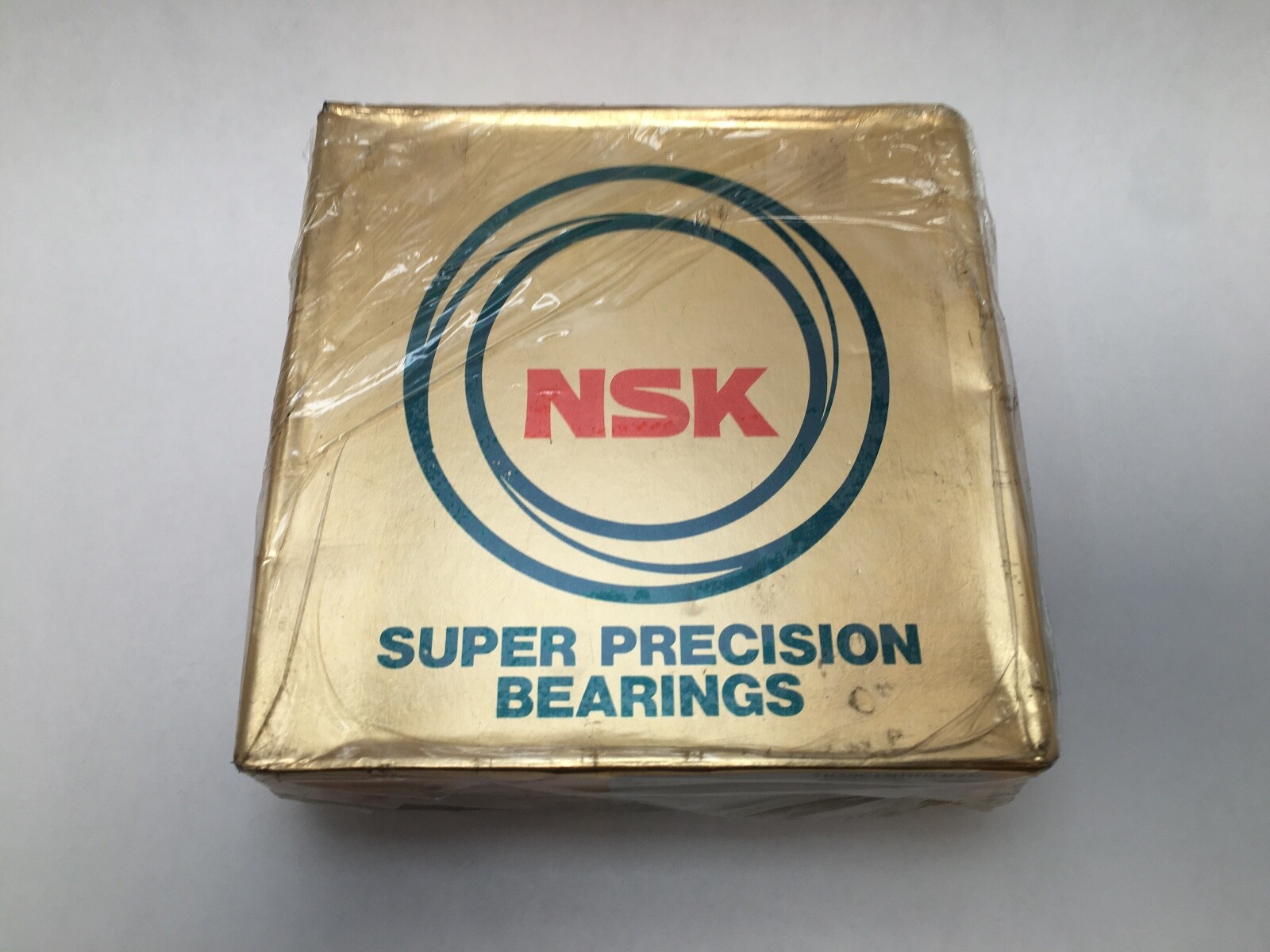

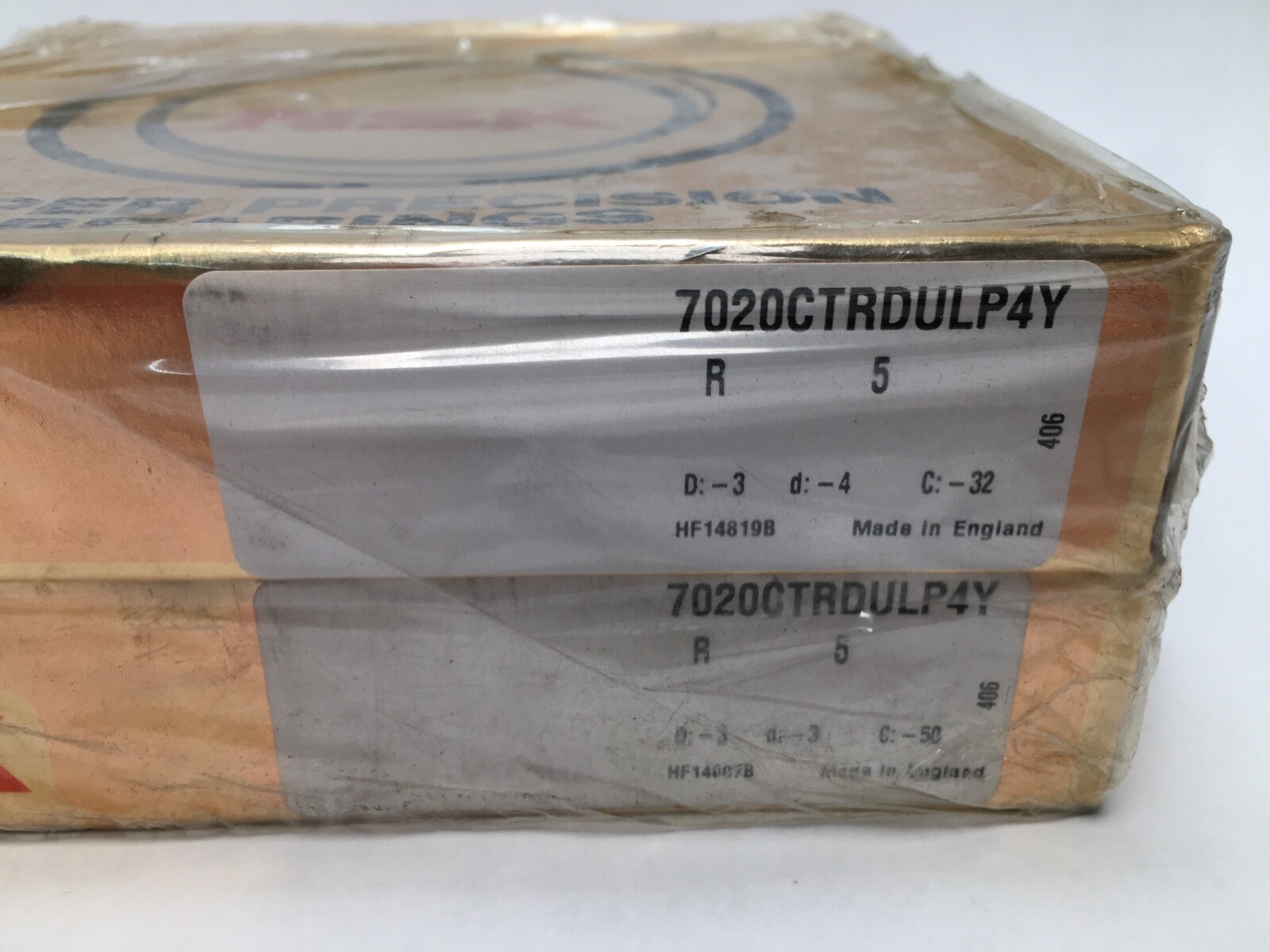

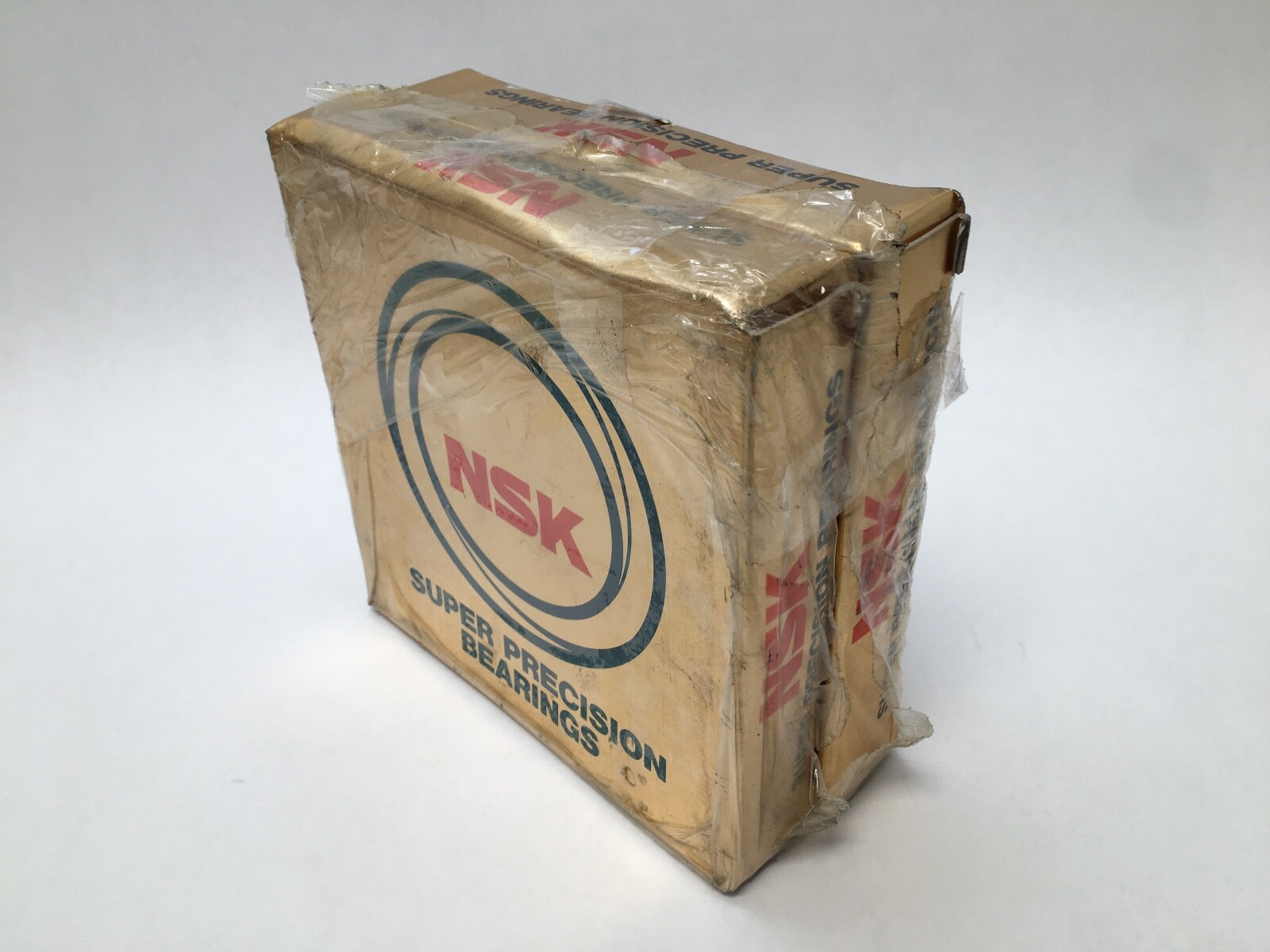

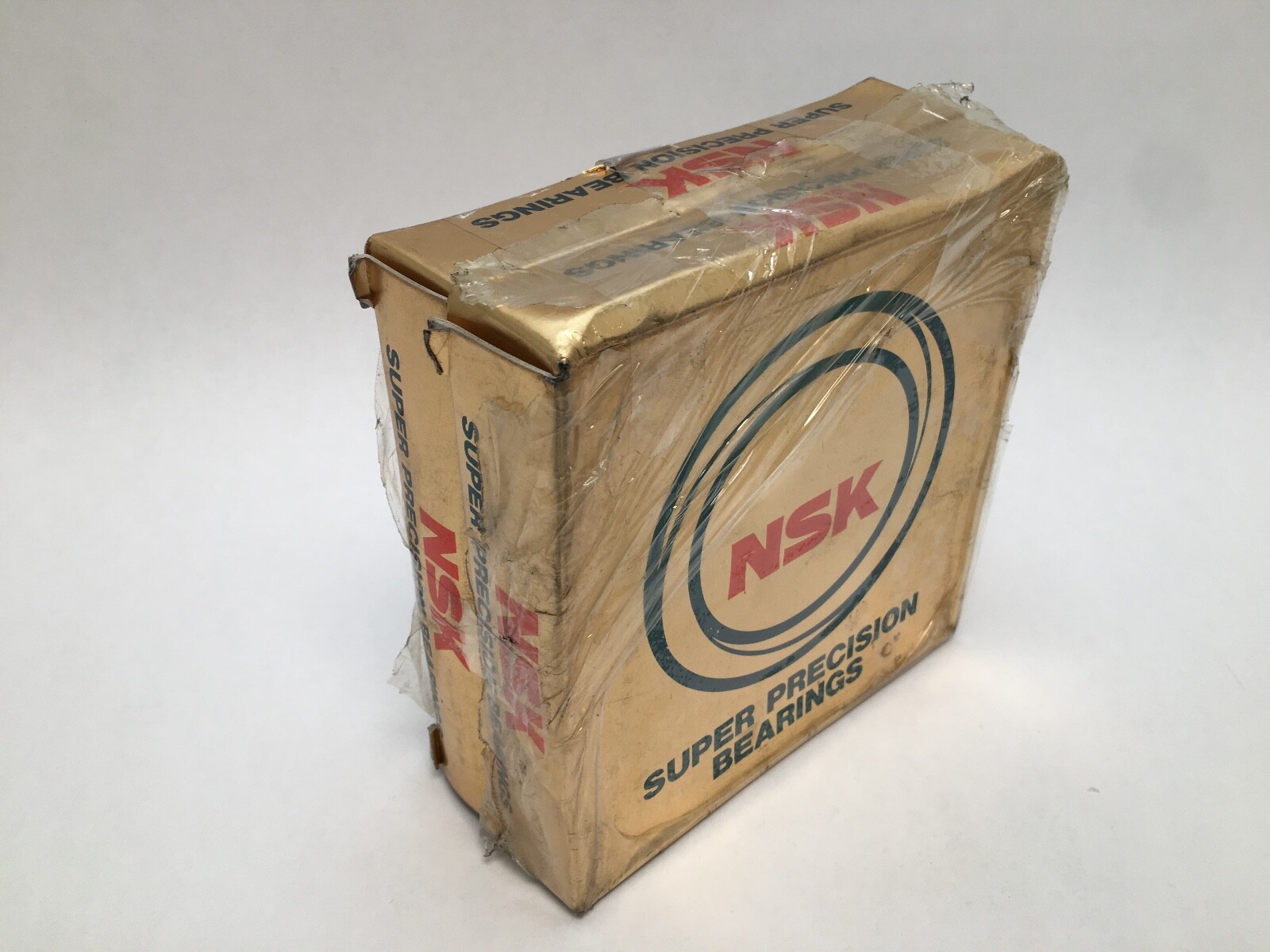

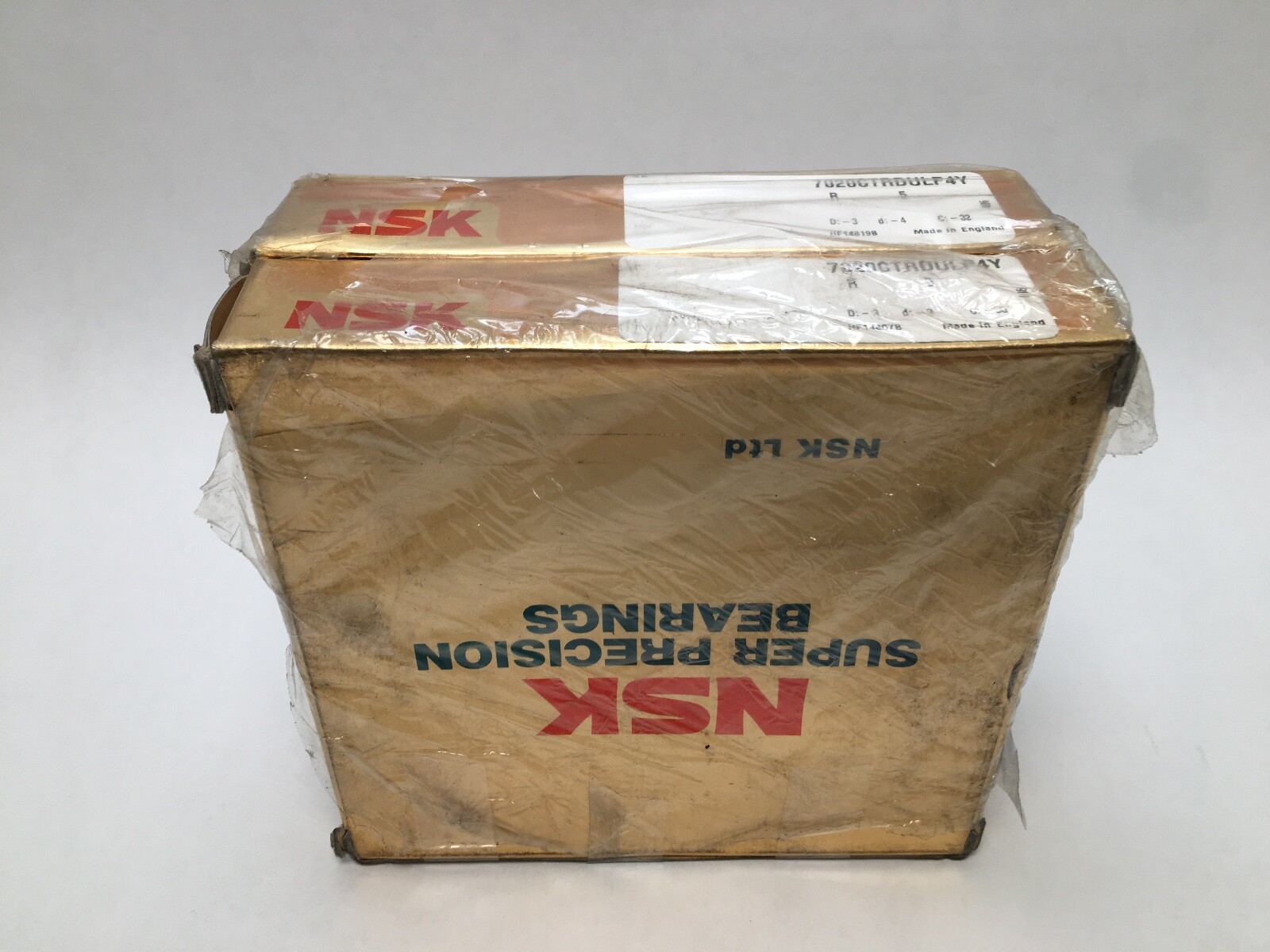

Elevate Your Motion Control Systems with NSK 7020CTRDULP4Y Bearings
Discover the precision and reliability of the NSK 7020CTRDULP4Y Bearings, expertly designed for industrial automation and motion control applications. This set of two premium angular contact ball bearings features a bore diameter of 100 mm, an outside diameter of 150 mm, and a width of 24 mm, making them an exceptional choice for various mechanical power transmission systems.
Manufactured in the United Kingdom from high-quality steel, these NSK bearings ensure durability and long-lasting performance. The 7020C TR DUL P4Y model is distinguished by its ABEC7 designation, signifying exceptional precision and high operational efficiency even in demanding conditions.
Whether you are upgrading existing equipment or constructing new machinery, the NSK 7020CTRDULP4Y bearings facilitate smooth and efficient operation. Their angular contact design supports optimal load handling, significantly reducing friction and wear, thus enhancing the lifespan of your equipment.
Experience the difference that superior engineering makes with NSK bearings, a trusted name in the industry. Boost the productivity of your operations with this product that meets the rigorous demands of any industrial environment.
Type: Angular Contact Ball Bearing
Dimensions: 100 mm (Bore) x 150 mm (Outside) x 24 mm (Width)
Material: Steel
Country of Manufacture: United Kingdom
Quantity: 2 pcs
Do not compromise on quality. Choose NSK for precision, reliability, and performance.
