THKSR35W1SSRadial-Biased LM Guide Carriage Block, Size 35 for 34 mm Rail, 48 mm Height, 90° Contact Angle, C 60.4 kN, GK Interchangeable Series, Block Only

Product Description

What this part is:

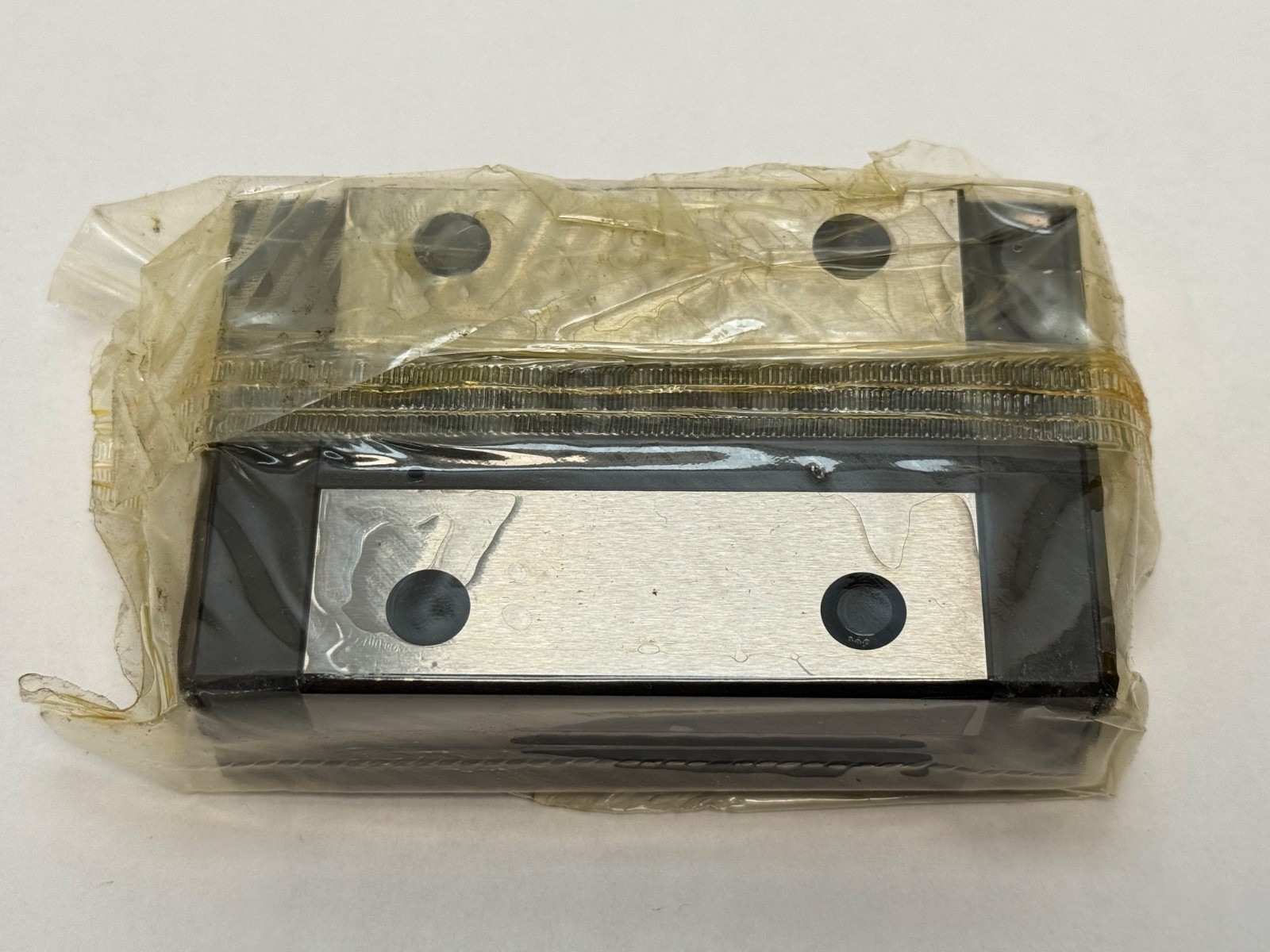

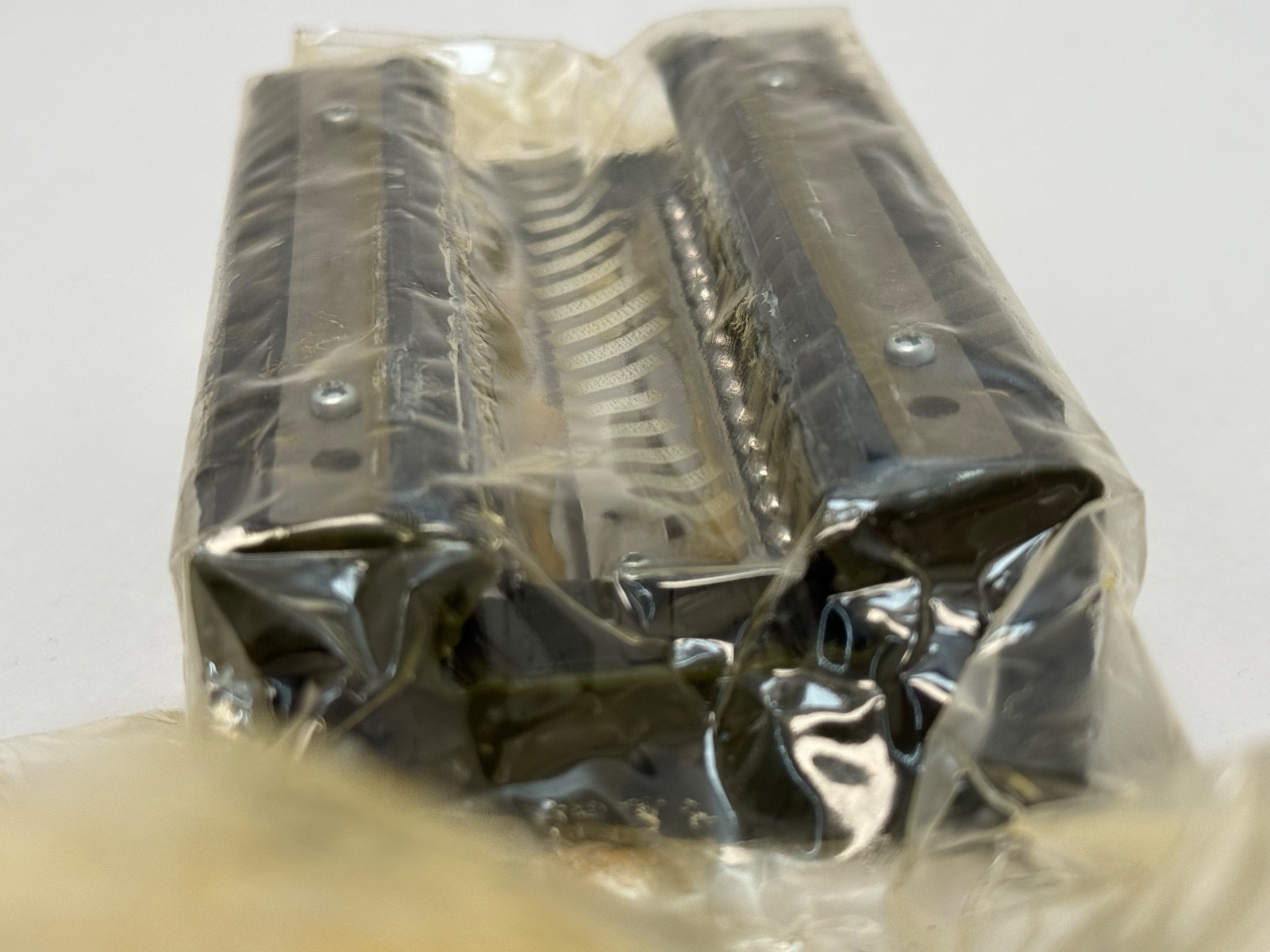

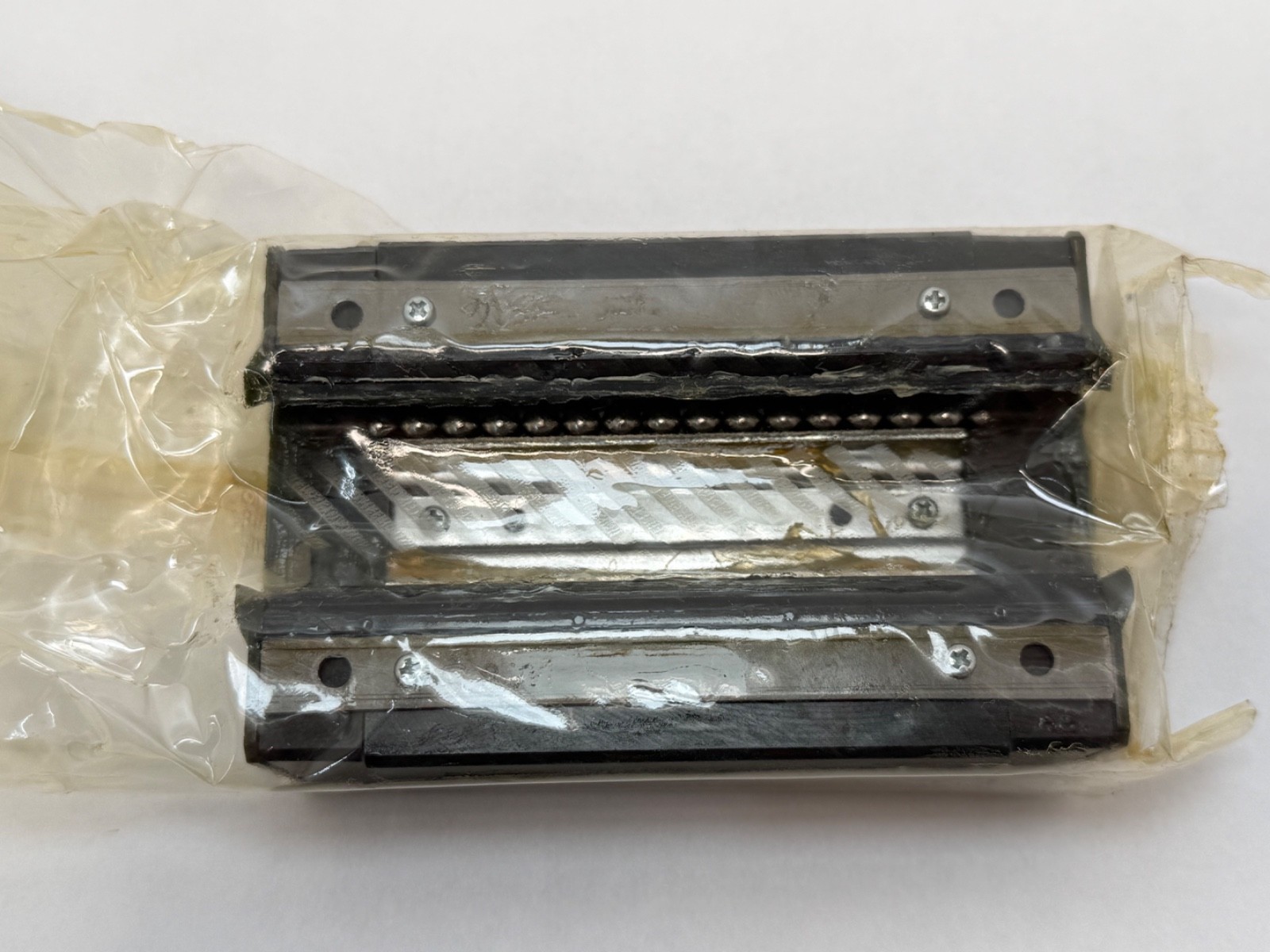

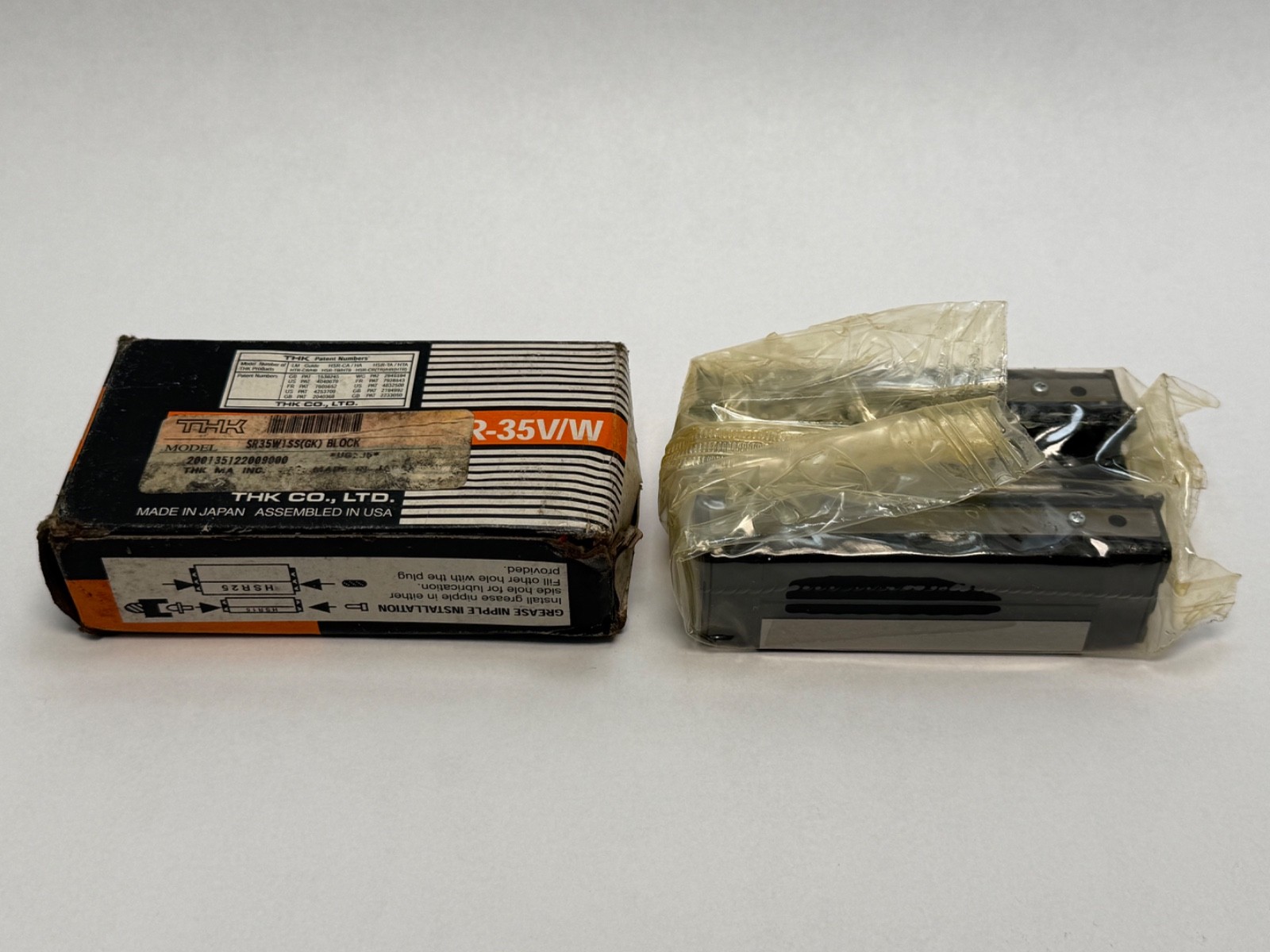

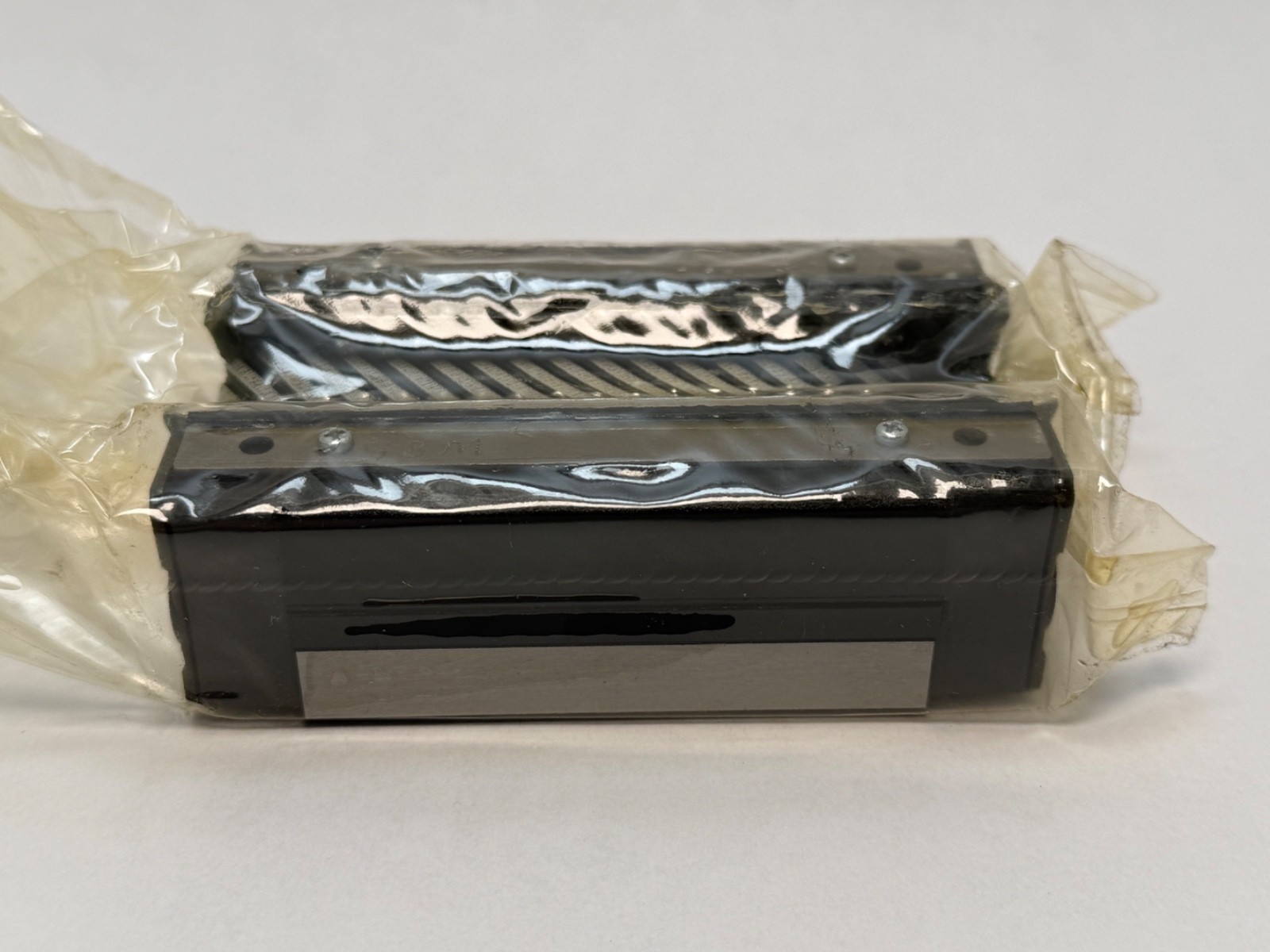

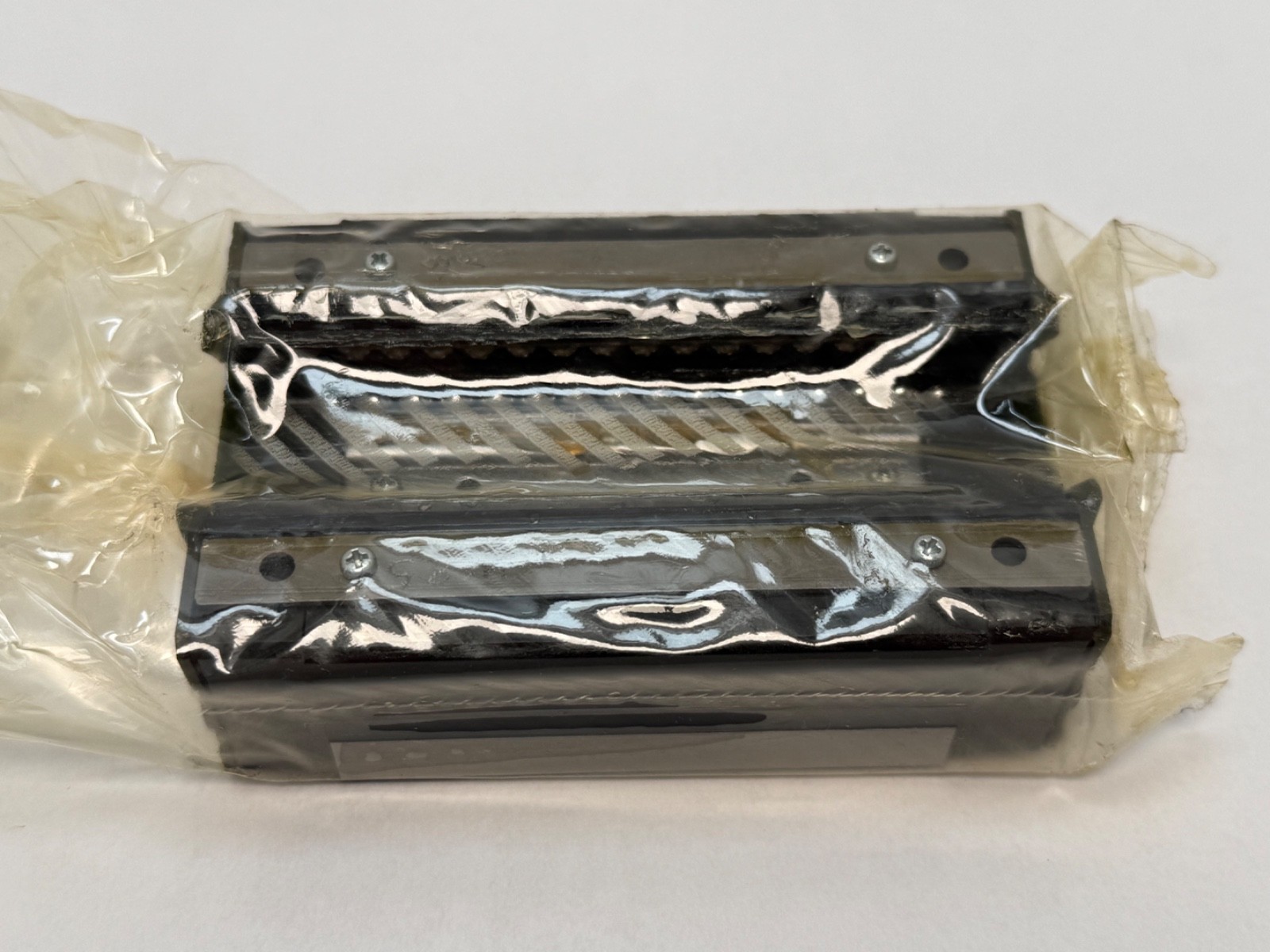

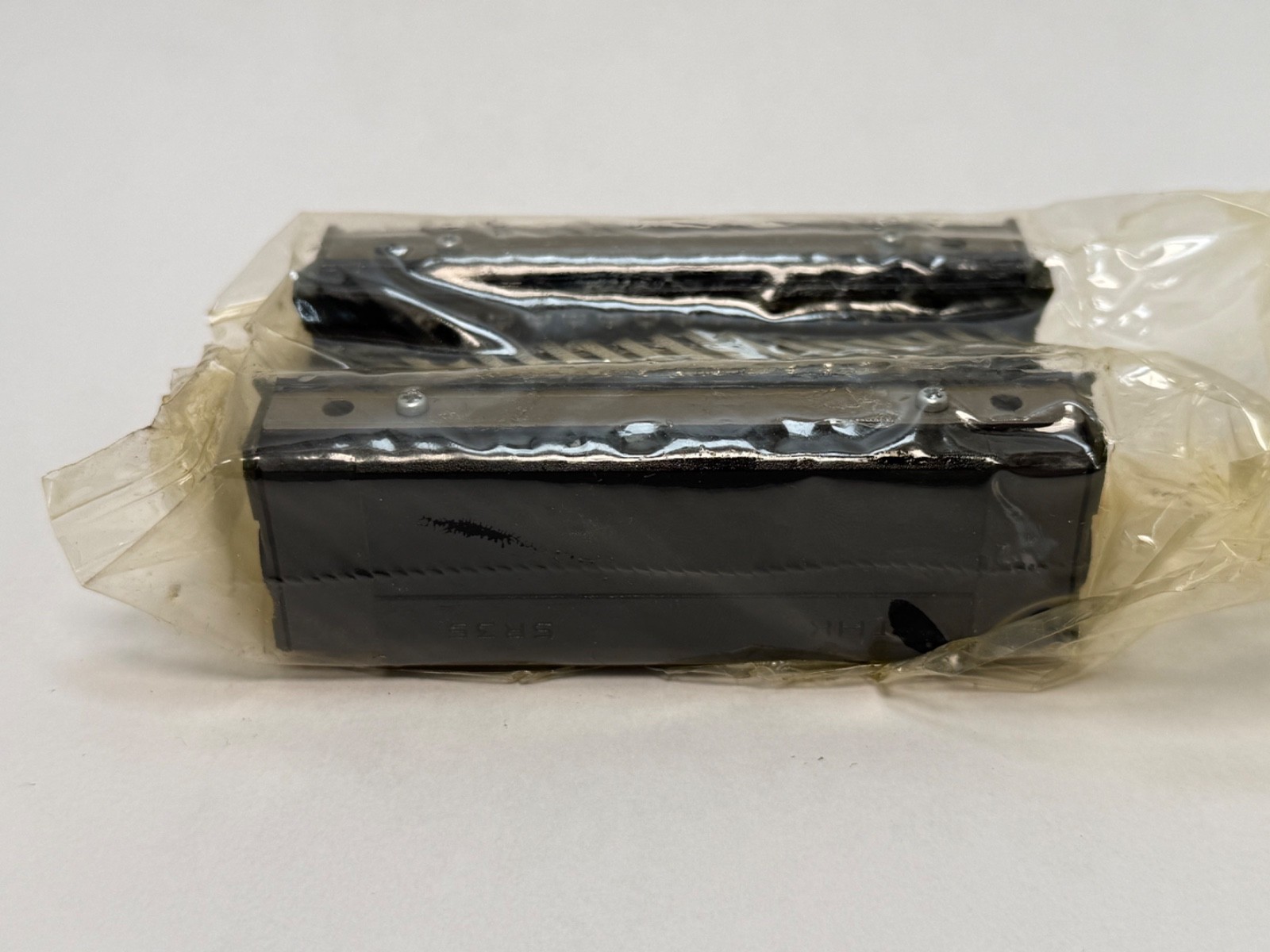

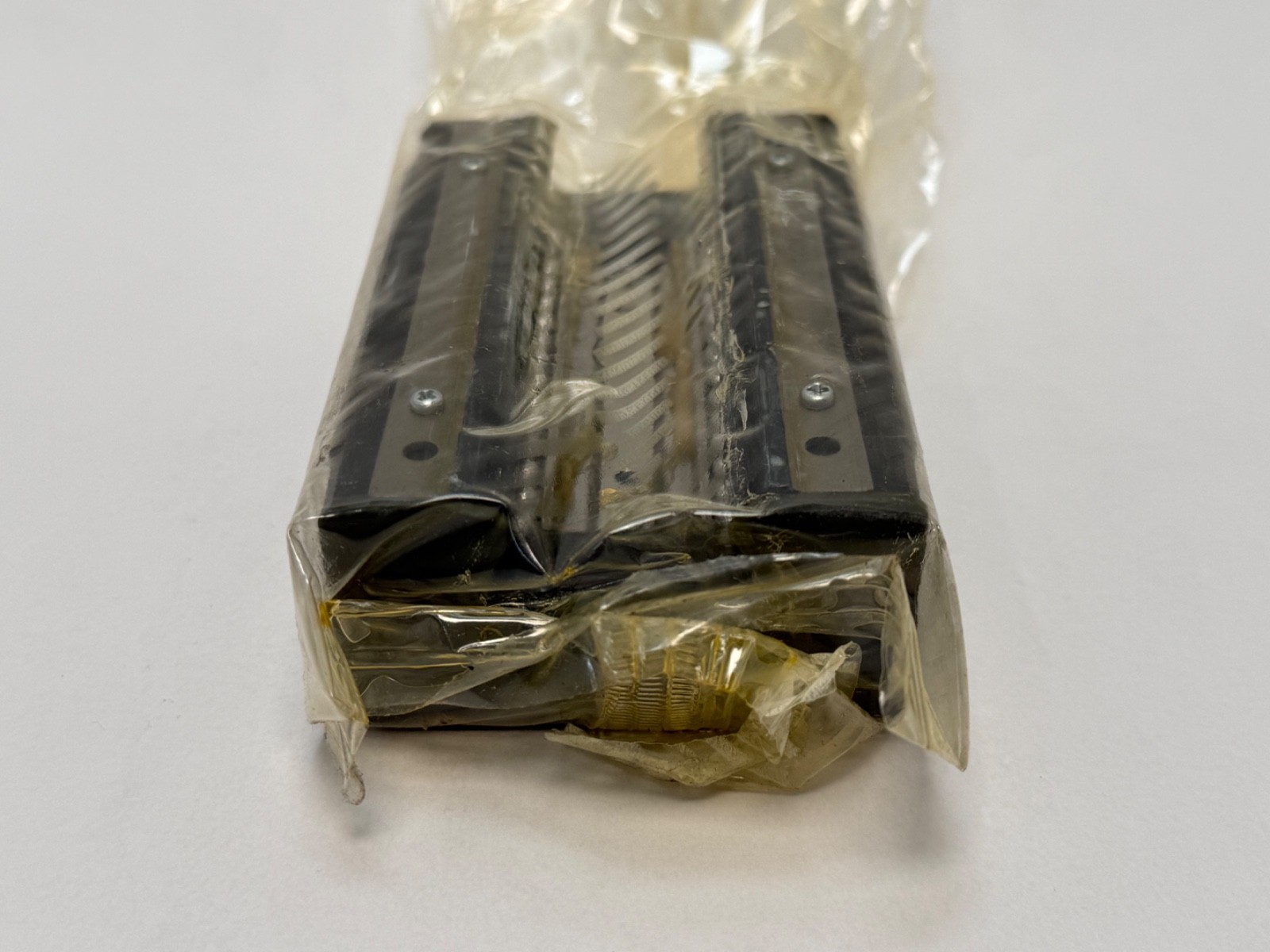

THK SR35W1SS(GK) LM Guide carriage block, model SR35W: a four-row linear bearing block for a 34 mm wide SR size-35 LM rail. Block only, from the GK interchangeable series. Unit Quantity: 1 Pc. The SR series uses a 90° contact angle, where the HSR series uses 45°.

Decoding the designation:

SR — THK’s radial-biased LM Guide series, 90° contact angle.

35 — size, corresponding to a 34 mm wide rail.

W — block type, bolts mounted from above. The companion type is SR35V.

1 — THK’s coding field for the number of blocks used on the same rail.

SS — end seal plus side seal.

GK — THK’s interchangeable block and rail series: blocks and rails with the same model number combine freely.

Specifications:

Series: SR (radial-biased LM Guide), GK interchangeable series. Rolling Elements: balls, full complement retained by retainer plates. Number Of Rows: 4 rows of raceways. Contact Angle: 90°. Basic Dynamic Load Rating C: 60.4 kN (radial). Basic Static Load Rating C0: 81.8 kN. Static Permissible Moment MA: 0.785 kN·m (one block), 4.27 kN·m (two blocks). Static Permissible Moment MB: 0.482 kN·m (one block), 2.65 kN·m (two blocks). Static Permissible Moment MC: 1.08 kN·m (one block). Block Mass: 1.2 kg. Accuracy grades: Normal, H, P, SP, UP. Preload grades: Normal, C1, C0.

Dimensions and mounting:

Assembly height M: 48 mm. Block width W: 70 mm. Block length L, with UU or SS seals: 111 mm. Block body L1: 79 mm. Block mounting hole pattern B x C: 50 x 50 mm; taps 4 x M8 x 12 mm deep. Mating rail width W1: 34 mm (0 / −0.05). Rail height M1: 27.5 mm. Rail hole pitch F: 80 mm; hole d1 x d2 x h: 9 x 14 x 12 mm. Rail mass: 6.4 kg/m. Maximum rail length: 3000 mm.

Compatibility and replacement:

Runs on THK SR35 LM rail, 34 mm wide, 80 mm hole pitch. Any SR35W GK rail of matching accuracy and preload grade combines with this block. Companion block type in the same size: SR35V, with C 40.9 kN, C0 46.7 kN, block length 77.6 mm and mass 0.8 kg. Variants of the designation: SR35W1SS, SR35W1SS(GK), SR-35W1-SS, SR-35V/W, SR35W, SR 35 W, SR35W1UU, SR35W1SSGK.

Frequently asked questions:

What contact angle does the THK SR35W1SS have?

90°. The HSR series uses 45°.

What are the dynamic and static load ratings of the SR35W1SS?

Basic Dynamic Load Rating C: 60.4 kN. Basic Static Load Rating C0: 81.8 kN.

What are the block dimensions of the SR35W1SS?

Assembly height M: 48 mm. Block width W: 70 mm. Block length L: 111 mm.
