THK 2SRS12WMUU+230LM miniature LM Guide: two SRS12WM wide stainless blocks, 40 mm wide, on a 230 mm x 24 mm stainless rail, C 5.48 kN per block.
List Price
$313.94
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | THK |
|---|---|
| MPN | 2SRS12WMUU+230LM |
| Model | 2SRS12WMUU+230LM |
| Condition | New – Open box |
|---|---|
| Type | Linear Guide |
| Condition Note | Made in Japan + USA |
| Base Number | SRS12WM |
| Industry Terms | LM guide, linear guide, miniature linear rail, profile rail, linear slide |
| Common Misspellings | SRS12WMUU, 2SRS12WM UU, SRS 12WM, SRS12 WMUU |
| Application Types | Semiconductor equipment, medical devices, pick-and-place, clean-room automation |
| Item Width | 40 mm |
| Item Height | 14 mm |
| Item Length | 230 mm |
| Mpn Variants | 2SRS12WMUU+230LM, 2SRS12WMUU+230L M, 2SRS 12 WMUU + 230 LM, SRS12WMUU, SRS12WM |
| Compatible With Replaces | THK SRS12WM blocks, SRS12 LM rails |
| Precision Class | Normal grade |
| Cage Type | Caged ball |
| Dynamic Load Rating | 5,480 N |
| Static Load Rating | 5,300 N |
| Series | SRS-WM |
| Internal Clearance | Normal |
| Bearing Material | Stainless steel |

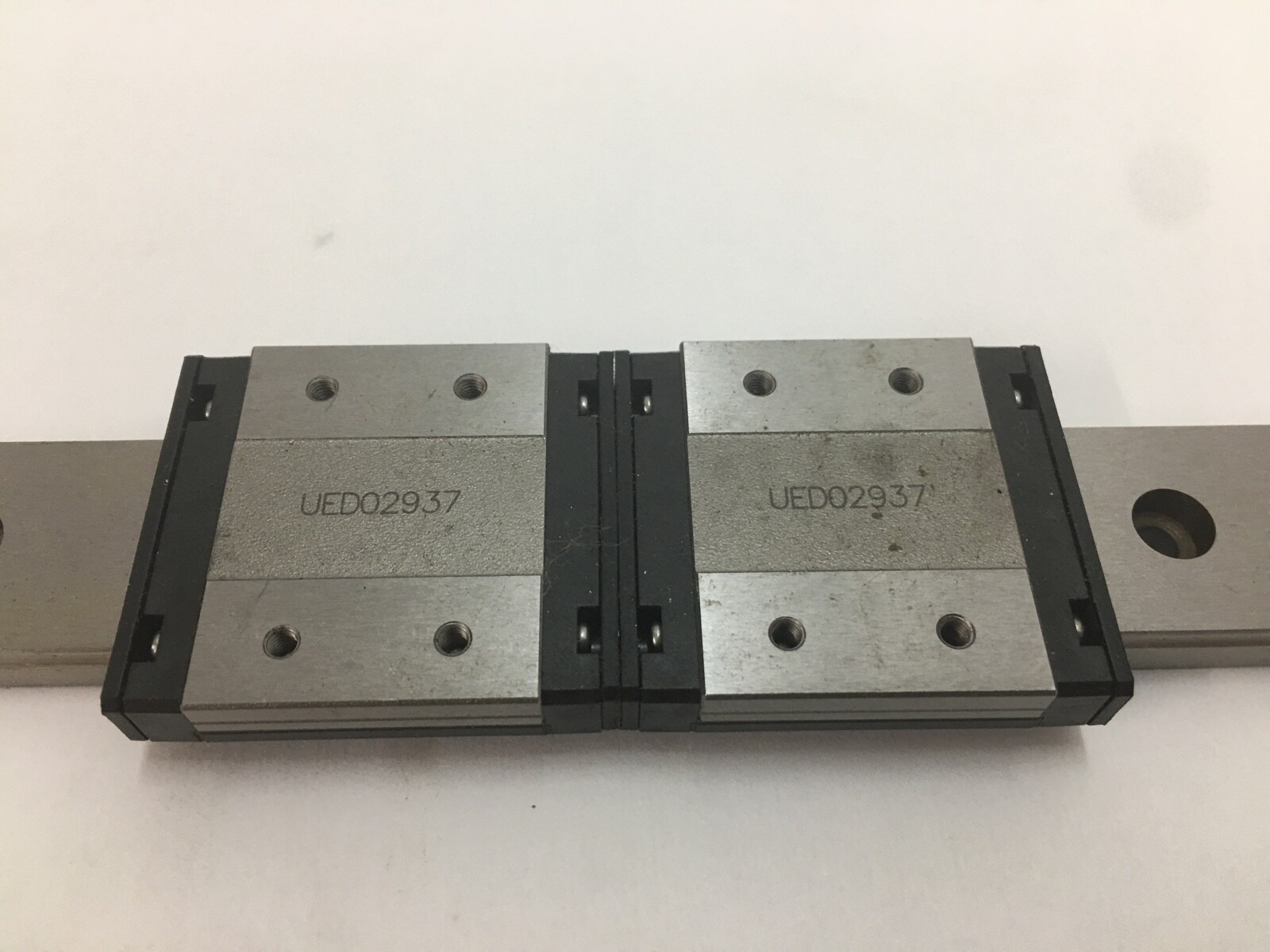

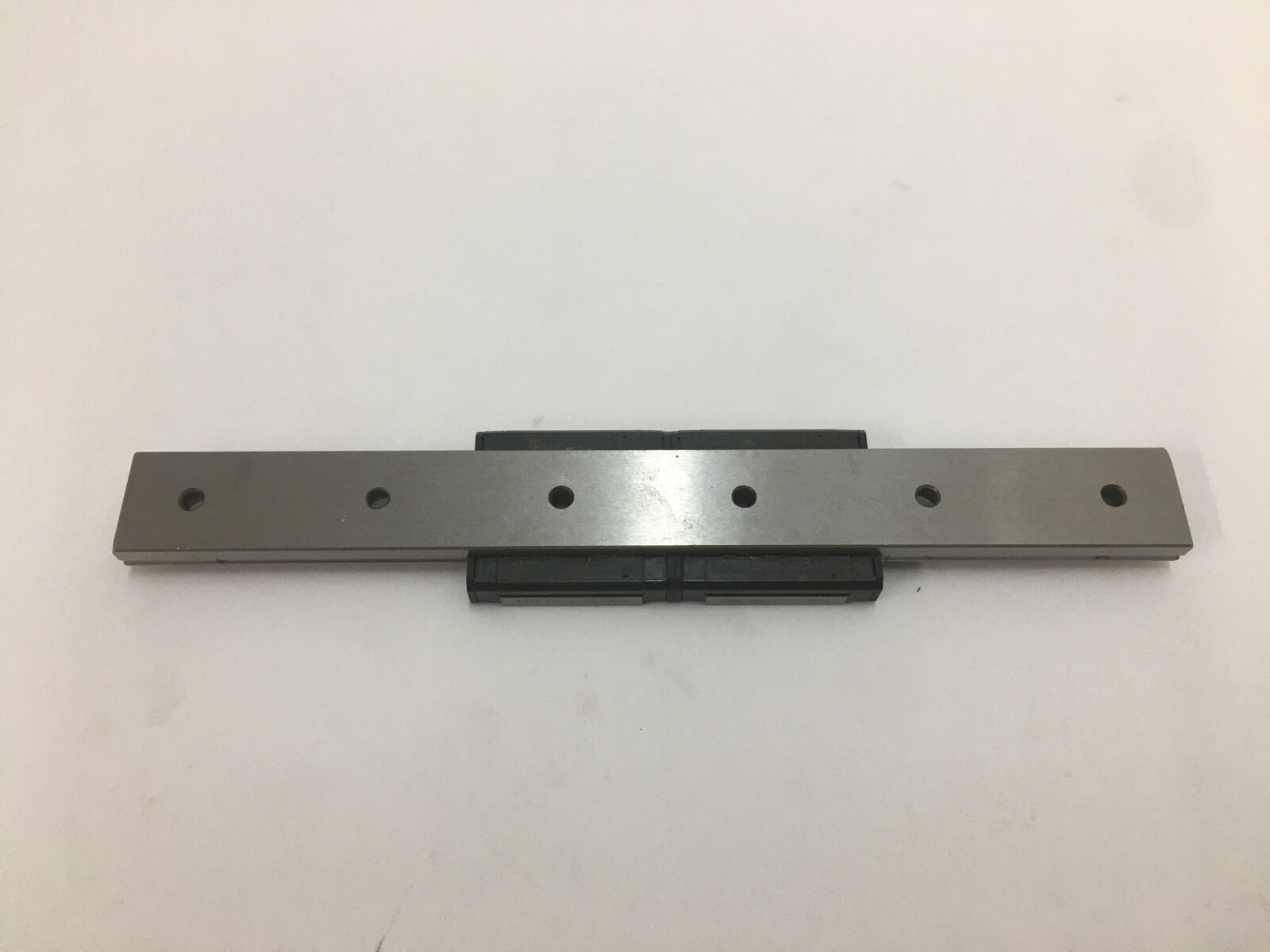

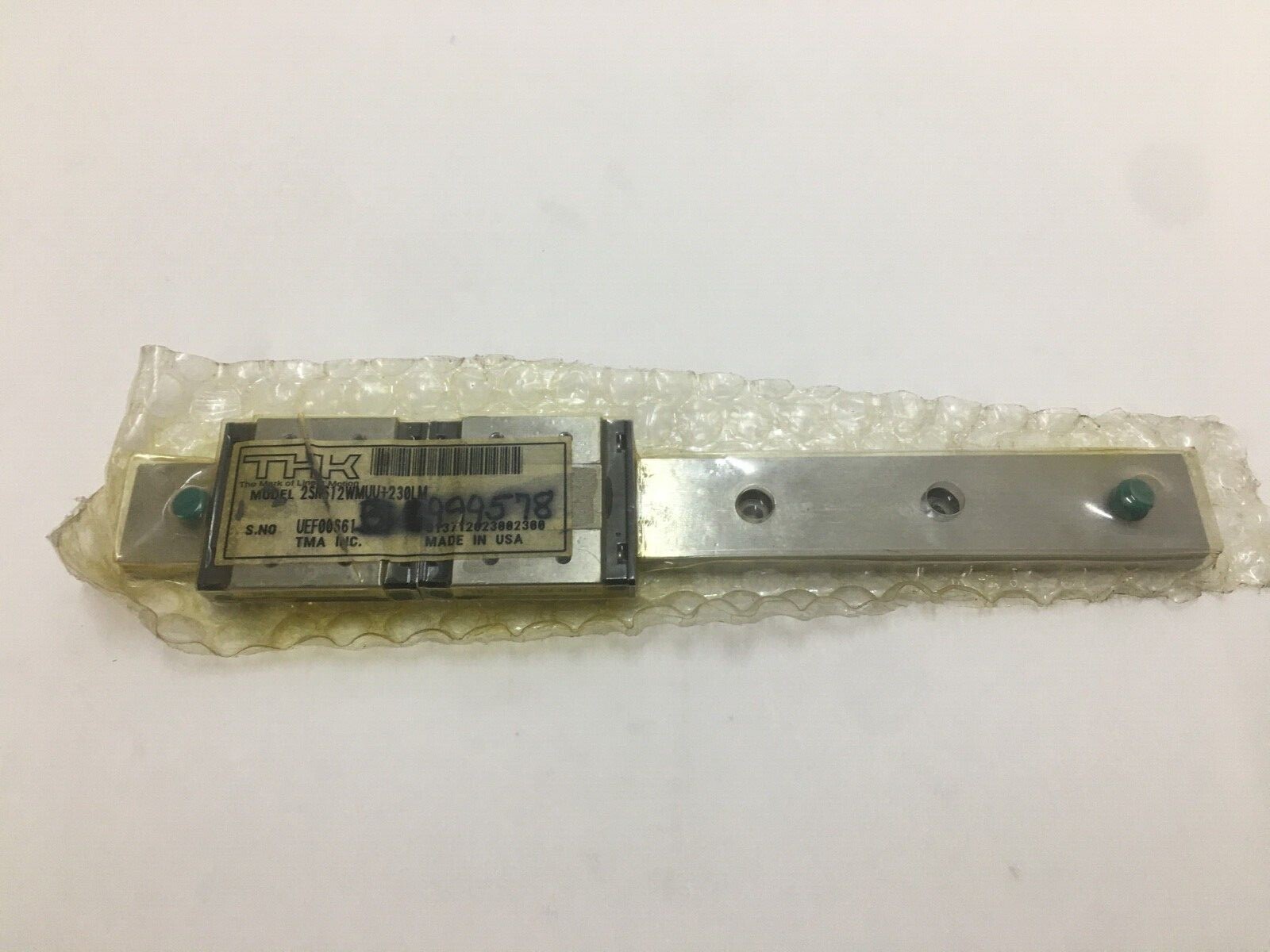

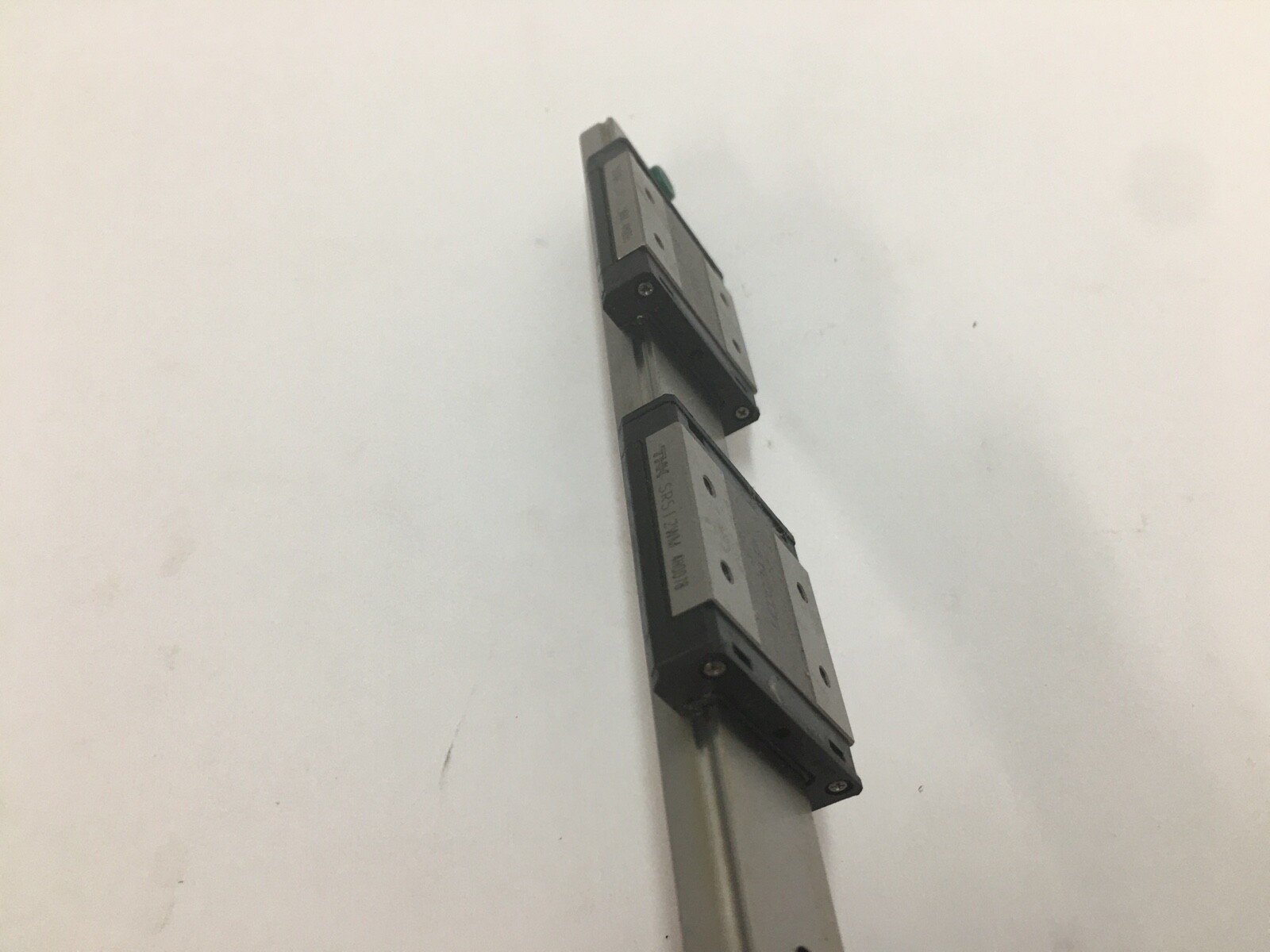

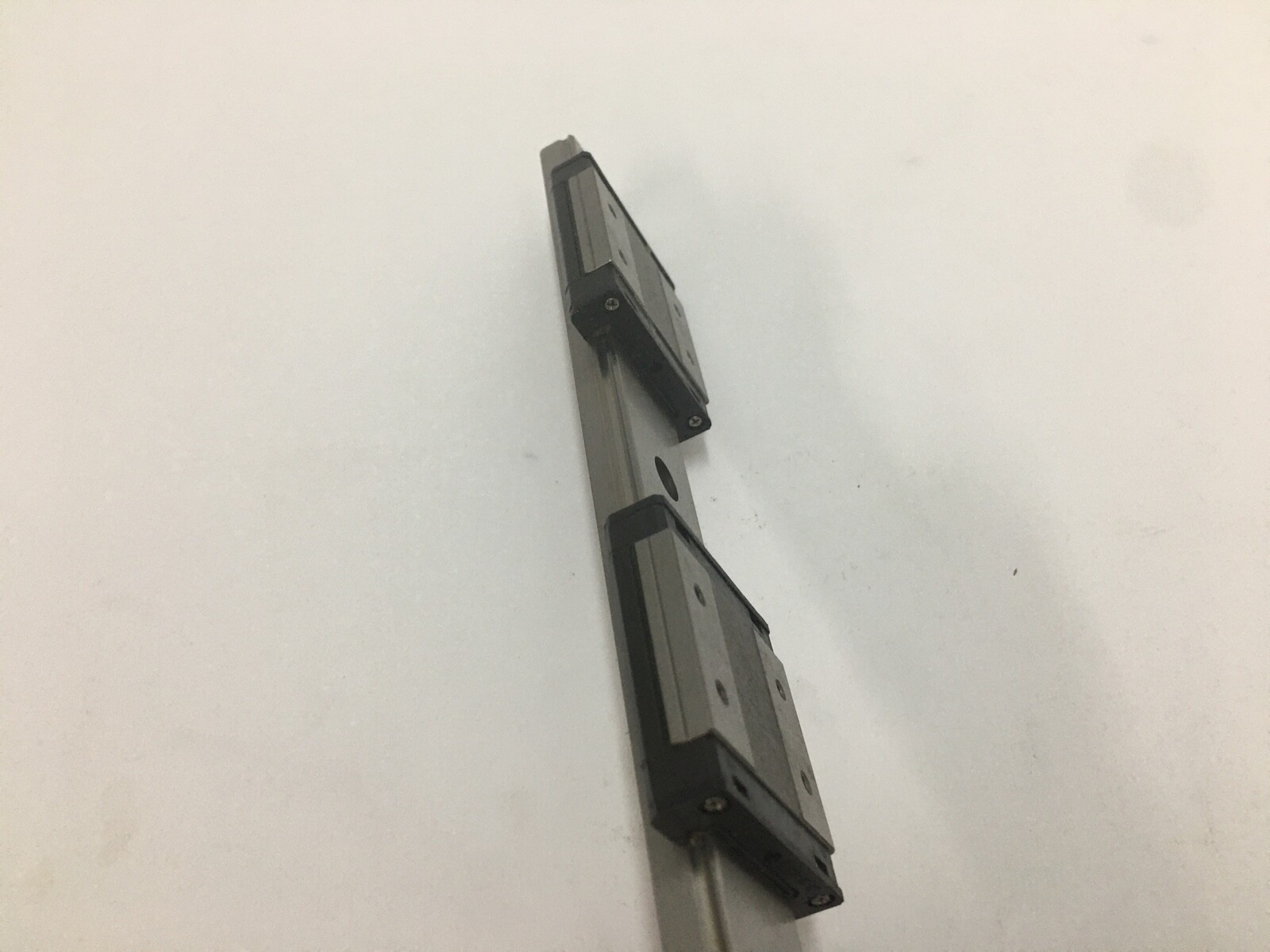

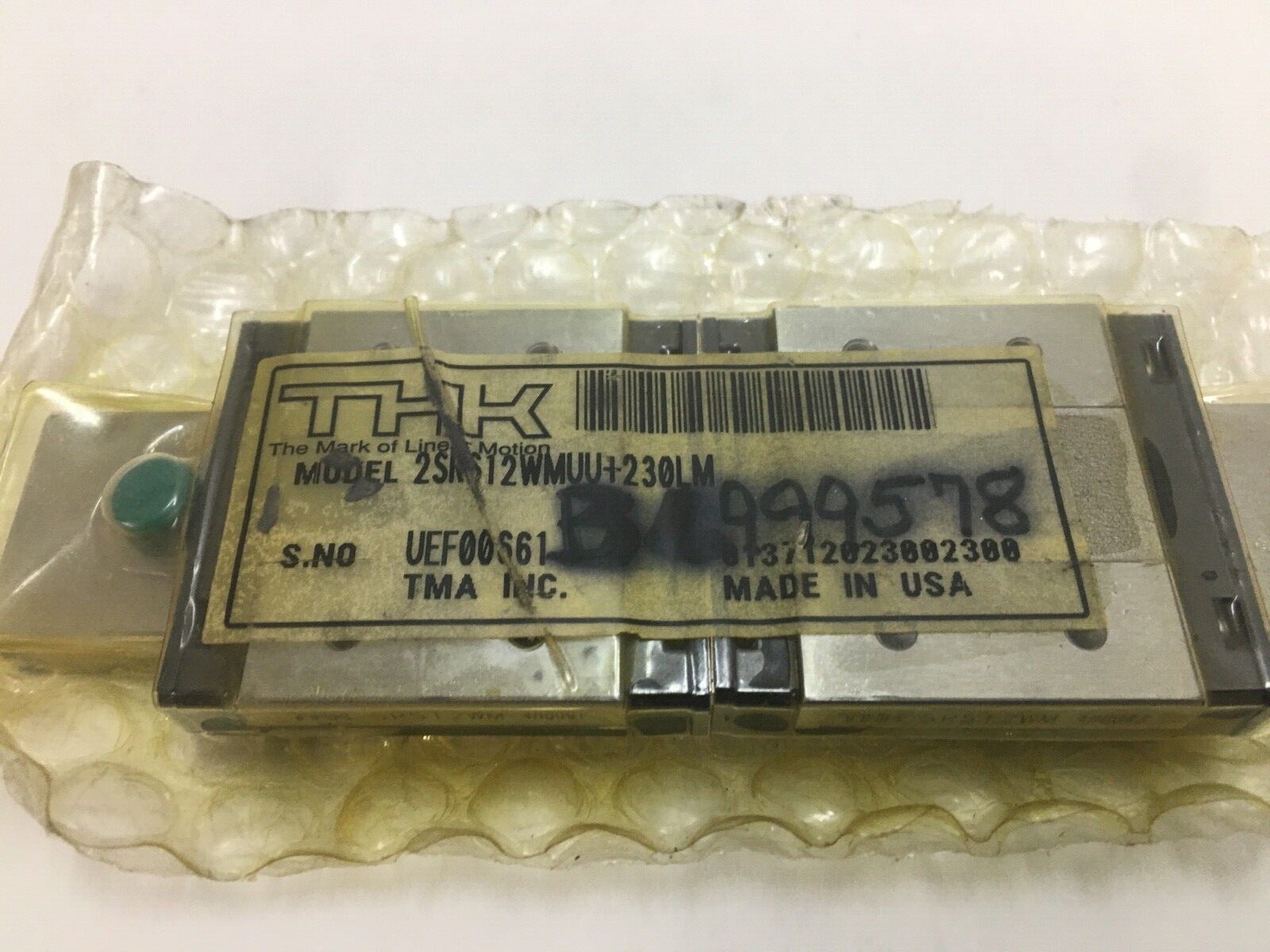

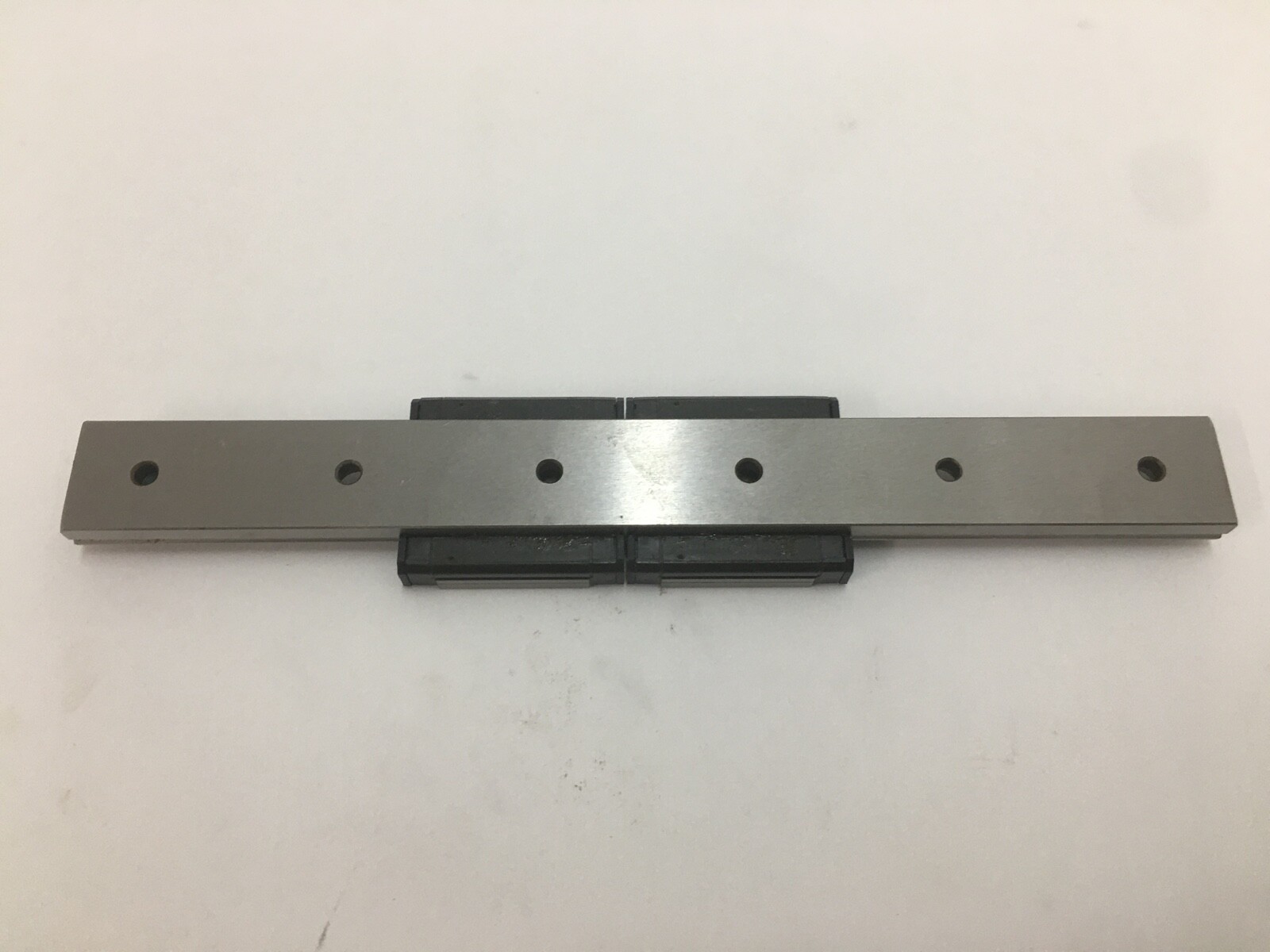

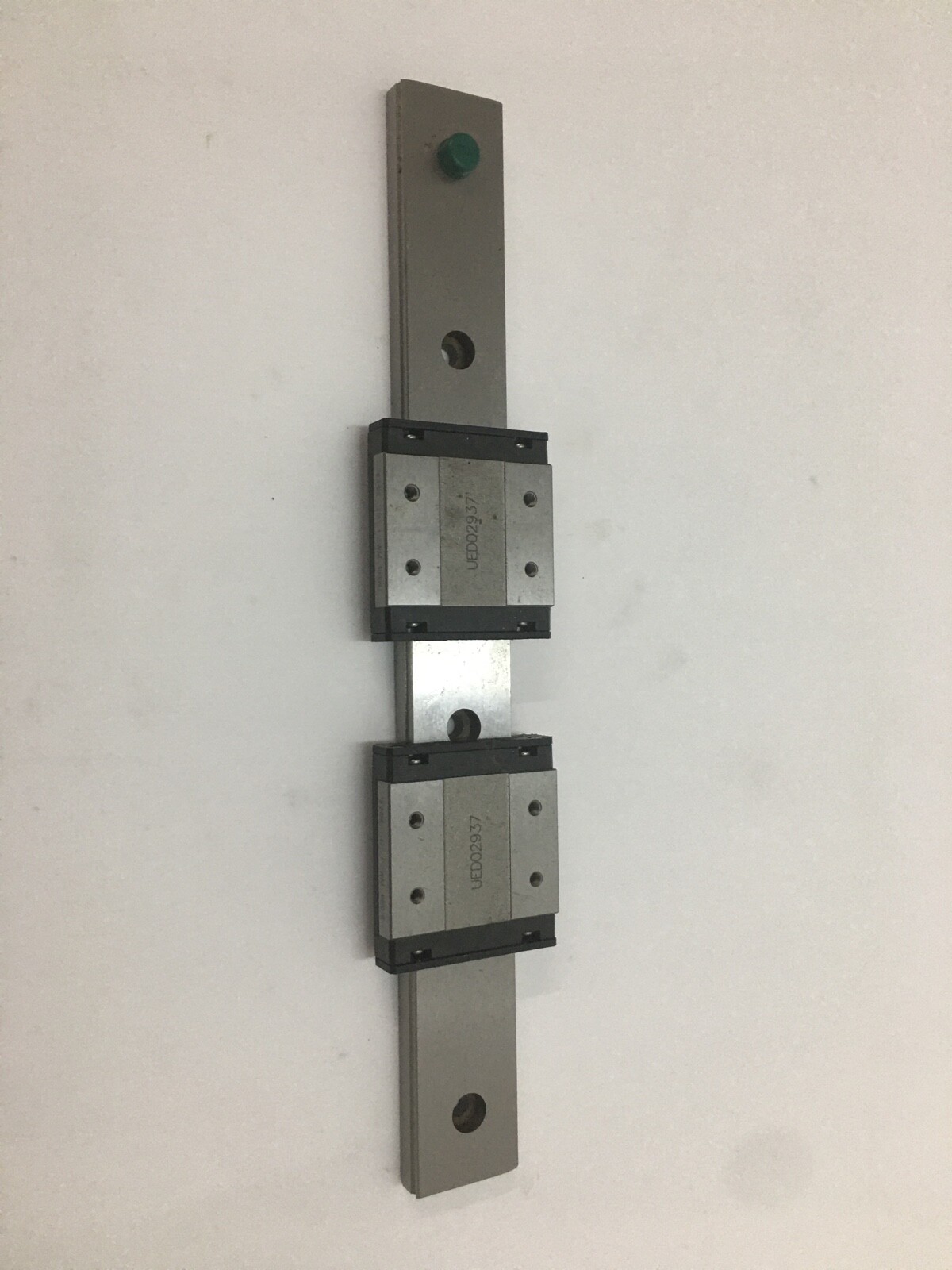

THK 2SRS12WMUU+230LM is a miniature caged-ball LM Guide set: two SRS12WM wide LM blocks on one 230 mm stainless steel LM rail. Type: Linear Guide (LM Guide). Series: SRS-WM. Size: 12. Bearing Material: Stainless steel block, rail and balls.
2 — two LM blocks on the same rail.

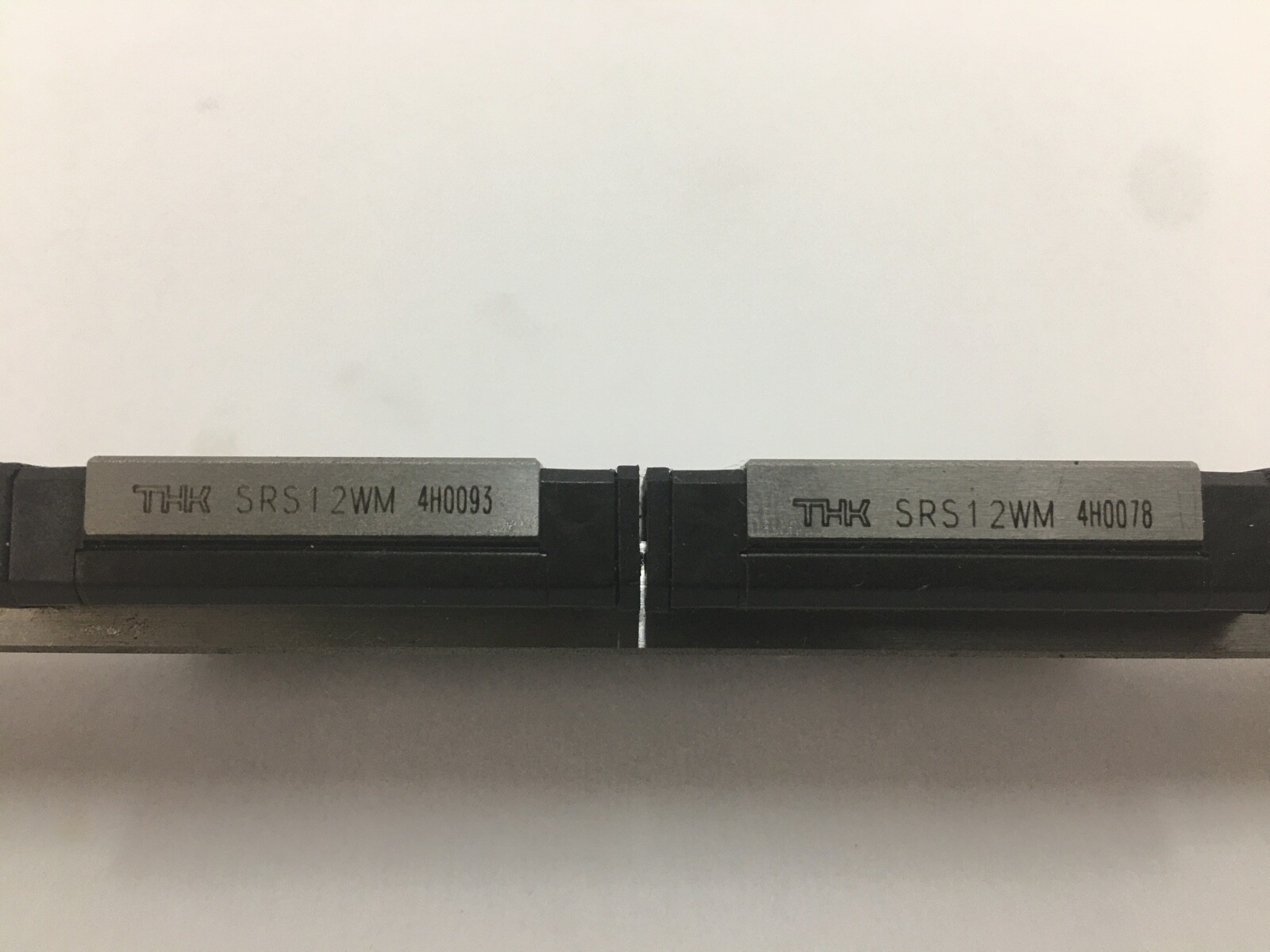

SRS12WM — THK SRS miniature caged-ball LM Guide, size 12, wide block, medium length.
UU — end seals on both ends of each block.
+230L — LM rail length 230 mm.
M — stainless steel LM rail.
No clearance or accuracy symbol — normal radial clearance, normal accuracy grade.
Dynamic Load Rating: 5,480 N per block. Static Load Rating: 5,300 N per block. Four-way equal load rating. The caged balls give long-term maintenance-free running and low noise. Stainless steel construction resists corrosion in clean-room and wet environments.
Block Height (M): 14 mm. Block Width (W): 40 mm. Block Length (L, with UU seals): 44.5 mm. Block Mounting Hole Spacing (B x C): 28 x 15 mm, 4 x M3 x 3.5 mm. Rail Width (W1): 24 mm. Rail Height (M1): 8.5 mm. Rail Mounting Hole Pitch (F): 40 mm. Rail Mounting Holes (d1 x d2 x h): 4.5 x 8 x 4.5 mm. Rail Length: 230 mm. Block Mass: 0.055 kg each. Rail Mass: 1.52 kg/m.

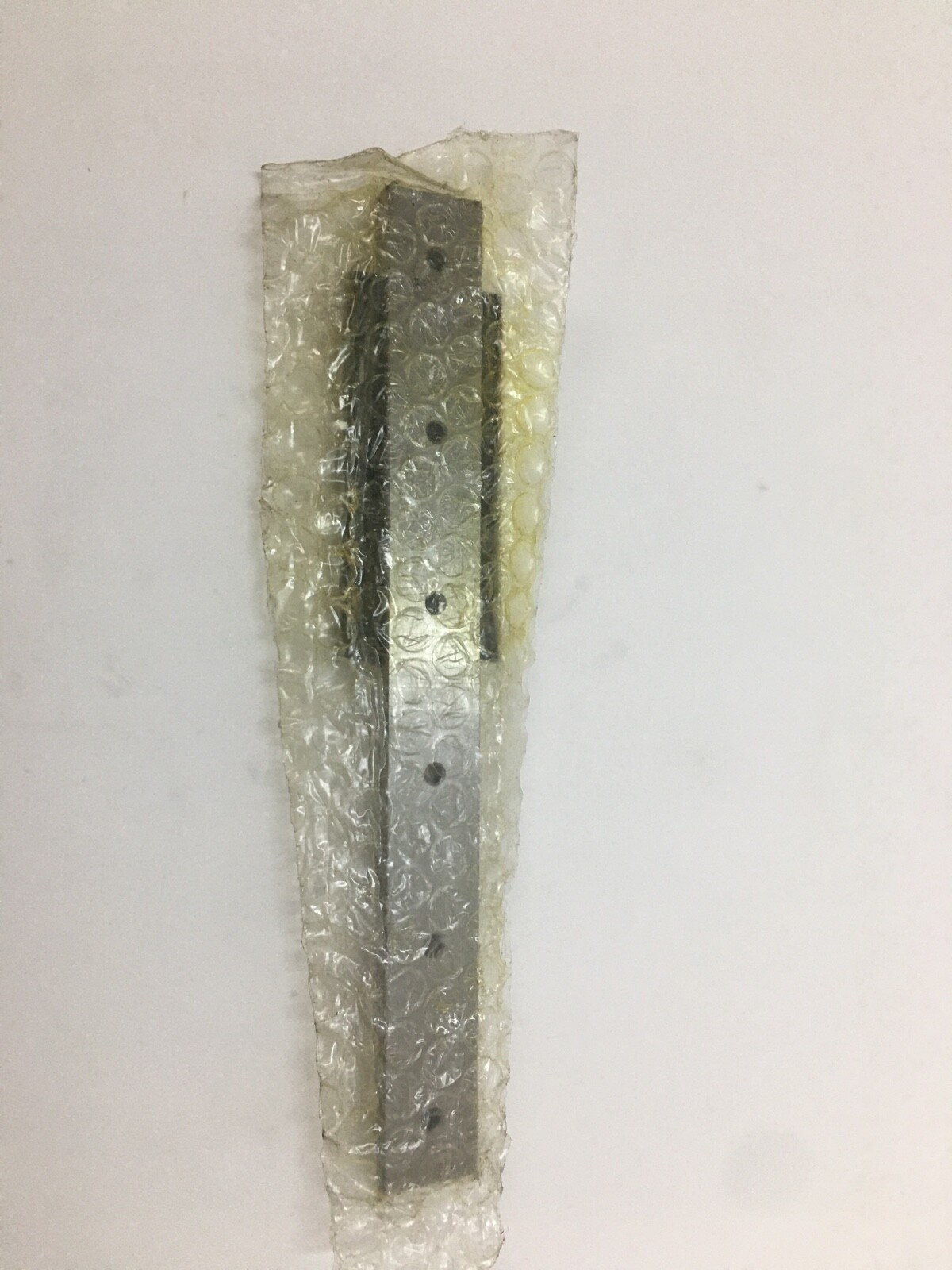

Each unit: one 230 mm LM rail with two SRS12WMUU blocks. Condition: New – open box.
Compatible With: THK SRS12WM blocks and SRS12 rails. The full-complement SRS12WGM shares the envelope with lower ratings (C 4,460 N).
