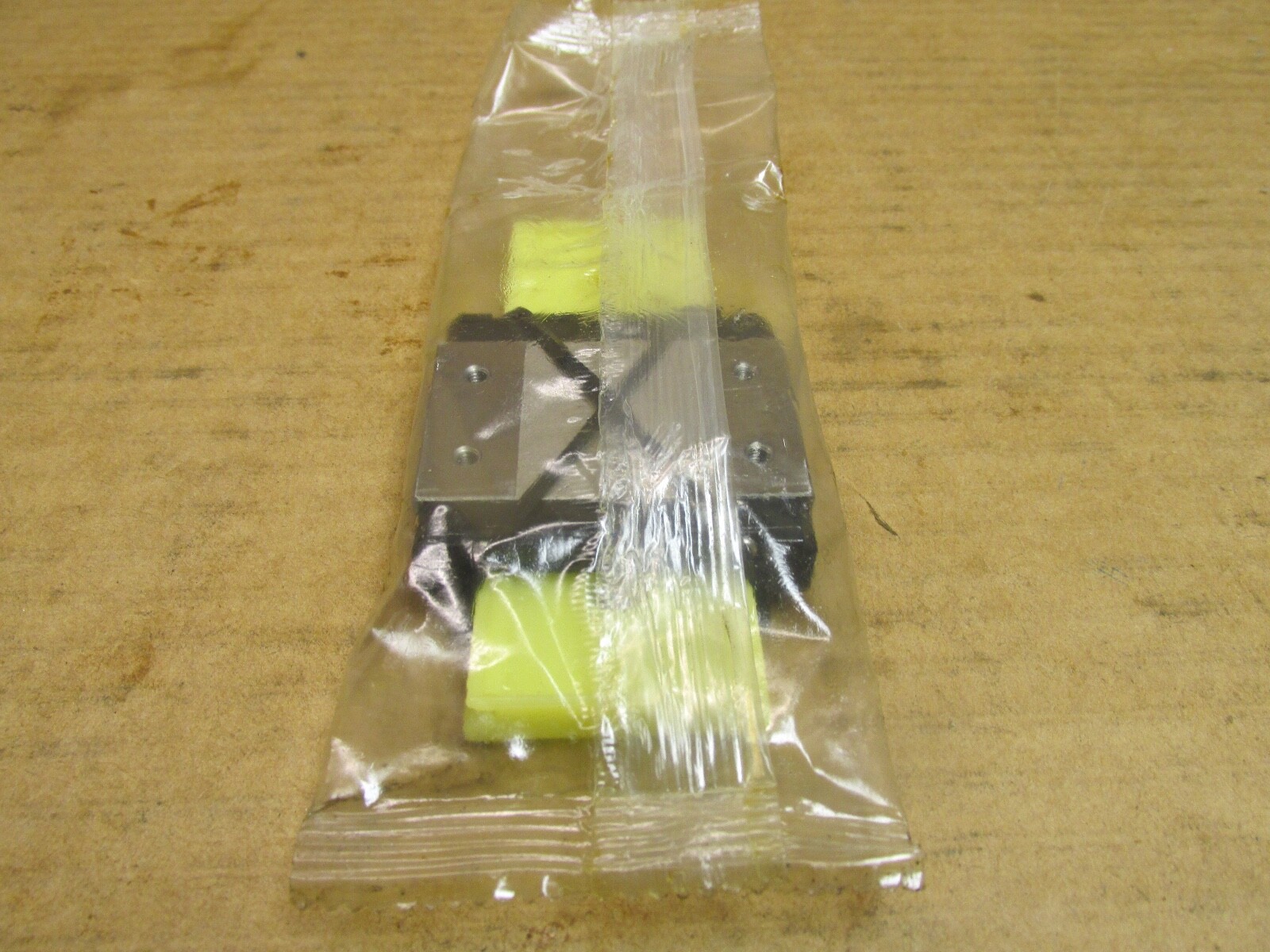

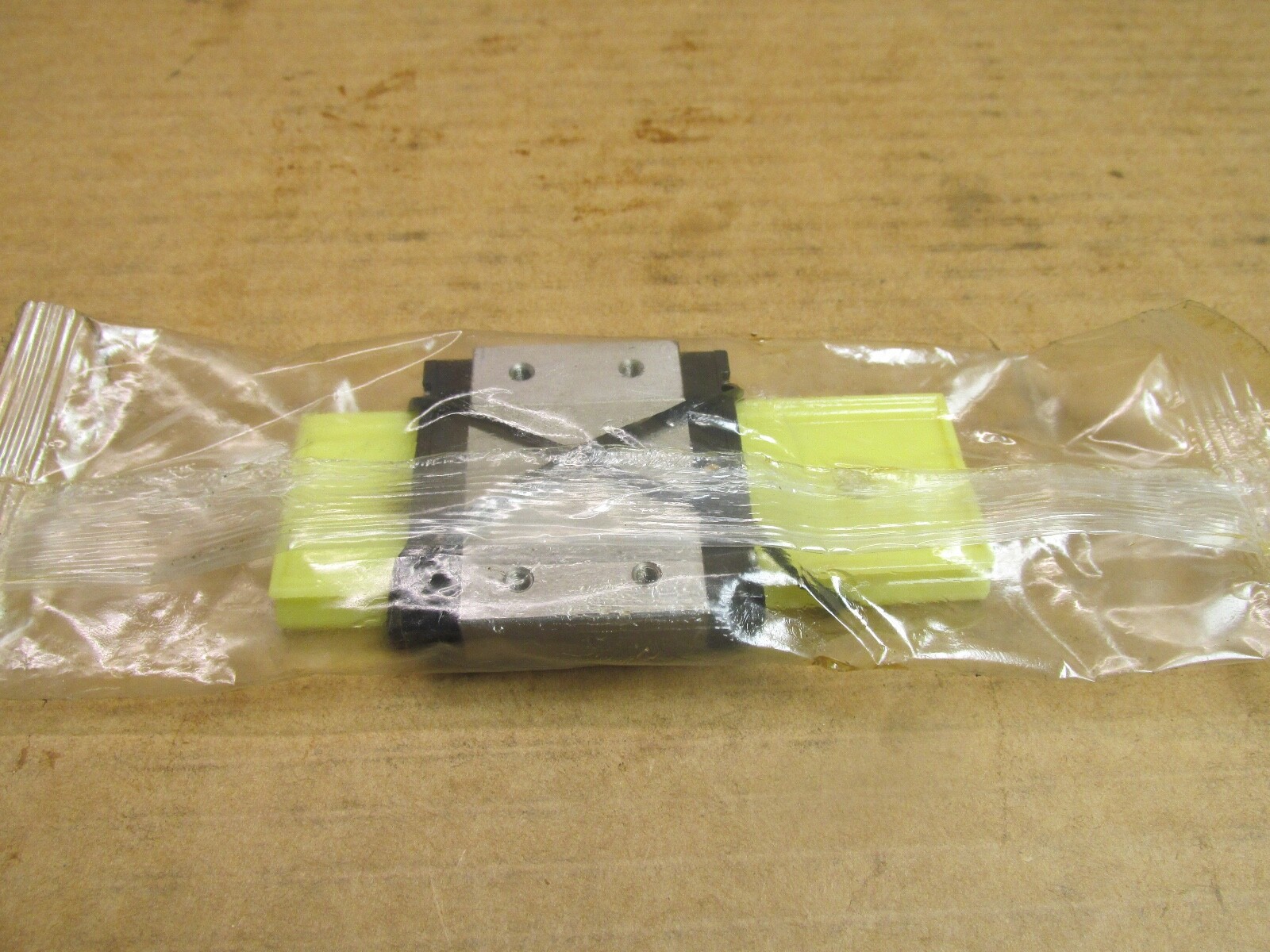

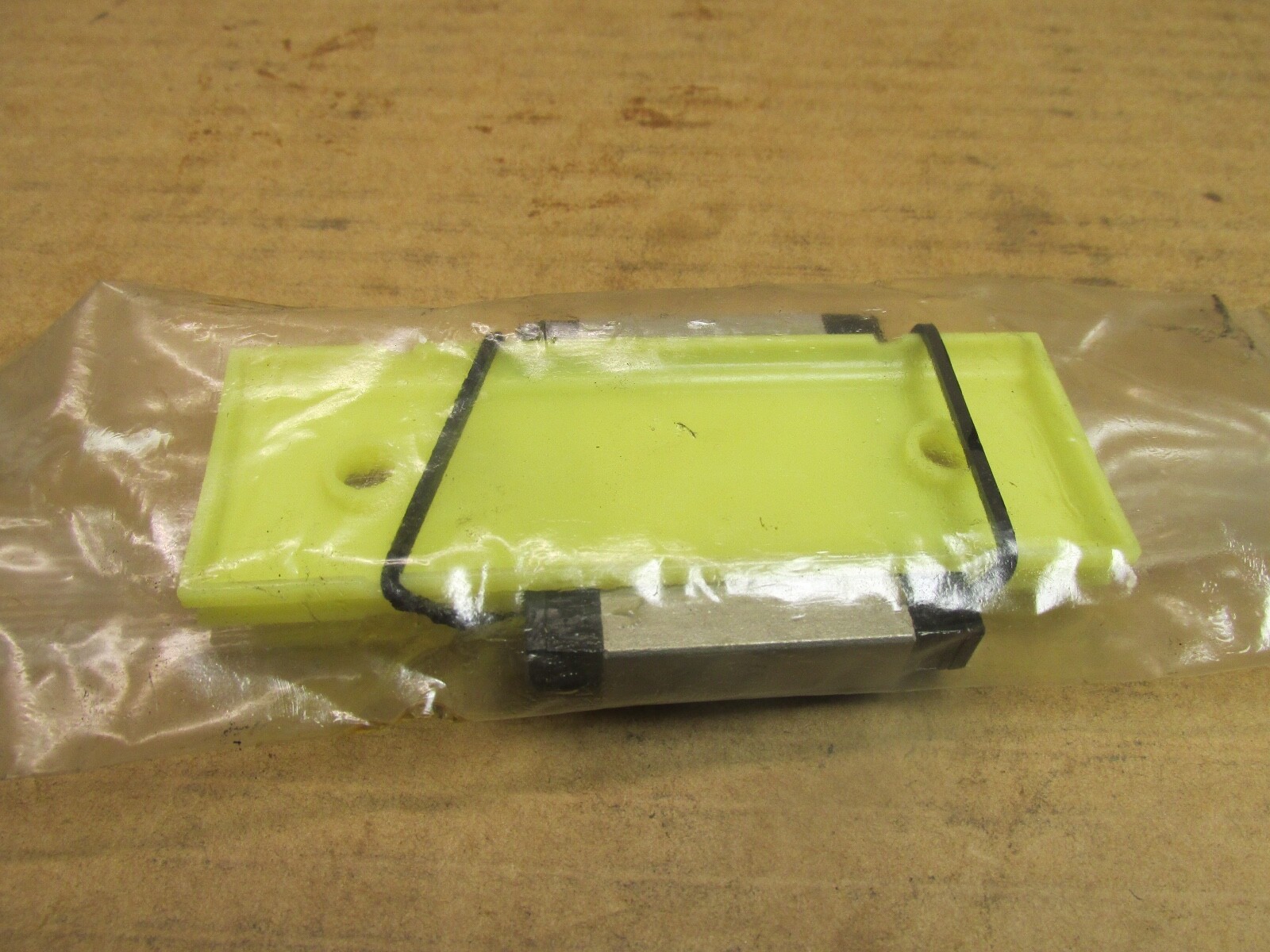

NSKLE15-1Miniature Wide Rail Linear Guide — Size 15, 16 mm Height, 60 mm Slide Width, 42 mm Rail, Stainless

Condition: New – Open box
Condition Note: MADE IN JAPAN

Availability:

2 in stock

NSK LE15 miniature wide rail linear guide, 16 mm assembly height, 60 mm slide width, 42 mm rail width. Martensitic stainless steel rail and ball slide.

Same day shipment

List Price

$39.99

2 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

2 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandNSK
MPNLE15-1
ModelLE151

Technical Specifications

TypeMiniature Wide Rail Linear Guide
Mpn VariantsLE15-1, LE 15-1, LE151, LE15, LE-15
Compatible With ReplacesNSK PE15 (successor, same mounting dimensions), rail L1E15
MaterialMartensitic stainless steel
SeriesLE
Rolling ElementsBall
Industry Termsminiature linear guide; wide rail linear guide; ball slide and rail; linear motion guide
Common MisspellingsNSK LE 15; NSK L E15-1; NKS LE15-1; NSK LE-151
Application TypesAutomation equipment; inspection equipment; compact machinery

Cross-References

Cross Reference 1NSK PE15 - successor, same mounting dimensions
Seller Part Number: AQ1B1#SU3BVT

Product Description

What this part is:

NSK LE15-1 miniature wide-rail linear guide from the NSK LE series, listed as ball slide (block) and rail. Assembly Height: 16 mm. Ball Slide Width: 60 mm. Rail Width: 42 mm. Rail Height: 9.5 mm. Material: Martensitic stainless steel rail and ball slide.

Decoding the designation:

LE — NSK miniature linear guide, wide rail type, for single-rail applications.

15 — size 15.

Specifications:

Series: LE. Size: 15. Rolling Elements: Ball. Ball Diameter: 3.175 mm. Assembly Height: 16 mm. Ball Slide Width: 60 mm. Rail Width: 42 mm. Rail Height: 9.5 mm. Material: Martensitic stainless steel. Country of Origin: Japan.

Dimensions and mounting:

Ball Slide Mounting Tap: M4 x 0.7. Rail Mounting Bolt Hole: 4.5 x 8 x 4.5 mm. Rail Mounting Hole Pitch: 40 mm. Rail Maximum Length: 1,200 mm.

Compatibility and replacement:

Cross-reference: NSK PE15, the successor to the LE15, with the same mounting dimensions. Rail designation for the LE15 rail: L1E15.

Frequently asked questions:

What is the NSK LE15?

A size 15 miniature wide-rail linear guide in stainless steel.

What is the height and width of the LE15?

16 mm assembly height, 60 mm slide width, 42 mm rail width.

What replaces the NSK LE15?

The NSK PE15, which shares the LE15 mounting dimensions.
