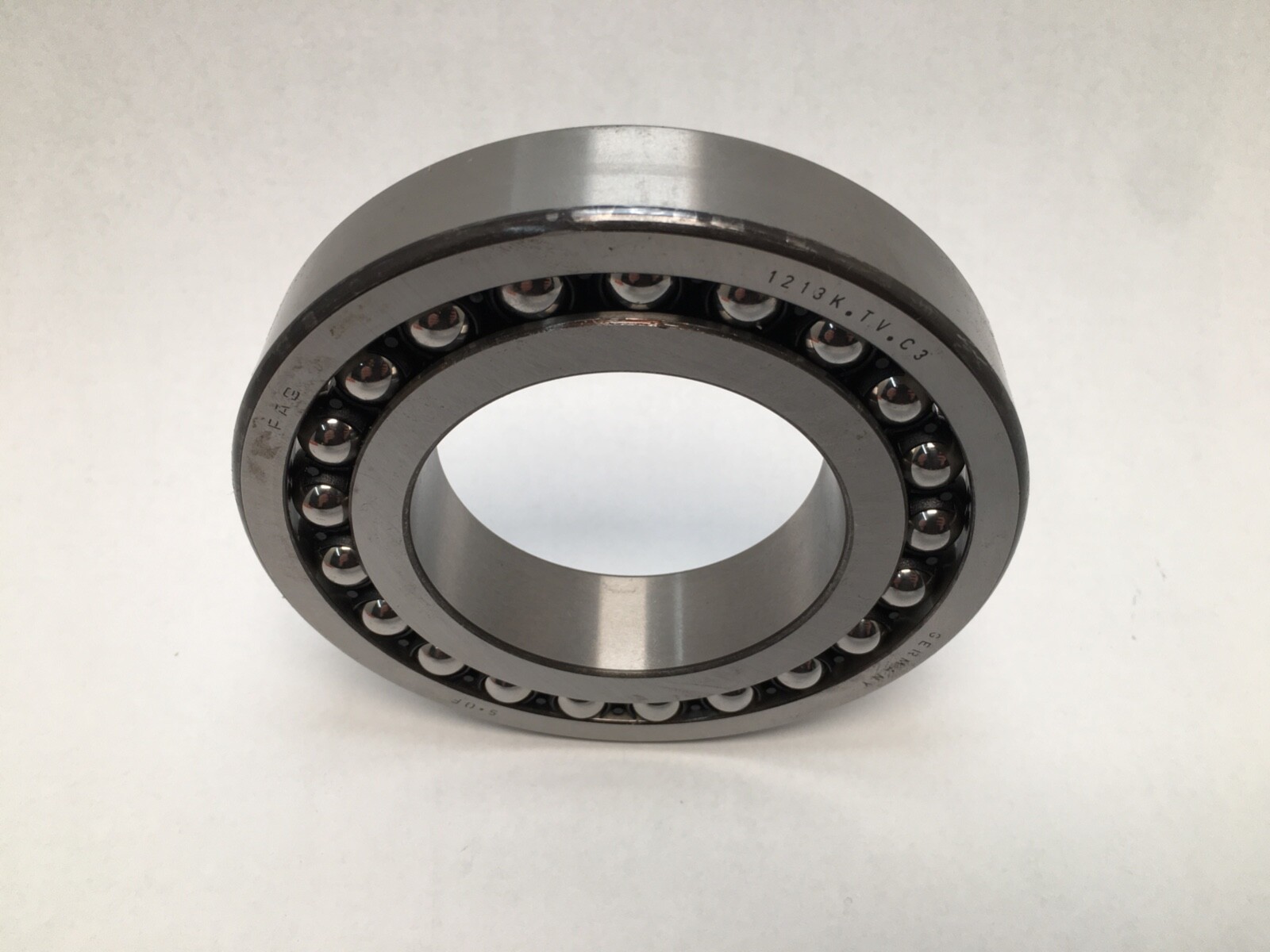

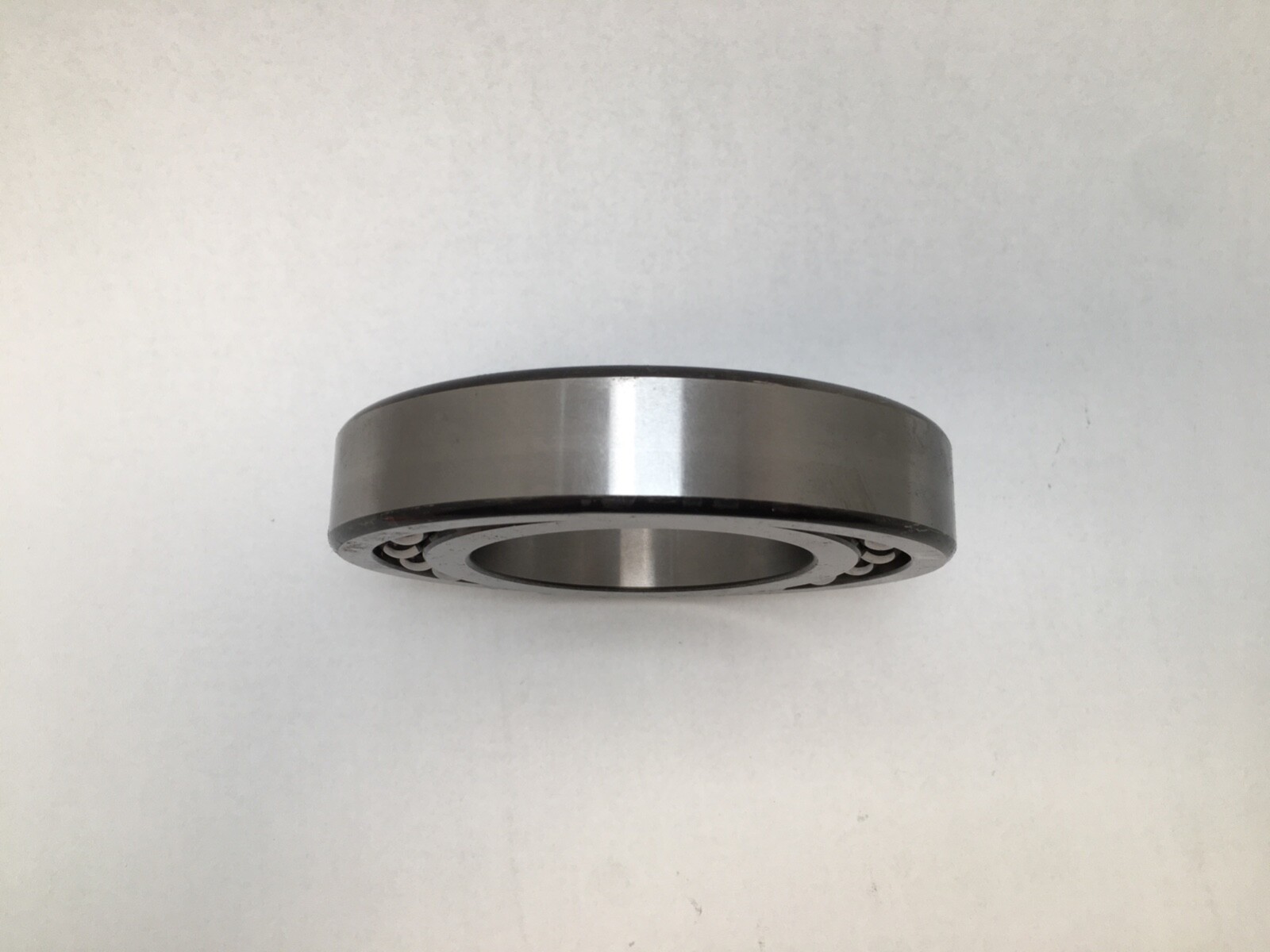

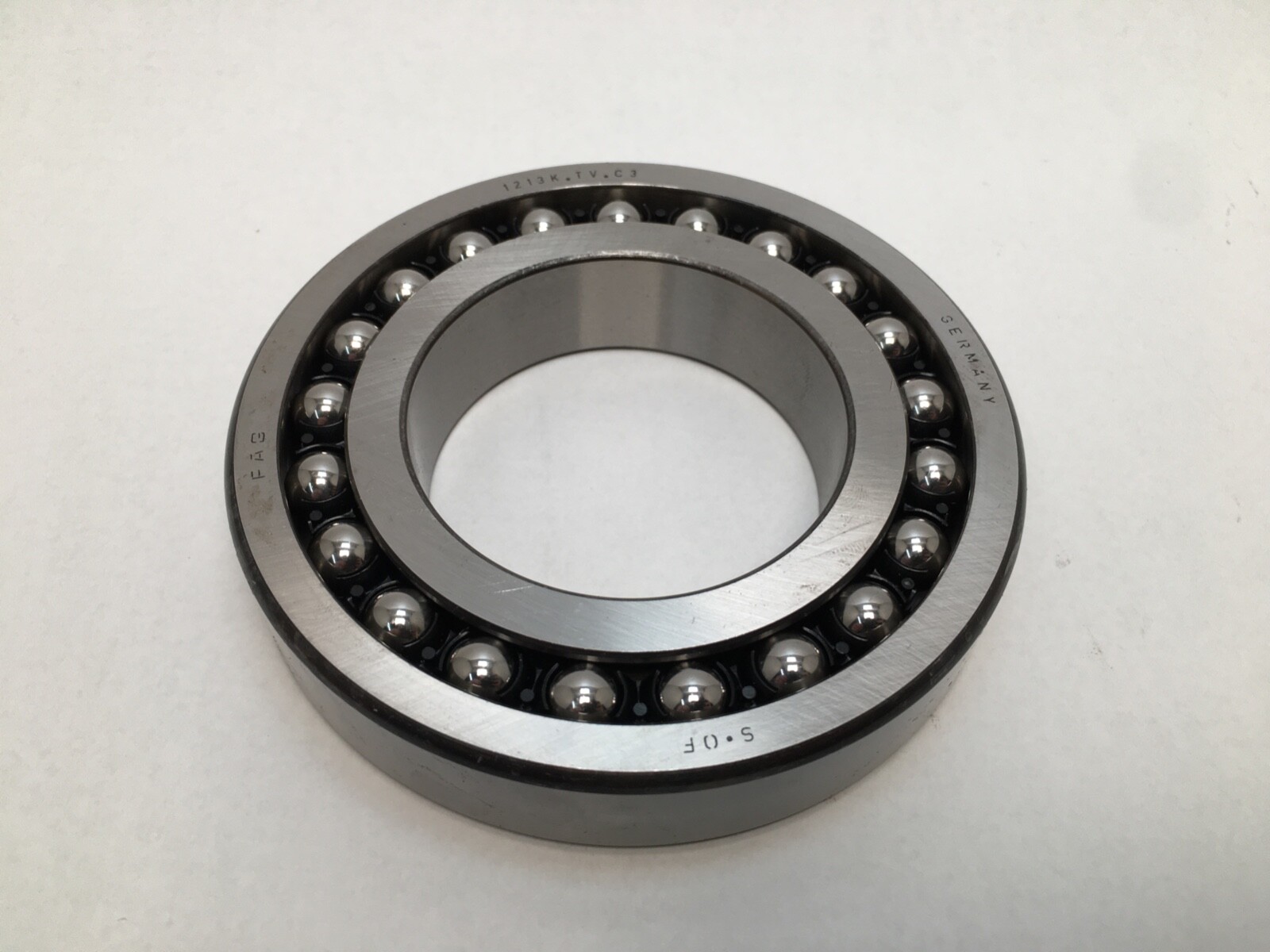

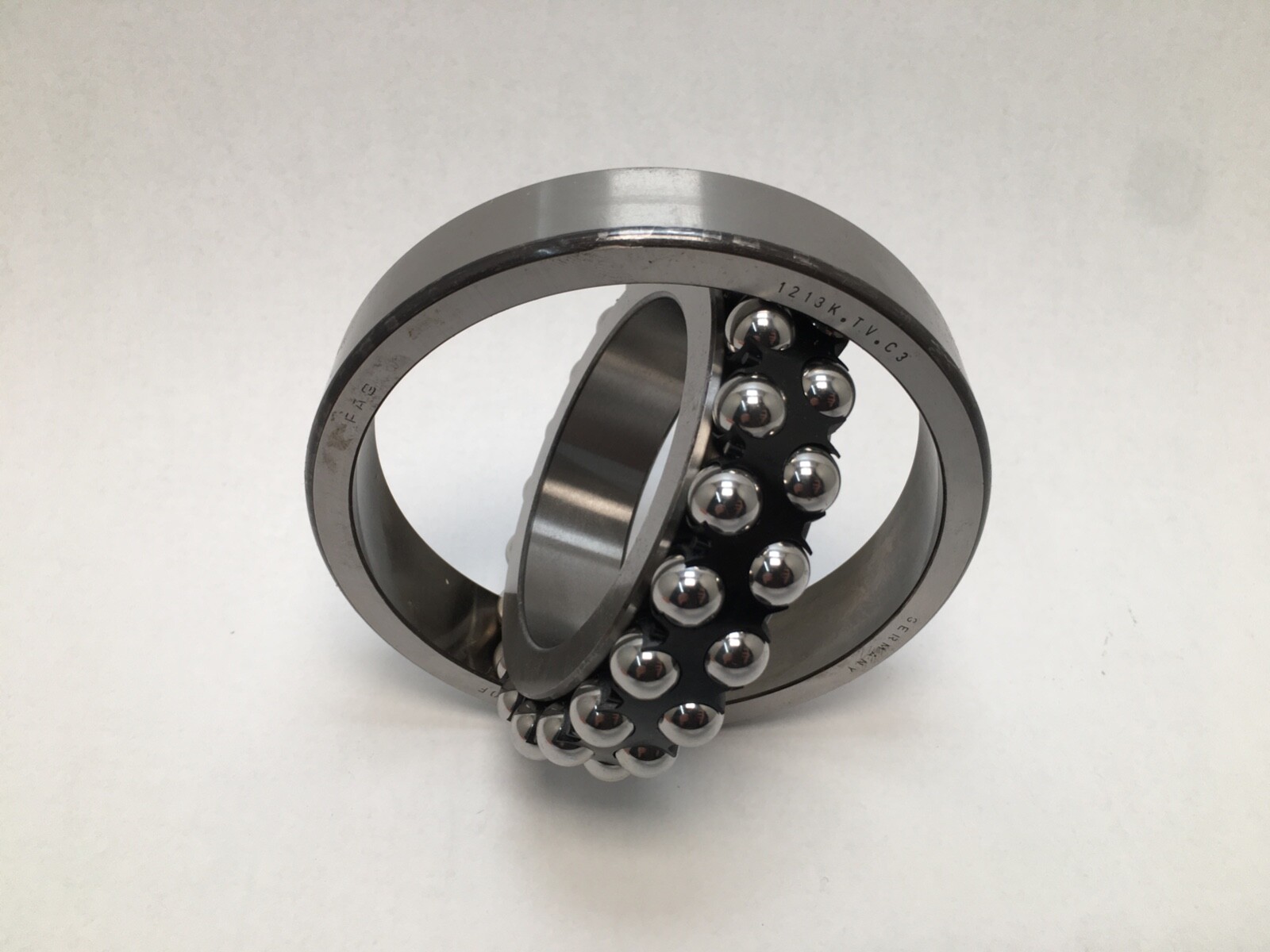

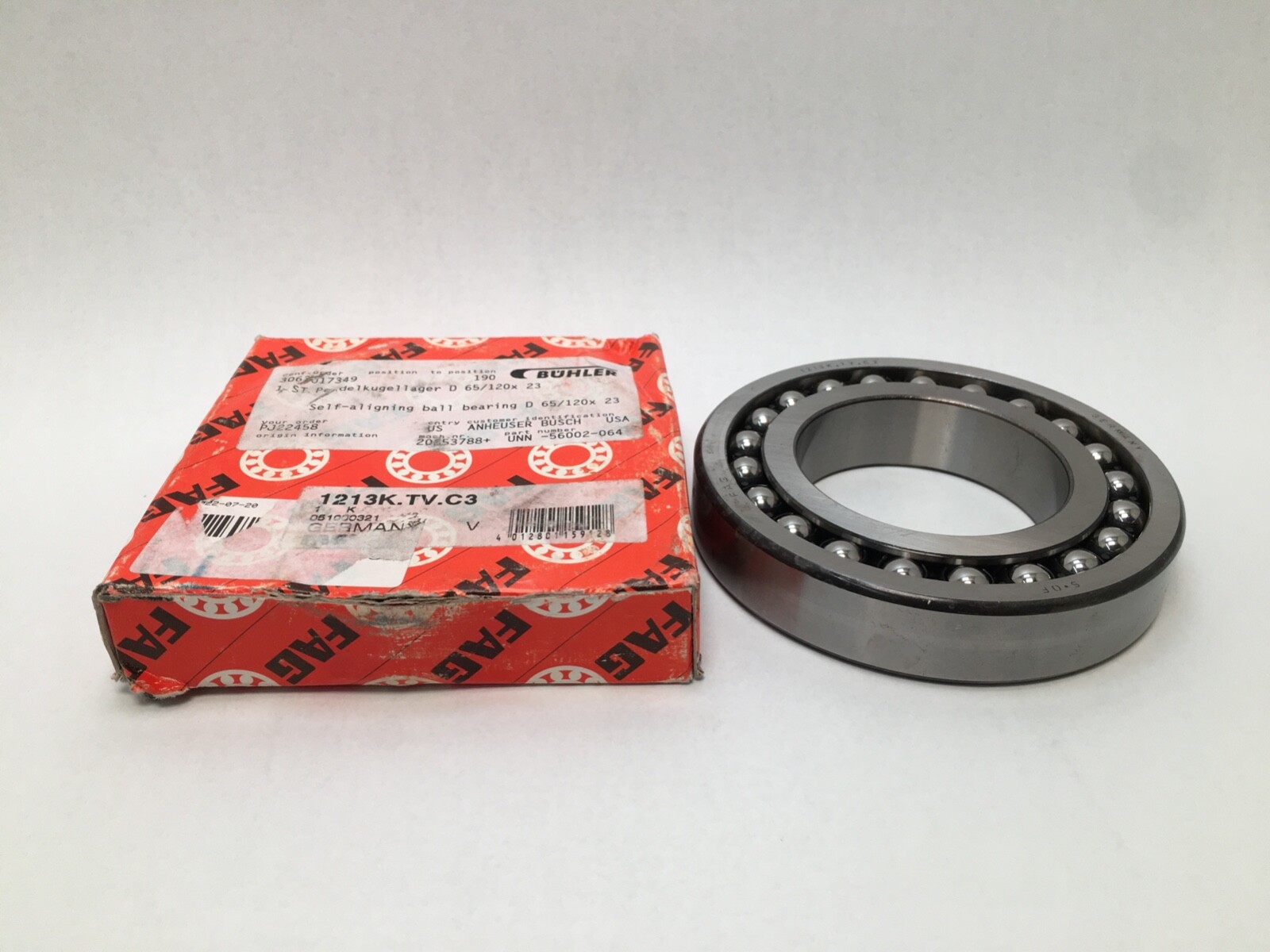

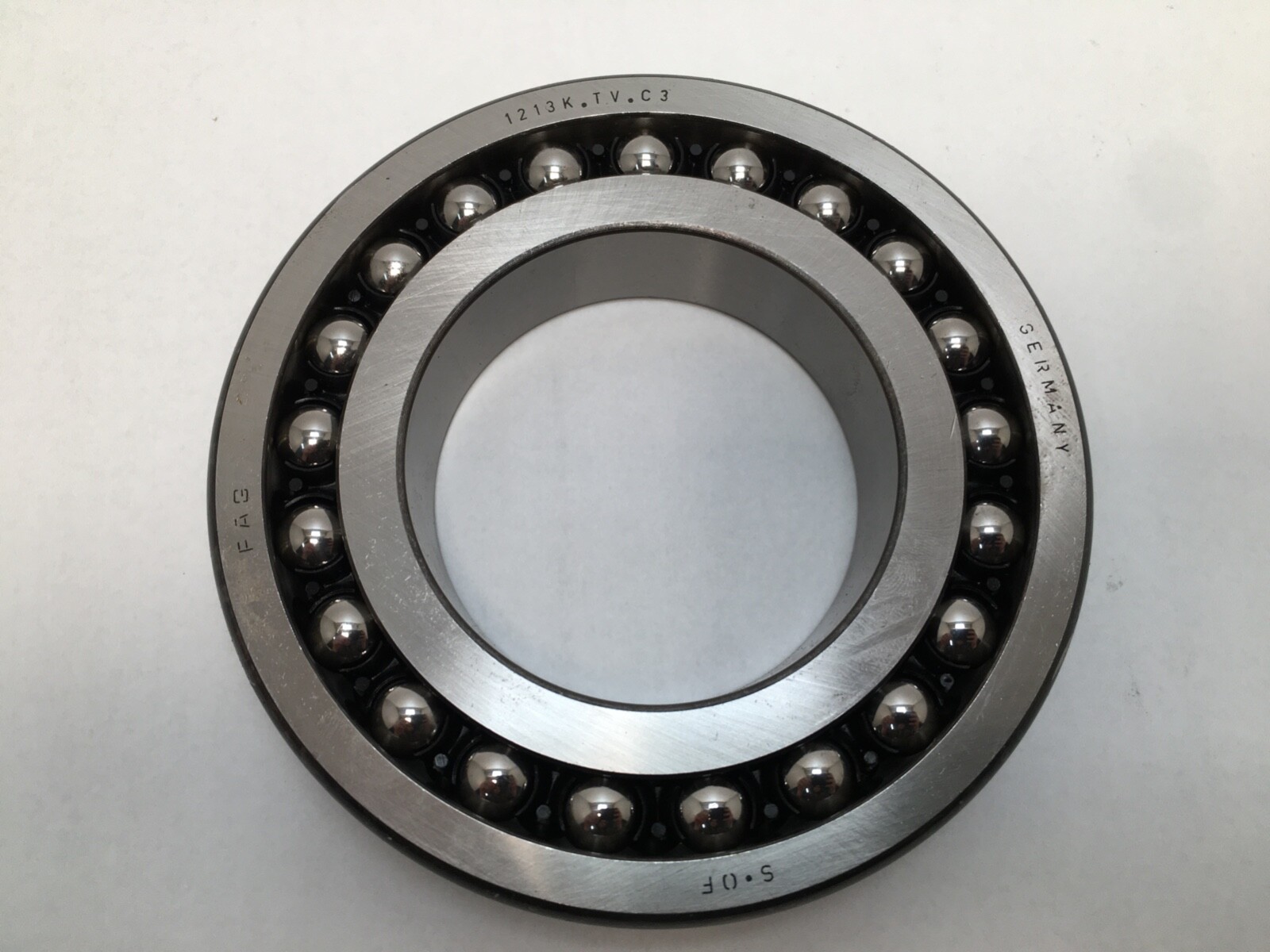

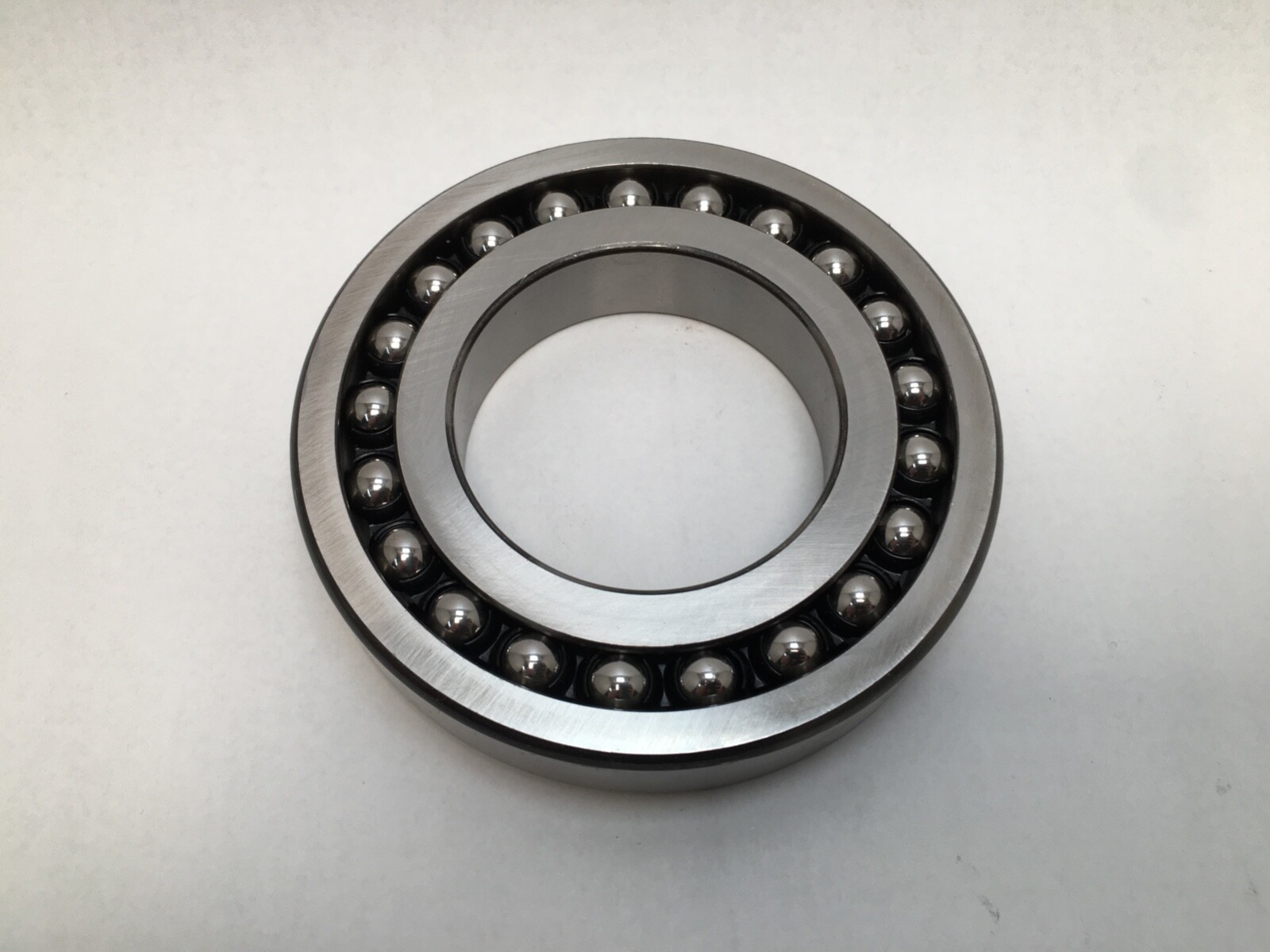

Name: Self-Aligning Ball Bearing - Tapered Bore, 65mm ID, 120mm OD, 23mm Width, Open, C3 Internal clearance.
Brand: FAG
SKU: AF5B1#LWWOHY
Price: 48.93 USD
Availability: InStock

Additional information

Key Specifications

MFR / Brand	FAG
MPN	1213KTVC3
Model	1213K.TV.C3
Bearing Type	Self Aligning Ball Bearing, Open
ID	65mm
OD	120mm
Width	23mm

Specifications

Advertise	1
Series	1200
Condition	New
Material	Chrome Steel
Min Temp	-30°C
Cage Type	Polyamide
Dynamic Load Rating	44 kN / 9890 lbf
Static Load Rating	18.3 kN / 4110 lbf
Precision Rating	ABEC 1 / P0
Rolling Elements	Ball
Max Temp	120°C
Item Weight	2.56 lbs
Cage Material	Polymer
Limiting Speed	5600 rpm
Number Of Rows	2
Bore Type	Tapered
Snap Ring Included	Without Snap Ring
Harmonization Code	84821000
Internal Clearance	C3
Maximum Permissible Misalignment	2.5°

Cross-References

Cross Reference 1	SKF 1213 EKTN9/C3
Cross Reference 2	NTN 1213KC3
Cross Reference 3	NSK 1213K C3
