SKF2205TVC3Double Row Self-Aligning Ball Bearing 25x52x18 mm, Straight Bore, Polyamide Cage, C3 Clearance

Product Description

What this part is

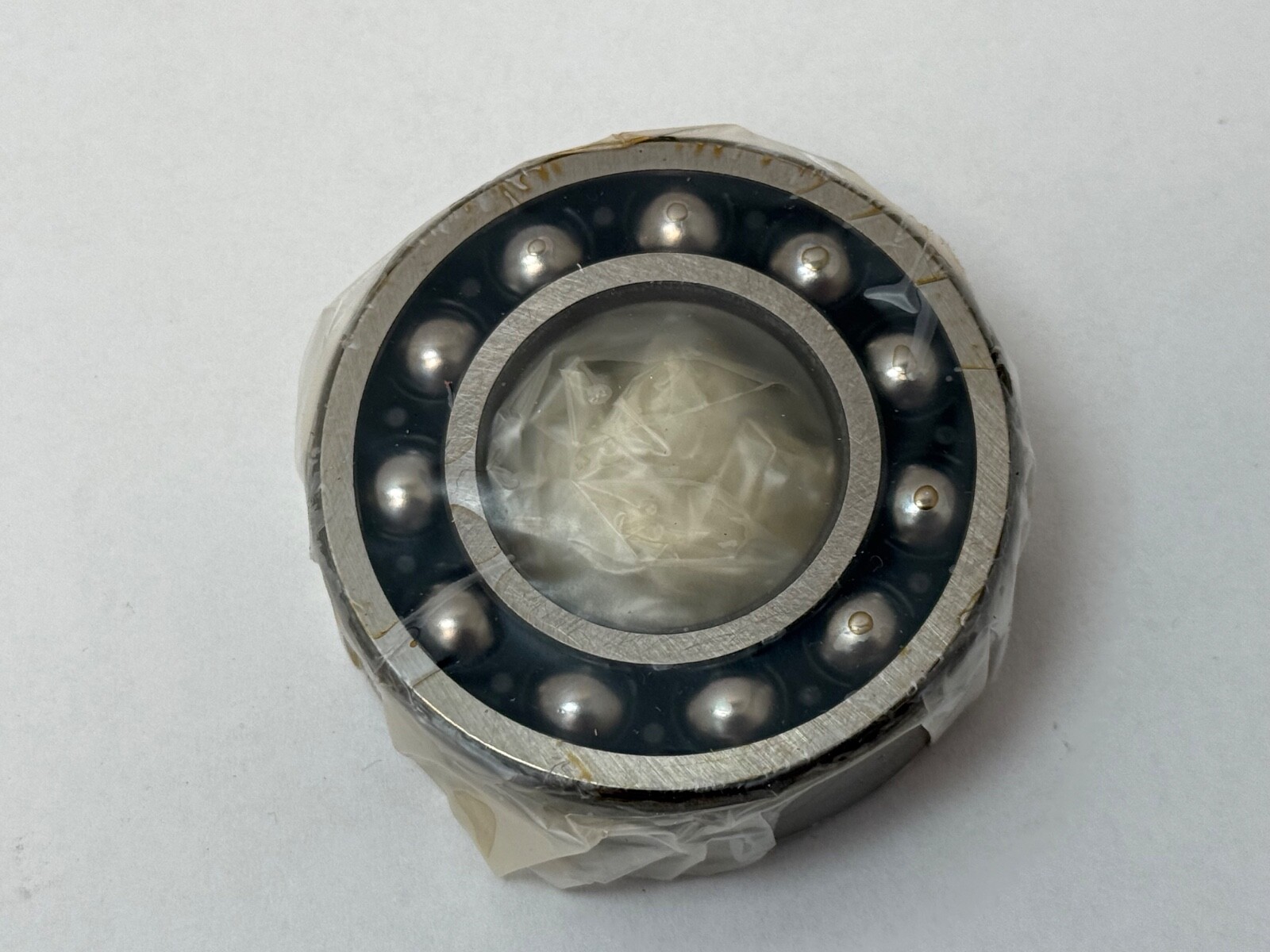

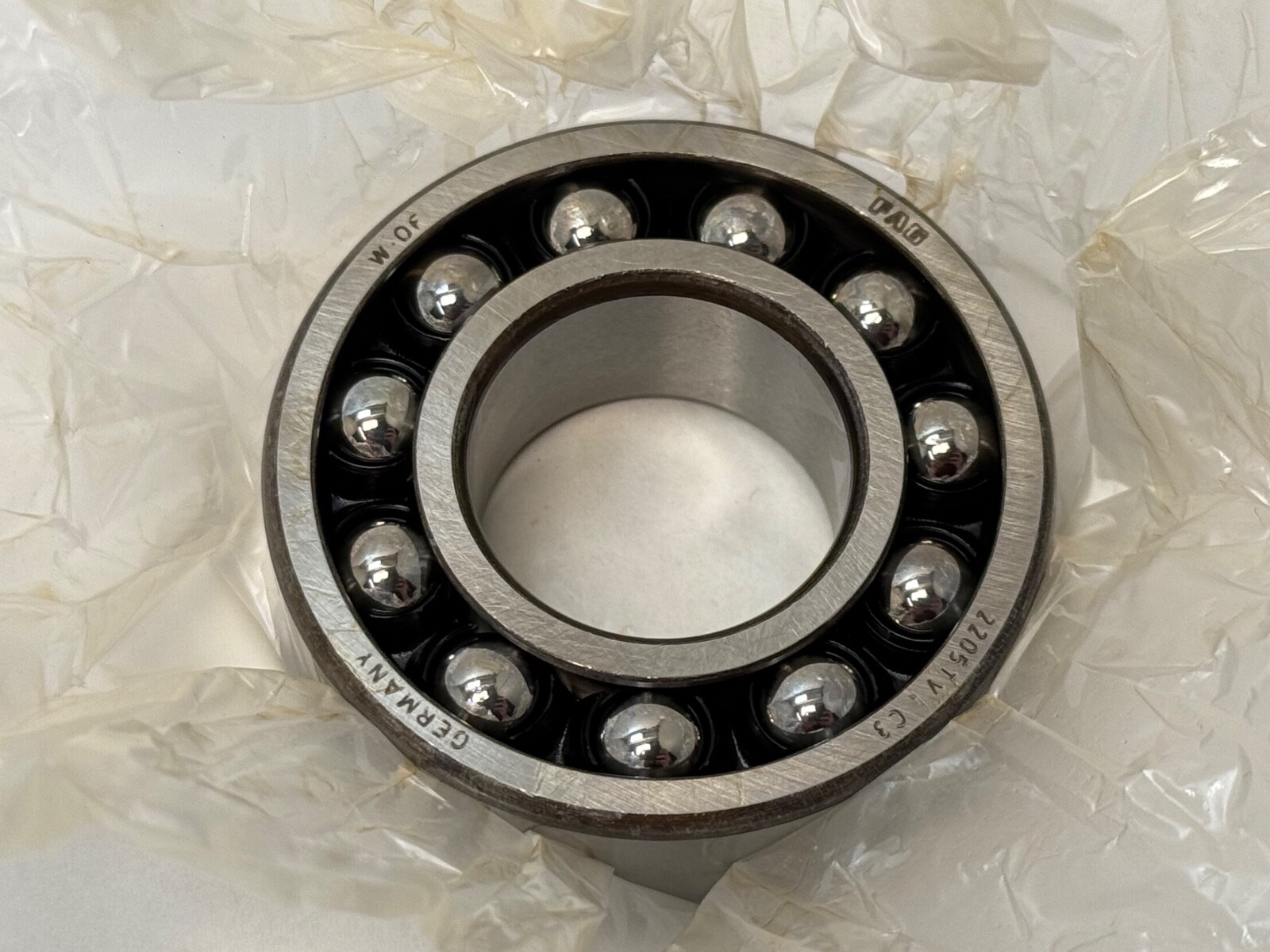

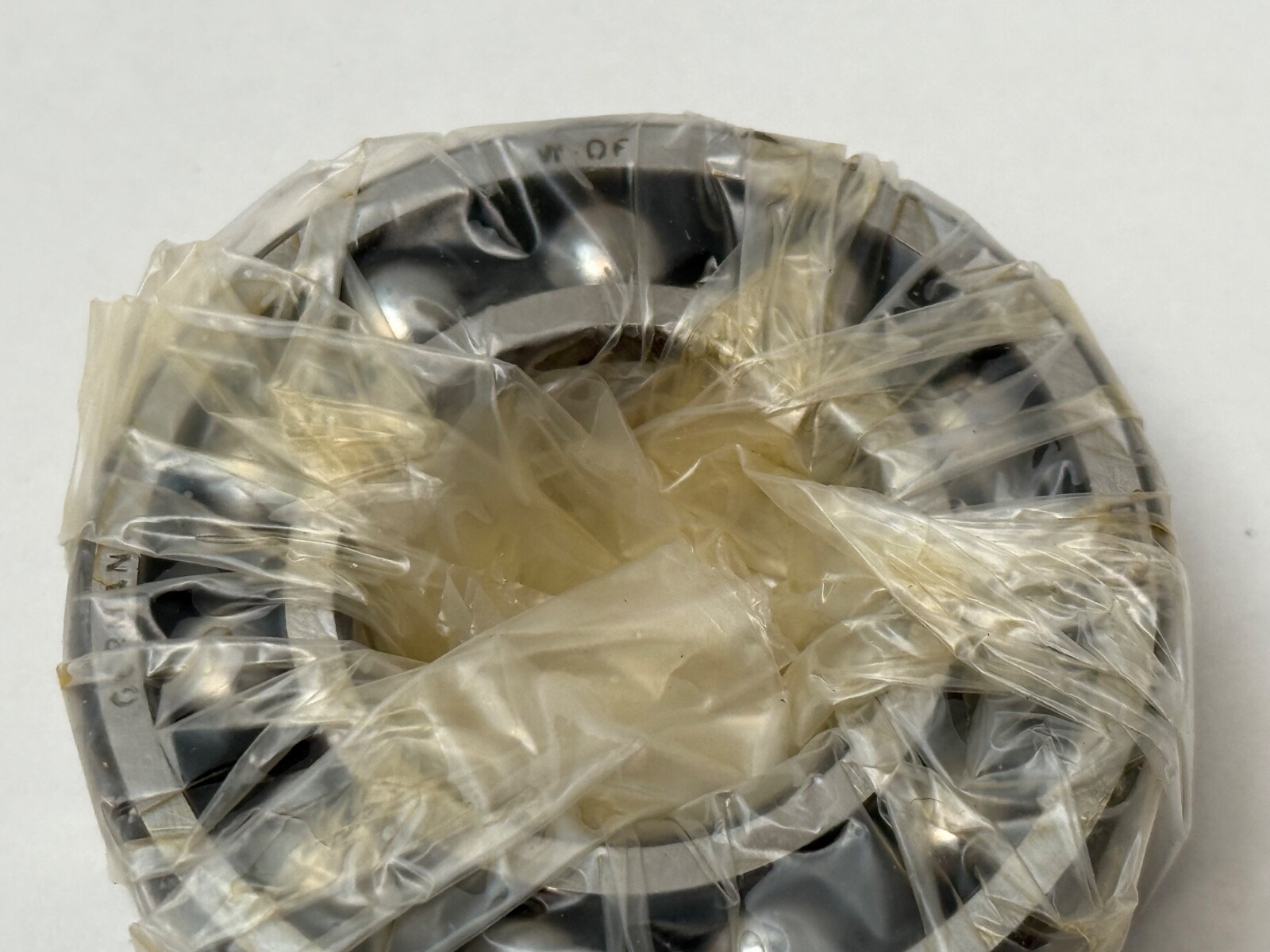

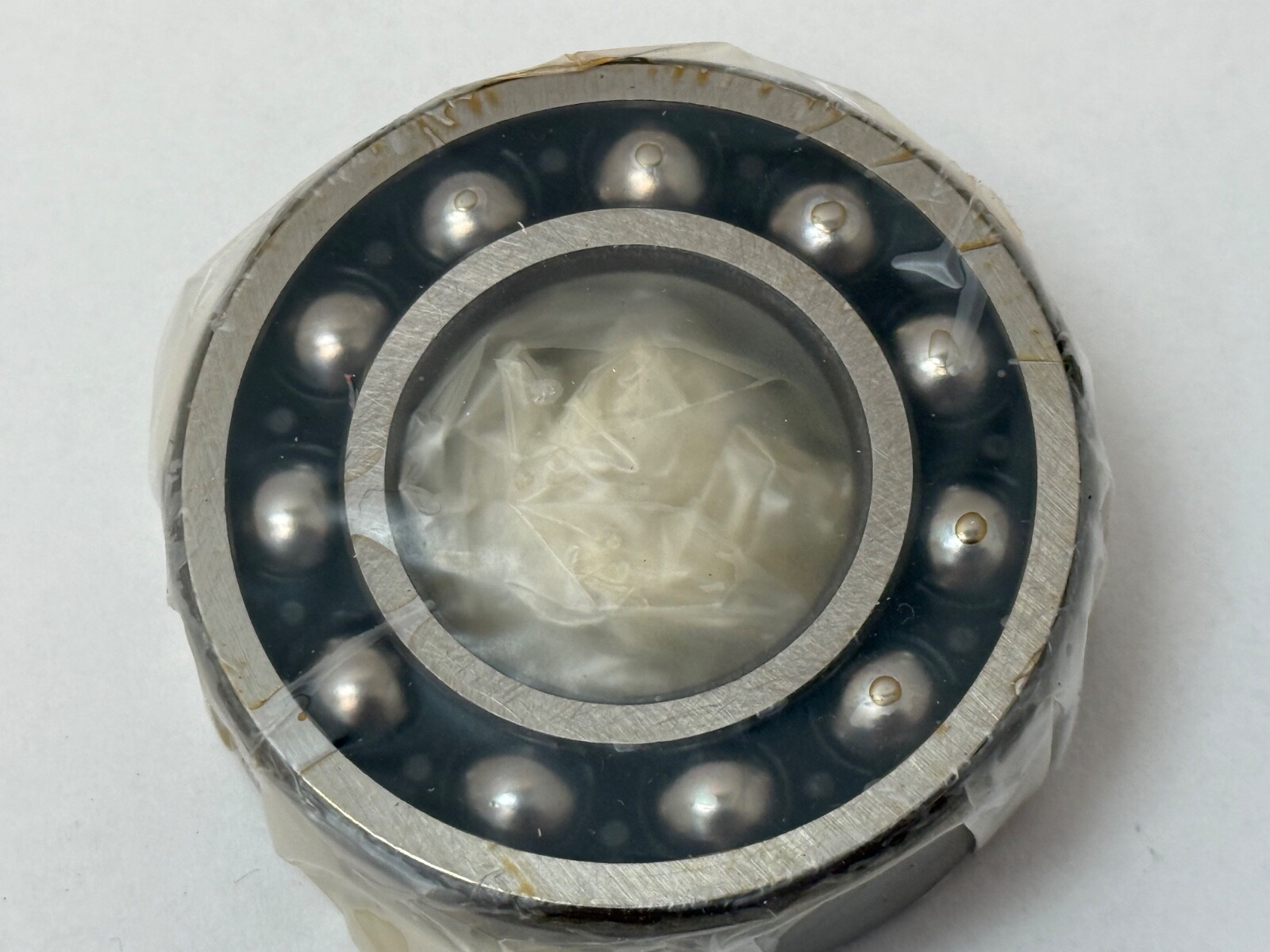

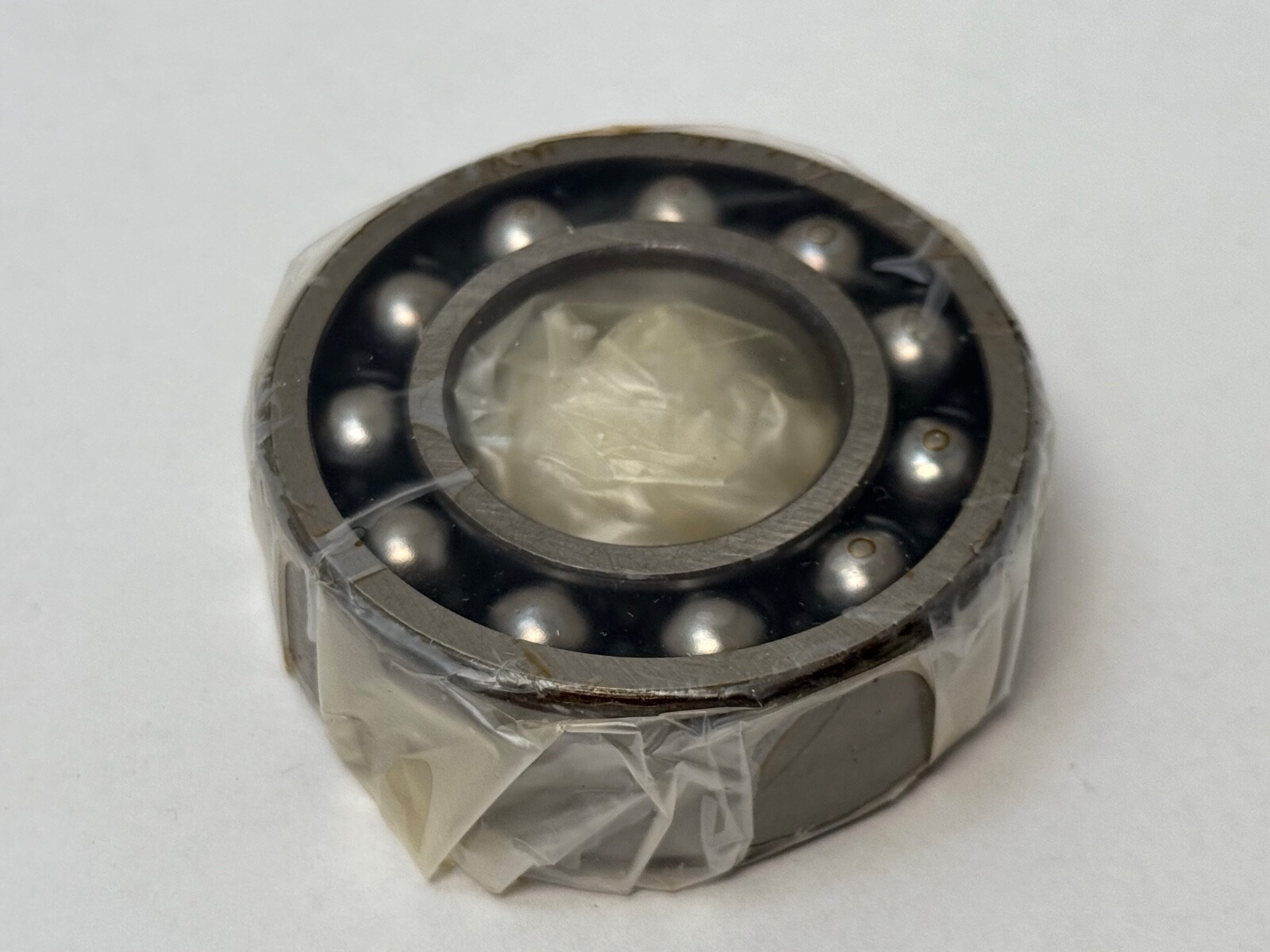

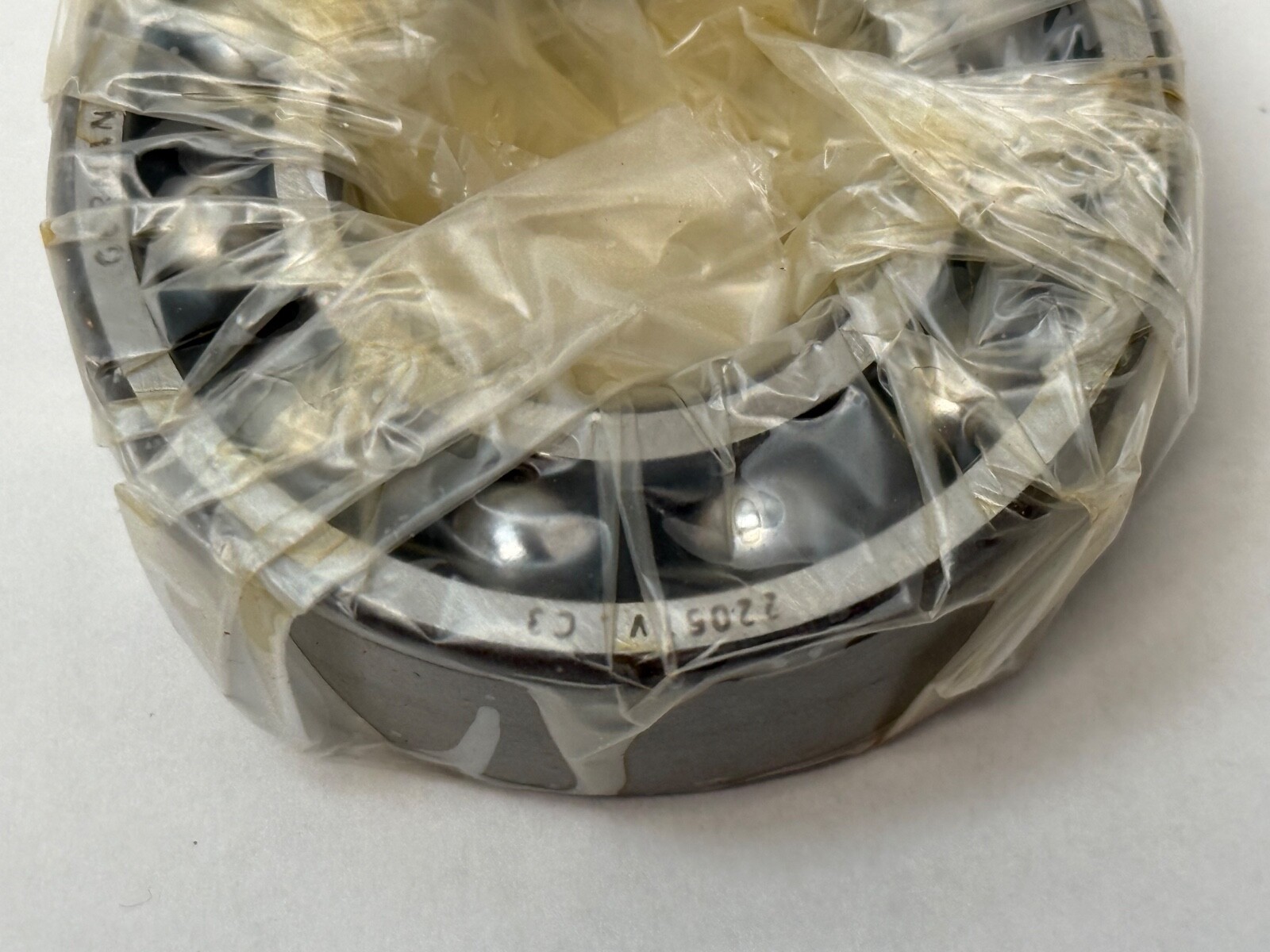

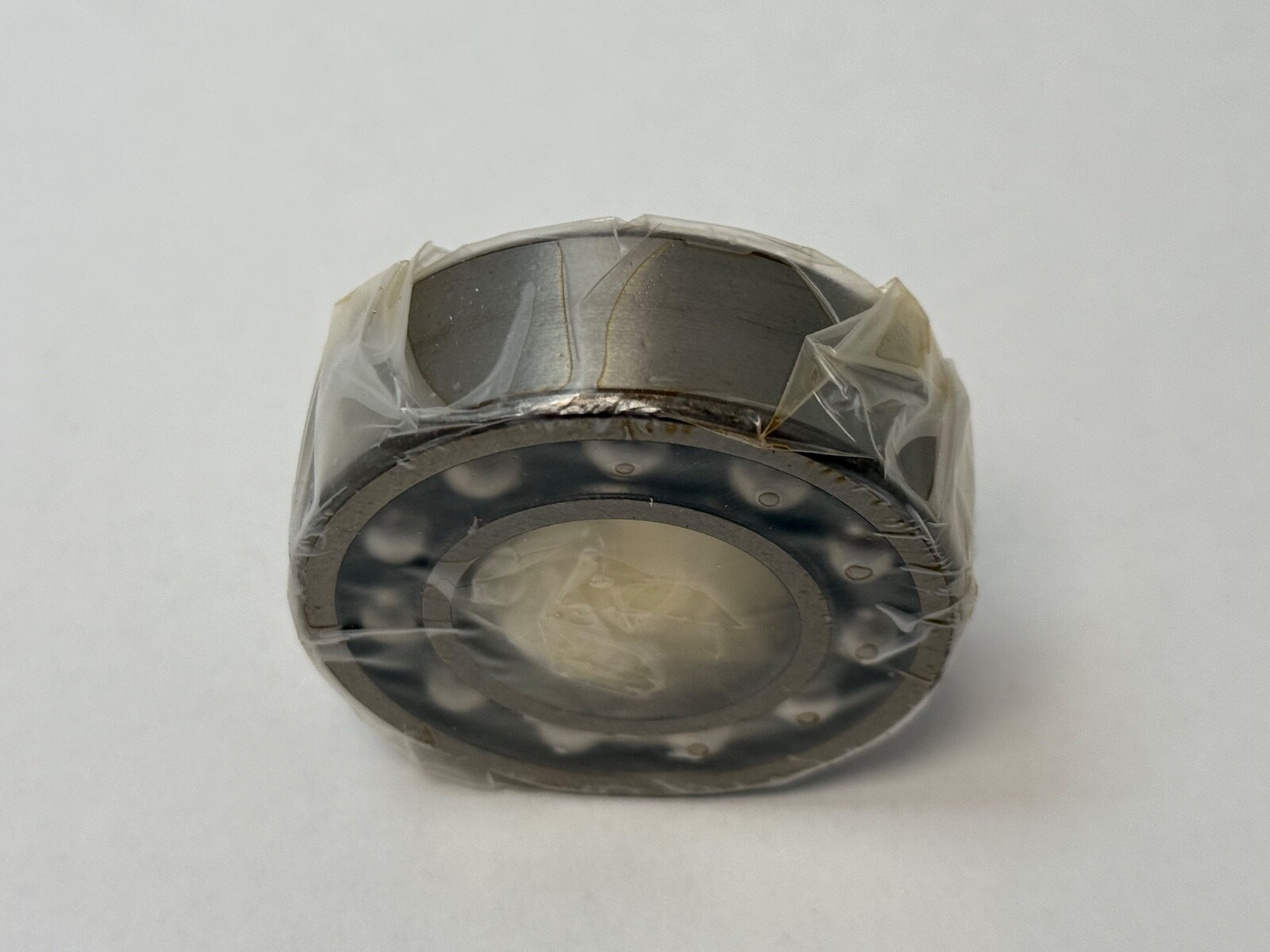

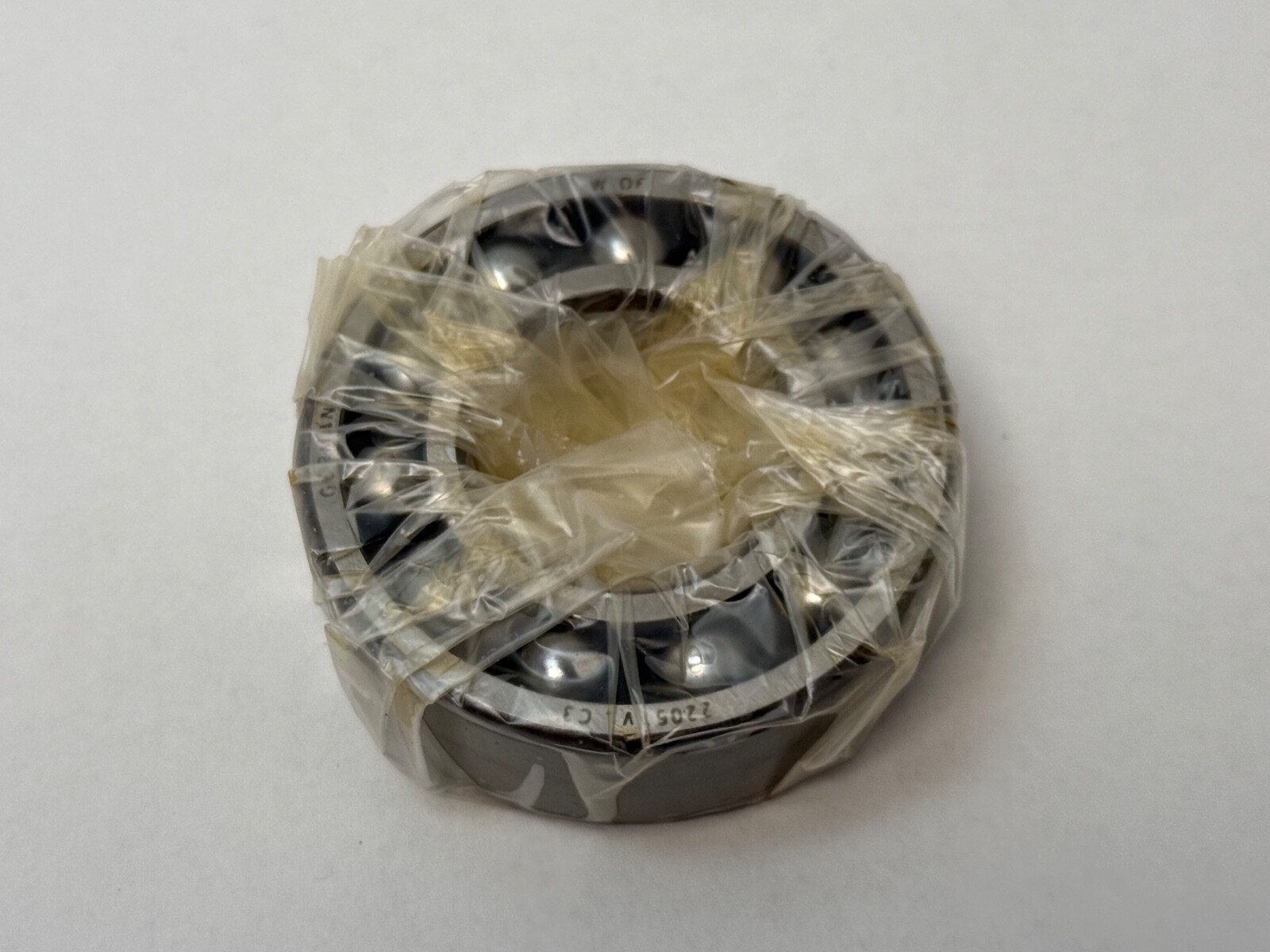

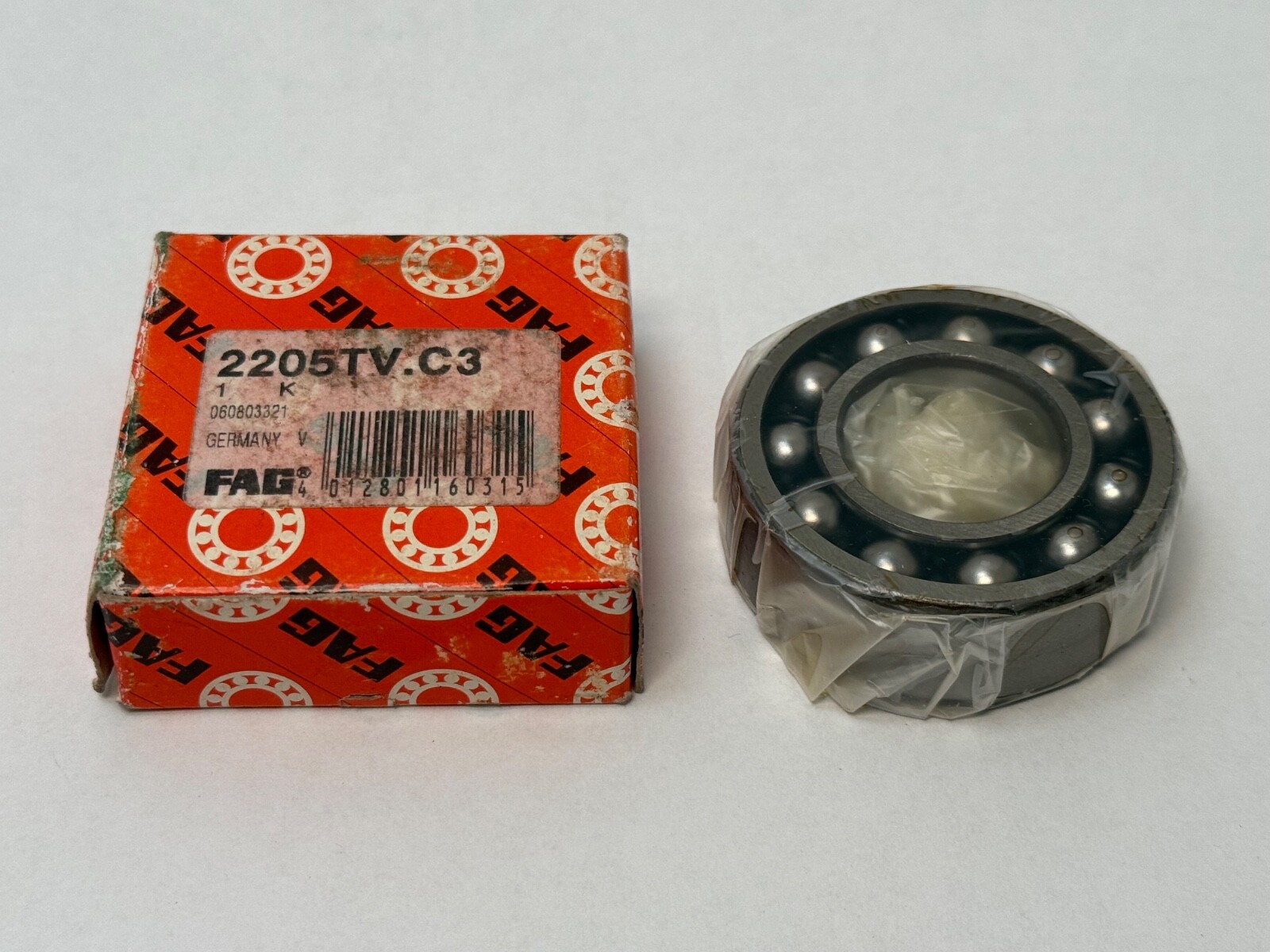

A FAG 2205TV.C3 double-row self-aligning ball bearing — 25 mm bore, 52 mm outside diameter, 18 mm width, straight cylindrical bore. Two rows of balls run in a common spherical outer raceway, so the inner ring and ball set can swivel inside the outer ring. That lets the bearing accept angular misalignment between the shaft and the housing without generating edge loads.

Decoding the designation

2205 – double-row self-aligning ball bearing, 25 mm bore, 52 mm OD, 18 mm width, straight bore
TV / TVH – glass-fibre reinforced polyamide cage
C3 – internal clearance greater than normal
No K suffix, so the bore is cylindrical and no adapter sleeve is involved

What these specs mean in practice

Self-alignment is the reason to choose this bearing over a deep groove type: on a long shaft, a fabricated frame, or a housing bored in a separate operation, the misalignment that would shorten a rigid bearing’s life is absorbed here by the spherical outer raceway. The trade-off is a low thrust capacity, since the balls can climb the spherical race rather than resist axial load, so this bearing supports the shaft radially and something else locates it axially. The polyamide cage runs quietly, has low mass for good acceleration behaviour, and is rated for continuous service to 120 °C, above which a brass or steel cage is required. C3 clearance suits a tight shaft fit or a running temperature difference between the rings.

Published specifications

Bore: 25 mm (0.9843 in), straight cylindrical
Outside diameter: 52 mm (2.0472 in)
Width: 18 mm (0.7087 in)
Rows: 2
Rolling elements: balls
Cage: glass-fibre reinforced polyamide
Cage temperature ceiling: 120 °C continuous
Internal clearance: C3 (greater than normal)
Closure: open both faces
Self-aligning: yes, spherical outer raceway

Quantity and configuration

Sold as 1 Pc, one complete bearing, open on both faces. No adapter sleeve, seal, snap ring or lock nut is included.

Fitting notes

The bearing mounts directly onto a cylindrical shaft seat with force applied to the ring being fitted. The housing bore should be a straight cylindrical seat; the bearing accommodates misalignment internally, so no spherical housing seat is needed. Axial location of the shaft is handled by the second bearing position or by a shoulder, because this bearing carries only light thrust. The open faces take lubricant from the housing cavity.

Interchange guidance

The direct equivalent is a straight-bore double-row self-aligning ball bearing in the 25 x 52 x 18 mm envelope with a polyamide cage and C3 clearance: SKF 2205 ETN9/C3, NSK 2205TN, NTN 2205, Koyo 2205. The 2205-K variant has a 1:12 tapered bore and mounts on an adapter sleeve, so it is a different part in the same envelope. Sealed versions such as 2205-2RS close the faces and are related versions rather than equivalents.
