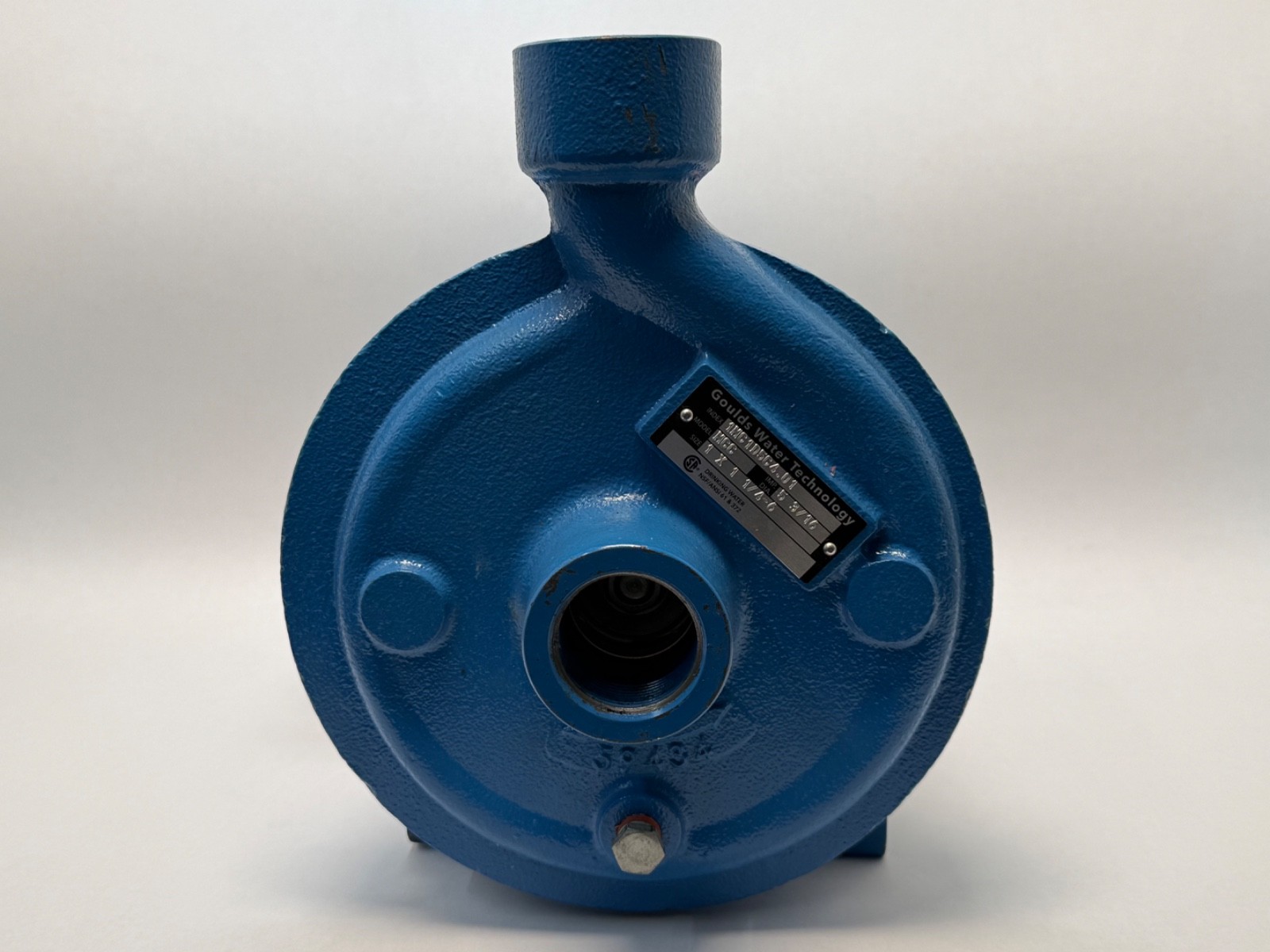

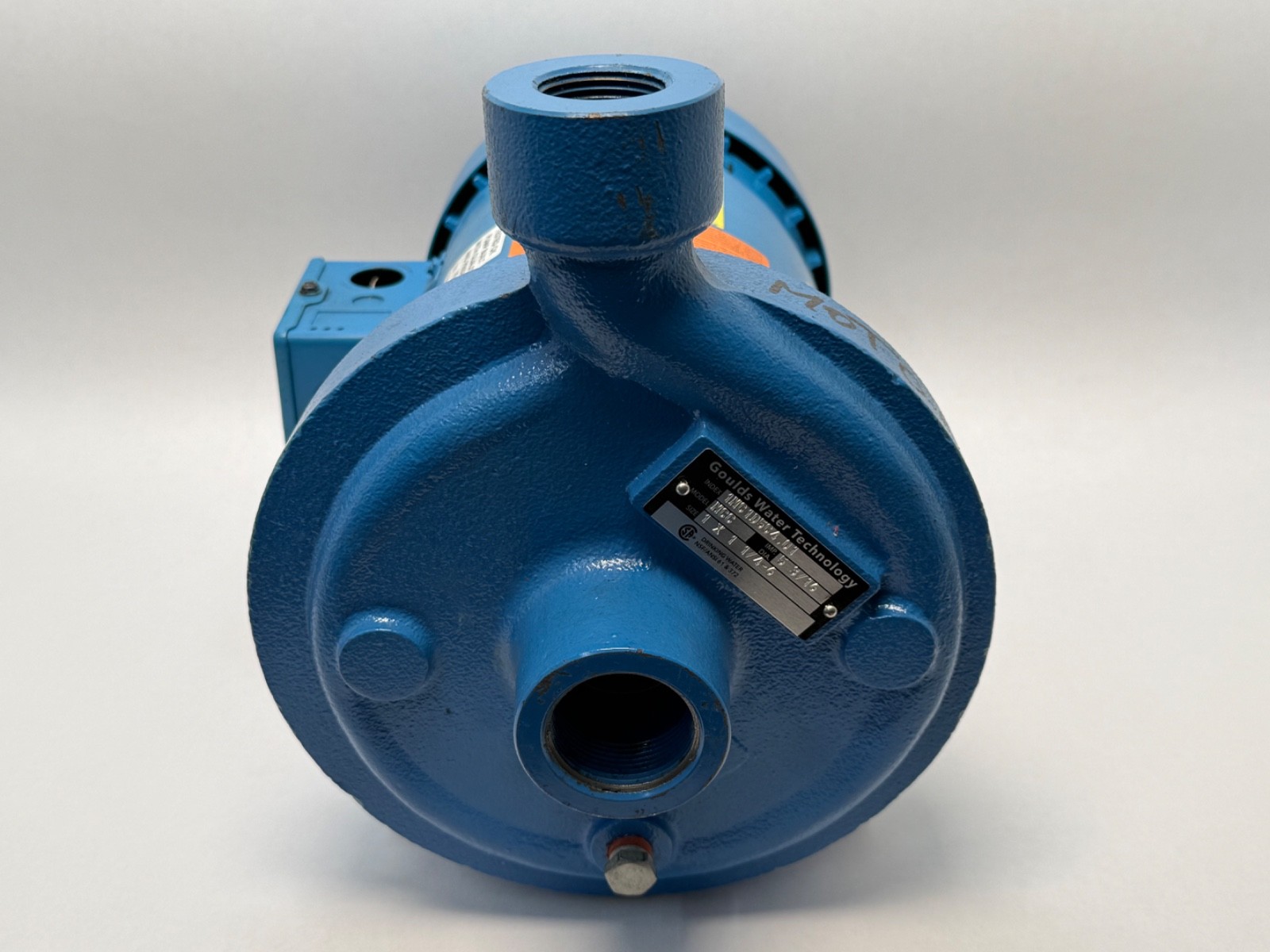

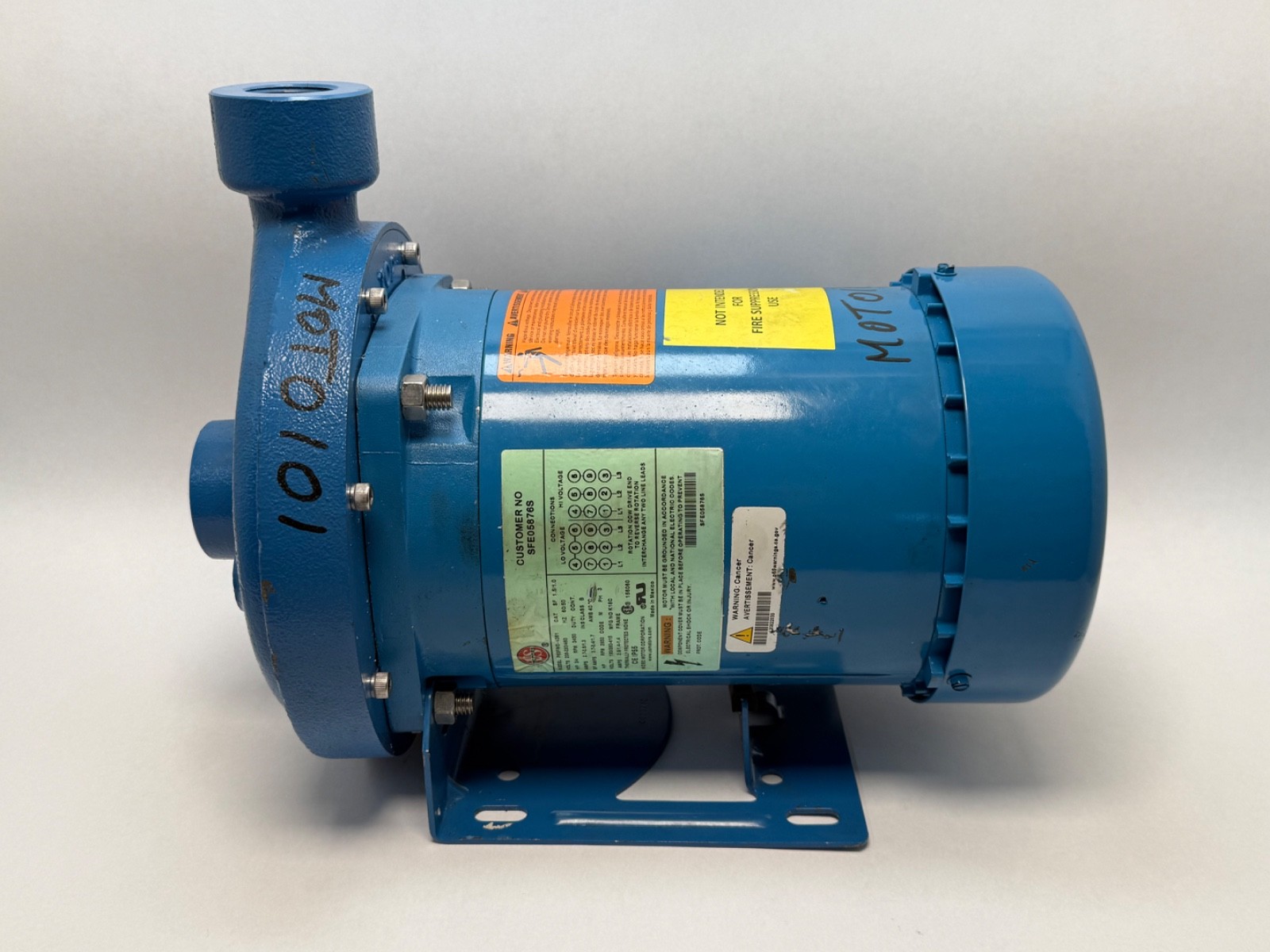

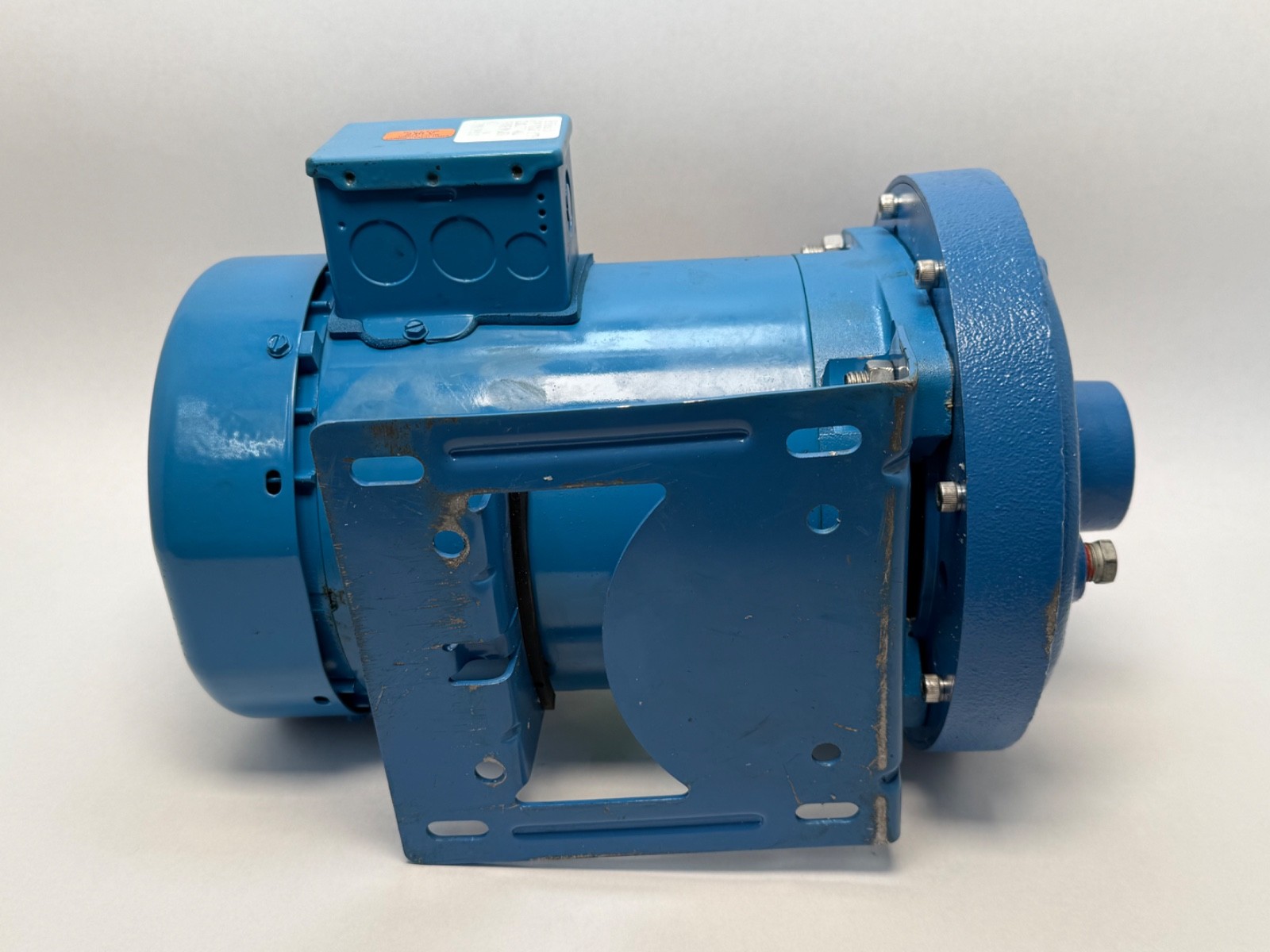

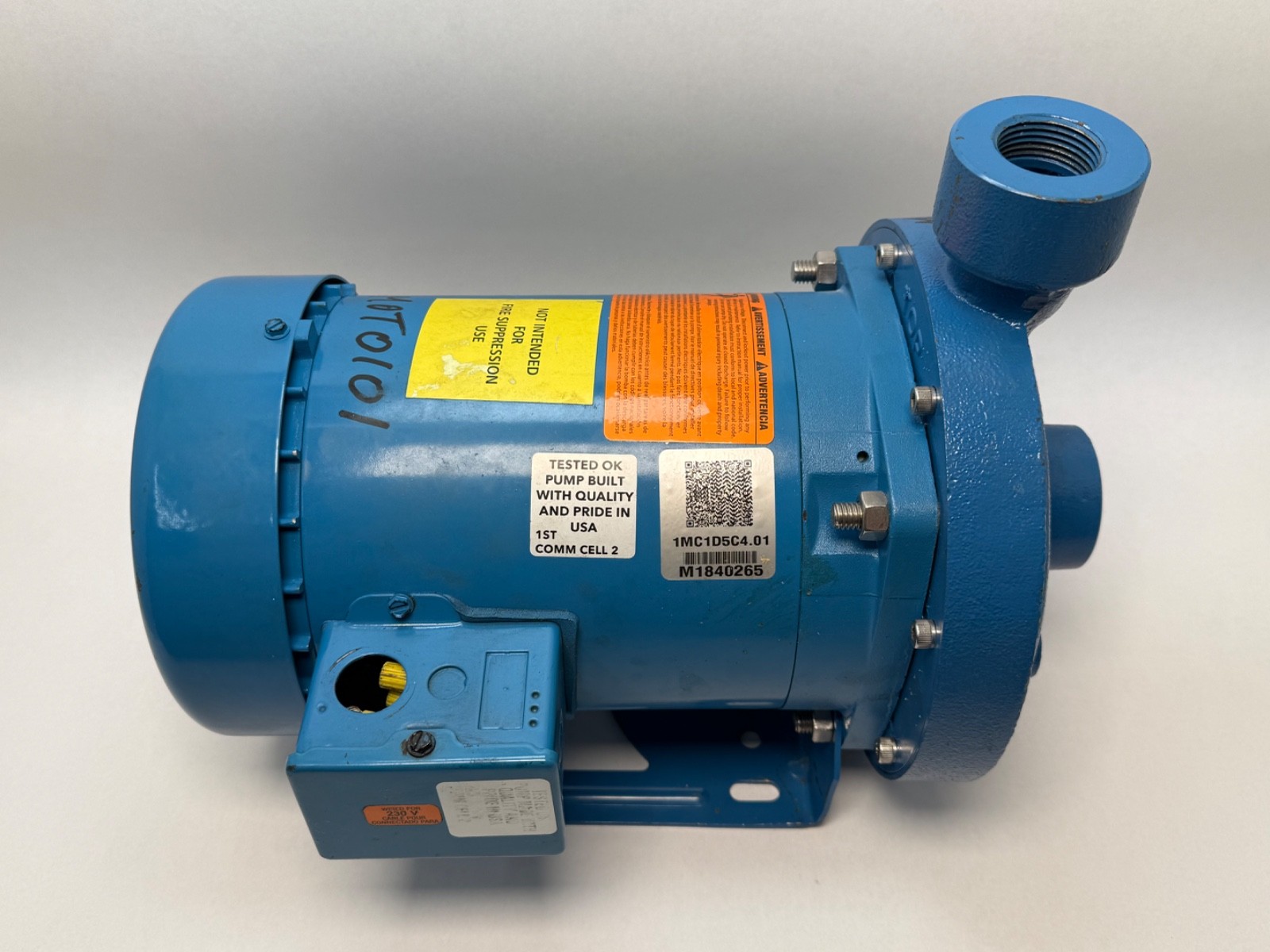

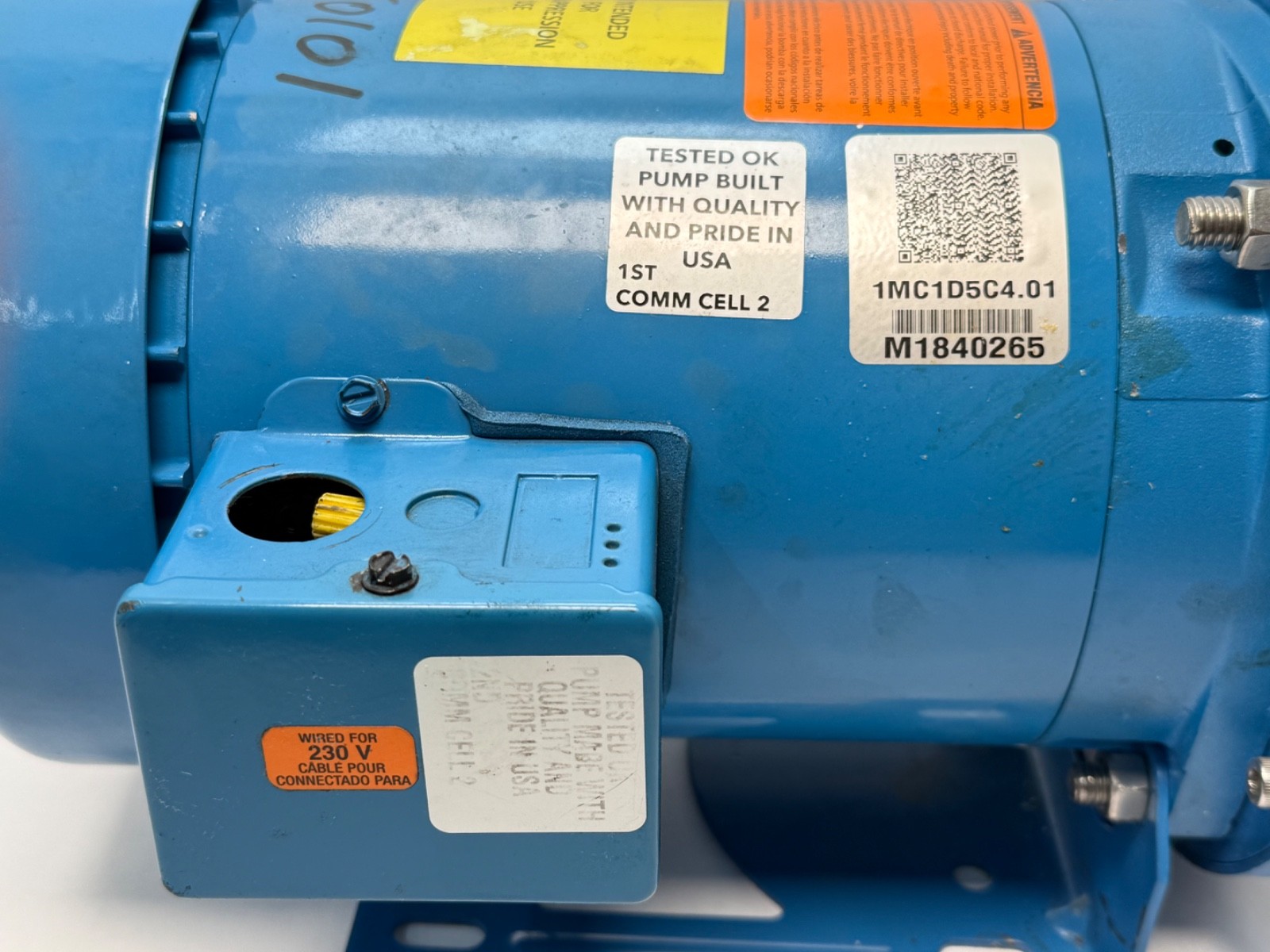

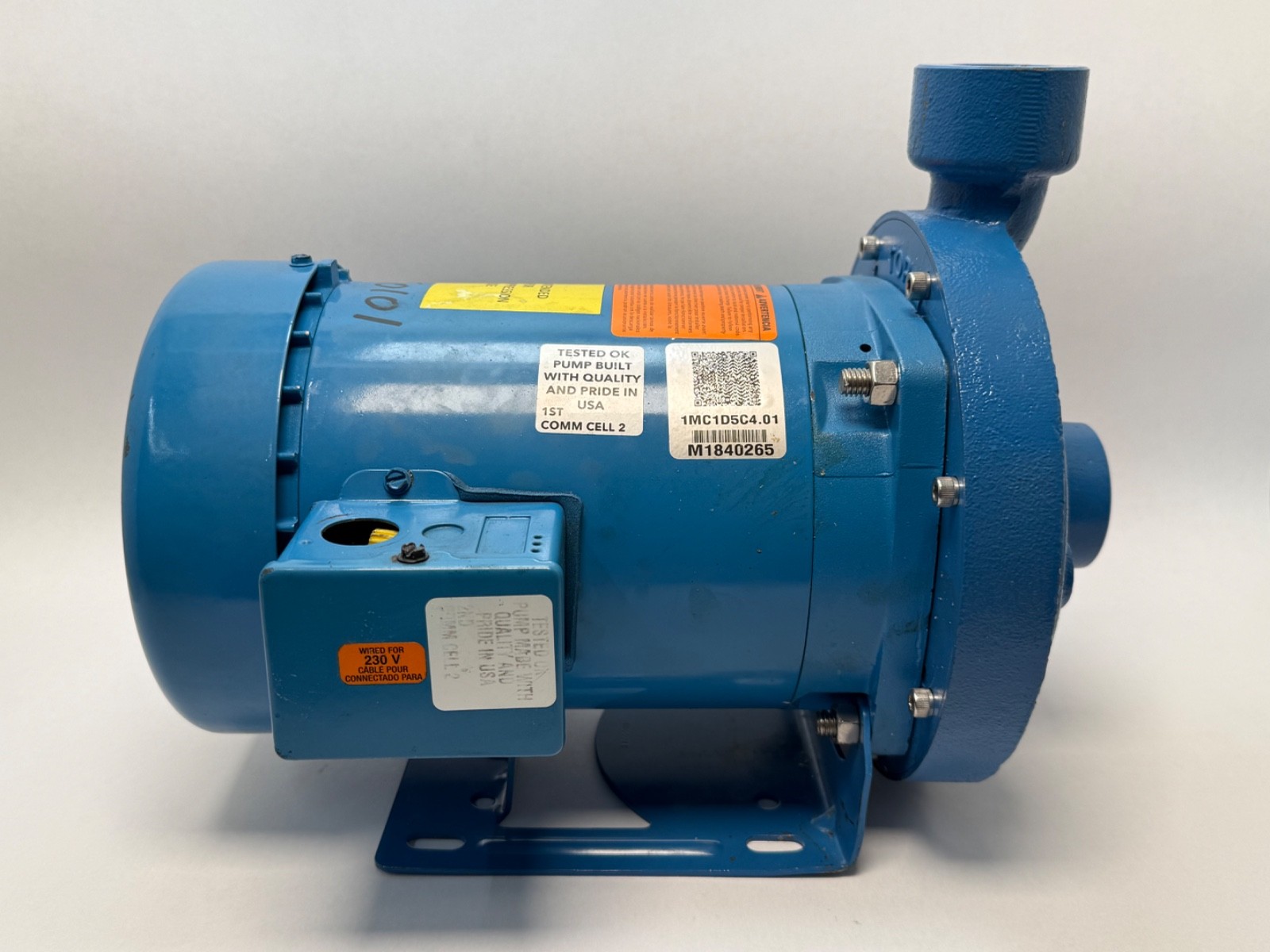

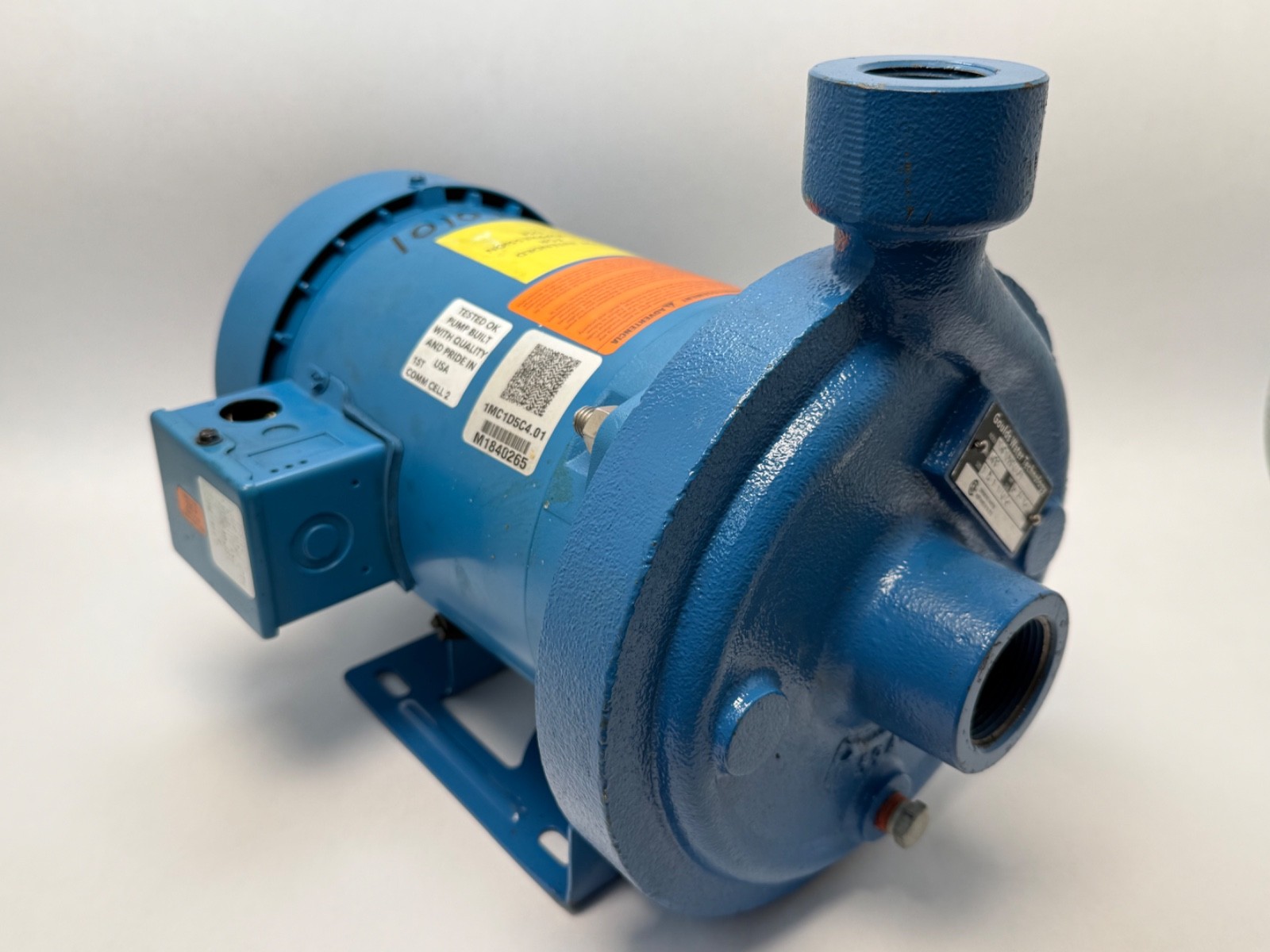

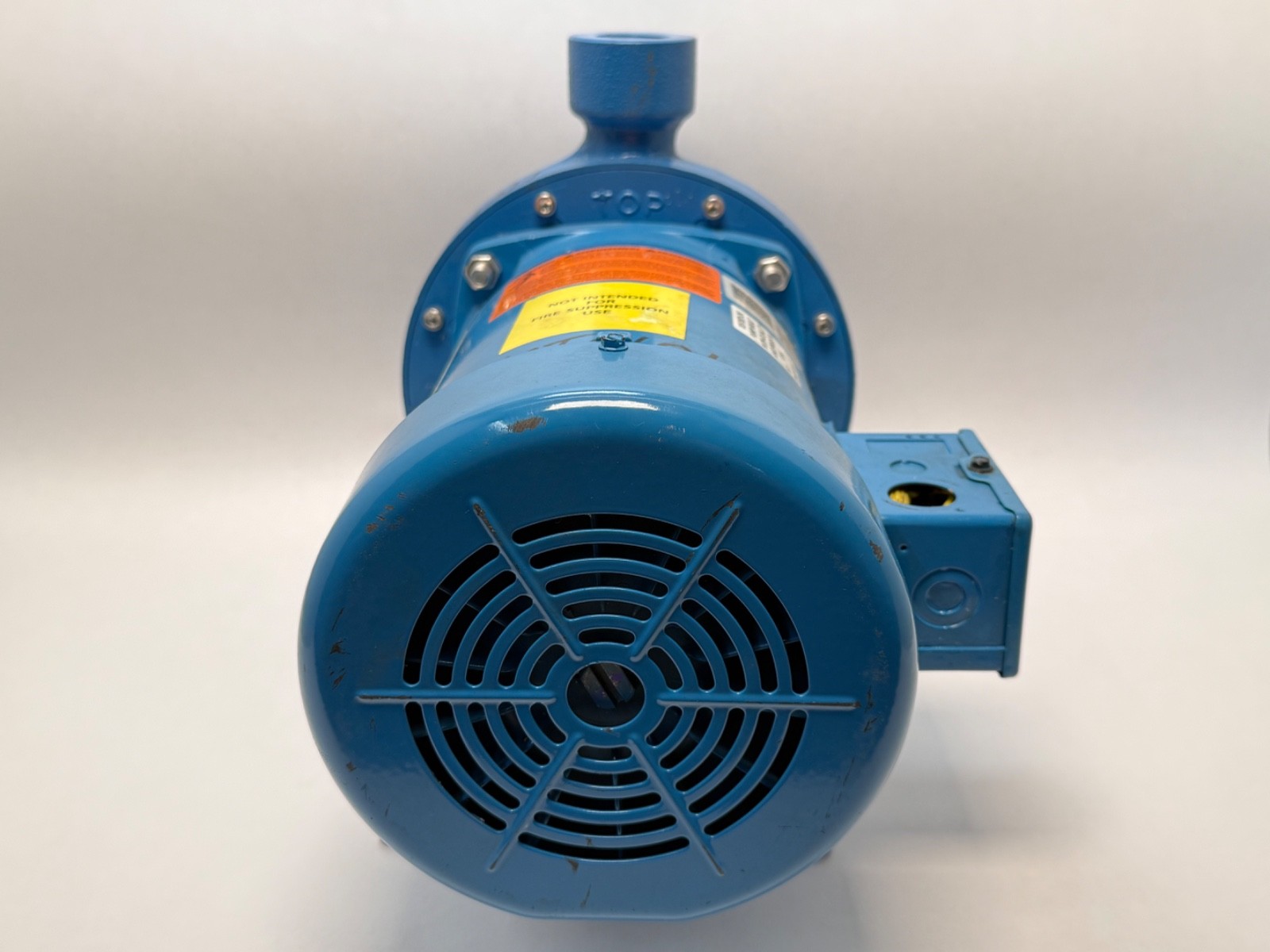

Goulds Water Technology1MC1D5C4.01Centrifugal Pump — MCC Series, 3/4 HP, 3 Phase 208-230/460 V TEFC, 1-1/4 x 1 in NPT, Cast Iron, 316L Impeller, Viton Seal

Condition: New – Open box

Availability:

1 in stock

Goulds 1MC1D5C4.01 close-coupled centrifugal pump, 3/4 HP, 3-phase 208-230/460 V TEFC, 1-1/4 x 1 in NPT, cast iron, 316L impeller, Viton seal.

List Price

$993.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandGoulds Water Technology
MPN1MC1D5C4.01
Model1MC1D5C4

Technical Specifications

Base Number1MC1D5
Industry Termsclose coupled end suction pump, booster pump, circulation pump, cast iron centrifugal pump
Application TypesWater circulation, booster service, liquid transfer
Power Rating3/4 HP
Input Voltage208-230/460 V
Mpn Variants1MC1D5C4.01, 1MC1D5C4, 100MC1D5C4
Additional AttributesPhase: 3; Frequency: 60 Hz; Enclosure: TEFC; Suction: 1-1/4 in NPT; Discharge: 1 in NPT; Impeller: 316L stainless, enclosed; Casing: cast iron; Seal elastomer: Viton; Max pressure: 75 psi; Max temperature: 212°F
TypeCentrifugal Pump
Seller Part Number: BAY0#A145YE

Product Description

What this part is:

The Goulds 1MC1D5C4.01 is an MCC Series close-coupled, end-suction centrifugal pump with a 3/4 HP three-phase TEFC motor and Viton seal elastomers.

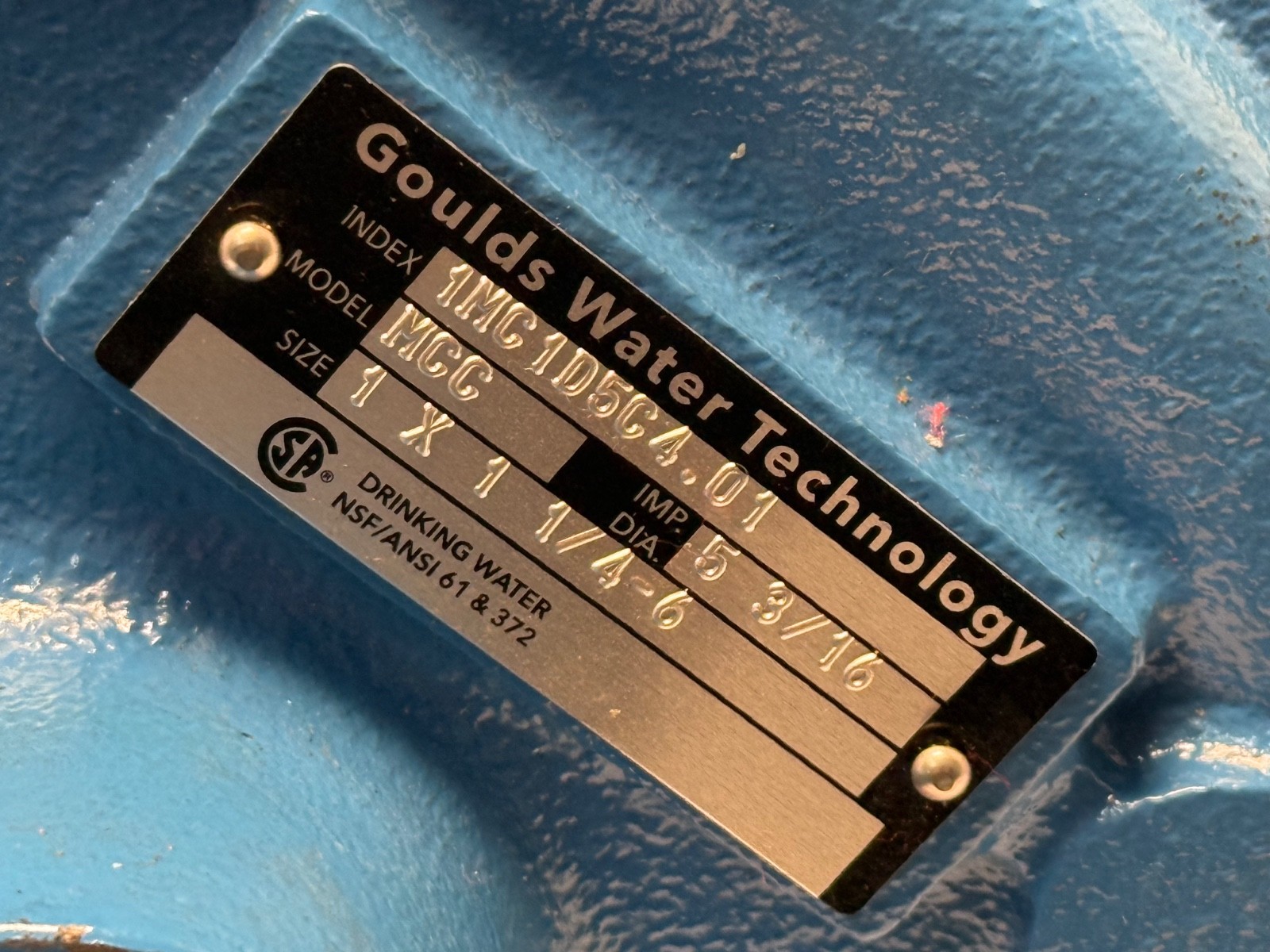

Decoding the designation:

1 — 1 in NPT discharge.

MC — MCC Series, cast iron casing with stainless steel impeller.

D — 3/4 HP.

5 — three-phase, 208-230/460 V, TEFC motor.

4 — mechanical seal with Viton elastomers.

Specifications:

Series: MCC. Power Rating: 3/4 HP. Input Voltage: 208-230/460 V. Phase: 3. Frequency: 60 Hz. Speed: 3500 rpm nominal. Motor Enclosure: TEFC. Casing Material: Cast iron. Impeller: Enclosed, AISI 316L stainless steel. Seal Elastomer: Viton. Max Working Pressure: 75 psi. Max Liquid Temperature: 212°F.

Dimensions and mounting:

Suction Connection: 1-1/4 in NPT. Discharge Connection: 1 in NPT. Close-coupled, end-suction pump and motor assembly.

Compatibility and replacement:

Same pump end, motor and HP as the Buna-seal Goulds 1MC1D5D0 family, with a Viton seal. Also listed as 1MC1D5C4 and 100MC1D5C4.

Frequently asked questions:

What is the Goulds 1MC1D5C4.01?

It is an MCC Series close-coupled, end-suction centrifugal pump with a 3/4 HP motor.

What are the connection sizes?

Suction is 1-1/4 in NPT and discharge is 1 in NPT.

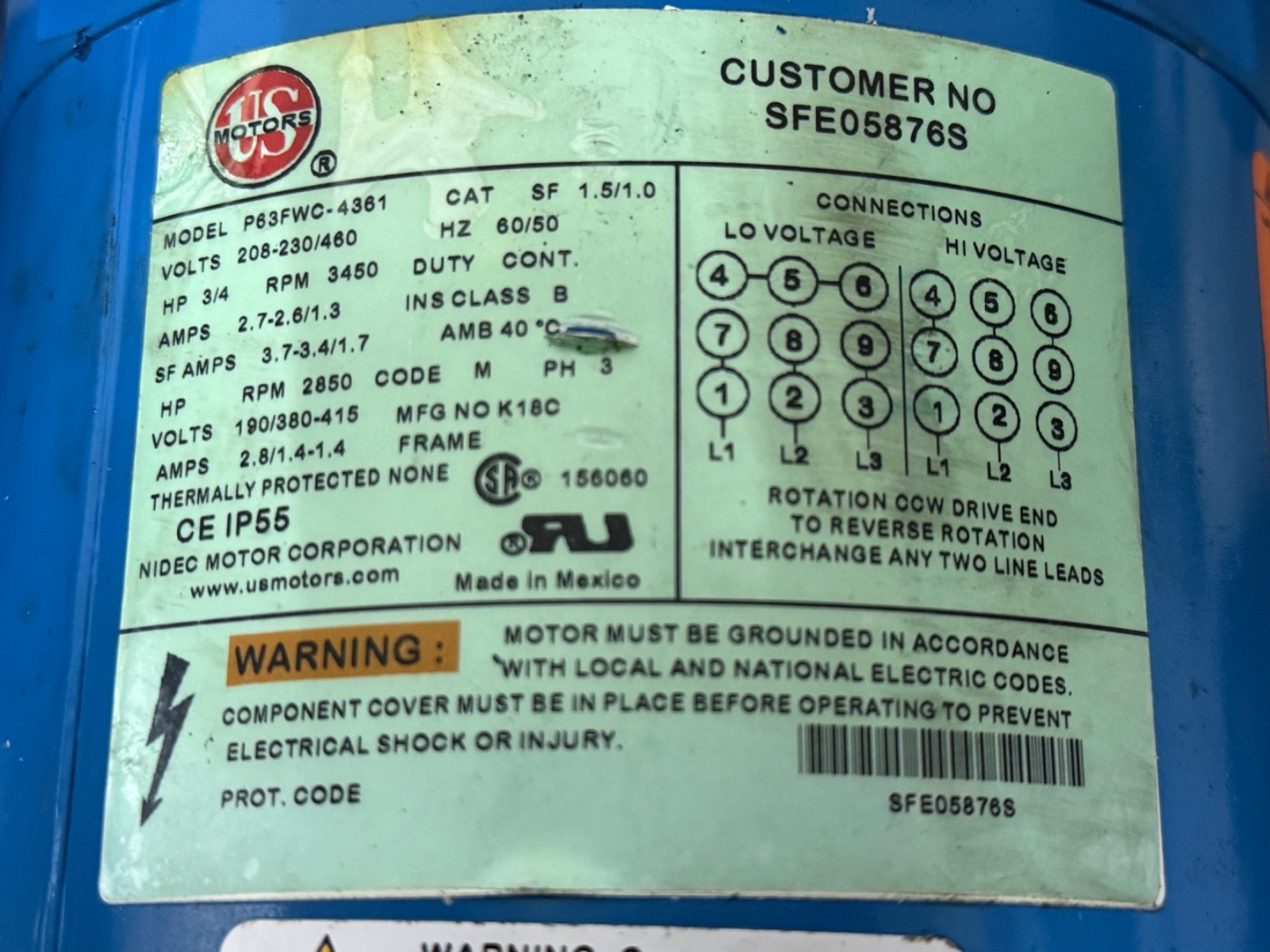

What are the motor electrical ratings?

Three-phase, 208-230/460 V, 60 Hz, TEFC enclosure, 3500 rpm nominal.
