Oriental MotorBLM230HP-50SBrushless DC Motor with Parallel Shaft Gearhead — 30 W, 50:1, 60 mm Frame, 5.2 N·m, 10 mm Shaft

Product Description

What this part is:

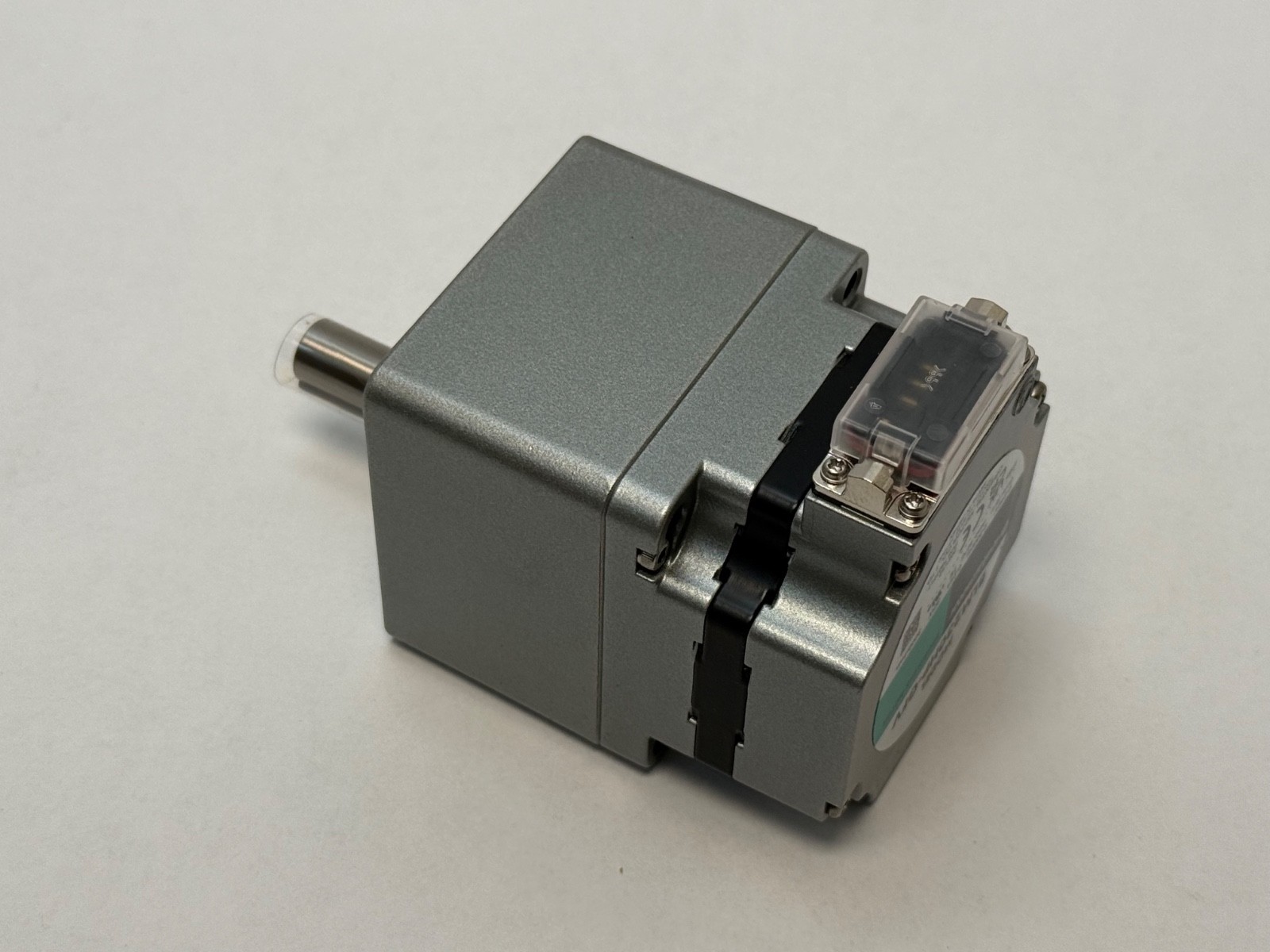

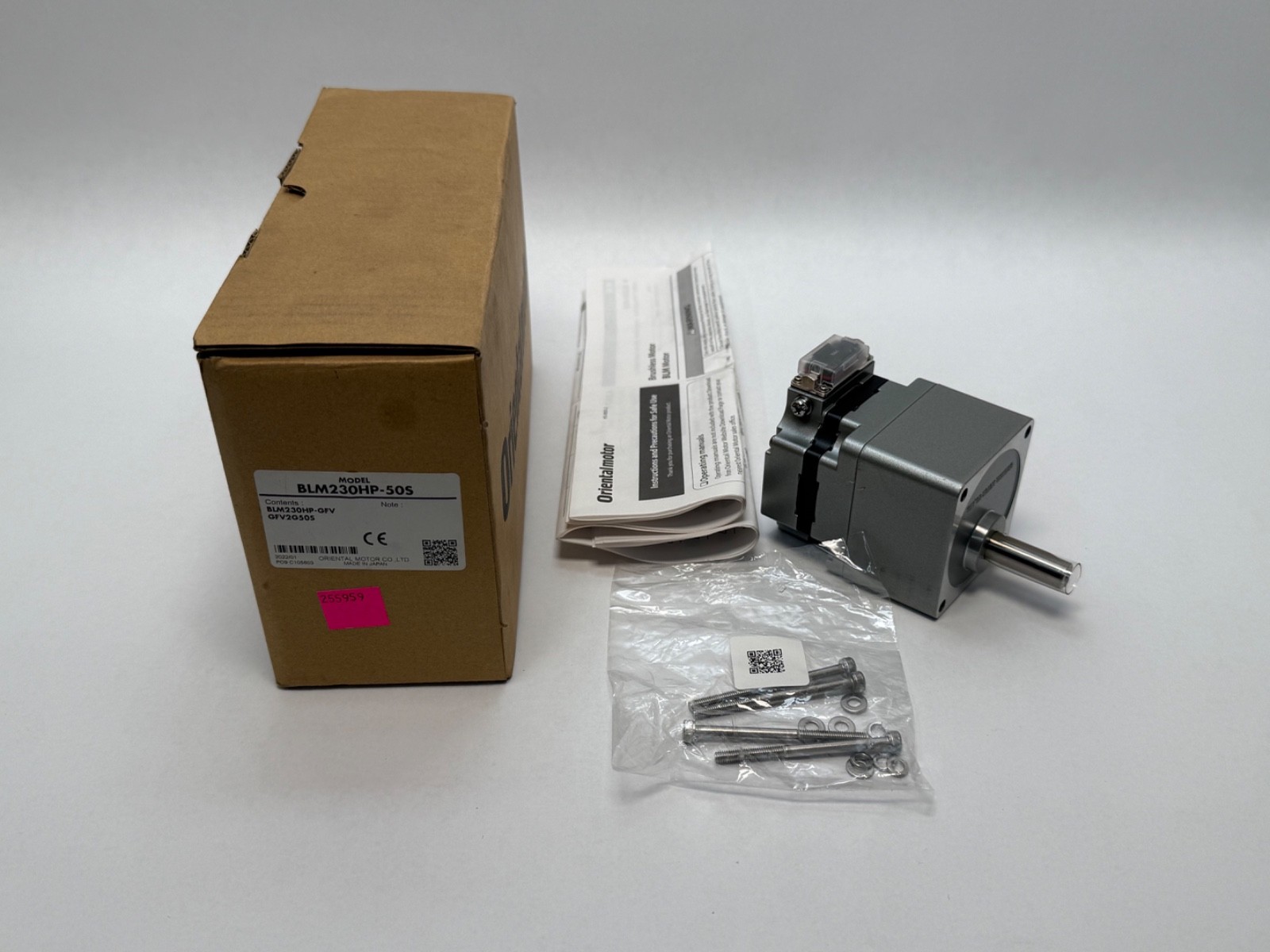

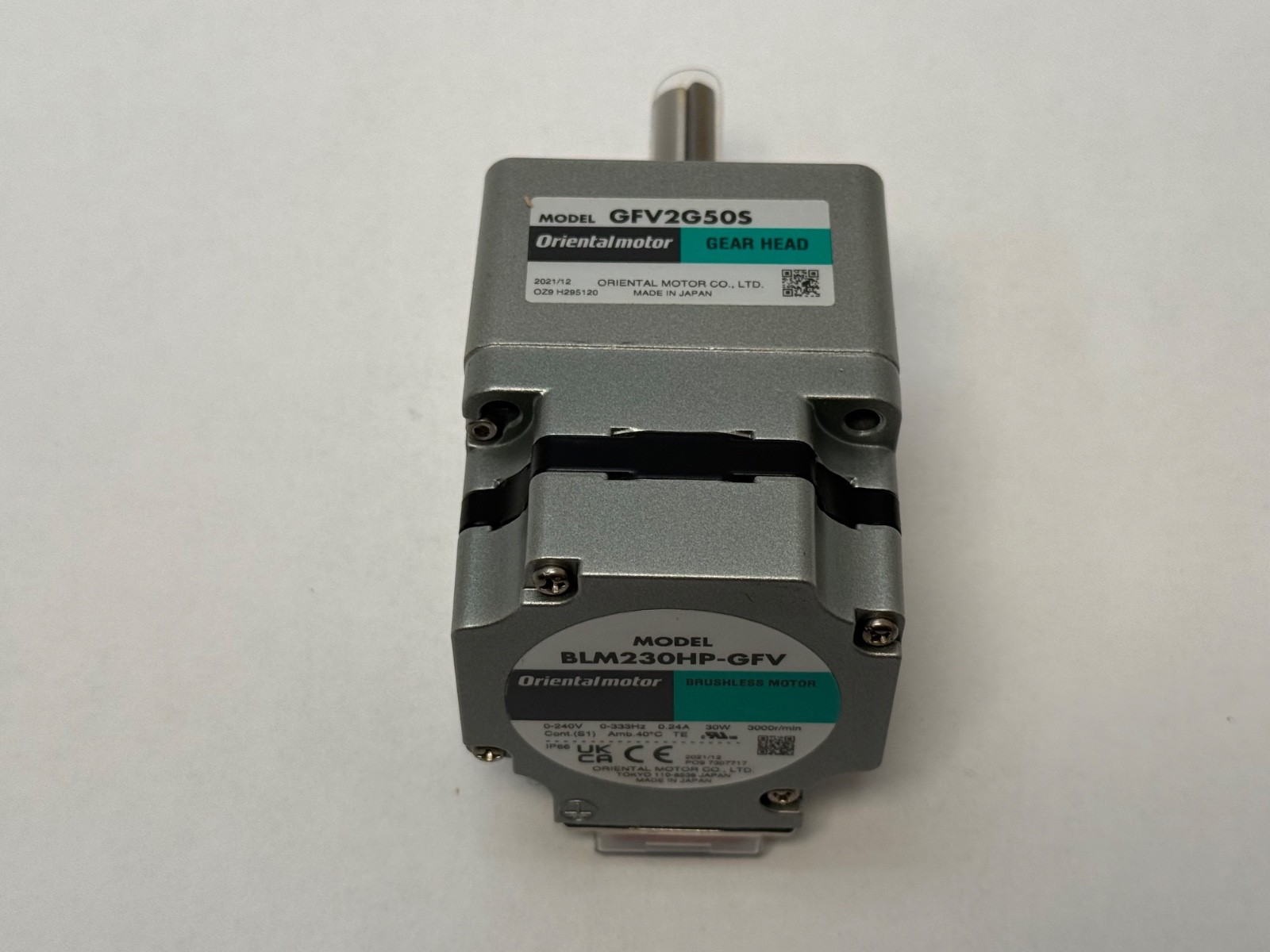

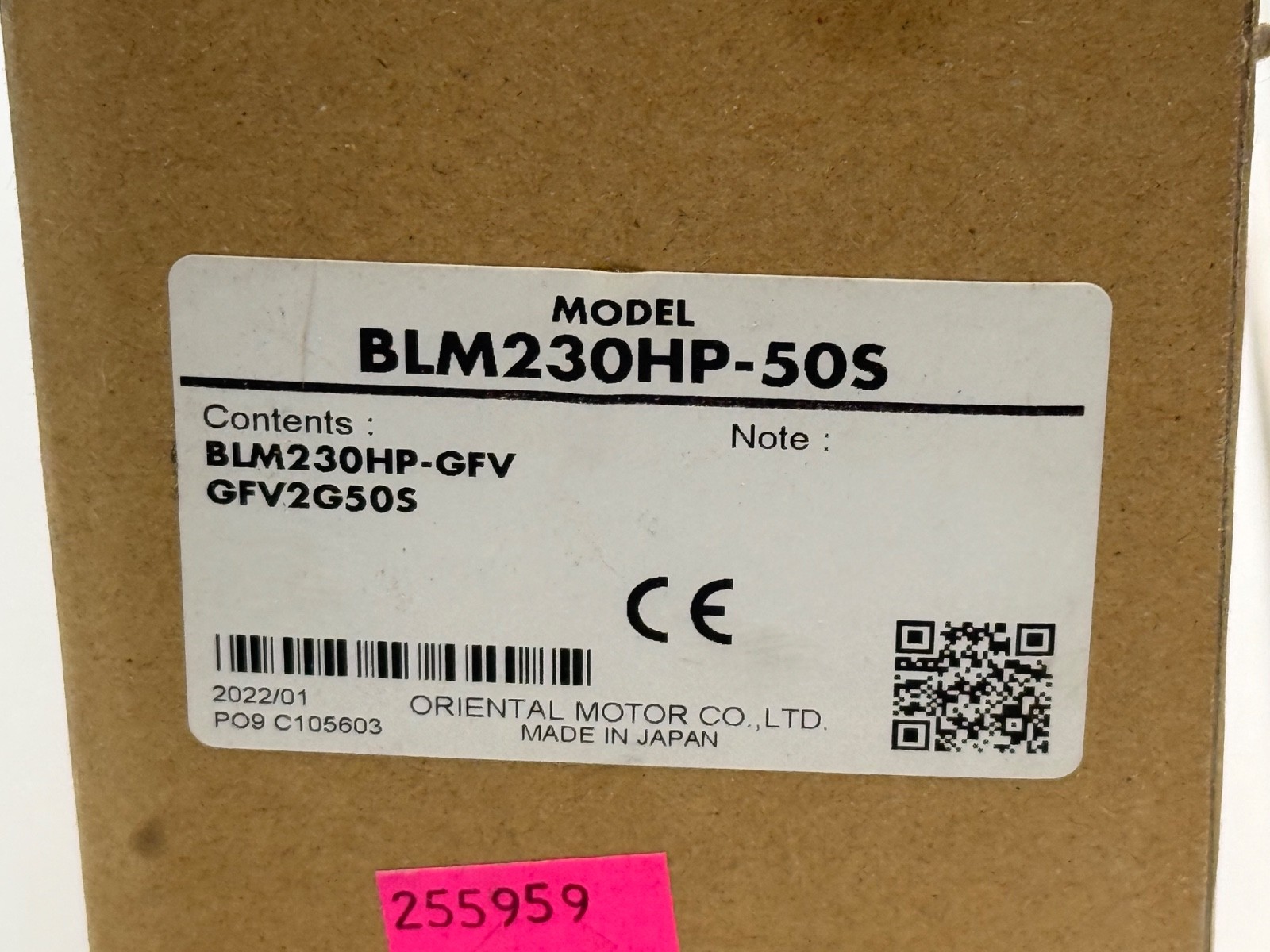

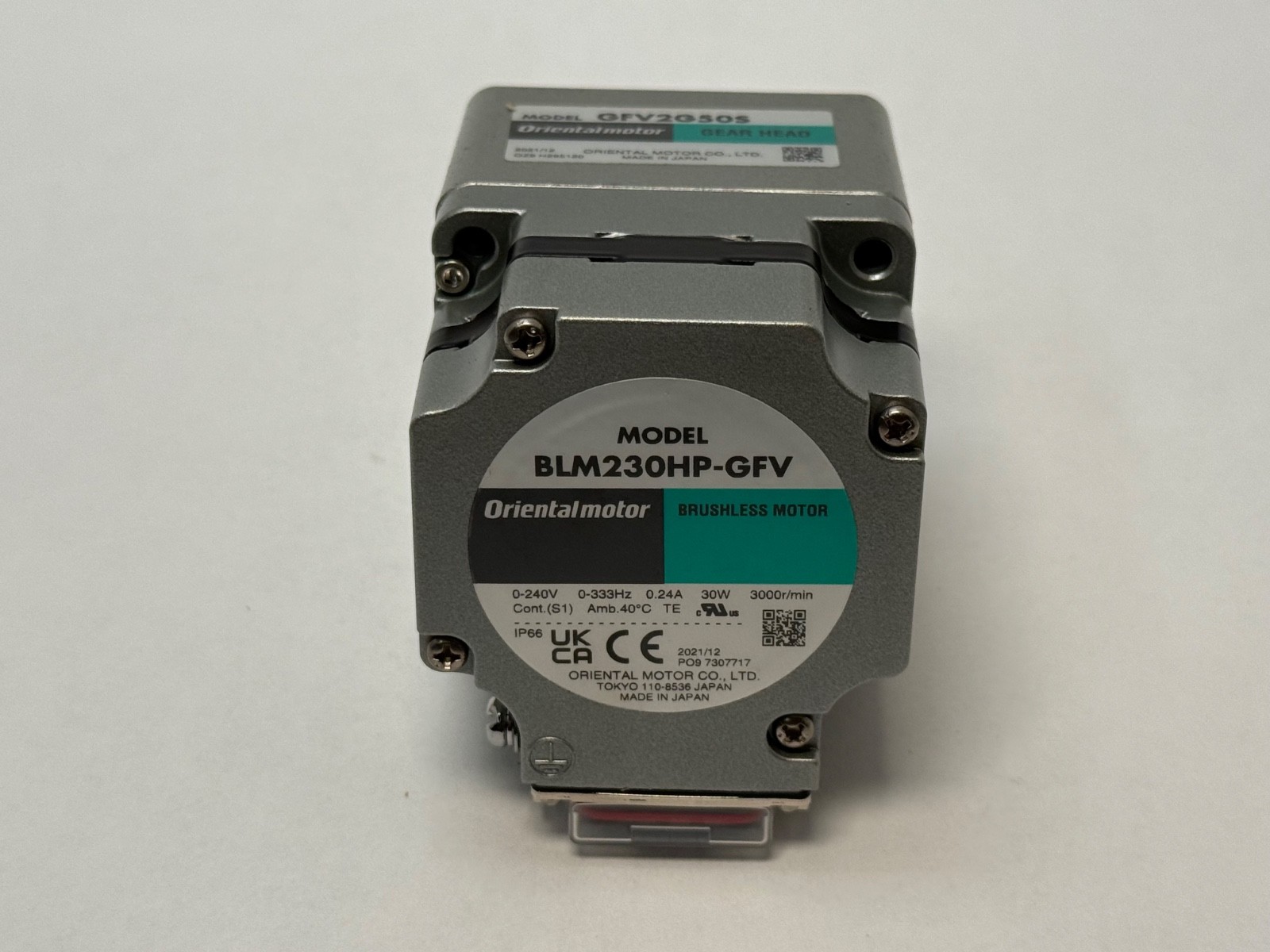

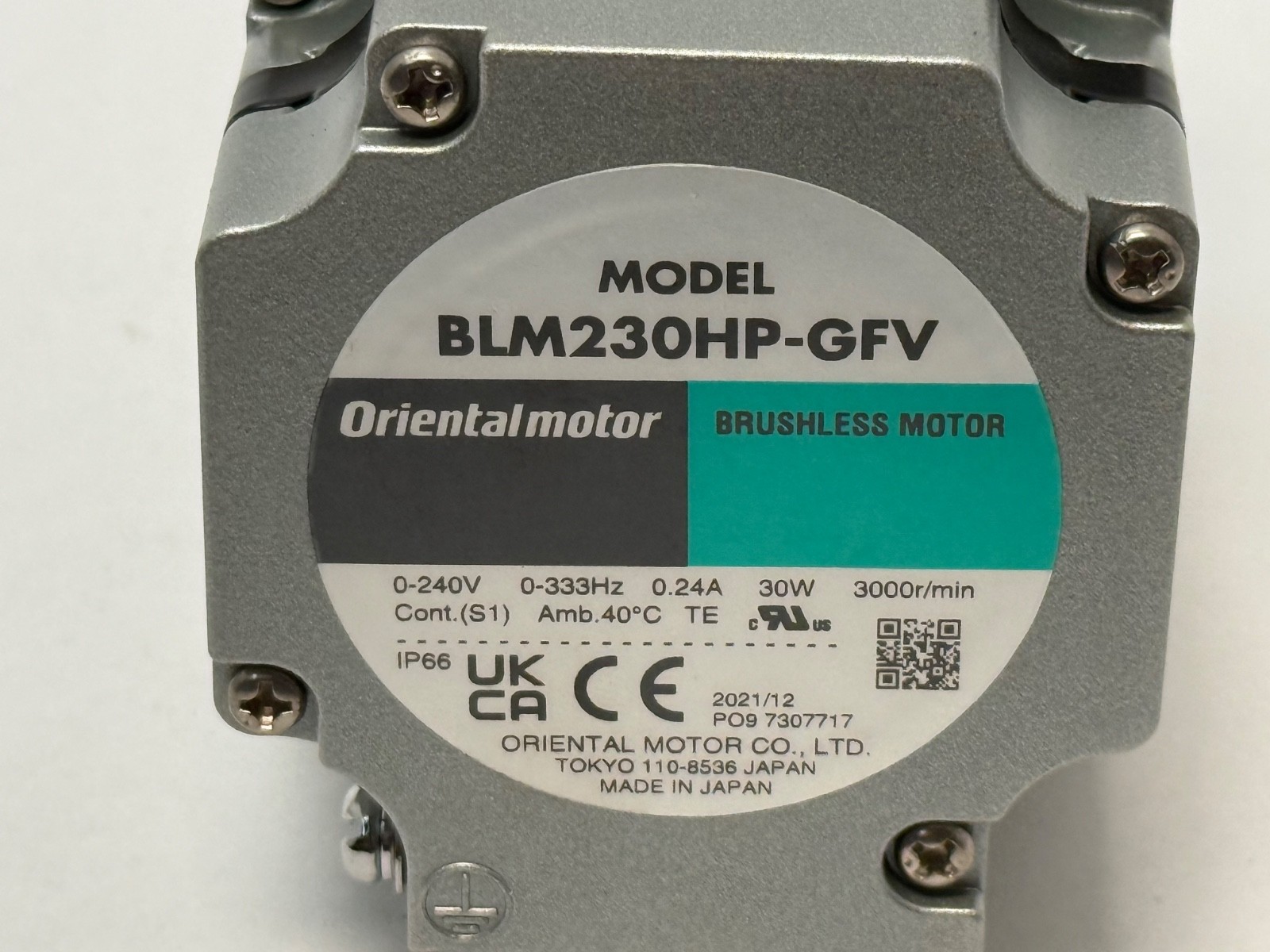

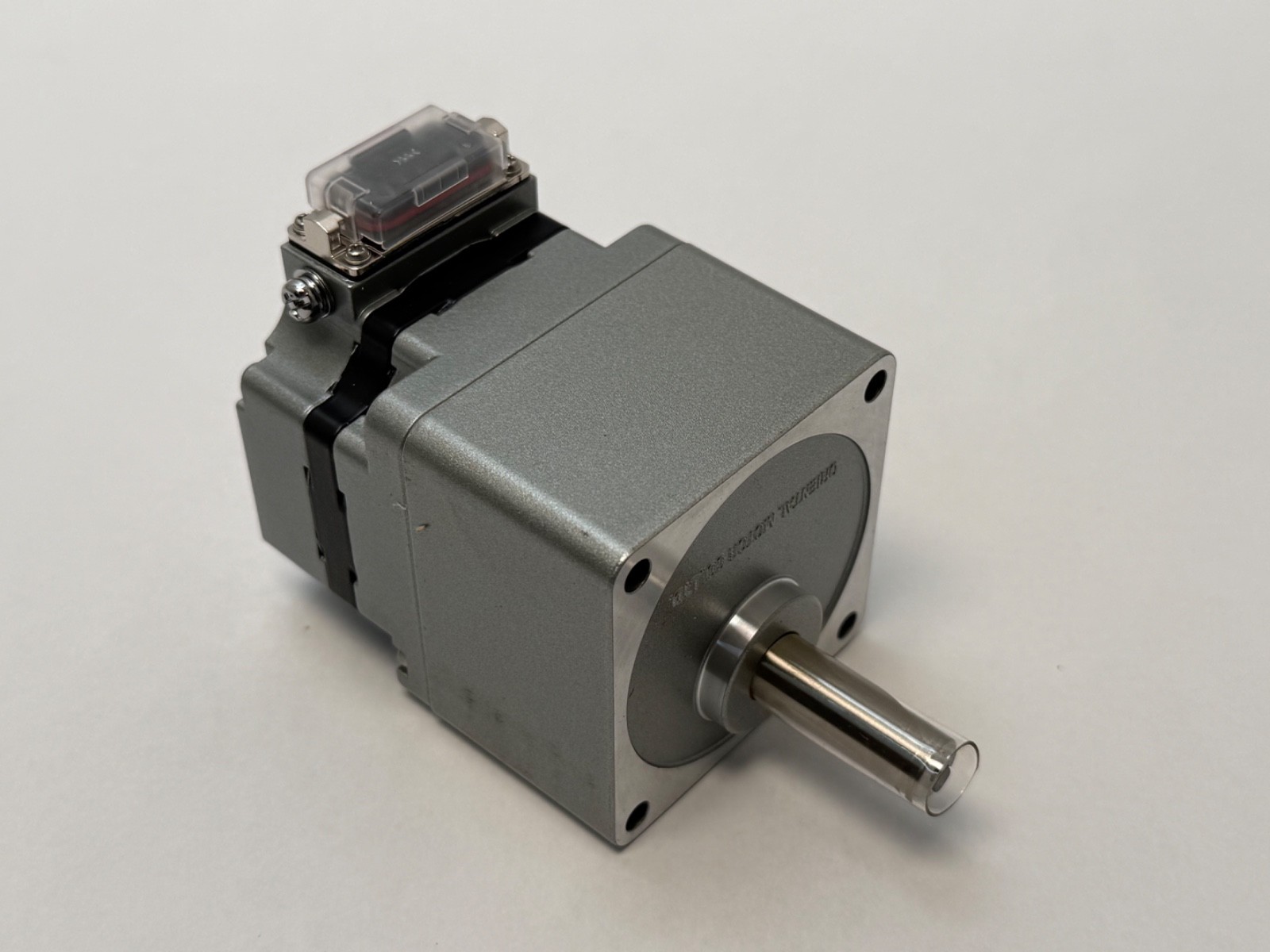

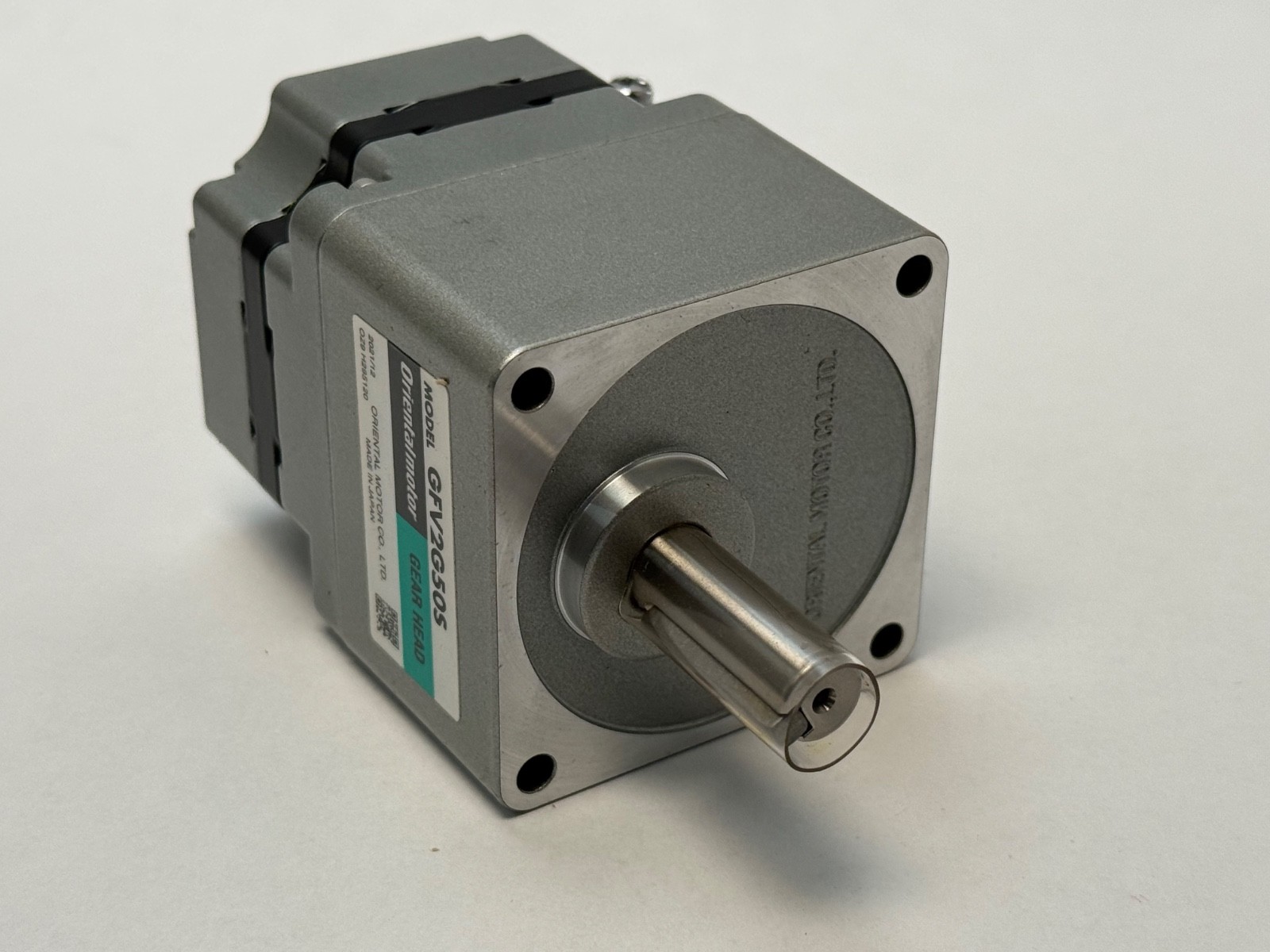

Oriental Motor BLM230HP-50S: a 30 W BLM Series brushless DC motor (BLM230HP-GFV) combined with a GFV2G50S parallel shaft gearhead at 50:1. One motor with gearhead attached. Unit Quantity: 1 Pc. Used with Oriental Motor BLE2 and BMU Series brushless speed control drivers.

Decoding the designation:

BLM — Oriental Motor brushless DC motor series.

230 — 60 mm frame, 30 W output.

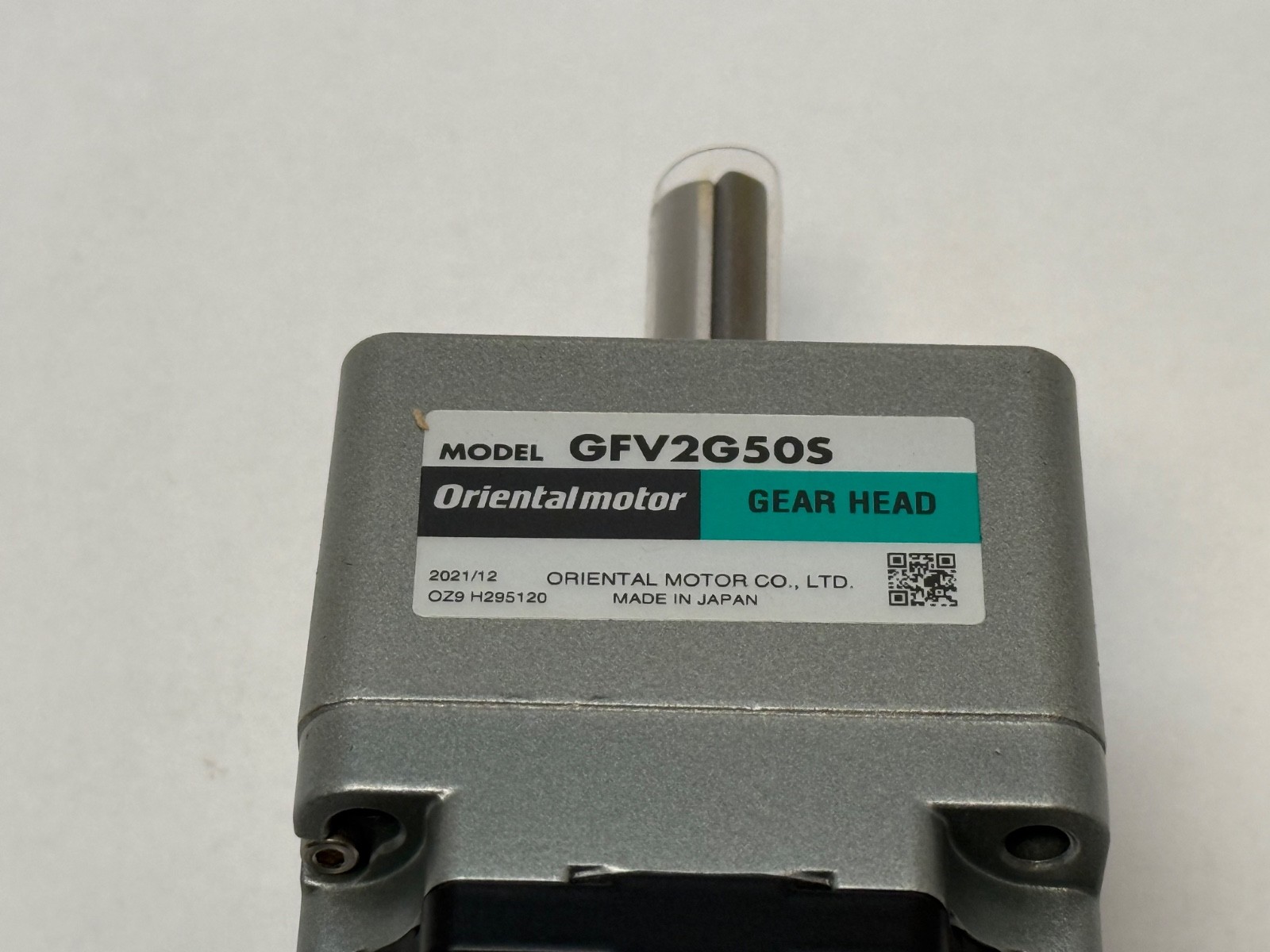

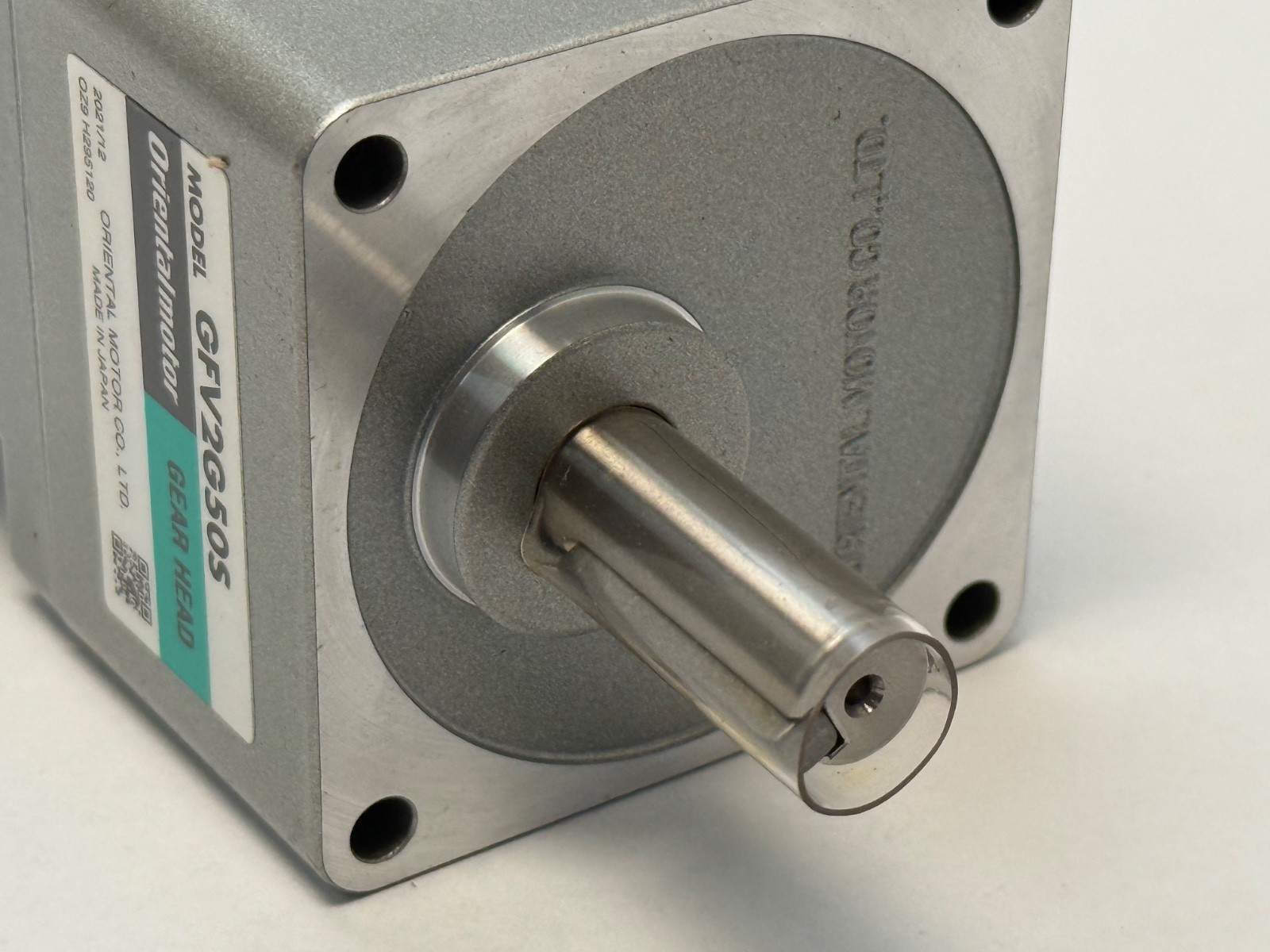

GFV2G50S — GFV Series parallel shaft gearhead, 50:1 ratio, stainless steel output shaft.

50S — 50:1 gear ratio, parallel shaft gearhead.

Specifications:

Motor Type: Brushless DC Motor. Output Power: 30 W (1/25 HP). Motor Frame Size: 60 mm (2.36 in). Gear Ratio: 50:1. Shaft/Gear Type: Parallel Shaft Gearhead. Rated Torque: 5.2 N·m (46 lb-in). Variable Speed Range: 1.6–80 r/min. Degree of Protection: Motor IP66. Ambient Temperature: Motor 0–40 °C. Thermal Class: 120 (E) EN; 105 (A) CSA.

Dimensions and mounting:

Motor Frame Size: 60 mm (2.36 in). Output Shaft Diameter: 10 mm. Permissible Radial Load: 200 N at 10 mm from shaft end; 300 N at 20 mm. Permissible Axial Load: 40 N. Permissible Load Inertia: 920 x 10−4 kg·m²; 155 x 10−4 kg·m² with instantaneous stop or bi-directional operation.

Compatibility and replacement:

Compatible drivers: BLE2D30-A and BMUD30. Matches the Oriental Motor BLE2 Series BLM230HP-GFV / GFV2G50S with BLE2D30-A driver and the BMU Series BLM230HP-GFV / GFV2G50S with BMUD30 drivers.

Frequently asked questions:

What is the gear ratio of the BLM230HP-50S?

50:1, from the GFV2G50S parallel shaft gearhead.

What are the power and rated torque?

30 W output with 5.2 N·m (46 lb-in) rated torque.

Which drivers does it run with?

Oriental Motor BLE2D30-A and BMUD30 brushless speed control drivers.
