Mitsubishi ElectricHG-SR152JMitsubishi HG-SR152J MELSERVO-J4 AC Servo Motor 1.5 kW 2000 rpm 7.2 Nm 200V

Product Description

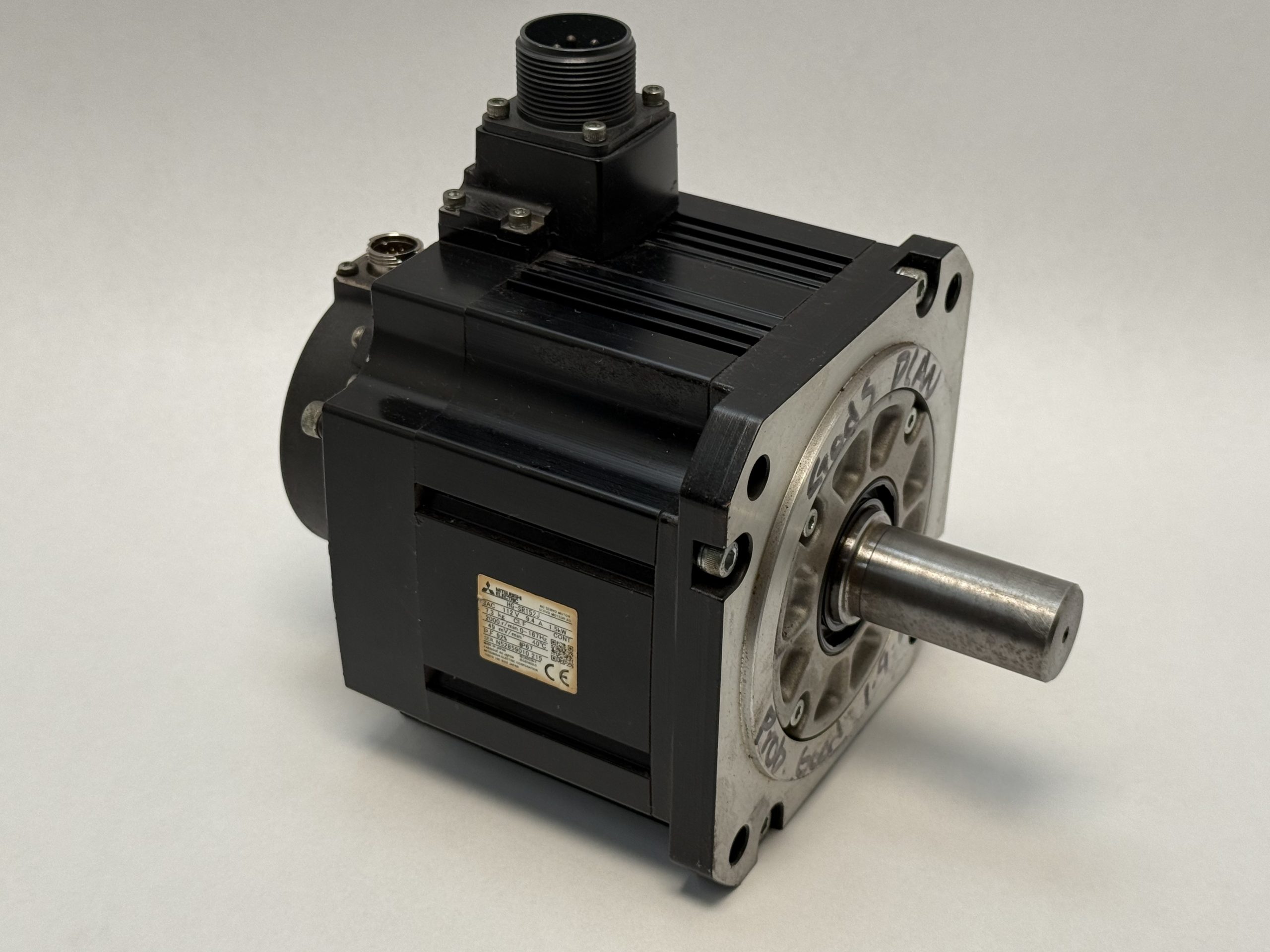

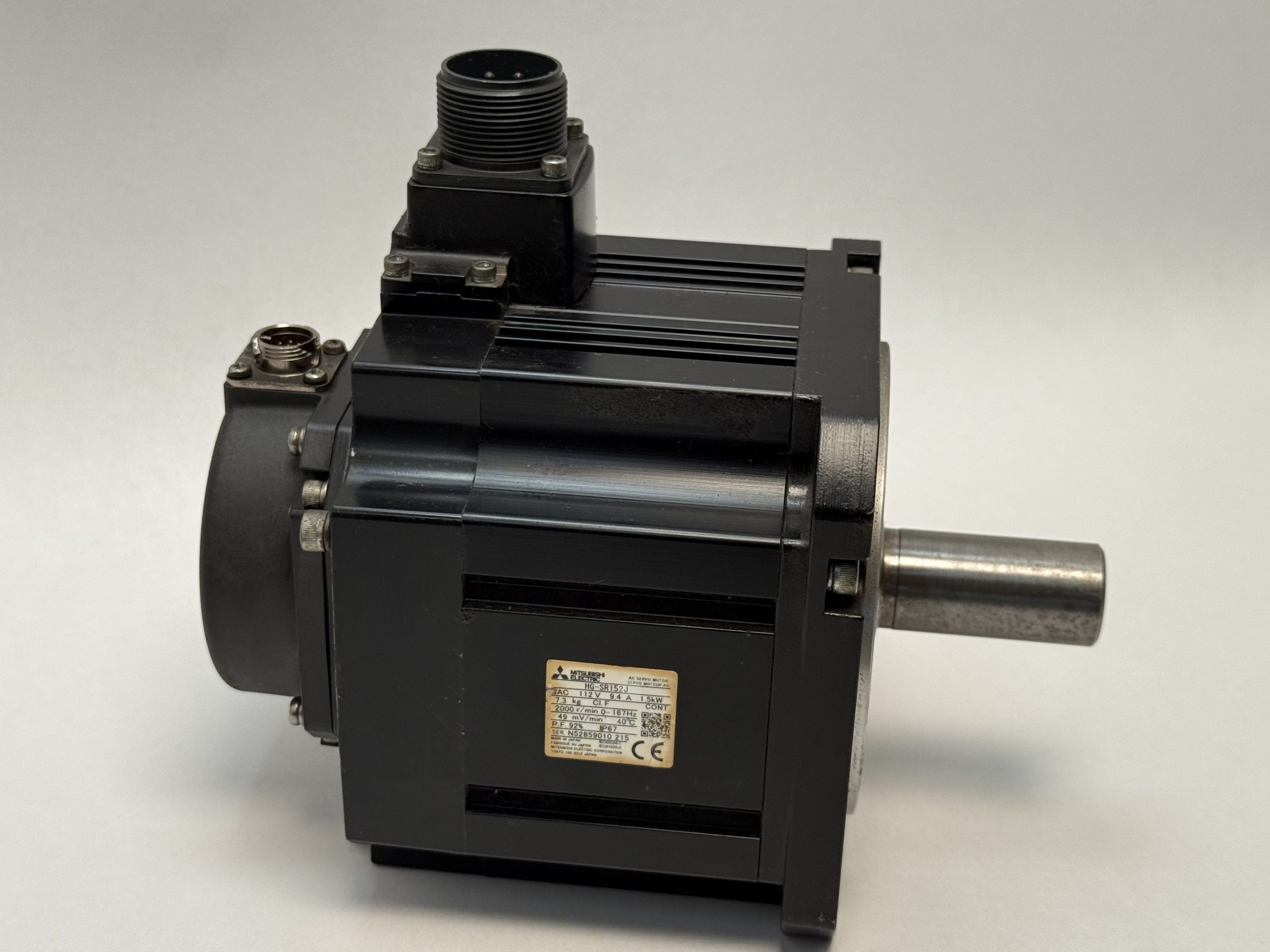

What this isOne (1) Mitsubishi Electric HG-SR152J AC servo motor from the MELSERVO-J4 family: 1.5 kW, 2000 r/min rated, 200 V class, medium inertia. It carries a 22-bit absolute encoder (4,194,304 pulses per revolution) and is sealed to IP67. Straight output shaft with oil seal, no brake. Motor only — no amplifier, cables or connectors are included.

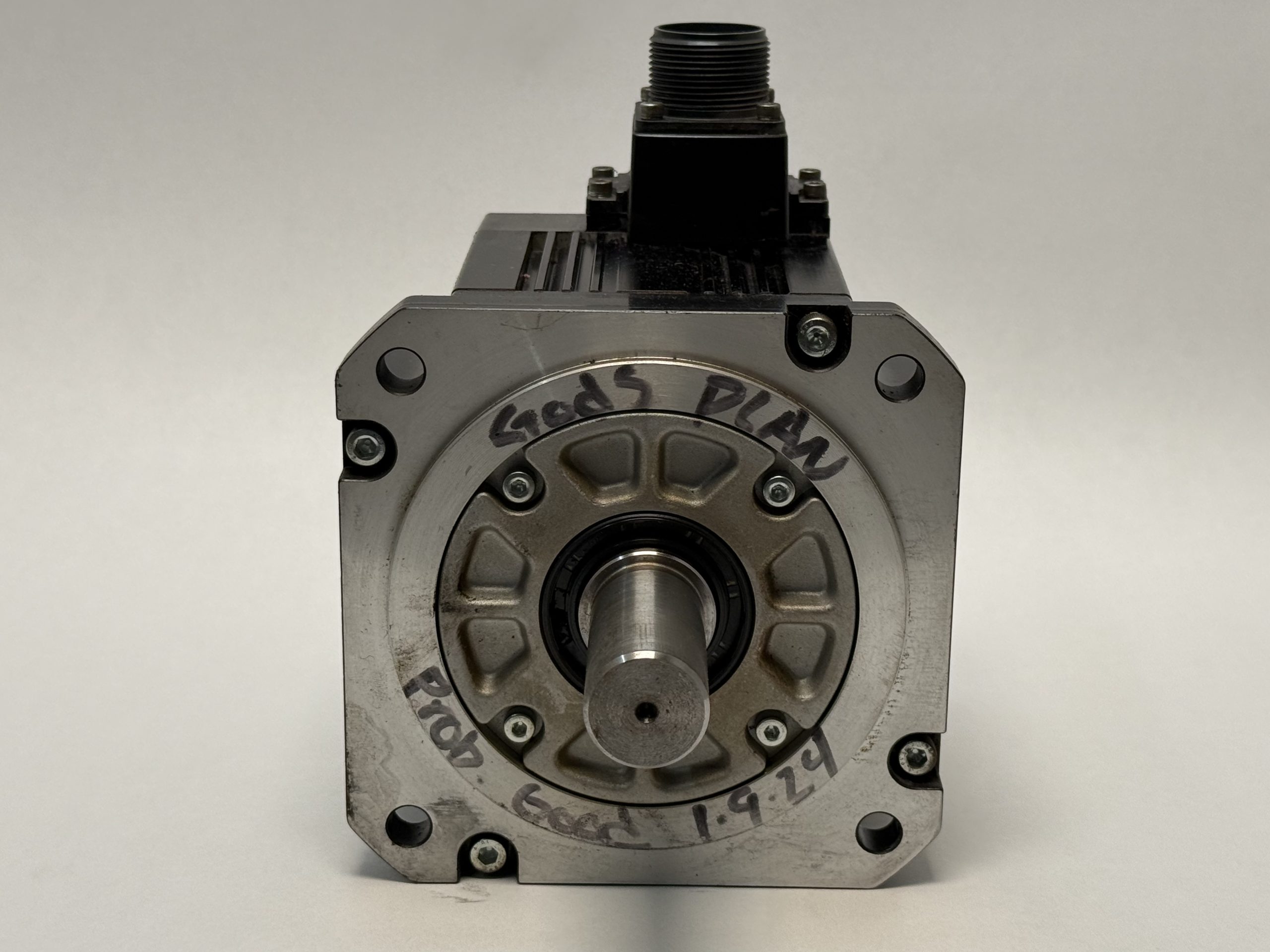

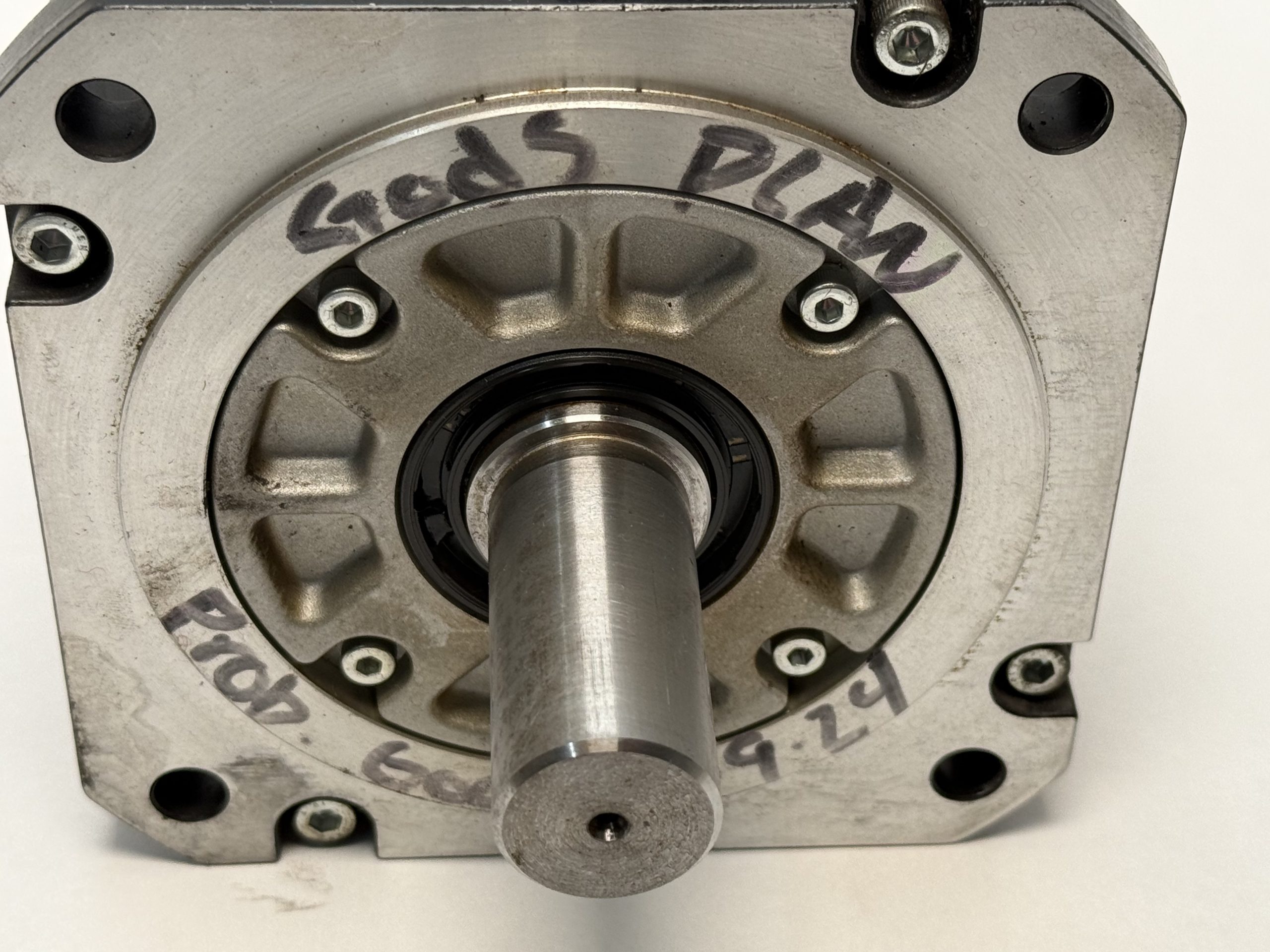

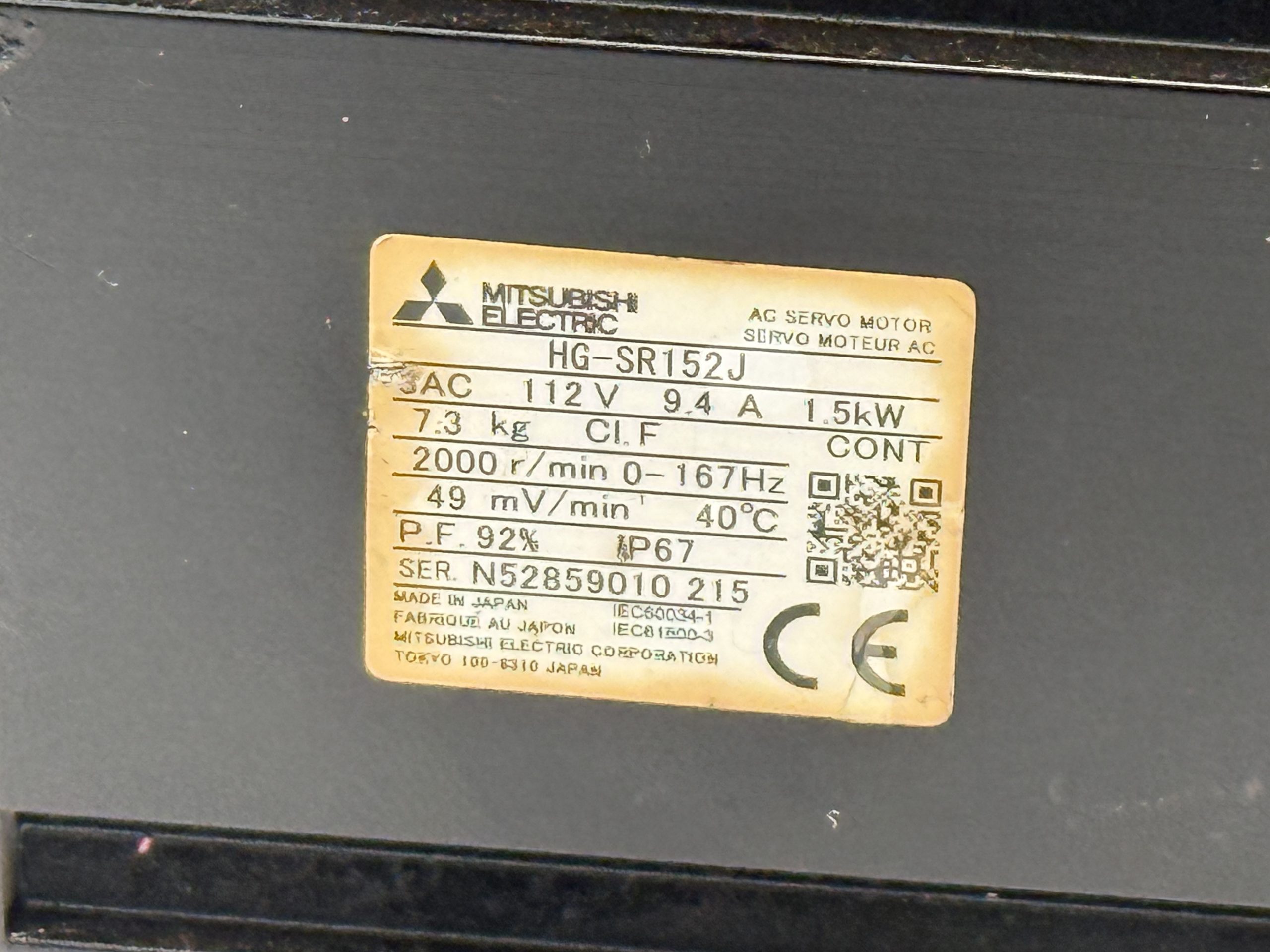

Used, pulled from service. Made in Japan per the nameplate, serial N52859010 215. A previous owner wrote on the front flange in marker; it is cosmetic and shown in the photos.

How the part number breaks downHG-SR — the J4 medium inertia, medium capacity servo motor series.

15 — rated output in tenths of a kW: 1.5 kW.

2 — rated speed code, 2000 r/min.

J — the variant suffix printed on this nameplate. A B in this position would mean an electromagnetic brake; this unit has none.

Also sold and searched as HGSR152J and HG SR152J. The HG-SR152 and HG-SR152B are the same frame without the J suffix and with a brake.

Item SpecificationsBrand: Mitsubishi ElectricModel: HG-SR152JSeries: MELSERVO-J4, HG-SRRated output: 1.5 kWRated torque: 7.2 NmMaximum torque: 21.5 NmRated speed: 2000 r/minMaximum speed: 3000 r/minNameplate: 3AC 112 V, 9.4 A, 0–167 Hz, P.F. 92%, Class FPower supply class: 200 V ACEncoder: 22-bit absolute, 4,194,304 pulses/revRotor inertia: 16 kg·cm²Brake: NoneShaft: Straight, with oil sealProtection: IP67Flange: 130 mm squareWeight: 7.3 kgCountry of origin: Japan
