Tri-TronicsCMSWL-2BSmartEye Color Mark II Contrast Sensor White LED 12-24VDC

Product Description

What this is

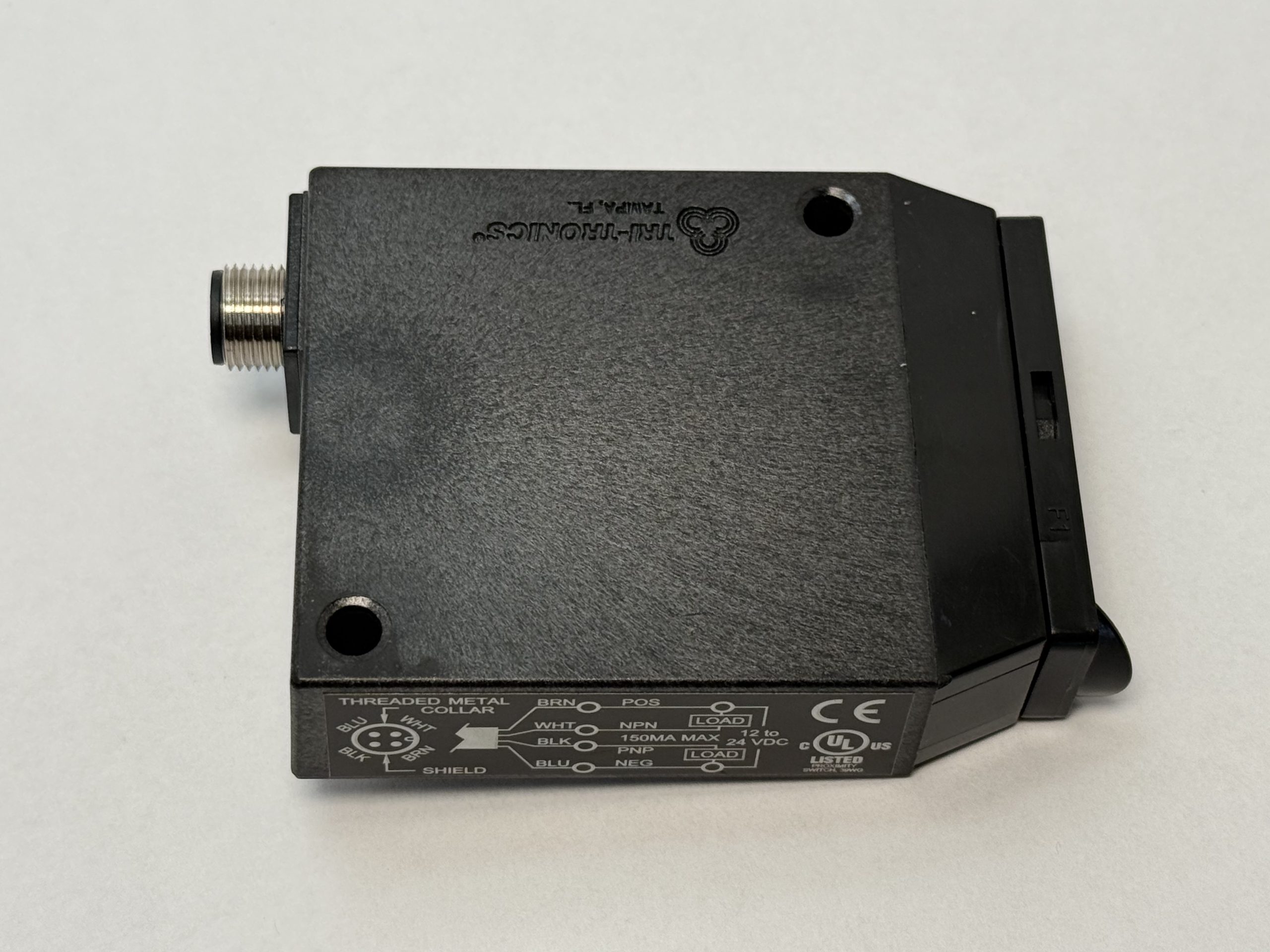

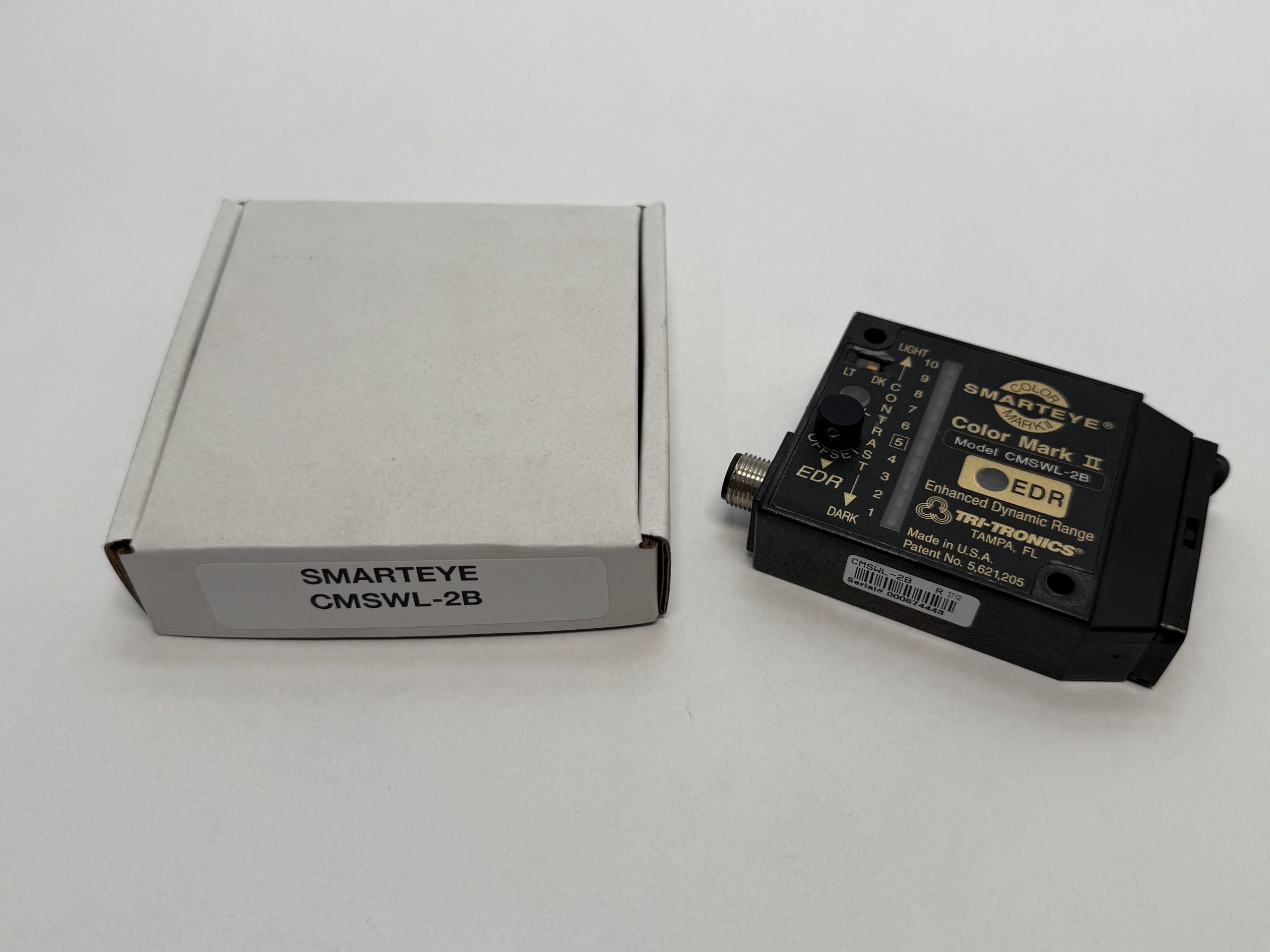

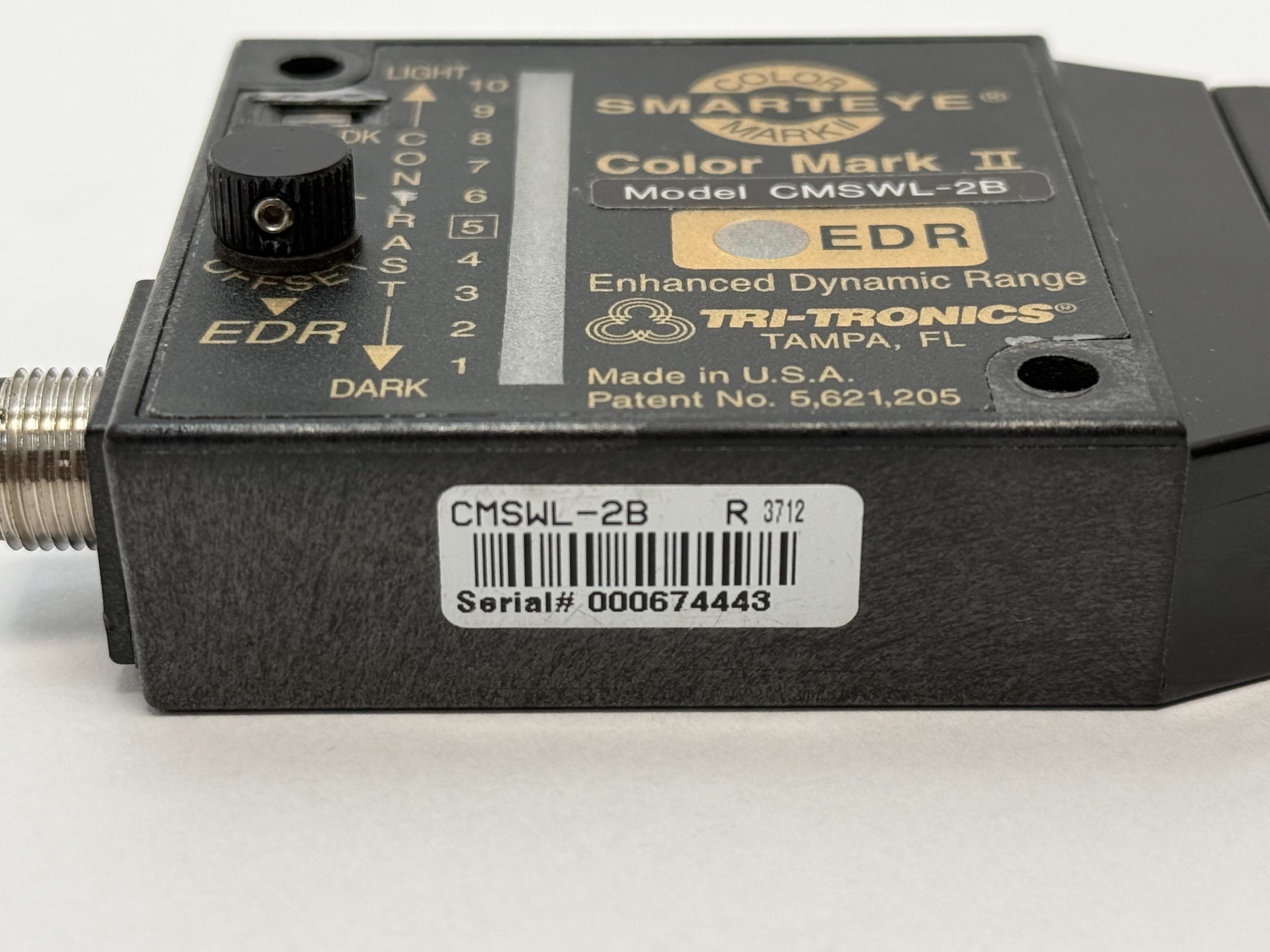

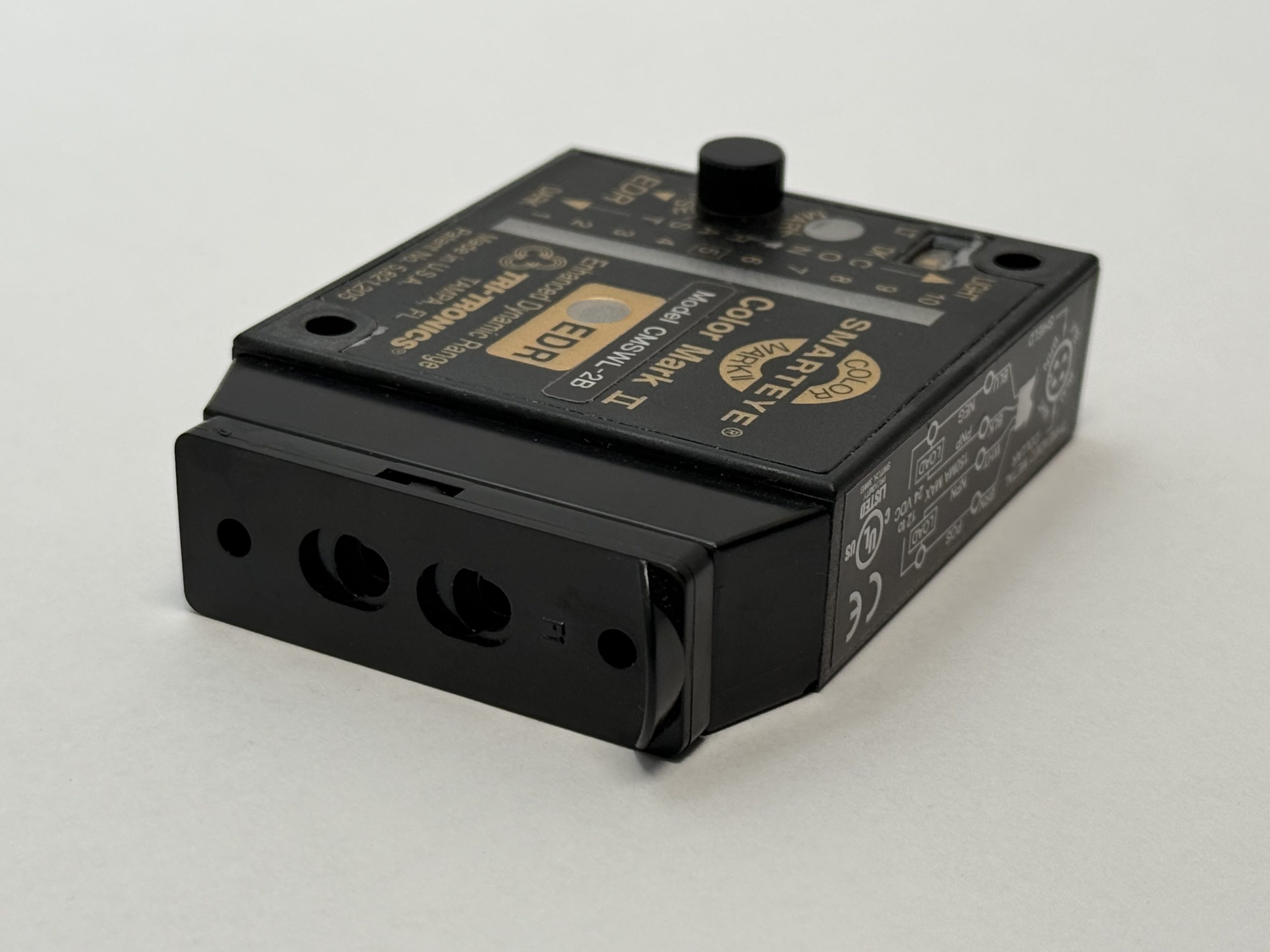

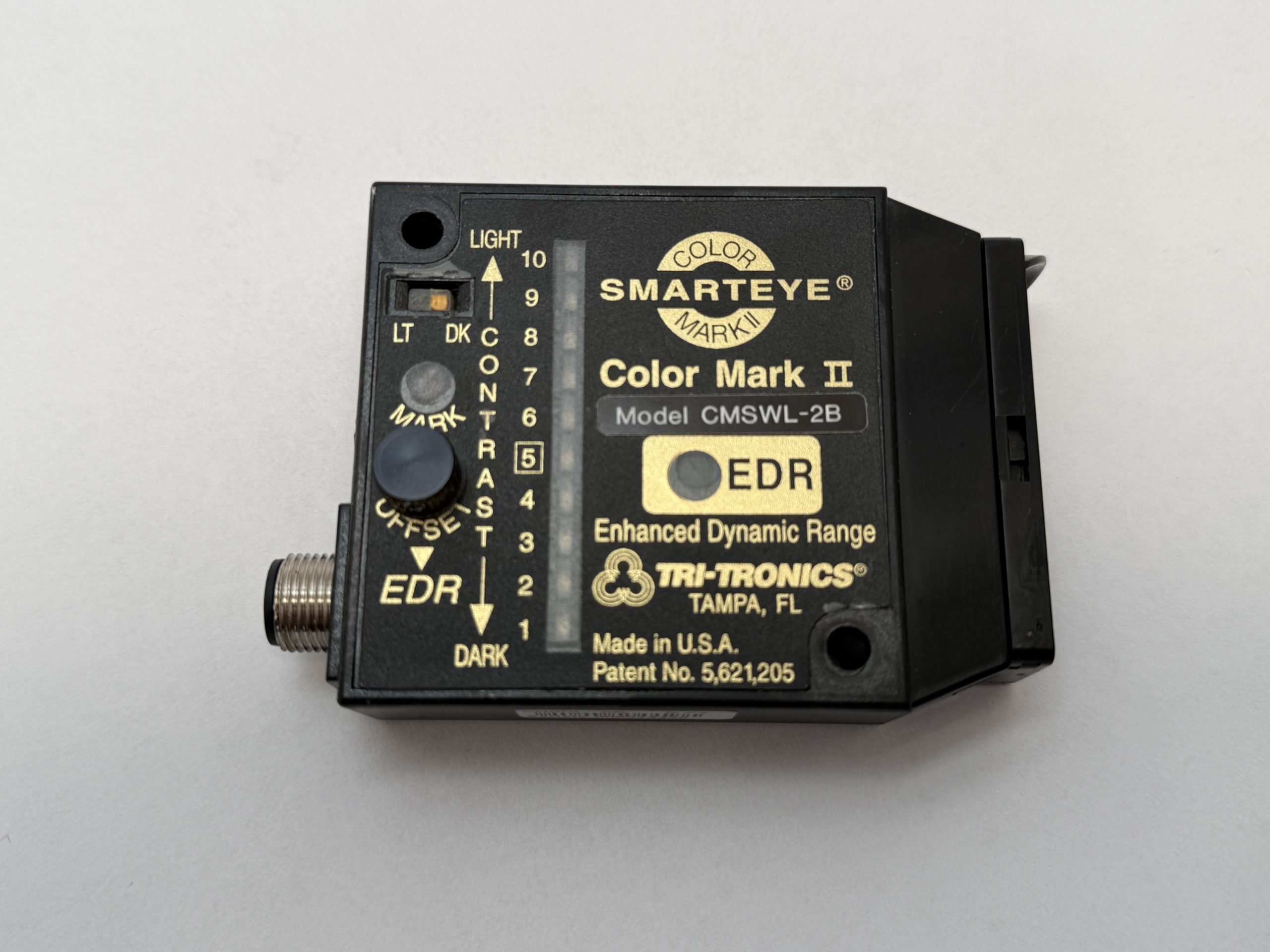

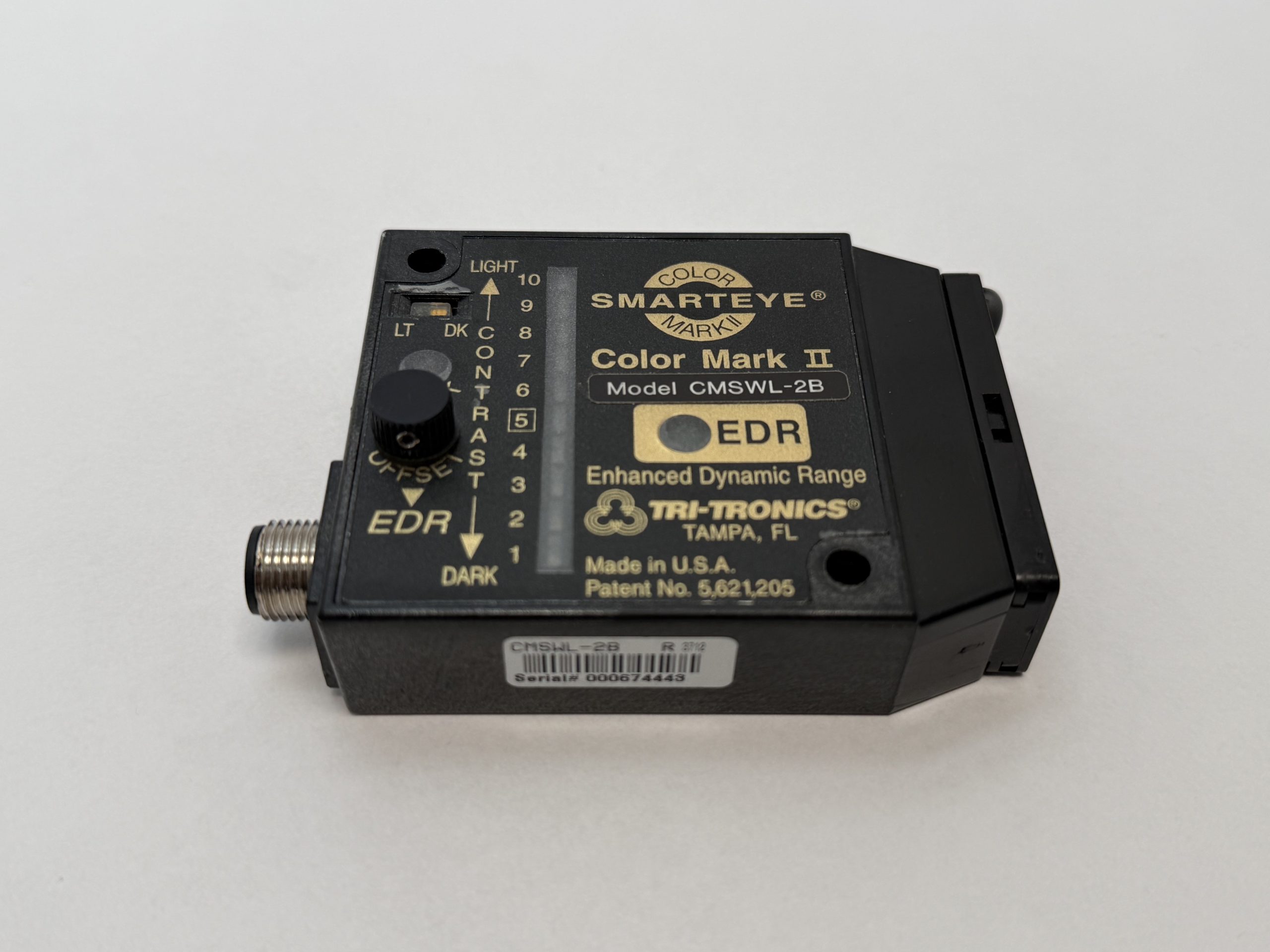

A Tri-Tronics SmartEye Color Mark II contrast (registration mark) sensor, model CMSWL-2B, with EDR (Enhanced Dynamic Range). Opened box; the sensor is shown with its optical block fitted, see the pictures for the exact configuration. Serial 000674443.

How the part number breaks down

• CMSWL-2B – the manufacturer’s model number; Tri-Tronics lists its CMSWL Color Mark II models with a white LED light source
• Current Tri-Tronics catalog versions carry an optical block suffix (for example CMSWL-2BF1 fiber optic, CMSWL-2BV1G lens); this unit is labeled CMSWL-2B

Item Specifications

• Brand: Tri-Tronics
• Series: SmartEye Color Mark II, EDR
• MPN: CMSWL-2B
• Light source: White LED (broadband spectrum)
• Supply voltage: 12 to 24 VDC, polarity protected
• Current draw: 85 mA (exclusive of load)

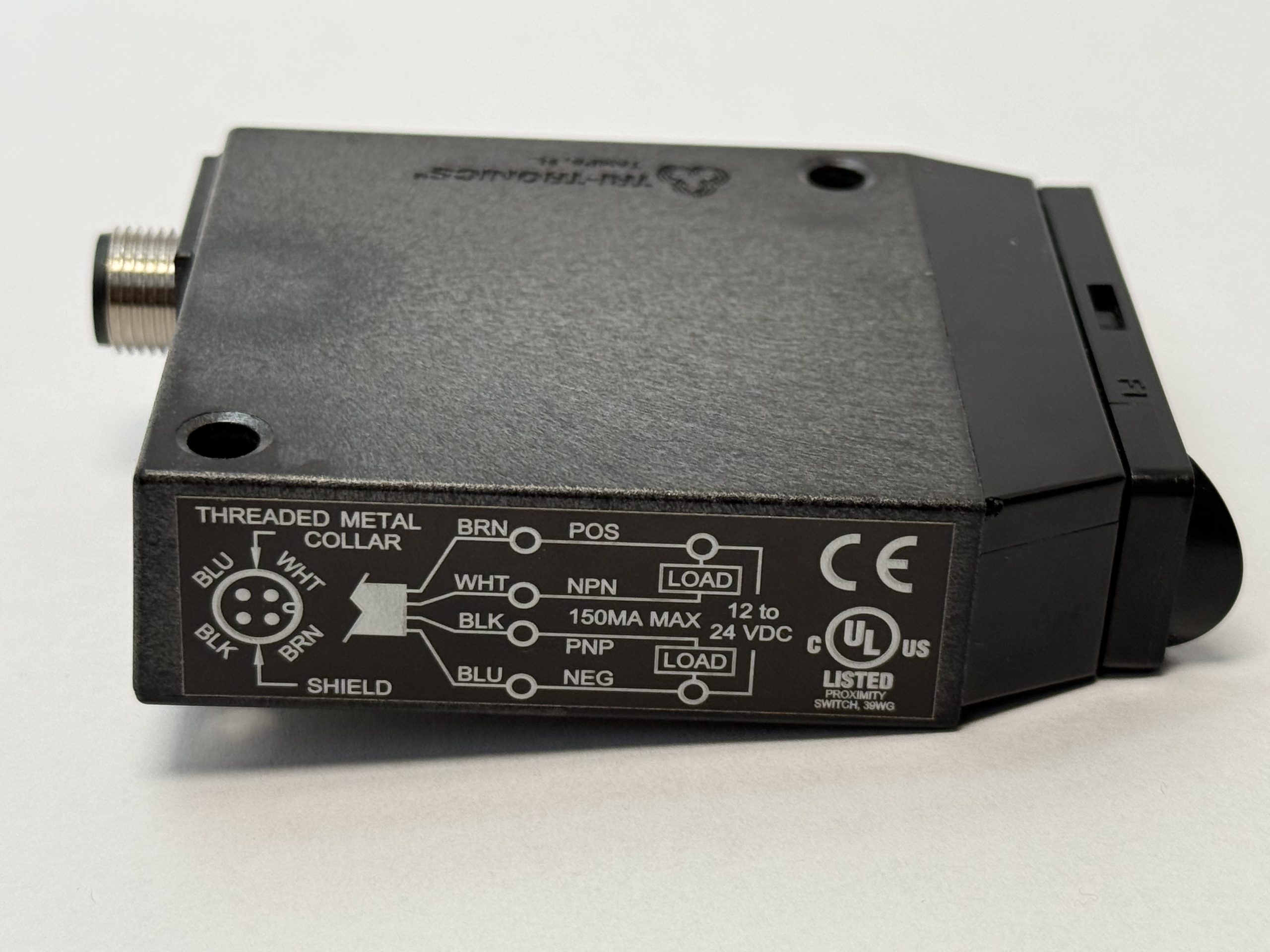

• Outputs: 1 NPN and 1 PNP, 150 mA max each, momentary short circuit protected
• Response time: 50 µs light state, 140 µs dark state
• Adjustment: OFFSET/EDR clutch knob, LIGHT/DARK switch, contrast indicator

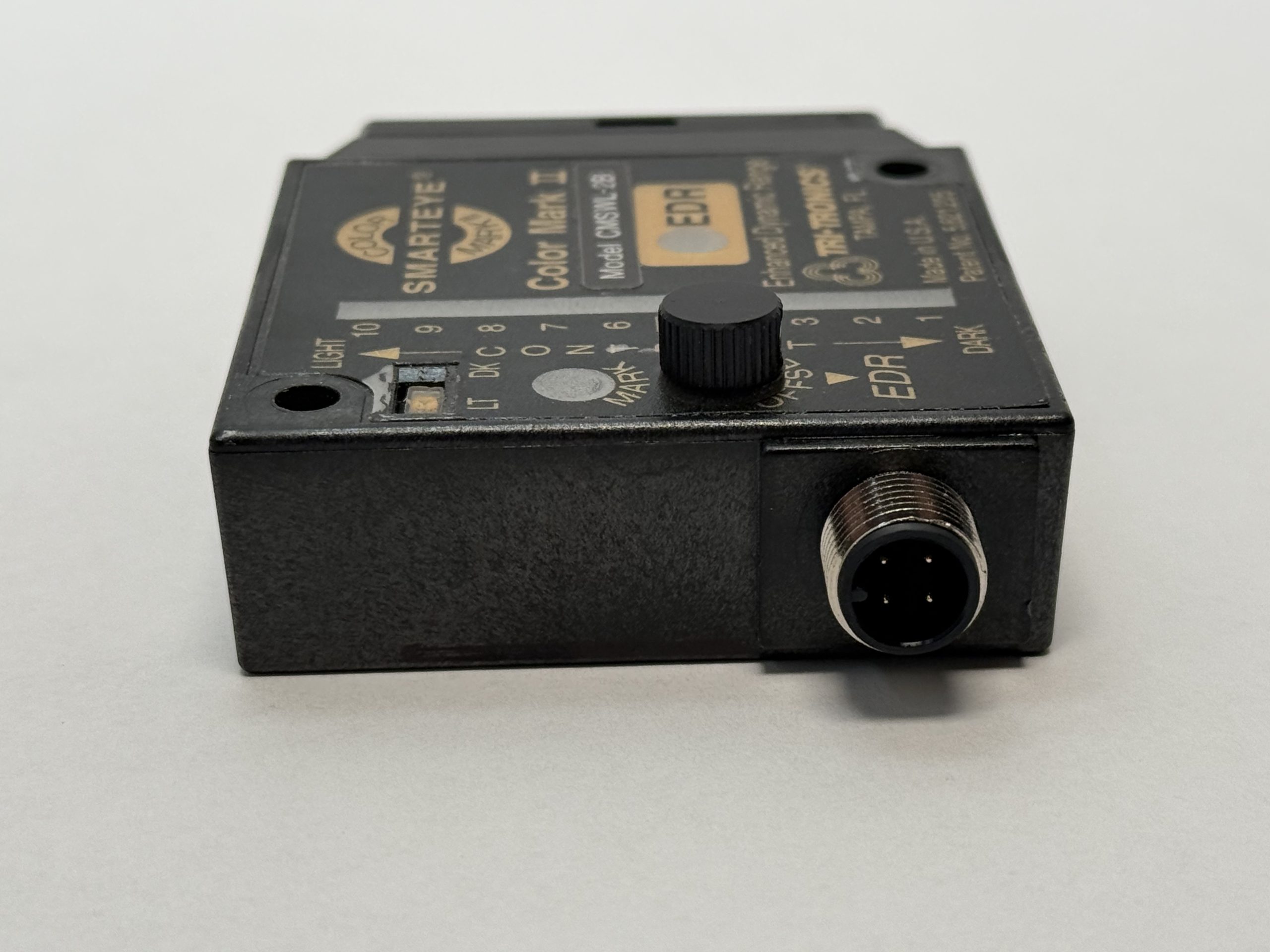

• Connection: 4-pin M12 connector, threaded metal collar
• Ambient temperature: -40°C to 70°C
• Housing: rectangular, NEMA 4X, 6P, IP67
• Approvals: UL listed, CE
• Country of origin: USA (Tampa, FL)
