LeuzeRK 72/2Retro-Reflective Photoelectric Sensor – 12-30 VDC, 0-6 m Range, 880 nm Infrared, IP67 Metal Housing

Condition: Used

Availability:

1 in stock

Leuze RK 72/2 retro-reflective photoelectric sensor, 12-30 VDC, 0 to 6 m range, 880 nm infrared, 5 ms response, IP67 diecast metal housing, PNP or NPN output.

Same day shipment

List Price

$72.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandLeuze
MPNRK 72/2
ModelRK72/2

Technical Specifications

TypeRetro-Reflective Photoelectric Sensor
Body StyleRectangular
Current TypeDC
Base NumberRK 72
Industry Termsretro-reflective sensor, reflex photoelectric sensor, photo eye, light barrier with reflector
Common MisspellingsLeuse RK72, Leuze RK 722, RK72-2
Application TypesConveyor object detection, packaging machinery, material handling, automated manufacturing
Output TypePNP or NPN transistor
Mpn VariantsRK 72/2, RK72/2, RK-72/2, 50000396, 500 00396, 71225
Compatible With ReplacesLeuze RK 72/2 (50000396)
Additional AttributesFunction: light/dark switching by polarity reversal; Protective circuit: polarity reversal and short circuit protection; Bias current: 50 mA max; Signal voltage high/low: UB-3V / 2V; Residual ripple: 15% of UB max; Storage temperature: -30 °C to +70 °C; LED class 1 per EN 60825-1; Optics: glass lens; Mounting accessory: BT 92
SeriesRK 72
Ip RatingIP67
Item Weight150 g (0.33 lb)
Housing MaterialDiecast metal
Seller Part Number: AM1B3#J7X0AR

Product Description

What this part is:

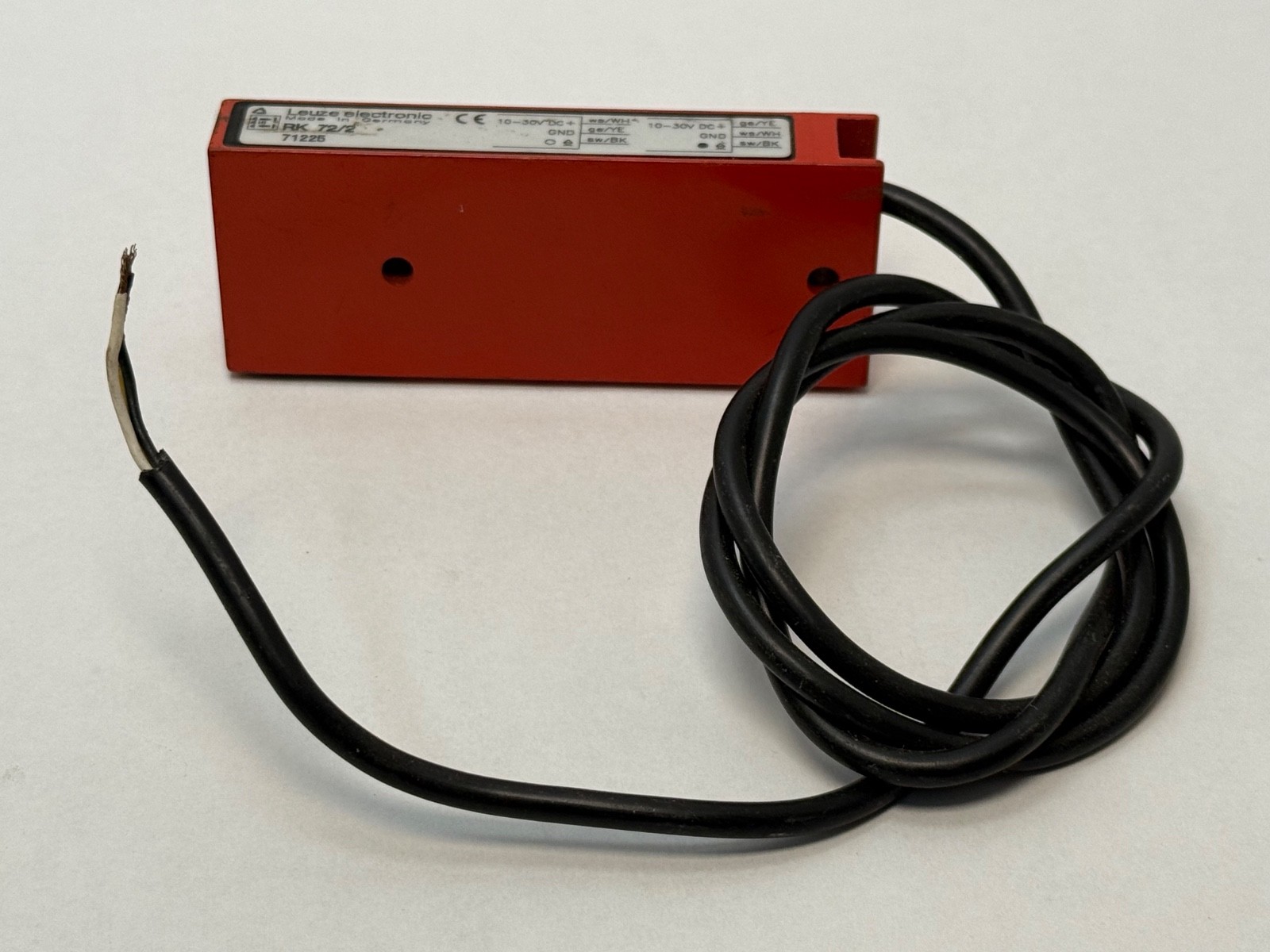

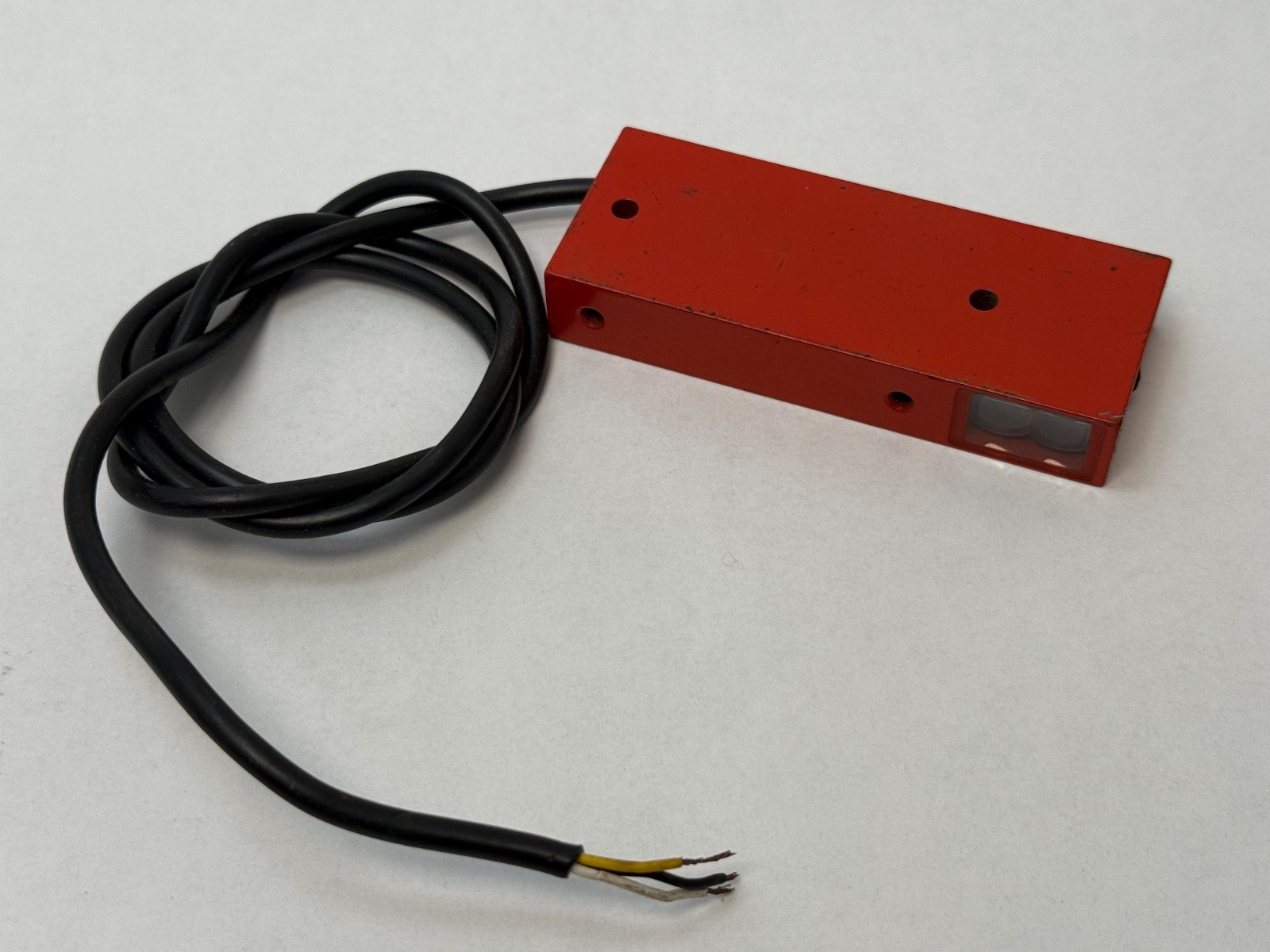

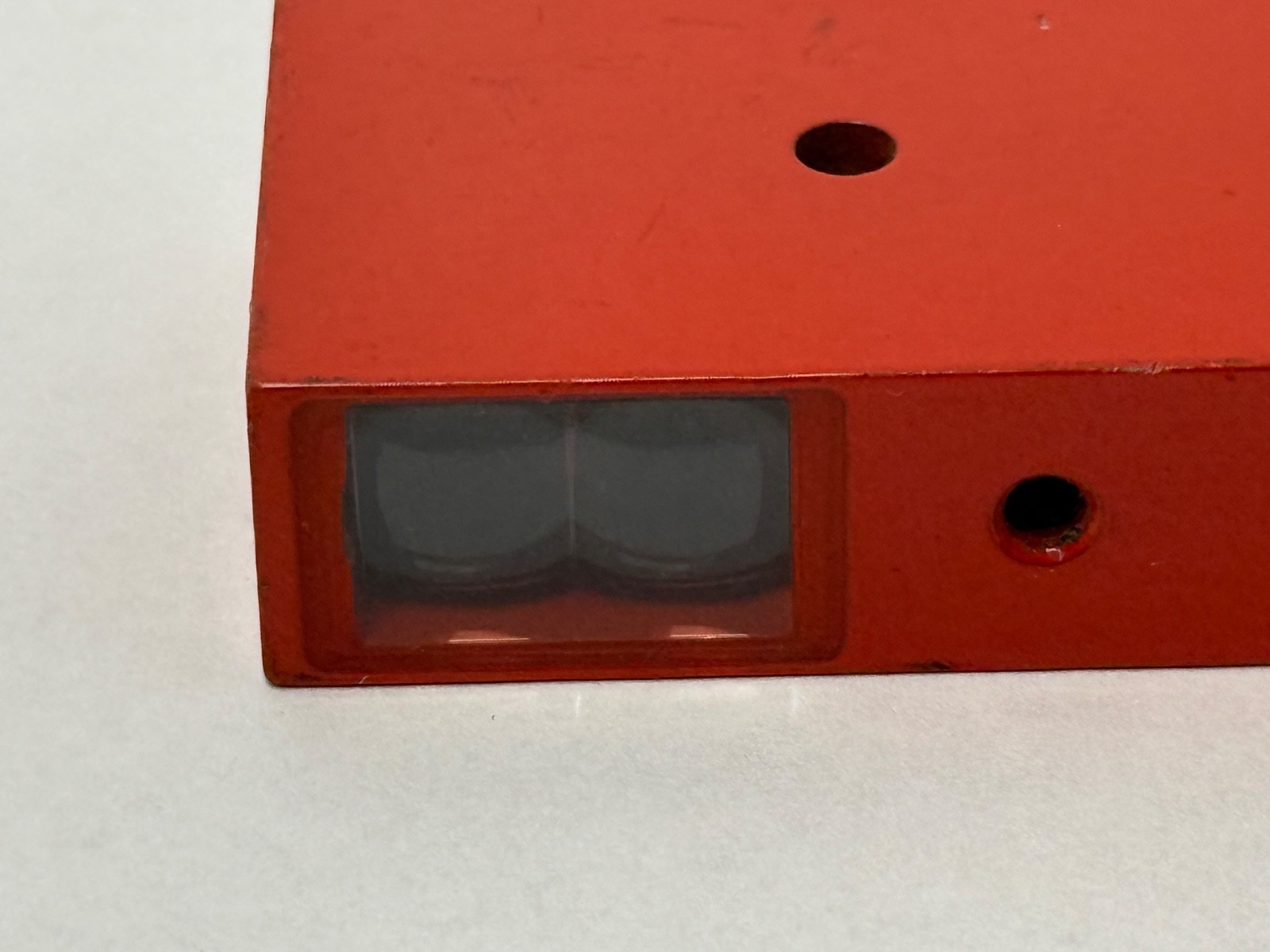

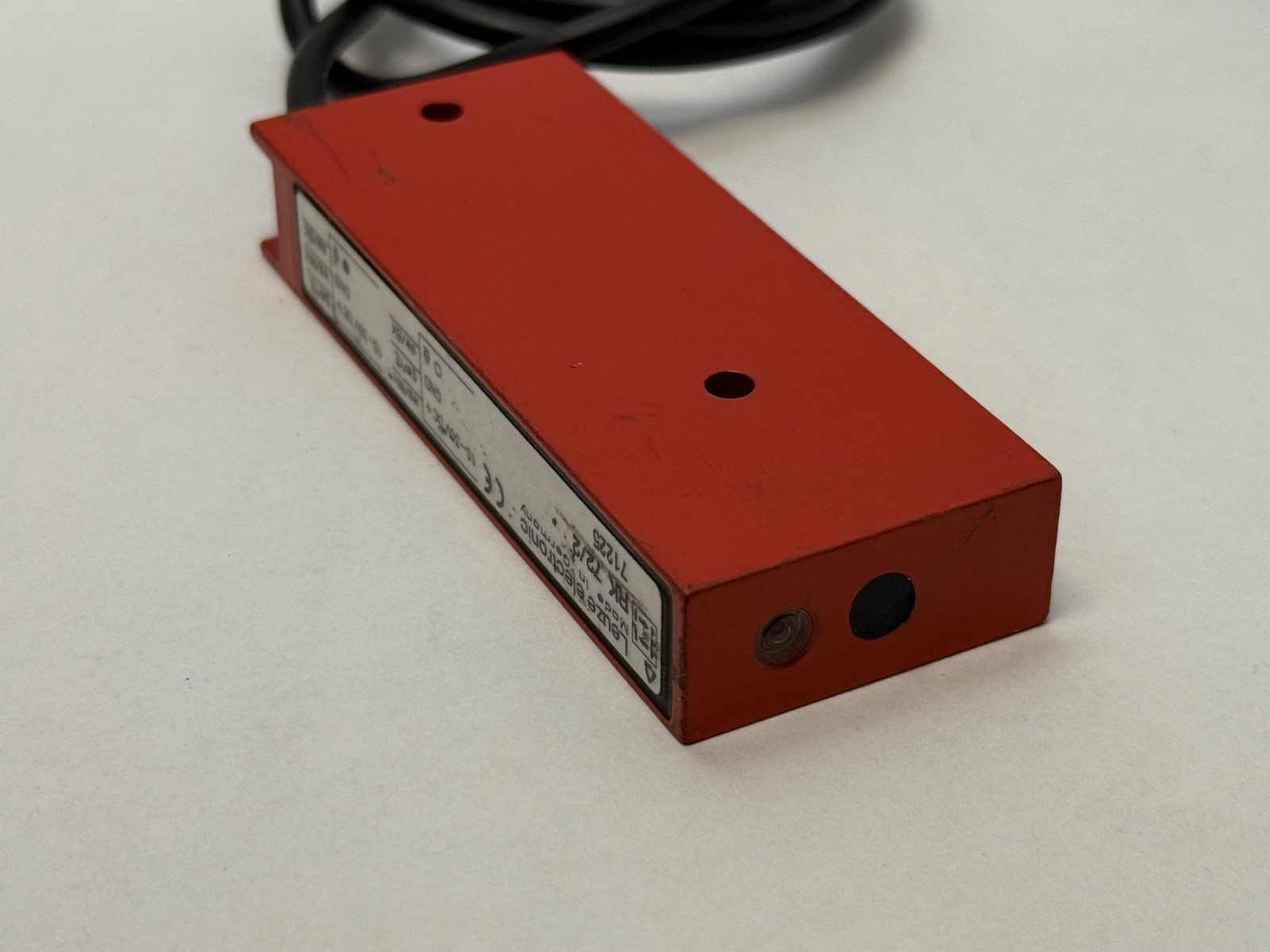

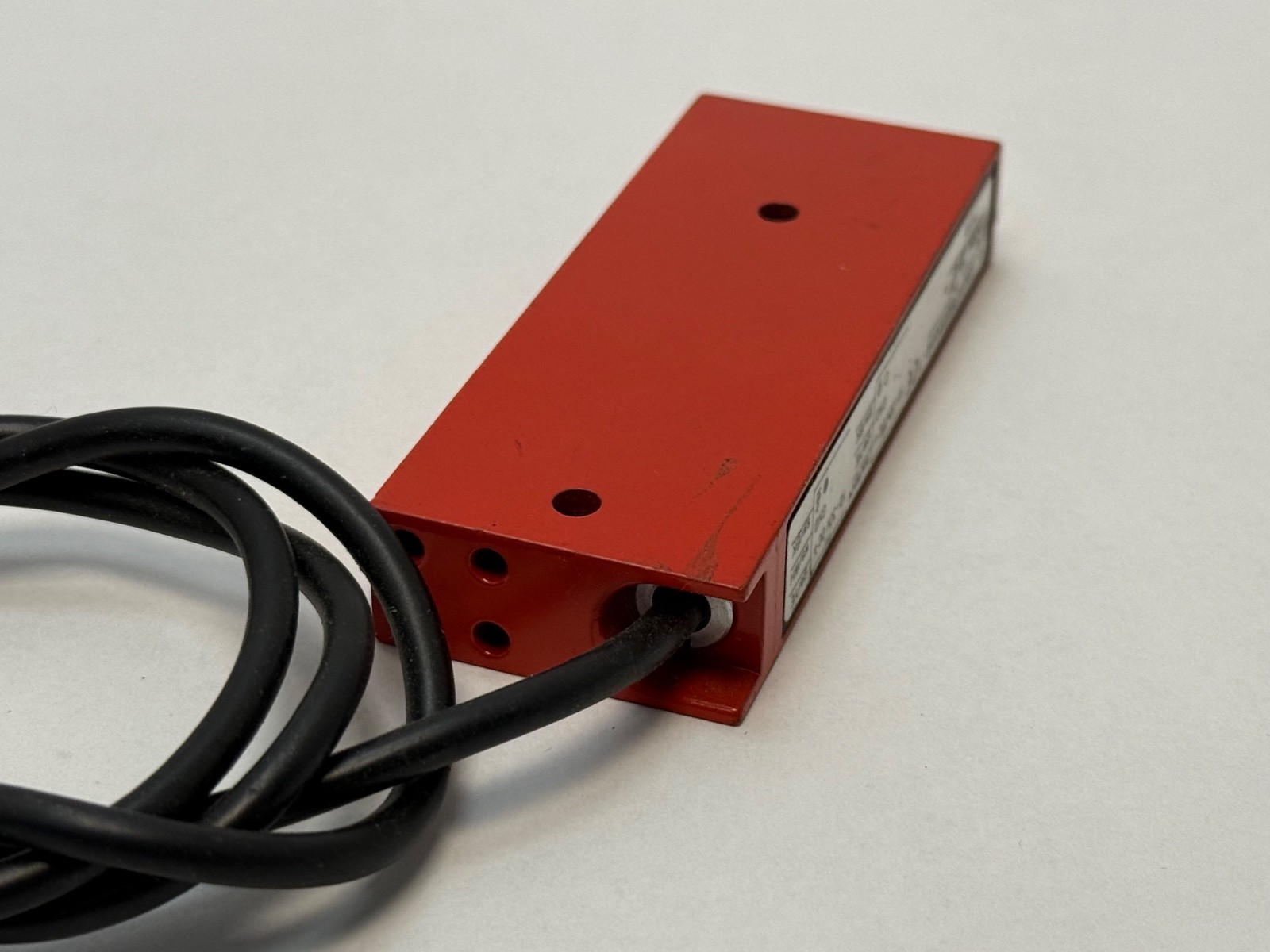

The Leuze RK 72/2 is a retro-reflective photoelectric sensor from the Leuze RK 72 series, Leuze part number 500 00396. It uses a modulated infrared LED and a reflector to detect objects that interrupt the light path. Slim diecast metal housing with a glass lens.

Specifications:

Sensing Principle: Retro-reflective. Typical Operating Range Limit: 0 to 6 m with a TK(S) 100×100 reflector. Operating Range: 0.1 to 4 m with a TK(S) 100×100 reflector. Light Source: LED, modulated. Wavelength: 880 nm infrared. Switching Frequency: 100 Hz. Response Time: 5 ms. Operating Voltage: 12 to 30 VDC. Bias Current: 50 mA maximum. Switching Output: PNP or NPN transistor output. Output Current: 100 mA maximum. Function: Light/dark switching by reversing the polarity. Protective Circuit: Polarity reversal protection and short circuit protection. Indicator: Red LED on top of housing. Housing: Diecast metal. Optics: Glass lens. Weight: 150 g. Ambient Temperature: -20 °C to +60 °C operating, -30 °C to +70 °C storage. Protection Class: IP67. LED Class: 1 per EN 60825-1.

Dimensions and mounting:

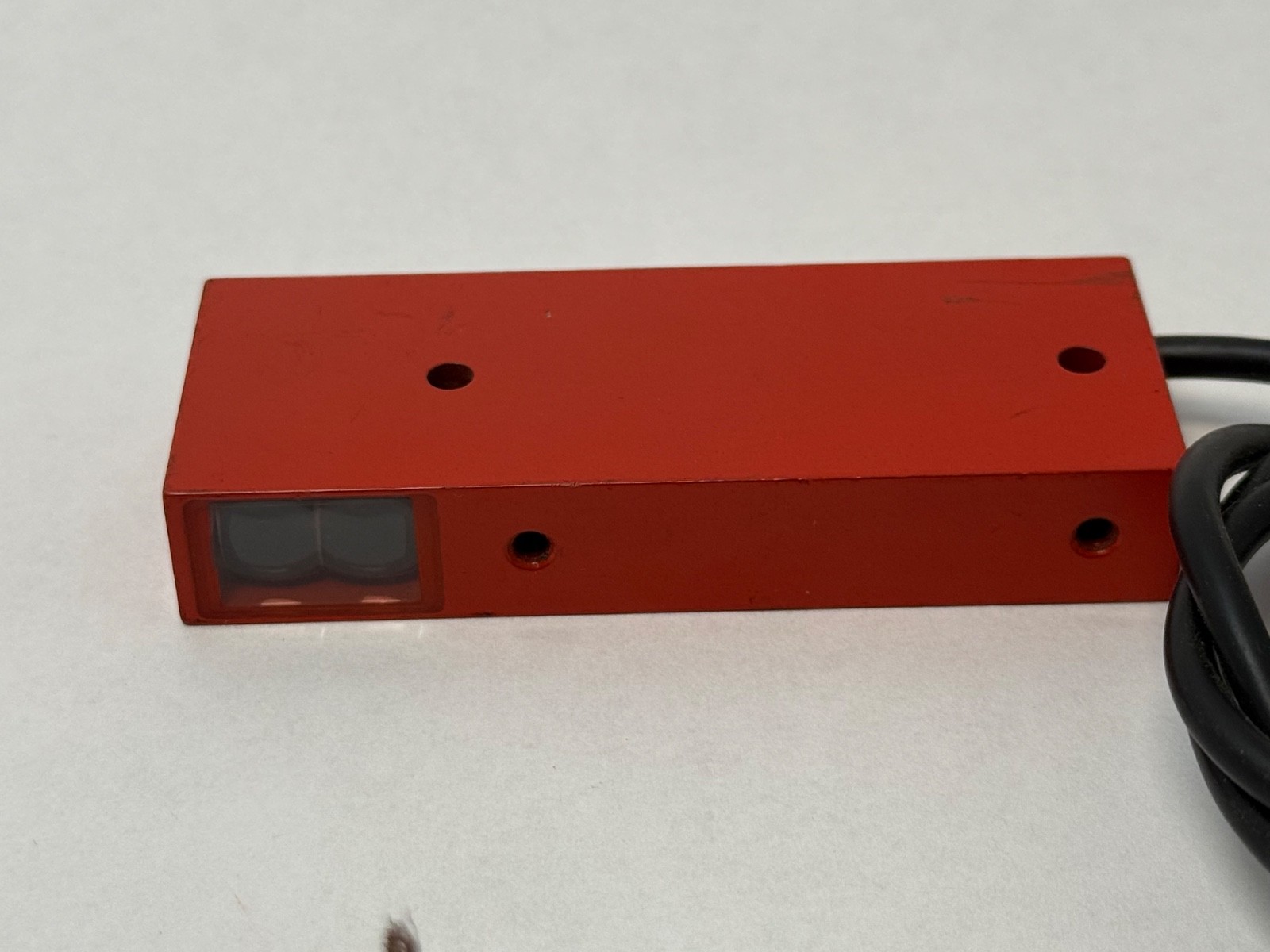

Mounting: Through-holes and M4 threads for front-side mounting. Mounting System: Leuze BT 92 bracket.

Compatibility and replacement:

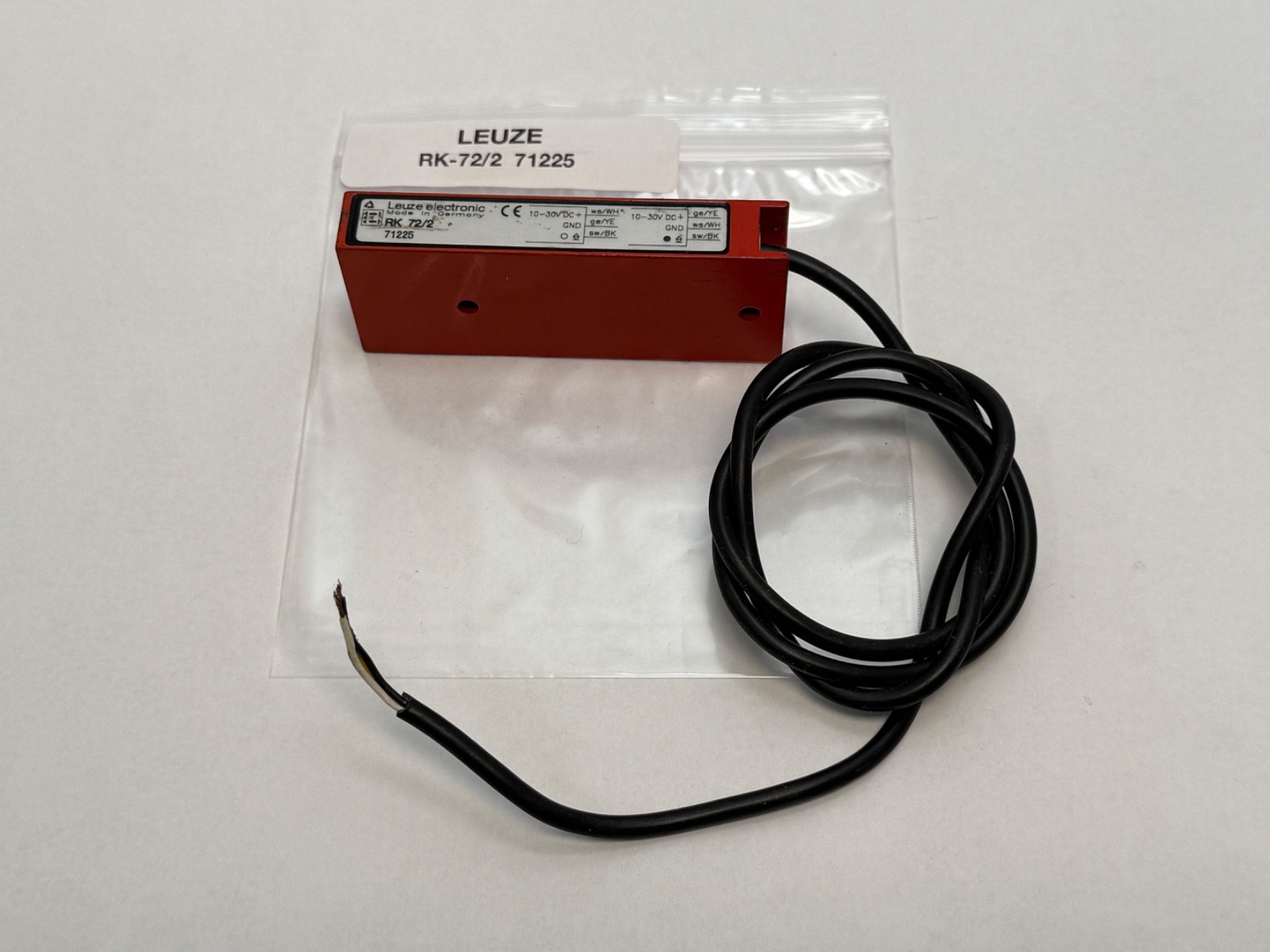

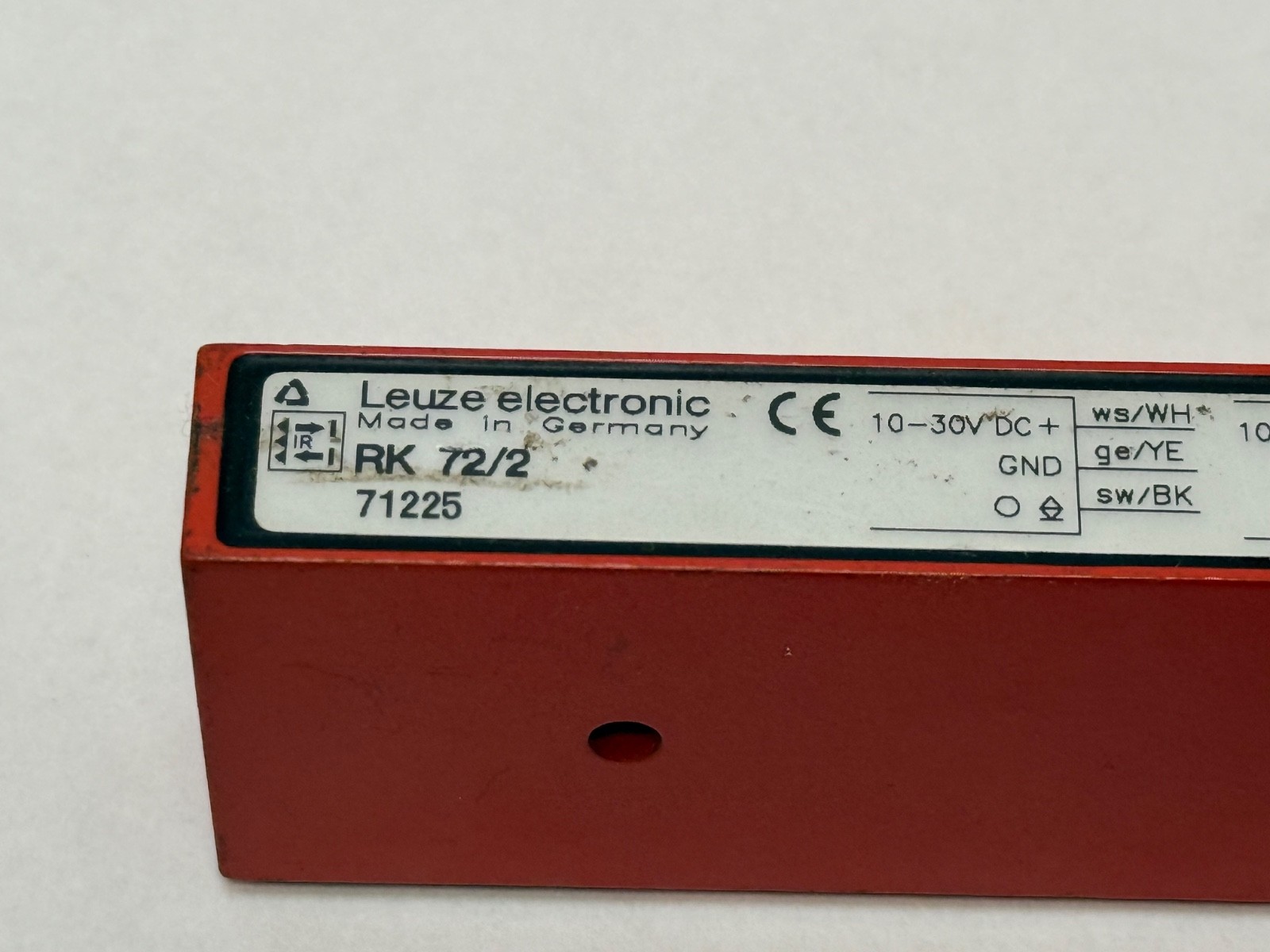

Replaces Leuze RK 72/2, part number 500 00396, in the RK 72 retro-reflective family. Related RK 72 variants: RK 72/4 (50000413), RK 72/4,5000 (50000415), RK 72/4 L (50017372) and RK 72/4 S (50000419). Additional marking on this unit: 71225. Data sheet: available from Leuze (leuze.com).

Frequently asked questions:

What is the sensing range of the Leuze RK 72/2?

The typical operating range limit is 6 m with a 100 x 100 mm reflector, and the recommended operating range is 0.1 to 4 m.

What supply voltage does the RK 72/2 use?

It runs on 12 to 30 VDC with a bias current of up to 50 mA.

How is light or dark switching selected on the RK 72/2?

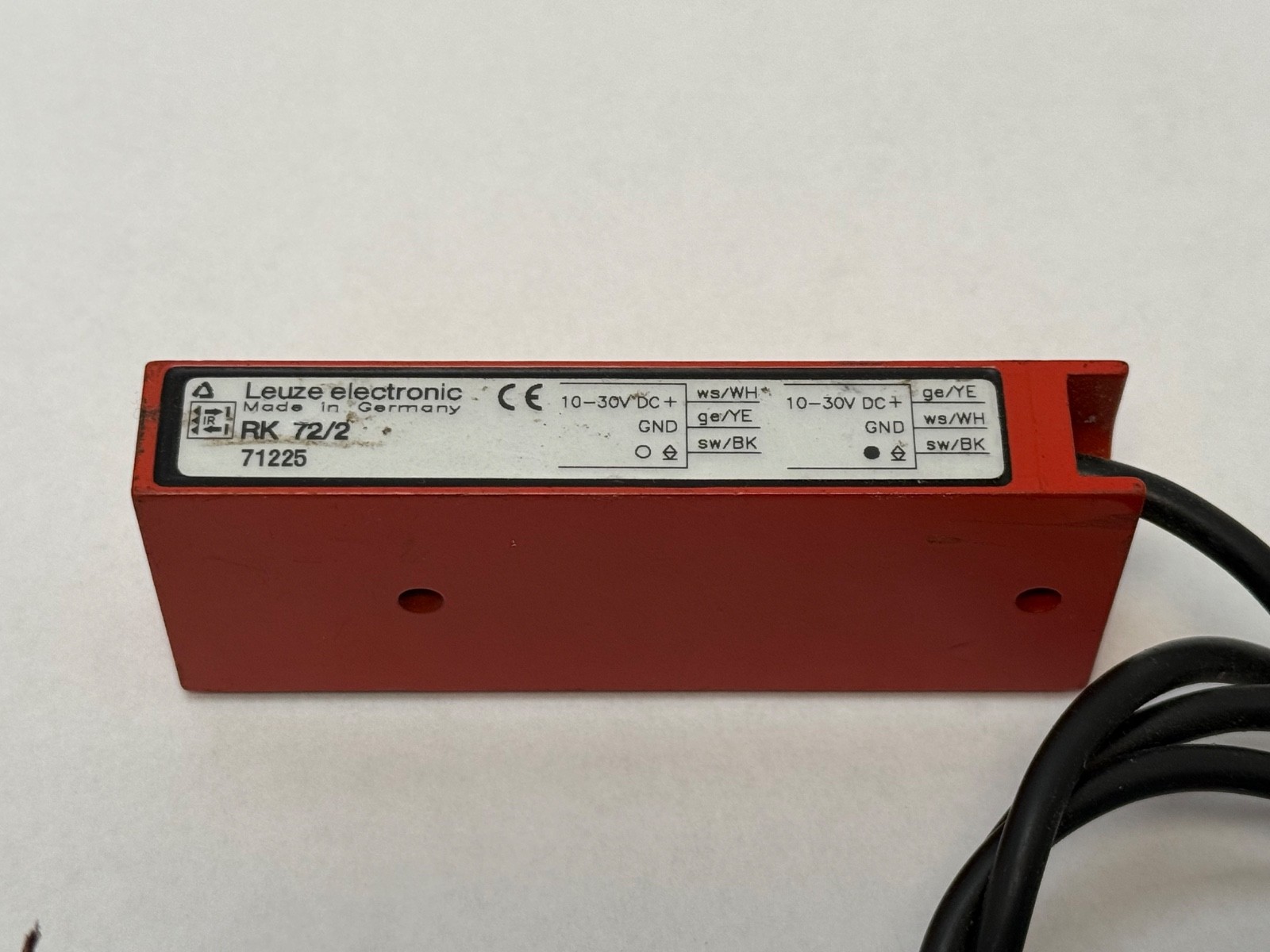

Light or dark switching is selected by reversing the polarity of the supply connection.
