IFMOT5009Through-Beam Photoelectric Sensor Receiver – Infrared, 10 m Range, PNP, 10-50 V DC, M12, IP65

Condition: New

Availability:

1 in stock

IFM OT5009 through-beam photoelectric sensor receiver, infrared, range up to 10 m, PNP output, 10-50 V DC, M12 connector, IP65. Order code OTE-FPKG/US-100-IPF.

Same day shipment

List Price

$41.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandIFM
MPNOT5009
ModelOTE-FPKG/US-100-IPF

Technical Specifications

Sensor TypeThrough-Beam Photoelectric Sensor Receiver
Industry Termsthrough-beam sensor, photo eye receiver, thru-beam photoelectric, opposed mode sensor
Common Misspellings0T5009, OT-5009, 0TE-FPKG/US
Output TypePNP
Mpn VariantsOT5009, OTE-FPKG/US-100-IPF, OTE-FPKG/US
Additional AttributesCurrent consumption 30 mA at 24 V; max voltage drop 2.5 V; short-circuit protection non-latching; reverse polarity and overload protected; protection class II; MTTF 573 years; EMC EN 60947-5-2, EN 55011 class B; lens PMMA, side sensing; LEDs yellow switching, green power; supplied with angle bracket E20461
SeriesOT
Ip RatingIP65
Item Weight161 g (0.35 lb)
Housing MaterialPBT
Seller Part Number: AE2B2#OKAIVJ

Product Description

What this part is:

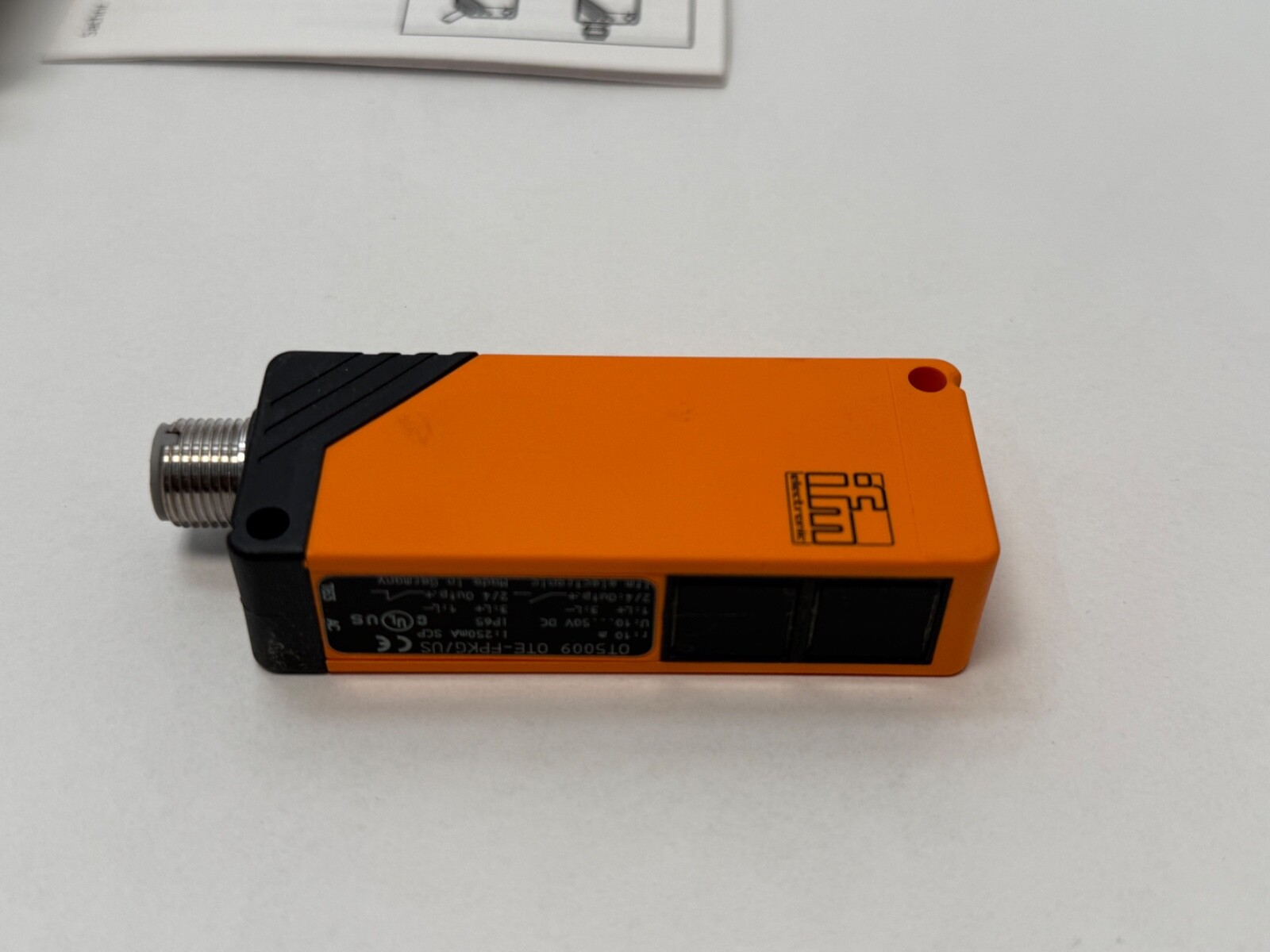

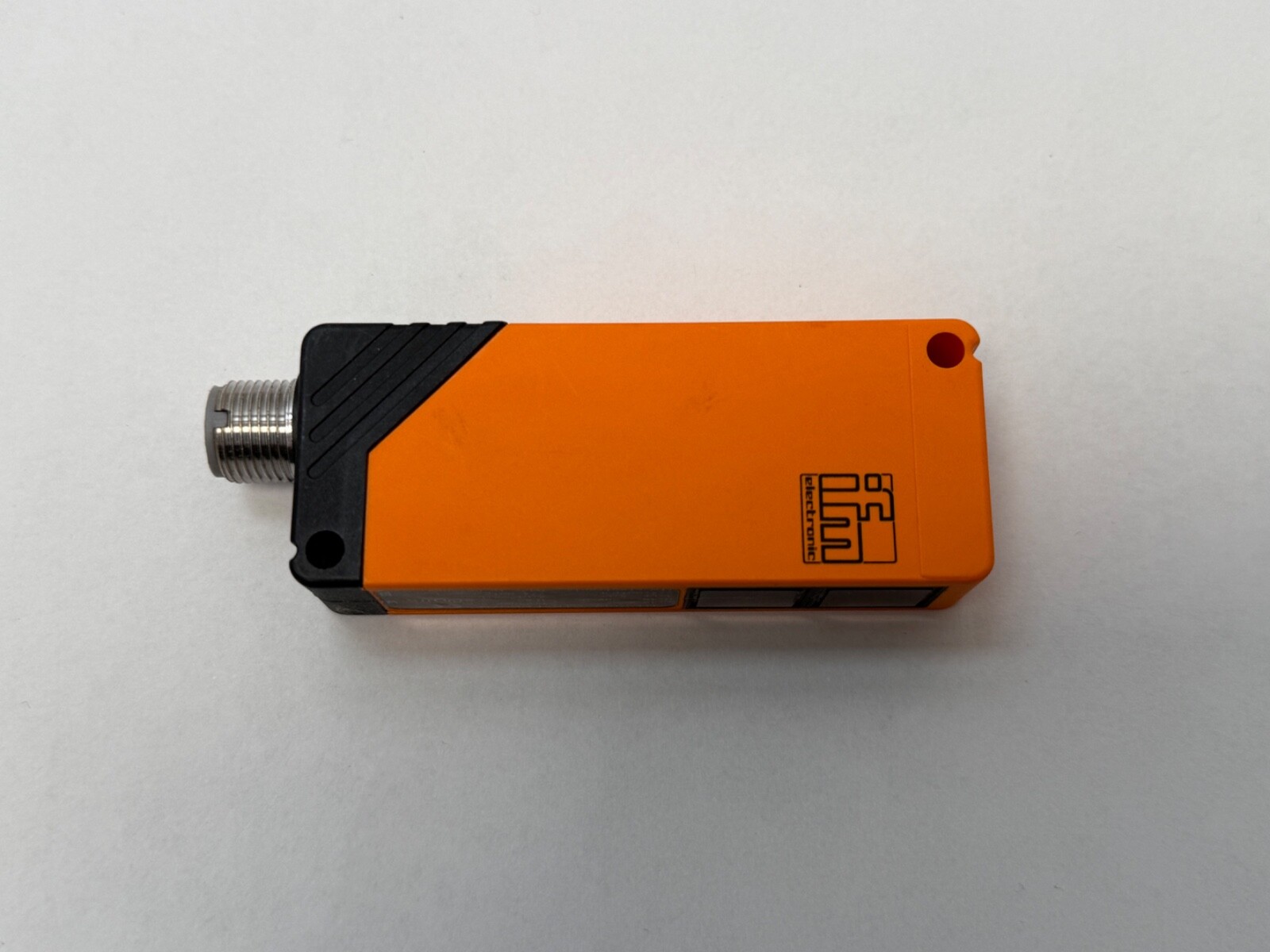

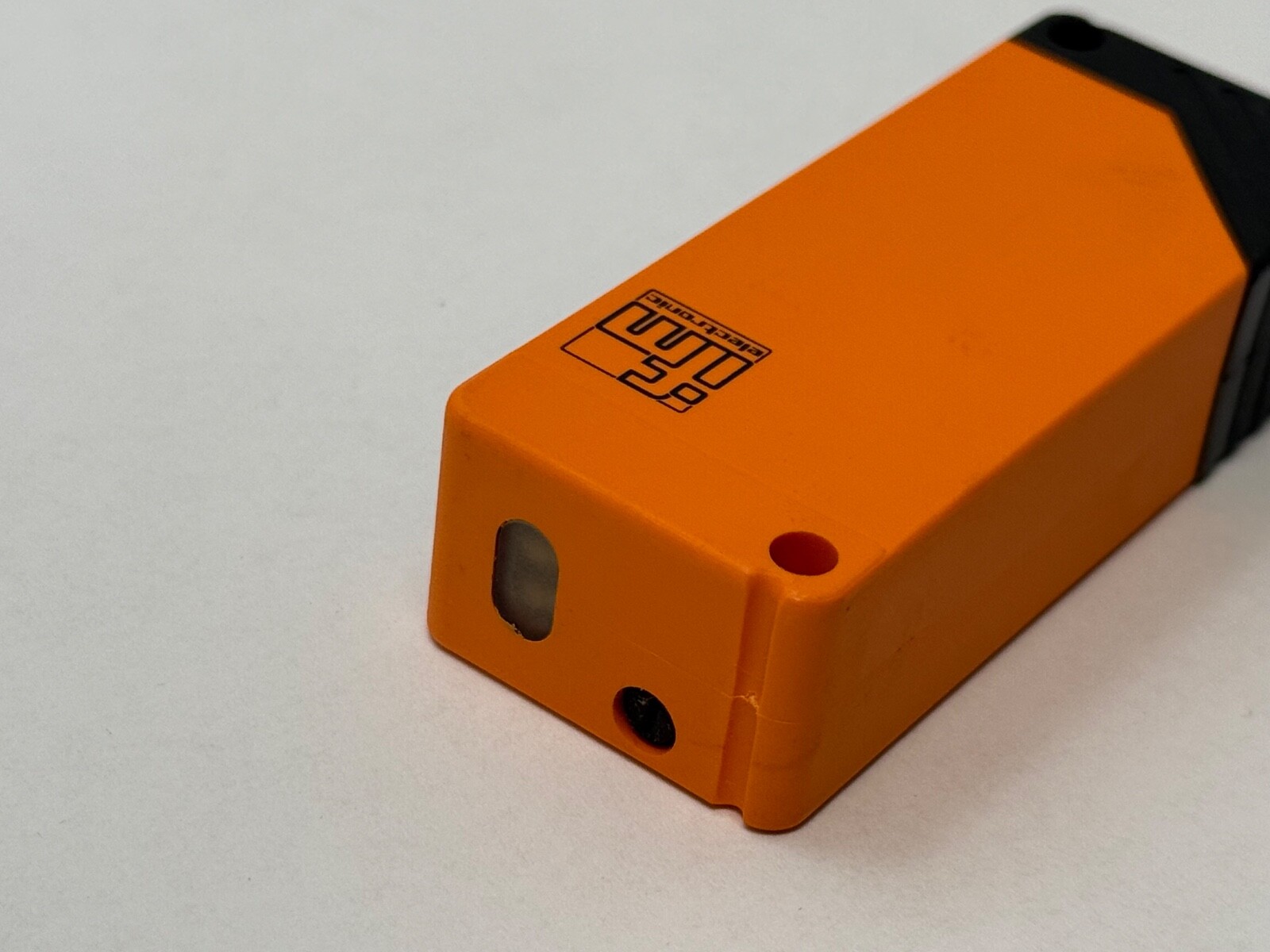

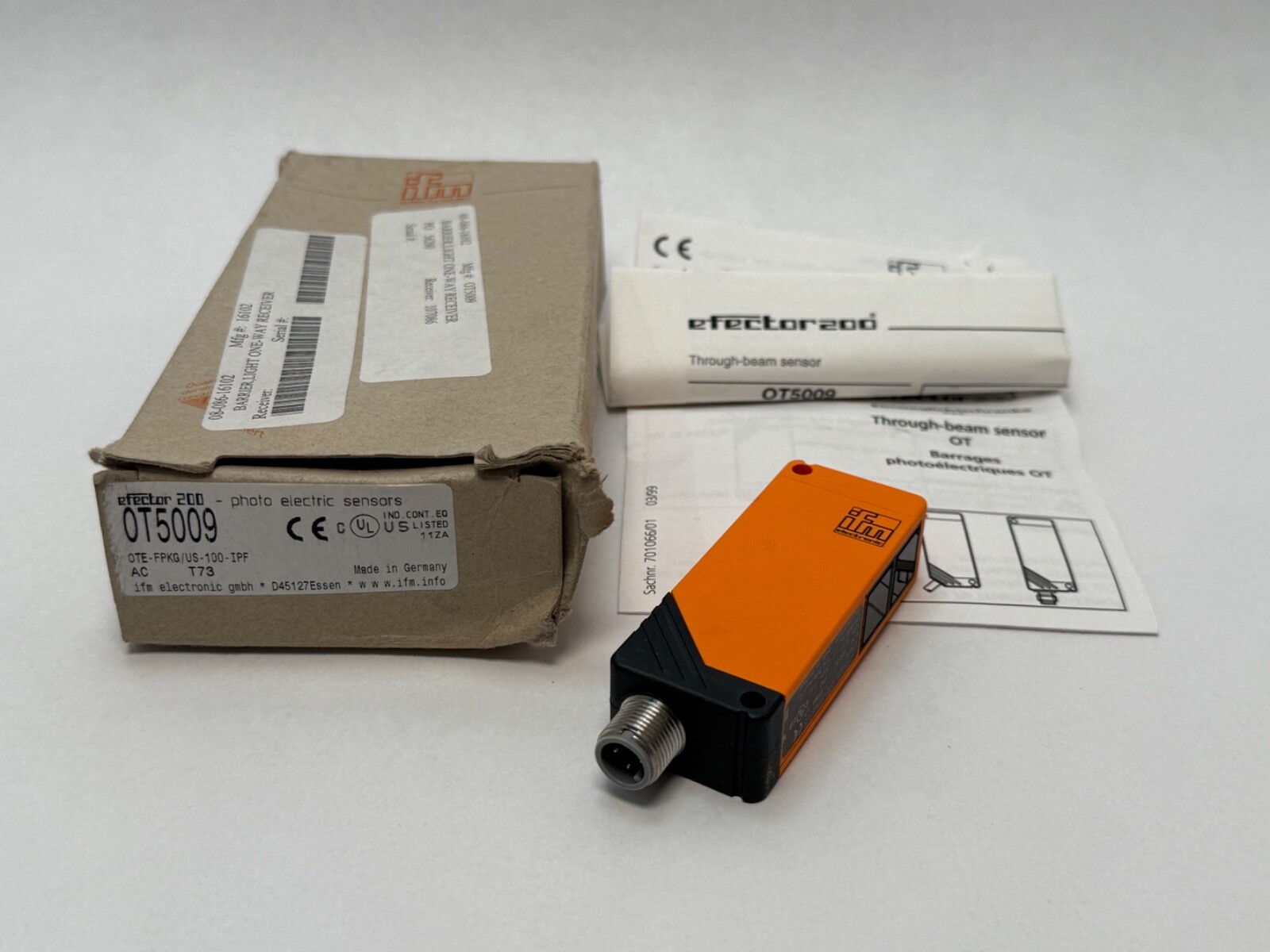

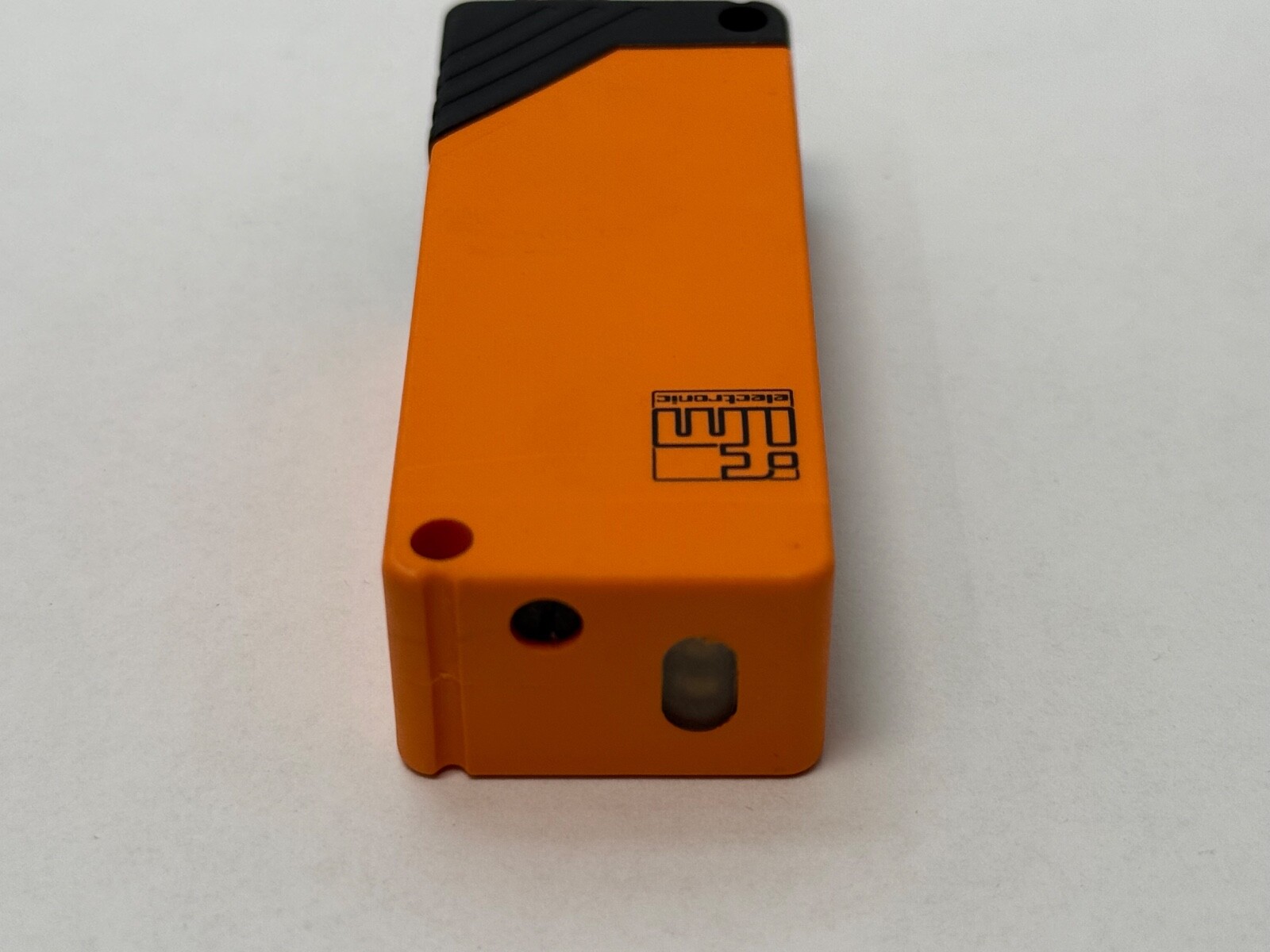

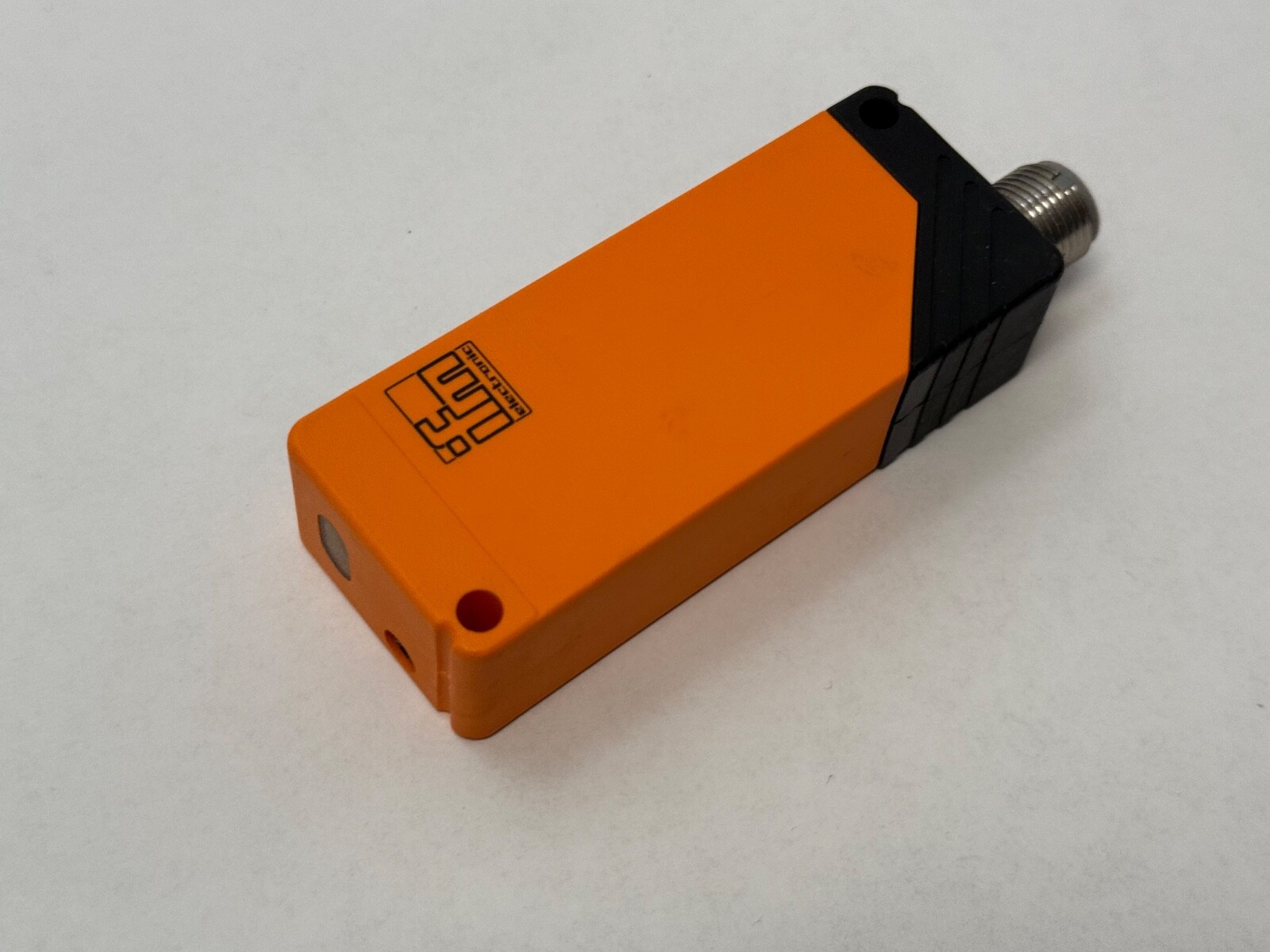

The ifm OT5009 is the receiver half of a through-beam photoelectric sensor pair, in a compact rectangular housing with side-sensing optics. It switches a PNP output when the infrared beam from a matching ifm OT-series transmitter is made or broken, with sensitivity set by potentiometer and a programmable light-on/dark-on mode. Unit Quantity: 1 Pc.

Decoding the designation:

OT5009 — ifm article number for this through-beam receiver.

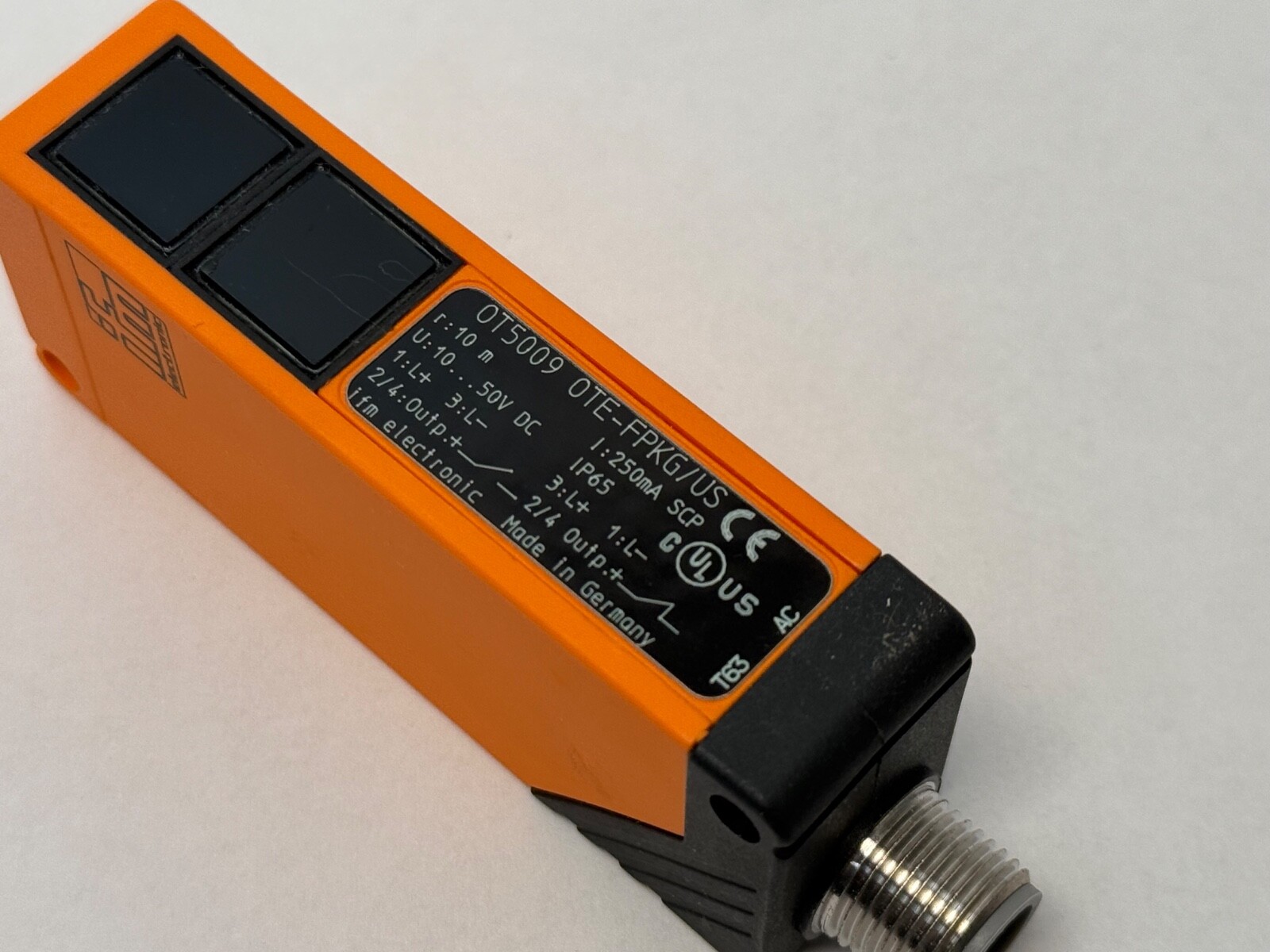

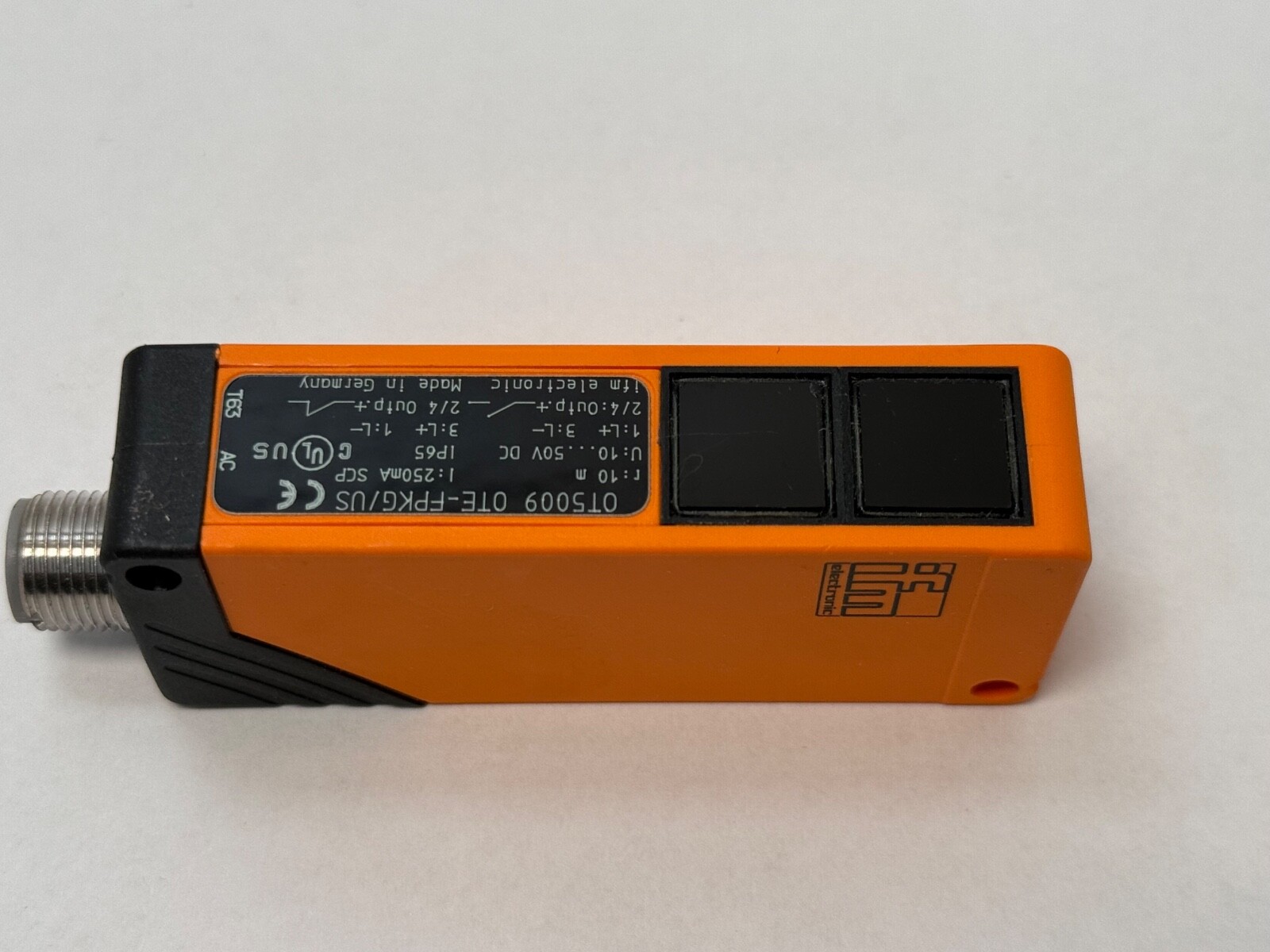

OTE-FPKG/US-100-IPF — ifm type code for the same article, printed on the housing and label.

Specifications:

Sensor Type: Through-beam photoelectric sensor, receiver. Type of Light: Infrared, 880 nm. Range: up to 10 m, adjustable. Operating Voltage: 10 to 50 V DC. Current Consumption: 30 mA at 24 V. Output: PNP, light-on/dark-on programmable. Switching Output Current: 250 mA. Max. Voltage Drop: 2.5 V. Switching Frequency: 150 Hz. Short-Circuit Protection: yes, non-latching. Reverse Polarity Protection: yes. Overload Protection: yes. Protection Class: II. Ambient Temperature: -25 to 60 °C. Enclosure Rating: IP65. MTTF: 573 years. Displays: yellow LED switching status, green LED power. EMC: EN 60947-5-2, EN 55011 class B.

Dimensions and mounting:

Dimensions: 87 x 19 x 30 mm. Item Weight: 161 g. Housing Material: PBT. Lens Material: PMMA. Lens Alignment: side sensing. Electrical Connection: M12 connector, 4-pin, A-coded. Items Supplied: angle bracket E20461 and screwdriver.

Compatibility and replacement:

ifm article OT5009, type code OTE-FPKG/US-100-IPF. Operates with an ifm OT-series through-beam transmitter of the same family. Also listed as 0T5009 and OTE-FPKG/US.

CAD model and data sheet: available from ifm (ifm.com).

Frequently asked questions:

Is the ifm OT5009 a transmitter or a receiver?

The OT5009 is the receiver of a through-beam pair.

What voltage and output does the OT5009 use?

10 to 50 V DC supply with a 250 mA PNP switching output.

What is the range of the OT5009?

Up to 10 m, adjustable by potentiometer.
