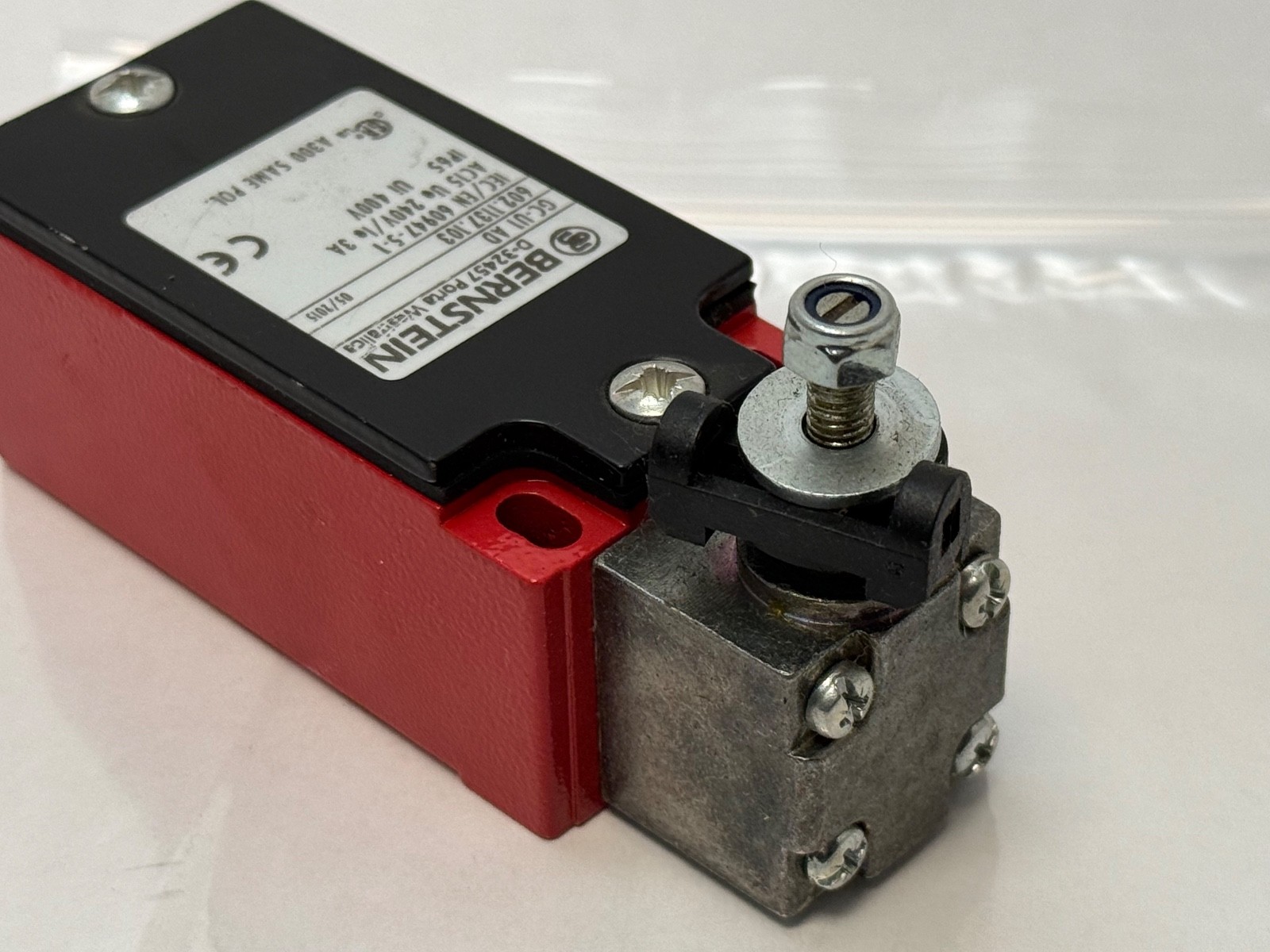

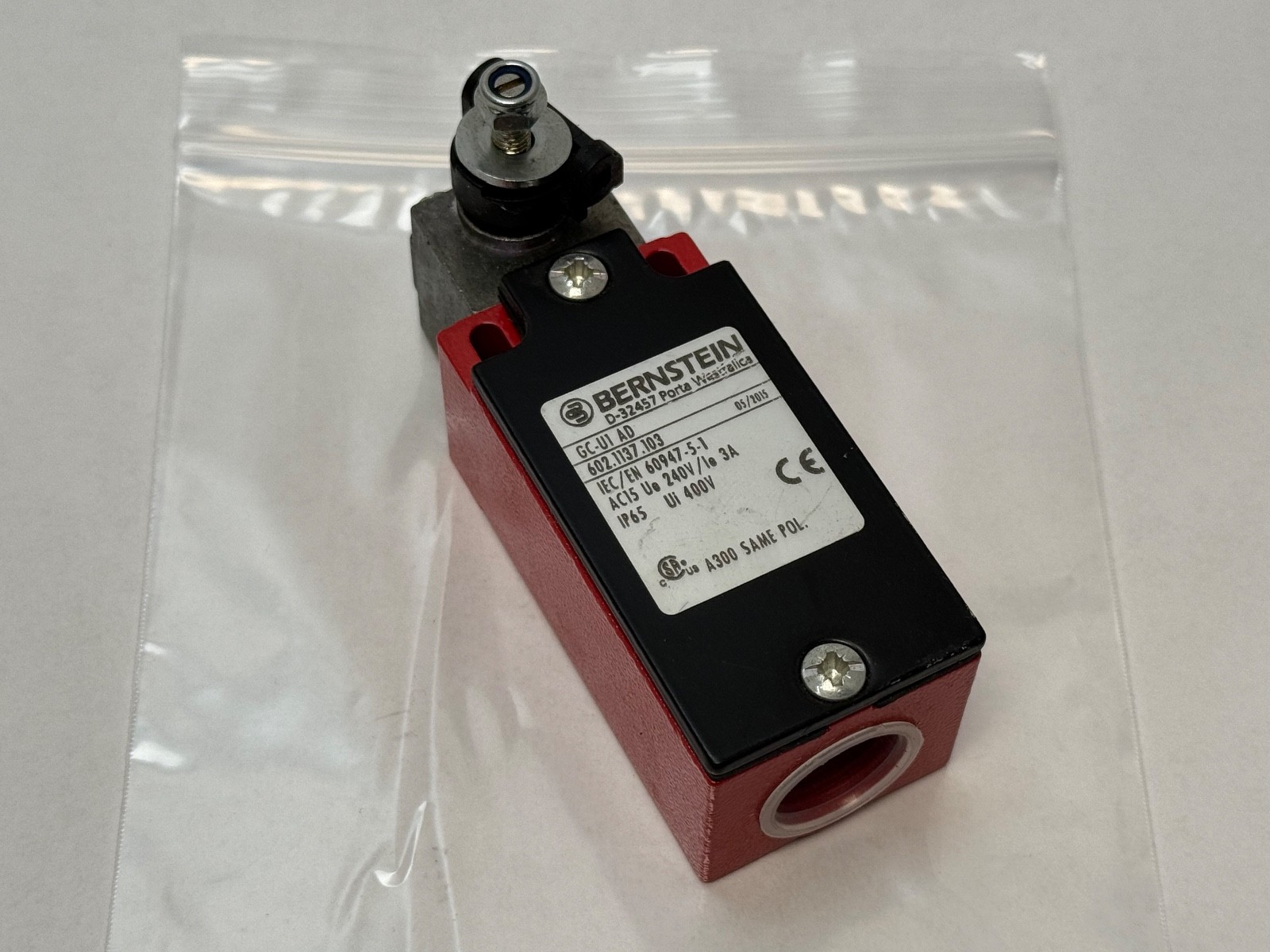

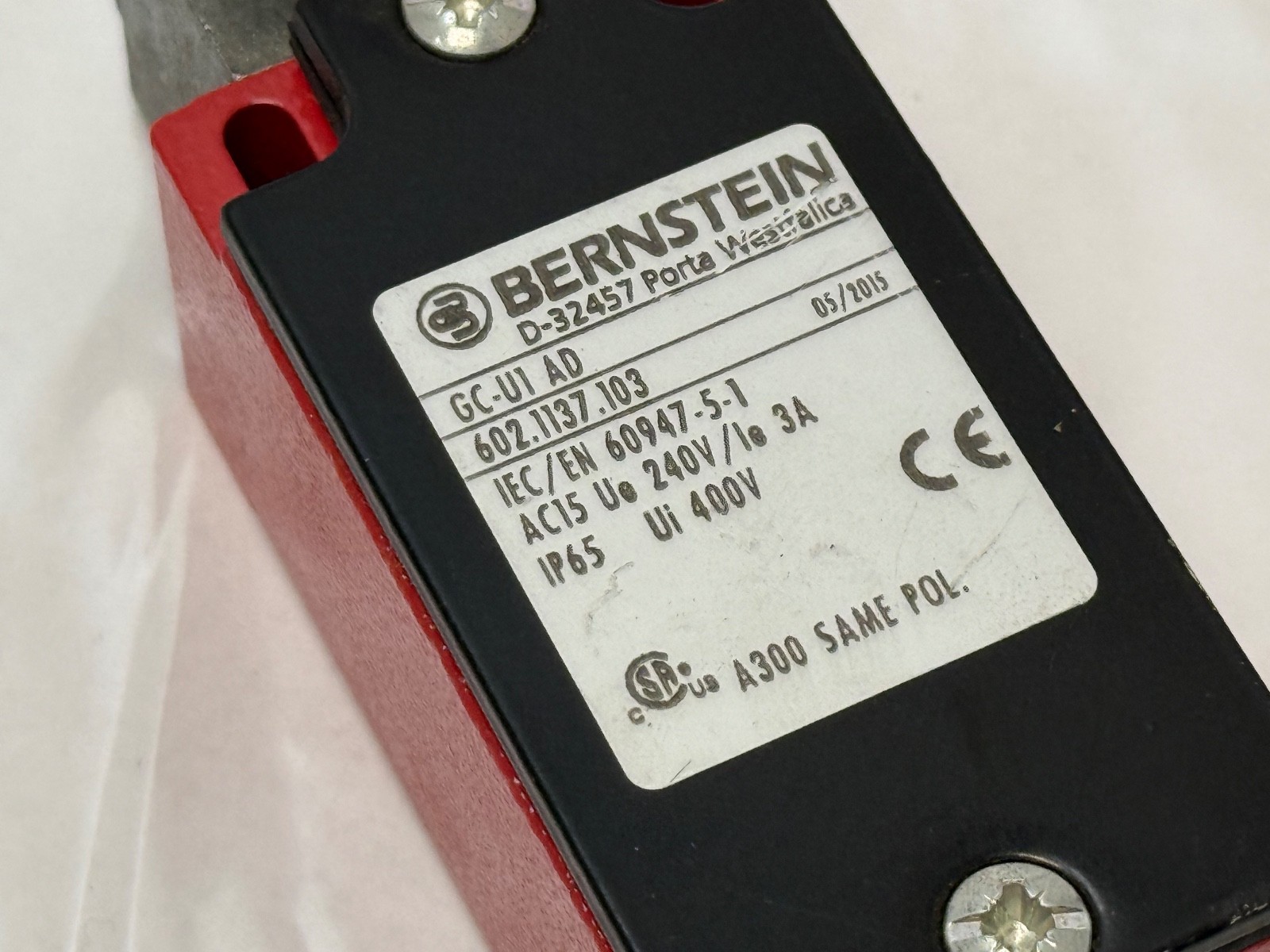

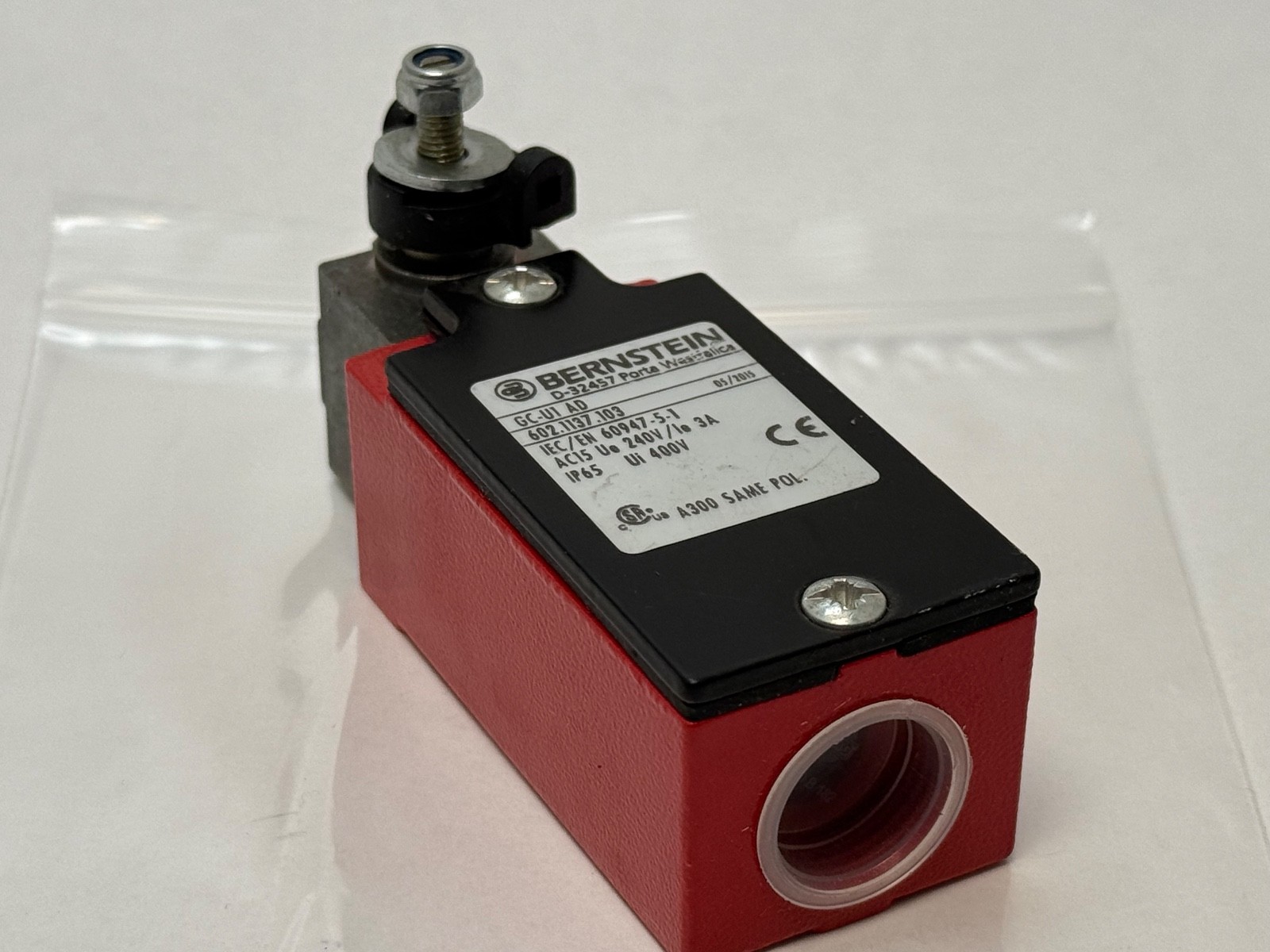

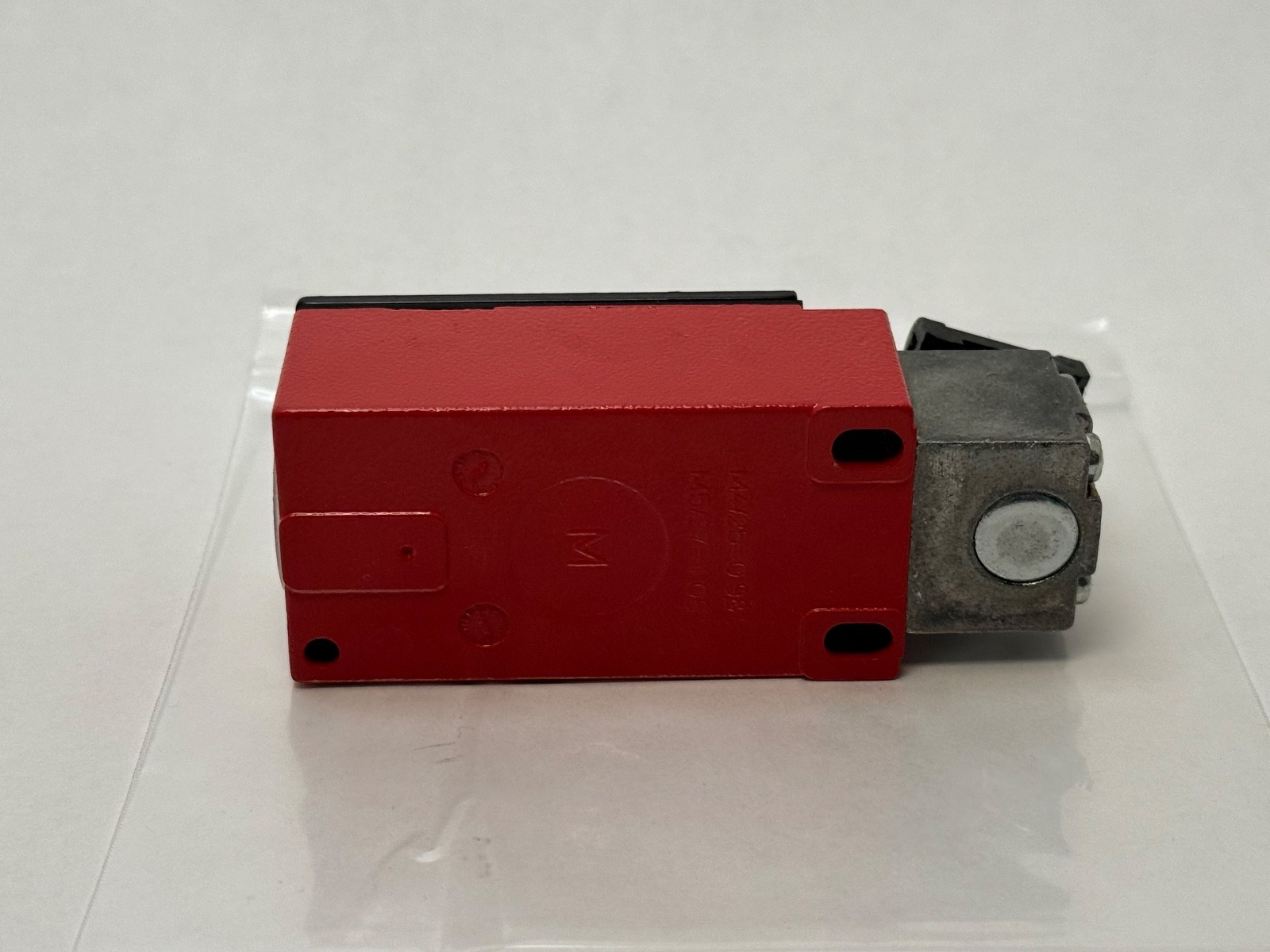

Bernstein602.1137.103Metal-Bodied Limit Switch, Steel Rod Actuator on Repositionable Turret Head, 1 NC + 1 NO Slow-Action, Positively Opening NC, IP65

Condition: New – Open box
Condition Note: Made In Germany, New Old Stock

Availability:

2 in stock

Bernstein GC-U1 AD rod-actuator limit switch, 1 NC plus 1 NO slow-action contacts, IP65 die-cast aluminium body, positively opening NC contact, M20 cable entry.

Same day shipment

List Price

$49.99

2 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

2 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandBernstein
MPN602.1137.103
ModelGC-U1 AD

Technical Specifications

Base NumberGC-U1 AD
Industry Termslimit switch, position switch, rod actuator limit switch, metal bodied limit switch, guard monitoring switch, end of travel switch, slow-action limit switch, positively opening contact switch
Common Misspellings602 1137 1O3, 6021137IO3, GC U1 AD, GC-UI AD, Bernstien 602.1137.103, Bernstein GCU1-AD
Application TypesMachine guarding and guard monitoring, end-of-travel limits, position monitoring, safety-related position detection, conveyor and materials handling
Connector Style4 x M3.5 screw terminals to DIN EN 50013; 1 x M20 x 1.5 cable entry; 0.5–1.5 mm² solid or ferruled stranded
Mpn Variants602.1137.103, 6021137103, 602-1137-103, 602 1137 103, GC-U1 AD, GCU1AD, GC-U1AD
Manufacturer StatusCurrent Bernstein catalogue range
Compatible With ReplacesBernstein GC series 2 x M4 mounting. Related models, NOT equivalents: GC-SU1 AD 6021187125 (snap-action version of this switch), GC-U1 AV 6021136104, GC-U1 AH 602.1135.102, GC-U1 AF 602.1139.106, GC-U1 FF 602.1140.476 (same slow-action body, different actuators), GC-U1Z and GC-A2Z / GC-E2 (different contact arrangements).
Part Number602.1137.103
Mounting Type2 x M4 screw mounting, installation position operator definable
Contact Configuration1 NC + 1 NO, type Zb galvanically isolated changeover, slow-action; NC positively opening
Seller Part Number: AF2B4#BEAYPE

Product Description

What this part is:

Bernstein GC-U1 AD, article number 602.1137.103 (6021137103), a metal-bodied limit switch with a rod actuator for machine guarding, end-of-travel limits and position monitoring. Enclosure: die-cast aluminium. Cover: sheet aluminium. Actuator: turret head (Zn die-cast) with AD rod (steel). Contact Configuration: 1 NC + 1 NO, type Zb galvanically isolated changeover, slow-action. NC Contact: positively opening. Protection Rating: IP65 to IEC/EN 60529. Series: Bernstein GC metal-enclosed limit switches. Unit Quantity: 1 Pc.

Decoding the designation:

GC — Bernstein’s metal-enclosed limit switch series, die-cast aluminium body.

U1 — slow-action contact block with one NC and one NO contact.

AD — rod actuator on a turret head, Zn die-cast head with a steel rod.

602.1137.103 — Bernstein article number, written 6021137103 in Bernstein’s PIM system.

Specifications:

Contact Configuration: 1 NC + 1 NO, type Zb. Switching Action: Slow-action. NC Contact: Positively opening. Protection Rating: IP65 to IEC/EN 60529. Mechanical Life: 10 x 10^6 operating cycles. Switching Frequency: up to 100 per minute. Ambient Air Temperature: −30 °C to +80 °C. Enclosure Material: Die-cast aluminium. Weight: approximately 0.22 kg.

Dimensions and mounting:

Mounting: 2 x M4. Actuator Head: repositionable by 4 x 90°. Installation Position: operator definable. Connection: 4 screw terminals (M3.5). Terminal Designation: to DIN EN 50013. Conductor Cross-Sections: solid 0.5 to 1.5 mm², or stranded with ferrules 0.5 to 1.5 mm². Cable Entry: 1 x M20 x 1.5.

Compatibility and replacement:

Also written GC-U1 AD, GCU1AD, 602-1137-103. Related Bernstein GC models: GC-SU1 AD (6021187125) is the snap-action version of this switch. GC-U1 AV (6021136104), GC-U1 AH (602.1135.102), GC-U1 AF (602.1139.106) and GC-U1 FF (602.1140.476) share the slow-action body with different actuators.

Frequently asked questions:

What contacts does the Bernstein GC-U1 AD have?

One normally closed and one normally open contact, type Zb galvanically isolated changeover, slow-action. The NC contact is positively opening.

What is the protection rating of the Bernstein 602.1137.103?

IP65 to IEC/EN 60529.

What does the AD in GC-U1 AD mean?

A rod actuator on a Zn die-cast turret head with a steel rod.
