APSPYT0450W027450 W Multi-Output Switching Power Supply — 5 V 50 A, Two 12 V 10 A Rails, 24 V 10 A, Chassis Mount

Product Description

What this part is

A 450 W multi-output switching power supply from the APS PYT series — a chassis-mount unit built to supply the whole low-voltage side of an industrial control cabinet from a single AC feed. It is a bulk supply for a system rather than a point-of-load DIN-rail brick.

Decoding the order code

PYT: the APS multi-output switching series.

0450W: 450 watts total output capability.

027: the rail configuration code. Within the PYT0450W family the suffix selects which output voltages and currents the unit provides. Envevo’s obsolescence cross-reference tables list PYT0450W027 against the Advance Powerflex P350/027, and PYT0450W071 as a separate configuration.

Trailing A: PYT0450W027A is the variant in which the two 12 V rails are replaced by 15 V rails. Same wattage, same envelope, different voltages, so the suffix on the nameplate is the match.

Published output configuration

Rail 1: 5 V DC at 50 A.

Rail 2: 12 V DC at 10 A.

Rail 3: 12 V DC at 10 A, a second independent 12 V rail.

Rail 4: 24 V DC at 10 A.

Total: 450 W class.

Construction: switching mode, chassis mount.

Why this rail set is hard to replace

The 5 V at 50 A is a very large logic rail — TTL-era backplane and card-cage current, the kind of demand a rack of discrete logic or early microprocessor boards makes. The two separate 12 V rails at 10 A each indicate a system needing independent or opposite-polarity 12 V sections: analogue signal conditioning, drive interface circuitry, or a ±12 V pair once the wiring is taken into account. The 24 V at 10 A is the field side — relays, solenoids, sensors, contactor coils.

The practical consequence: an equivalent installation is either the same configuration in one chassis, or three to four separate supplies with the harness, the fusing and the earth-referencing rebuilt to match. That rebuild is why original-configuration units retain value long after the manufacturer has gone.

Platform input rating

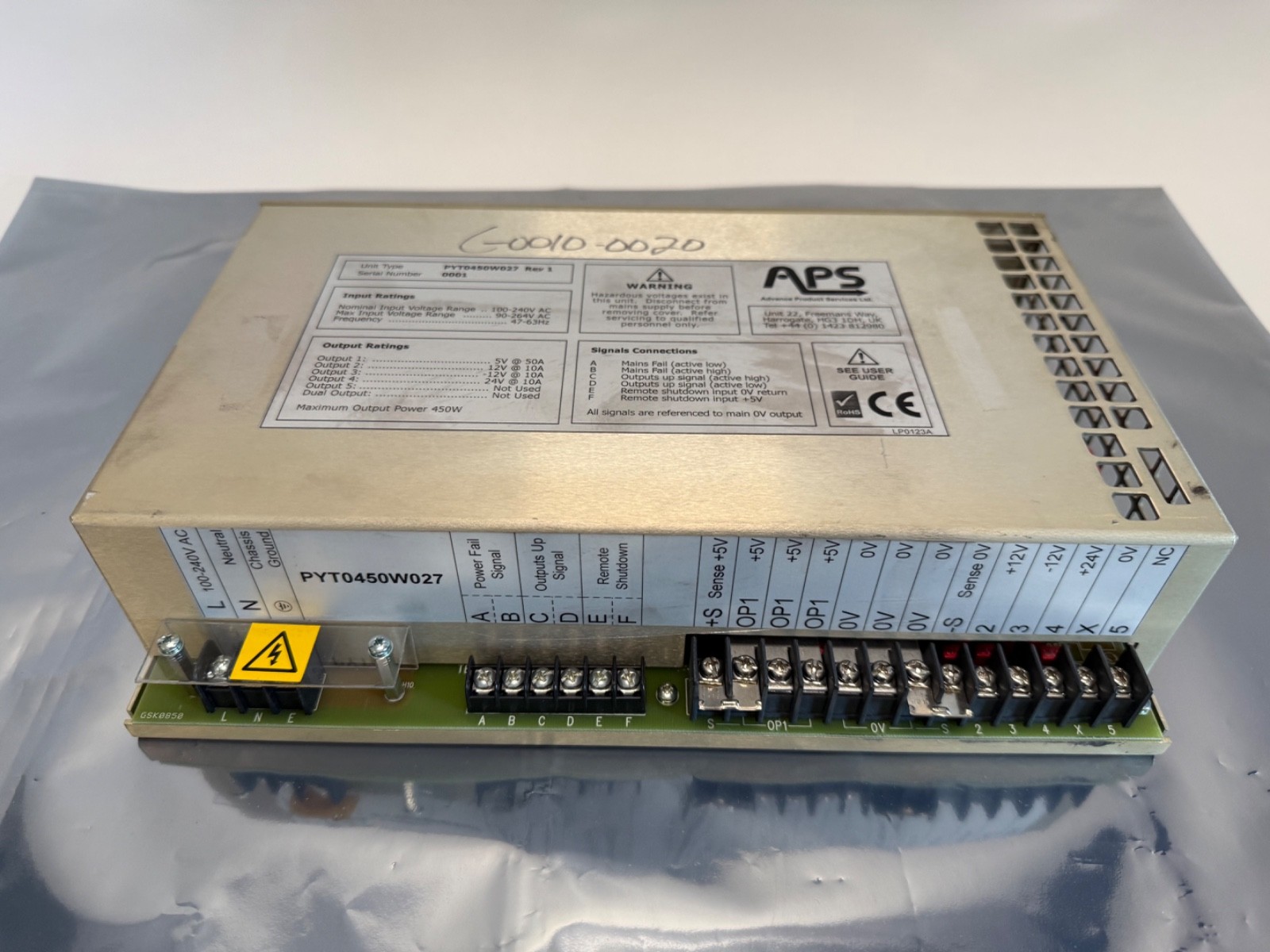

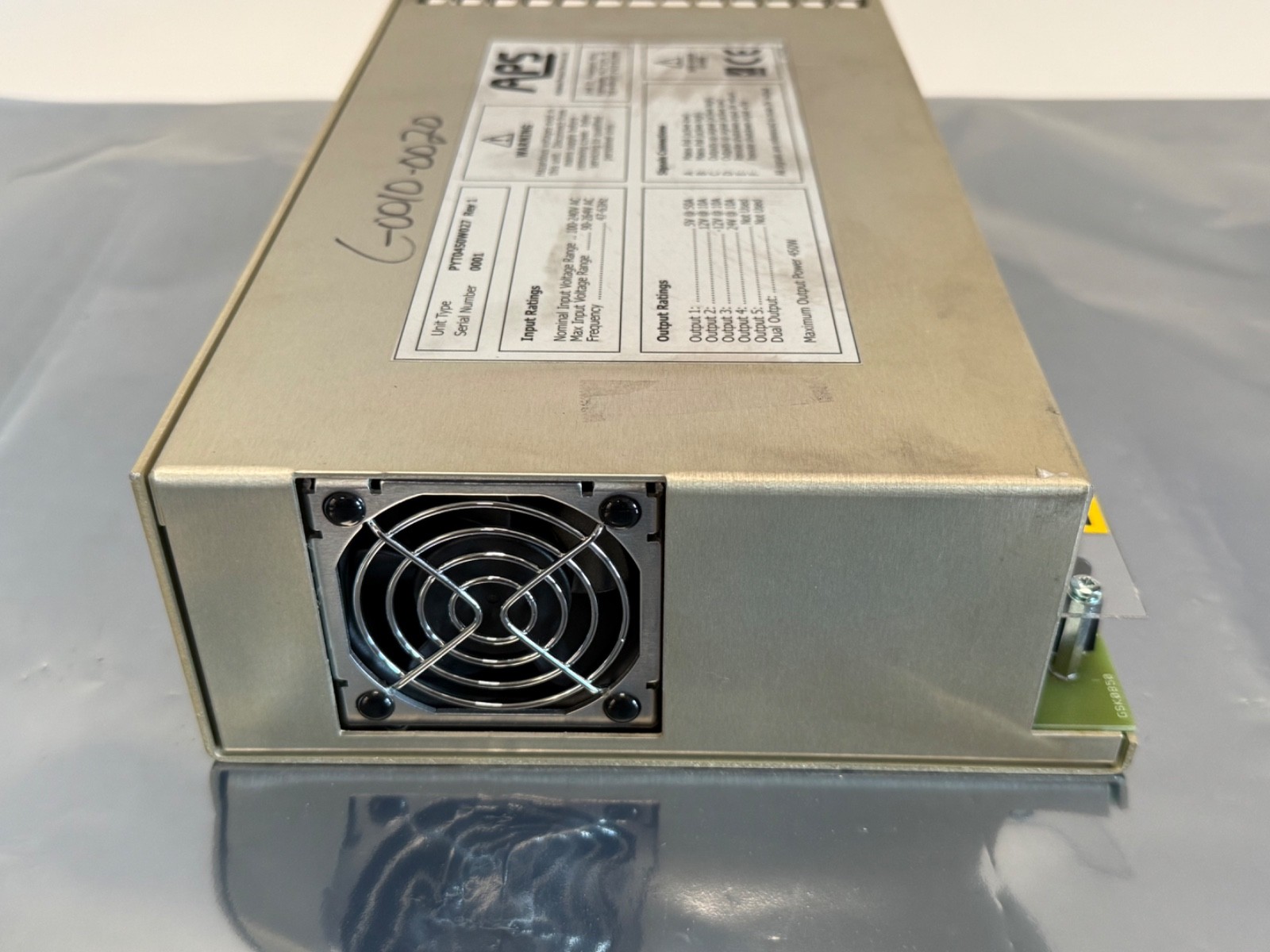

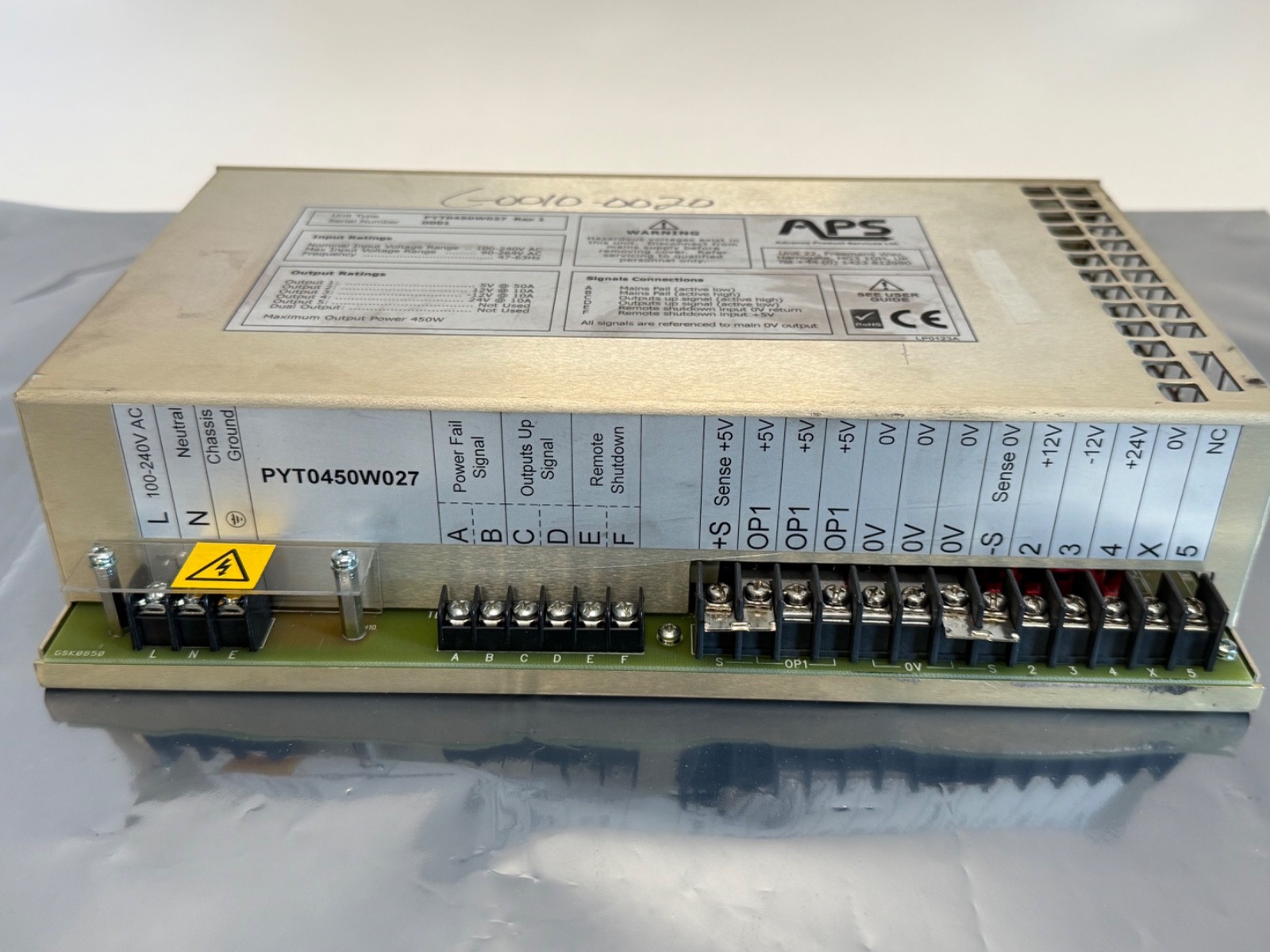

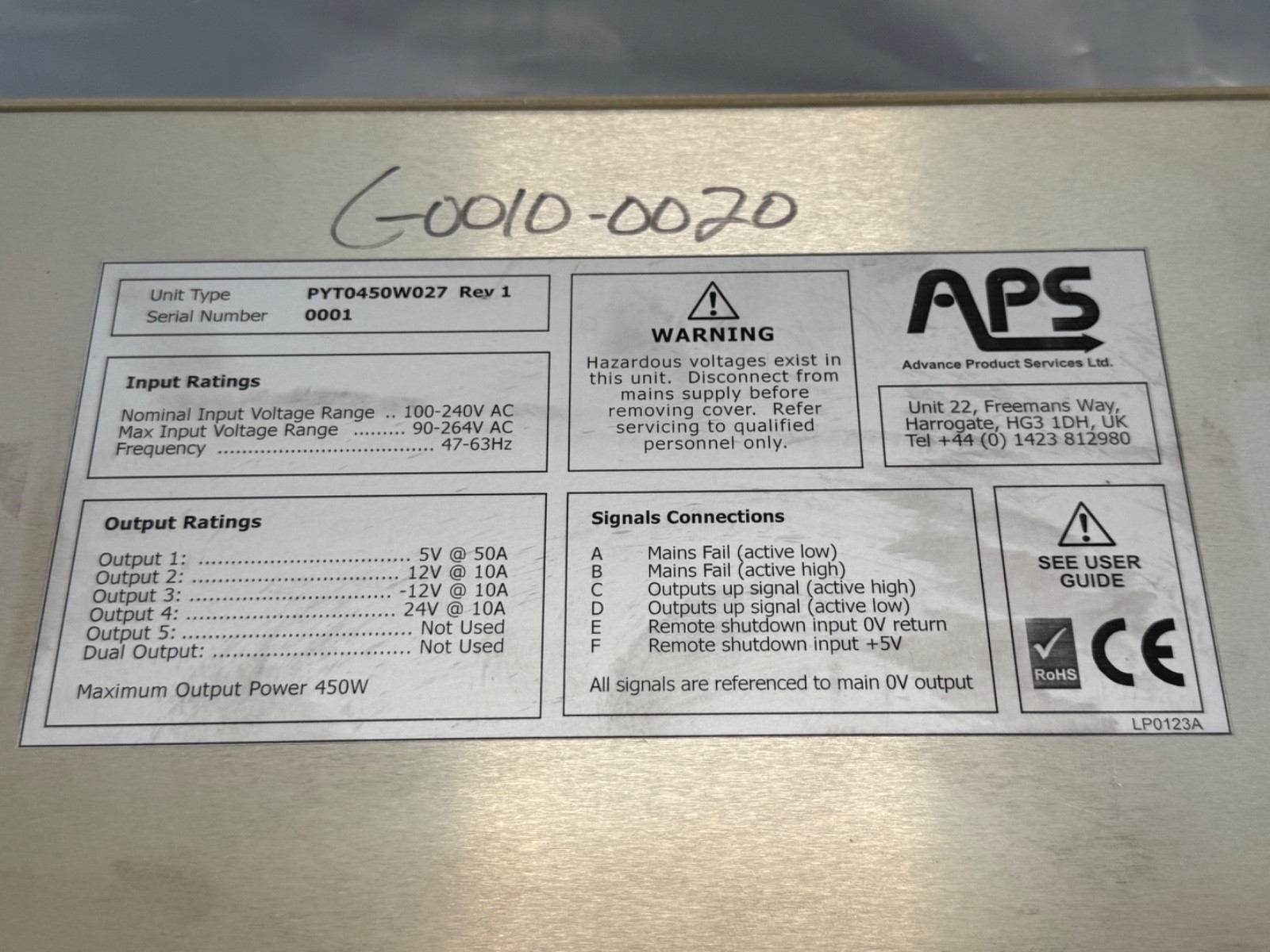

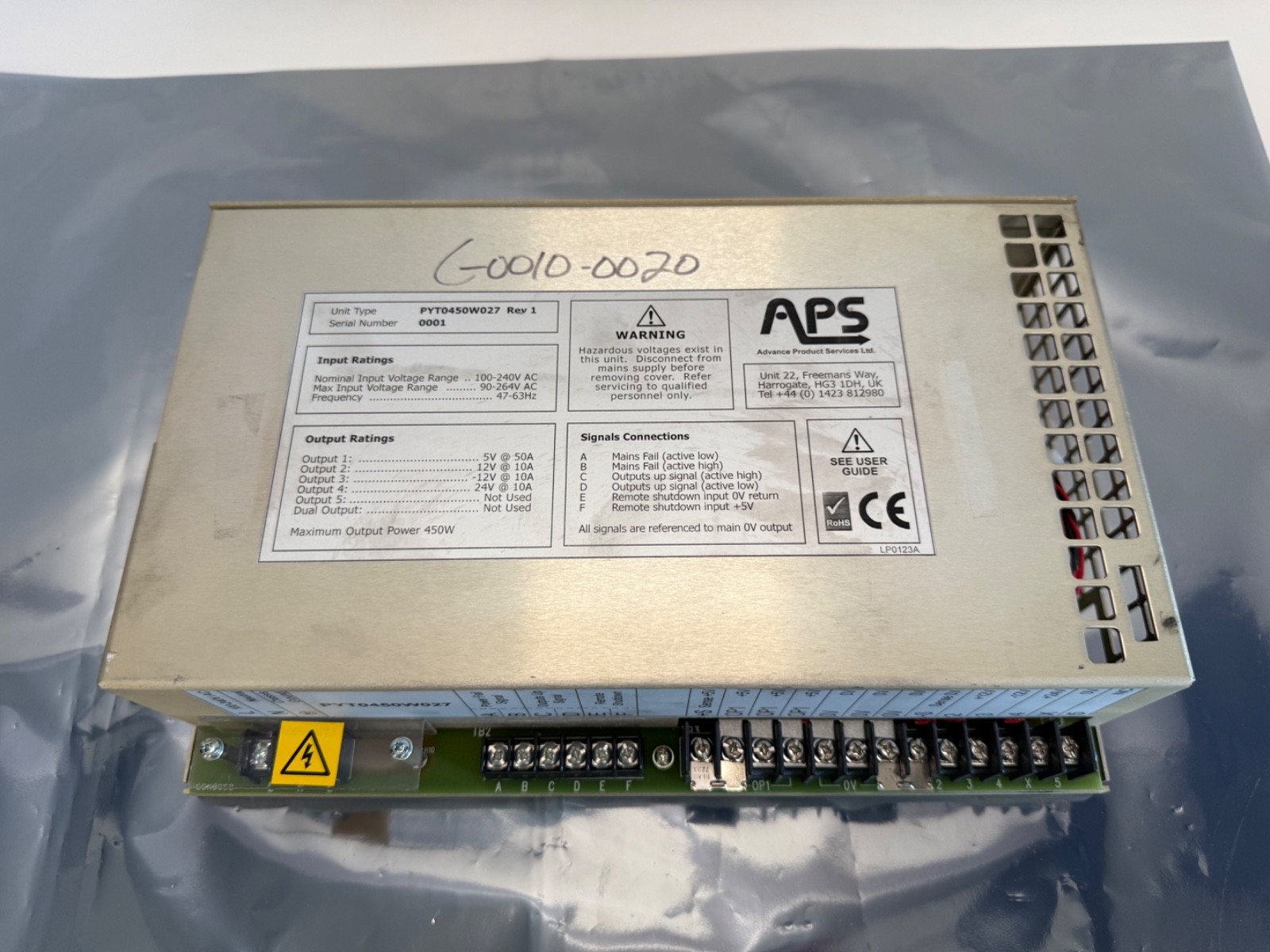

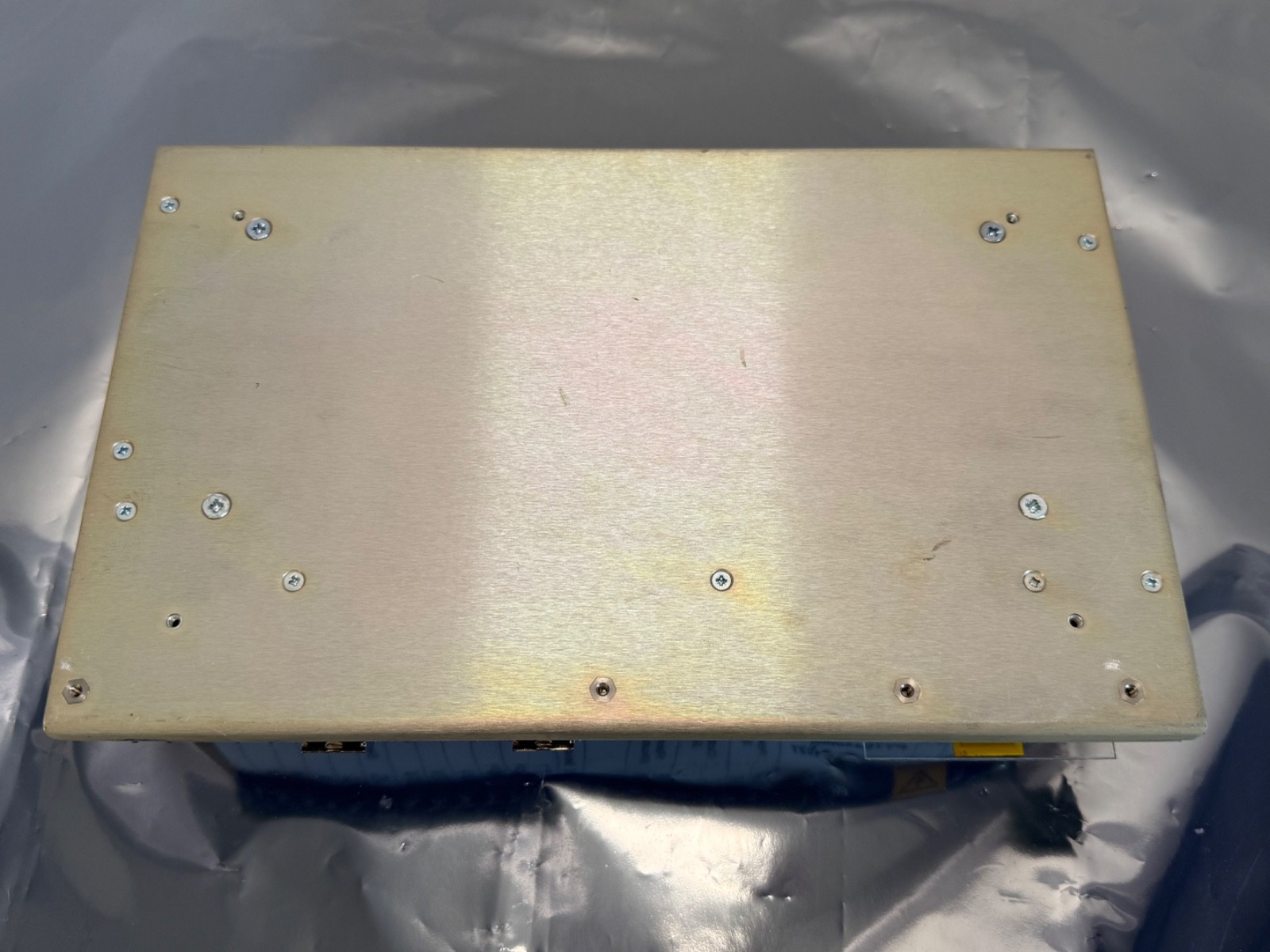

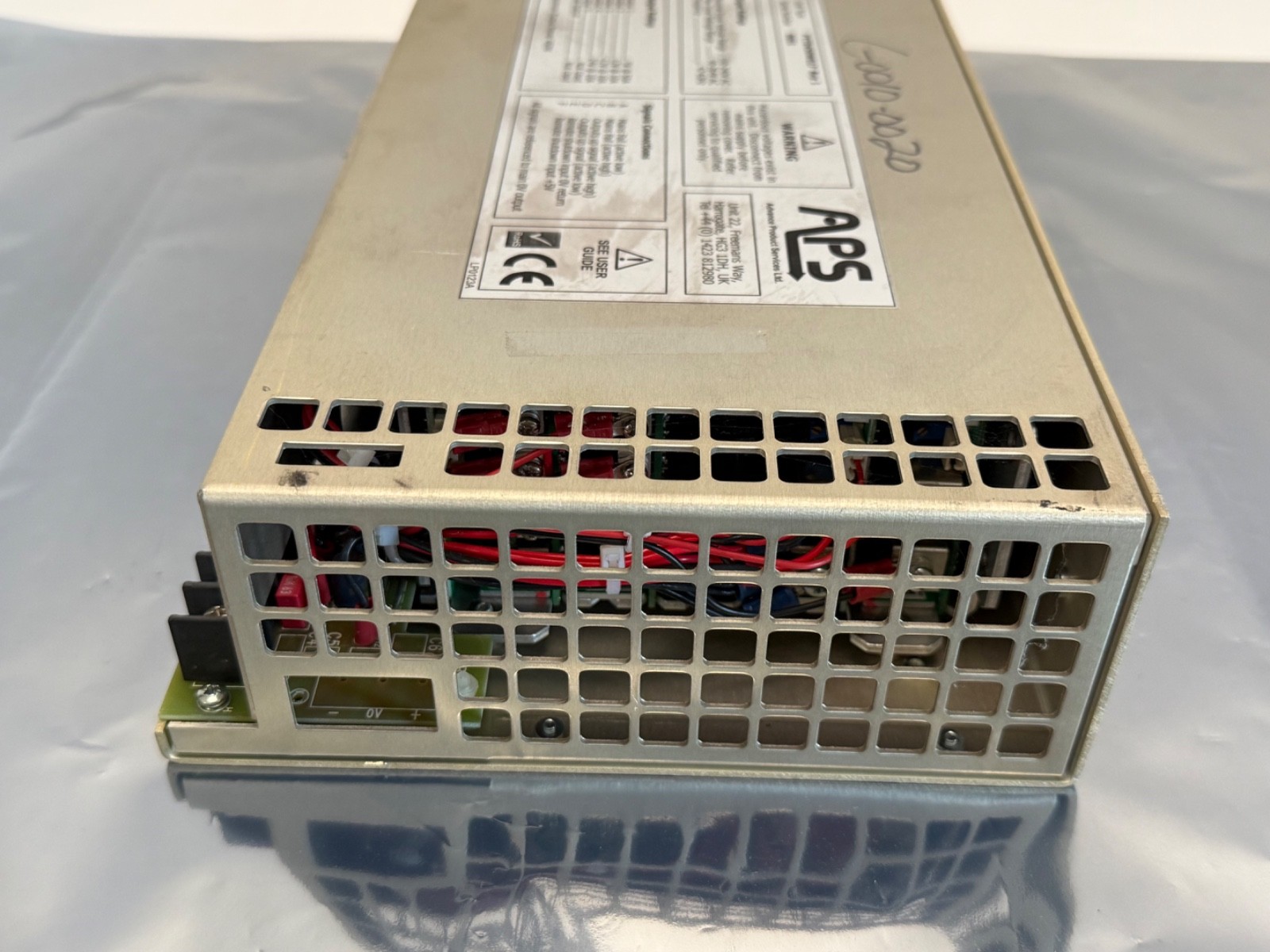

The sibling PYT0450W071, Revision 3, is published by a US surplus dealer as: nominal input 100–240 V AC, maximum input range 90–264 V AC, 47–63 Hz, with an approximate envelope of 12 in × 3 in × 7.5 in. A universal 90–264 V input is typical of the PYT platform. The nameplate on the unit carries its own rating, and the photographs on this listing show the unit.

Quantity and configuration

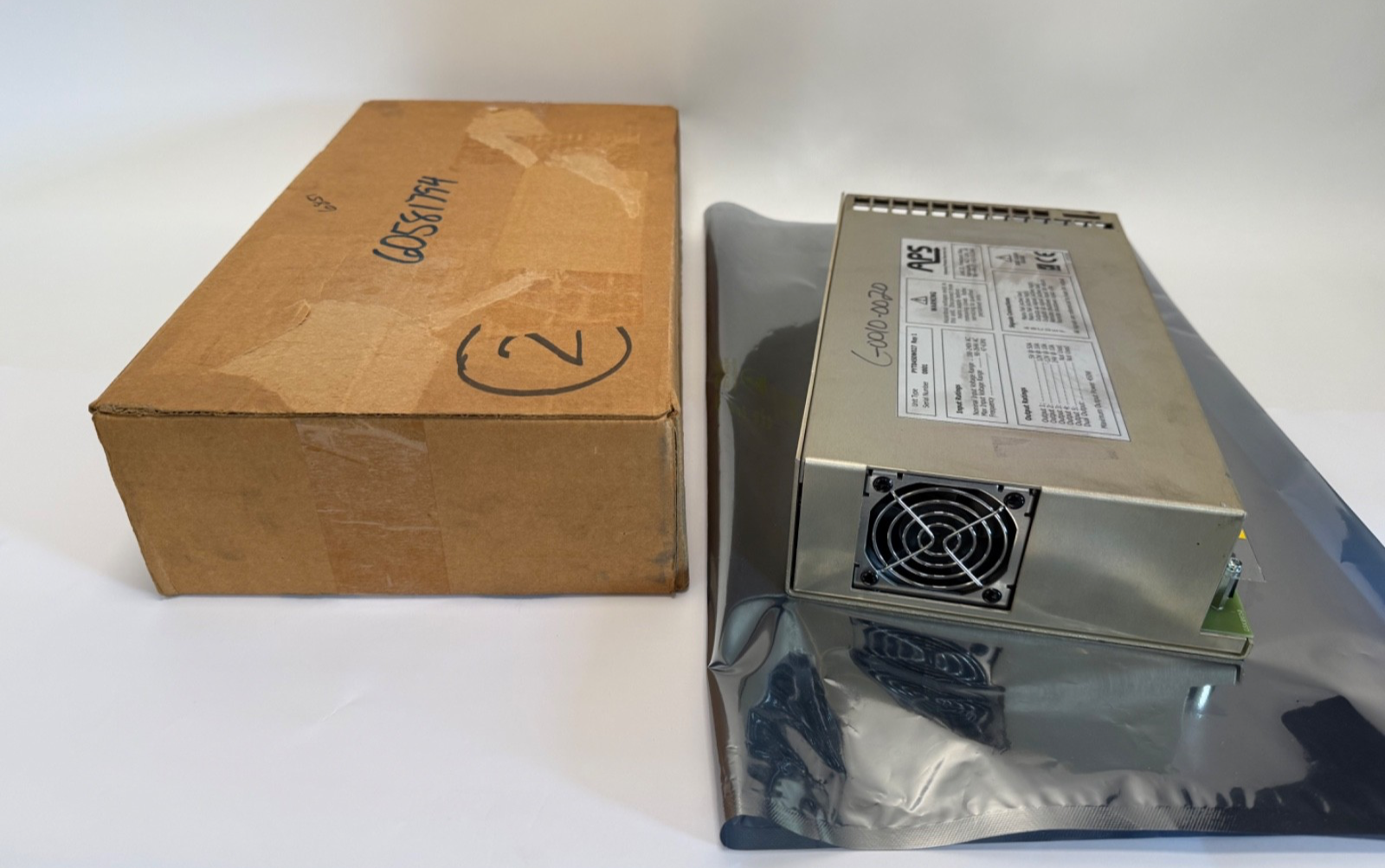

One power supply, supplied as the bare chassis unit. Mating output connectors and harness, the AC input cord or plug, the rack, shelf, top cover and fan tray, and the load-side fuses are each separate items. On a multi-output supply the harness is a load-bearing part of the installation: the current on a 50 A 5 V rail demands correctly sized conductors and proper terminations.

Interchange guidance

Search forms include PYT0450W027, PYT-0450W-027, PYT 0450W 027, PYT0450W-027 and APS PYT0450W027. Cross-references: Advance Powerflex P350/027, the unit this configuration replaces; PYT0450W027A with 15 V rails in place of the 12 V rails; PYT0450W071, a separate rail configuration; and the wider Advance Powerflex P350 and P500 families. Legacy and successor brand names buyers search on: Farnell Advance, Advance Power Systems, APS, ABB Advanced Product Services, and Envevo for hand-built obsolescence replacements.
