TelemecaniqueXAPM3503Push Button Enclosure — 3 Cut-Outs 22 mm, Zinc Alloy, Blue, 80 x 175 x 77 mm, IP65

Condition: New

Availability:

1 in stock

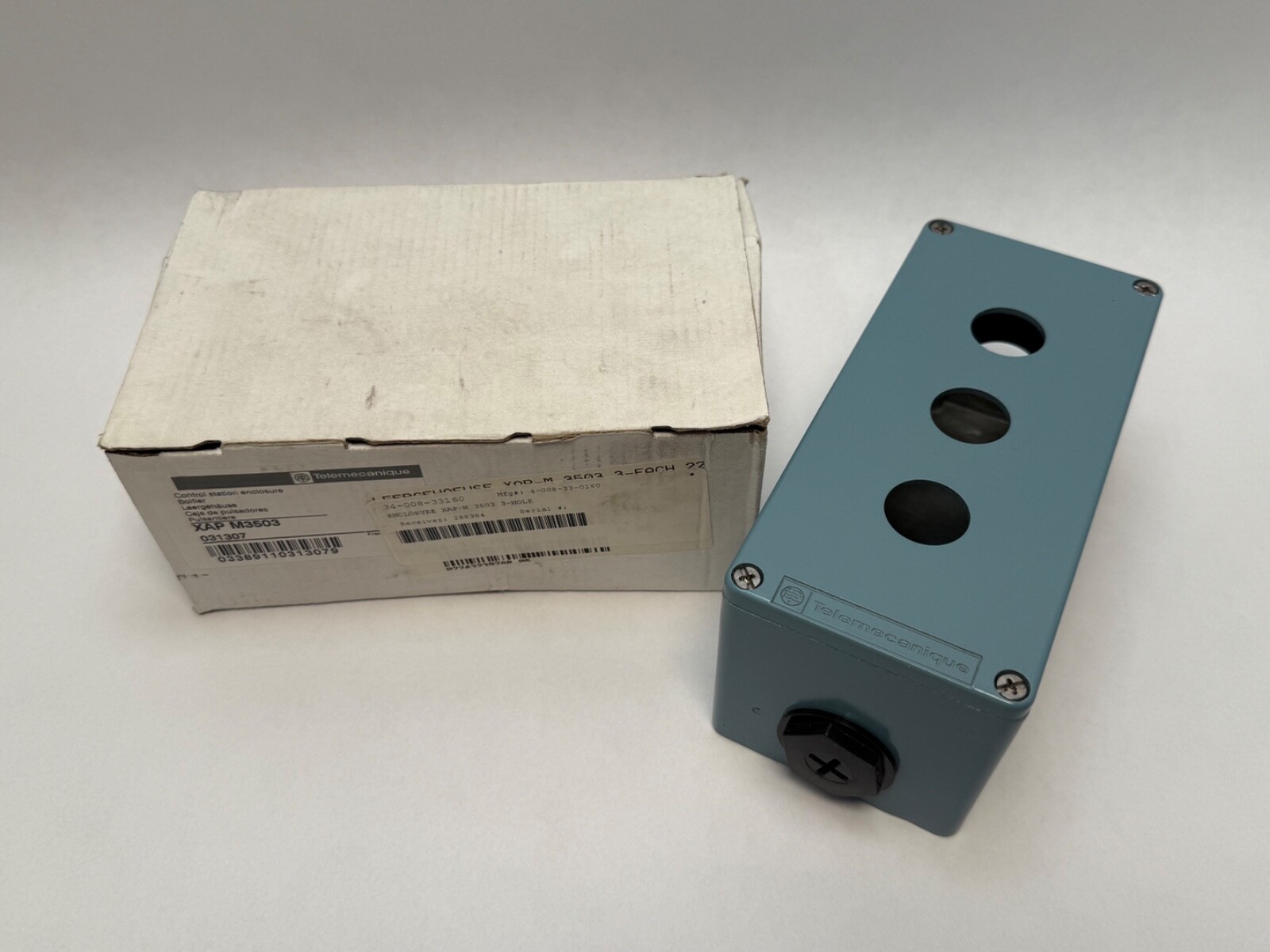

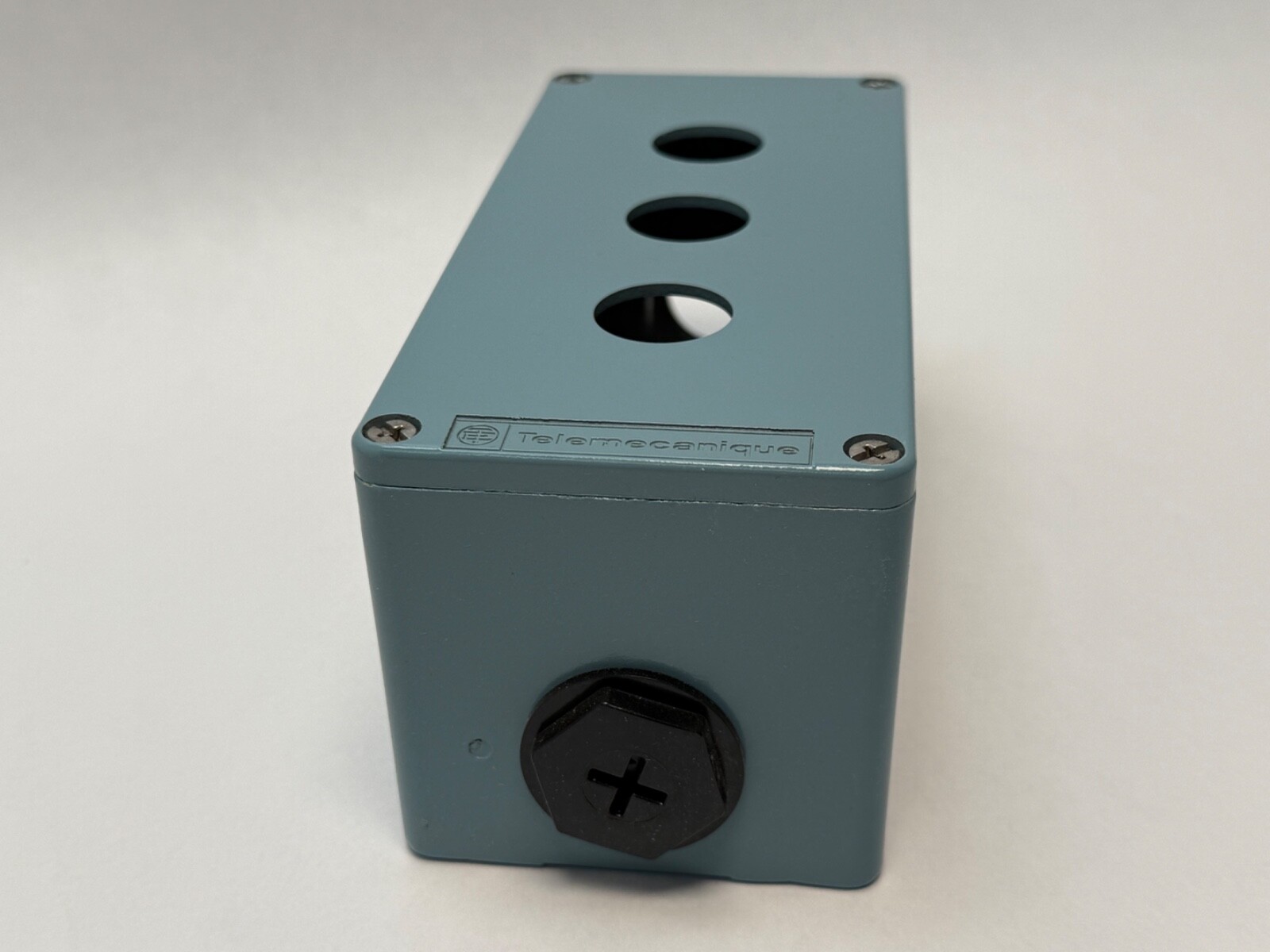

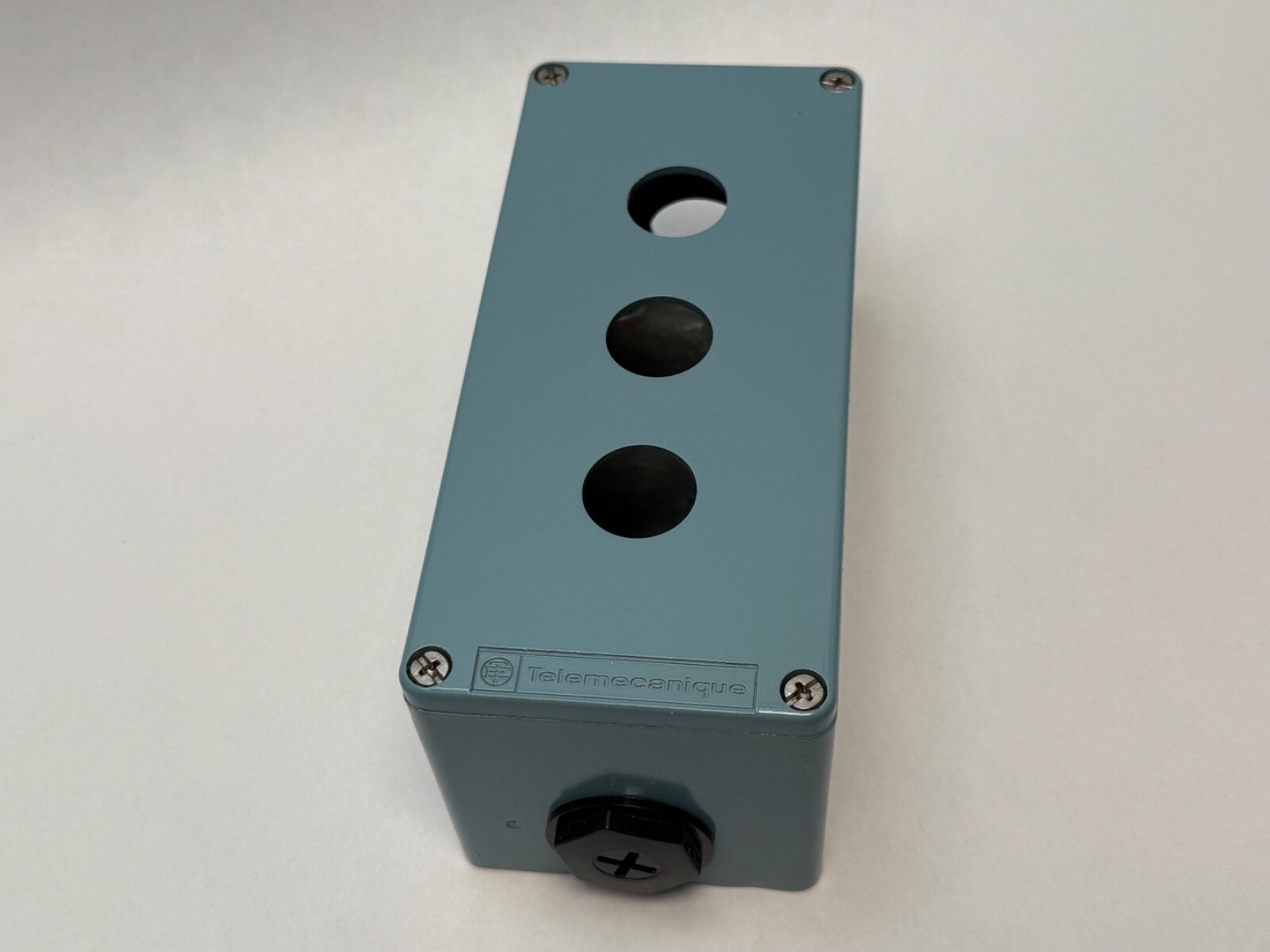

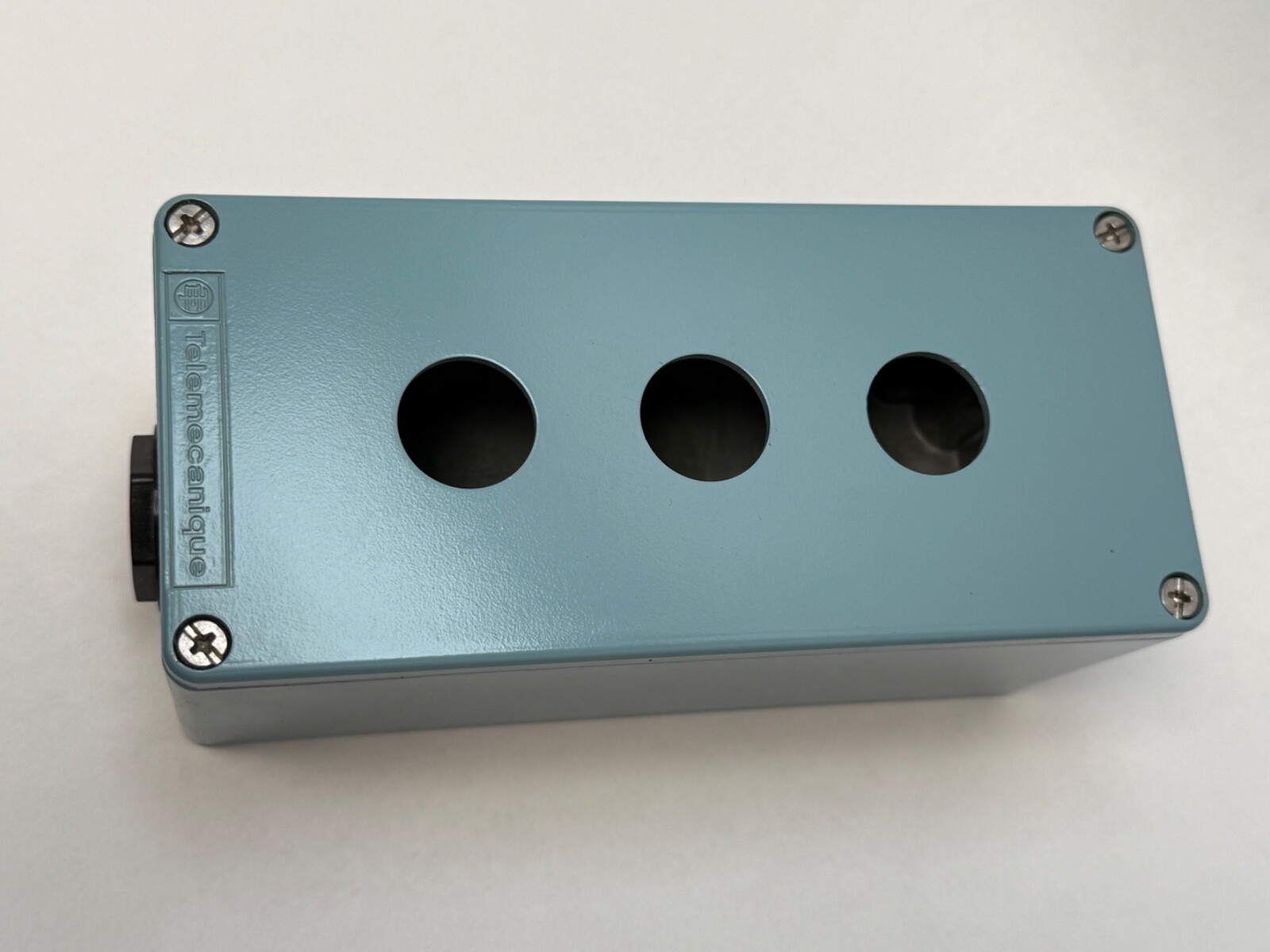

Telemecanique XAPM3503 empty control station, zinc alloy, blue, 3 cut-outs for 22 mm push buttons, 80 x 175 x 77 mm, IP65. Harmony XAP die-cast enclosure.

List Price

$41.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandTelemecanique
MPNXAPM3503
GTIN03389110313079
ModelXAP-M3503

Technical Specifications

TypeEnclosure
Item Width6
Item Height6
Item Length8
ColorBlue
Mpn VariantsXAPM3503, XAP-M3503, XAP M3503
Additional AttributesUsable depth: 74.5 mm; Fixing: 2 x 5.6 mm holes at 50 x 160 mm centres; Vertical cut-out spacing: 40 mm; Cable entry: 2 holes for 18 mm cable glands, one with blanking plug
MaterialZinc alloy
SeriesHarmony XAP
Ip RatingIP65
Industry Termspush button enclosure, empty control station, 22 mm pushbutton station, Harmony XAP enclosure, die-cast control box
Common MisspellingsTelemecanic XAPM3503, Telemechanique XAPM3503, Telemecanique XAP M3503, XAPM 3503
Application Typesmachine control stations; operator panels; motor start/stop stations; conveyor controls
Seller Part Number: BL4#BZFOH4

Product Description

What this part is:

Telemecanique XAPM3503 is a Harmony XAP die-cast empty control station: a blue zinc alloy push button enclosure with three cut-outs for 22 mm control and signalling units.

Decoding the designation:

XAPM — Harmony XAP die-cast metal (zinc alloy) control station.

3 — three cut-outs.

Specifications:

Product Type: Die-cast empty control station. Range: Harmony XAP. Material: Zinc alloy. Colour: Blue base and cover. Number Of Cut-Outs: 3. Cut-Out Diameter: 22 mm. Number Of Vertical Rows: 1. IP Rating: IP65 to IEC 60529. Operating Temperature: -40 to 70 °C. Cable Entry: 2 holes for 18 mm maximum clamping cable glands, one with blanking plug. GTIN: 3389110313079.

Dimensions and mounting:

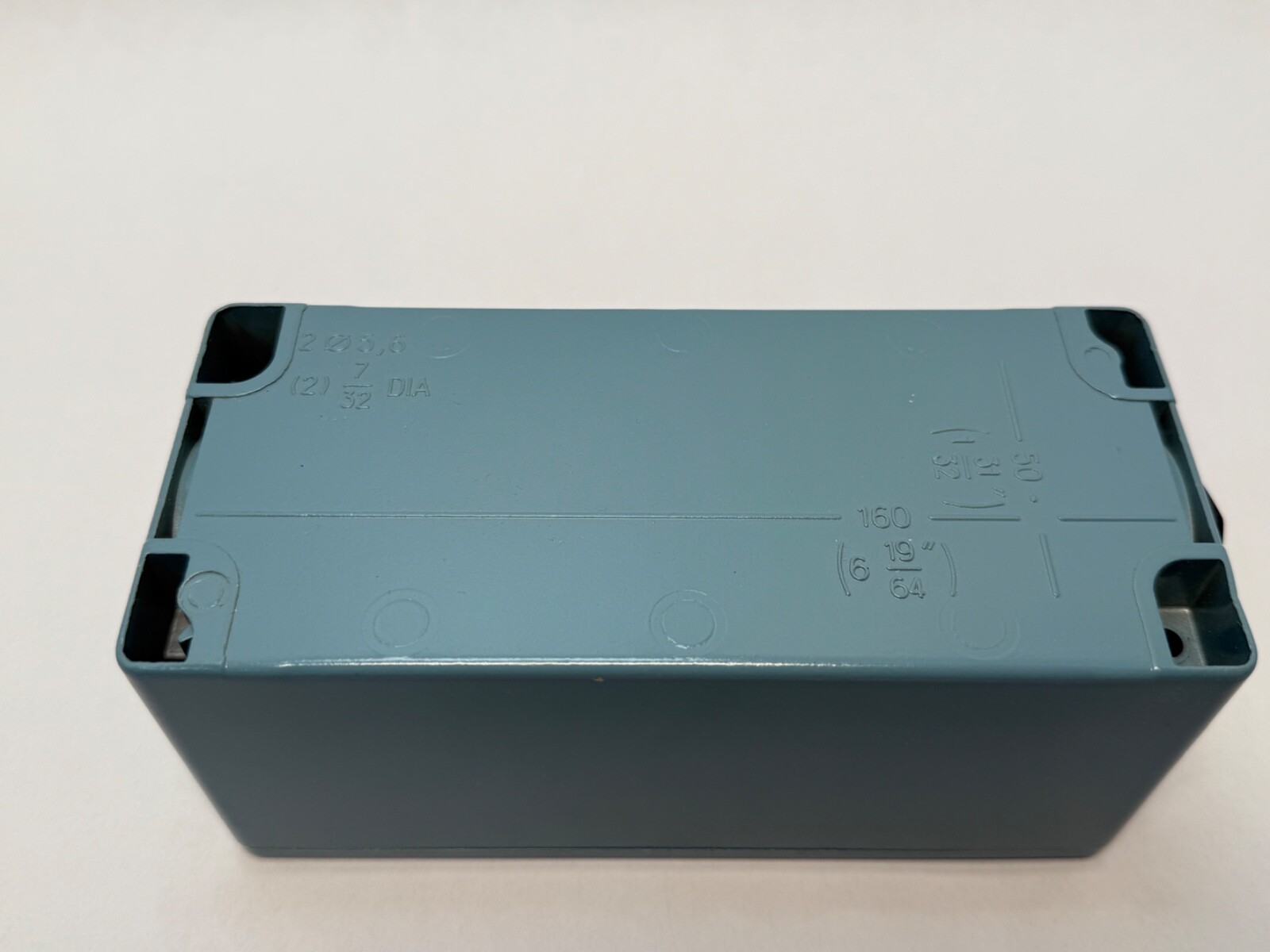

Front Plate Size: 80 x 175 mm. Overall Dimensions: 80 x 175 x 77 mm. Usable Depth: 74.5 mm. Fixing: 2 x 5.6 mm holes at 50 x 160 mm centres. Vertical Cut-Out Spacing: 40 mm. Device Mounting: Flush.

Compatibility and replacement:

Takes Harmony XB2 22 mm control and signalling units. Data sheet available from Schneider Electric (se.com).

Frequently asked questions:

How many push buttons does the XAPM3503 hold?

Three 22 mm units in one vertical row.

What is the XAPM3503 made of?

Die-cast zinc alloy, blue.

What is the IP rating?

IP65 to IEC 60529.
