RenesasR1LP0408CSP-5SC4 Mbit Low-Power SRAM, 512K x 8, 55 ns, 5 V, 32-Pin SOP, Reel of 367

Condition: New – Open box

Availability:

1 in stock

Reel of 367 Renesas R1LP0408CSP-5SC 4 Mbit low-power SRAM, 512K x 8, 55 ns, 4.5–5.5 V supply, −20 to +70 °C, 525-mil 32-pin SOP. Discontinued; new old stock.

List Price

$110.49

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandRenesas
MPNR1LP0408CSP-5SC

Technical Specifications

Number In Pack367
TypeSRAM
Memory Size4 Mbit (512K x 8)
PackageSOP-32
Industry Termsstatic RAM; SRAM; low-power SRAM; 4M SRAM; 512K x 8 SRAM; battery-backup SRAM; memory IC
Common MisspellingsR1LP0408CSP-SSC; RILP0408CSP-5SC; R1LP408CSP-5SC; R1LP0408CPS-5SC
Application TypesBattery-backup data memory; static data memory for 5 V systems
Mpn VariantsR1LP0408CSP-5SC; R1LP0408CSP5SC; R1LP0408CSP 5SC
Manufacturer StatusDiscontinued (Renesas); successor R1LP0408DSP-5SI
Compatible With ReplacesSame-package Renesas family: R1LP0408CSP-5SI (-40 to +85 °C), R1LP0408CSP-7LC (70 ns); Renesas successor R1LP0408DSP-5SI
Additional AttributesOrganization 524,288 words x 8 bits; access time 55 ns max (access = cycle time); storage -65 to +150 °C; operating current 8 mA typ / 25 mA max (min cycle); standby ISB1 8 µA max at +70 °C, 3 µA max at +25 °C; data retention voltage 2.0 V min; TTL-compatible I/O, three-state outputs; power dissipation 0.7 W abs max; package 525-mil 32-pin plastic SOP (32P2M-A), 21 x 11 x 3.05 mm; operating temp -20 to +70 °C; Renesas R1LP0408C-C Series data sheet Rev. 2.00
SeriesR1LP0408C-C
Part NumberR1LP0408CSP-5SC

Cross-References

Cross Reference 1Renesas R1LP0408CSP-5SI - same, -40 to +85 °C version
Cross Reference 2Renesas R1LP0408DSP-5SI - Renesas-listed successor
Seller Part Number: DA1#D5TZS2

Product Description

What this part is:

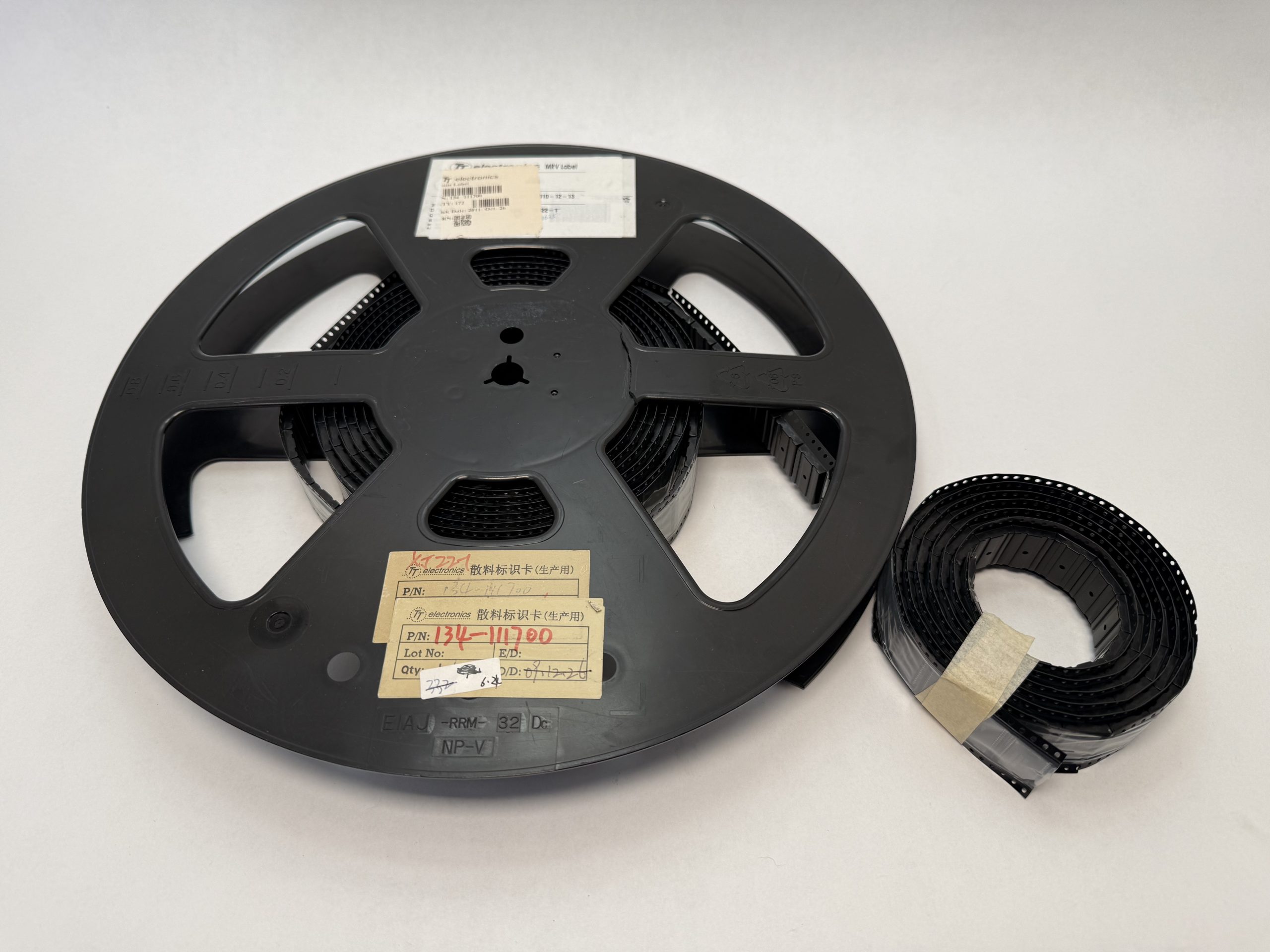

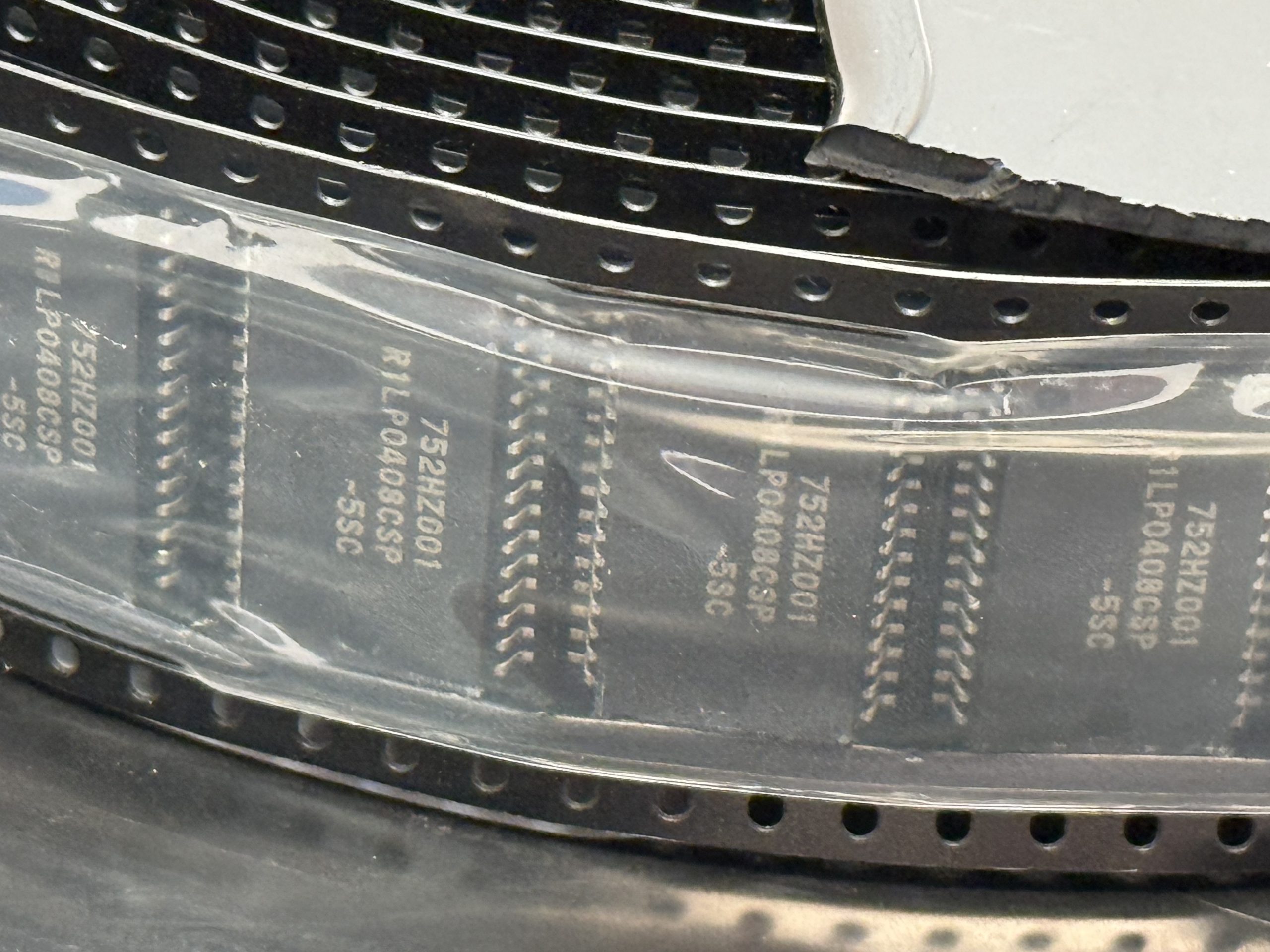

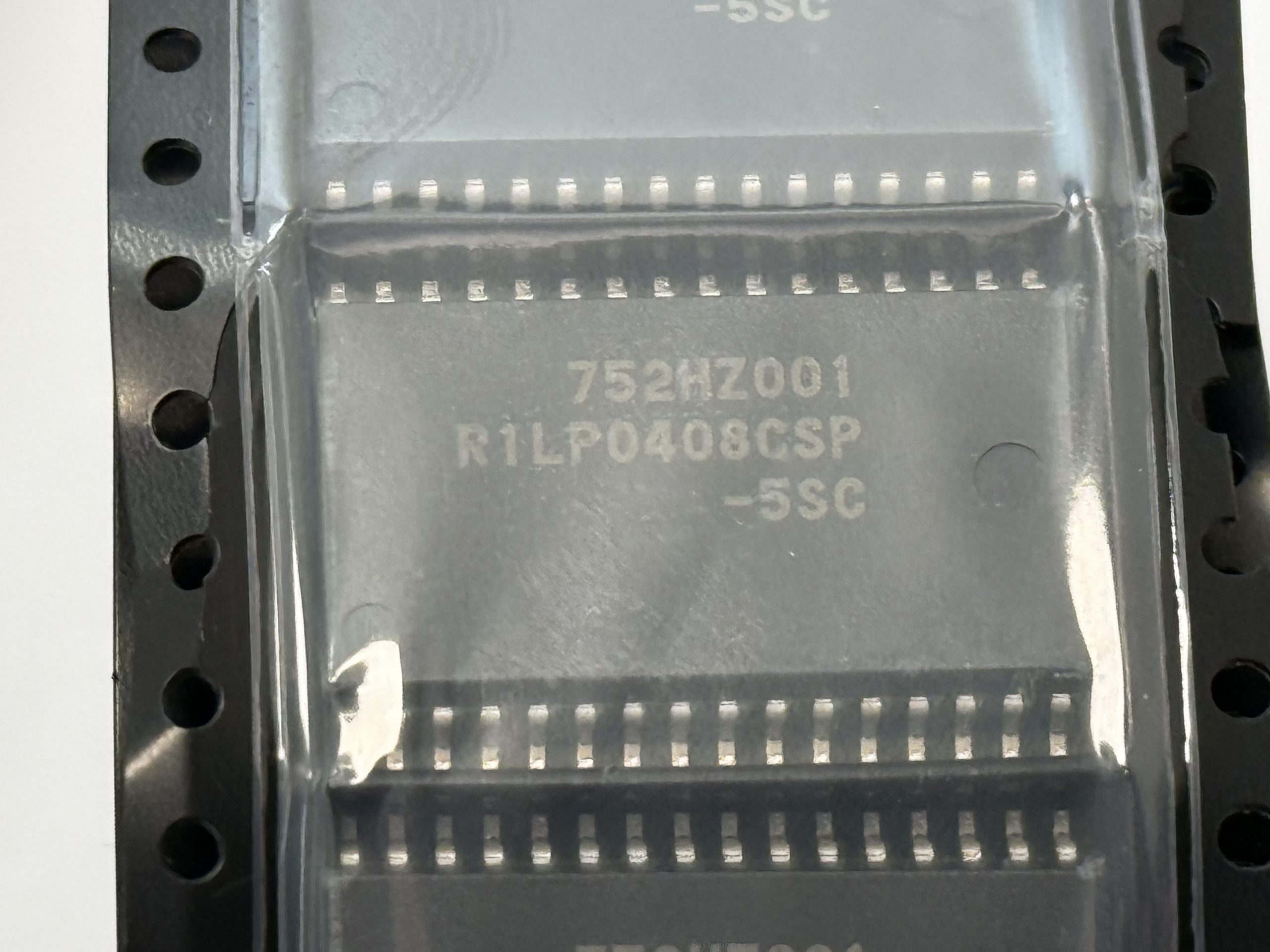

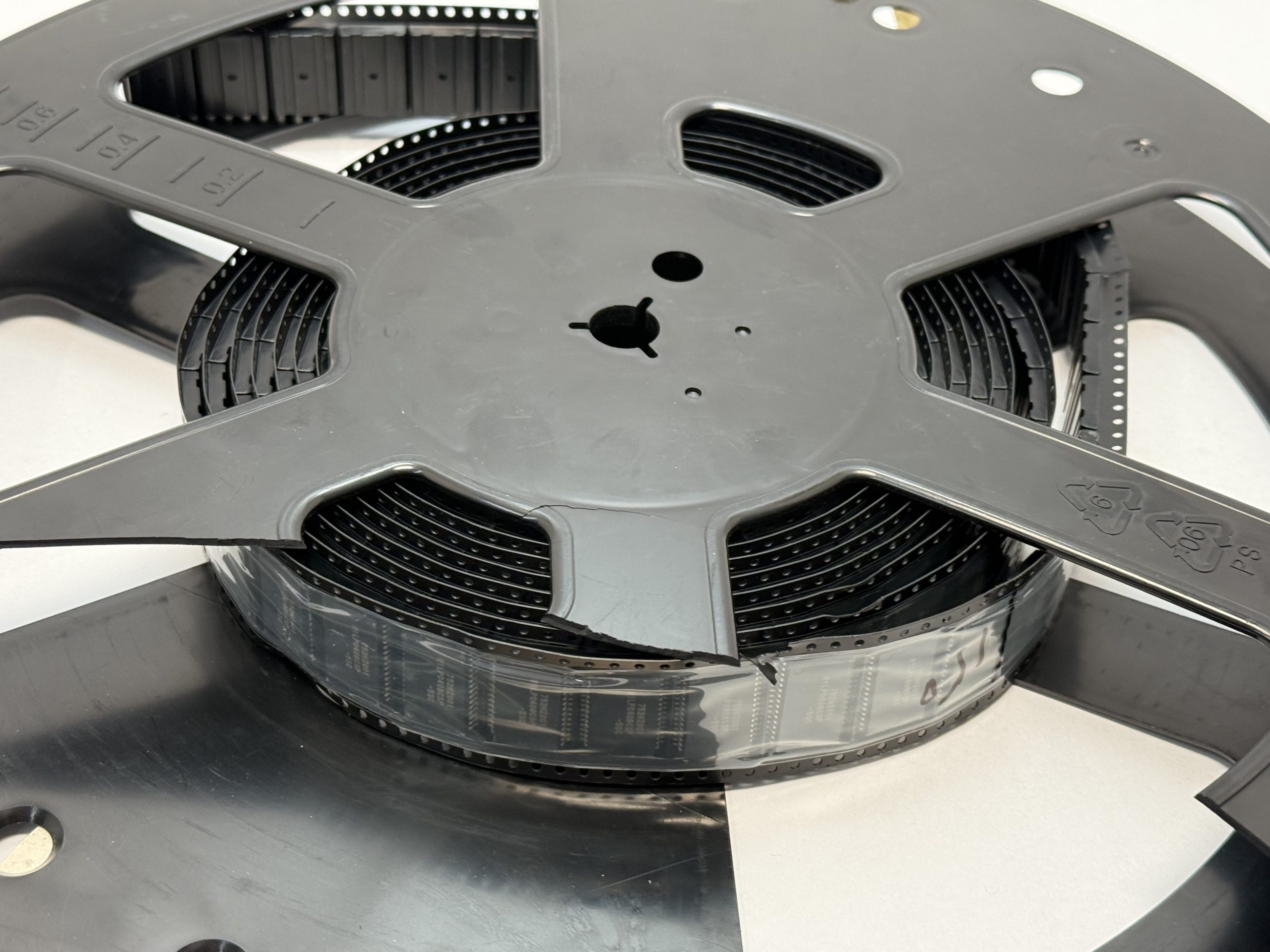

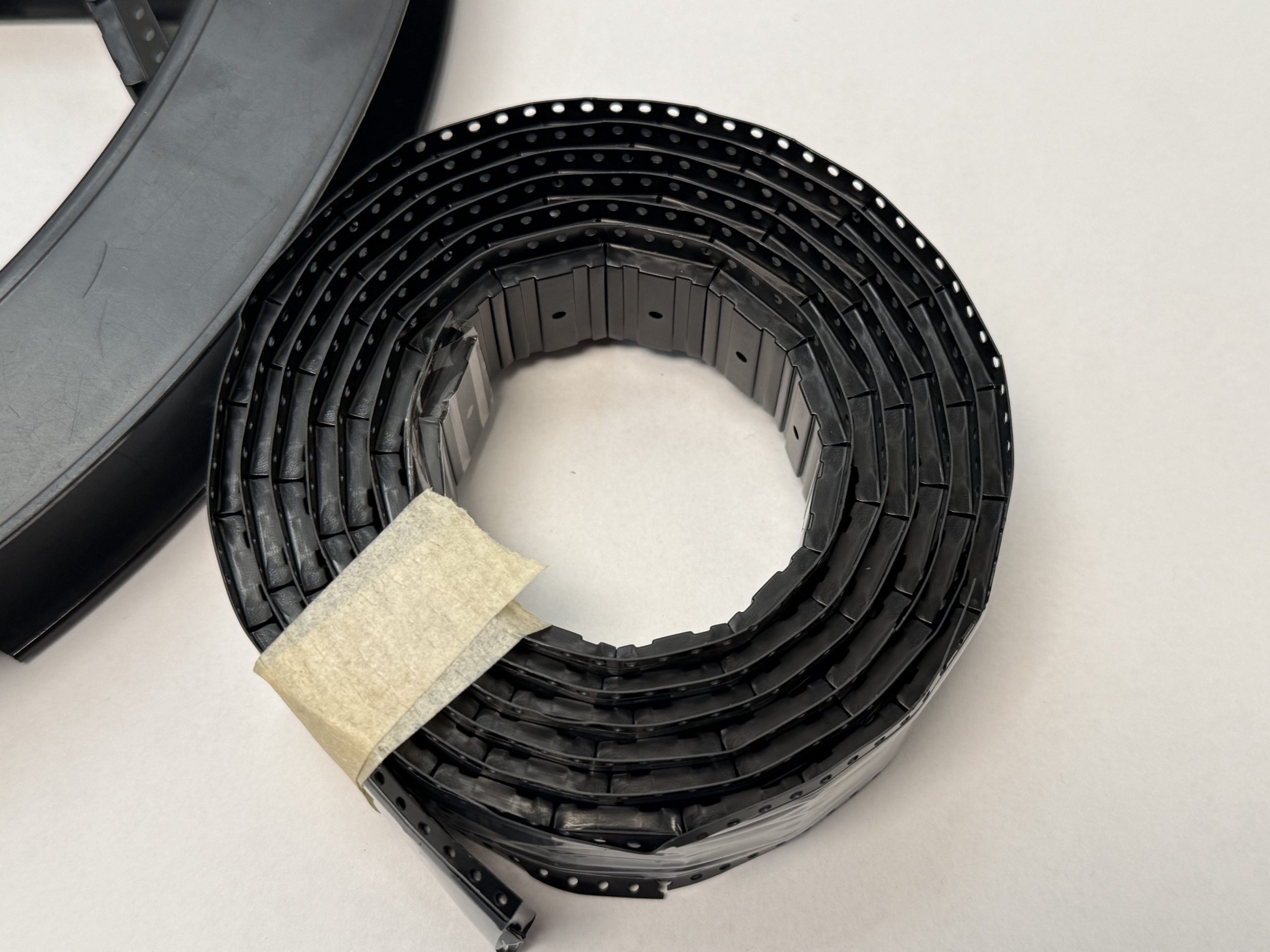

Renesas R1LP0408CSP-5SC is a 4 Mbit low-power static RAM organized as 524,288 words x 8 bits, with a 55 ns access time and a single 5 V supply, in a 525-mil 32-pin plastic SOP. It is fully static (no clock or timing strobe required) and supports battery backup. This listing is 367 chips (Unit Quantity: 367 Pcs), new old stock, on a partial Renesas reel plus a cut-tape strip, as pictured. Each chip is marked R1LP0408CSP-5SC. Renesas lists this part as discontinued.

Decoding the designation:

R1LP0408C — Renesas R1LP0408C series 4 Mbit (512 kword x 8 bit) low-power SRAM.

SP — 525-mil 32-pin plastic SOP (Renesas package 32P2M-A). SB is the 400-mil 32-pin TSOP II and SC the reverse-pinout TSOP II.

-5S — 55 ns version (-7L is the 70 ns version).

C — R1LP0408C-C series, −20 °C to +70 °C. The R1LP0408C-I series (suffix I, e.g. R1LP0408CSP-5SI) is the −40 °C to +85 °C wide-temperature version.

Specifications:

Memory Type: Low-power static RAM (SRAM). Density: 4 Mbit. Organization: 524,288 words x 8 bits (512K x 8). Access Time: 55 ns max; access and cycle times are equal. Supply Voltage: 4.5–5.5 V DC (5.0 V typ). Operating Temperature: −20 °C to +70 °C. Storage Temperature: −65 °C to +150 °C. Operating Current: 8 mA typ, 25 mA max (minimum cycle, 100% duty). Standby Current (ISB1): 8 µA max at +70 °C; 0.8 µA typ, 3 µA max at +25 °C. Data Retention Voltage: 2.0 V min. Inputs/Outputs: TTL compatible; common data I/O with three-state outputs. Control Pins: CS#, OE#, WE#. Address Inputs: A0–A18. Data Pins: I/O0–I/O7. Power Dissipation: 0.7 W (absolute maximum). Package: 525-mil 32-pin plastic SOP (32P2M-A). Renesas data sheet: R1LP0408C-C Series, Rev. 2.00.

Dimensions and mounting:

Surface-mount 32-lead SOP, 525-mil body; package size 21 x 11 x 3.05 mm per Renesas.

Compatibility and replacement:

Same-package Renesas family: R1LP0408CSP-5SI (−40 °C to +85 °C version) and R1LP0408CSP-7LC (70 ns). Renesas lists R1LP0408DSP-5SI as the successor product. Also written R1LP0408CSP5SC.

Frequently asked questions:

What are the speed and supply voltage of the R1LP0408CSP-5SC?

55 ns maximum access time on a single 4.5–5.5 V DC supply (5.0 V typical).

What temperature range is it rated for?

−20 °C to +70 °C per the Renesas R1LP0408C-C data sheet. The −40 °C to +85 °C version is R1LP0408CSP-5SI.

How many chips are in this listing?

367 R1LP0408CSP-5SC chips on a partial reel plus a cut-tape strip, sold together as one listing.
