Bei924-01029-711Incremental Optical Encoder — 2540 CPR, ABZ With Complements, Line Driver, MS 10-Pin, 1/4 in Coupling

Condition: New – Open box

Availability:

3 in stock

BEI E25 incremental optical encoder, 2540 cycles per turn, A/B/Z with complements, 8830 line driver, end-mount MS 10-pin connector, 1/4 in coupling bore.

Same day shipment

List Price

$130.99

3 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

3 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandBei
MPN924-01029-711
ModelE25BB-4H-SB-2540-ABZC-8830-LED-EM18-S

Technical Specifications

Termination TypeConnector
Base NumberE25BB
Industry Termsrotary encoder, incremental encoder, optical encoder, quadrature encoder, motor feedback encoder
Common MisspellingsBie encoder, E25BB-4H-SB-2504, 924-1029-711
Application TypesMotor feedback, robotics, motion control, OEM motors and controls
Mpn Variants924-01029-711, 92401029711, E25BB-4H-SB-2540-ABZC-8830-LED-EM18-S, E25BB4HSB2540ABZC8830LEDEM18S
Additional AttributesResolution: 2540 CPR; Channels: ABZ with complements; Output: 8830 line driver; Connector: MS3102R18-1P 10-pin, end; Coupling Bore: 0.250 in; Maximum Speed: 10,000 rpm; Frequency Response: 100 kHz; Bearing Class: ABEC 5; Operating Temperature: 0 to 70 °C; Enclosure: NEMA 2 (IP43)
Item Weight13 oz (0.37 kg) typical
Seller Part Number: J2#UCYP6P

Product Description

What this part is:

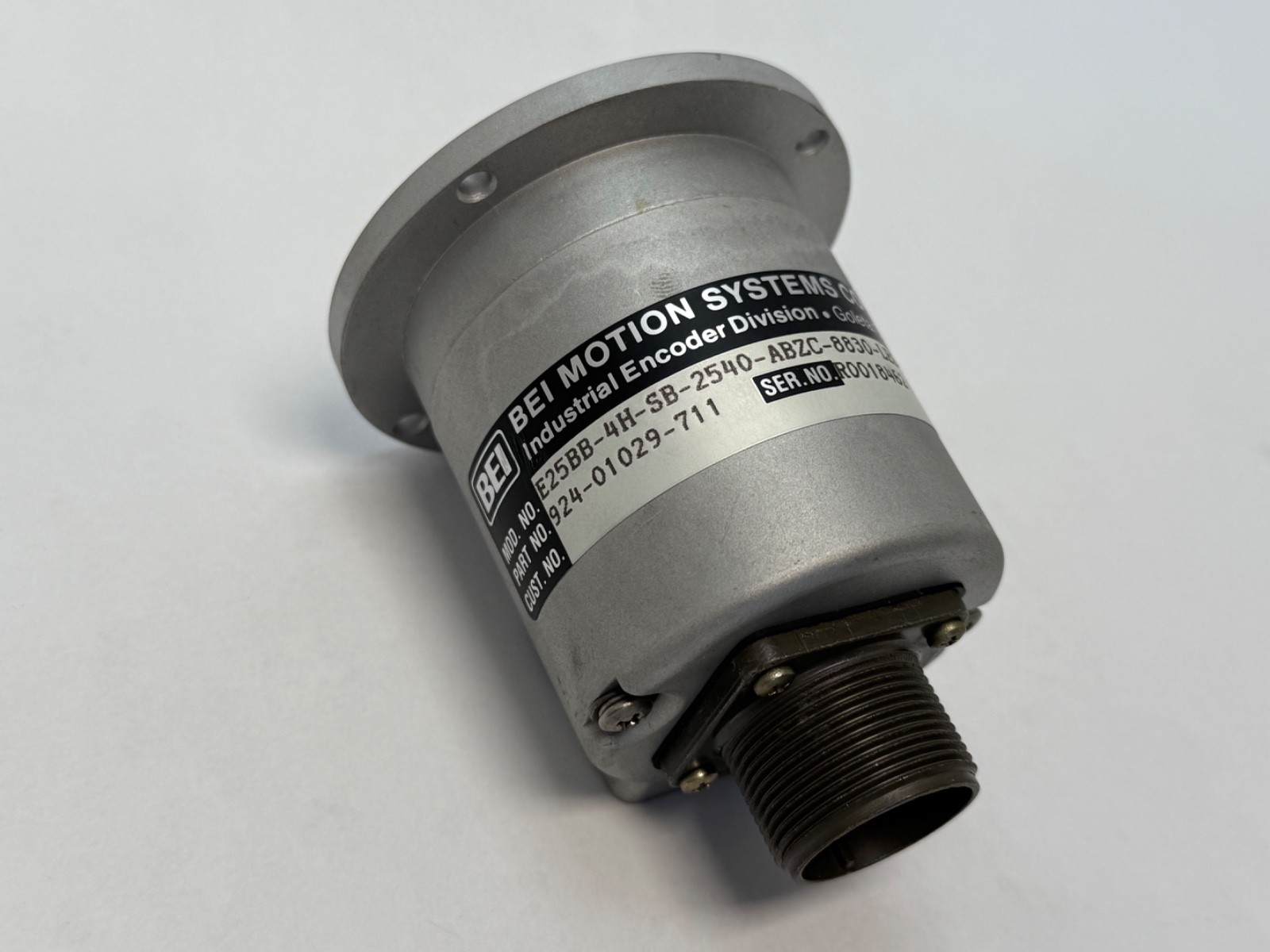

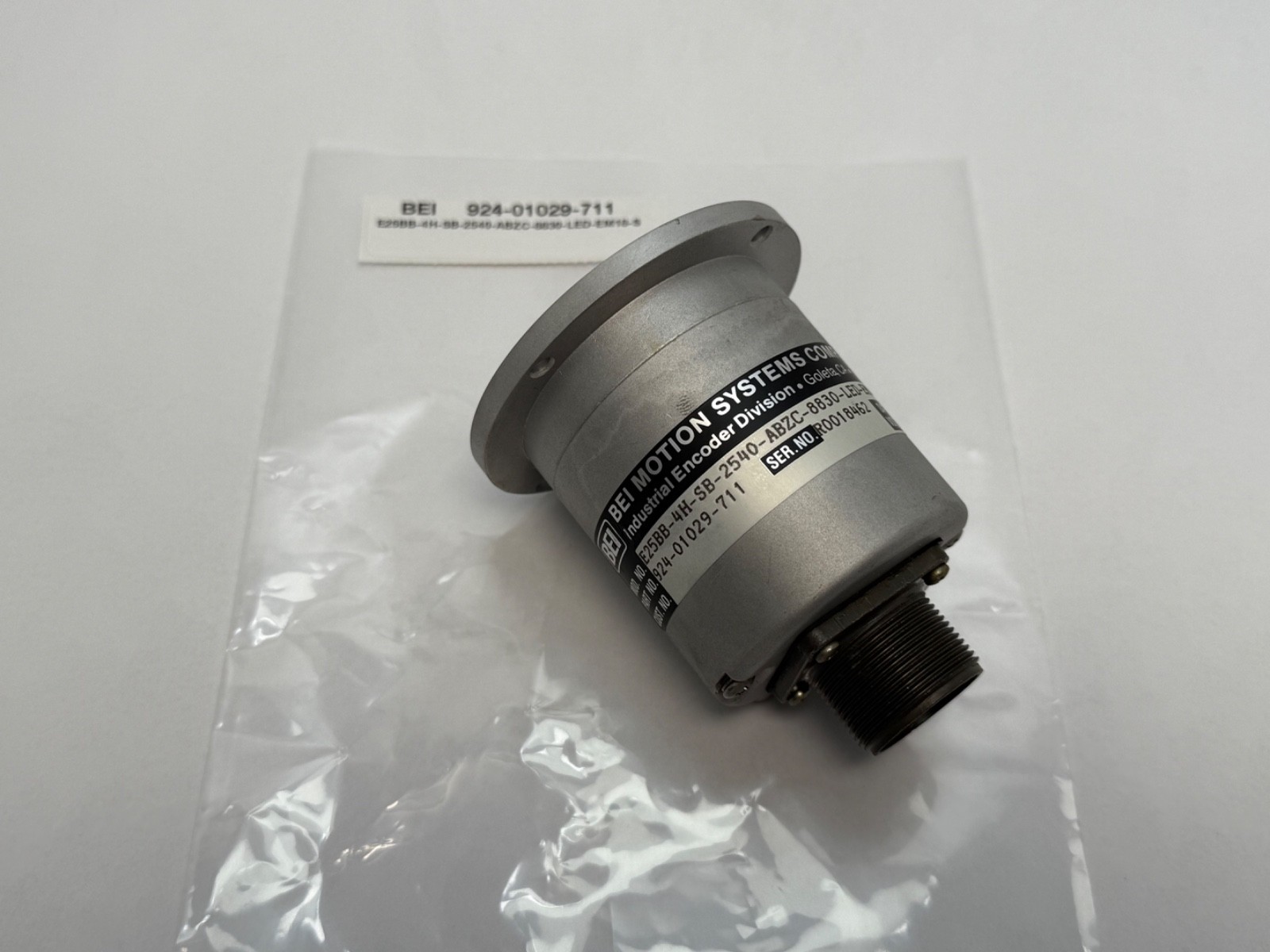

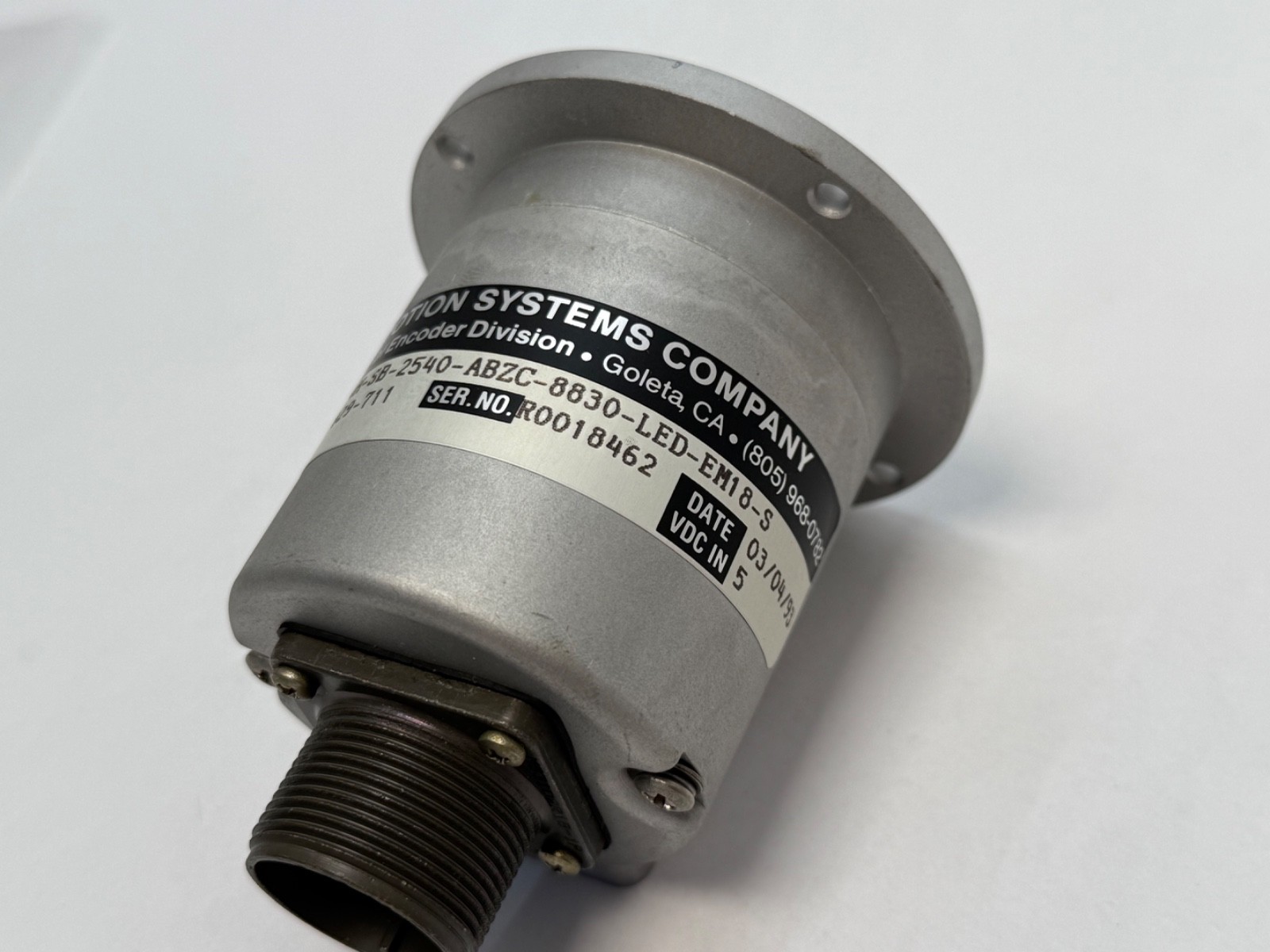

BEI 924-01029-711 is an E25 incremental optical encoder, full model E25BB-4H-SB-2540-ABZC-8830-LED-EM18-S. The E25 is BEI’s 2.5 in encoder with an integrated mounting ring and shaft coupling for direct motor mounting. Brand: BEI (BEI Sensors, Sensata). Resolution: 2540 cycles per turn. Channels: A, B and index Z with complementary outputs. Output: 8830 line driver. Connector: MS3102R18-1P, 10-pin, end mounted. Unit Quantity: 1 Pc.

Decoding the designation:

E25 — Economy family, 2.500 in diameter.

BB — housing configuration BB, NEMA 34/42 compatible.

4H — standard coupling, 0.250 in bore.

SB — shaft seal integral with the bearing.

2540 — 2540 cycles per shaft turn.

ABZC — two channels in quadrature plus index, each with a complementary output.

8830 — 8830 line driver output IC.

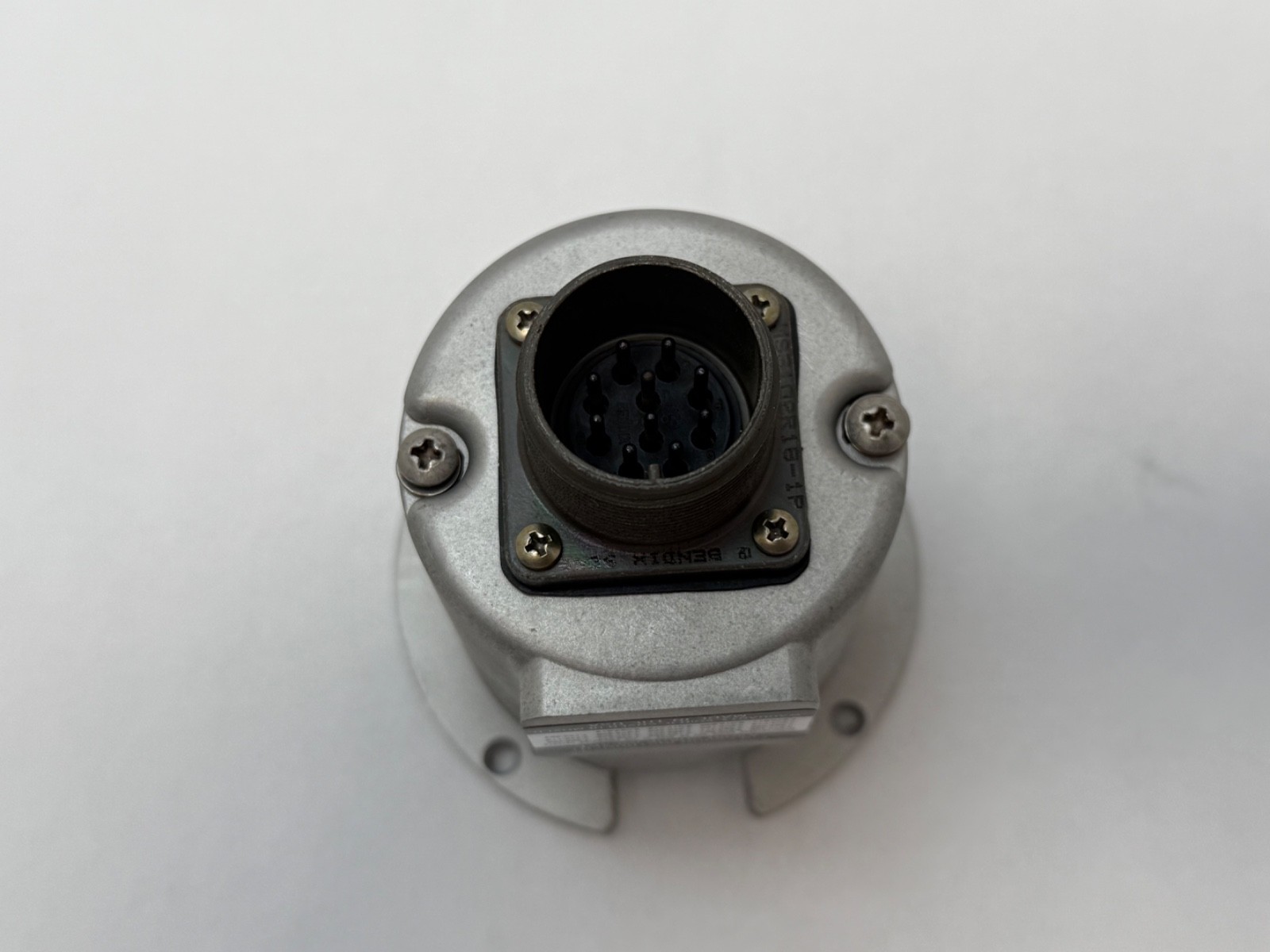

EM18 — end-located MS3102R18-1P 10-pin connector.

Specifications:

Resolution: 2540 cycles per turn. Channels: A, B and Z with complements. Output: 8830 line driver. Connector: MS3102R18-1P, 10-pin, end mounted. Maximum Speed: 10,000 rpm. Frequency Response: 100 kHz. Bearing Class: ABEC 5. Starting Torque: 2.0 in-oz typical with SB seal. Operating Temperature: 0 to 70 °C. Enclosure Rating: NEMA 2 (IP43). Weight: 13 oz (0.37 kg) typical.

Dimensions and mounting:

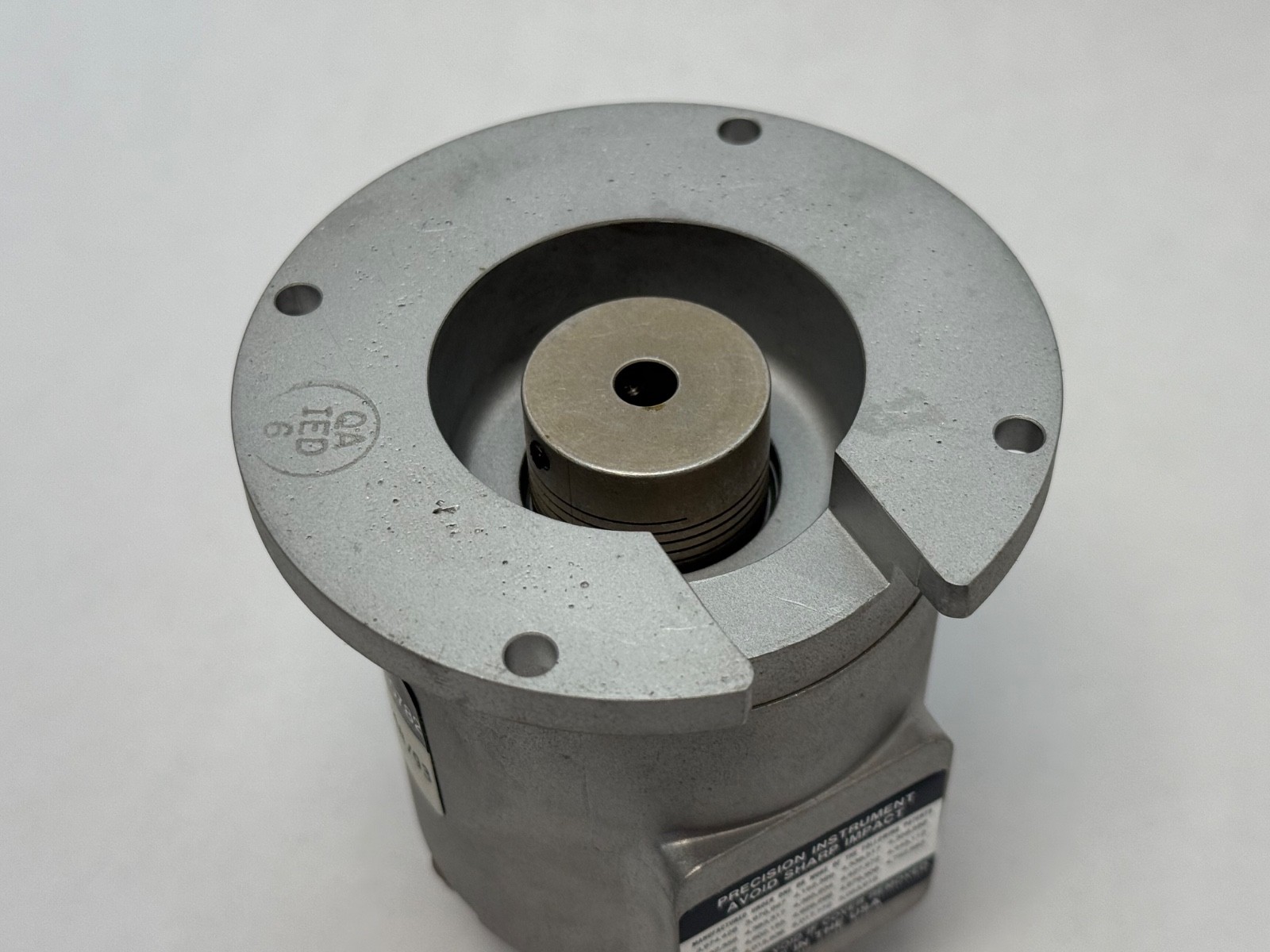

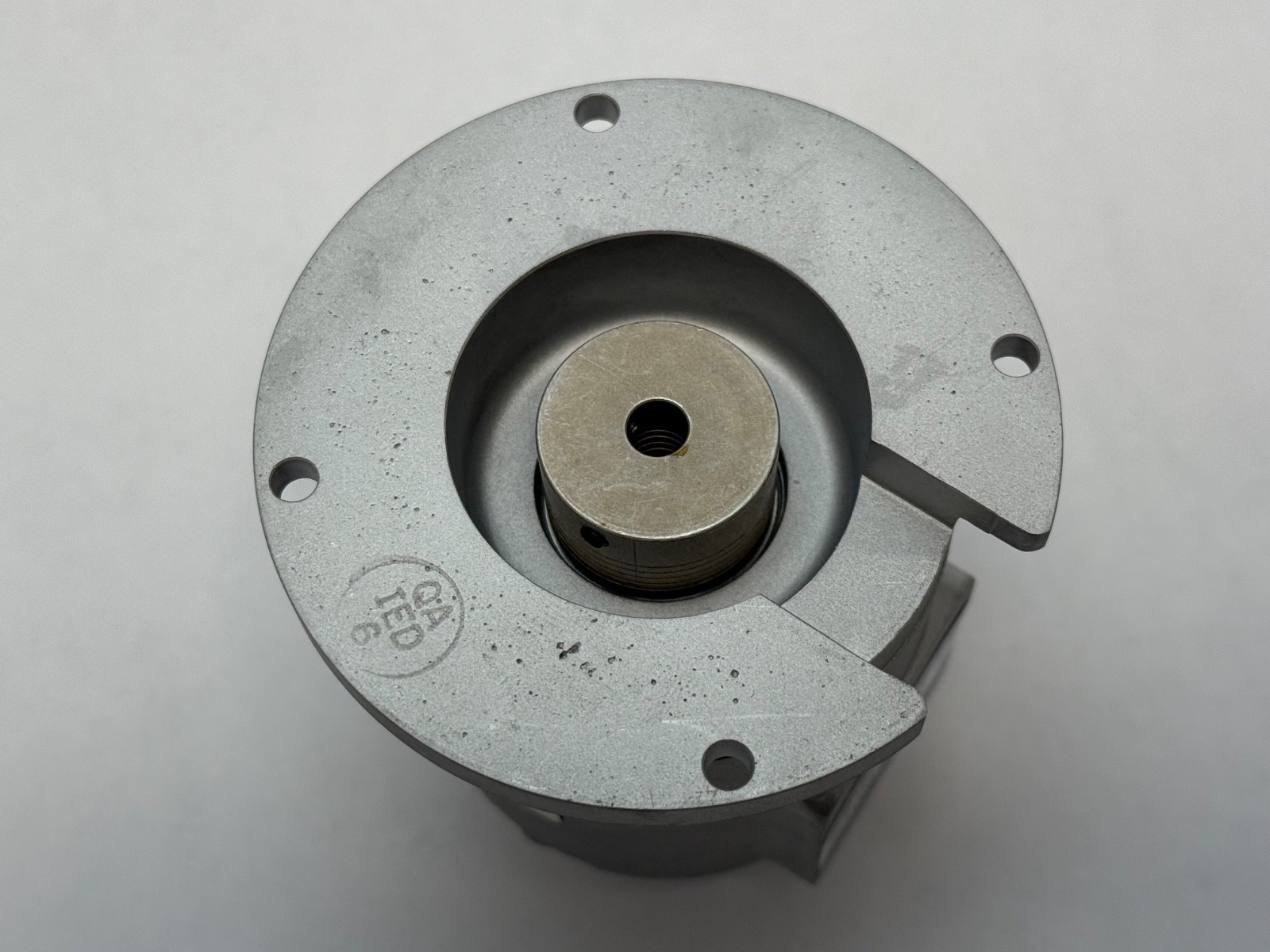

Coupling Bore: 0.2500/0.2510 in. Axial Motion: ±0.010 in max. Parallel Offset: 0.010 in max. Angular Misalignment: 2° max. Housing: die cast aluminum.

Frequently asked questions:

What is the resolution of the BEI 924-01029-711?

2540 cycles per turn on channels A and B in quadrature, plus index Z, each with a complementary output.

What output and connector does it have?

8830 line driver output on an end-mounted MS3102R18-1P 10-pin connector.

What coupling bore does it have?

Standard 4H coupling with a 0.2500/0.2510 in bore.
