Availability:
2 in stock
BEI E25 incremental optical encoder, 2500 cycles per turn, 3/8 in hollow coupling bore, sealed bearing, 8830 line driver, side MS 18-pin connector. 2.5 in dia.
List Price
$158.99

2 in stock
On the Shelf & Ready to Ship
Ships same day by 6pm ET

No Risk, No Hassle
| MFR / Brand | Bei |
|---|---|
| MPN | 924-01029-536 |

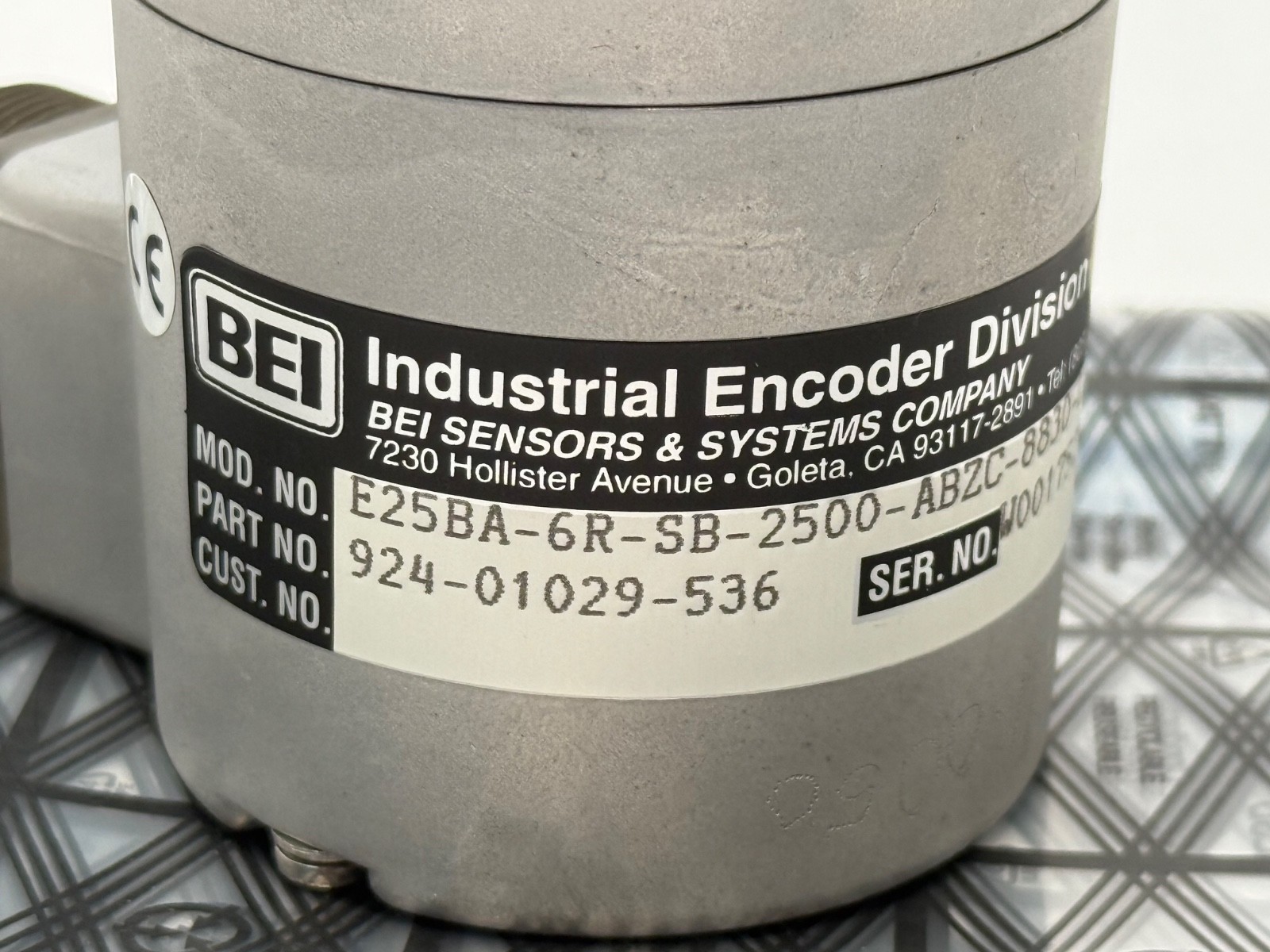

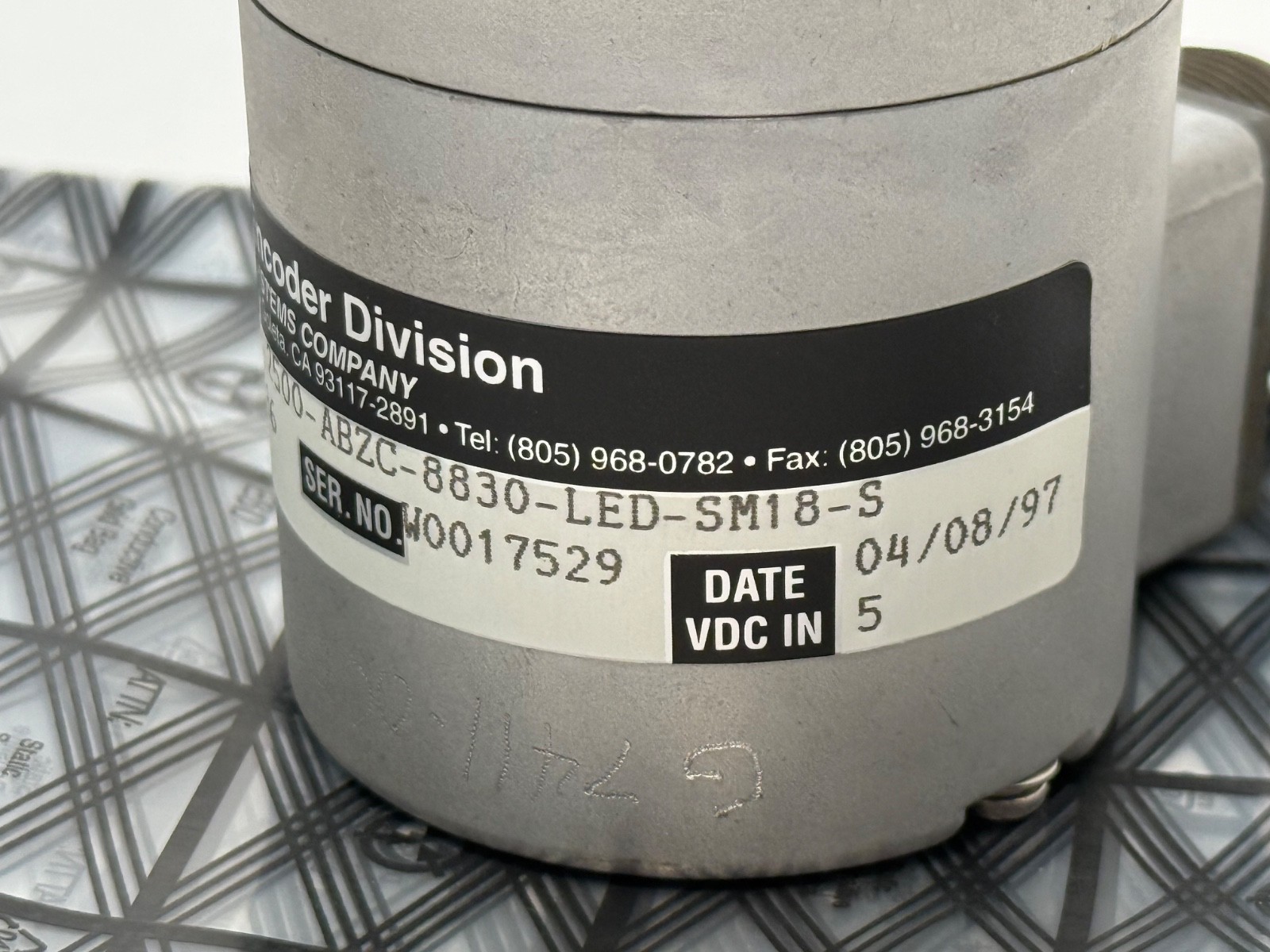

| Model | E25BA-6R-SB-2500-AB2C-8830-LED-SM18-S |
| Base Number | E25BA |
|---|---|
| Industry Terms | rotary encoder, incremental encoder, optical encoder, motor feedback encoder, quadrature encoder |
| Common Misspellings | E25BA-6R-SB-2500-ABZC-8830-LED-SM18-S, BEI E25 BA, 924-1029-536 |
| Application Types | Motor feedback, robotics, OEM motors and controls |
| Shaft Type | Hollow coupling, 0.375 in |
| Mpn Variants | 924-01029-536, 92401029536, 01029-536, E25BA-6R-SB-2500-AB2C-8830-LED-SM18-S, E25BA6RSB2500AB2C8830LEDSM18S |
| Compatible With Replaces | E25BA-6R-SB-2500 with 28V/V line driver (BEI code for 8830) |
| Additional Attributes | Cycles per turn: 2500; Max speed: 10,000 rpm; Coupling bore: 0.375 in; Enclosure: NEMA 2 / IP43; Operating temp: 0 to 70 °C; Frequency response: 100 kHz; Connector: MS3102R18-1P side |
| Series | E25 |
| Type | Incremental Optical Encoder |
| Ip Rating | IP43 |
| Item Weight | 13 oz (typical) |
| Maximum Speed | 10,000 rpm |

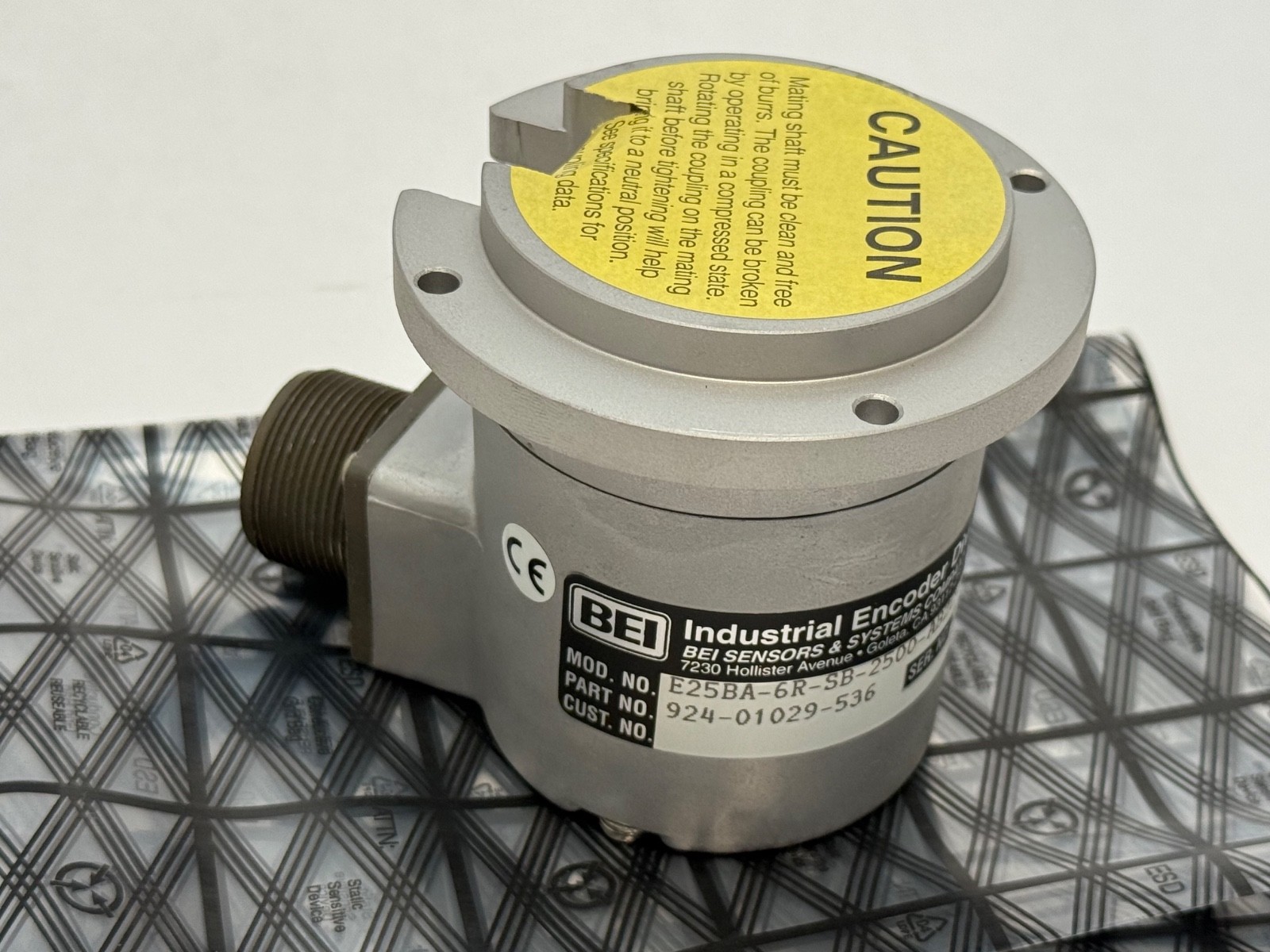

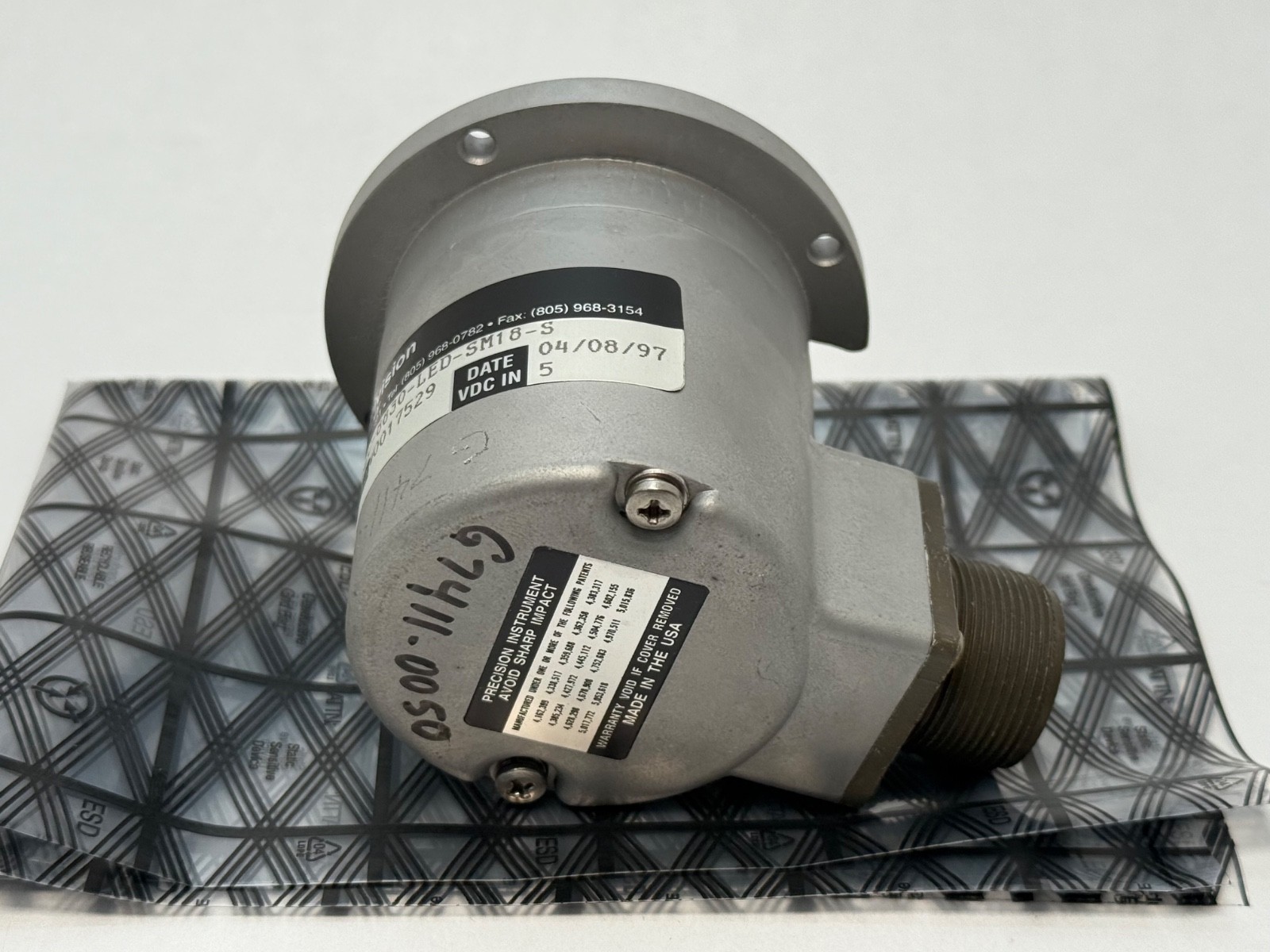

The BEI E25BA-6R-SB-2500-AB2C-8830-LED-SM18-S, BEI part number 924-01029-536, is an E25 incremental optical encoder with an integrated mounting ring and shaft coupling for direct mounting on a motor. Encoder Type: Incremental optical. Housing Diameter: 2.500 in. Cycles Per Turn: 2500. Output Format: two channels in quadrature with complementary outputs. Unit Quantity: 1 Pc. Condition: new old stock, open box.
E25 — BEI E25 encoder, 2.500 in diameter.
6R — high-performance coupling, 0.375 in bore.
SB — shaft seal integral with the bearing.
2500 — 2500 cycles per shaft turn.
AB — dual channels in quadrature.
C — complementary outputs.
8830 — 8830 line driver output IC, the pre-2007 BEI model-number form.

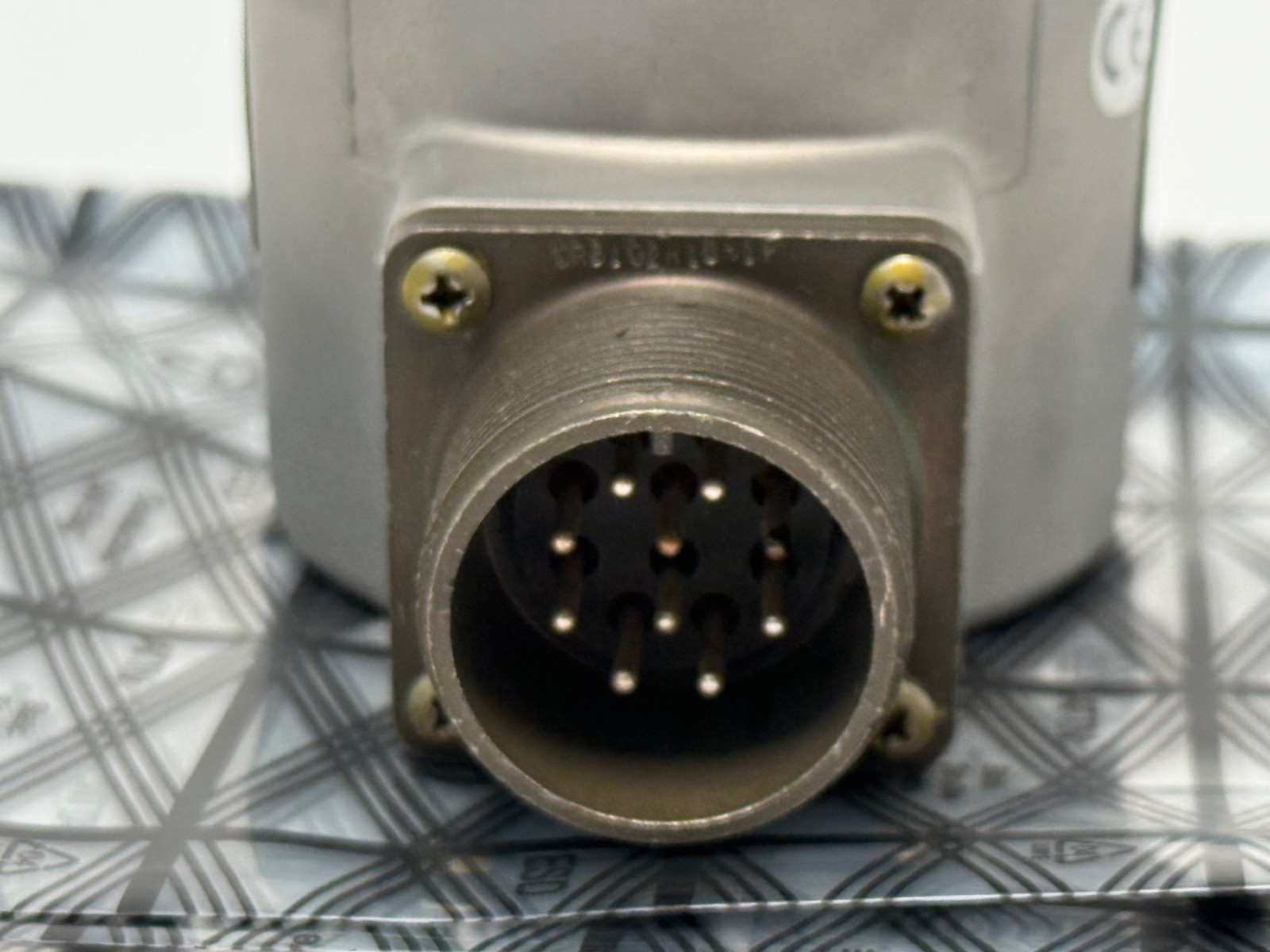

SM18 — side-located MS3102R18-1P connector.
S — special features specified at order.
Series: BEI E25. Base Number: E25BA. Coupling Bore: 0.3750/0.3755 in. Maximum Speed: 10,000 rpm. Bearings: ABEC 5. Starting Torque: 2.0 in-oz typical with SB seal. Frequency Response: 100 kHz. Enclosure Rating: NEMA 2 (IP43). Operating Temperature: 0 to 70 °C. Storage Temperature: -25 to 90 °C. Shock: 50 g for 11 ms. Vibration: 5 to 2000 Hz at 20 g. Item Weight: 13 oz typical. Housing: die cast aluminum.
Coupling Type: 6R high-performance. Axial Motion: ±0.030 in max. Parallel Offset: 0.010 in max. Angular Misalignment: 2° max. Connector: MS3102R18-1P, side exit; mating plug MS3106F18-1S.
BEI lists 28V/V as the current model-number code for the 8830 line driver. Part number forms: 924-01029-536, 92401029536, 01029-536.
2500 cycles per shaft turn on two channels in quadrature (AB) with complementary outputs (C).

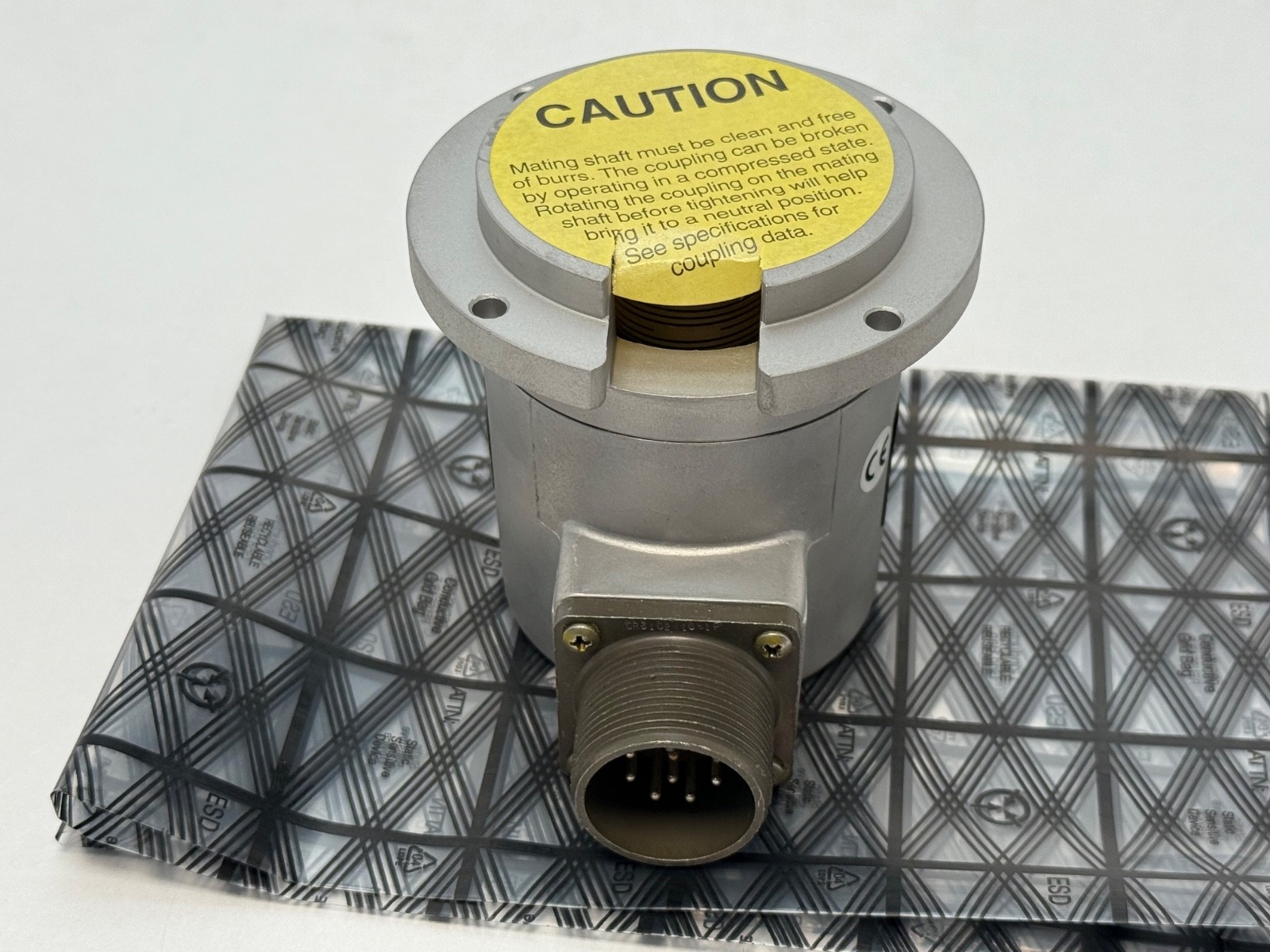

A 6R high-performance coupling with a 0.3750/0.3755 in bore, and a side-exit MS3102R18-1P connector (mating plug MS3106F18-1S).
8830 is the line driver output IC in the pre-2007 BEI model-number form. BEI lists 28V/V as the current code for the 8830 line driver.
