BegeMN140-24-0048Magnetic Incremental Flange Encoder — 48 PPR, 24 mm Bore, 140 mm Flange, IEC 90 B14, 5-24 V DC

Condition: New – Open box

Availability:

1 in stock

BEGE MN140-24-0048 MIG NOVA+ magnetic flange encoder, 48 pulses/rev, 24 mm rotor bore, 140 mm flange for IEC 90 B14, 5-24 V DC, A/B quadrature output.

Same day shipment

List Price

$50.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandBege
MPNMN140-24-0048
ModelMN-140-24-0048
ID24 mm

Technical Specifications

Encoding TypeIncremental
Current TypeDC
Output TypeHTL push-pull or TTL, A/B quadrature with inverted channels
Voltage5-24 V DC
Mpn VariantsMN140-24-0048, MN-140-24-0048, MN 140-24-0048, MN140240048, MIGN+-140-24
SeriesMIG NOVA+
Ip RatingIP55
Industry Termsintermediate flange encoder; hollow bore encoder; magnetic incremental encoder; motor gearbox encoder; MIG NOVA+
Common MisspellingsBEGE MN 140-24-0048; BEGE MN140240048; Bege MIGN 140-24; BEG MN140-24-0048
Application TypesMotor speed feedback; geared motors; conveyor drives; IEC 90 B14 motors
Maximum Speed6,000 rpm
Seller Part Number: AC5B2#GQUKZ0

Product Description

What this part is:

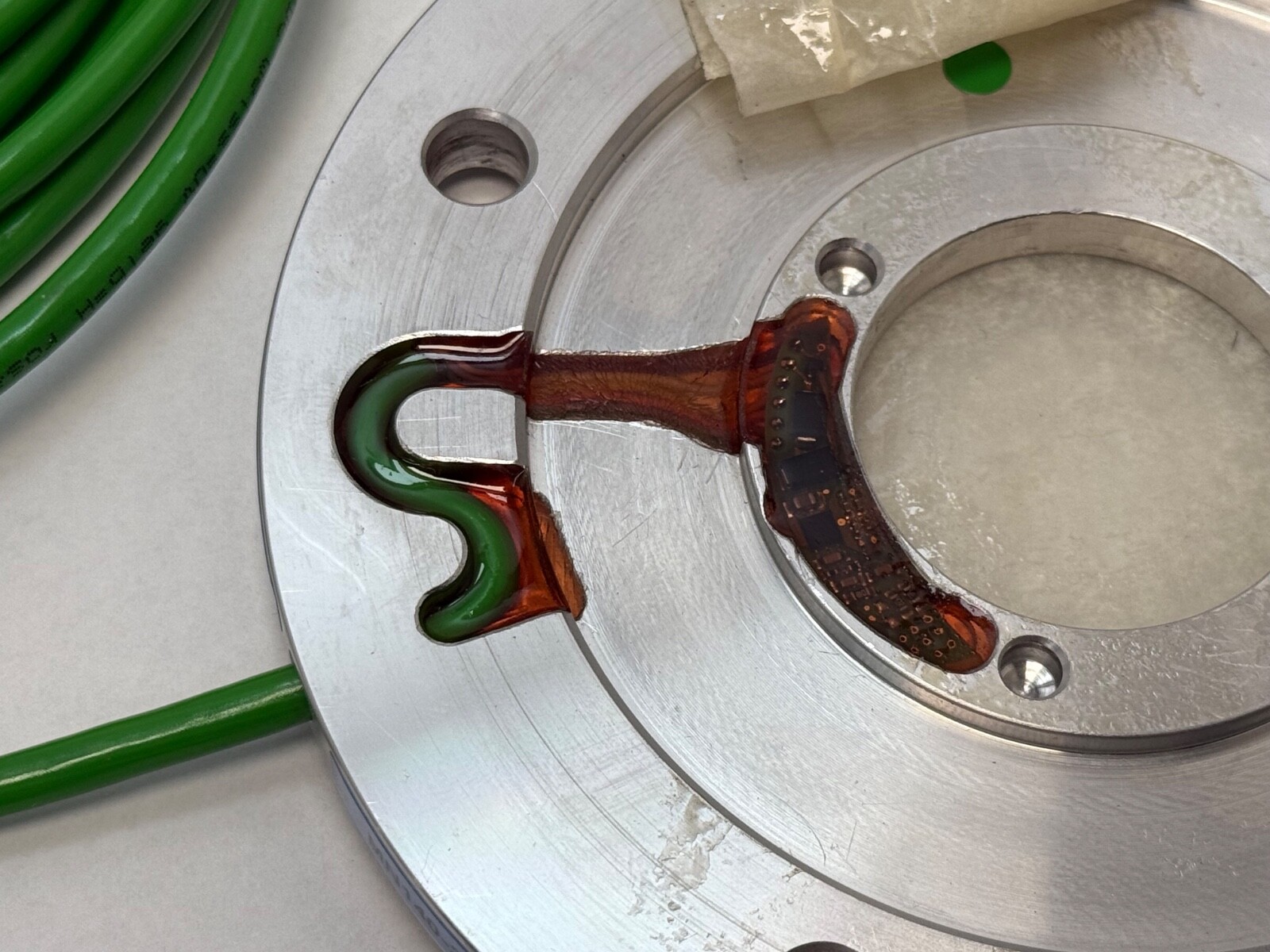

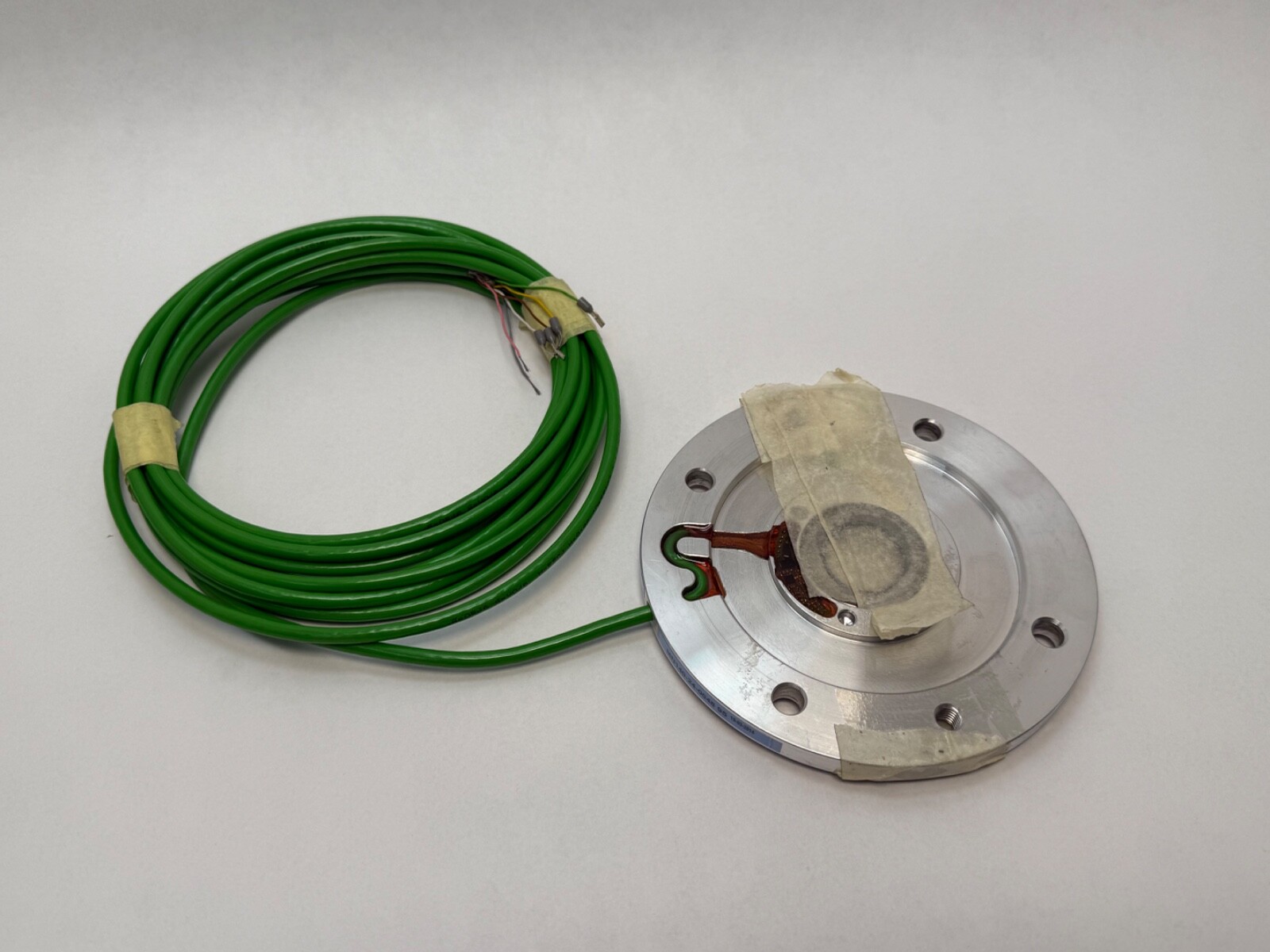

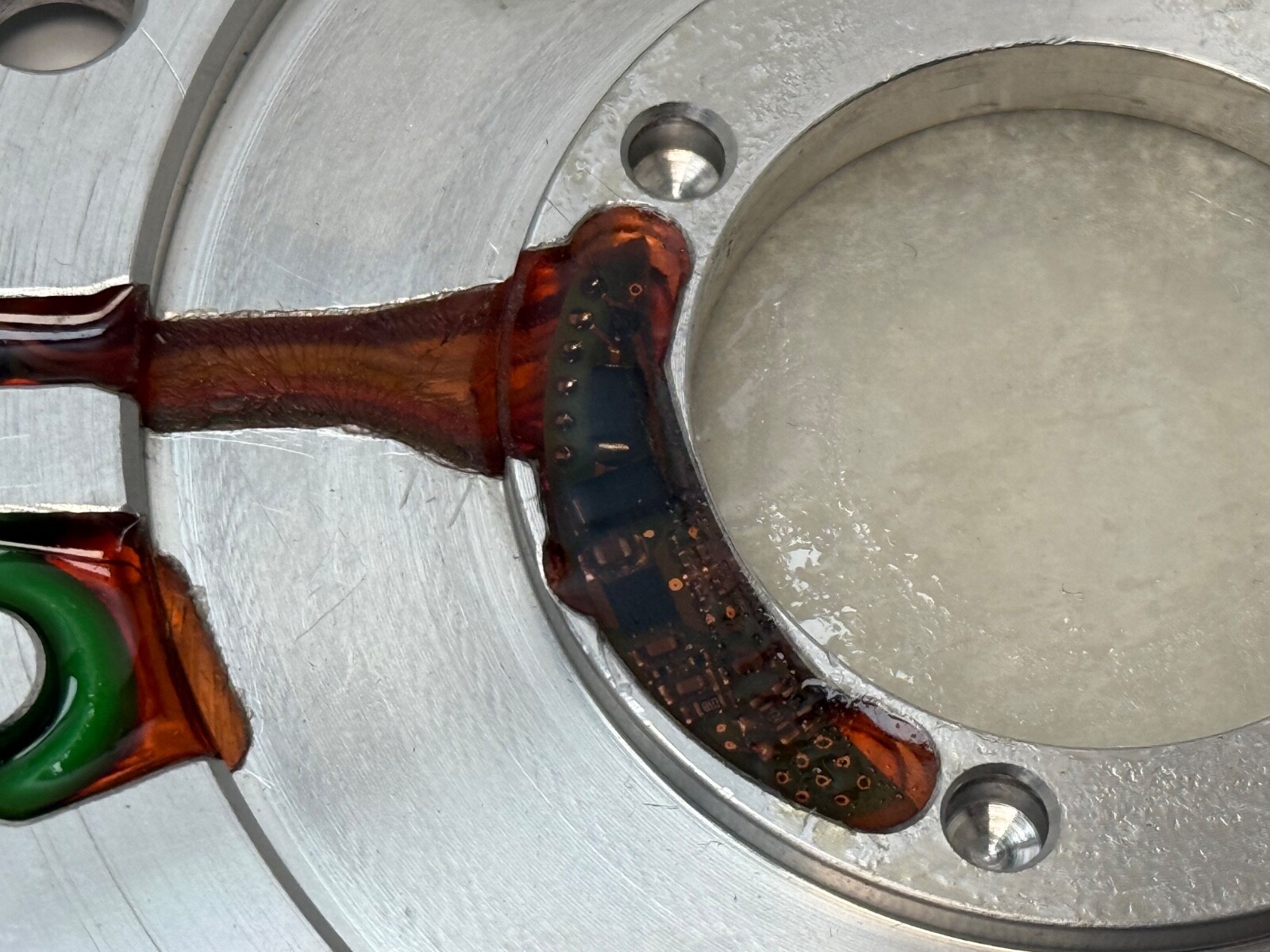

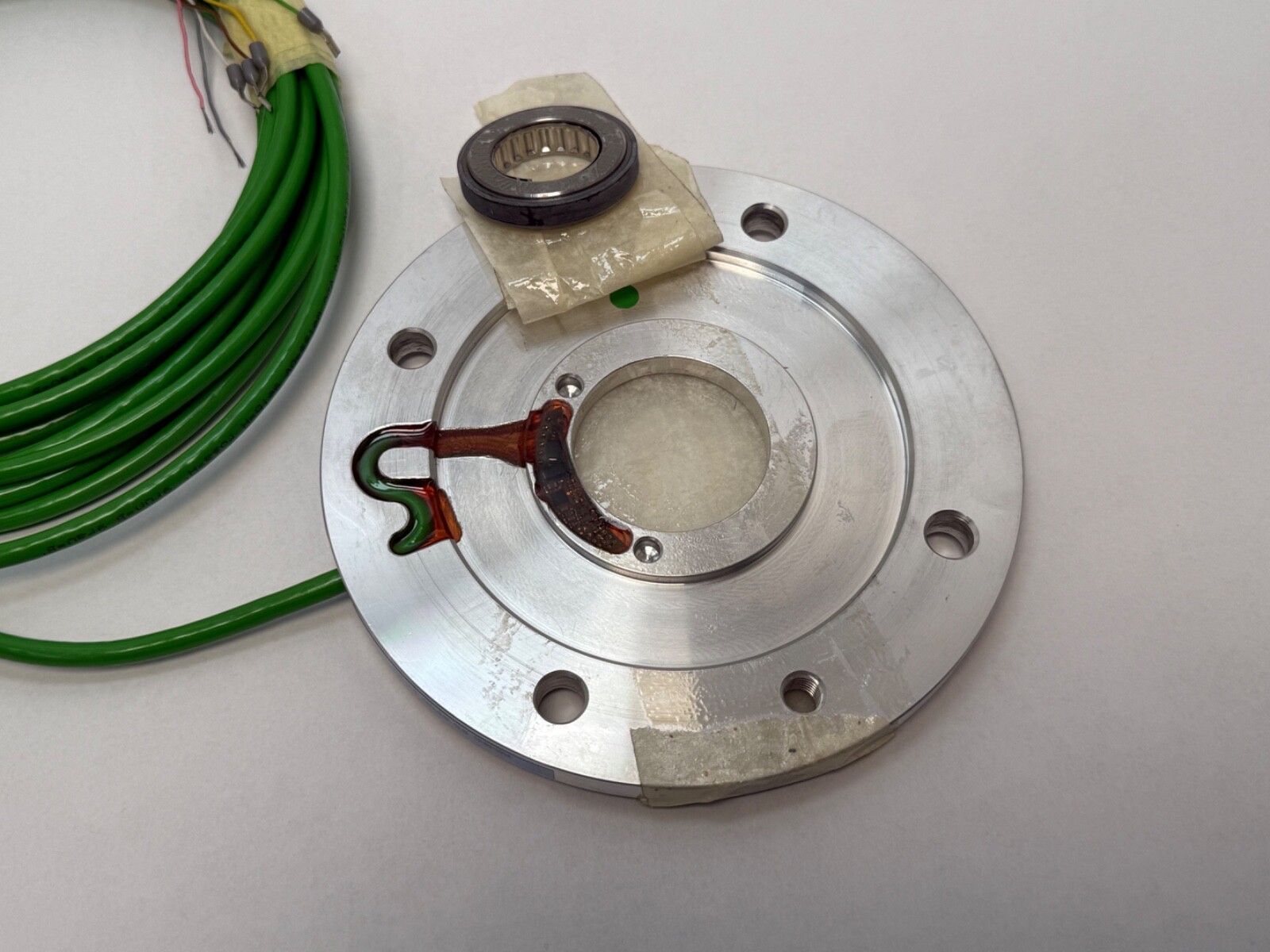

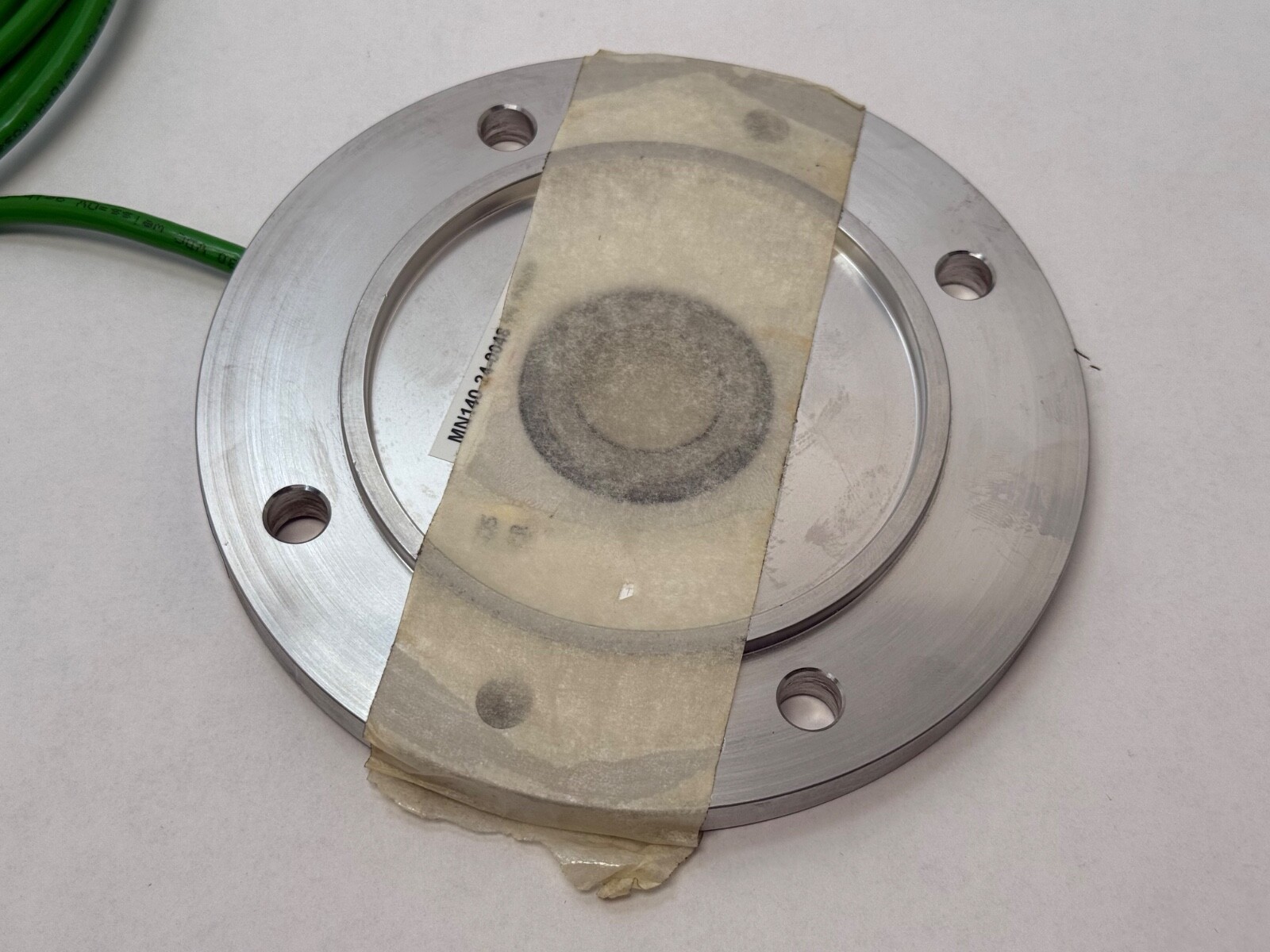

BEGE MIG NOVA+ MN140-24-0048 magnetic incremental rotary encoder in intermediate-flange form. The flange mounts between an IEC 90 B14 motor face and the gearbox, with the motor shaft passing through the 24 mm rotor bore. A magnet ring on the rotor is read contactlessly by the sensor in the flange body. Manufacturer: BEGE Power Transmission. Flange model: MIGN+-140-24.

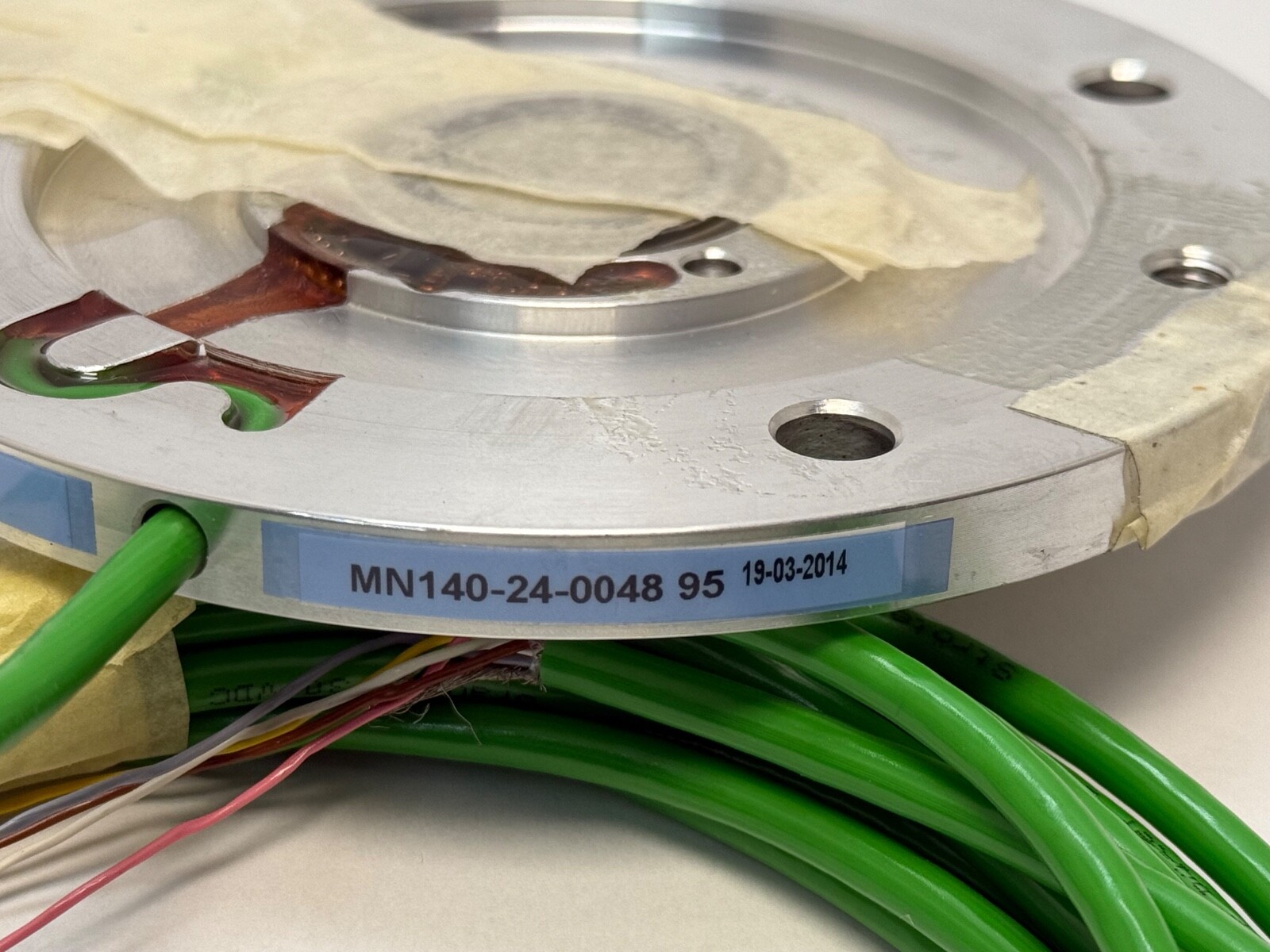

Decoding the designation:

MN — MIG NOVA+ series.

140 — 140 mm flange outside diameter.

24 — 24 mm rotor bore, IEC 90 motor shaft.

0048 — 48 pulses per revolution.

Specifications:

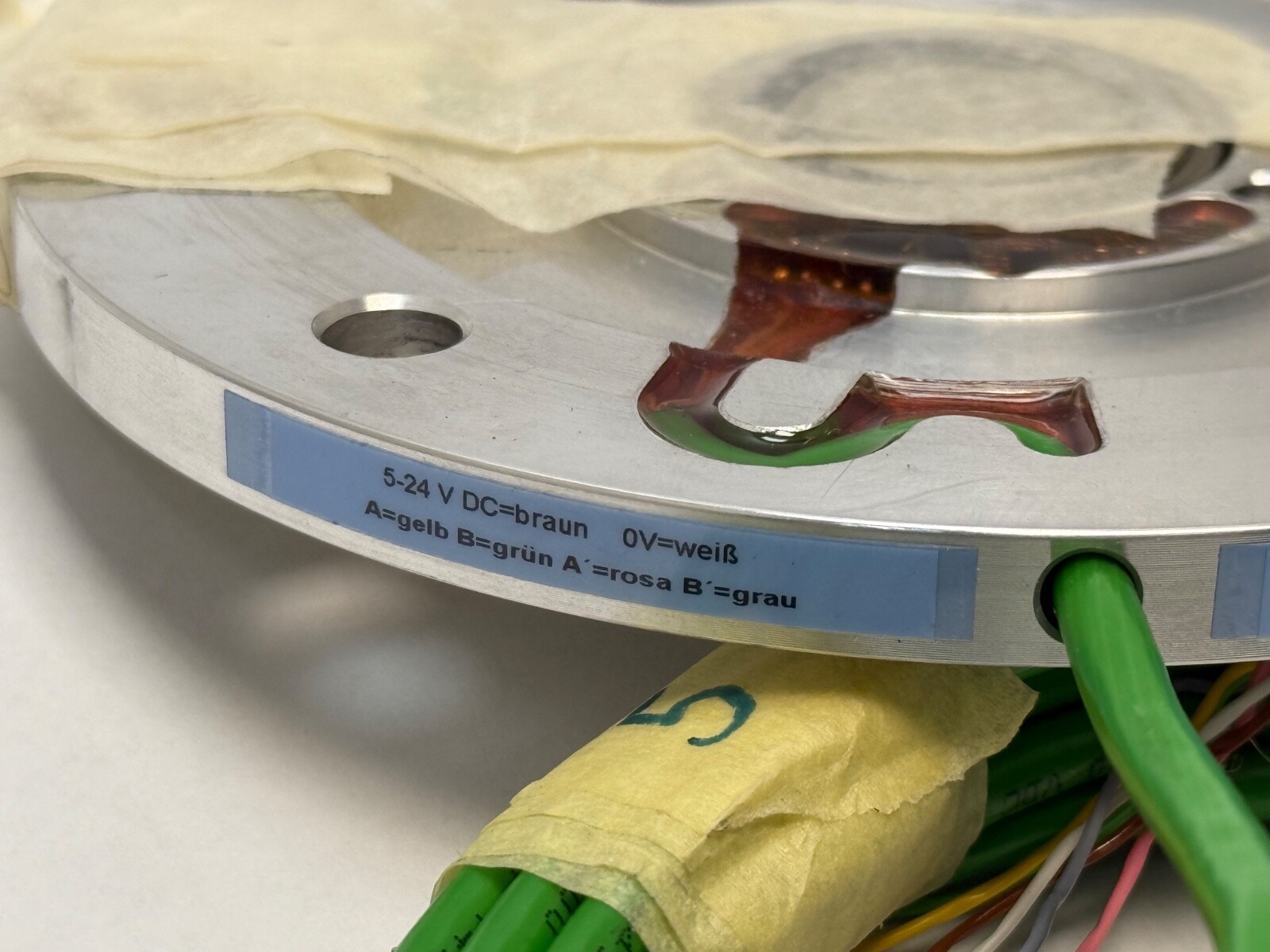

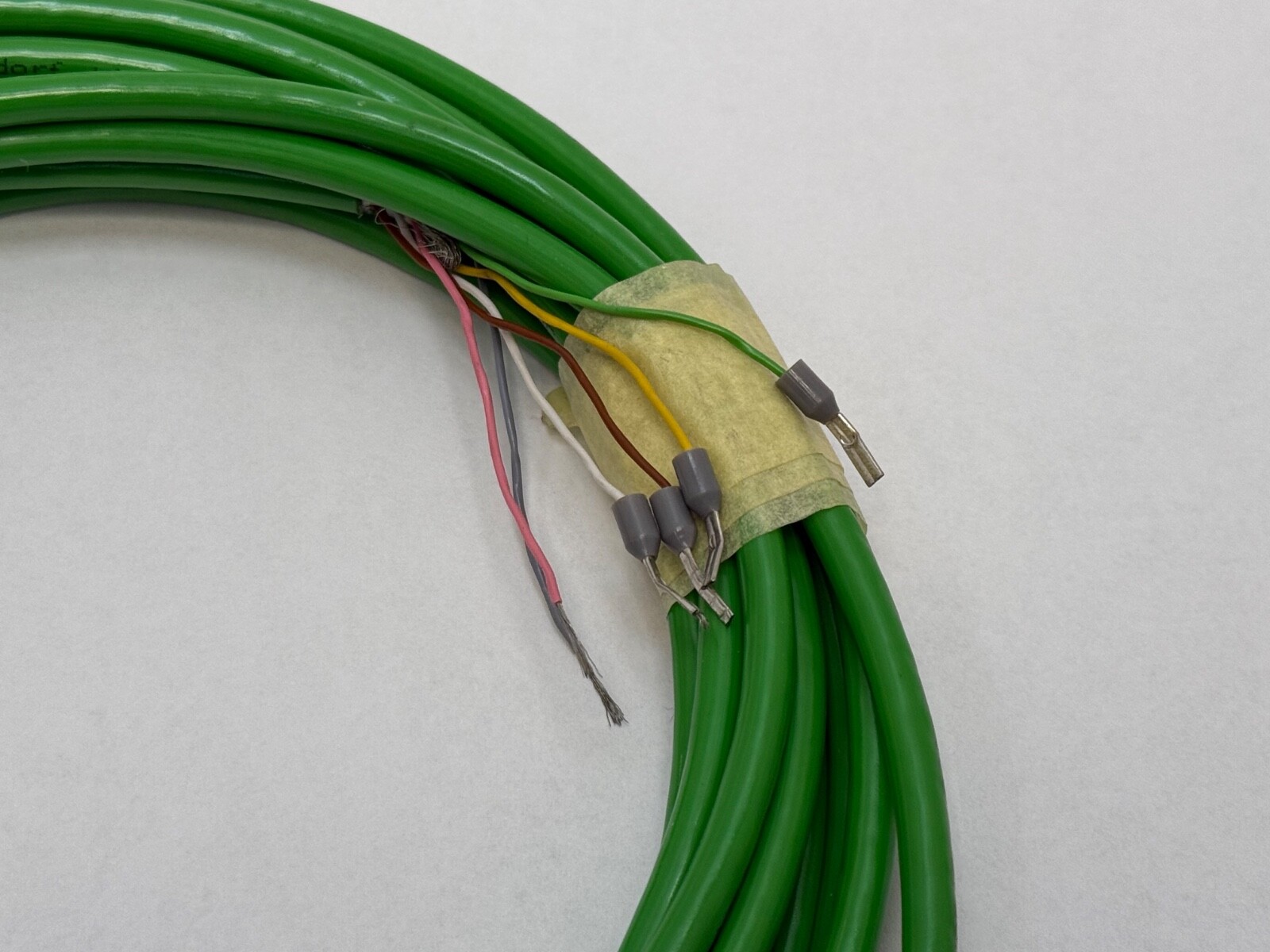

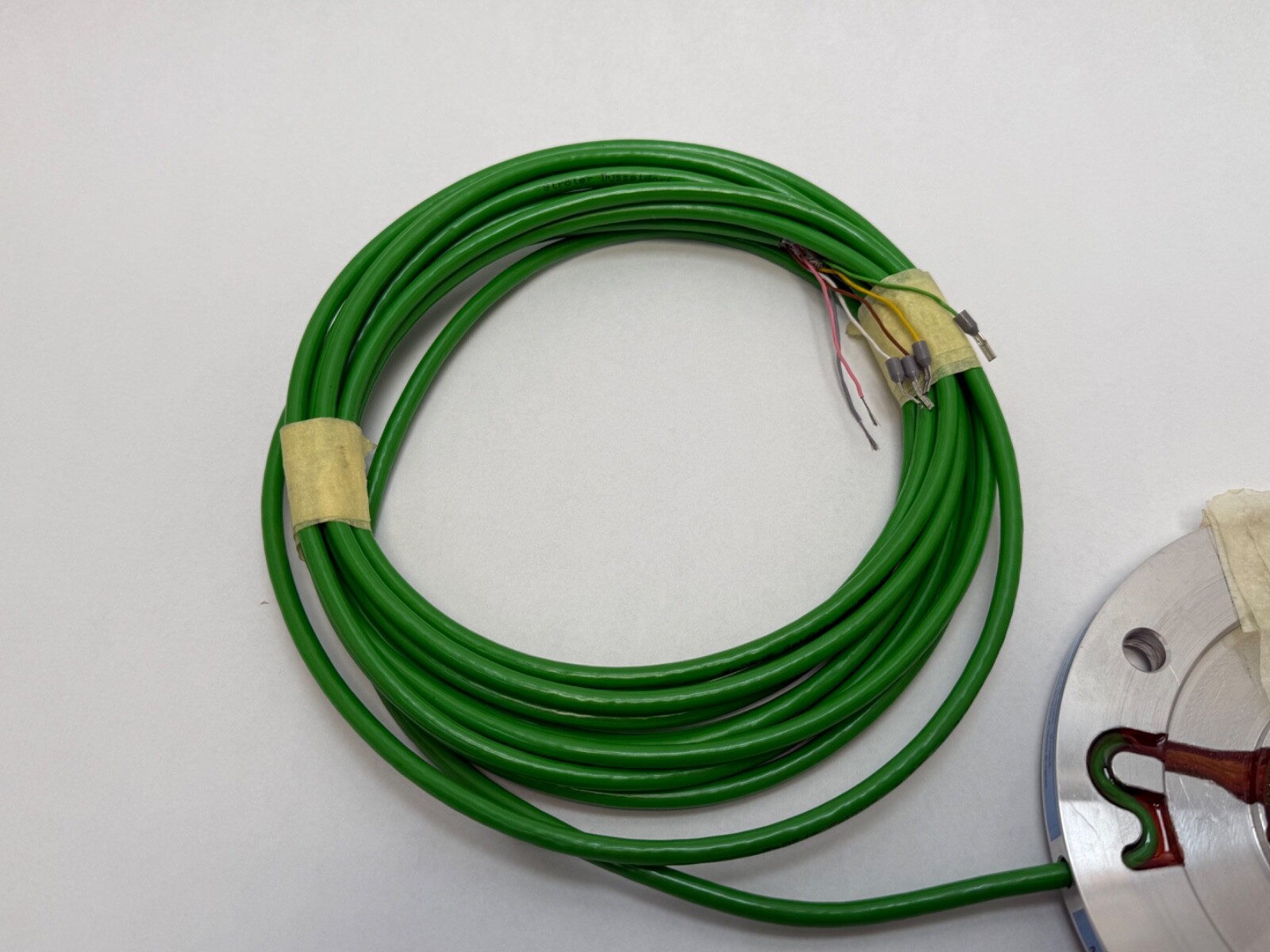

Encoder Type: Magnetic incremental, intermediate flange (through-bore). Series: MIG NOVA+. Resolution: 48 pulses per revolution. Output Signals: A, B at 90° plus inverted A and B. Interface: HTL push-pull or TTL. Supply Voltage: 5–24 V DC. Maximum Pulse Frequency: 100 kHz. Maximum Speed: 6,000 rpm. Protection Class: IP55. Ambient Temperature: −30 °C to +80 °C. Flange Material: Aluminium. Hub Material: Stainless steel. Connection: Integral screened PUR cable, 6 x 0.14 mm². Approvals: CE.

Dimensions and mounting:

Flange Outside Diameter: 140 mm. Fitting Edge: 95 mm. Bolt Circle: 115 mm. Flange Thickness: 9 mm. Rotor Bore: 24 mm. Mating Motor Shaft: 24 x 50 mm. Motor Mount: IEC frame 90, B14 face, flange design FT 115. Unit Quantity: 1 Pc.

Compatibility and replacement:

BEGE MIGN+-140-24 with 48 pulses per revolution, also written MN 140-24-0048, MN-140-24-0048 and MN140240048. Related BEGE parts: MIG BASIC (IEC 56–112, 1–64 pulses), MIG AST (absolute single-turn), MIG SS (stainless steel), and the 140 mm flange with 11 mm or 14 mm bore for IEC 63 and IEC 71 motors.

Frequently asked questions:

What motor does this encoder fit?

IEC frame 90 motors with a B14 face, FT 115 flange and 24 mm shaft.

What is the resolution?

48 pulses per revolution, A and B quadrature with inverted channels.

What supply voltage does it use?

5–24 V DC.
