Availability:
1 in stock
Accu-Coder 725I-S-S-3600-R-OC-1-F-N-E-N-N shaft encoder, 3600 CPR quadrature with index, open collector, 3/8 in shaft, flange mount, industrial housing.
List Price
$114.55
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Accu-Coder |
|---|---|
| MPN | 725I-S-S-3600-R-OC-1-F-N-E-N-N |
| Model | 725ISS3600ROC1FNENN |

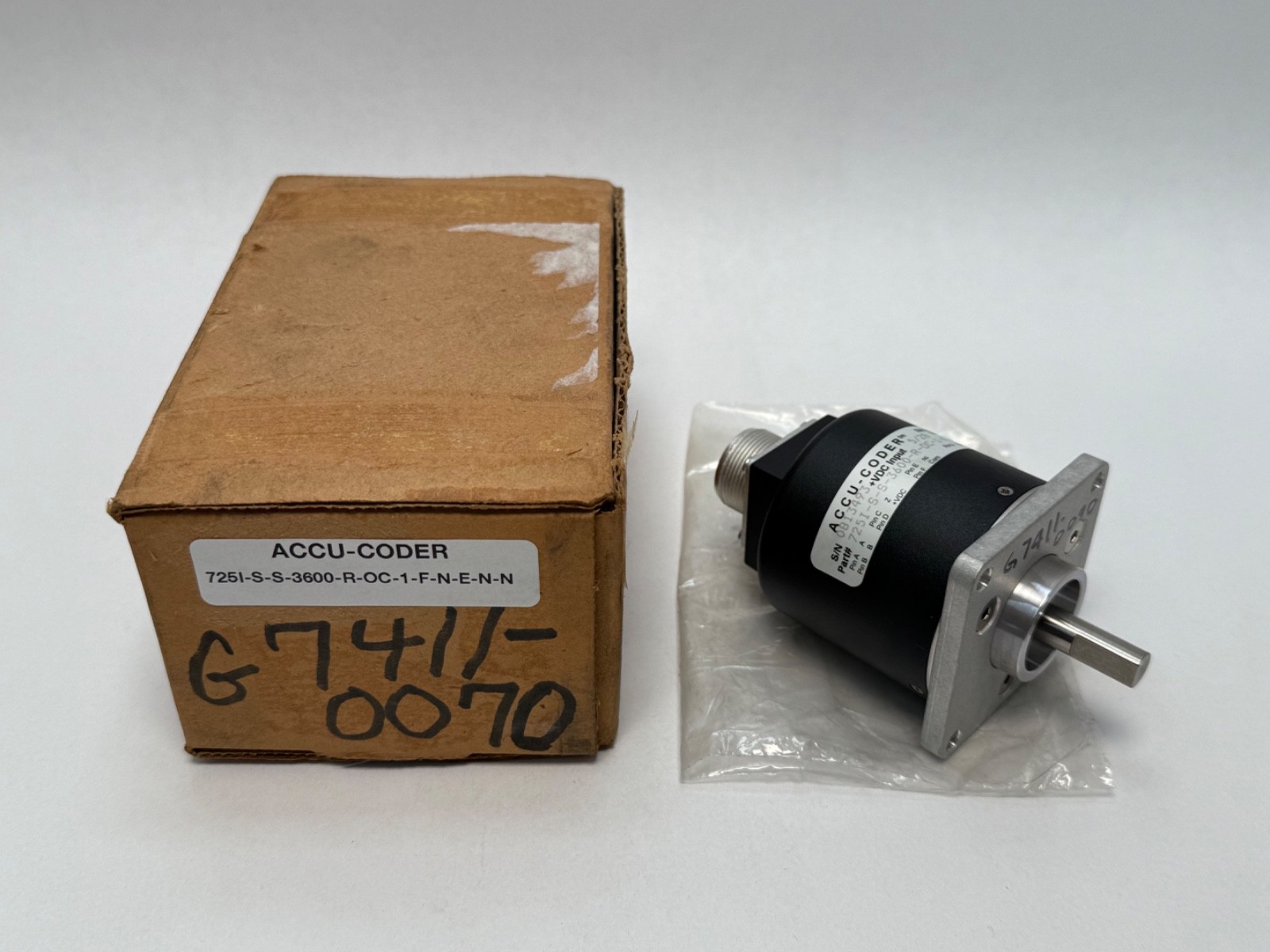

| Condition | New – Open box |
|---|---|
| Output Type | Open Collector |
| Shaft Diameter | 3/8 in (0.375 in) |
| Voltage | 4.75-28 V DC |
| Mpn Variants | 725I-S-S-3600-R-OC-1-F-N-E-N-N, 725ISS3600ROC1FNENN, 725I 3600 |
| Min Temp | 0 °C |
| Series | Model 725 |
| Max Temp | 70 °C |
| Type | Incremental Rotary Encoder |
| Item Weight | 20 oz typical |

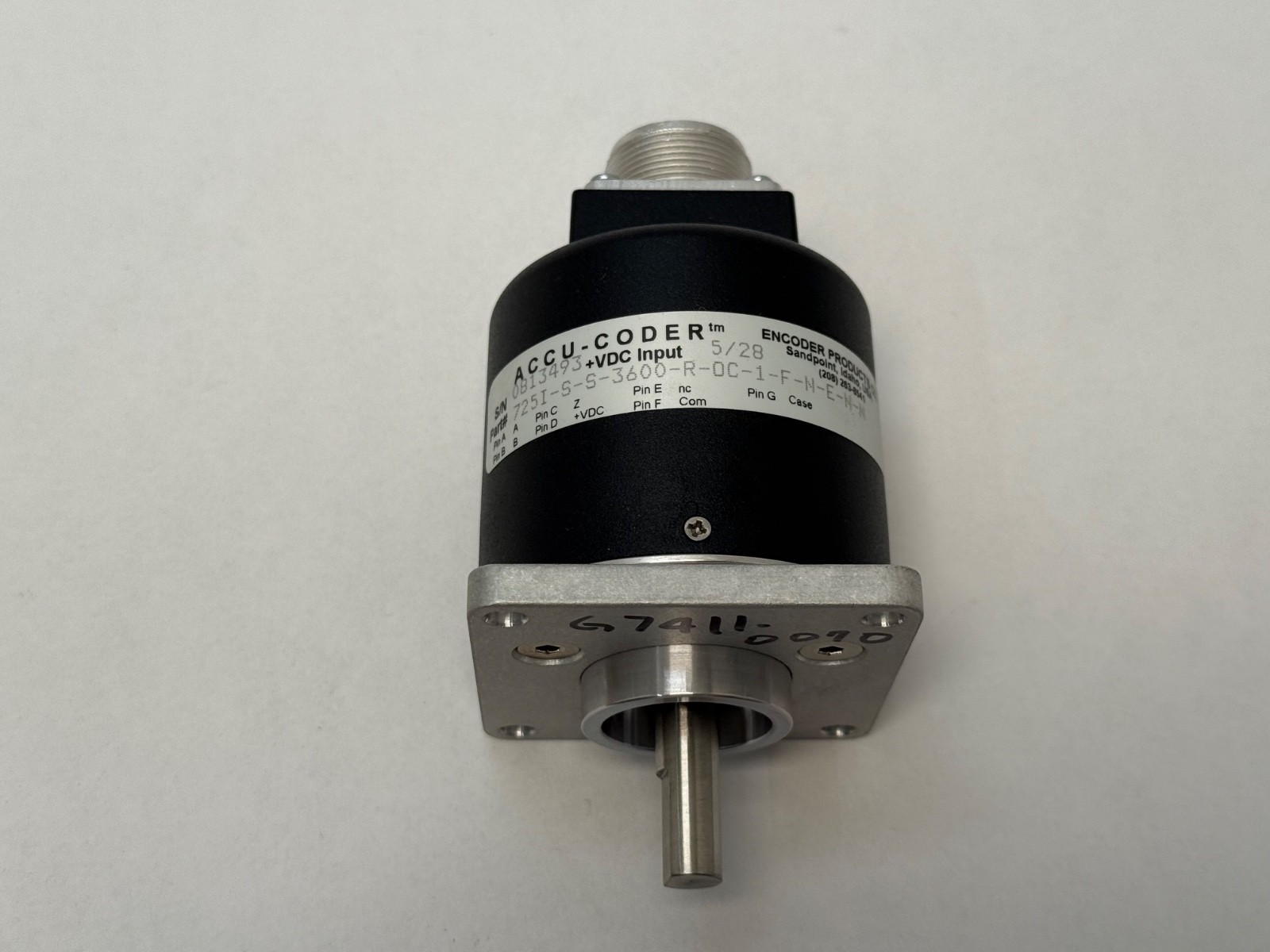

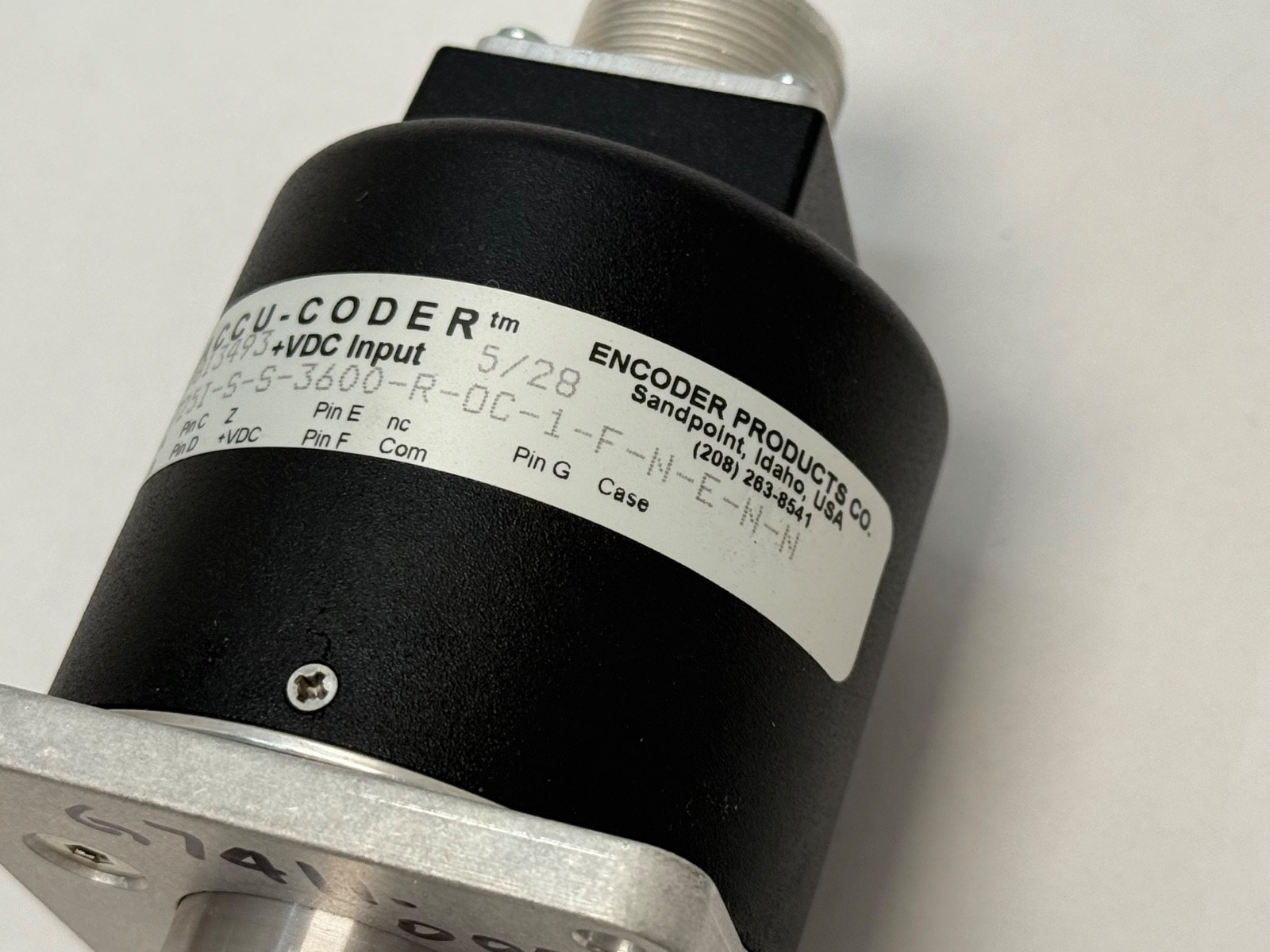

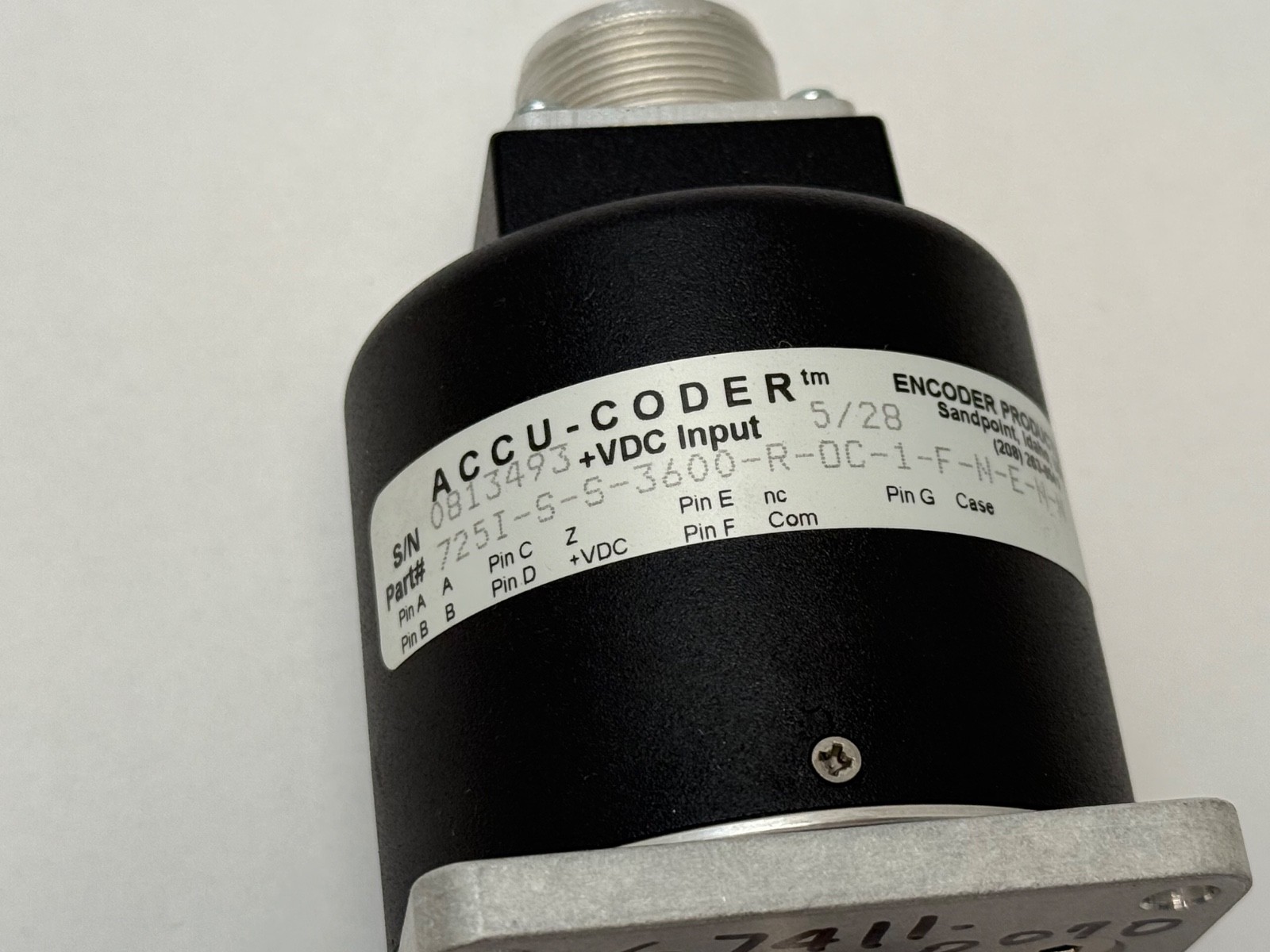

Accu-Coder 725I-S-S-3600-R-OC-1-F-N-E-N-N is an Encoder Products Company Model 725 Size 25 incremental optical shaft encoder in the heavy-duty industrial housing, 3600 cycles per revolution, quadrature with index, open collector output, flange mount.
725 — Model 725, Size 25 (2.5 in) incremental shaft encoder.
I — heavy duty industrial housing with internal flex mount.
S — shaft size 3/8 in (0.375 in).
S — operating temperature 0 to 70 °C.
3600 — 3600 cycles per revolution.
R — quadrature A and B with index.
OC — open collector output, 5 to 28 V in/out.
1 — standard maximum frequency, 100 kHz.
F — flange mount.
N — no seal.
E — end connector location.
Resolution: 3600 CPR. Channels: A, B and index Z. Output Type: Open collector, 100 mA max per channel. Input Voltage: 4.75 to 28 V DC. Input Current: 100 mA max with no output load. Max Frequency: 100 kHz. Operating Temperature: 0 to 70 °C. Storage Temperature: -25 to 85 °C. Max Shaft Speed: 8000 rpm. Shaft Material: 303 stainless steel. Radial and Axial Shaft Load: 80 lb max. Sealing: IP50 standard. Vibration: 20 g at 58 to 500 Hz. Shock: 75 g at 11 ms. Weight: 20 oz typical. Protection: Reverse voltage and output short circuit protected.

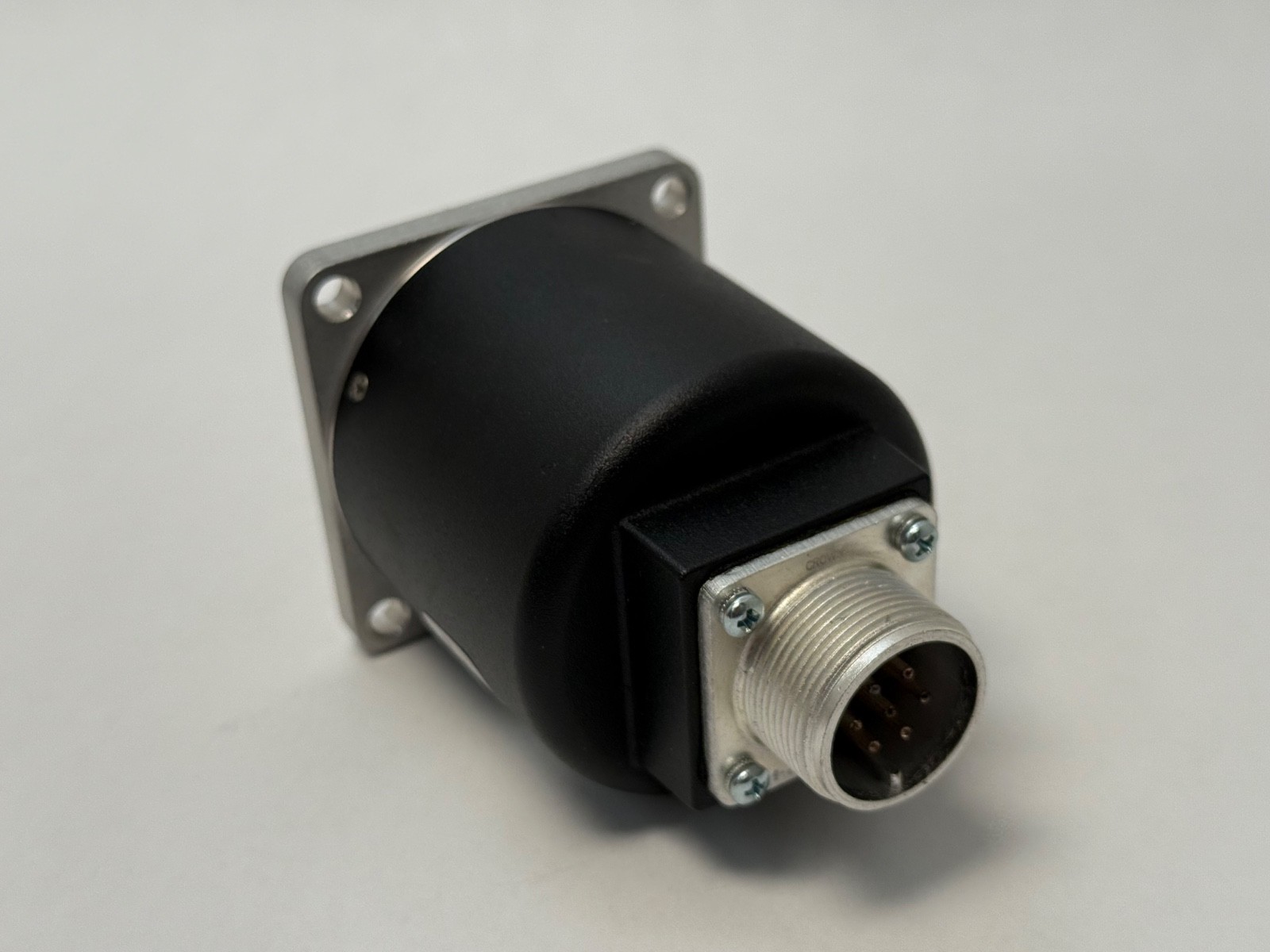

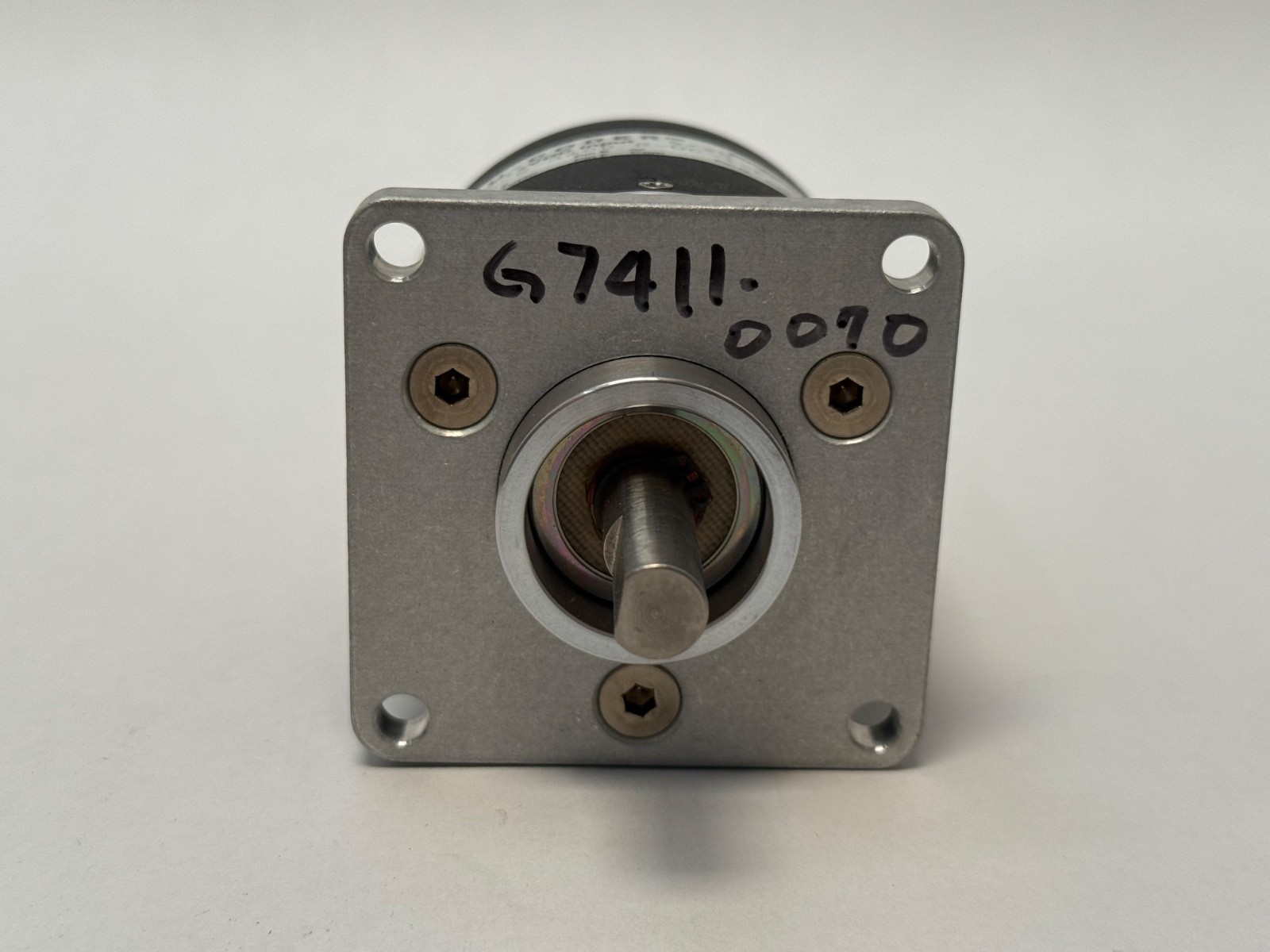

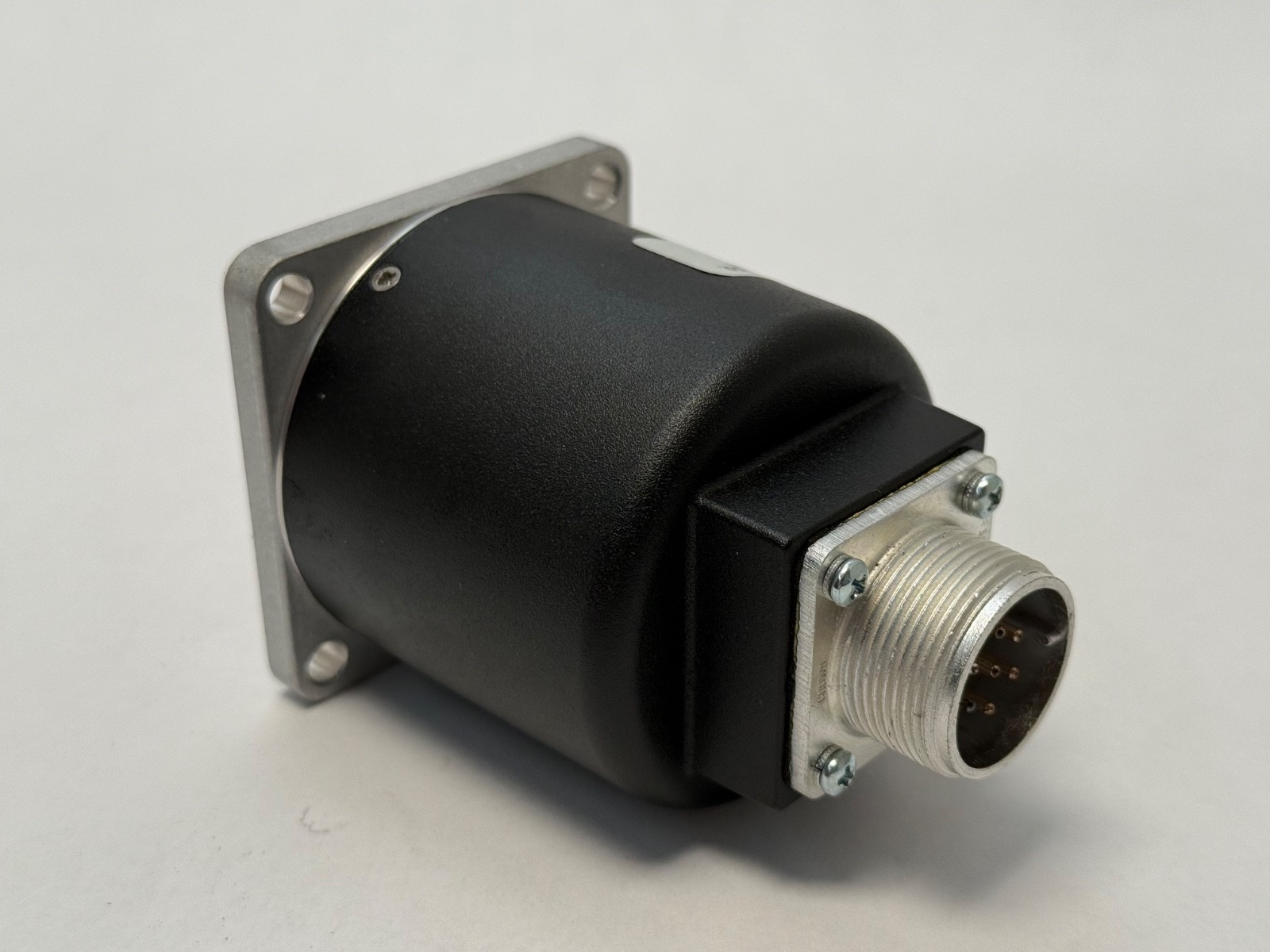

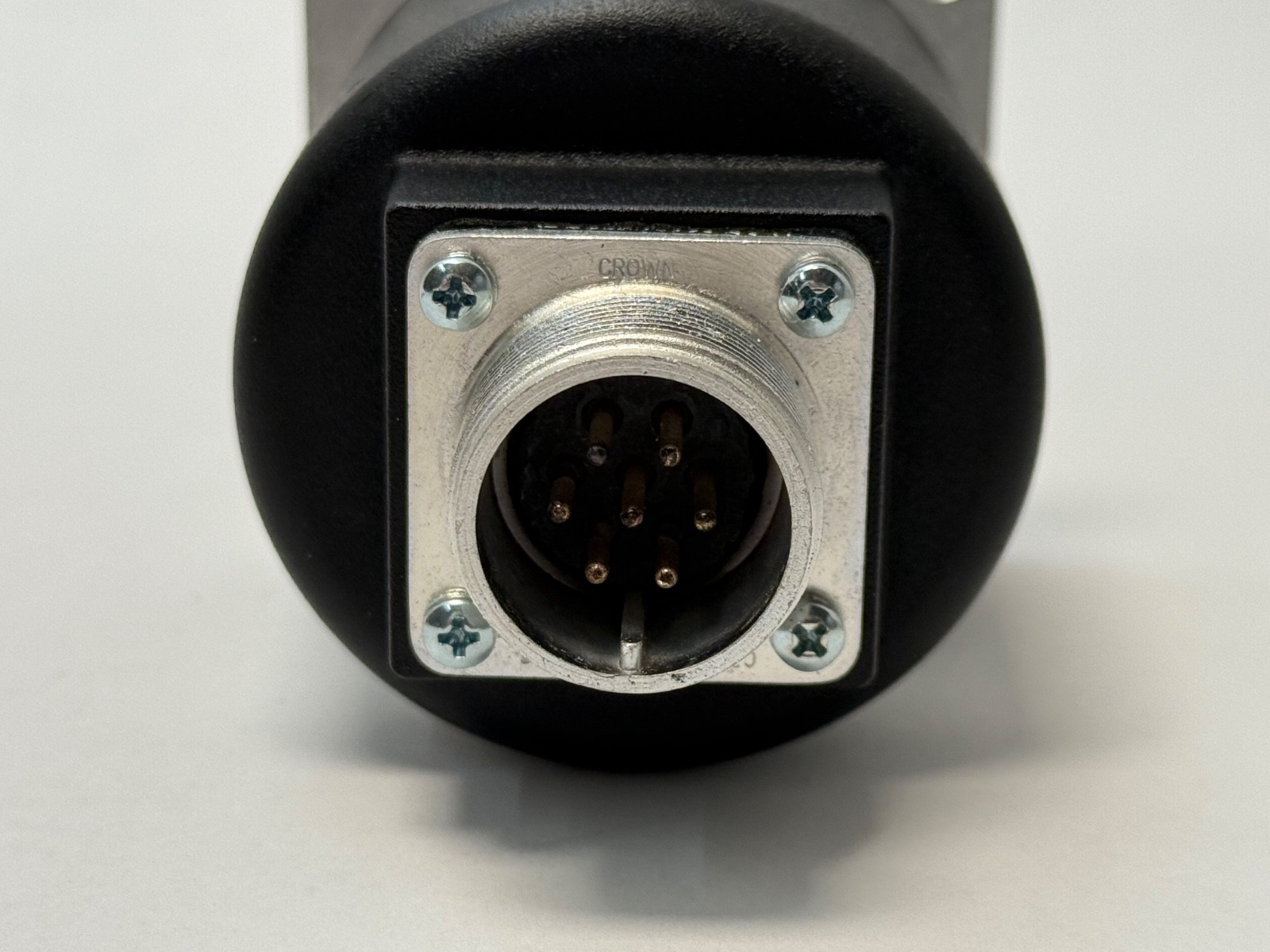

Body: 2.5 in square, Size 25. Shaft: 3/8 in (0.375 in). Flange Mount: 4 x 0.220 in holes on a 2.920 in bolt circle, 1.250 in pilot. Connector: end mounted.
Manufacturer: Encoder Products Company (EPC), Accu-Coder brand. Part number formats: 725I-S-S-3600-R-OC-1-F-N-E-N-N, 725ISS3600ROC1FNENN.
CAD model and data sheet: available from Encoder Products Company (encoder.com).
What resolution is this Accu-Coder 725?
3600 cycles per revolution, quadrature A and B with index.
What output does it have?
Open collector, 5 to 28 V DC, 100 mA max per channel.
What is the industrial housing?
The I housing isolates the encoder on an internal flexible mount to protect the bearings from continuous side loads such as measuring wheels, pulleys or chain drives.
