UnbrandedF23011350005Force Transducer – 0 to 5 kN Tension and Compression, 0.15% Accuracy, 1 ms Response, IP67

Product Description

What this part is

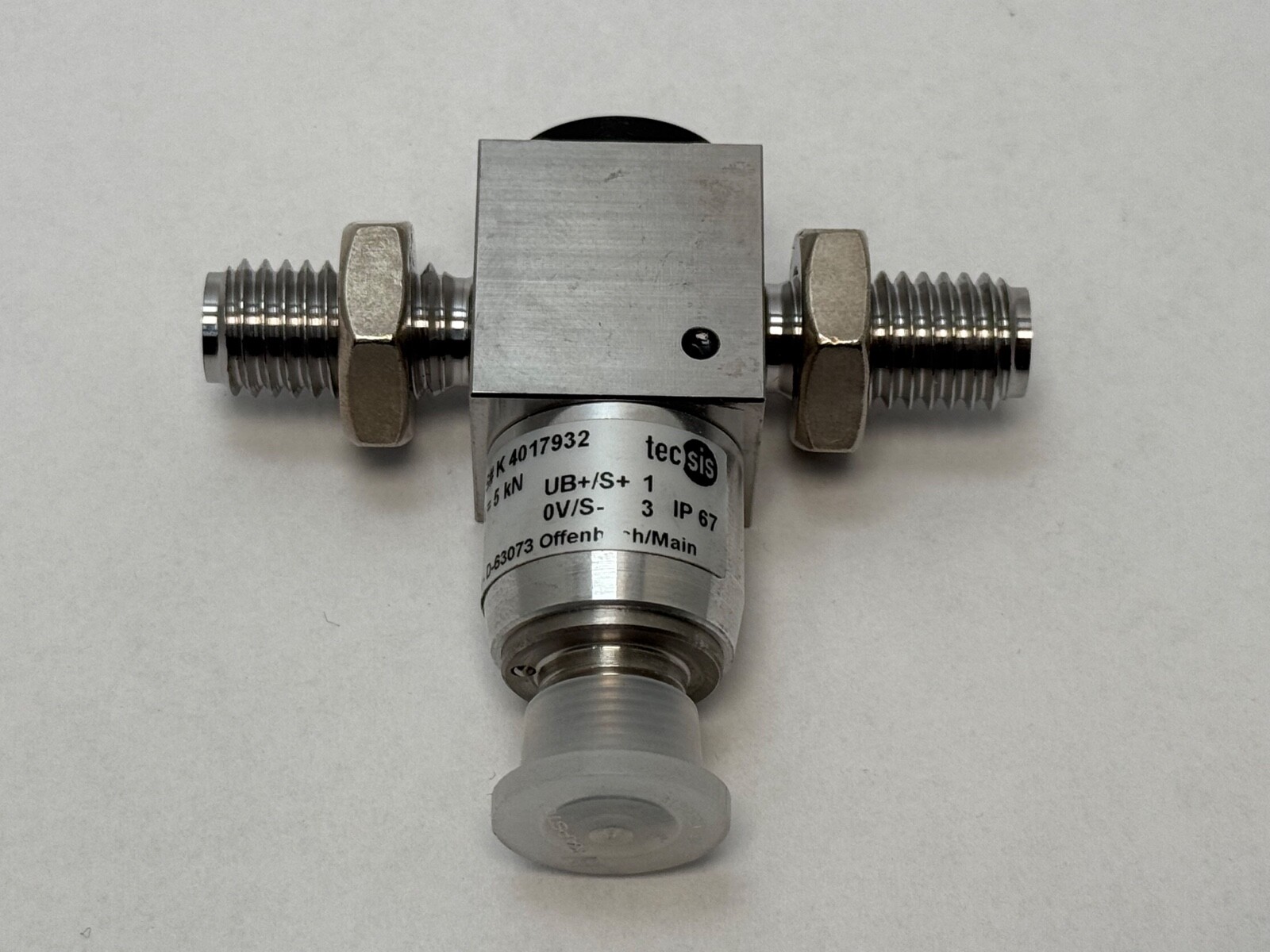

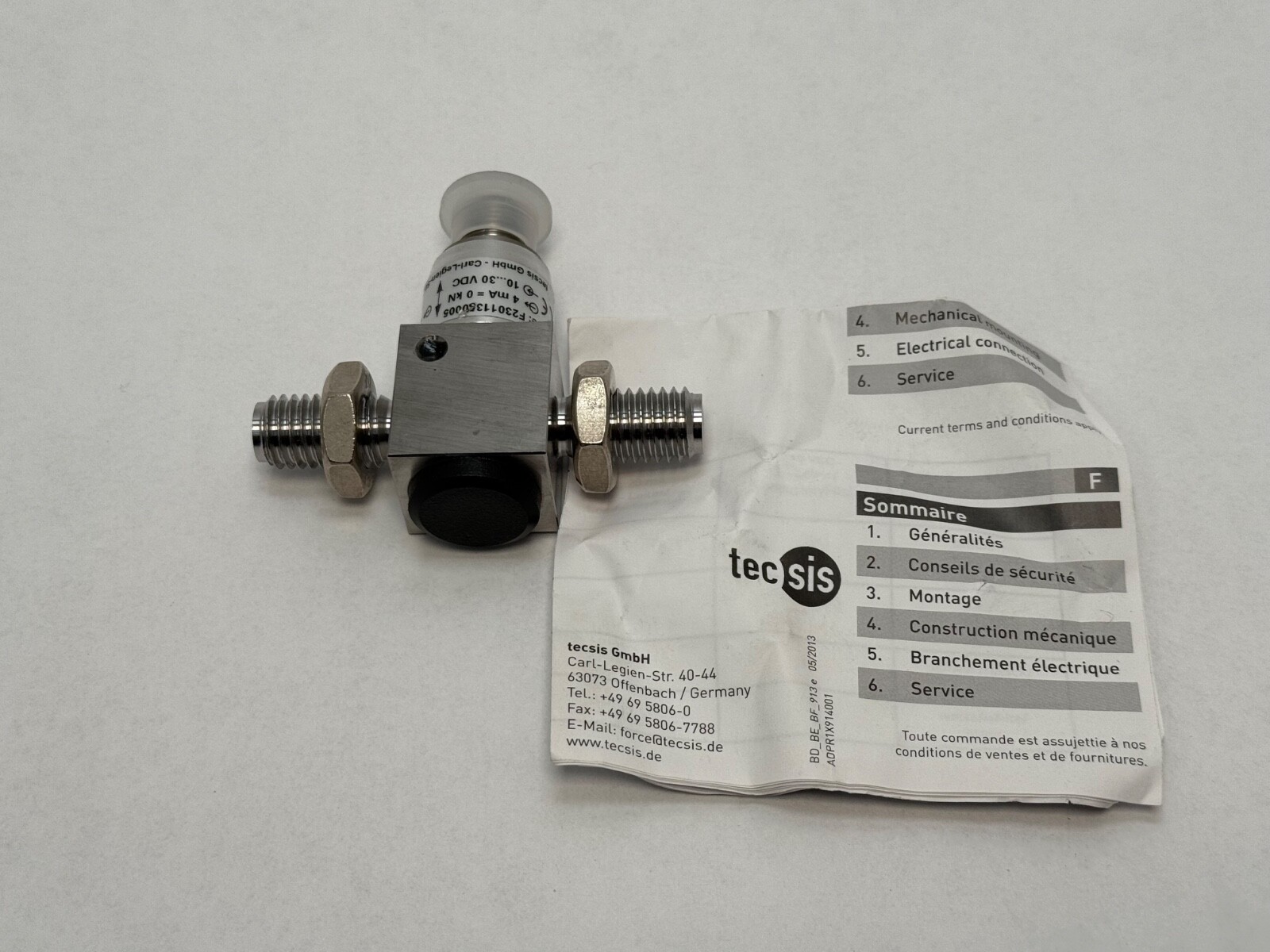

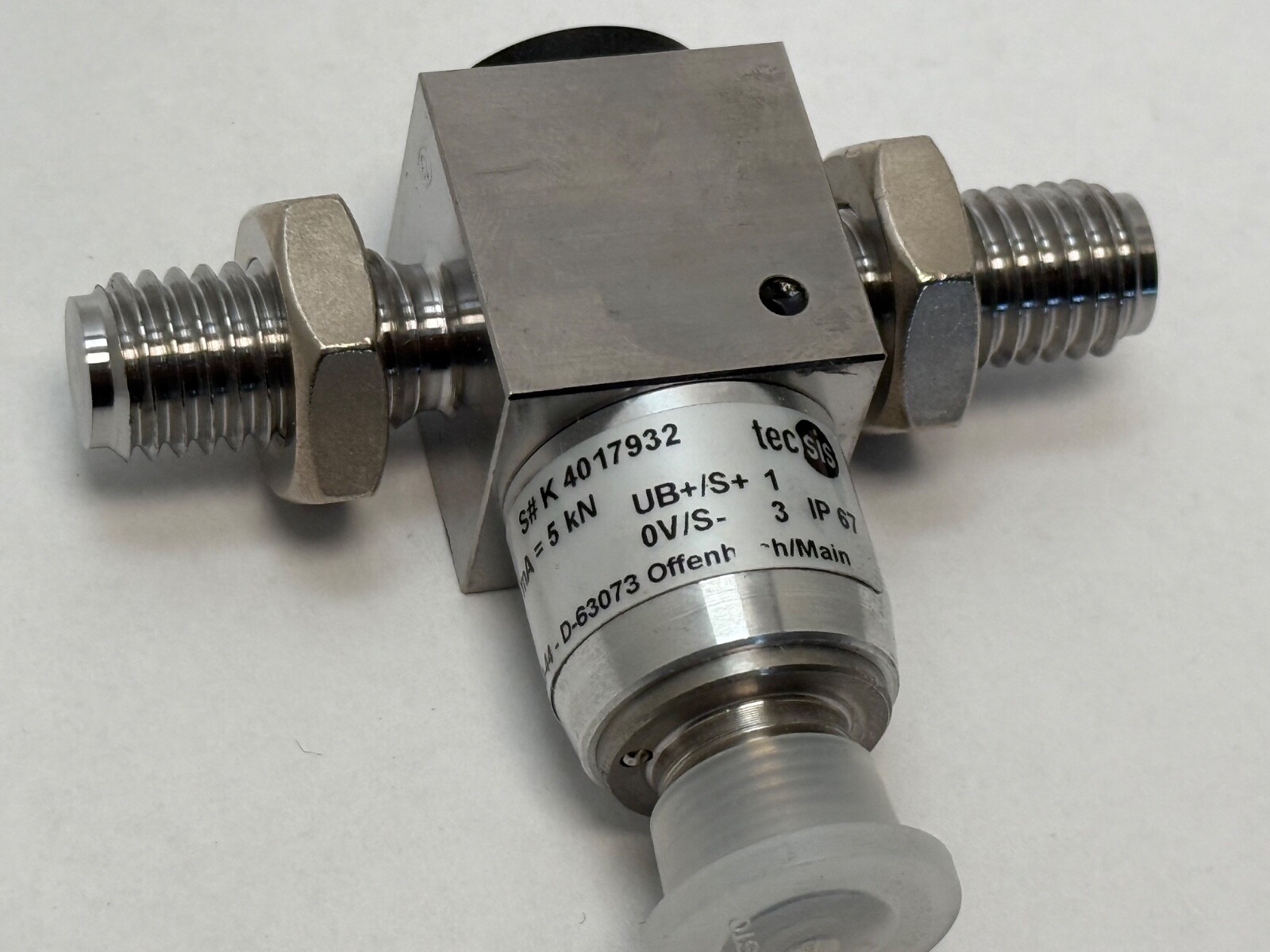

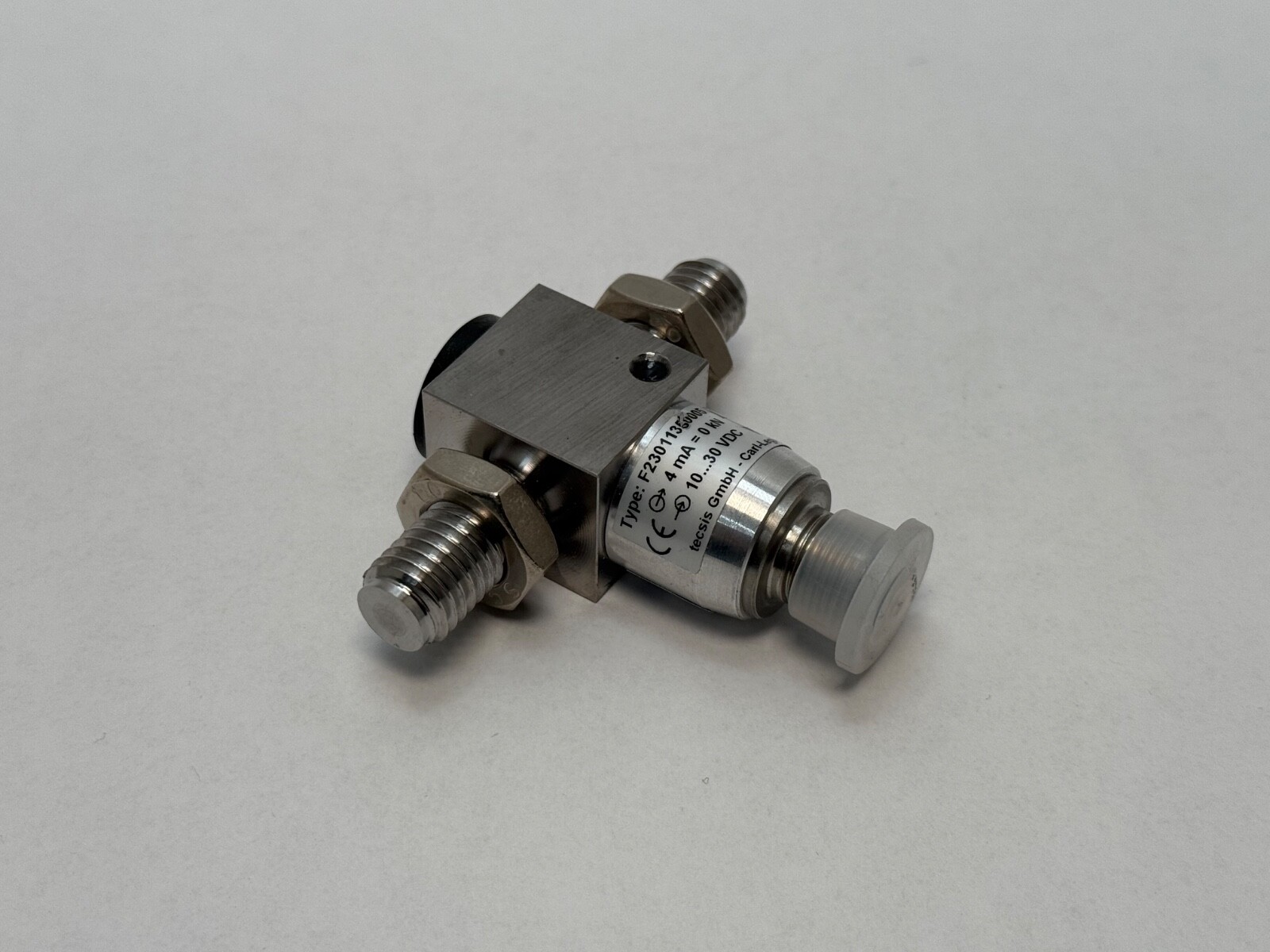

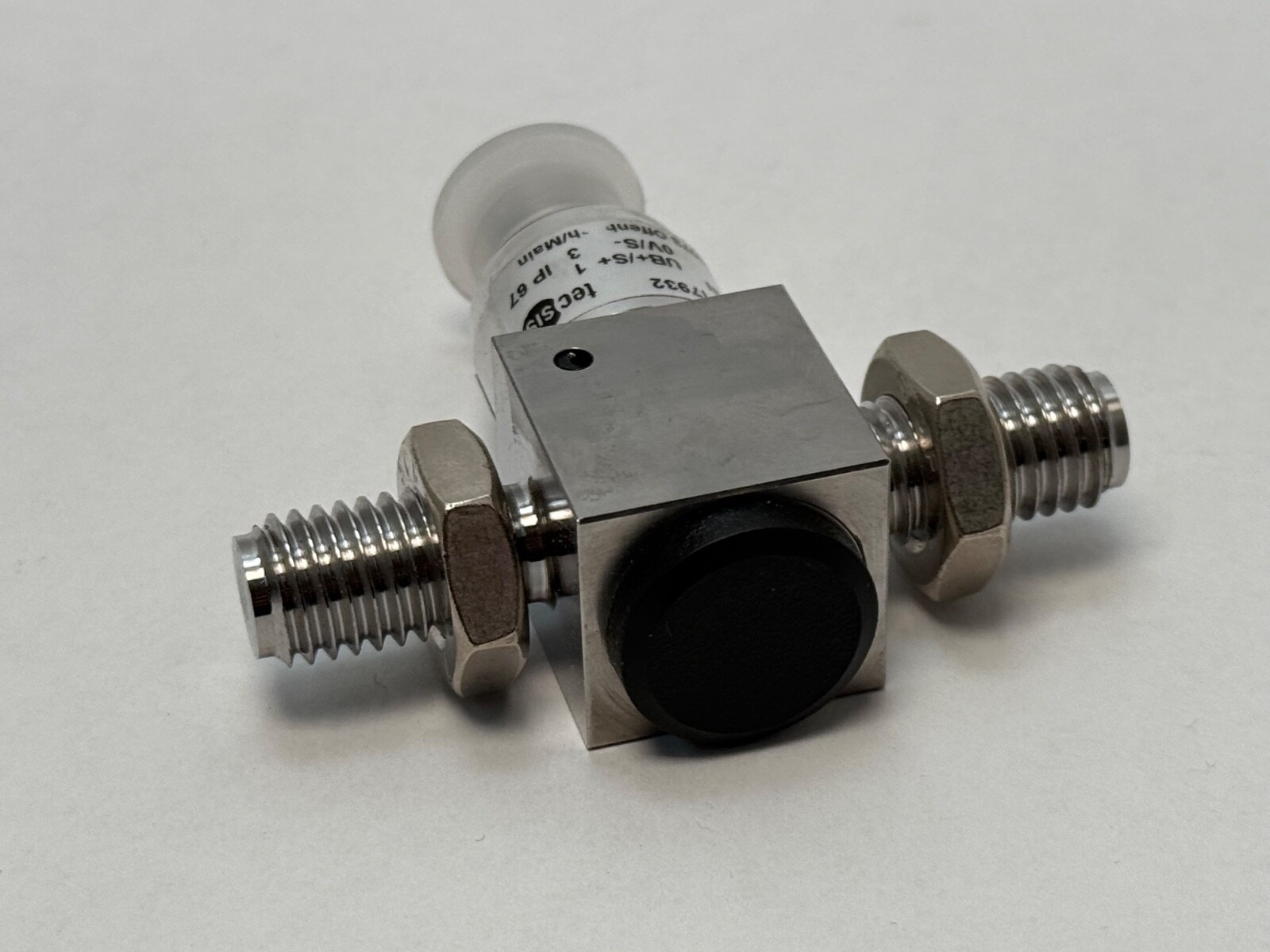

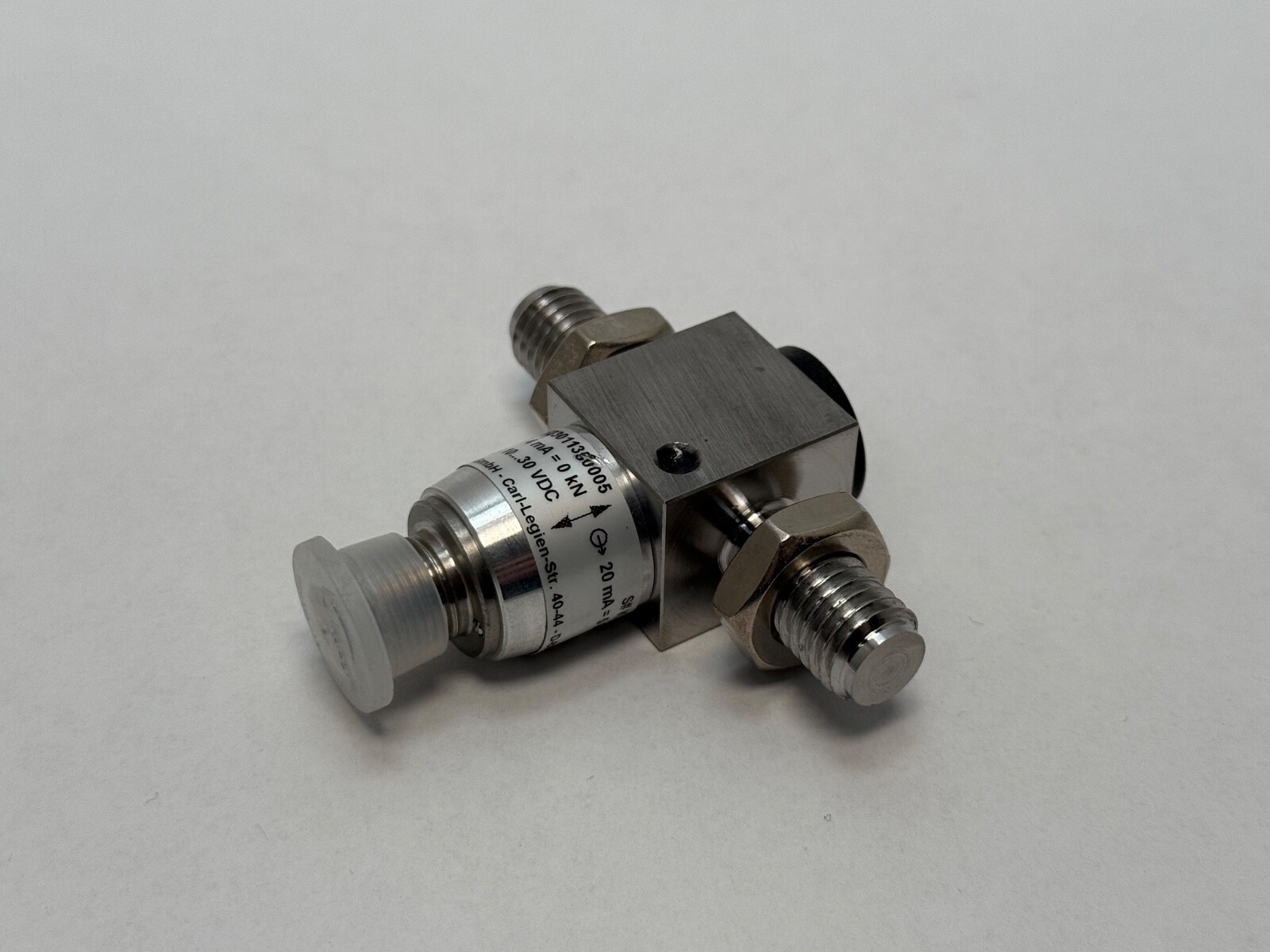

Tecsis F23011350005, an F23011-series force transducer with integrated signal conditioning. Series: F23011. Measurement Type: Force, tension and compression. Measuring Range: 0 – 5 kN. Accuracy: 0.15% of full scale. Response Time: 1 ms. Enclosure Rating: IP67. Supply: DC. Manufacturer: Tecsis, part of the WIKA Group. Traceability Code: K4017932. Country of Origin: Germany.

Decoding the designation

F23011: the transducer family, a strain-gauge force sensor with the amplifier built into the body so the output is a conditioned industrial signal rather than a raw millivolt bridge output. 35: the range code, giving a 0 – 5 kN measuring range. The trailing digits identify the electrical execution within that range. Sibling range codes on the same family run 32 for 0 – 2 kN, 41 for 0 – 10 kN and 45 for 0 – 50 kN.

What these specs mean in practice

Measuring Range: 0 – 5 kN (0 – 1,124 lbf). Accuracy: 0.15% of full scale, so ±7.5 N across the range. Response Time: 1 ms. Enclosure Rating: IP67. A 1 ms response is fast enough to catch a press stroke, a crimp curve or a peak impact rather than only a settled reading, and 0.15% is instrument-grade rather than indicator-grade. IP67 means the body is dust-tight and withstands temporary immersion, so it survives a washdown or a coolant-wetted press bed.

Signal and integration

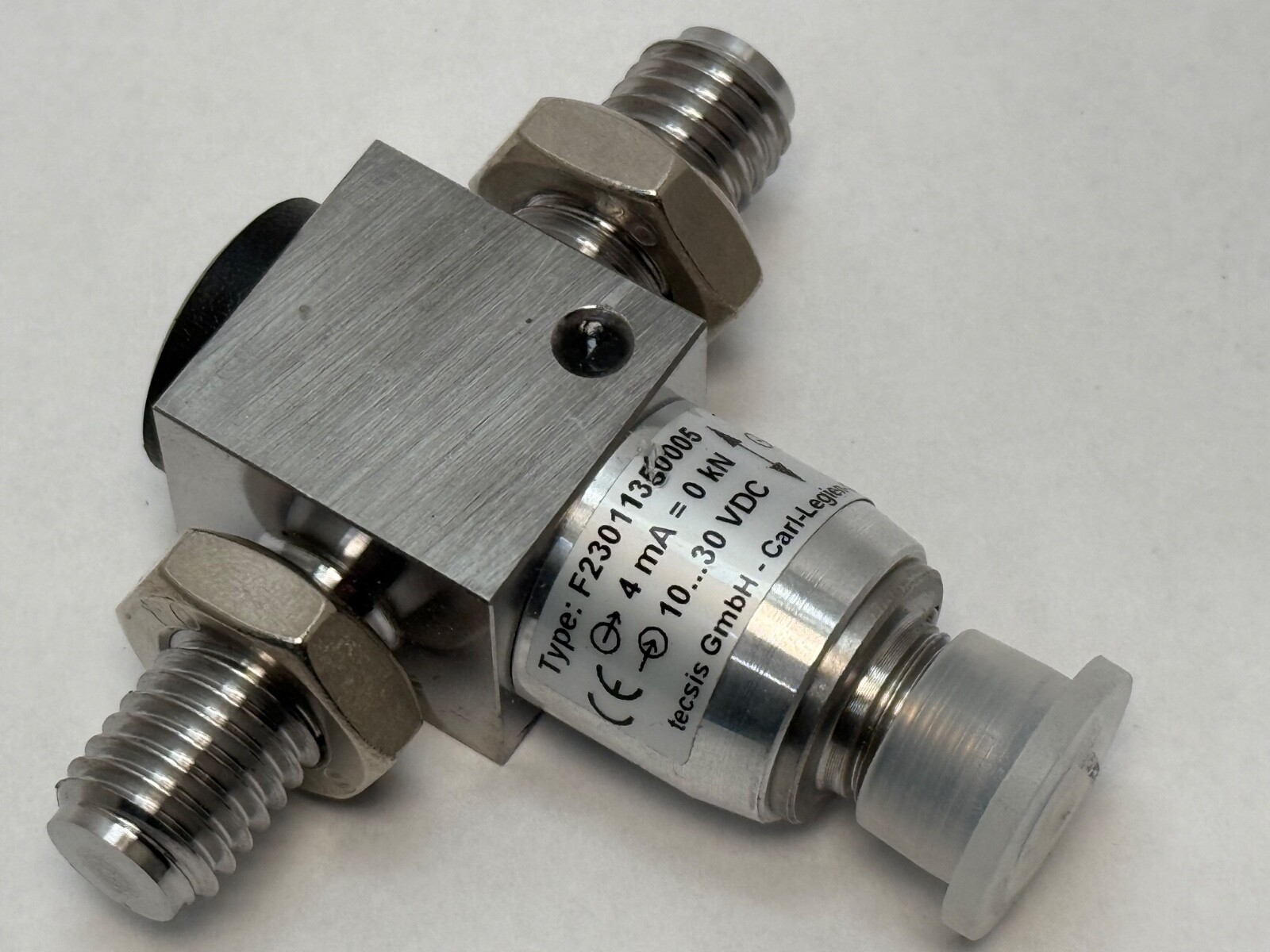

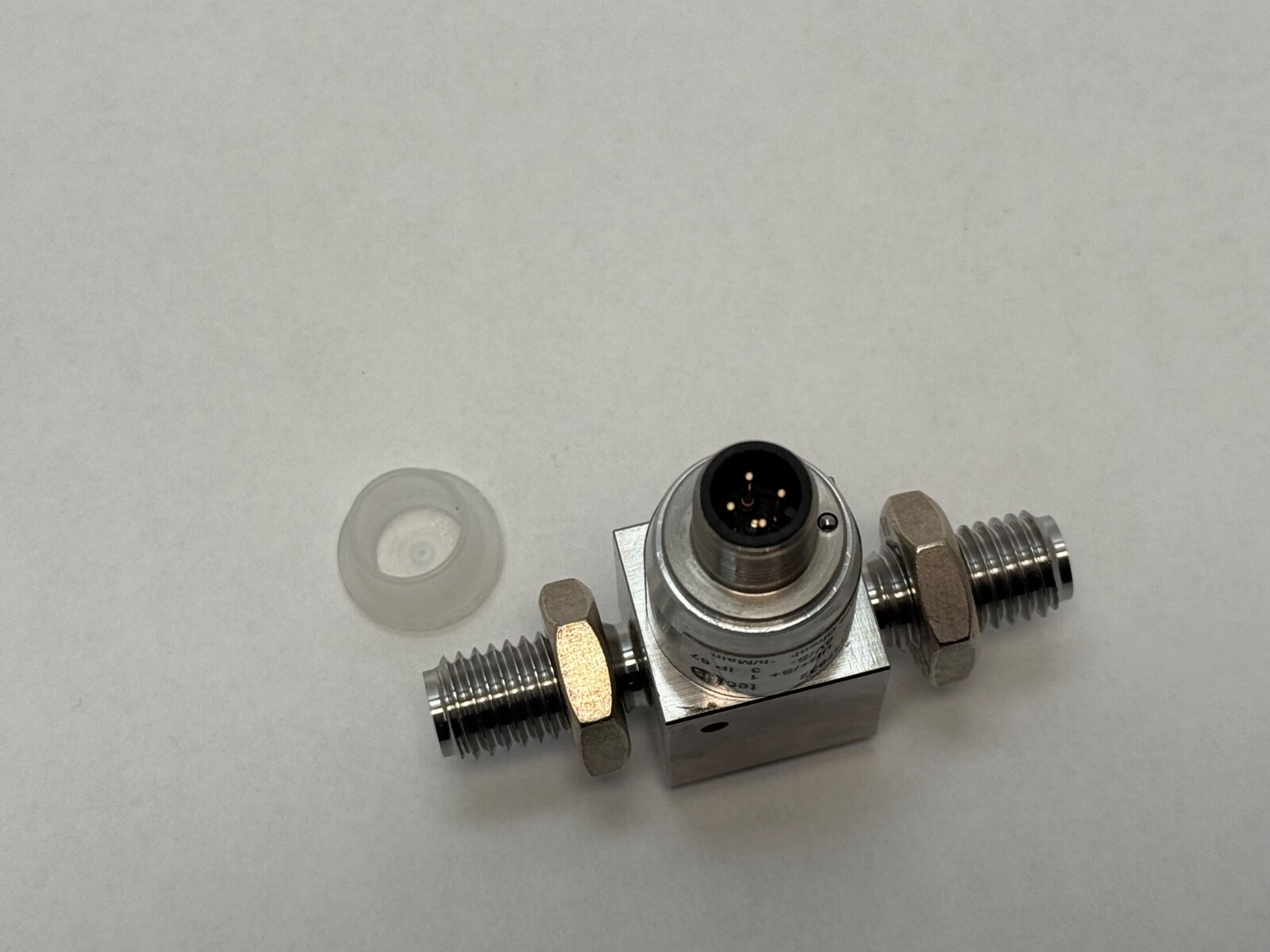

Supply: DC. Output: Conditioned industrial signal from the integrated amplifier. Because the amplifier is inside the transducer, the unit wires straight into a PLC analogue input card or a panel indicator without a separate bridge amplifier in between.

Quantity and configuration

Unit Quantity: 1 Pc. One force transducer.

Interchange guidance

Searchable forms of the designation: F23011350005, F23011-350005, F 23011 350005, F23011, F2301, F23C1, K4017932. Tecsis force sensors are now sold under WIKA Sensor Technology; the F2301 and F23C1 tension and compression force transducers are the same product line.
