Availability:
1 in stock

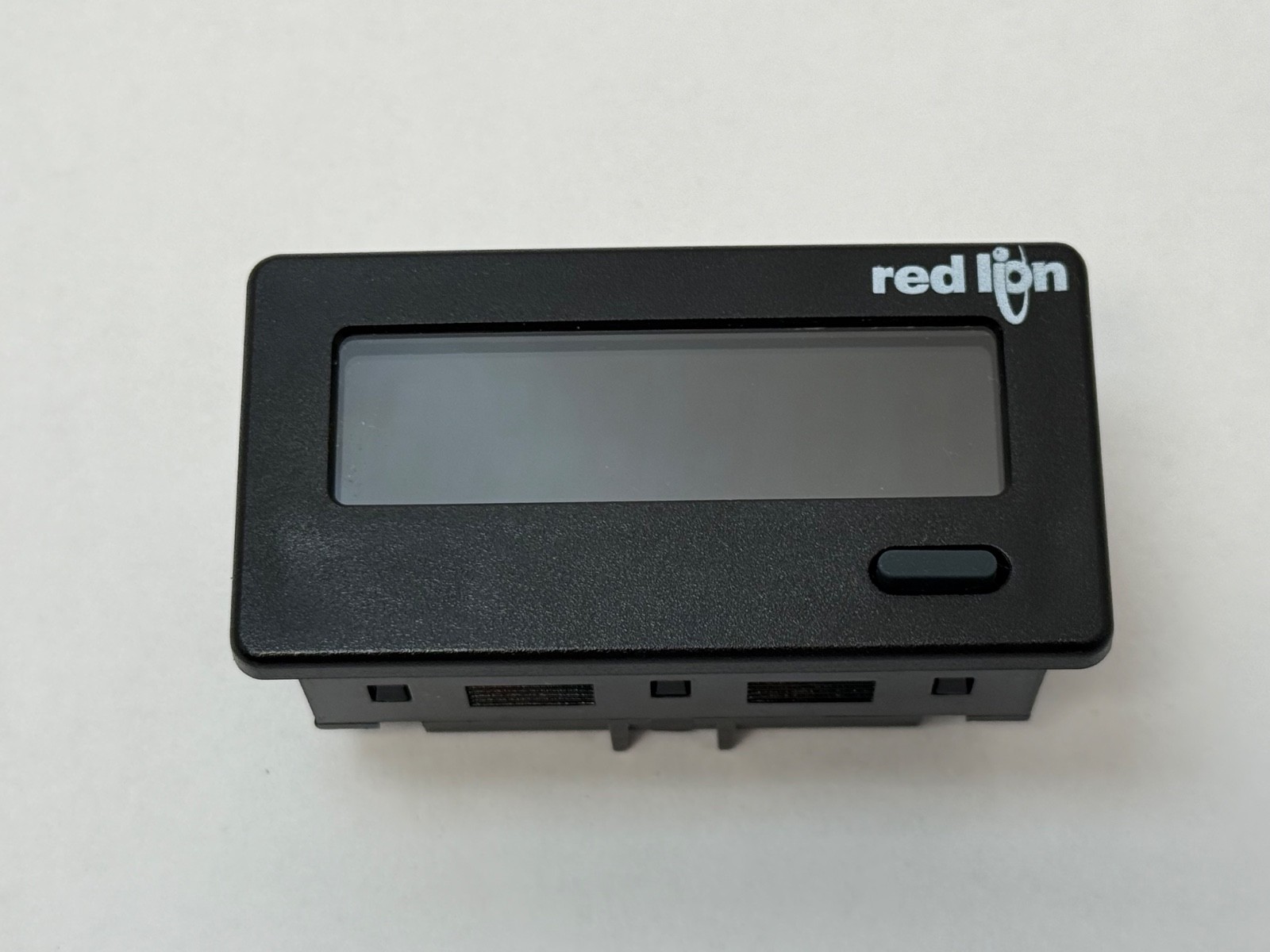

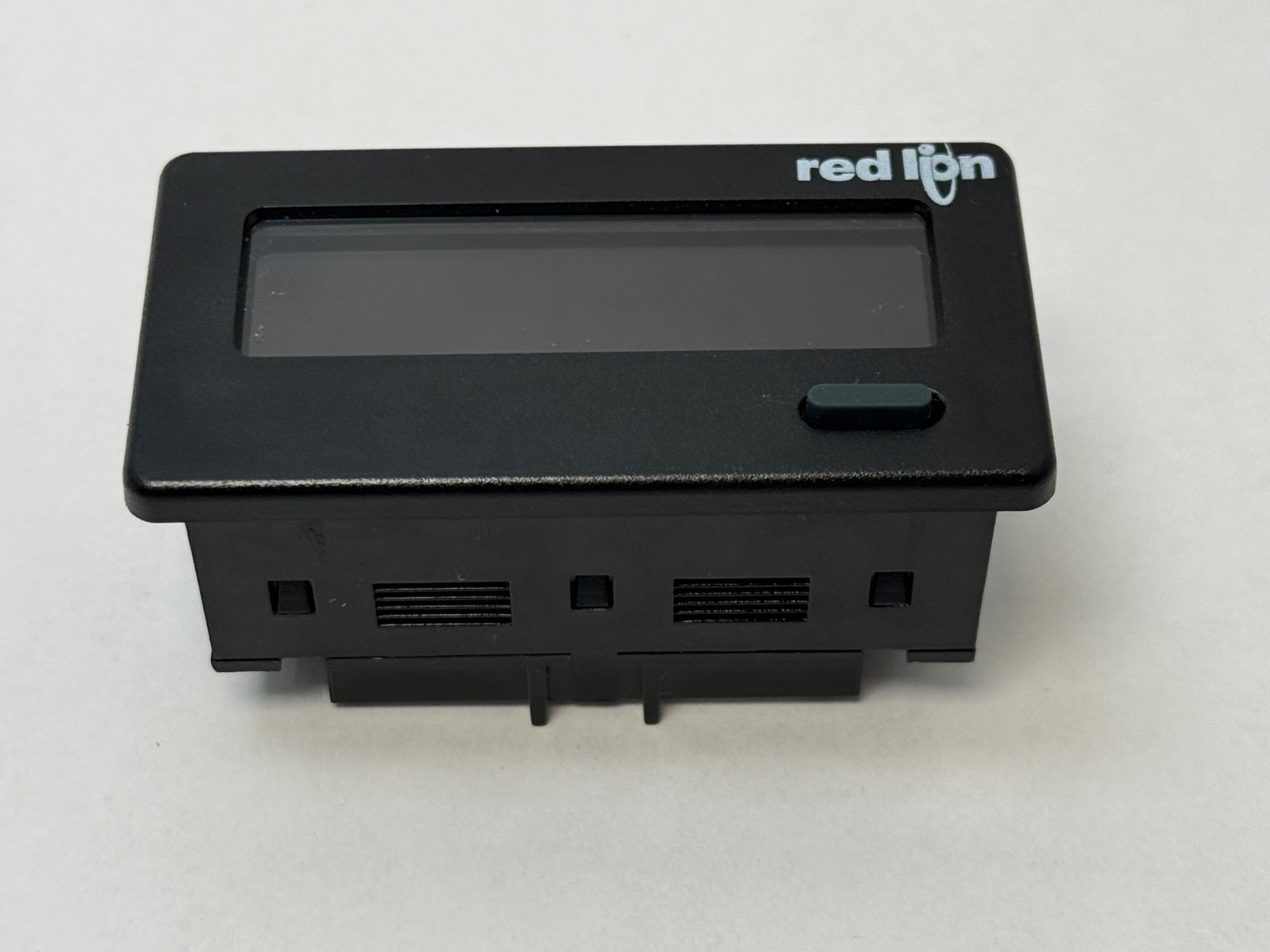

Red Lion CUB4L020 miniature 6-digit LCD counter with red LED backlight, 5 kHz count speed, 9-28 VDC backlight power, internal lithium battery, NEMA 4X/IP65 front.
List Price
$93.46
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Red Lion |
|---|---|
| MPN | CUB4L020 |
| Model | CUB4L020 |
| Industry Terms | electronic counter, panel counter, LCD counter, totalizer, miniature counter |
|---|---|
| Mpn Variants | CUB4L020, CUB4-L020, CUB4 L020 |
| Additional Attributes | Display: 6-digit LCD, 0.48 in (12.2 mm) digits; Backlight: red LED; Power source: internal 3.6 V lithium battery, up to 6 years; Backlight power: 9-28 VDC, 30 mA typical, 50 mA max; Count speed: 5 kHz high freq mode, 50 Hz low freq mode; Count input: sinking or sourcing (DIP switch); Reset: front panel, remote, or both; Connections: screw clamp terminals; Panel cut-out: 68 x 33 mm; Depth: 34.5 mm; Operating temperature: 0 to 60 °C; Storage temperature: -30 to 85 °C; Front rating: NEMA 4X / IP65; Approvals: CE, UL Recognized E179259, RoHS |
| Series | CUB4L |
| Item Weight | 85 g (3 oz) |

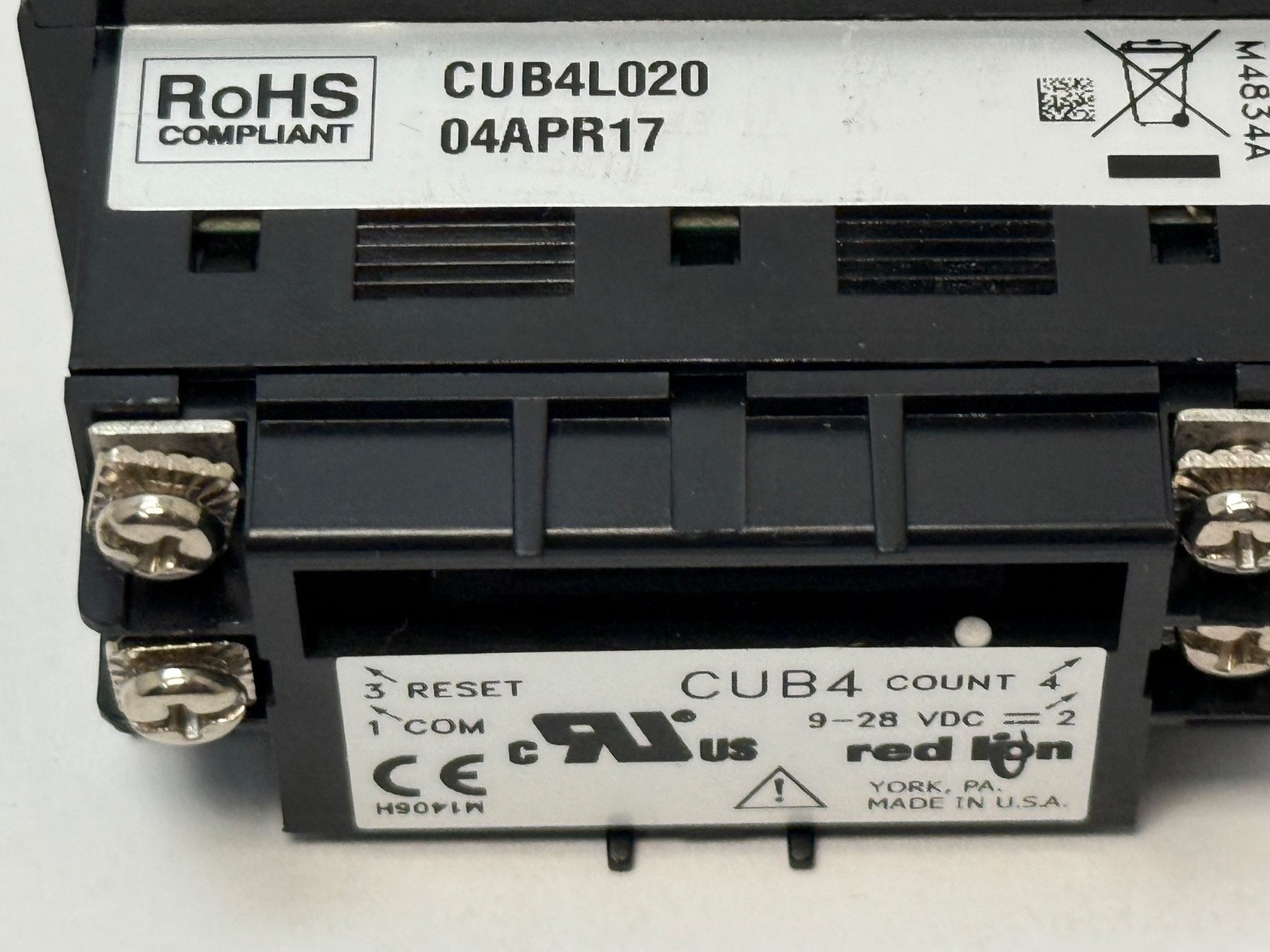

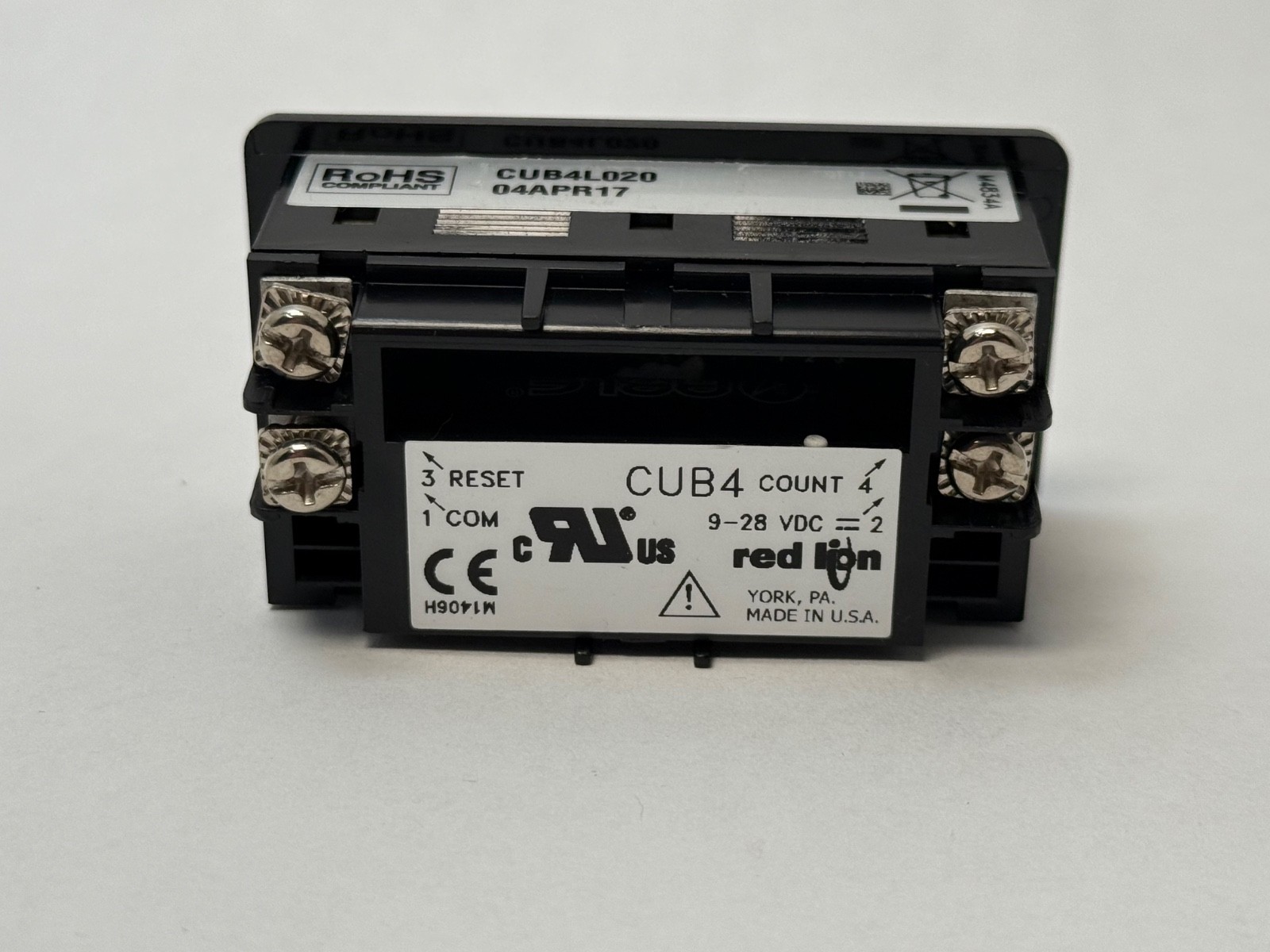

The Red Lion CUB4L020 is a CUB4 series miniature electronic counter with a 6-digit LCD and red LED backlighting, for panel mounting. Brand: Red Lion. MPN: CUB4L020. Series: CUB4L. Display: 6-digit LCD, 0.48 in (12.2 mm) digits. Backlight: red LED. Count Speed: up to 5 kHz. Front Panel Rating: NEMA 4X / IP65.
CUB4L — CUB4 miniature electronic counter, 6-digit display.
020 — counter with red backlighting.

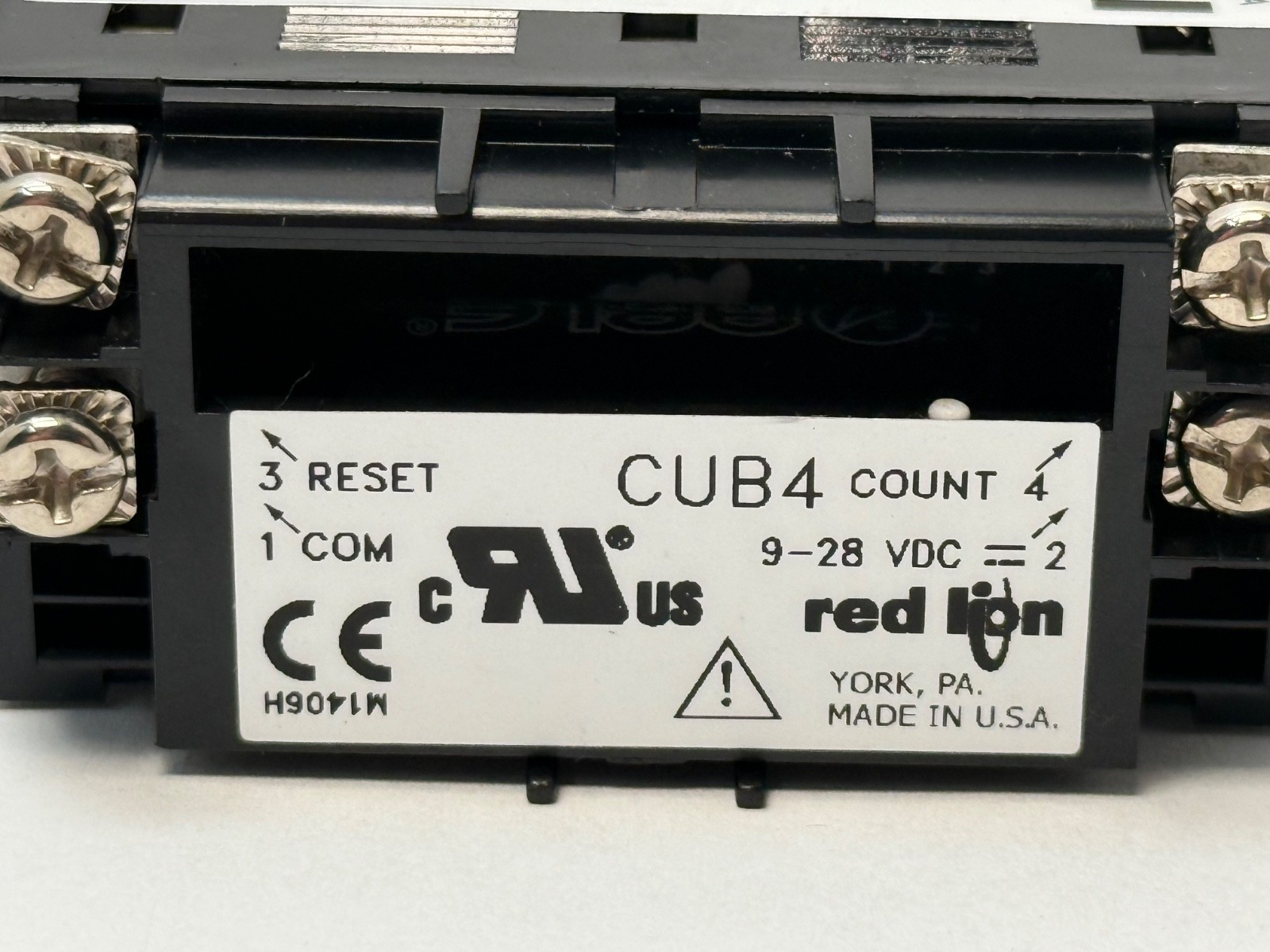

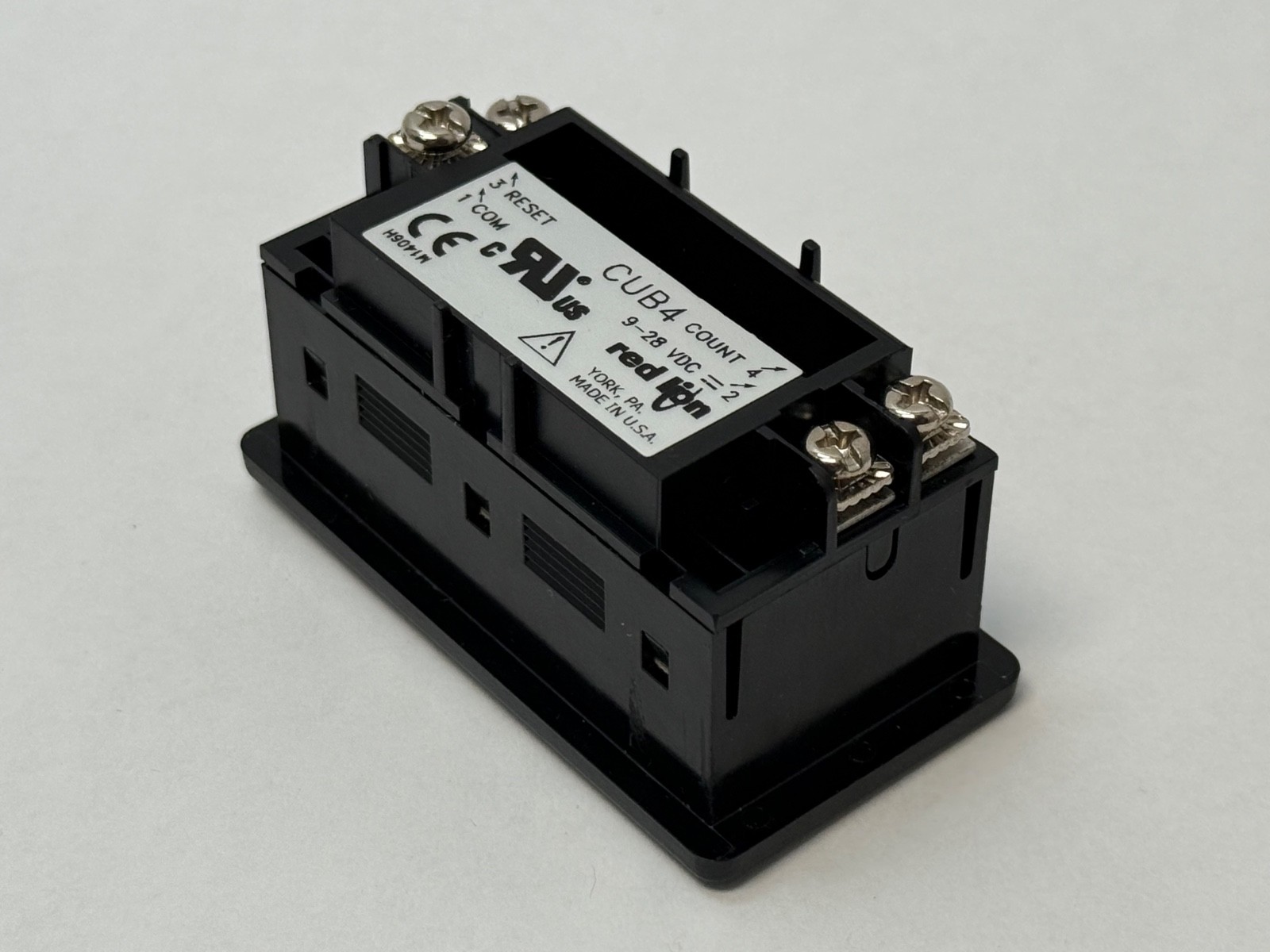

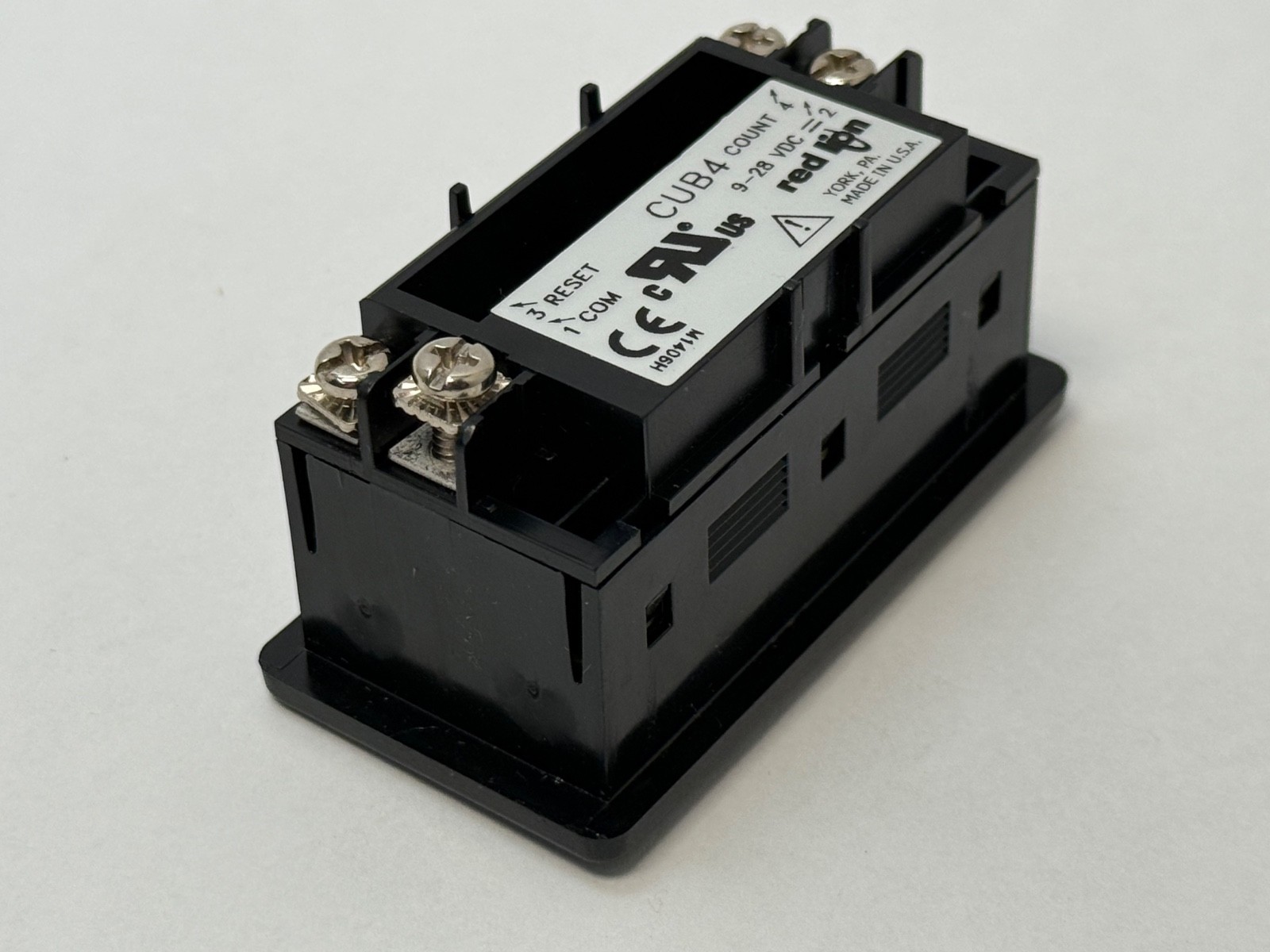

Power Source: internal 3.6 V lithium battery, up to 6 years of continuous operation. Backlight Power: 9 to 28 VDC, 30 mA typical, 50 mA maximum. Count Input: sinking or sourcing, DIP switch selectable. Count Speed: 5 kHz in high frequency mode, 50 Hz in low frequency mode. Reset: front panel key, remote reset input, or both. Connections: screw clamp terminals. The backlight runs from an external 9 to 28 VDC supply, such as the Red Lion MLPS1000 or MLPS2000 power supply that attaches to the rear of the unit.
Bezel: 2.95 x 1.54 in (74.9 x 39.1 mm). Depth behind bezel: 1.36 in (34.5 mm). Panel Cut-out: 2.68 x 1.30 in (68 x 33 mm). Operating Temperature: 0 to 60 °C. Storage Temperature: −30 to 85 °C. Item Weight: 85 g (3 oz). Approvals: CE, UL Recognized Component File E179259, RoHS.
Same CUB4L family: CUB4L000 (reflective, no backlight), CUB4L010 (yellow-green backlight). 8-digit versions: CUB4L800, CUB4L810, CUB4L820. MPN Variants: CUB4L020, CUB4-L020, CUB4 L020.
What is the Red Lion CUB4L020?
It is a CUB4 miniature electronic counter with a 6-digit LCD and red LED backlighting, rated NEMA 4X / IP65 at the front panel.
How is it powered?
Counting runs from an internal 3.6 V lithium battery. The red backlight needs an external 9 to 28 VDC supply, 30 mA typical.
What panel cut-out does it need?
The panel cut-out is 68 x 33 mm (2.68 x 1.30 in), and the unit mounts with a gasket and mounting clip.
