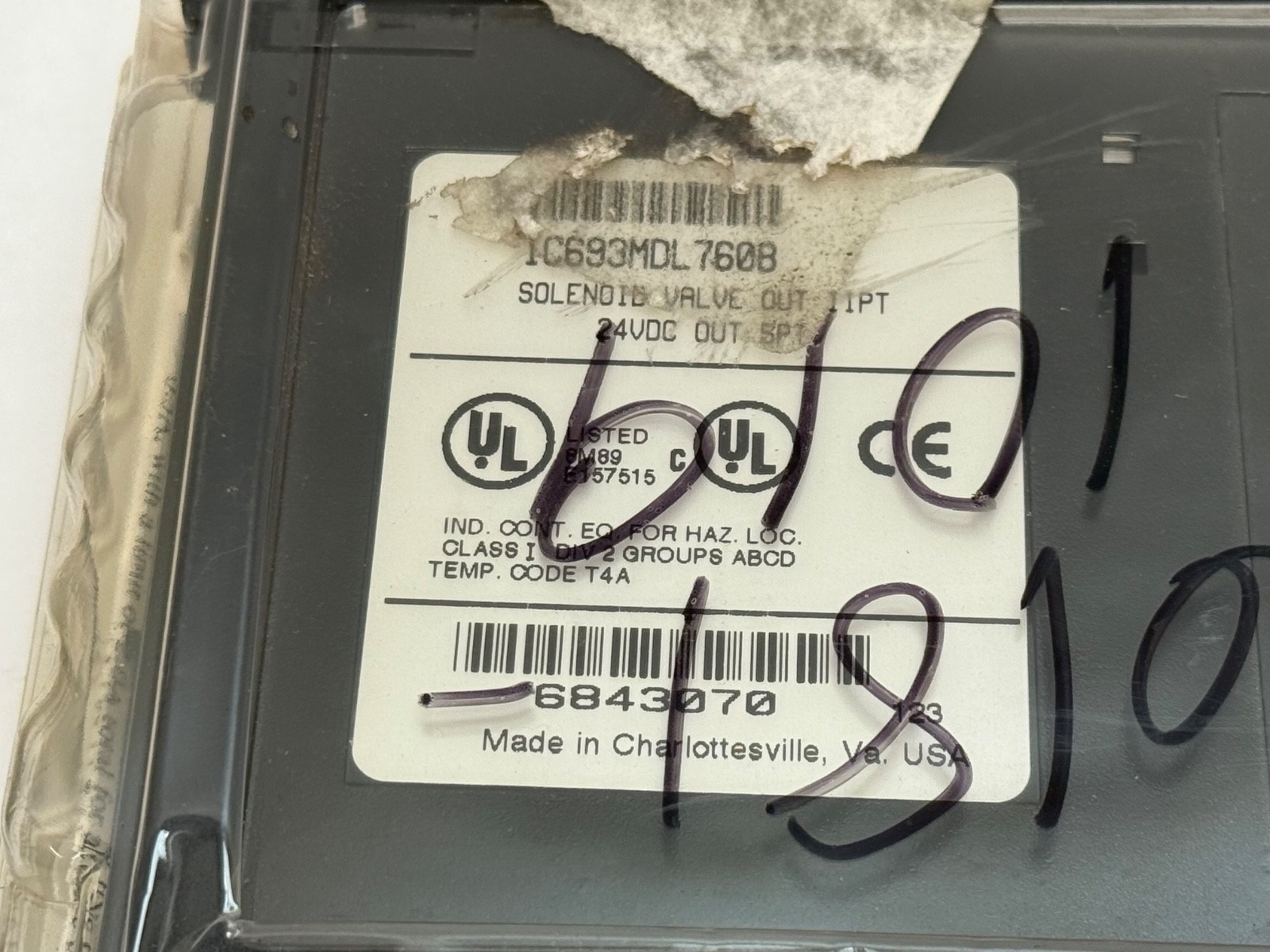

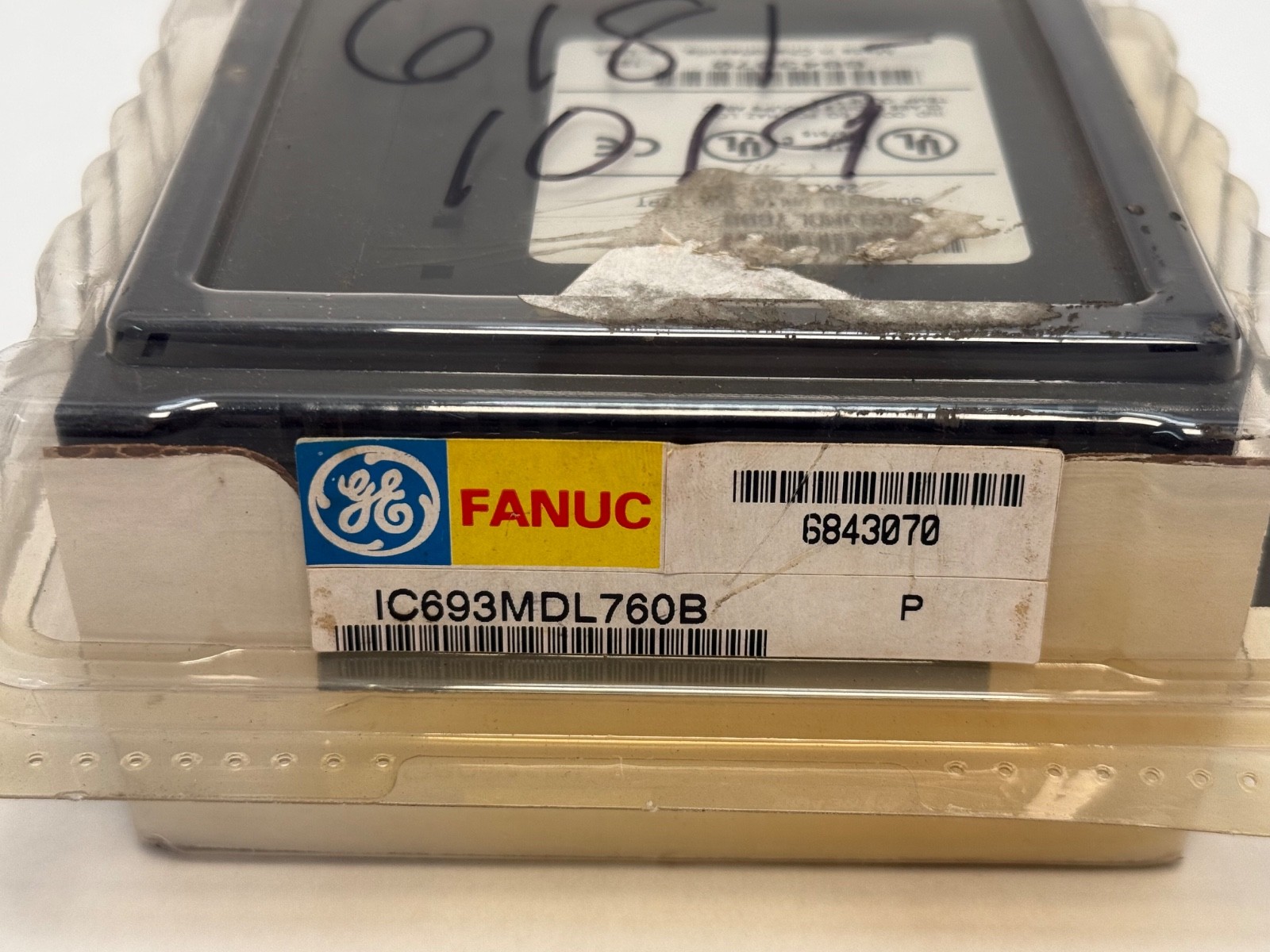

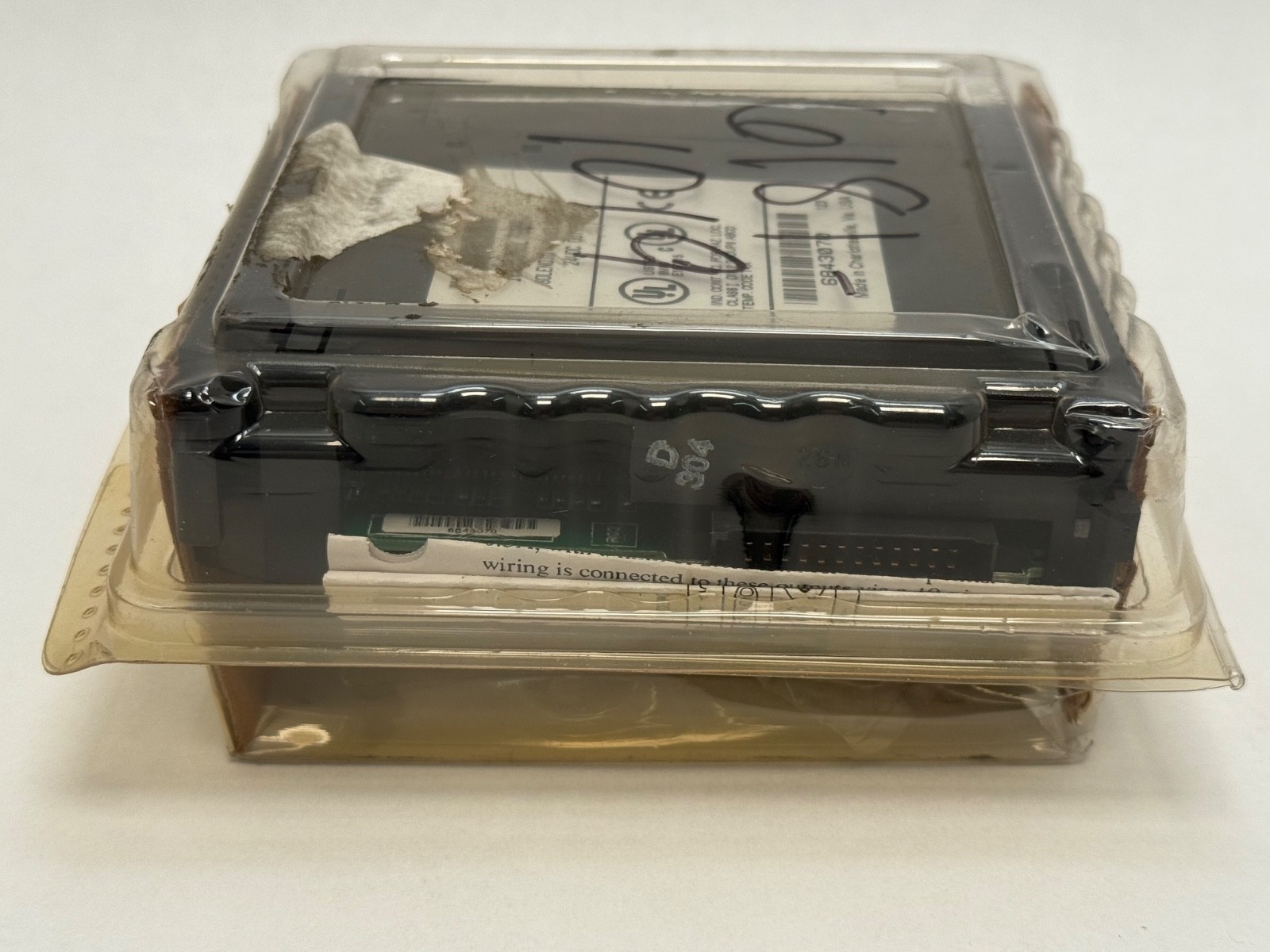

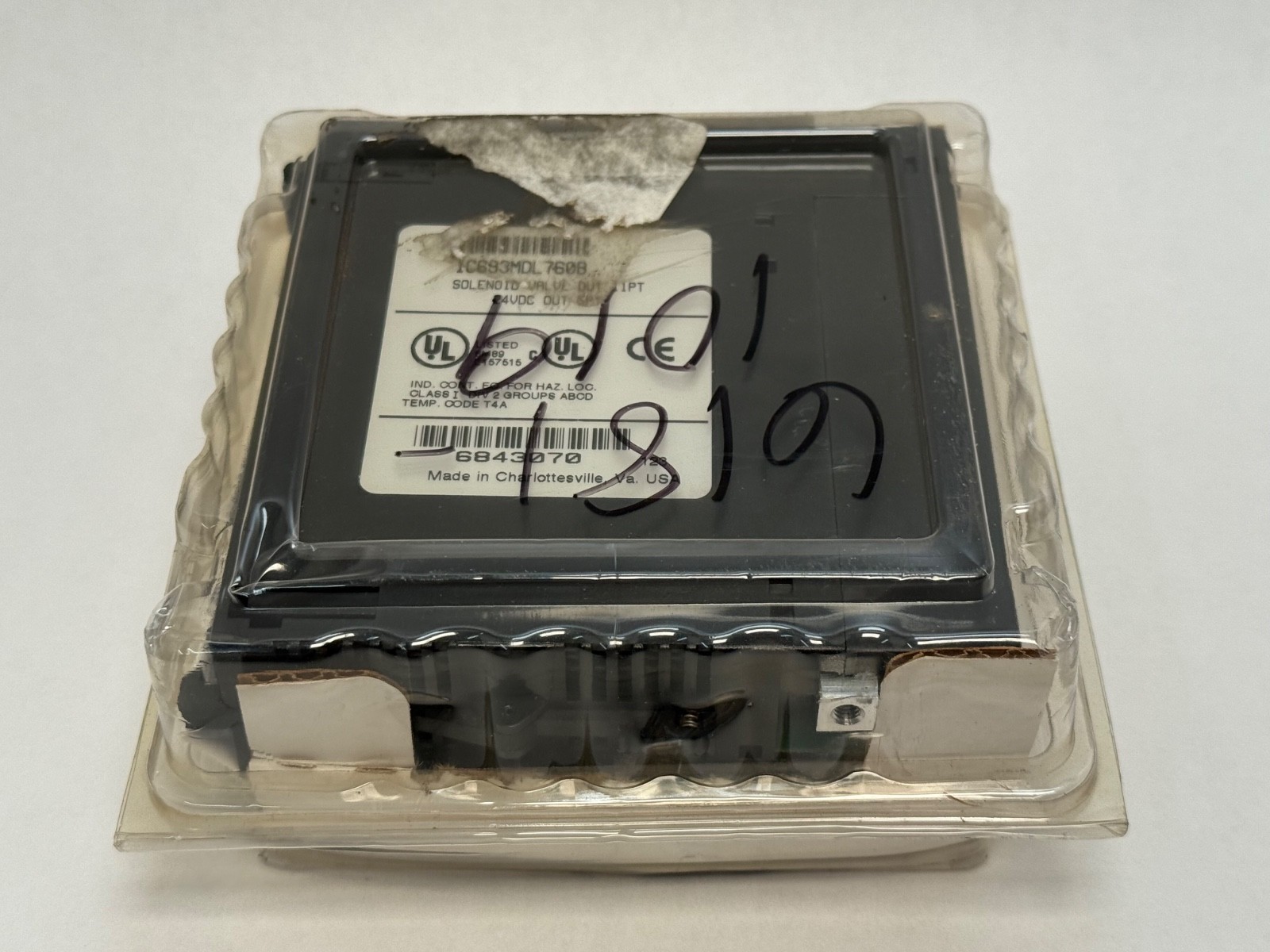

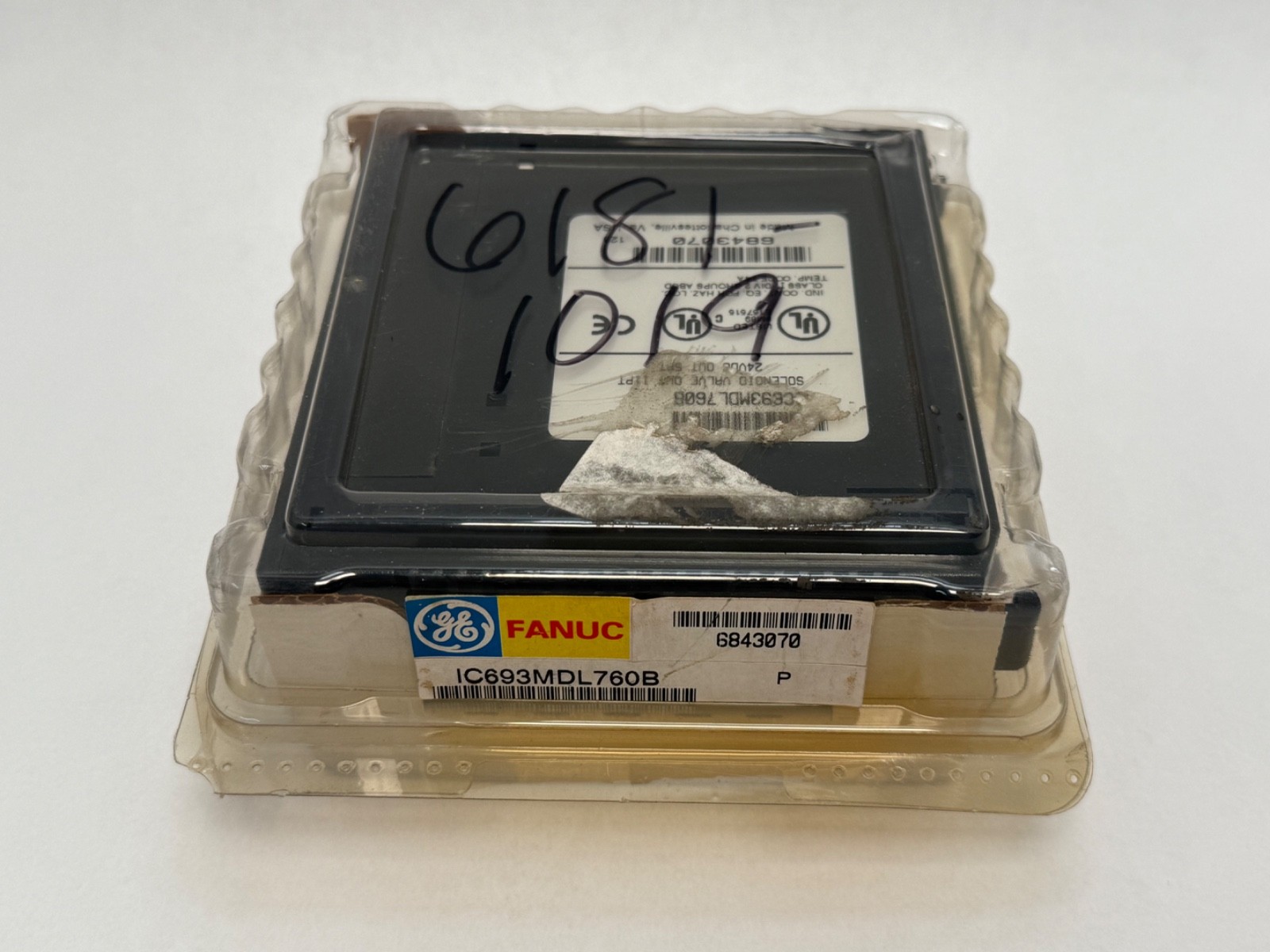

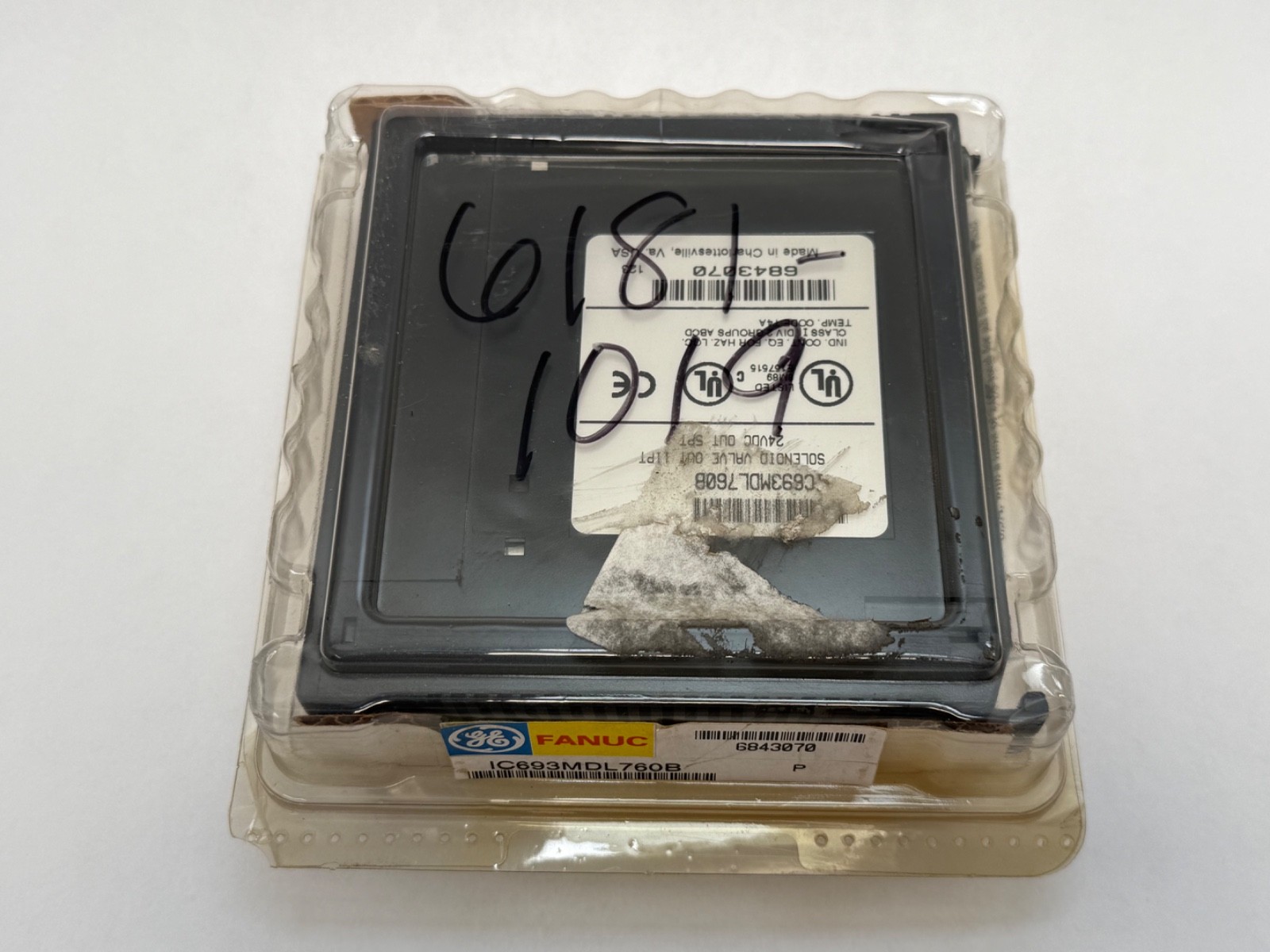

GE-FanucIC693MDL760BSolenoid Valve Output Module — 11 Pneumatic Outputs plus 5 Sourcing 24 V DC Outputs, Series 90-30

Condition: New

Availability:

1 in stock

Solenoid valve output module with 11 internal 3-way pneumatic valve outputs at 100 psi maximum plus 5 sourcing 24 V DC outputs, single Series 90-30 slot.

Same day shipment

List Price

$327.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandGE-Fanuc
MPNIC693MDL760B
ModelIC693MDL760 / IC693-MDL-760-B

Technical Specifications

TypeOutput Module
Base NumberIC693MDL760
Industry Termssolenoid valve output module; pneumatic output module; valve output card; Series 90-30 output module; PLC pneumatic module; integral solenoid valve card
Common MisspellingsIC693MDL76B; IC693 MDL760B; GE Fanuk IC693MDL760; solonoid valve output module; IC693MDL 760B
Application TypesPneumatic actuator and pilot valve control, machine sequencing, packaging and assembly automation, legacy GE Fanuc Series 90-30 PLC repair
Connector StylePneumatic panel fittings plus DC Outputs connector
Maximum Pressure100 psi maximum supplied pressure
Controller PlatformGE Fanuc Series 90-30
Mpn VariantsIC693MDL760B, IC693MDL760, IC693-MDL-760-B, IC693 MDL 760 B, IC693MDL760-B, IC693MDL760C
Compatible With ReplacesGE Fanuc Series 90-30 baseplates and CPUs
Nominal Rated Input Voltage24 V DC external solenoid power supply
Part NumberIC693MDL760B
Mounting TypeSeries 90-30 baseplate slot
Seller Part Number: B-BC3#NKVMNN

Product Description

What this part is:

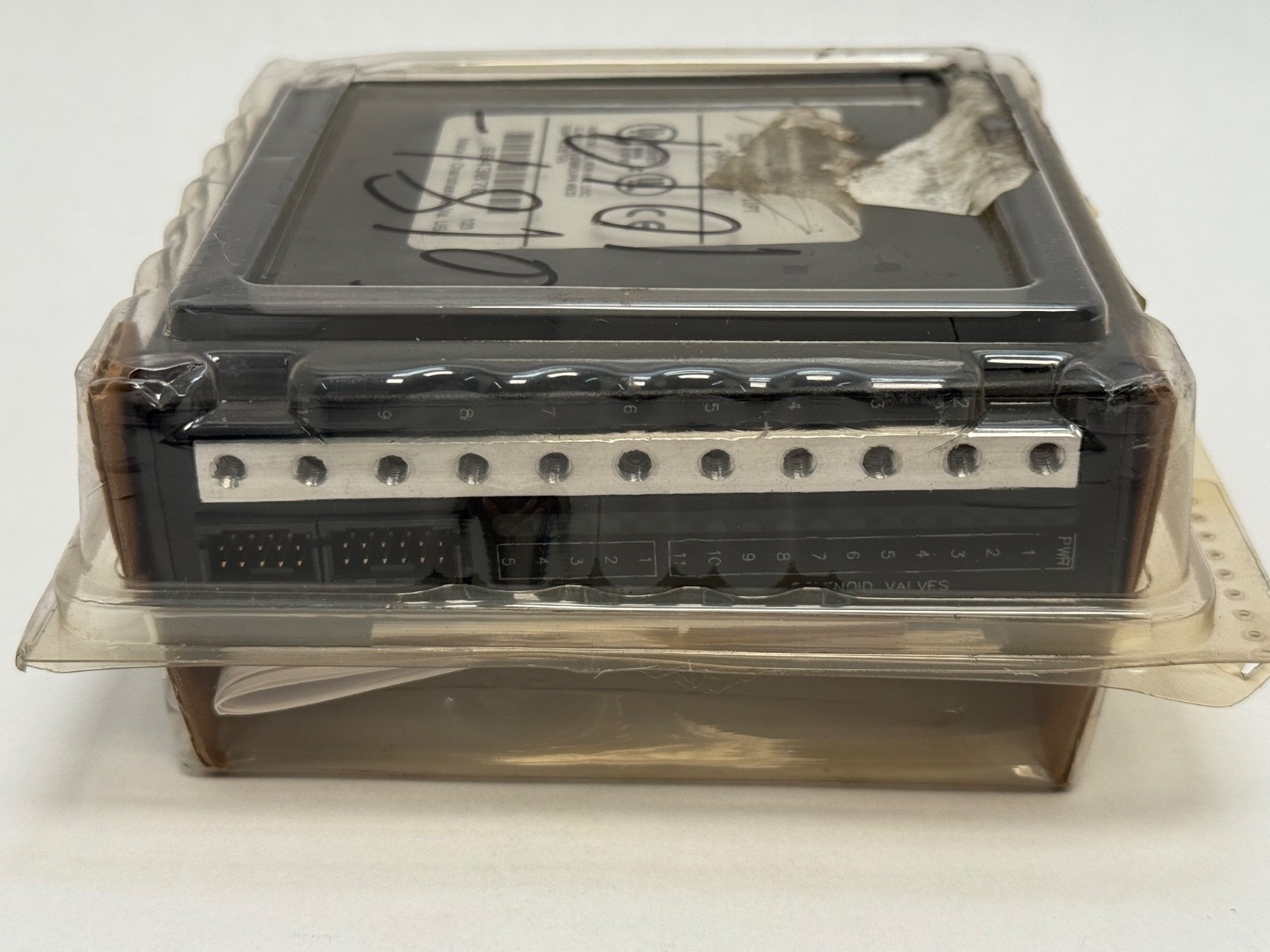

GE Fanuc IC693MDL760B Series 90-30 solenoid valve output module, output only, with 11 pneumatic outputs and 5 sourcing 24 V DC electrical outputs. Each pneumatic output has its own internal 3-way solenoid-actuated valve and a front-panel air fitting. Unit Quantity: 1 Pc.

Decoding the designation:

IC — GE Fanuc Automation industrial controls prefix.

693 — the Series 90-30 PLC family.

MDL — discrete I/O module class.

760 — the solenoid valve output module.

B — hardware revision letter.

Specifications:

Function: solenoid valve output module, output only. Pneumatic Outputs: 11, each with an internal 3-way solenoid-actuated valve and a front-panel output fitting. Maximum Supplied Pressure: 100 psi. Electrical Outputs: 5, sourcing, 24 V DC, on the DC Outputs connector. Solenoid Power: external 24 V DC source applied to the front-panel DC Outputs connector. Platform: GE Fanuc Series 90-30.

Dimensions and mounting:

Slot Width: one slot in a Series 90-30 baseplate. Mounting Type: Series 90-30 baseplate slot. Connector Style: pneumatic panel fittings plus DC Outputs connector.

Compatibility and replacement:

Platform: GE Fanuc Series 90-30 baseplates and CPUs. MPN variants: IC693MDL760B, IC693MDL760, IC693-MDL-760-B, IC693 MDL 760 B, IC693MDL760-B. IC693MDL930 and IC693MDL940 are 16-point relay output modules.

Frequently asked questions:

How many pneumatic outputs does the IC693MDL760B have?

11 pneumatic outputs, each with an internal 3-way solenoid-actuated valve and a front-panel fitting, plus 5 sourcing 24 V DC outputs.

What is the maximum supplied pressure and the solenoid power?

Maximum supplied pressure is 100 psi; solenoid power is an external 24 V DC source on the DC Outputs connector.

Which platform does it fit?

GE Fanuc Series 90-30, one slot in the baseplate.
