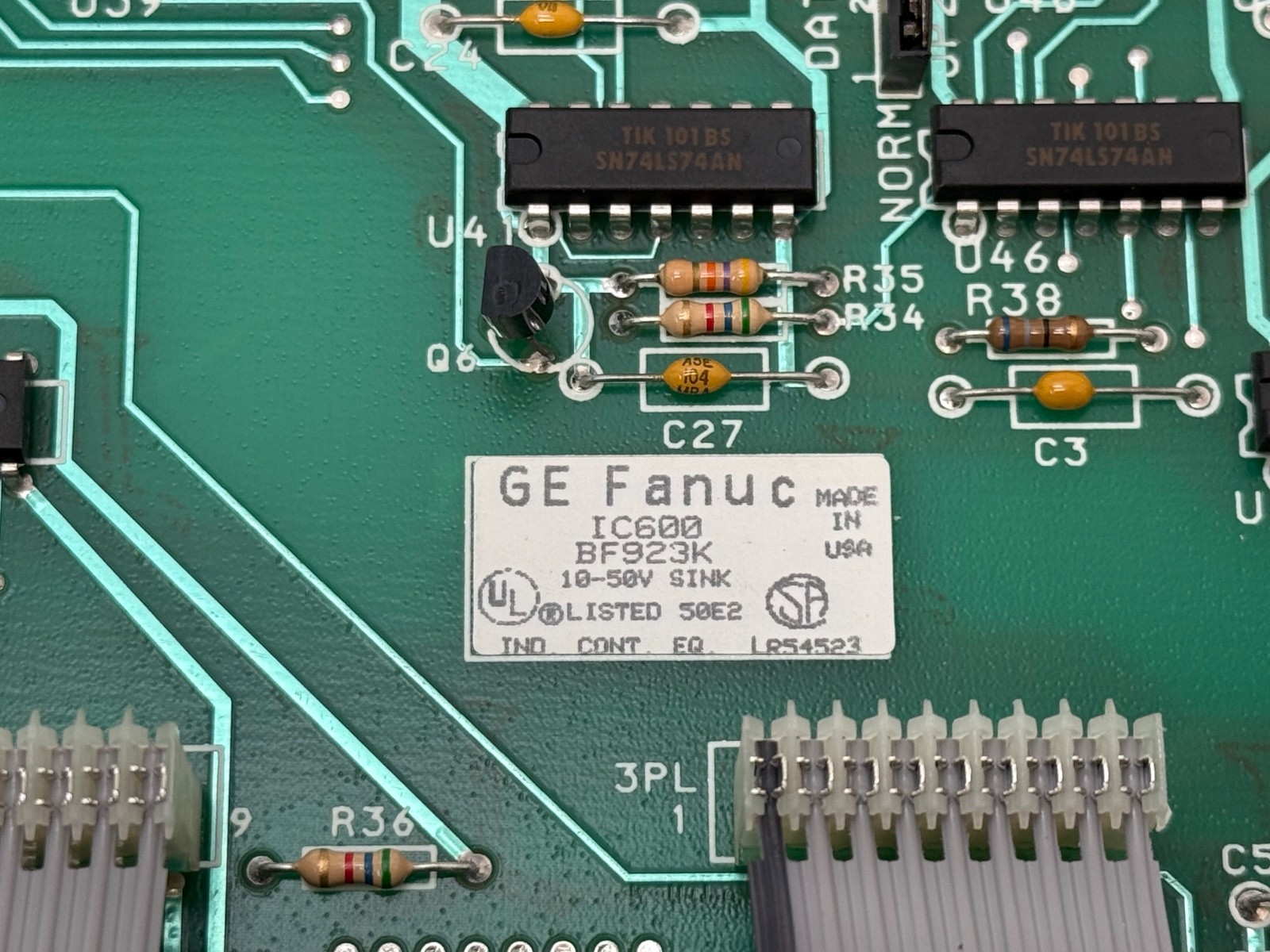

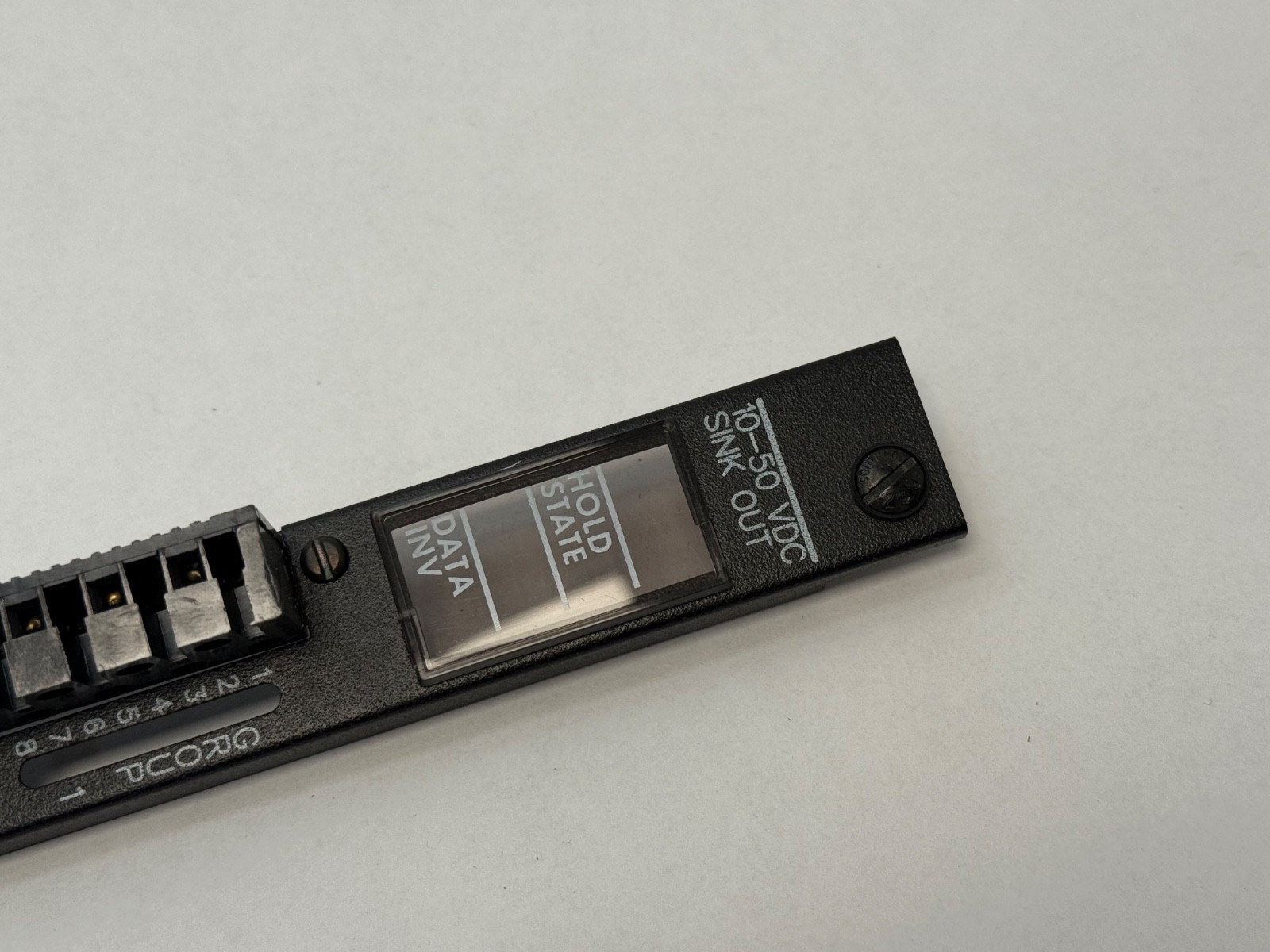

GE-FanucIC600BF923KSeries Six 32-Point Sink Output Module, 10-50 V DC, 5 V DC Backplane, 2000 V DC Isolation, 0-60 C

Product Description

What this part is

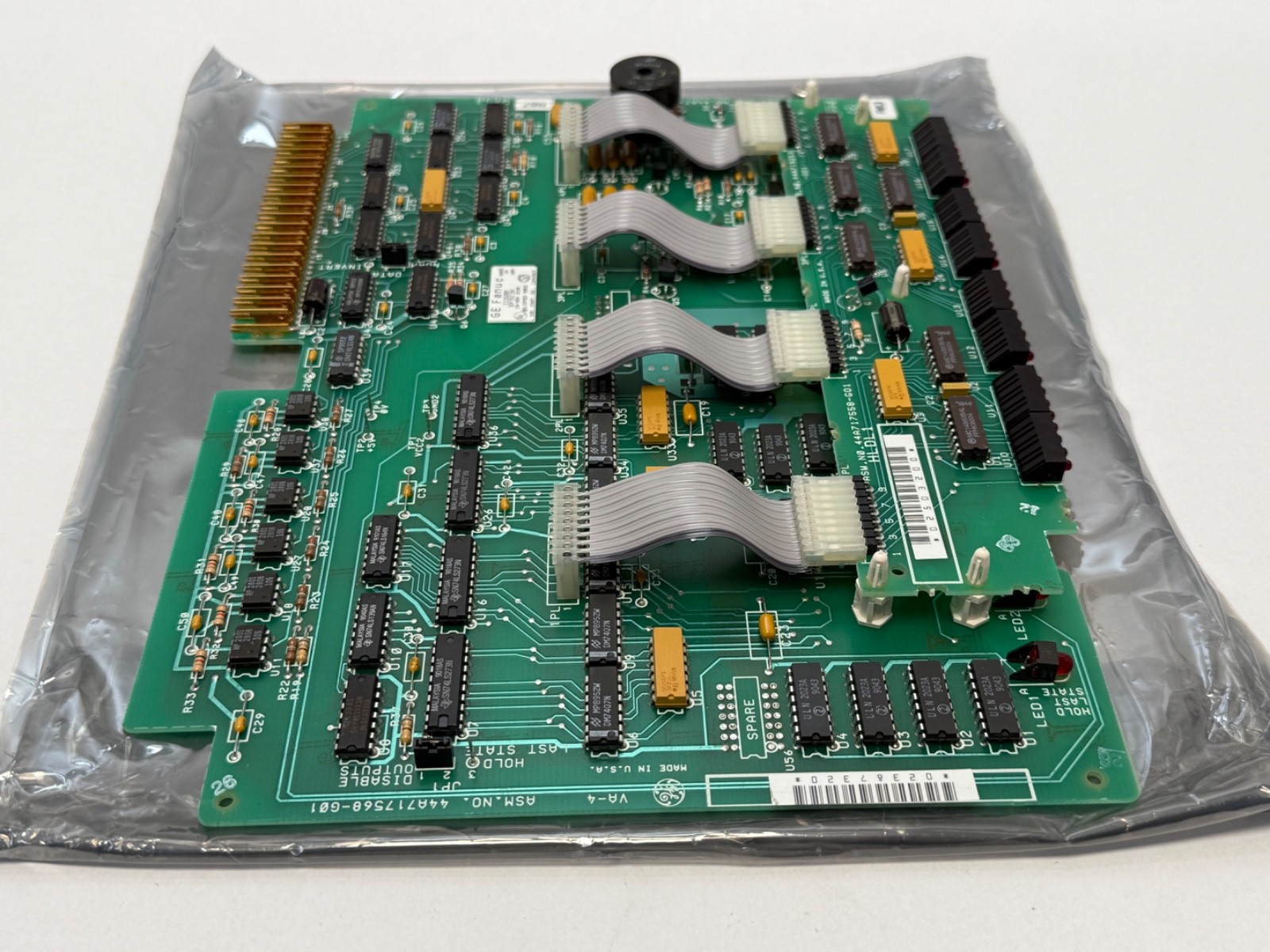

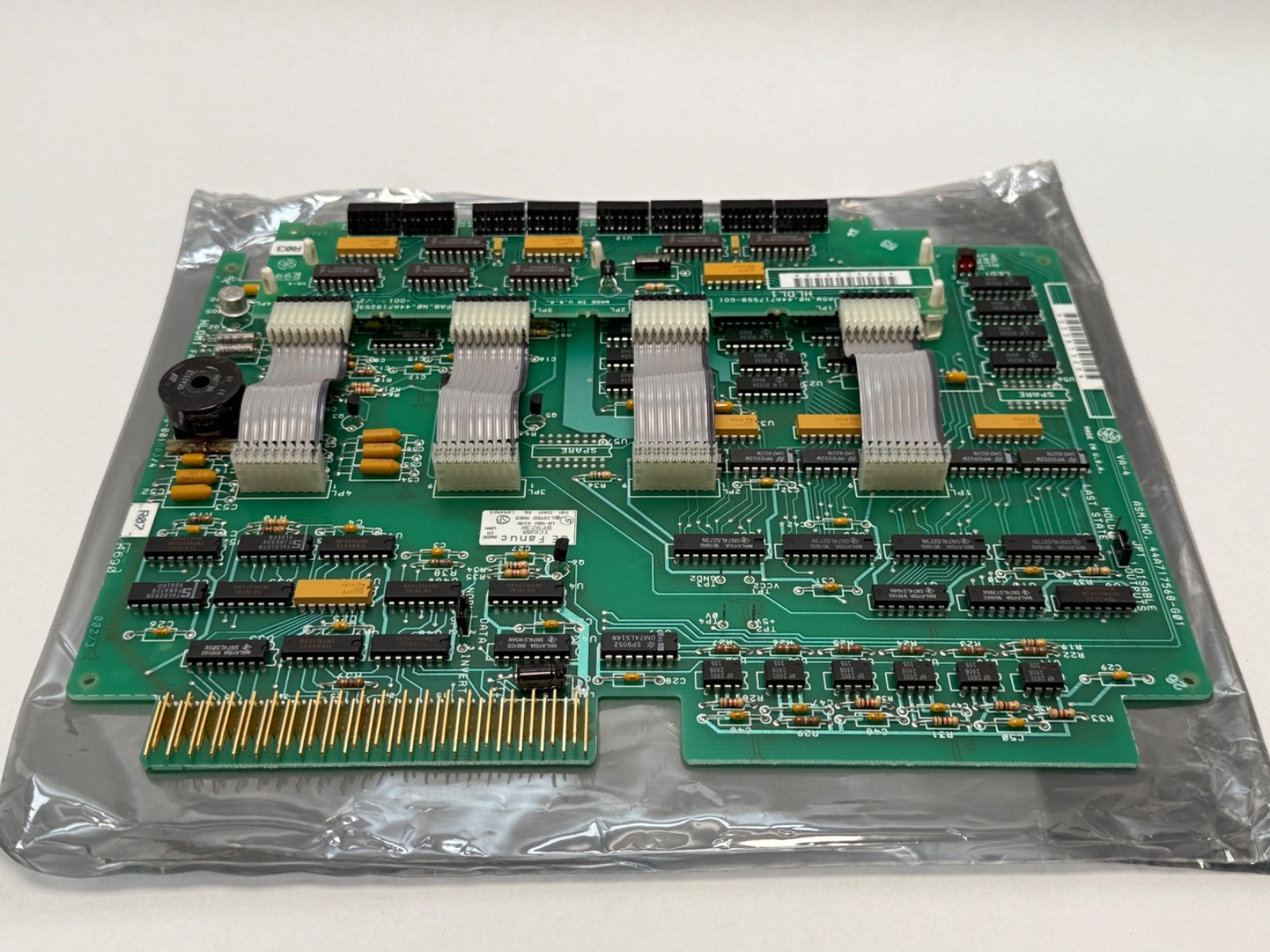

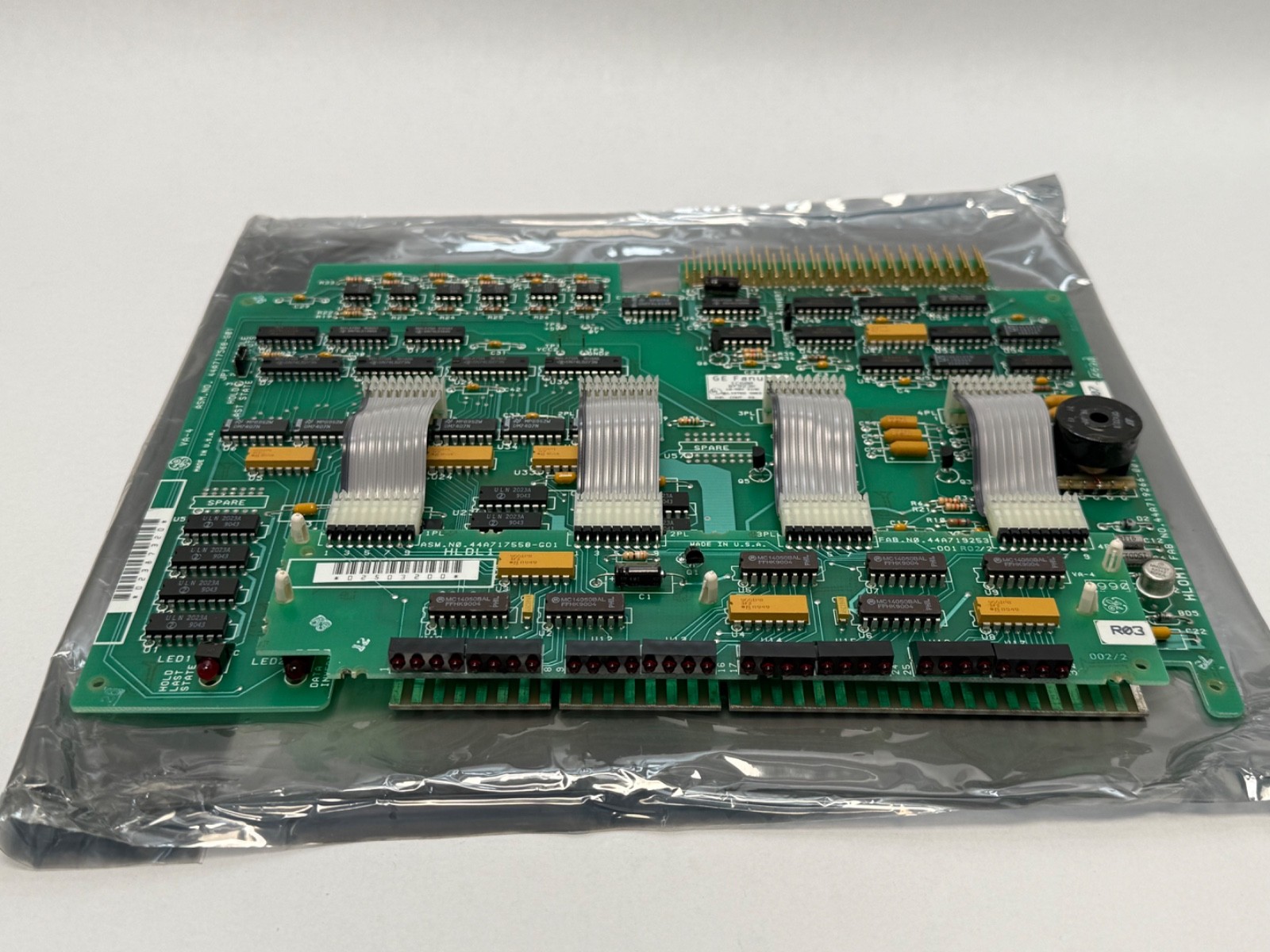

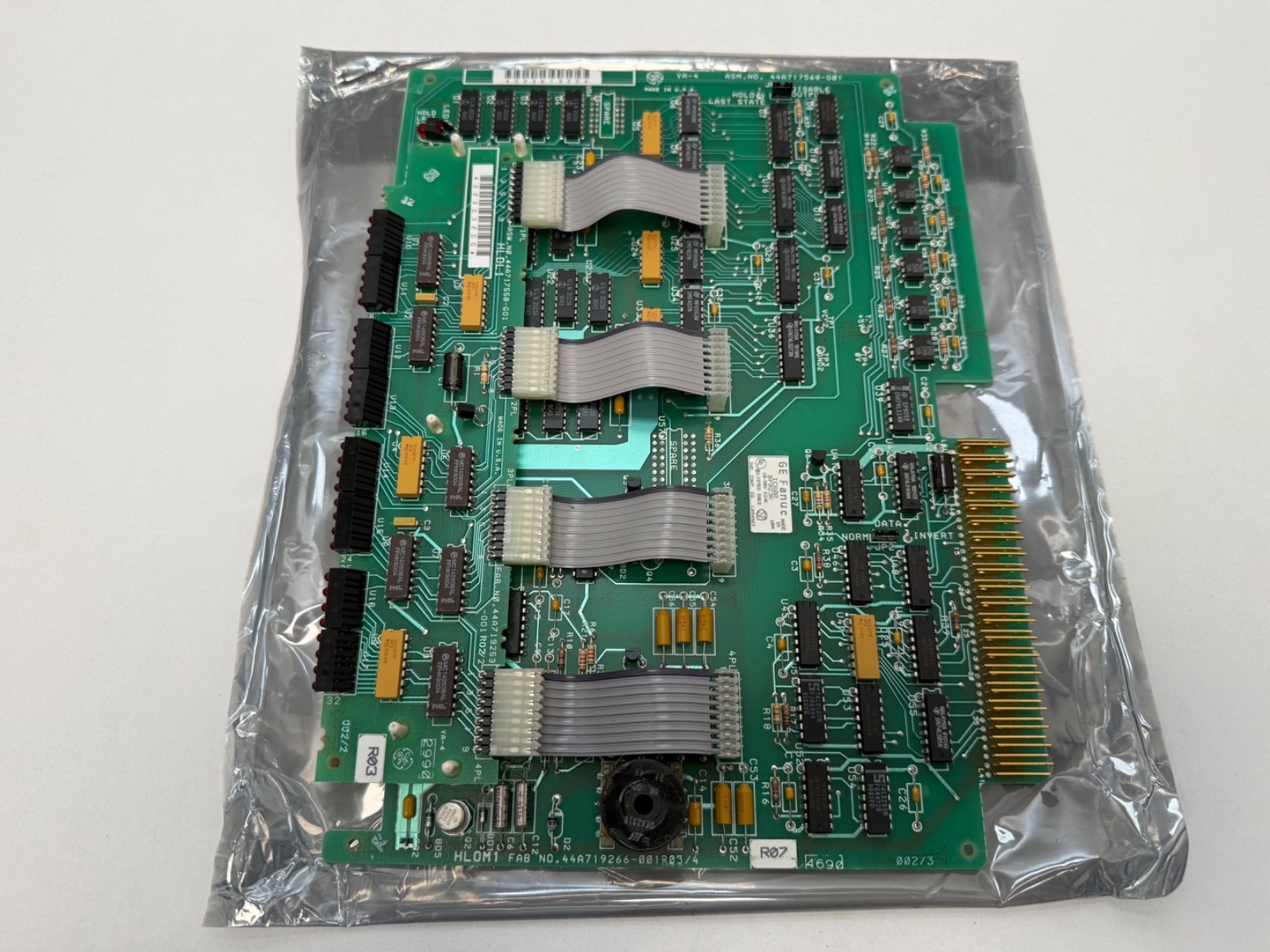

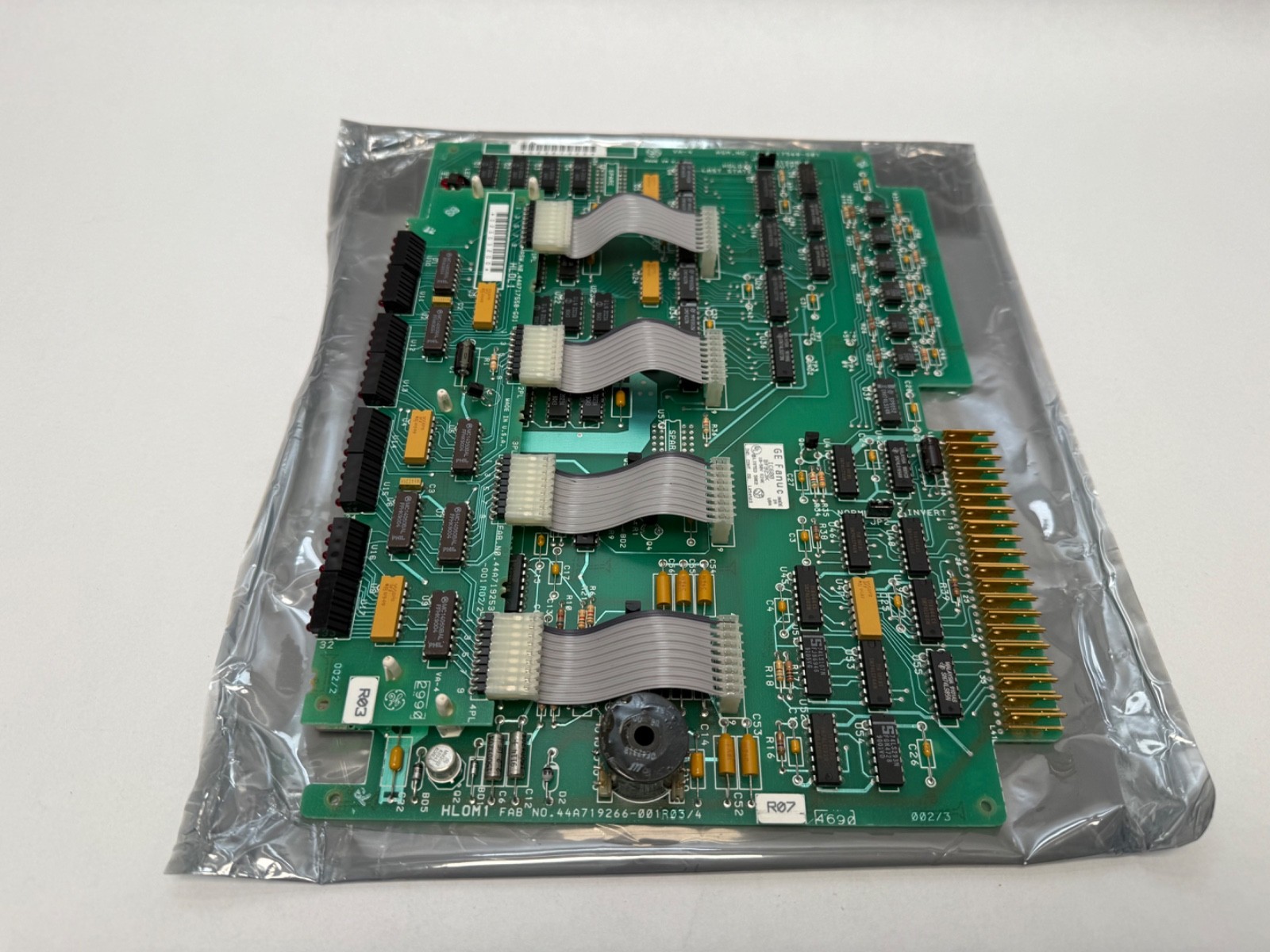

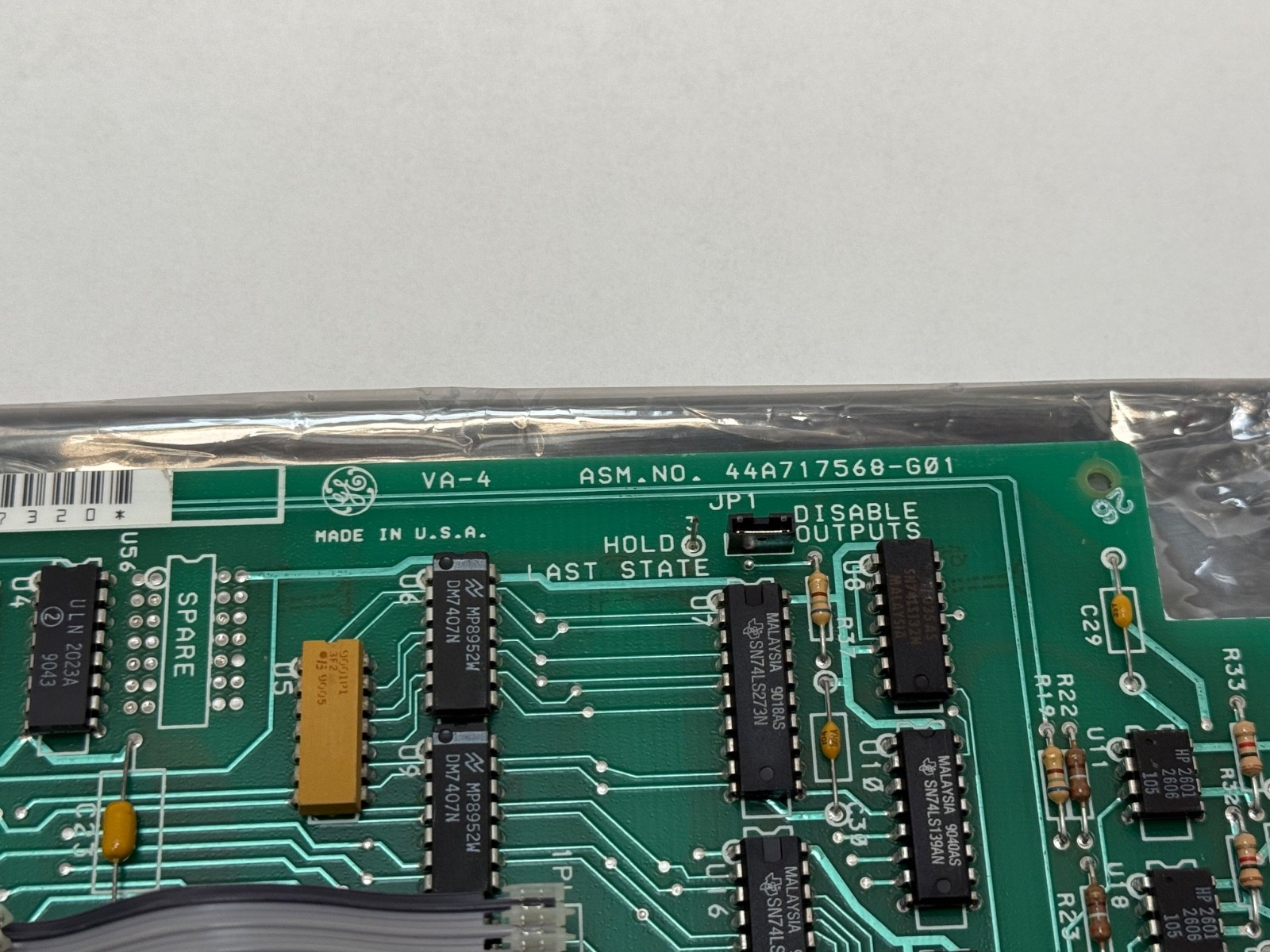

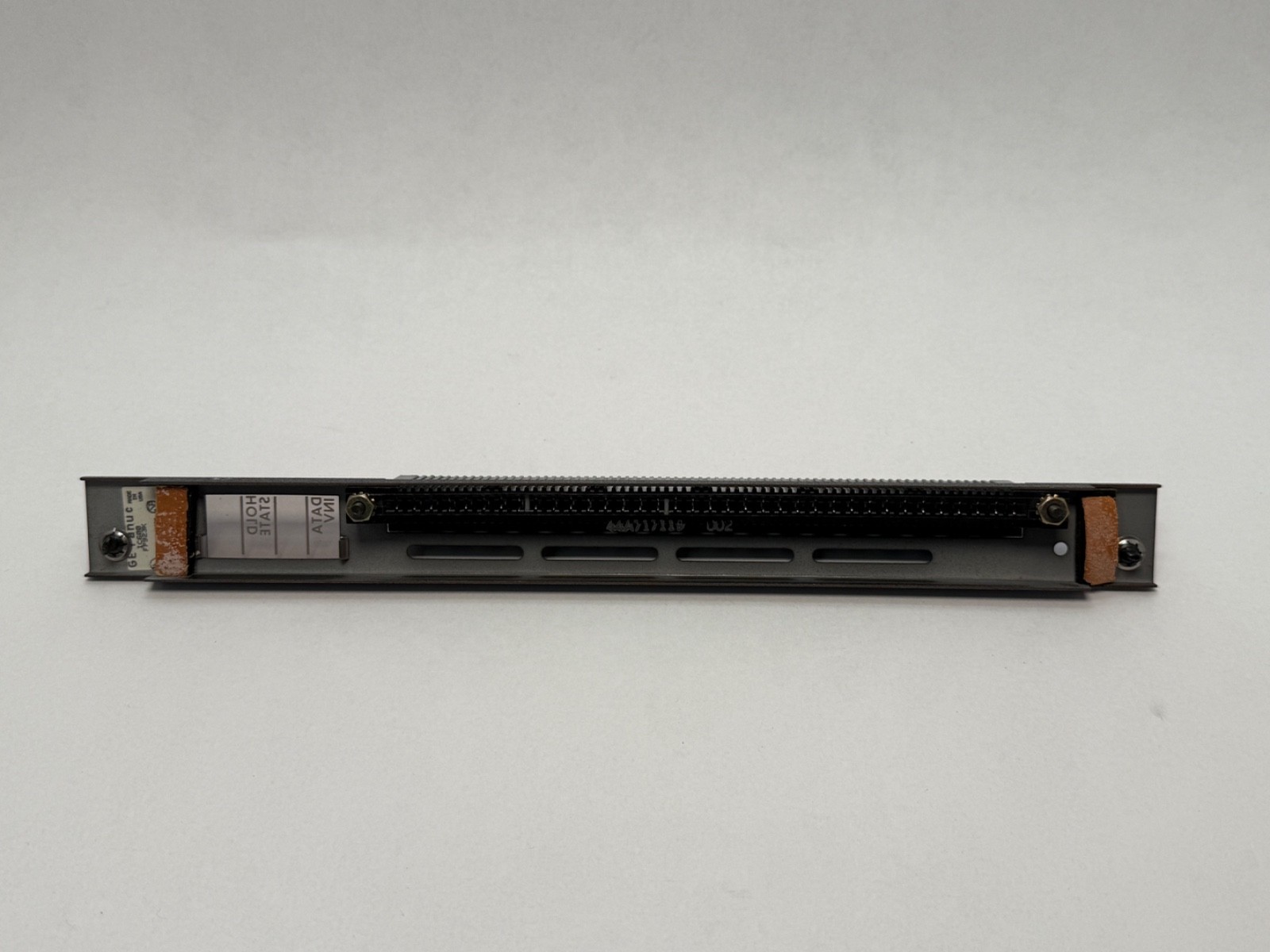

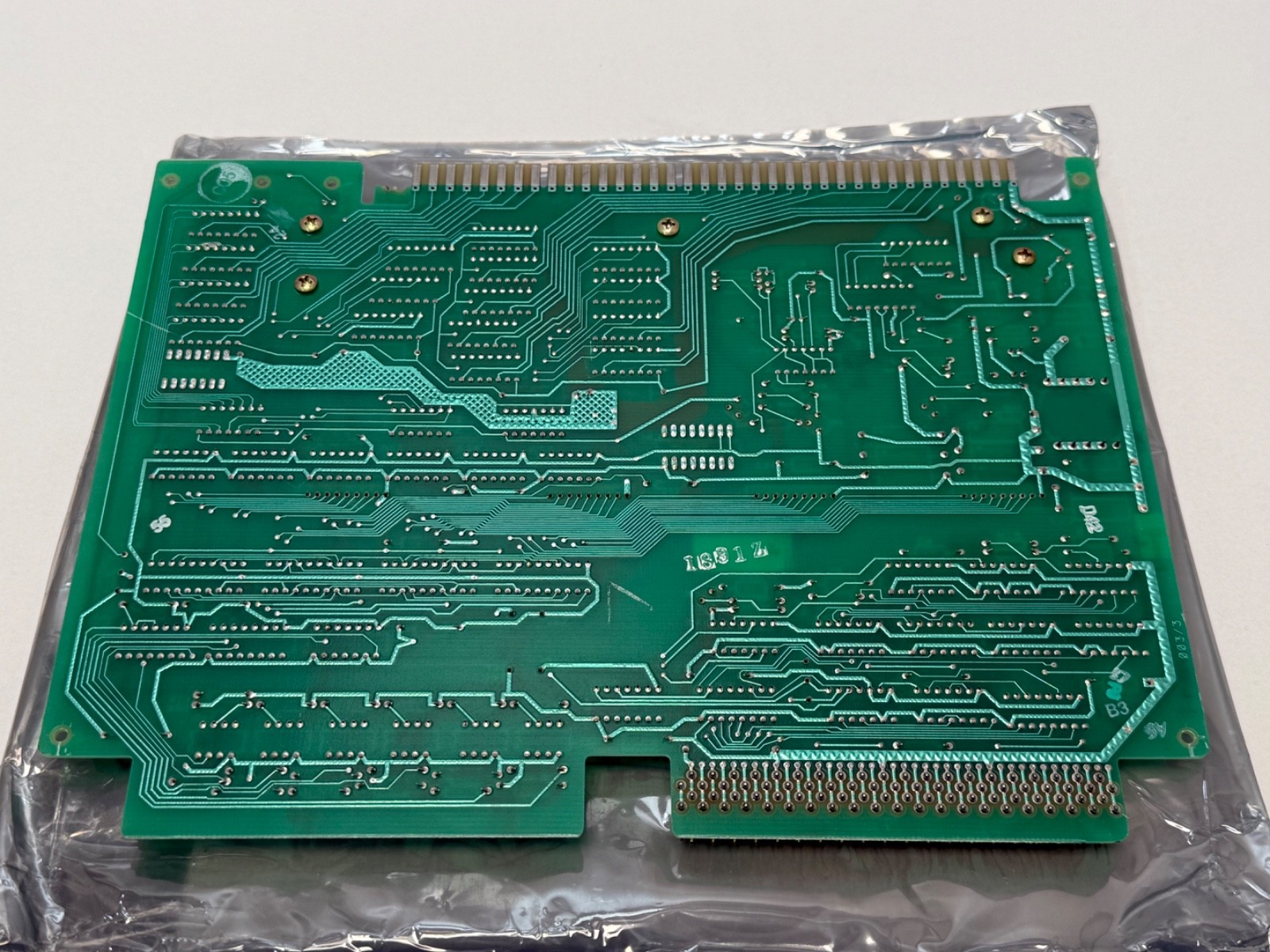

A GE Fanuc Series Six high-density discrete output module: 32 output points, current-sinking type, switching DC loads in the 10 to 50 V range. It plugs into a Series Six or Series Six Plus I/O rack, draws its logic power from the 5 V DC backplane, and drives solenoid valves, contactor coils, indicator lamps and interposing relays under PLC control. This is a digital on/off output card — it is not an analog output module and it has no inputs.

Decoding the order code

IC600 — GE Fanuc Series Six product lineBF — I/O module board9xx — the discrete output module group923 — the specific card: 32-point sink output, 10–50 V DCK — hardware revision letter; letter suffixes on Series Six cards denote version, not function

Published specifications

Product type: sink output module (current sinking, negative logic)Product line: GE Fanuc Series SixOutput points: 32Field voltage range: 10 to 50 V DCBackplane / logic supply: 5 V DCPower consumption: 5 WMaximum current rating: 180 mAMaximum off-state leakage current: 1 mAIsolation: 2000 V DC for 1 second; 240 V AC maximum continuous isolation ratingOperating temperature: 0 to 60 °C (32 to 140 °F)Storage temperature: −20 to 80 °C (−4 to 176 °F)Relative humidity: 5 to 95 percent, non-condensingOperating altitude: up to 3048 m (10,000 ft)Weight: approximately 6 lbs (2.72 kg)

What these specs mean in practice

Sink versus source is the single detail that decides whether this card works in your panel. A sinking output completes the circuit to the negative rail: the load sits between the positive supply and the output point. If the existing field wiring is built for a sourcing card, dropping this module in will not switch anything and can look like a dead card. Check the wiring convention on the module you are replacing before ordering.

32 points in one slot is why these cards were specified — density. It also means one card failure takes 32 outputs with it, so a spare on the shelf is cheap insurance on a machine that cannot come down. The 180 mA current rating and 1 mA off-state leakage are what set the load type: interposing relays, solenoid valves and pilot lamps yes, motor loads no. That off-state leakage is also worth knowing if you are driving a very high-impedance electronic input, which can read the leakage as an on-state.

Quantity and configuration

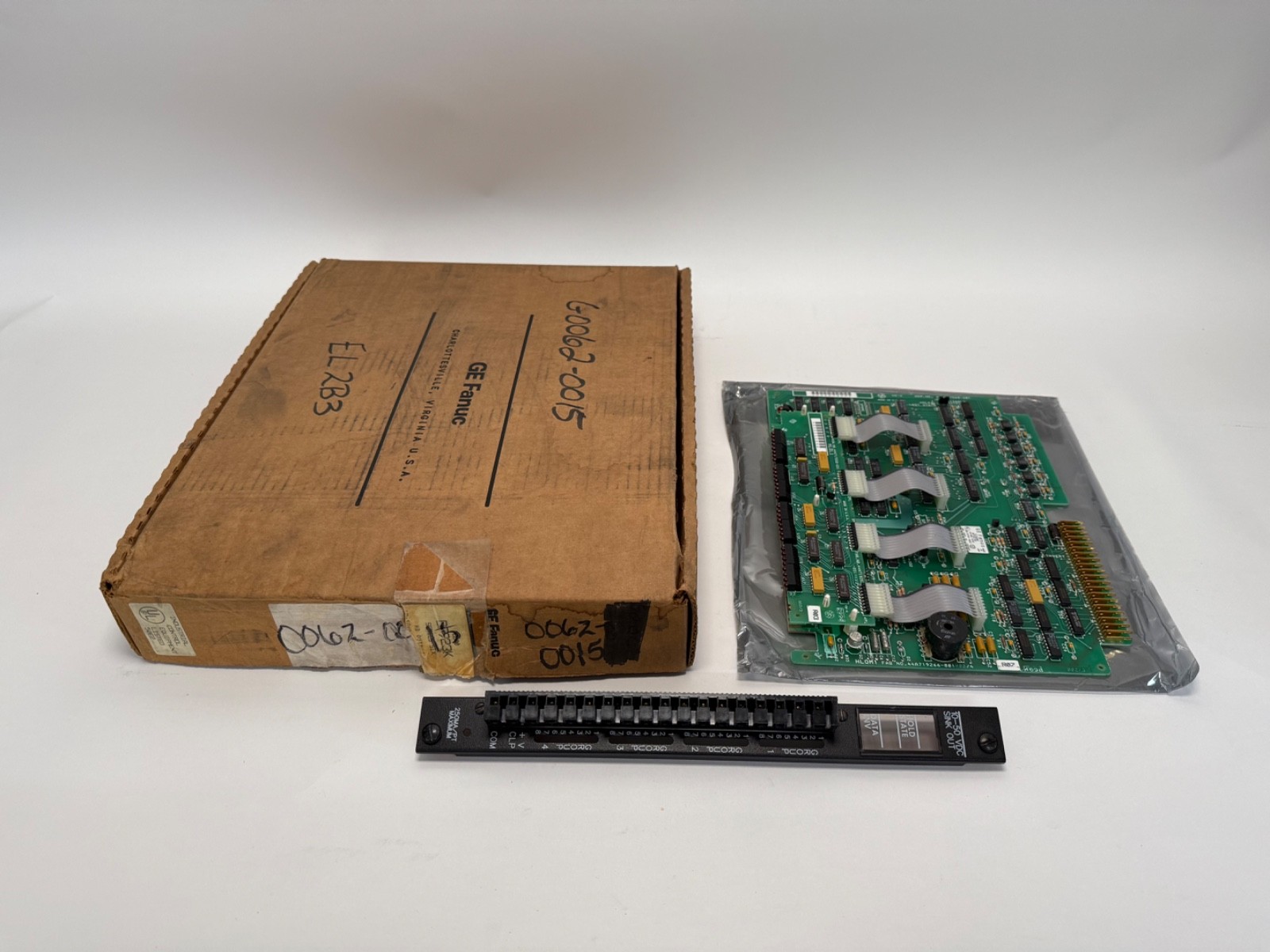

Sold as one output module.

What is not included

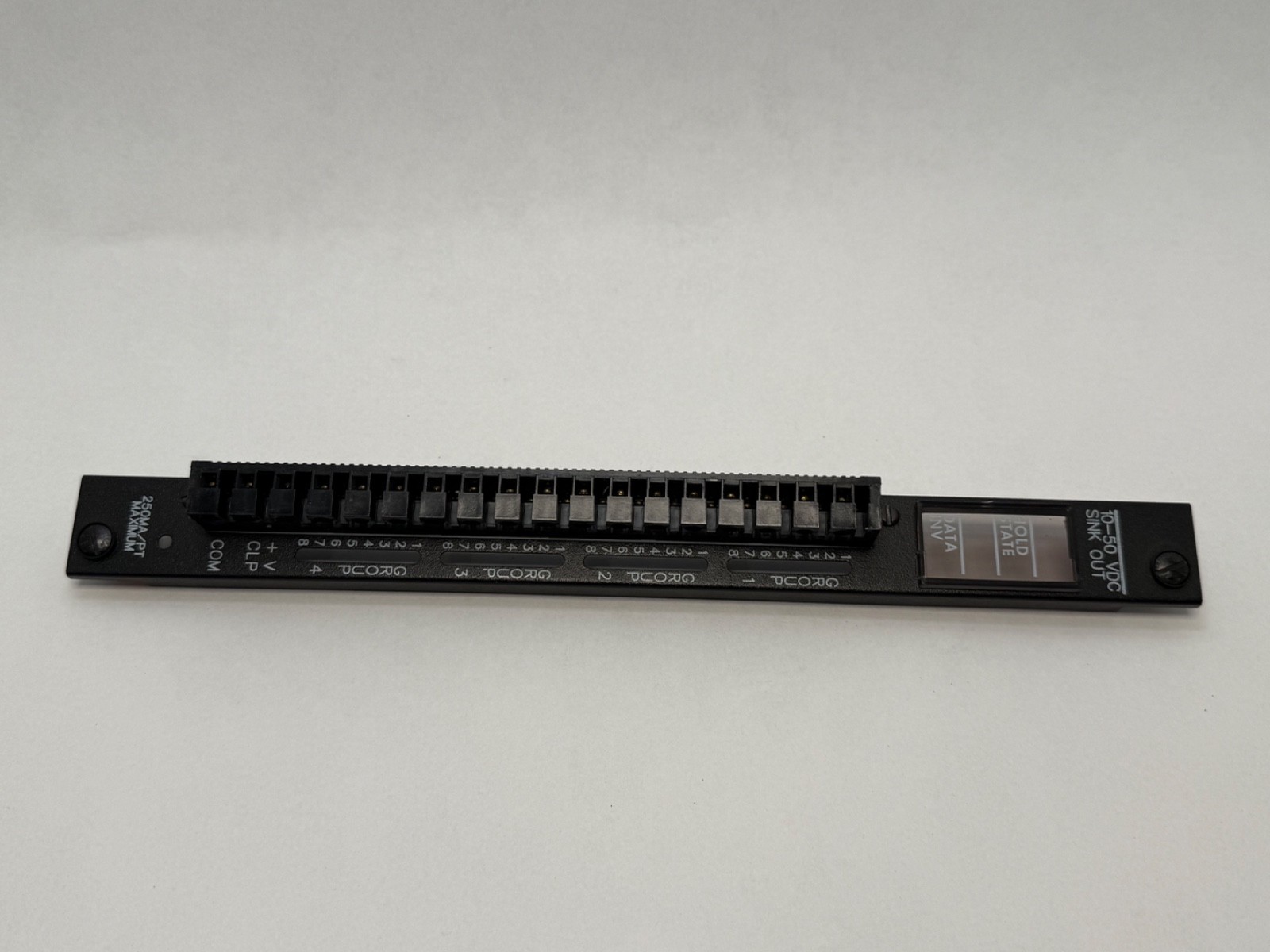

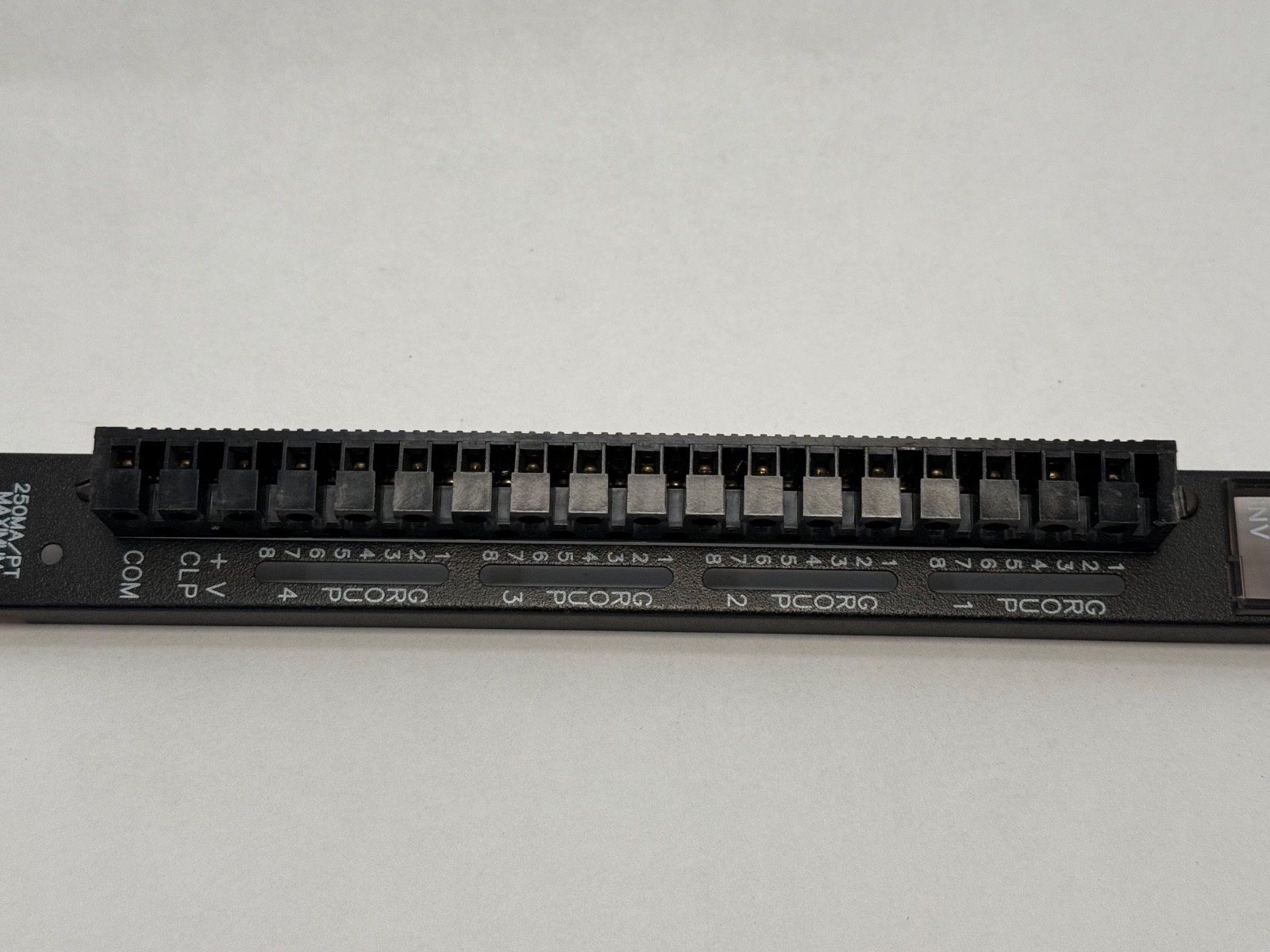

Module only. No I/O rack, backplane or card cage. No field wiring terminal board, terminal block assembly or wiring harness — confirm you have the matching terminal assembly for your rack. No rack power supply, CPU or logic module. No I/O control module or local I/O transmitter/receiver. No documentation, and no programming terminal or software.

Installation and setup notes

Power the rack down before insertion and observe ESD precautions. Note the slot address, because Series Six I/O references are slot-dependent and moving a card changes the addresses the ladder sees. Verify field supply polarity and that the load voltage sits inside 10 to 50 V DC. When commissioning, force points individually before returning the machine to automatic; a wiring convention error shows up immediately that way rather than as an unexplained sequence fault.

Interchange guidance

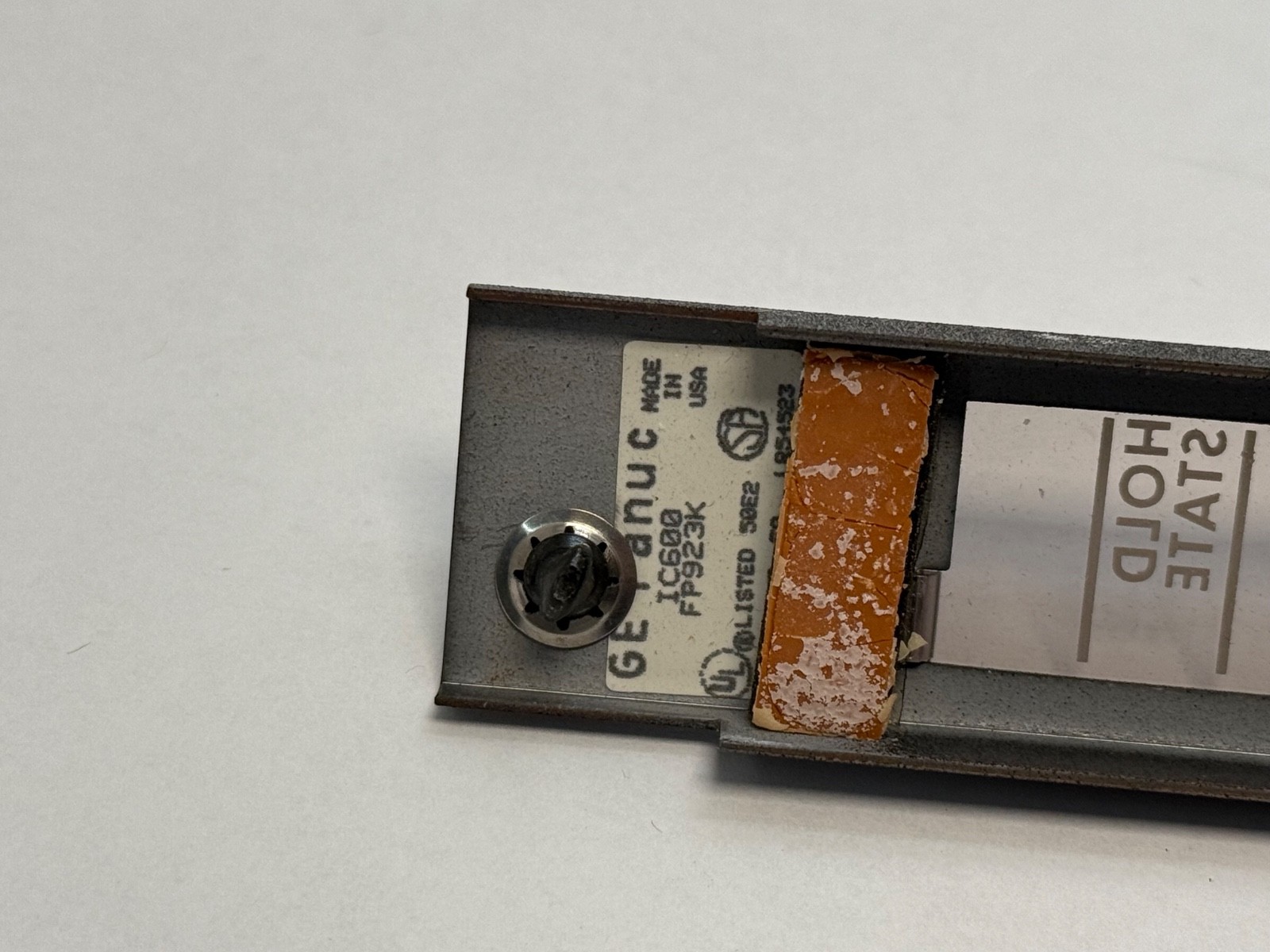

IC600BF923K, IC600BF923, IC600 BF 923K and IC600BF-923K all refer to this card; the trailing letter is the hardware revision. IC600BF902 is a 24 V DC sink output with 8 points, IC600BF929 is a high-density 10–50 V DC source card, and IC600BF943 is a 4–20 mA analog output — all related Series Six cards, none of them substitutes for a 32-point sink output. Series Six I/O is proprietary to GE Fanuc racks and has no cross-brand equivalent; it is also not interchangeable with the later Series 90-30 (IC693) or VersaMax families.
