Allen Bradley1756-OB16EControlLogix 16-Point DC Digital Output Module, 10–31.2 V DC Sourcing, Electronically Fused

Condition: New

Availability:

1 in stock

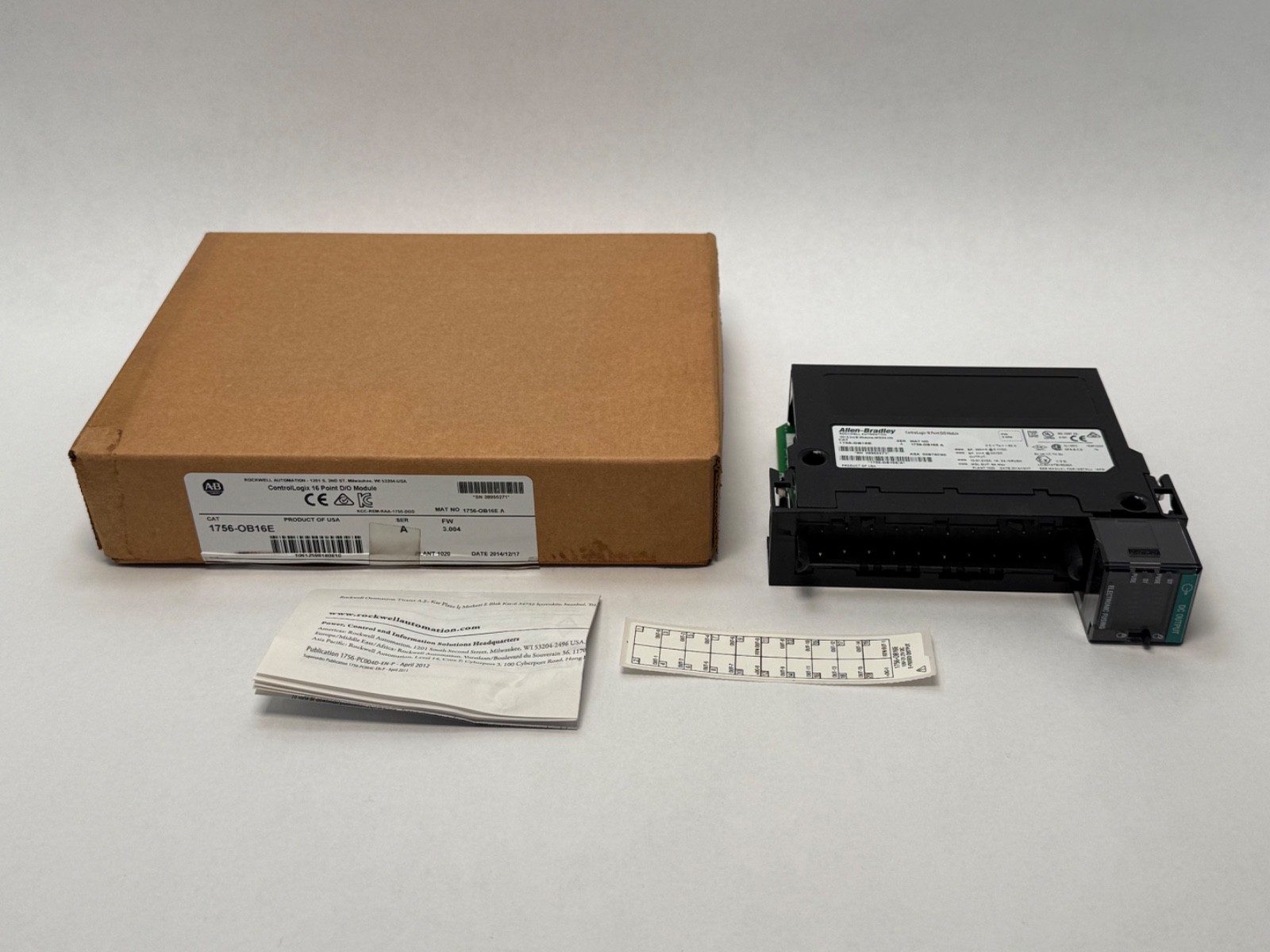

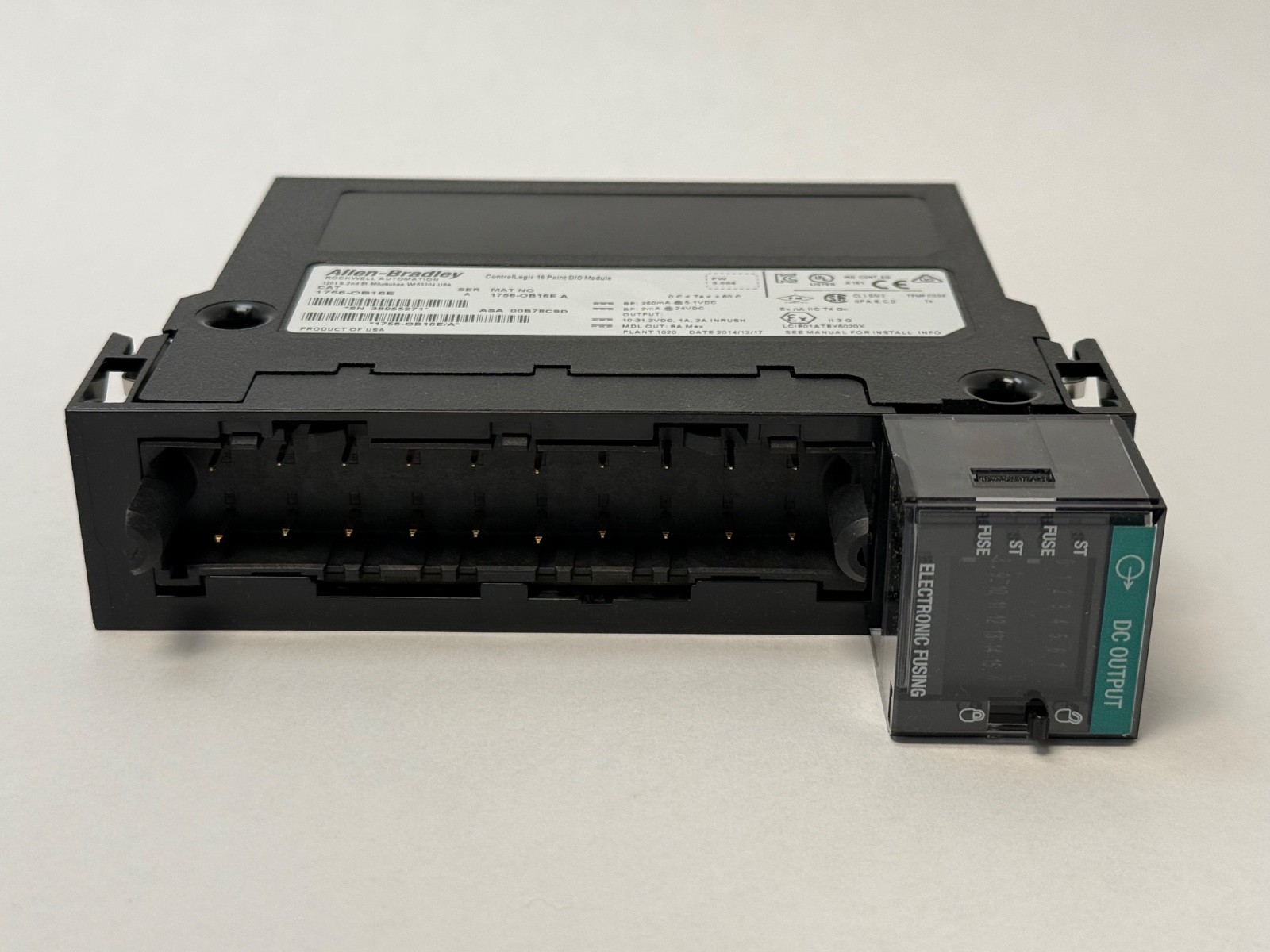

Allen-Bradley 1756-OB16E ControlLogix 16-point DC output module, 10-31.2 V DC sourcing, electronically fused, 1 A per point at 60 °C. Module only.

List Price

$258.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandAllen Bradley
MPN1756-OB16E
Model1756OB16E

Technical Specifications

TypePLC Output Module
Base Number1756-OB16
Industry TermsControlLogix output card; 16-point DO module; DC sourcing output module; electronically fused output; PLC digital output card
Common Misspellings1756 0B16E; 1756-OB16-E; Allen Bradly 1756OB16E; ControlLogics output module
Application TypesControlLogix machine and process control output stages driving solenoid valves, interposing relays, contactor coils and indicators
Connector StyleRemovable terminal block (RTB), 1756-TBNH or 1756-TBCH, supplied separately
Controller PlatformAllen-Bradley ControlLogix 1756 chassis
Output Amperage1 A per point at 60 °C; 8 A per module total
Mpn Variants1756OB16E; 1756 OB16E; 1756-OB16-E; AB 1756-OB16E; 17560B16E
Nominal Rated Input Voltage12 / 24 V DC nominal, operating range 10–31.2 V DC
Number Of Rows16 output points in two isolated groups of eight
Part Number1756-OB16E
Mounting TypePlug-in module, one slot in a 1756 ControlLogix chassis
Seller Part Number: B-AJ4B2#VQW8C5

Product Description

What this part is:

Allen-Bradley 1756-OB16E is a ControlLogix digital output module with 16 solid-state DC sourcing outputs, supplied as 1 module. The outputs are arranged as two electrically isolated groups of eight and every output is electronically fused. The module occupies one slot in a 1756 ControlLogix chassis and communicates over the chassis backplane.

Decoding the designation:

1756 — ControlLogix I/O and chassis platform.

O — output module.

B — DC voltage category.

16 — point count.

E — electronically fused version.

SER A — module series letter.

Specifications:

Number Of Output Points: 16 in two isolated groups of eight. Output Type: DC sourcing, solid state. Operating Voltage Range: 10 to 31.2 V DC. Nominal Voltage: 12 / 24 V DC. Output Current: 1 A per point at 60 °C; 8 A per module. Output Delay: 1 ms. Protection: electronic fusing on every output. Series: ControlLogix 1756 I/O.

Dimensions and mounting:

Mounting: plug-in module, one slot in a 1756 ControlLogix chassis. Connector: removable terminal block (RTB), 1756-TBNH or 1756-TBCH.

Compatibility and replacement:

Later series letters of 1756-OB16E use the same terminal block. Related modules: 1756-OB16D (diagnostic version, 2 A per point), 1756-OB16I (individually isolated), 1756-OB8 and 1756-OB32 (8 and 32 points).

Frequently asked questions:

How many outputs does the 1756-OB16E have?

16 solid-state DC sourcing outputs in two isolated groups of eight.

What is the output rating?

1 A per point at 60 °C and 8 A per module, over a 10 to 31.2 V DC operating range.

What does the E in 1756-OB16E mean?

E denotes the electronically fused version of the 1756-OB16 family.
