Availability:
1 in stock
TeSys SK mini contactor, 2 poles 2 NO, 6 A AC-3 to 690 V, 12 A AC-1, 24 V AC coil, 27 mm wide, 35 mm DIN rail clip-on, screw clamp terminals, 1,200 cycles/h.
List Price
$51.27
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Schneider Electric |
|---|---|
| MPN | LC1SK0600B7 |
| Model | LC1-SK0600B7 |
| Base Number | LC1SK06 |
|---|---|
| Industry Terms | Mini contactor, IEC contactor, motor starter contactor, DIN rail contactor, TeSys SK, magnetic contactor |
| Common Misspellings | Schnieder, Schneider Telemecanique, Square D LC1SK, LC1SK0600B7 Tesys, LCI-SK0600B7, Schneidder |
| Application Types | Single-phase motor control, resistive and heater load switching, lamp and lighting circuits, compact machine control panels, pump and fan starters |
| Item Width | 6 |
| Item Height | 4 |
| Item Length | 6 |
| Coil Voltage | 24 V AC, 50/60 Hz |
| Number Of Poles | 2P (2 NO) |
| Mpn Variants | LC1SK0600B7, LC1-SK0600B7, LC1 SK0600 B7, LC1SK0600, LC1SK06 |
| Compatible With Replaces | LA1SK add-on contact block mounts on this contactor to extend the pole count |
| Series | TeSys SK |
| Type | IEC Contactor |
| Nominal Rated Input Voltage | 24 V AC, 50/60 Hz |
| Item Weight | 0.132 kg (0.29 lb) |
| Part Number | LC1SK0600B7 |
| Mounting Type | 35 mm DIN rail, clip-on |
| Product Type | Mini contactor |

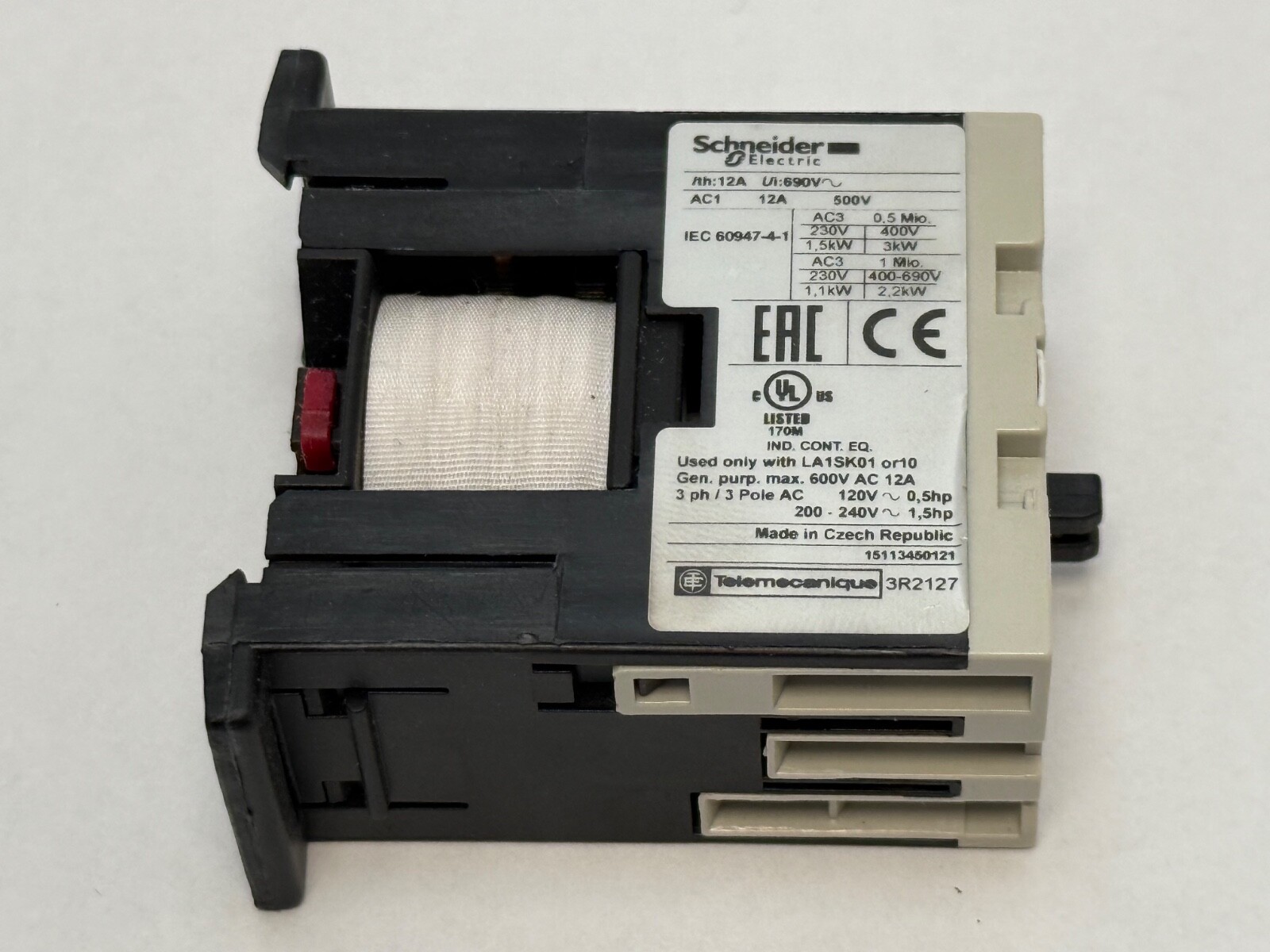

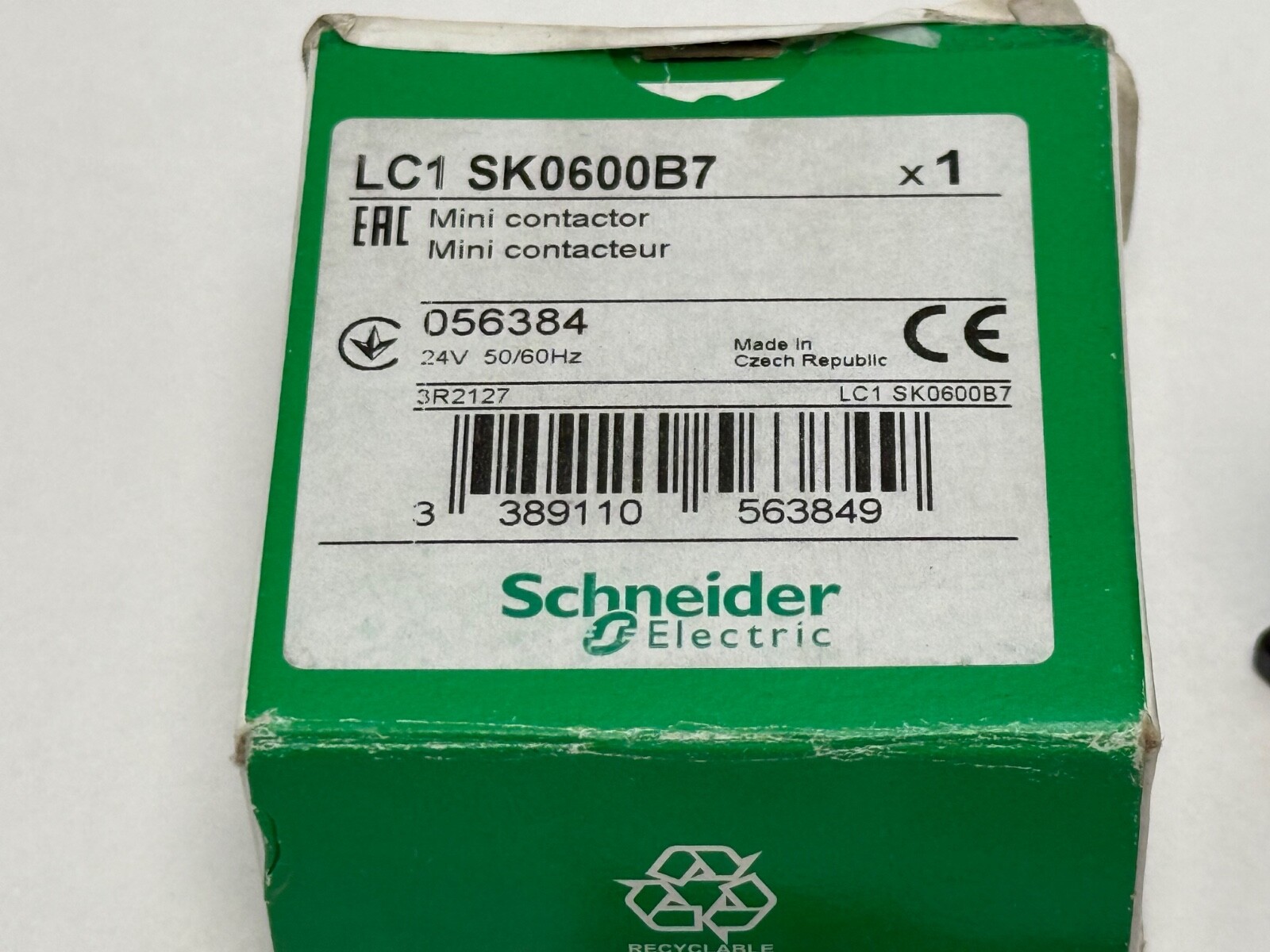

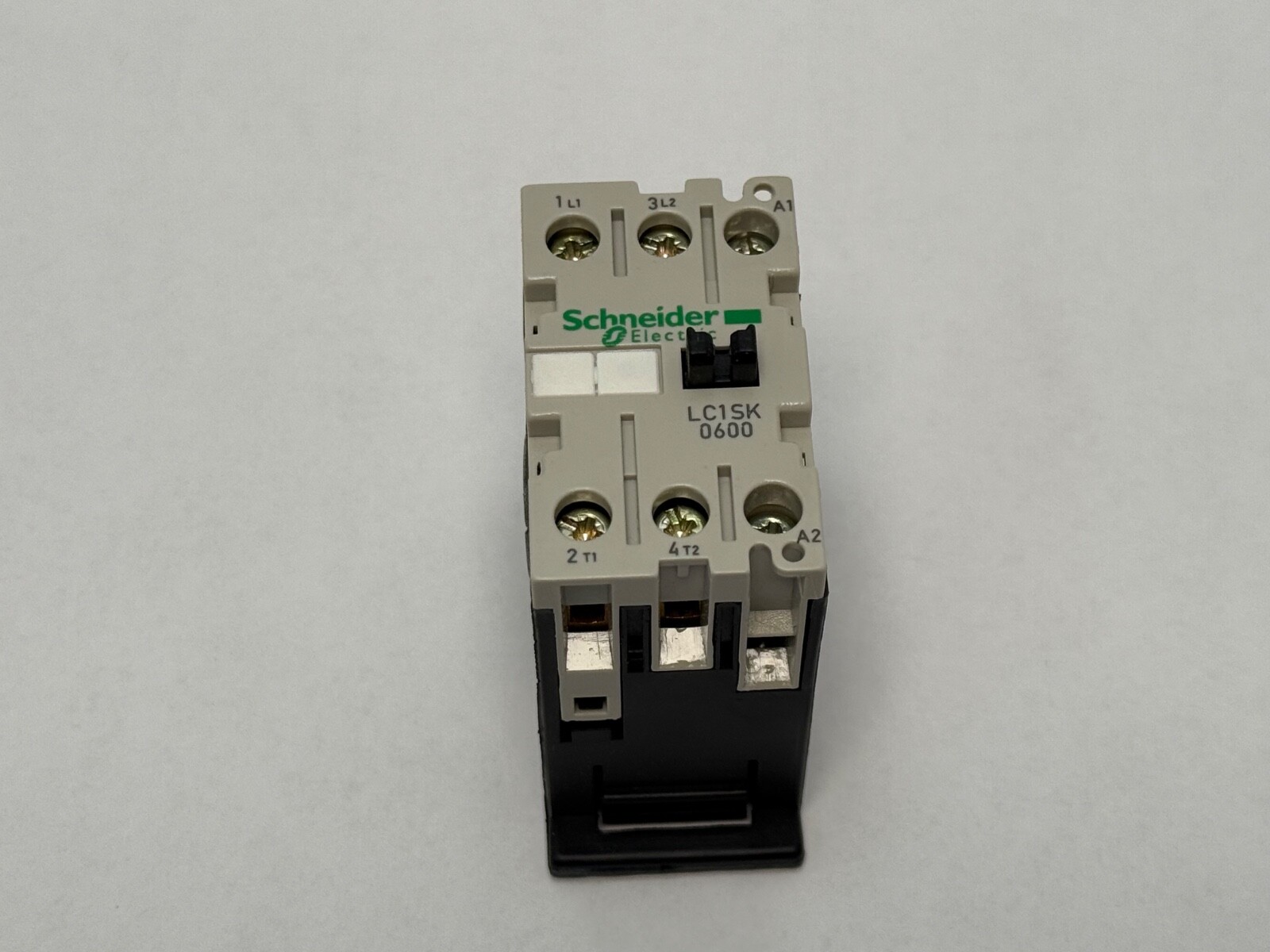

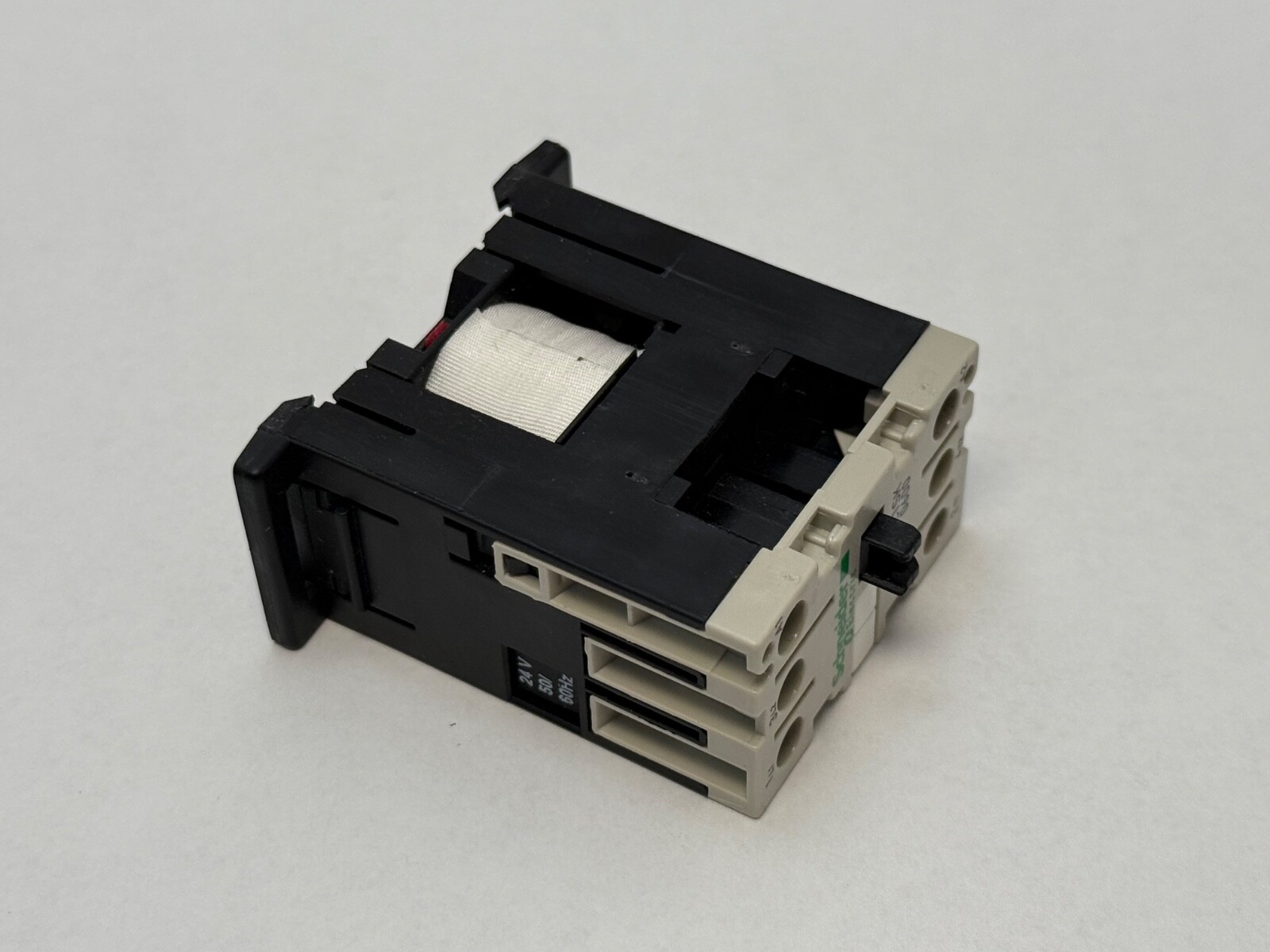

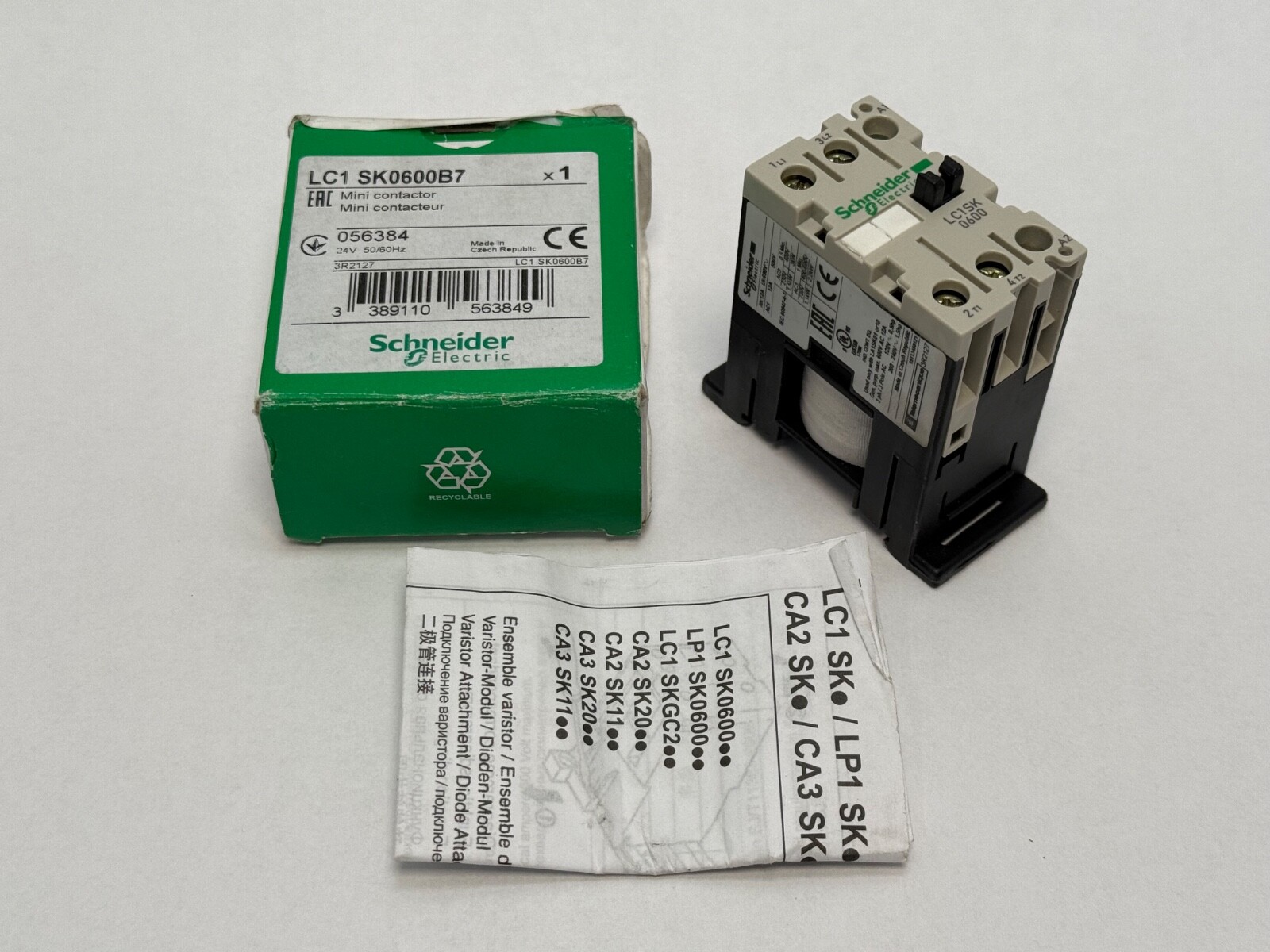

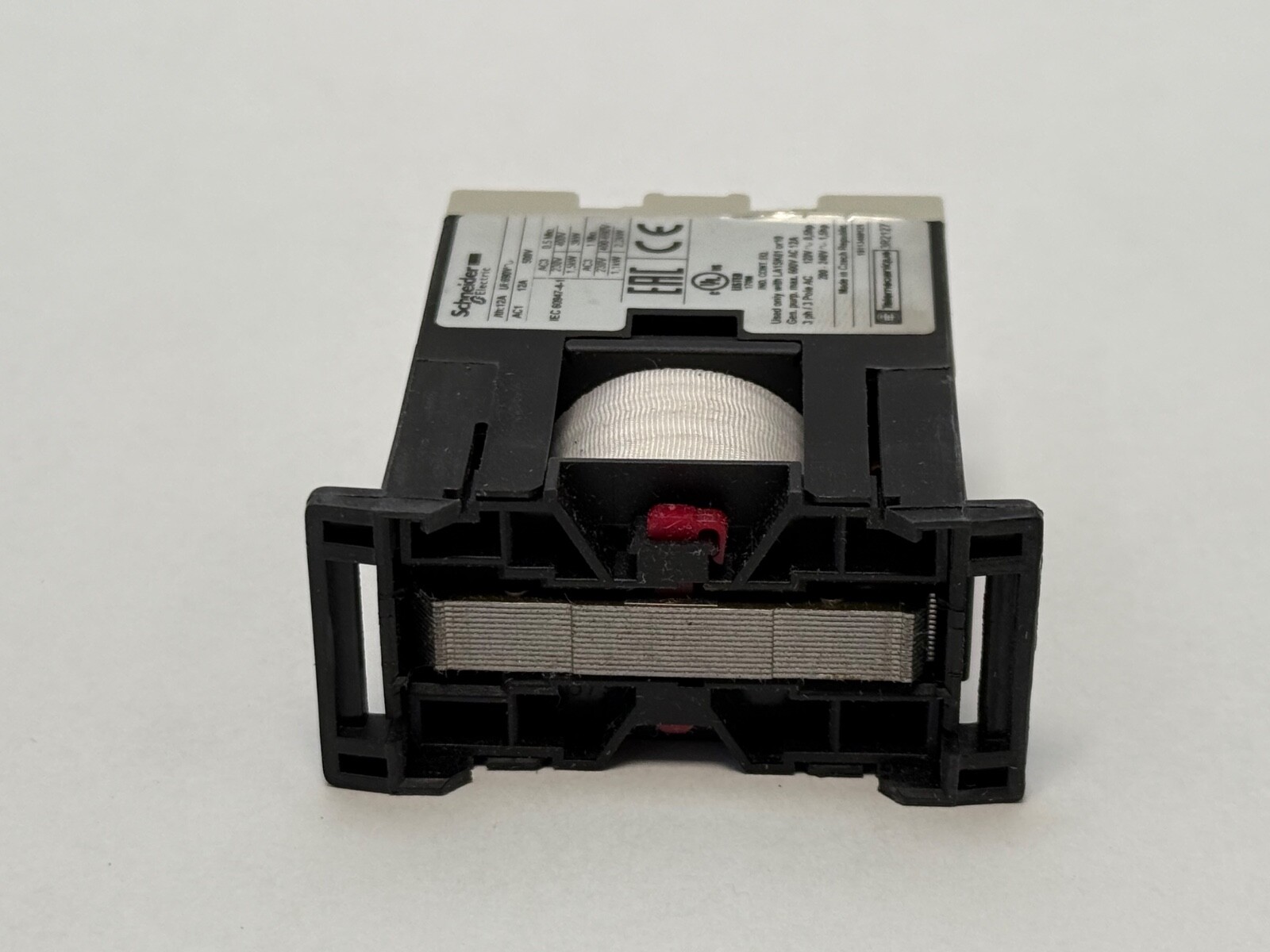

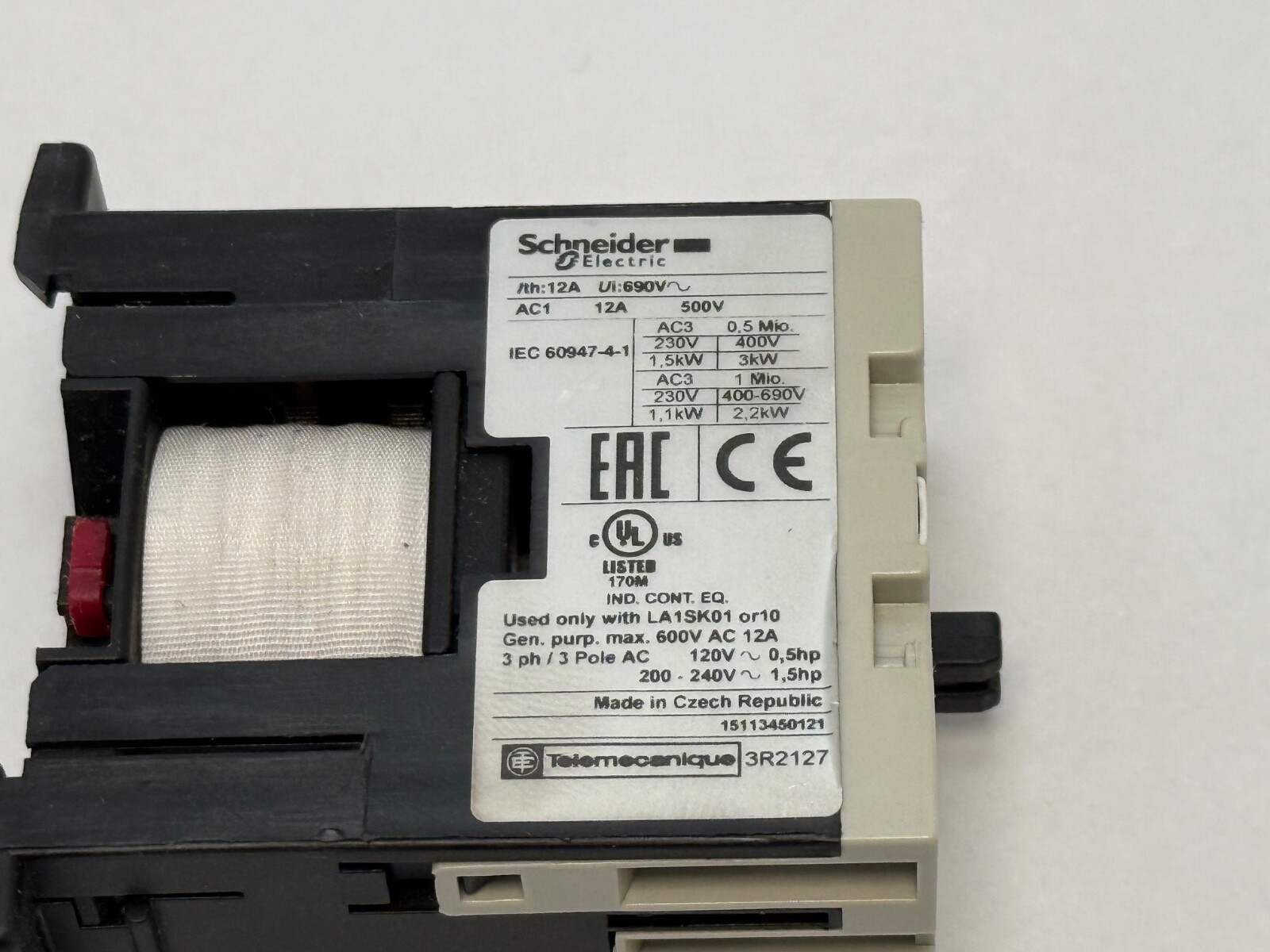

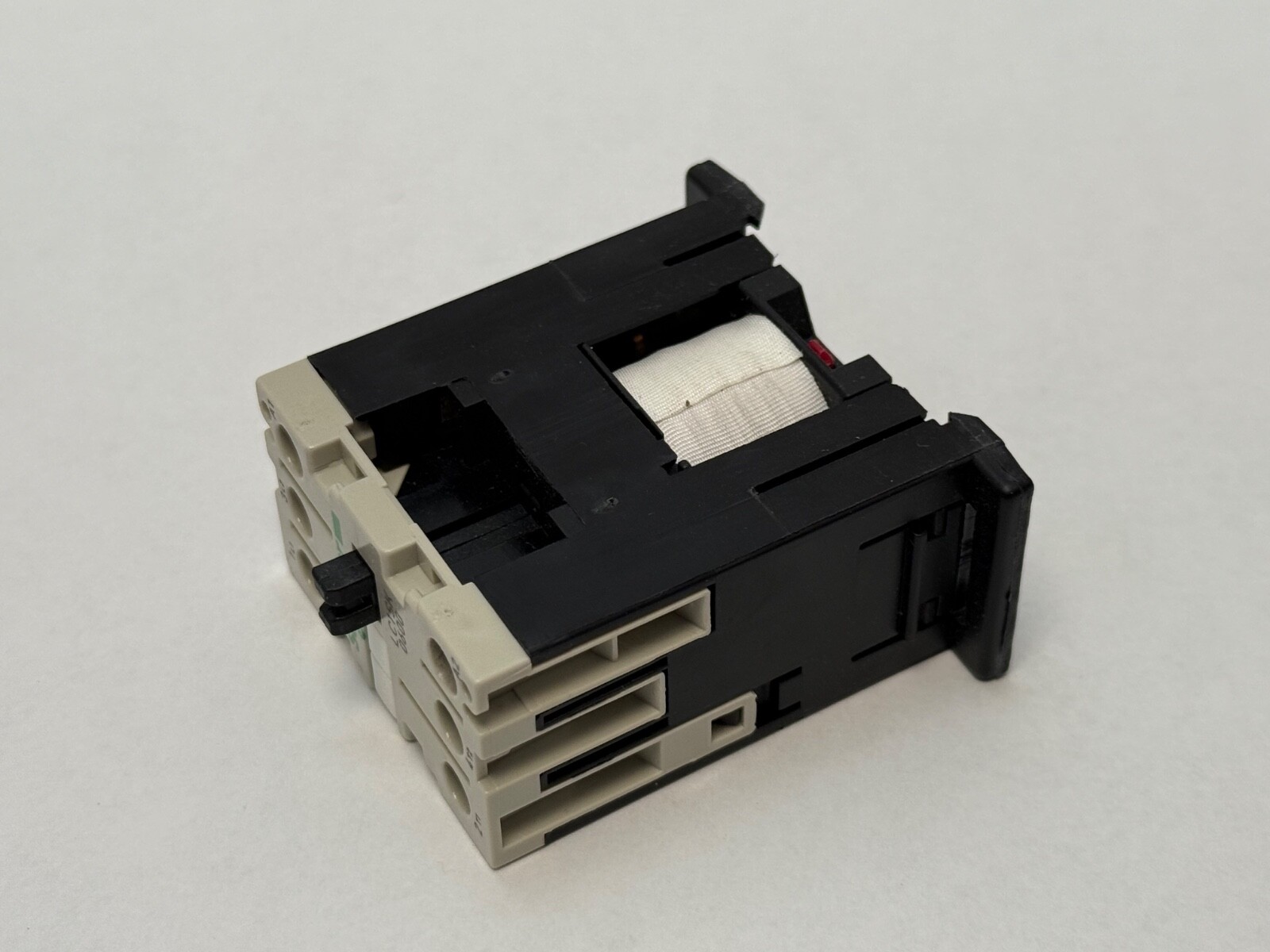

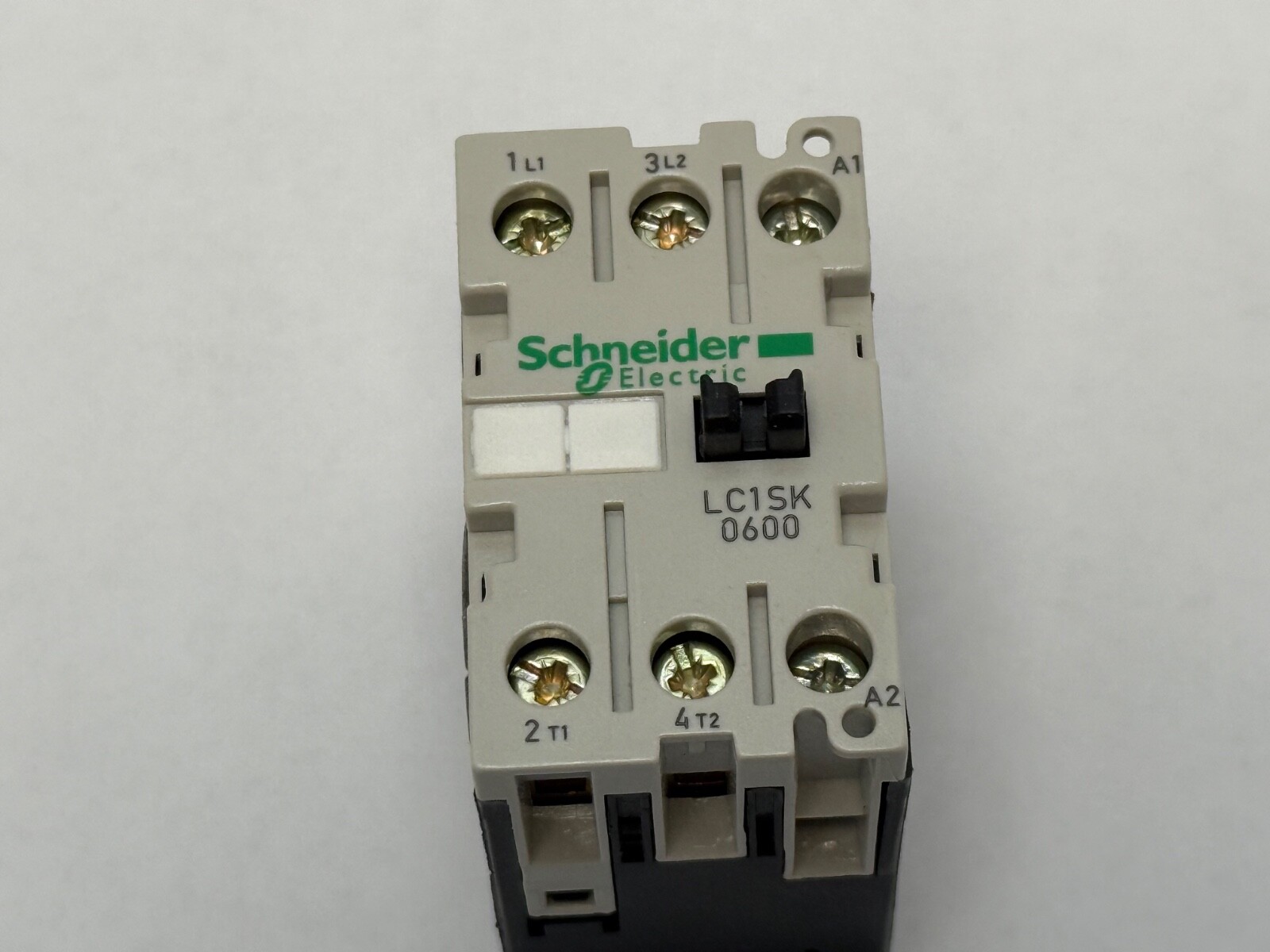

Schneider Electric LC1SK0600B7 is a TeSys SK mini contactor with 2 normally open power poles, rated 6 A in AC-3 up to 690 V, with a 24 V AC coil. Unit Quantity: 1 Pc.
LC1SK — Schneider Electric TeSys SK mini contactor.
B7 — 24 V AC, 50/60 Hz coil.
Series: TeSys SK. Number Of Poles: 2P, two normally open power poles. Rated Operational Current, AC-3: 6 A up to 690 V. Rated Operational Current, AC-1: 12 A up to 690 V. Rated Power, AC-3: 1.1 kW at 220-230 V, 2.2 kW at 380-415 V and 2.2 kW at 660-690 V. Coil Voltage: 24 V AC, 50/60 Hz. Terminal Type: Screw clamp. Operating Rate: Up to 1,200 cycles per hour. Ambient Temperature Range: -20 °C to +50 °C. Certifications: IEC, UL, CSA, CCC and EAC. Item Weight: 0.132 kg (0.29 lb). Country of Origin: Czech Republic.
Width: 27 mm. Height: 56 mm. Depth: 55.5 mm. Mounting: 35 mm DIN rail, clip-on.
Also written LC1-SK0600B7, LC1 SK0600 B7 and LC1SK0600. An LA1SK add-on contact block clips onto the front of the contactor and adds poles for three-phase motor control on the same 27 mm body.
Two normally open power poles, 6 A in AC-3 and 12 A in AC-1, up to 690 V.
24 V AC, 50/60 Hz.
Clip-on mounting on 35 mm DIN rail, 27 mm wide.
