NorgrenDA/8032/25ISO 15552 Tie-Rod Air Cylinder – 32 mm Bore, 25 mm Stroke, Adjustable Cushioning, with Rear Eye and Rod Eye

Condition: New

Availability:

1 in stock

ISO 15552 tie-rod air cylinder, 32 mm bore, 25 mm stroke, double-acting, adjustable cushioning, G1/8 ports, with rear eye bracket and rod eye.

List Price

$125.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandNorgren
MPNDA/8032/25
ModelDA/8032/25 & QA/8032/33 & QM8025/32

Technical Specifications

TypePneumatic
Base NumberDA/8032
Air Pressure Range1 to 16 bar (14 to 232 psi)
Maximum Pressure16 bar (232 psi)
Cylinder ActionDouble-Acting
Number Of Ports2
Stroke Length25 mm
Shaft TypeMale thread M10 x 1.25, 12 mm rod
Bore Shaft Size32 mm bore
Mpn VariantsDA8032 25; DA-8032-25; QA/8032/33; QA8032 33; QM/8025/32; QM8025/32; QM802532
Additional AttributesConforms to ISO 15552, ISO 6431, VDMA 24562 and NFE 49-003-1; adjustable cushioning both ends; cushion length 19 mm; initial cushion volume 12.3 cm3; theoretical force at 6 bar 482 N outstroke / 414 N instroke; air consumption 0.056 / 0.048 l/cm; rear eye QA/8032/33 swivel 13 deg, 0.15 kg; rod eye QM/8025/32 swivel 13 deg, 0.09 kg; service kit QA/8032/00
MaterialAluminium barrel, stainless steel rod, PUR seals
Min Temp-20 °C (-4 °F)
SeriesNorgren 8000 ISO/VDMA tie rod
Max Temp80 °C (176 °F)
Part NumberDA/8032/25
Mounting TypeRear eye ISO 15552 MP6 with piston rod eye
Port SizeG 1/8
Seller Part Number: B-AJ5B5#OLEXYP

Product Description

What this part is:

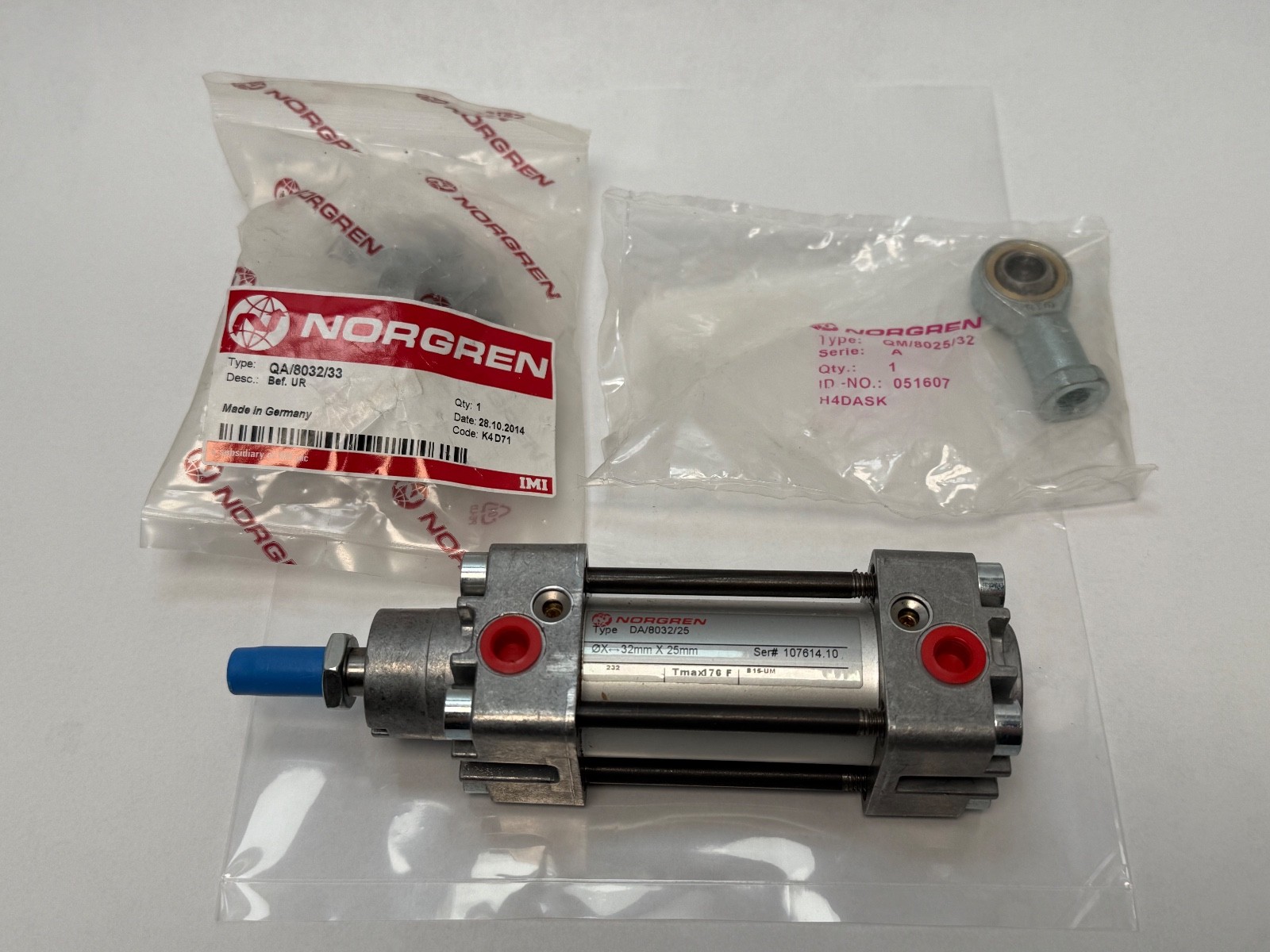

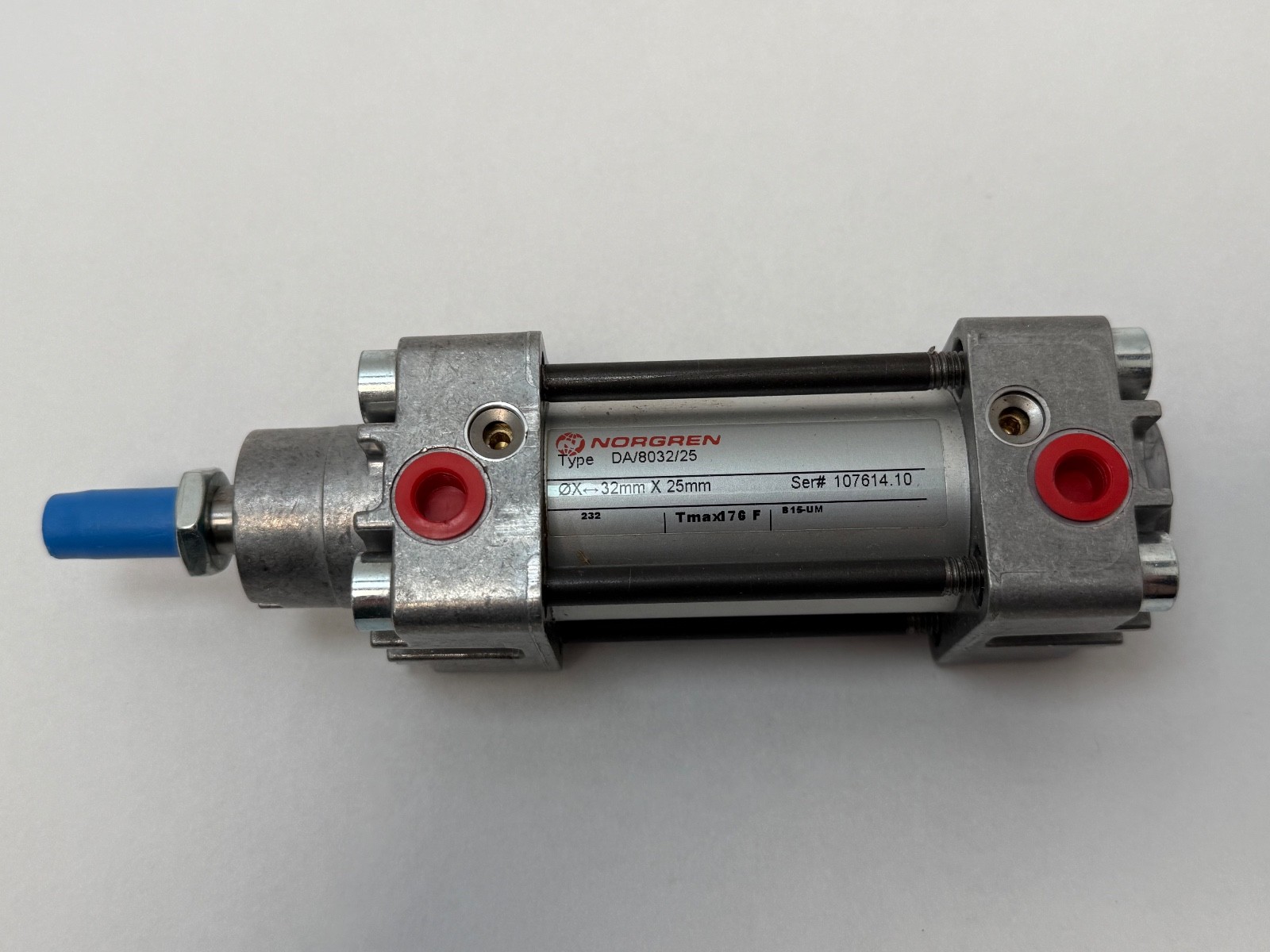

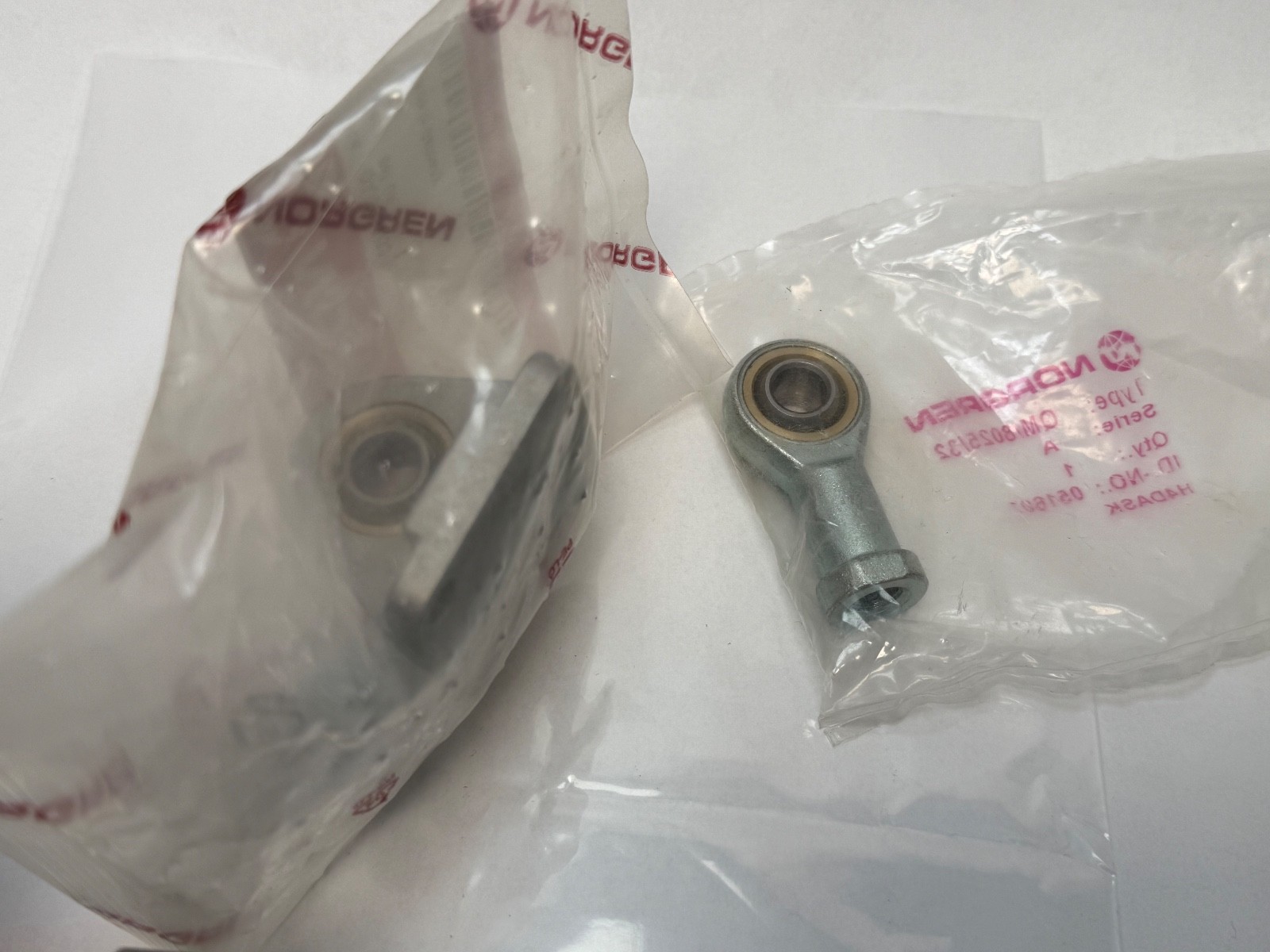

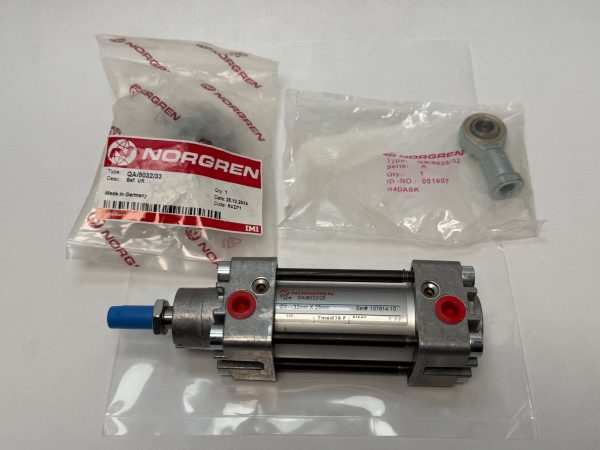

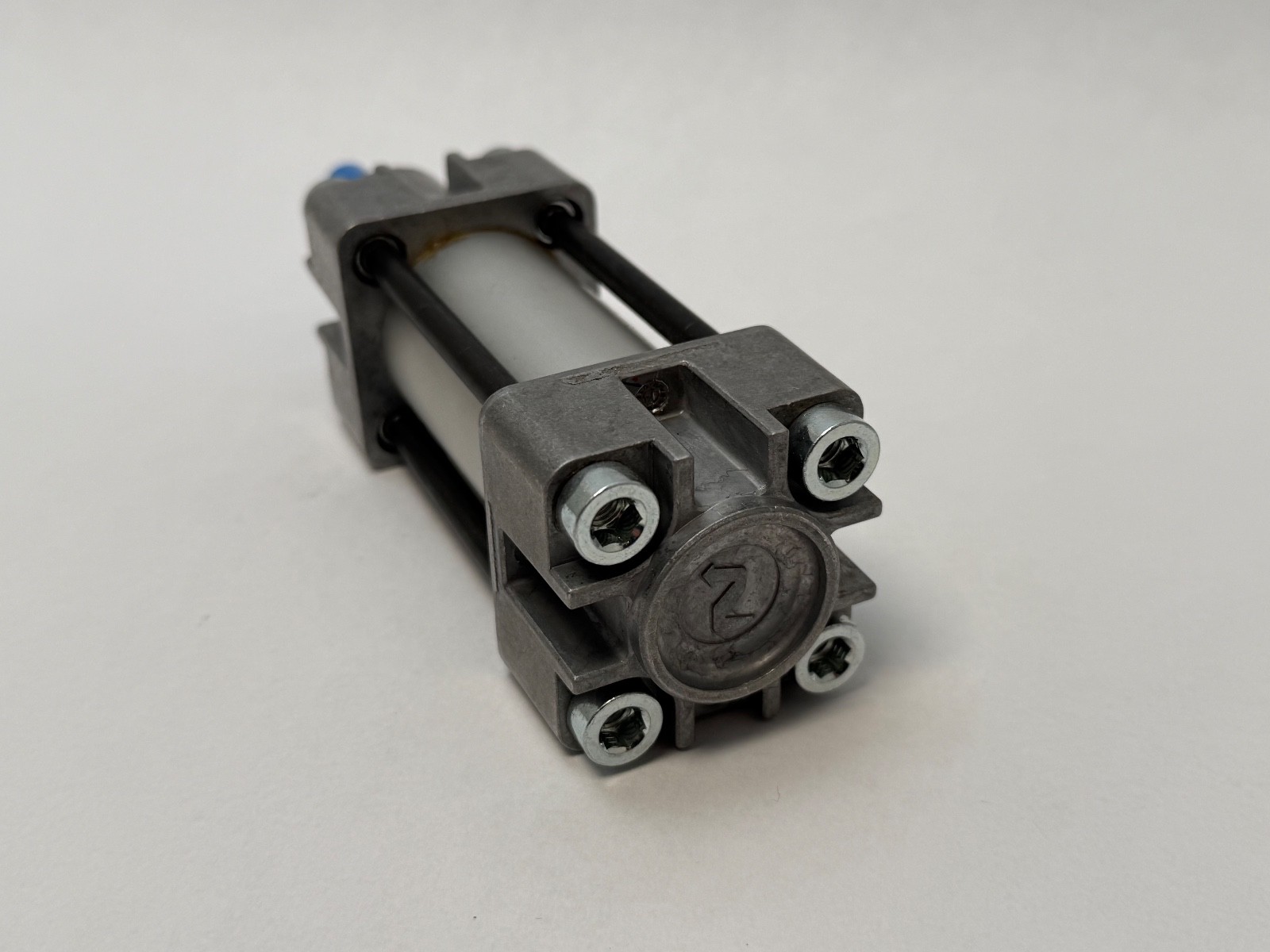

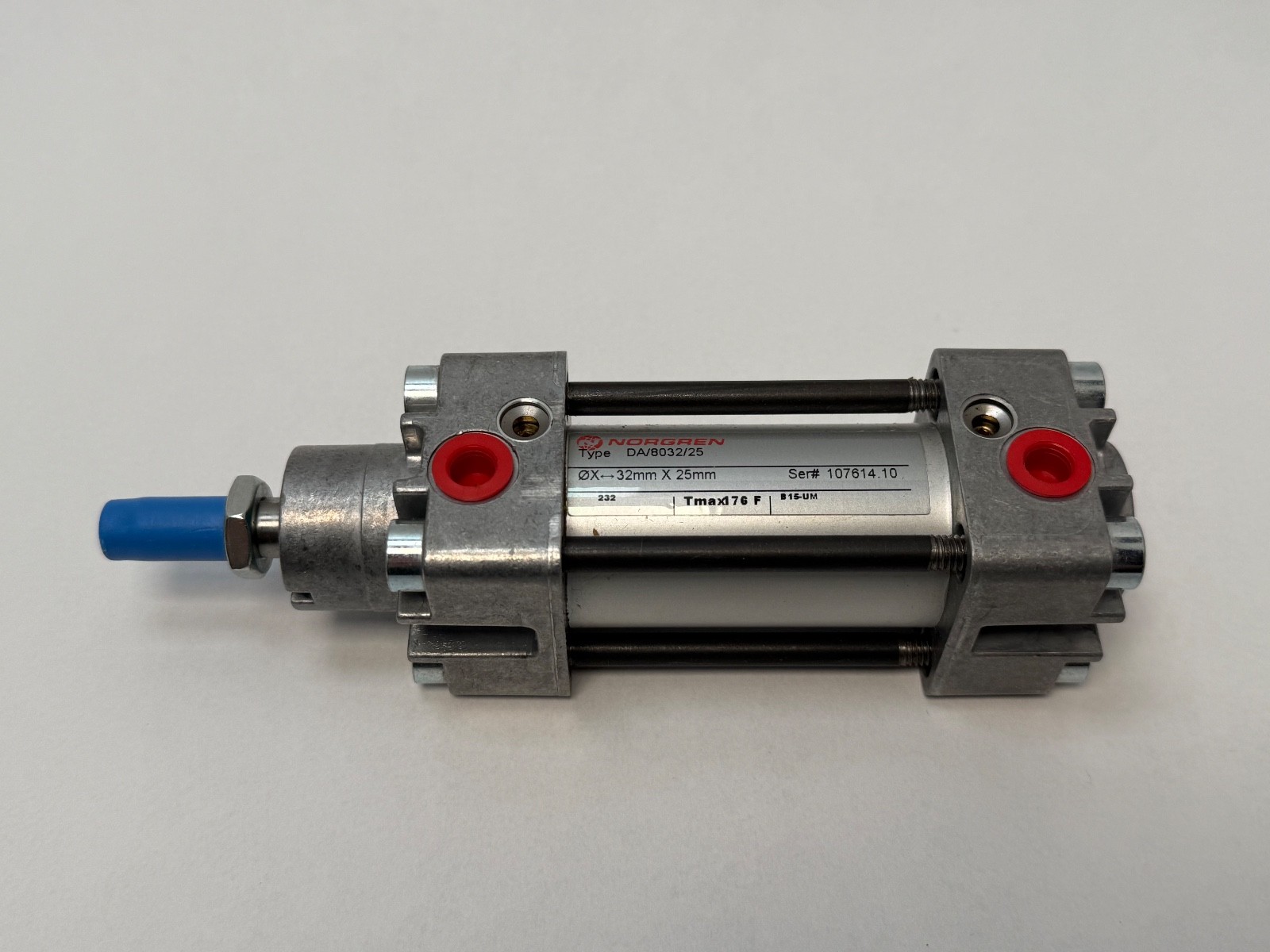

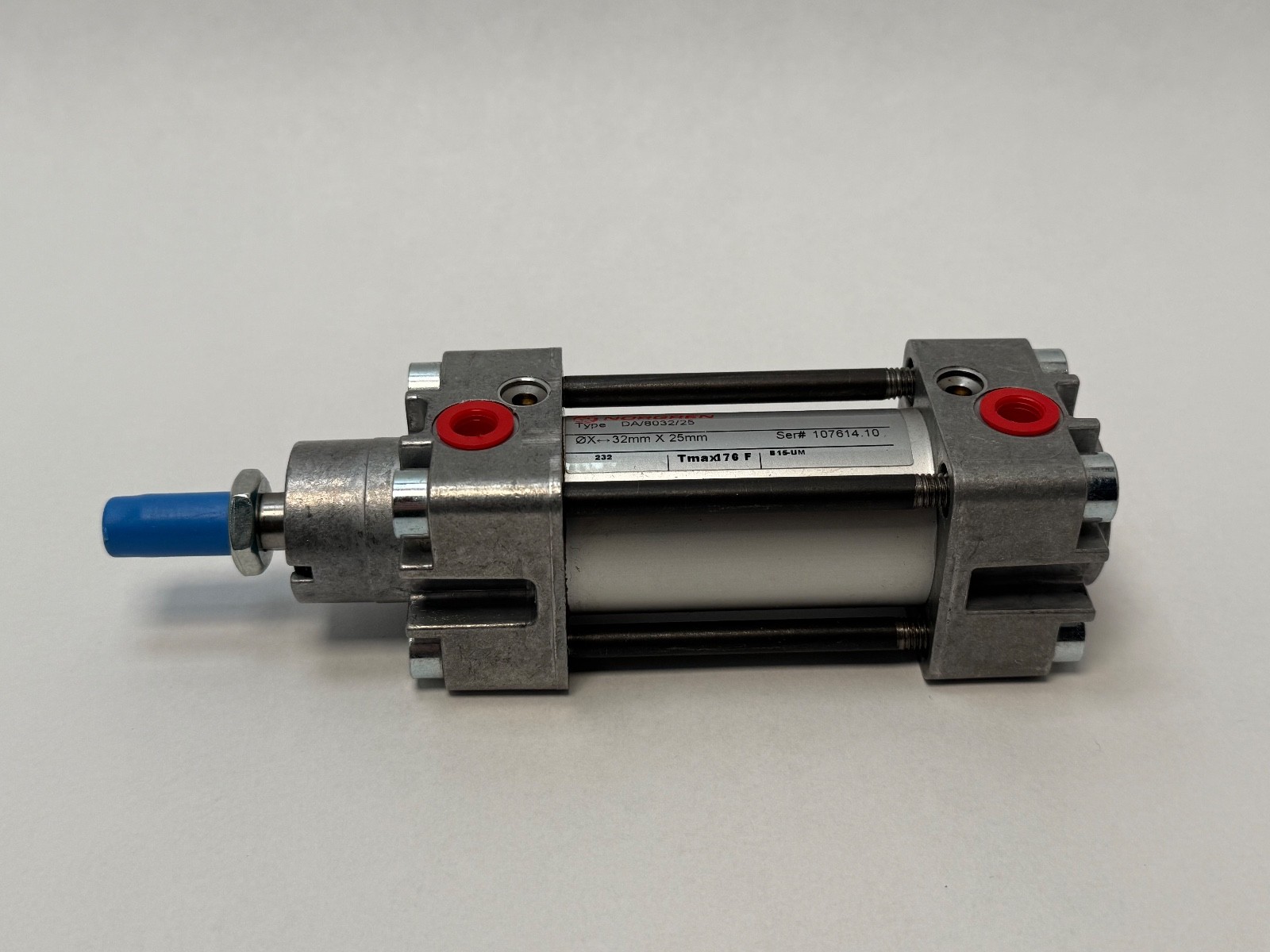

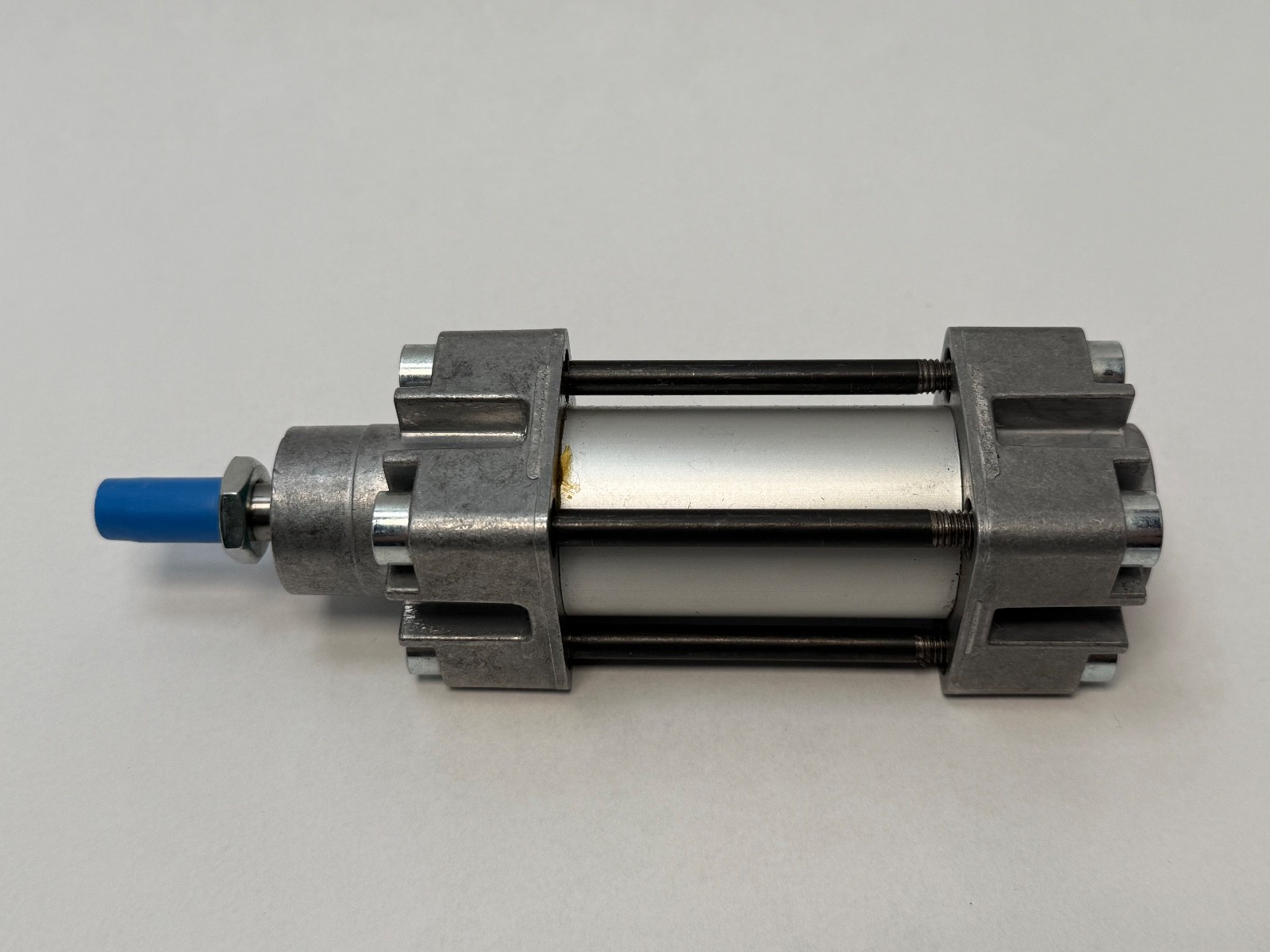

IMI Norgren DA/8032/25 double-acting pneumatic cylinder from the 8000 series, supplied with a QA/8032/33 universal rear eye mounting and a QM/8025/32 universal piston rod eye. Three pieces: one DA/8032/25 cylinder, one QA/8032/33 rear eye mounting bracket and one QM/8025/32 piston rod eye. Conforming Standard: ISO 15552, and equivalently ISO 6431, VDMA 24562 and NFE 49-003-1. Bore: 32 mm. Stroke: 25 mm. Unit Quantity: 1 Set (3 Pcs).

Decoding the designation:

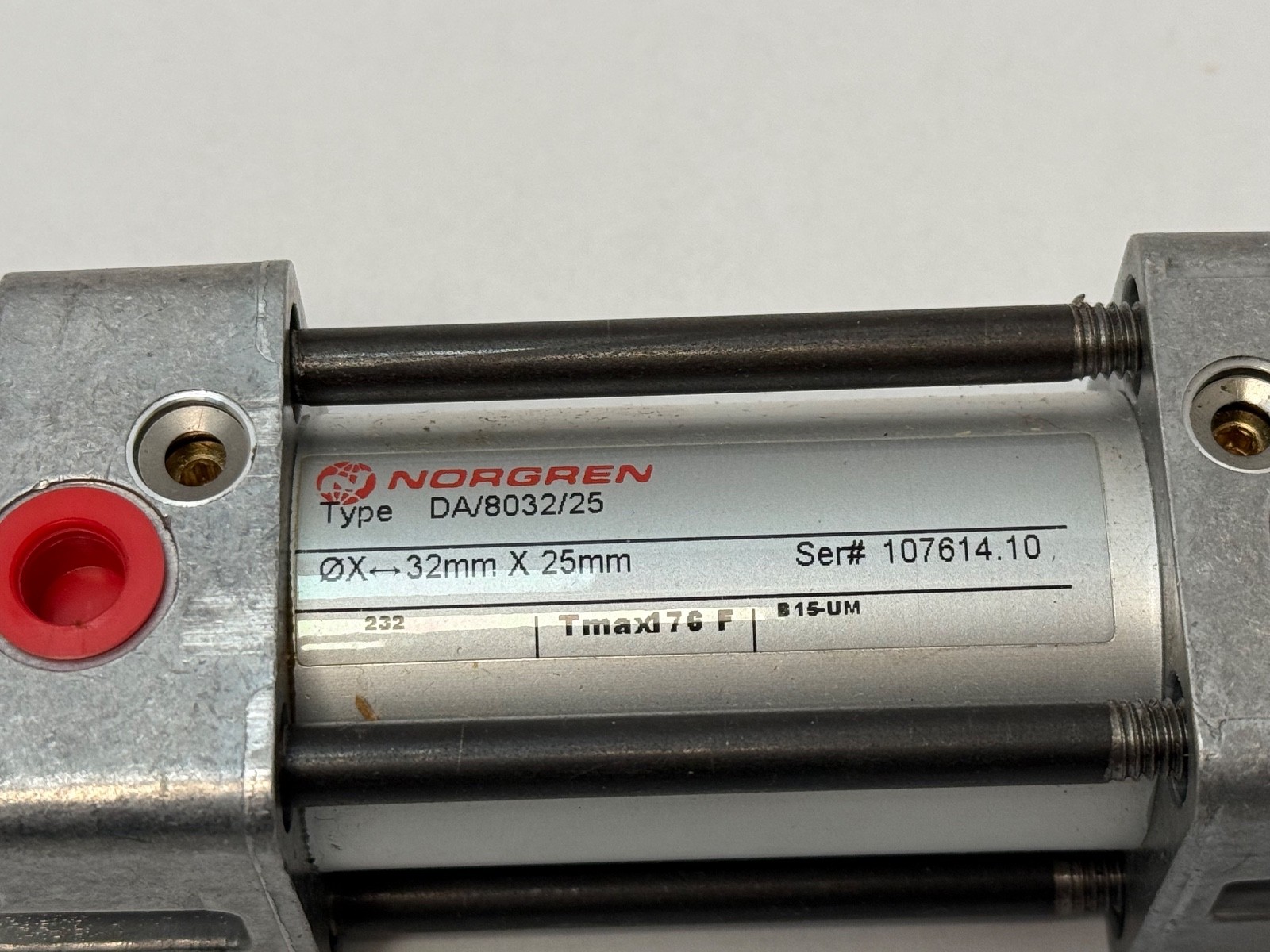

DA — the Norgren 8000 series ISO/VDMA tie-rod cylinder with a chrome plated stainless steel piston rod.

8032 — the 8000 series at a 32 mm bore.

25 — 25 mm stroke.

QA/8032/33 — UR universal rear eye mounting for the 32 mm bore, to ISO 15552 type MP6.

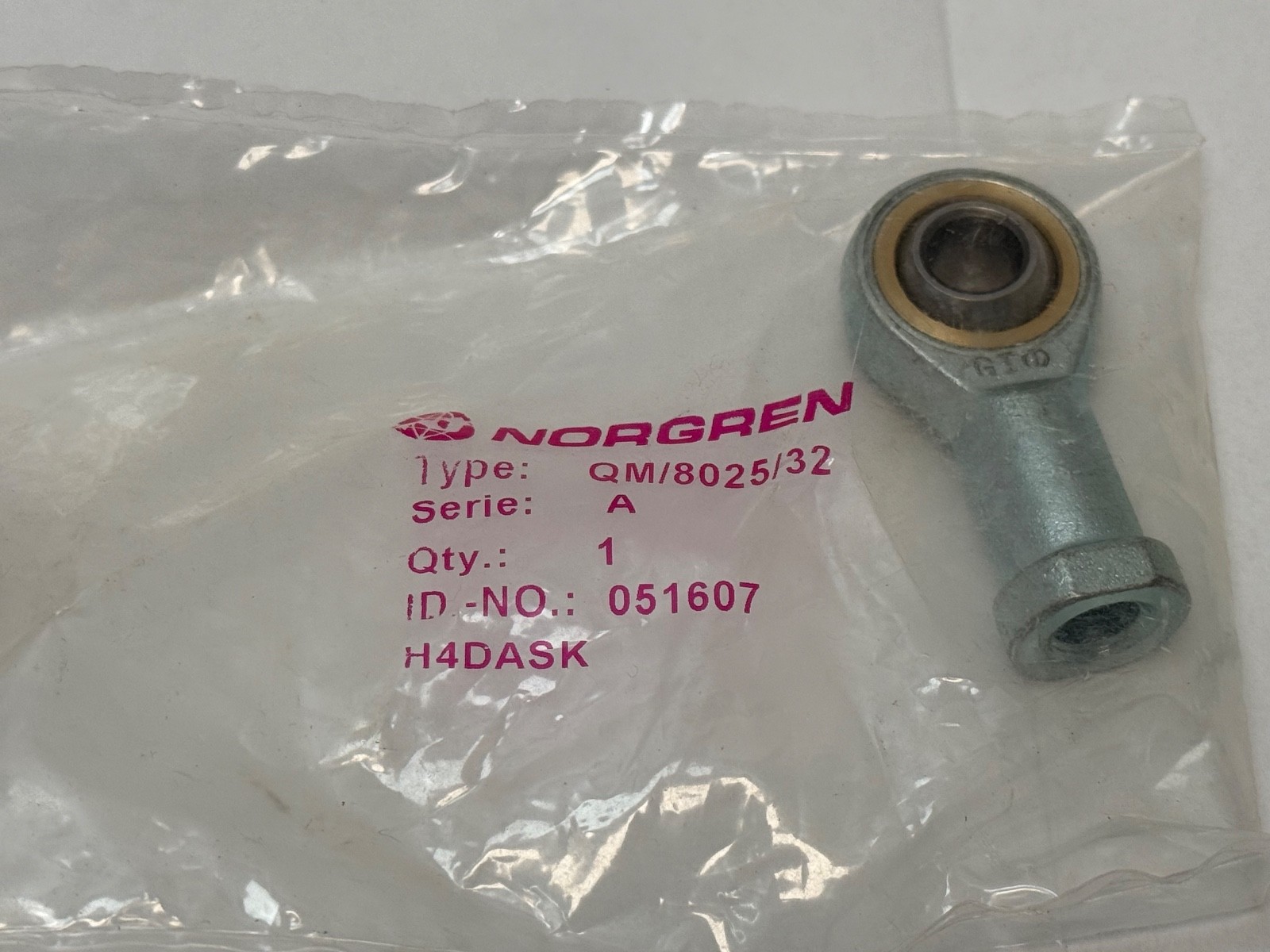

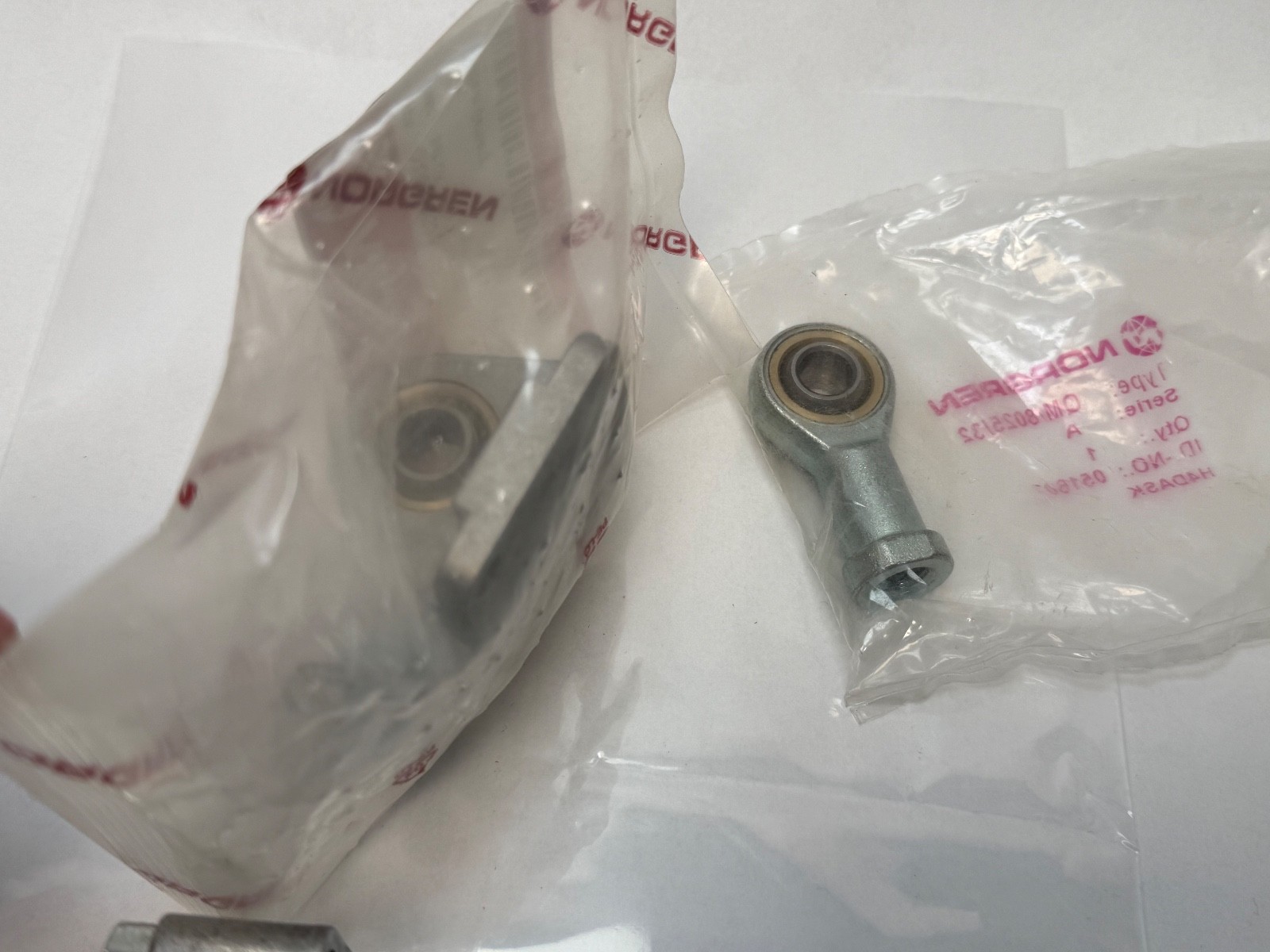

QM/8025/32 — UF universal piston rod eye to DIN ISO 8139, for 32 and 40 mm bore cylinders, M10 x 1.25 thread.

Specifications:

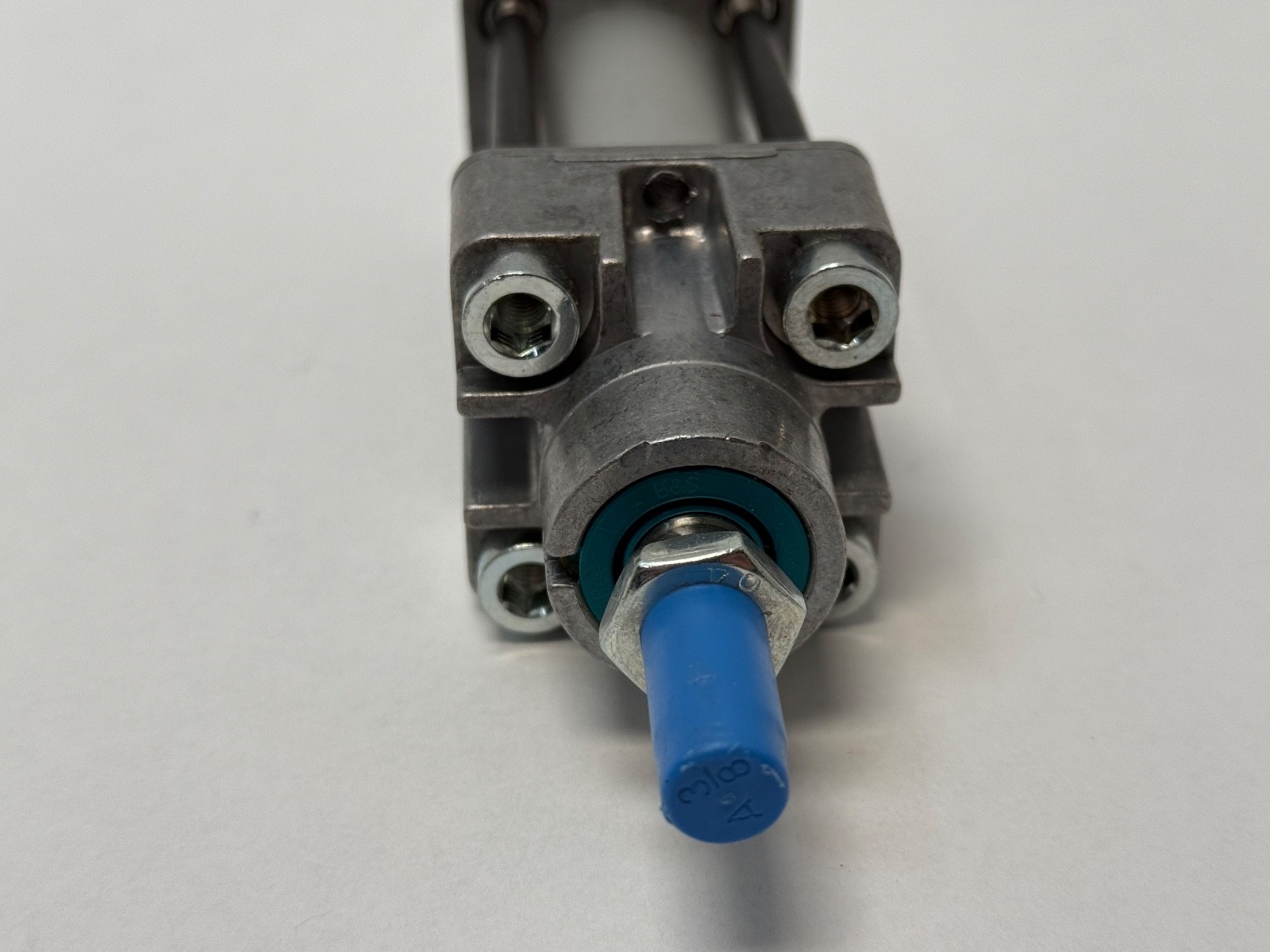

Mode of Operation: double-acting. Cushioning: adjustable at both ends, by cushion screw. Cushion Length: 19 mm. Initial Cushion Volume: 12.3 cm³. Port Size: G 1/8. Piston Rod Diameter: 12 mm. Piston Rod Thread: M10 x 1.25, male. Piston Rod Material: chrome plated stainless steel. Operating Pressure: 1 to 16 bar (14 to 232 psi). Operating Temperature: −20 to +80 °C (−4 to +176 °F). Operating Medium: compressed air, filtered, lubricated or non-lubricated. Theoretical Force at 6 bar: 482 N outstroke, 414 N instroke. Air Consumption: 0.056 l/cm outstroke, 0.048 l/cm instroke. Series: Norgren 8000 ISO/VDMA tie rod.

Materials: Barrel: anodised aluminium. End Covers: pressure die-cast aluminium. Piston Rod: chrome plated stainless steel. Piston Rod Seals: PUR. Piston Seals: PUR. O-rings: NBR.

Dimensions and mounting:

Port Size: G 1/8. Piston Rod Thread: M10 x 1.25. Key cylinder dimensions: AM 22, AP 3.5, B e11 30, BA e11 30, BG 18, BH 6, E 47, EE G1/8, G 27.5, KV 17, KW 5, L2 20, MM h9 12, PL 13, R 32.5, RT M6, SW 10, VA 3, VD 6, WH 26 mm.

QA/8032/33 universal rear eye, ISO 15552 type MP6: CX H7 10, EX 14, MS 16, DL 22, R1 13 mm, swivel angle 13°, weight 0.15 kg.

QM/8025/32 universal piston rod eye to DIN ISO 8139: thread KK M10 x 1.25, AX 20, CE 43, CN H7 10, EN 14, ER 14, LE 15 mm, misalignment 13°, weight 0.09 kg.

Compatibility and replacement:

Service kit for the 32 mm bore: QA/8032/00. DA/8032/M/25 is the same cylinder with a magnetic piston fitted for sensor position sensing. RA/8032/25 is the same body with a martensitic stainless steel rod in place of the chrome plated one.

Other forms of the numbers: DA8032 25, DA/8032/25, DA-8032-25, QA8032 33, QA/8032/33, QM8025/32, QM/8025/32, QM802532.

Frequently asked questions:

What are the bore and stroke of the Norgren DA/8032/25?

Bore is 32 mm and stroke is 25 mm.

What mountings come with it?

A QA/8032/33 universal rear eye mounting and a QM/8025/32 universal piston rod eye.

What are the operating pressure and temperature limits?

Operating Pressure is 1 to 16 bar and Operating Temperature is -20 to +80 °C.
