Deep Groove Ball Bearings: The Industry Default and When to Reach for Something Else
If you pulled a bearing off general industrial equipment at random, there’s a good chance
Availability:
1 in stock
Single-row deep groove ball bearing, 90 mm bore x 140 mm OD x 24 mm wide, contact rubber seals both faces, grease filled. Cr 62,000 N, limiting speed 2,500 rpm.
List Price
$29.33
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 6018-2RSR |
| GTIN | 4012801201636 |
| Model | 6018-2RS1 |
| Bearing Type | Ball Bearing, Contact seals both sides |
| ID | 90 mm |
| OD | 140 mm (5.5118 in) |
| Width | 24 mm |
| Material | Steel |
|---|---|
| Series | 6000 |
| Lubricant | Grease, sealed for life |
| Base Number | 6018 |
| Industry Terms | sealed deep groove bearing, 6018 2RS, radial ball bearing, sealed for life bearing, 90mm bore bearing, motor bearing |
| Common Misspellings | FAG 6018 2RSR, 6018-2RSR1, 60182RS R, FAG 60l8-2RSR, 6018 RSR, 6018-2RRS |
| Application Types | Electric motors, gearboxes, pumps, fans and blowers, conveyors, washdown machinery |
| Bore Shaft Size | 90 mm (3.5433 in) |
| Mpn Variants | 6018-2RSR, 60182RSR, 6018 2RSR, 6018-2RS, 6018RS, 6018 2RS, 6018-2RS1, 6018 |
| Precision Class | P0 (ABEC 1) |
| Additional Attributes | Shaft shoulder min 97 mm; housing shoulder max 133 mm; fillet max 1.5 mm; fatigue load limit 3,000 N |
| Dynamic Load Rating | 62,000 N (Cr) |
| Static Load Rating | 49,500 N (C0r) |
| Precision Rating | P0 (ABEC 1) |
| Rolling Elements | Ball |
| Item Weight | 1.21 kg (2.67 lb) |
| Limiting Speed | 2,500 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Duty Type | Heavy Duty |
| Harmonization Code | 8482.10.50 |
| Internal Clearance | CN (normal) |
| Part Number | 6018-2RSR |
| Total Width | 24 mm (0.9449 in) |
| Overall Width | 24 mm (0.9449 in) |
| Dynamic Load Rating C1 | 62,000 N (Cr) |
| Cross Reference 1 | SKF 6018-2RS1 |
|---|---|
| Cross Reference 2 | NTN 6018LLU |
| Cross Reference 3 | NSK 6018DDU |
| Cross Reference 4 | Koyo 6018-2RS |
| Cross Reference 5 | Timken 6018-2RS |
| Cross Reference 6 | 6018 - open, no seals |

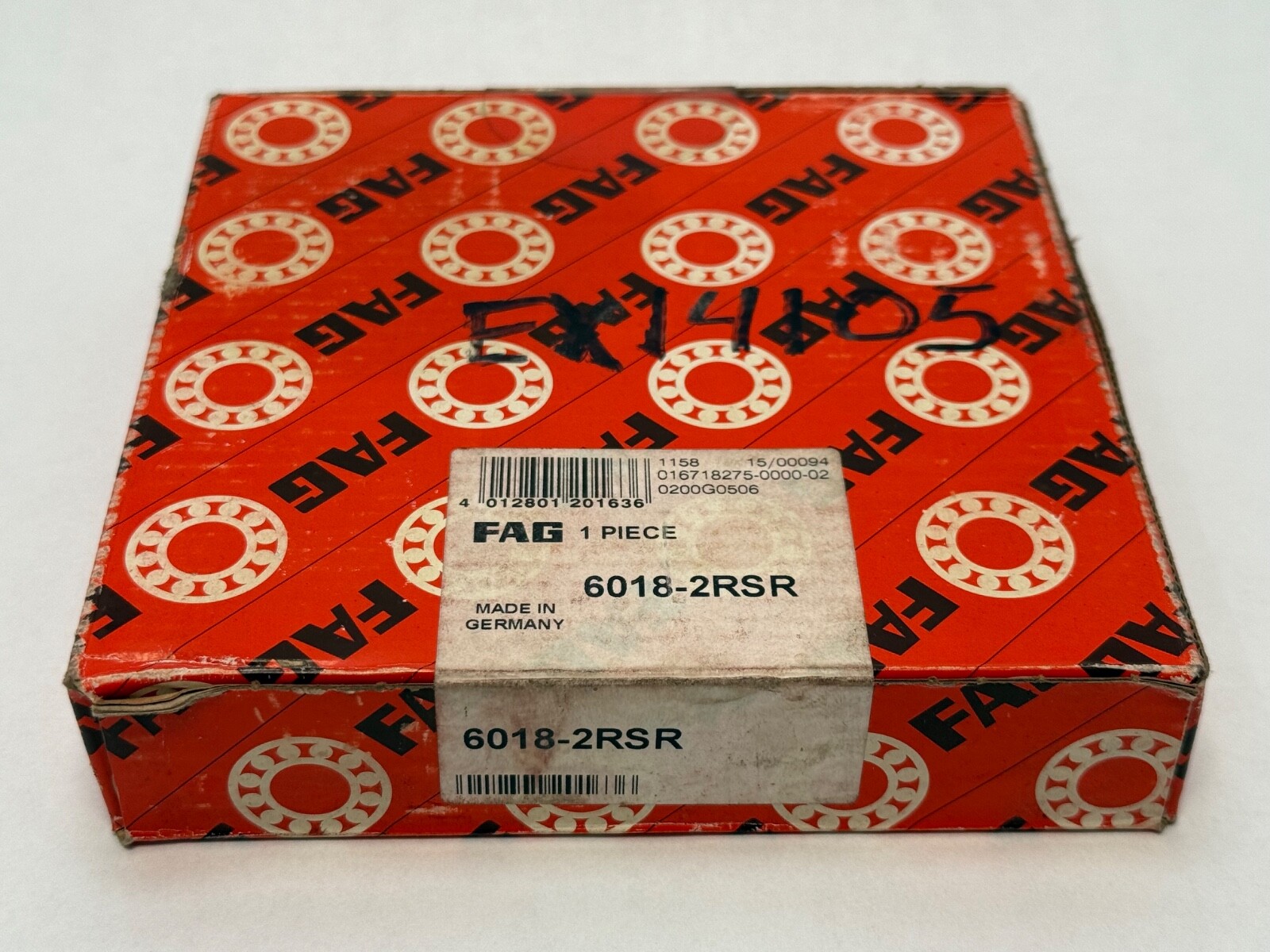

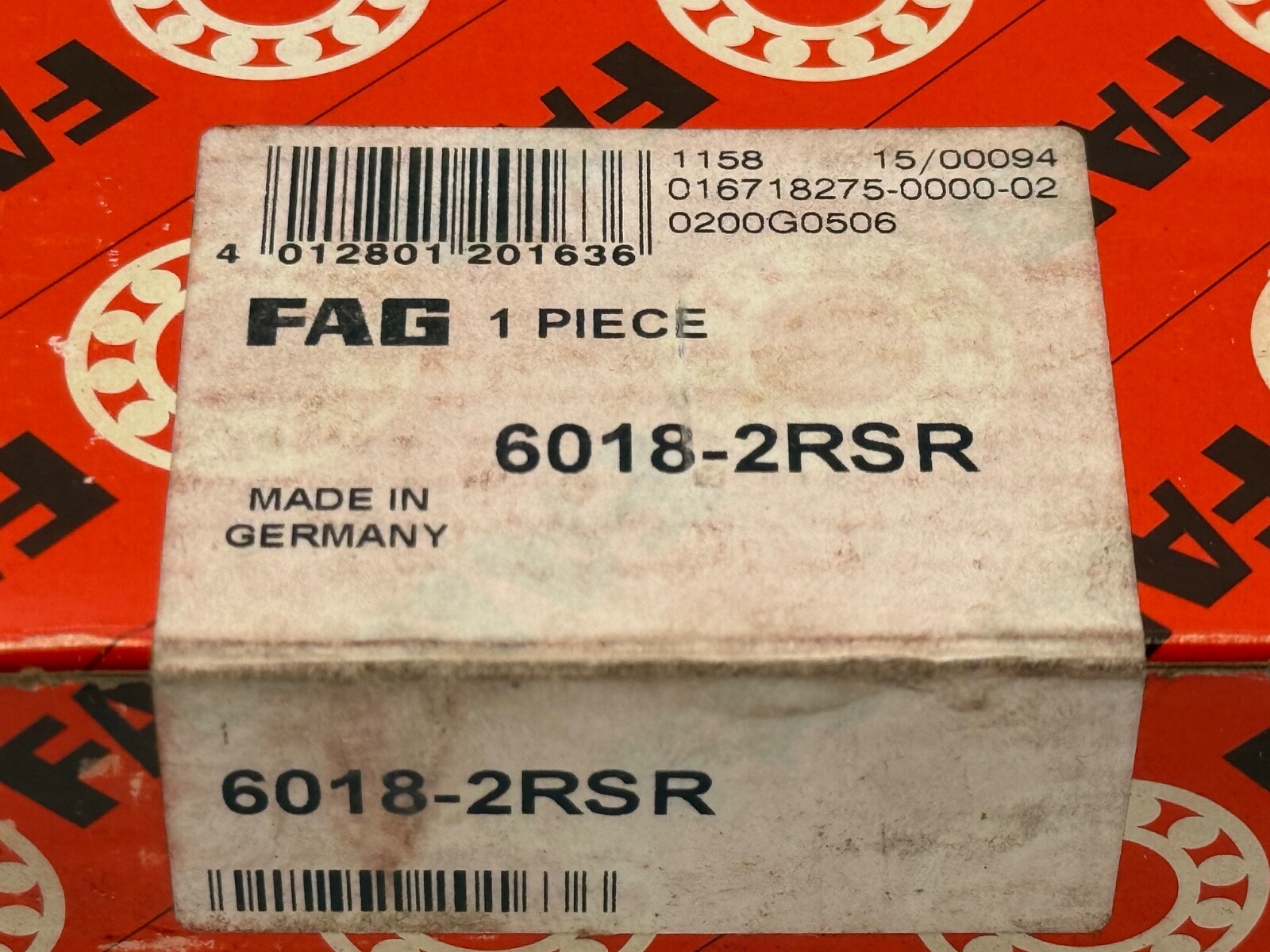

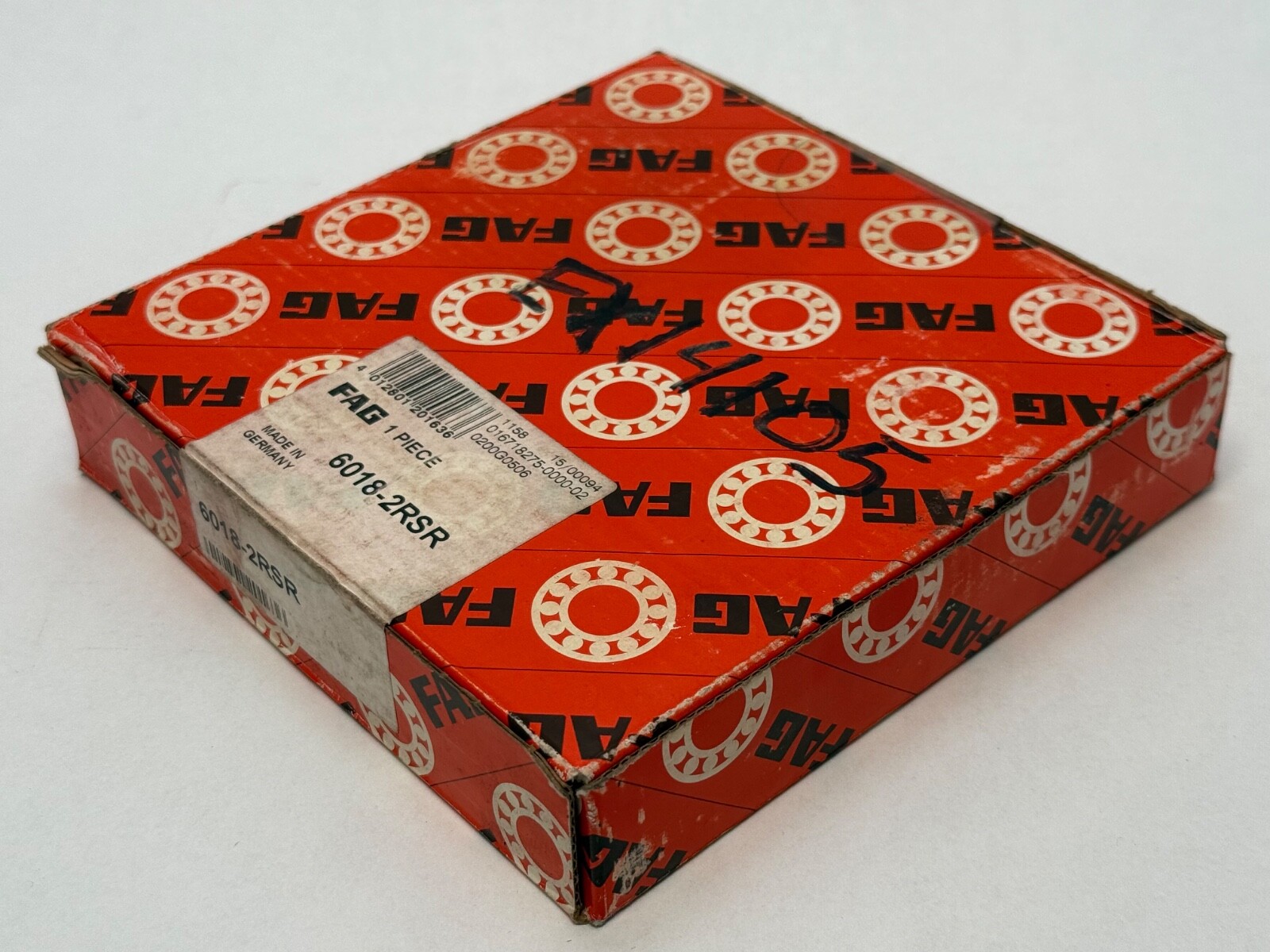

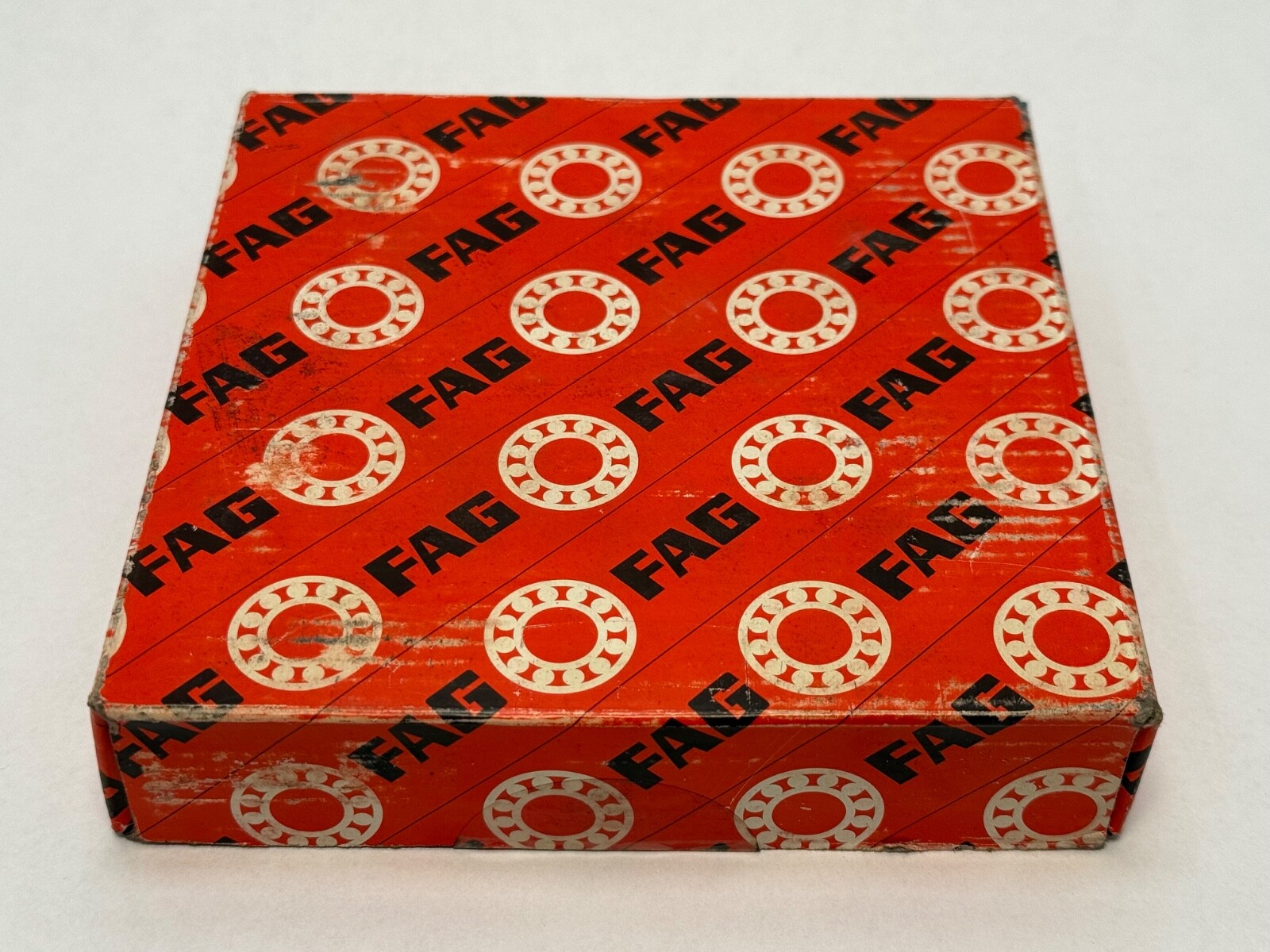

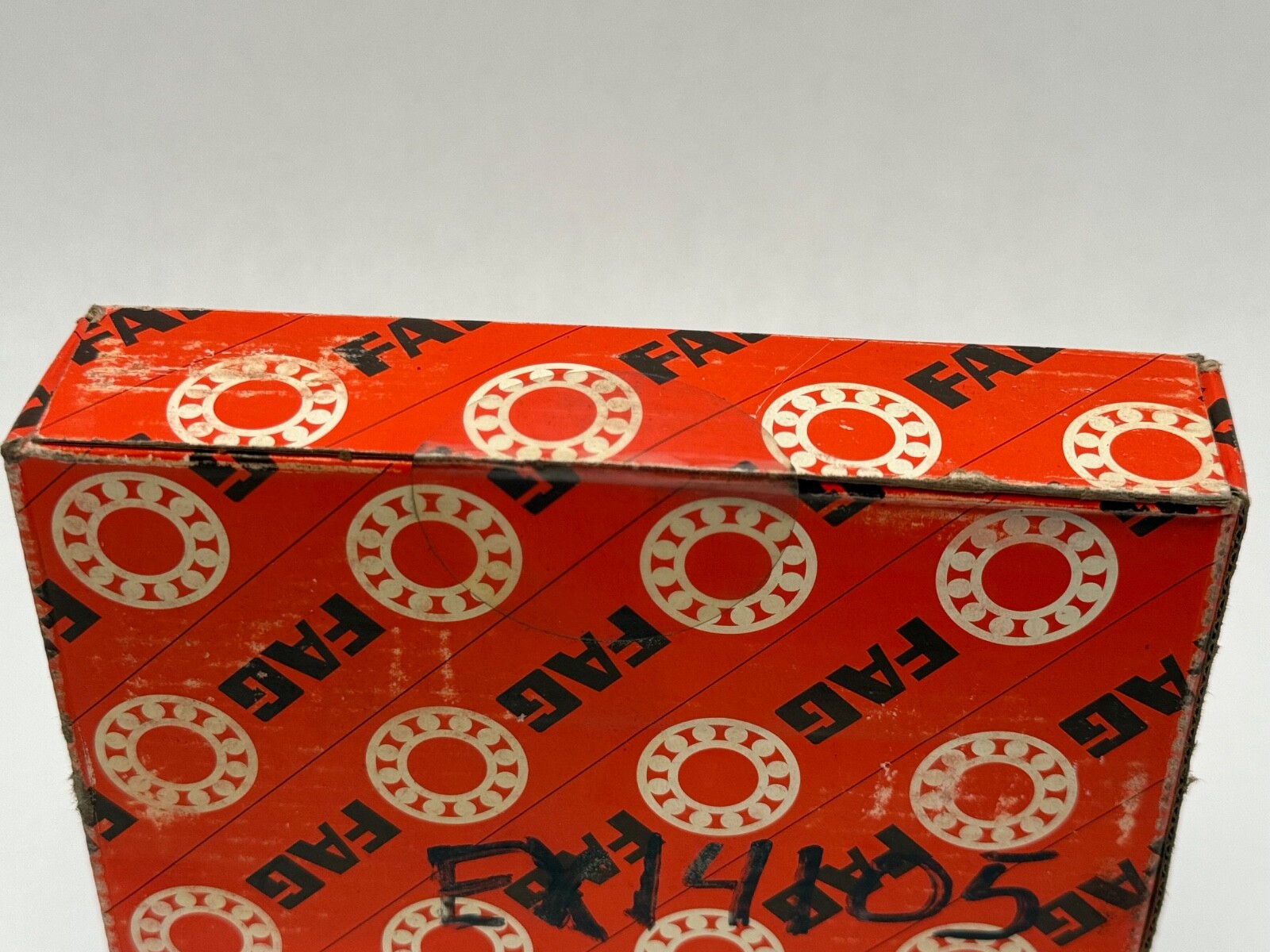

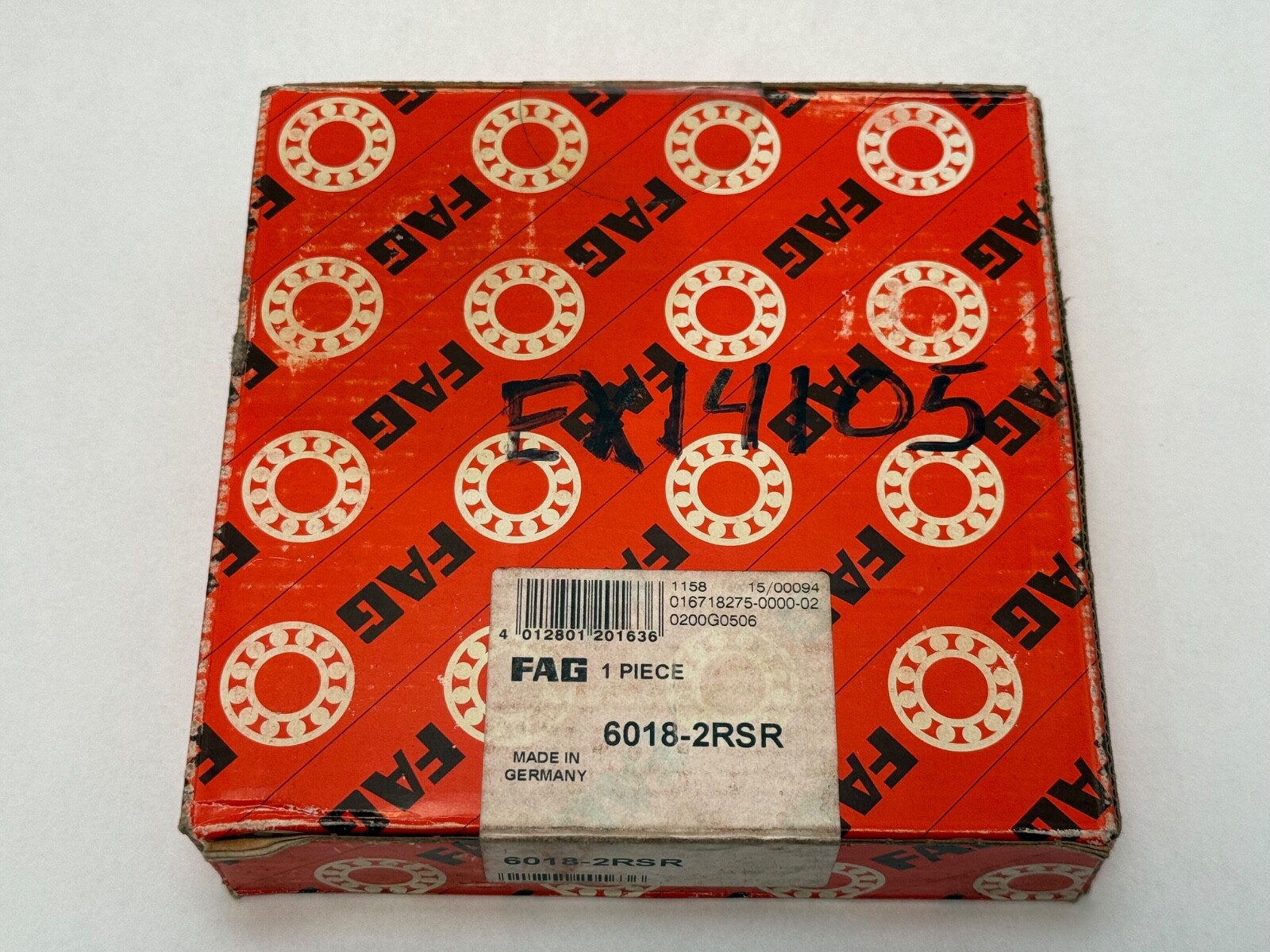

FAG 6018-2RSR single-row deep groove ball bearing, 90 mm bore, 140 mm outside diameter, 24 mm width, with contact rubber seals on both faces. Grease filled and sealed for life. Unit Quantity: 1 Pc.
6018 — single-row deep groove ball bearing, bore code 18 × 5 = 90 mm, 140 mm outside diameter, 24 mm width.
2RSR — two contact rubber seals, one on each face, in the FAG scheme.
No clearance suffix — normal internal clearance (CN).
Bore Diameter: 90 mm (3.5433 in). Outside Diameter: 140 mm (5.5118 in). Overall Width: 24 mm (0.9449 in). Dynamic Load Rating (Cr): 62,000 N. Static Load Rating (C0r): 49,500 N. Limiting Speed: 2,500 rpm. Closure Type: Two contact rubber seals. Internal Clearance: CN. Precision Class: P0 (ABEC 1). Item Weight: 1.21 kg (2.67 lb). Rolling Elements: Ball. Number Of Rows: 1. Lubricant: Grease, sealed for life. Series: 6000 (18 size). Base Number: 6018.
Minimum Shaft Shoulder Diameter: 97 mm. Maximum Housing Shoulder Diameter: 133 mm. Maximum Fillet Radius: 1.5 mm. Fatigue Load Limit (Cur): 3,000 N.
Cross-references with contact seals on both faces in the 90 x 140 x 24 mm envelope: SKF 6018-2RS1, NTN 6018LLU, NSK 6018DDU, Koyo 6018-2RS and Timken 6018-2RS. The open 6018 shares the envelope and has no seals; the shielded 6018-2Z has non-contact shields.
Bore 90 mm, outside diameter 140 mm and width 24 mm.
Schaeffler lists a dynamic radial rating of 62,000 N, a static radial rating of 49,500 N and a limiting speed of 2,500 rpm.
2RSR is the FAG code for contact rubber seals on both faces.
