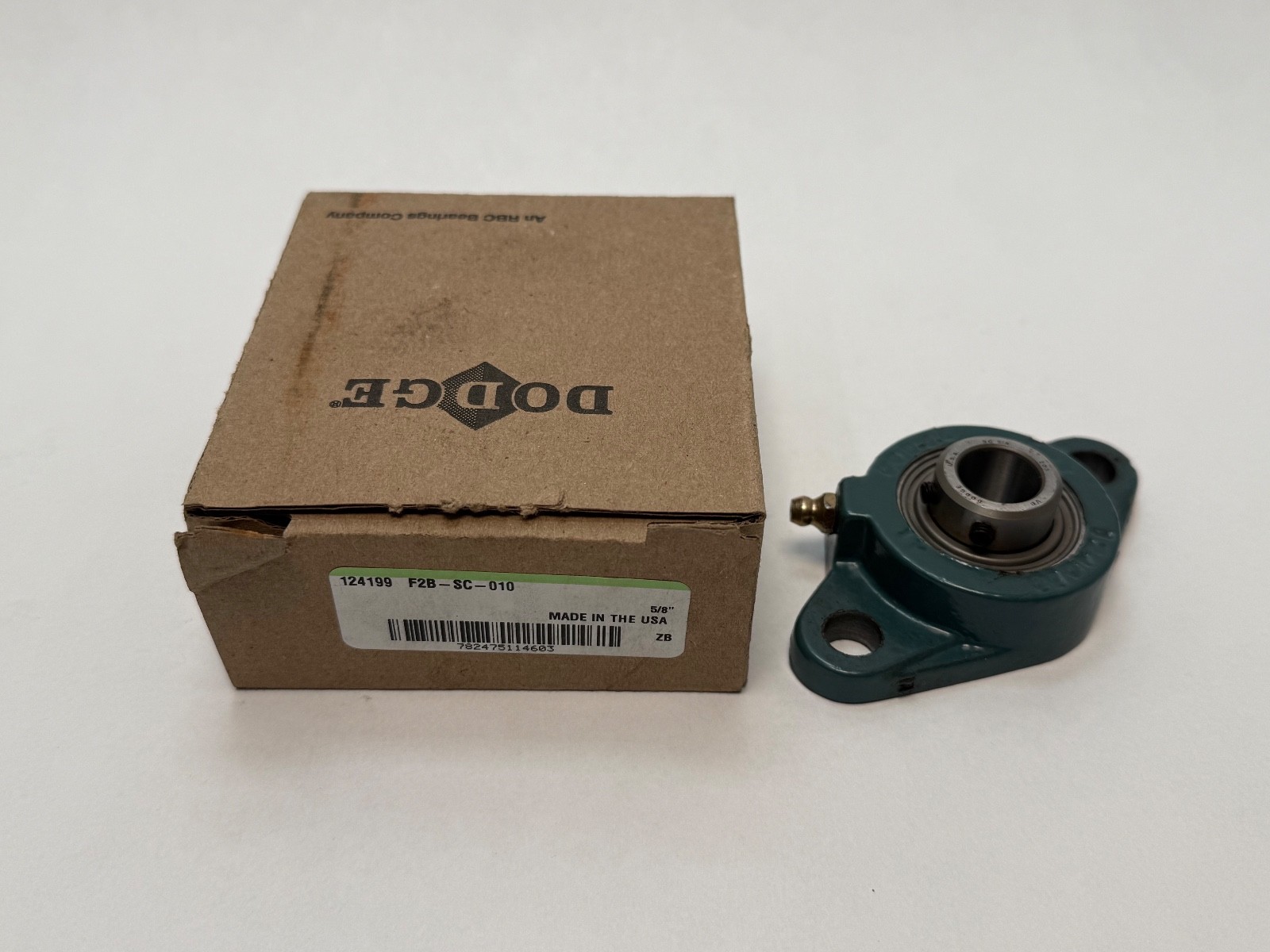

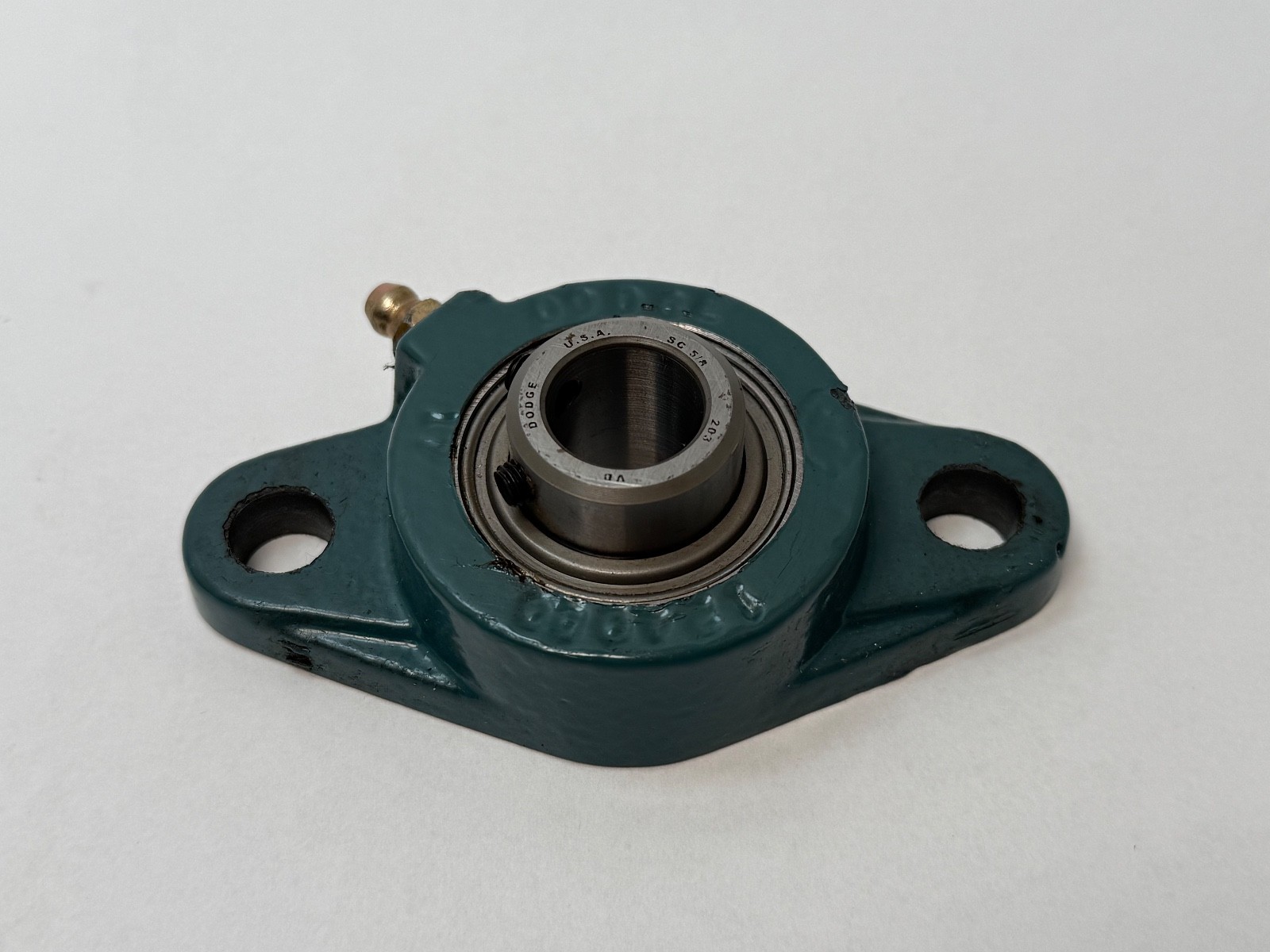

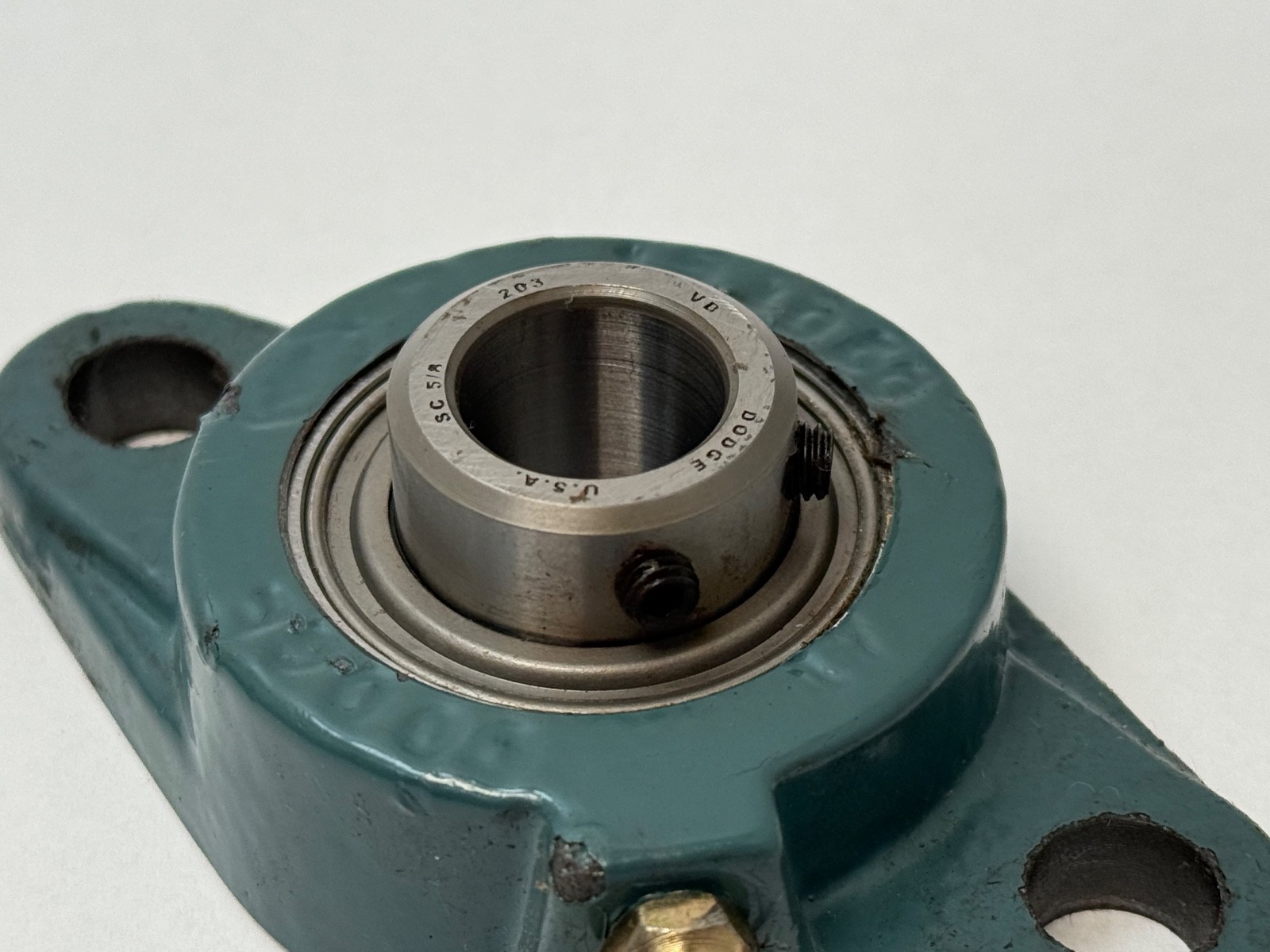

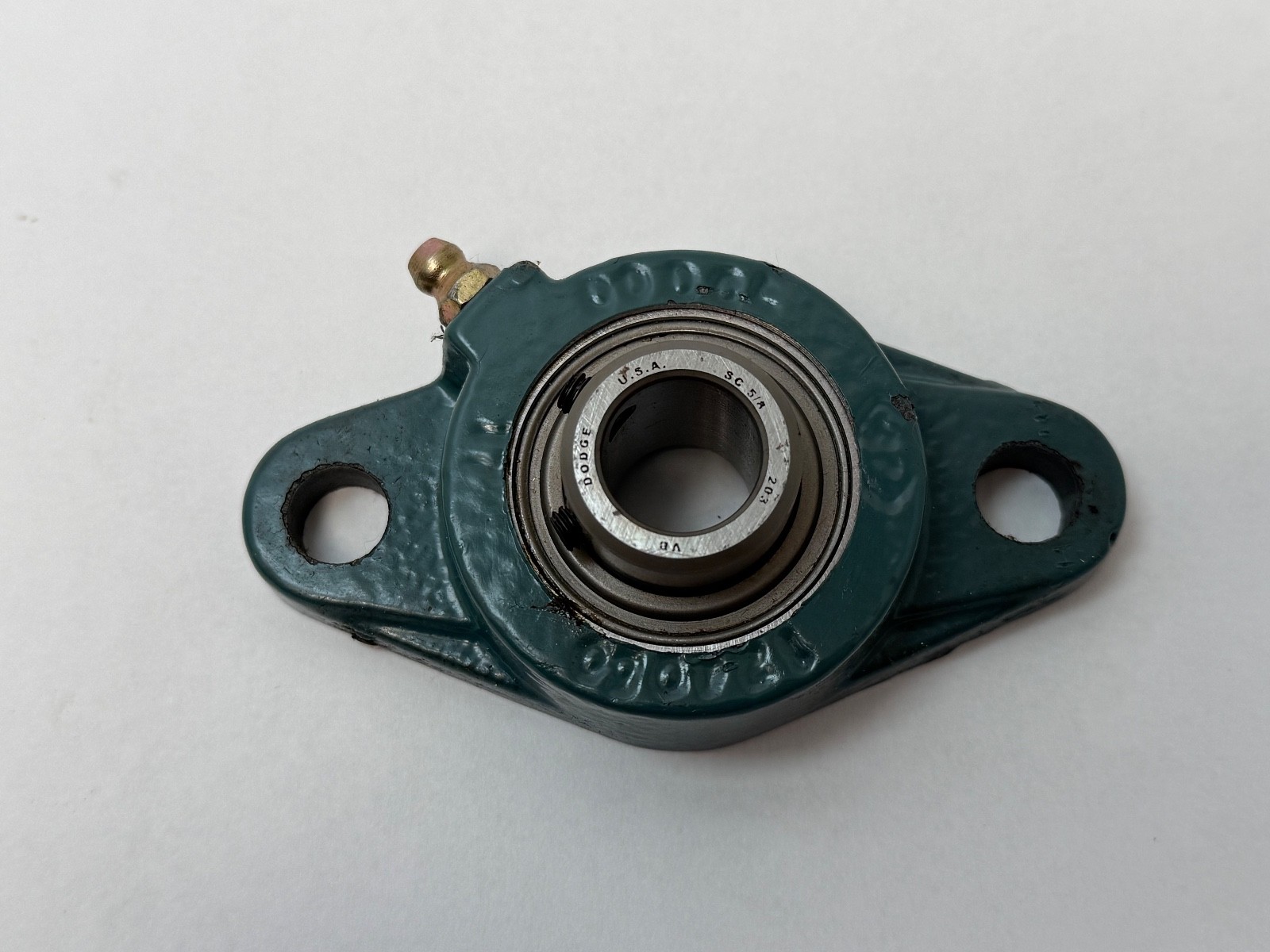

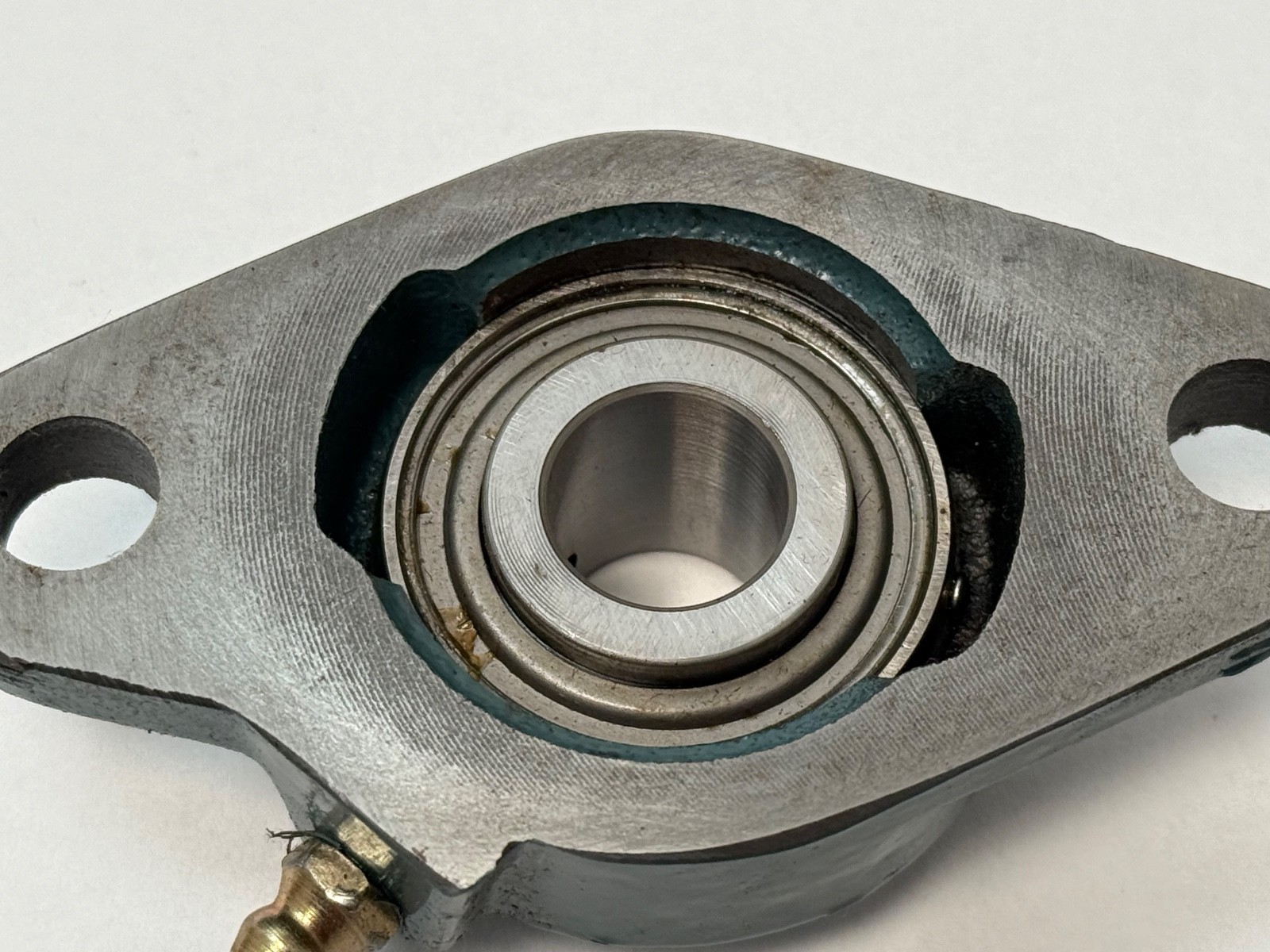

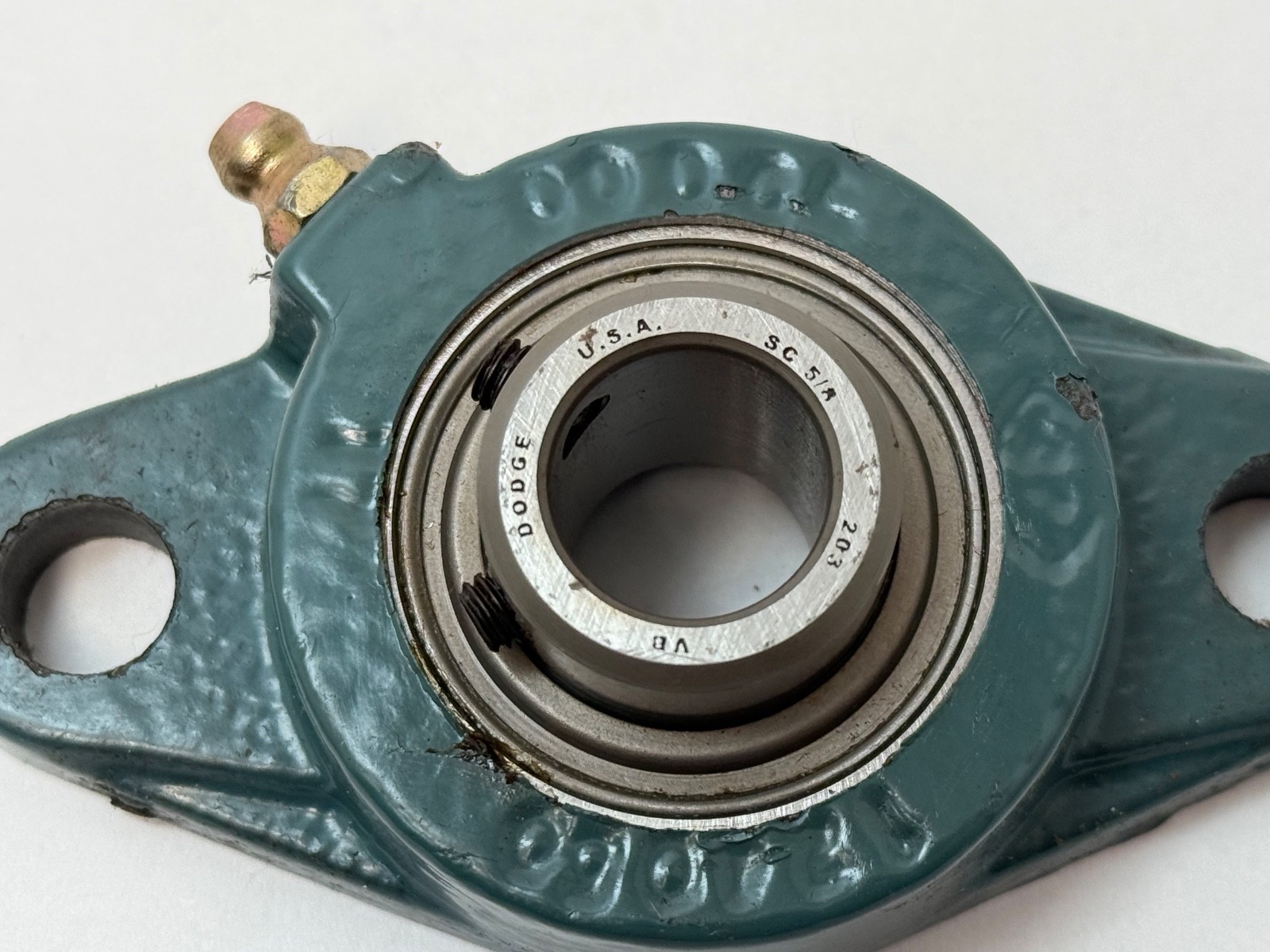

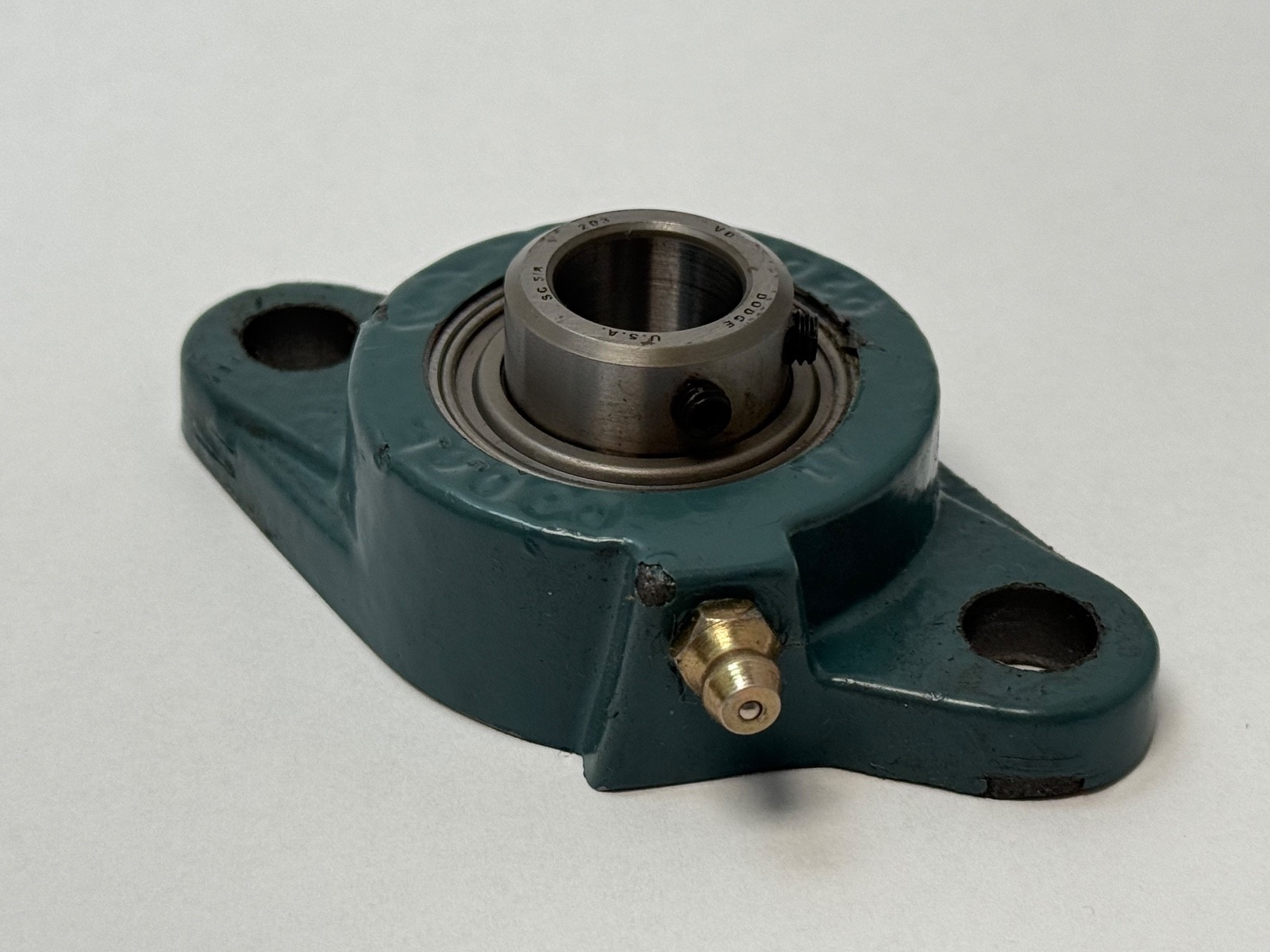

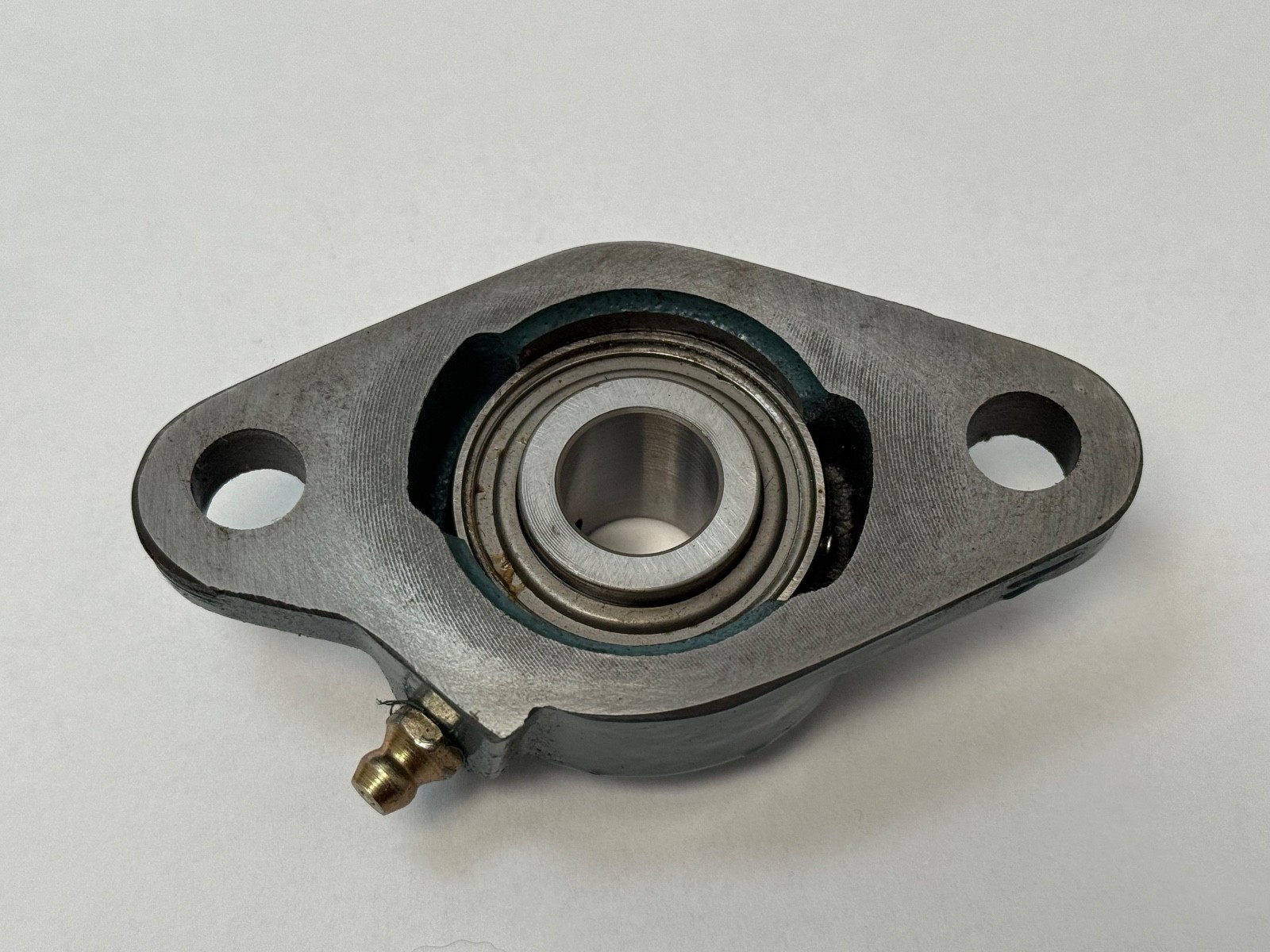

Name: Dodge 124199 Flange Mount Bearing Unit F2B-SC-010 F2BSC010 5/8" ID
Brand: DODGE
SKU: N7#MWIZML
Price: 25.48 USD
Availability: InStock

Additional information

Key Specifications

MFR / Brand	DODGE
MPN	124199
Model	F2B-SC-010
ID	0.625 in

Specifications

Material	Cast Iron
Series	200
Condition	New
Type	Flanged Mount Bearing
Lubricant	Grease
Bolt Center To Center	3.00 in
Number Of Bolt Holes	2
Bolt Center To Center Length	3.00 in
Number Of Bolt Holes For Fasteners	2
Bearing Insert Type	Ball
Min Temp	-20 °C
Dynamic Load Rating	4.8 kN / 1079 lbf
Static Load Rating	2.5 kN / 562 lbf
Precision Rating	ABEC 1 / P0
Rolling Elements	Ball
Max Temp	100 °C
Bearing Type	Flange Block Unit
Item Weight	0.70 lbs
Limiting Speed	7500 rpm
Bore Type	Straight
Snap Ring Included	No
Duty Type	Standard Duty
Locking Device	Set Screw
Insert Outer Ring	Spherical
Relubrication Feature	Yes
Harmonization Code	8483.20.40.40
Housing Material	Cast Iron
Expansion Type	Non-Expanding

Cross-References

Cross Reference 1	SKF FYT 5/8 TF
Cross Reference 2	Browning VF2S-210
Cross Reference 3	NTN UCFLU-5/8
Cross Reference 4	Sealmaster SF-10
