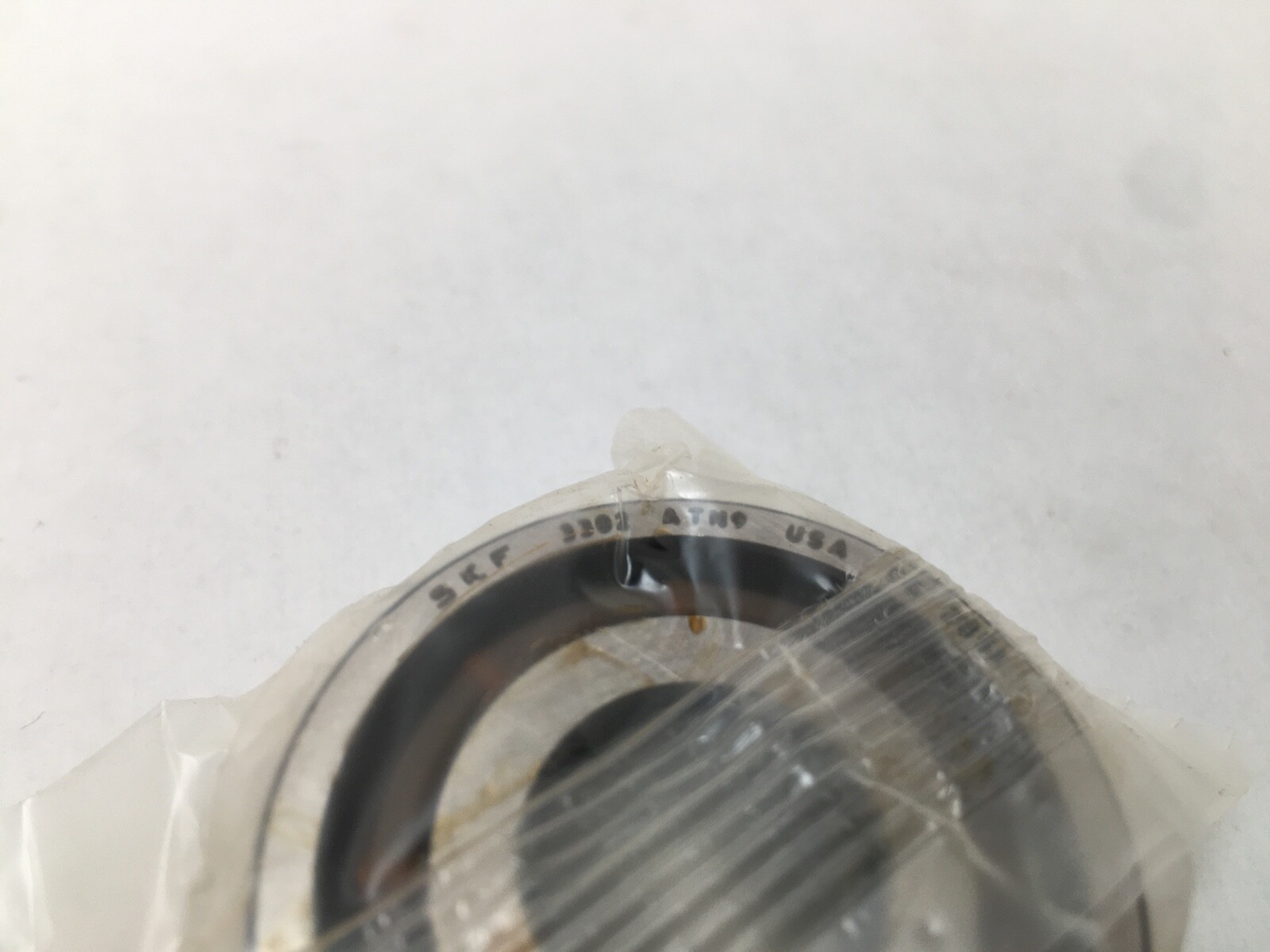

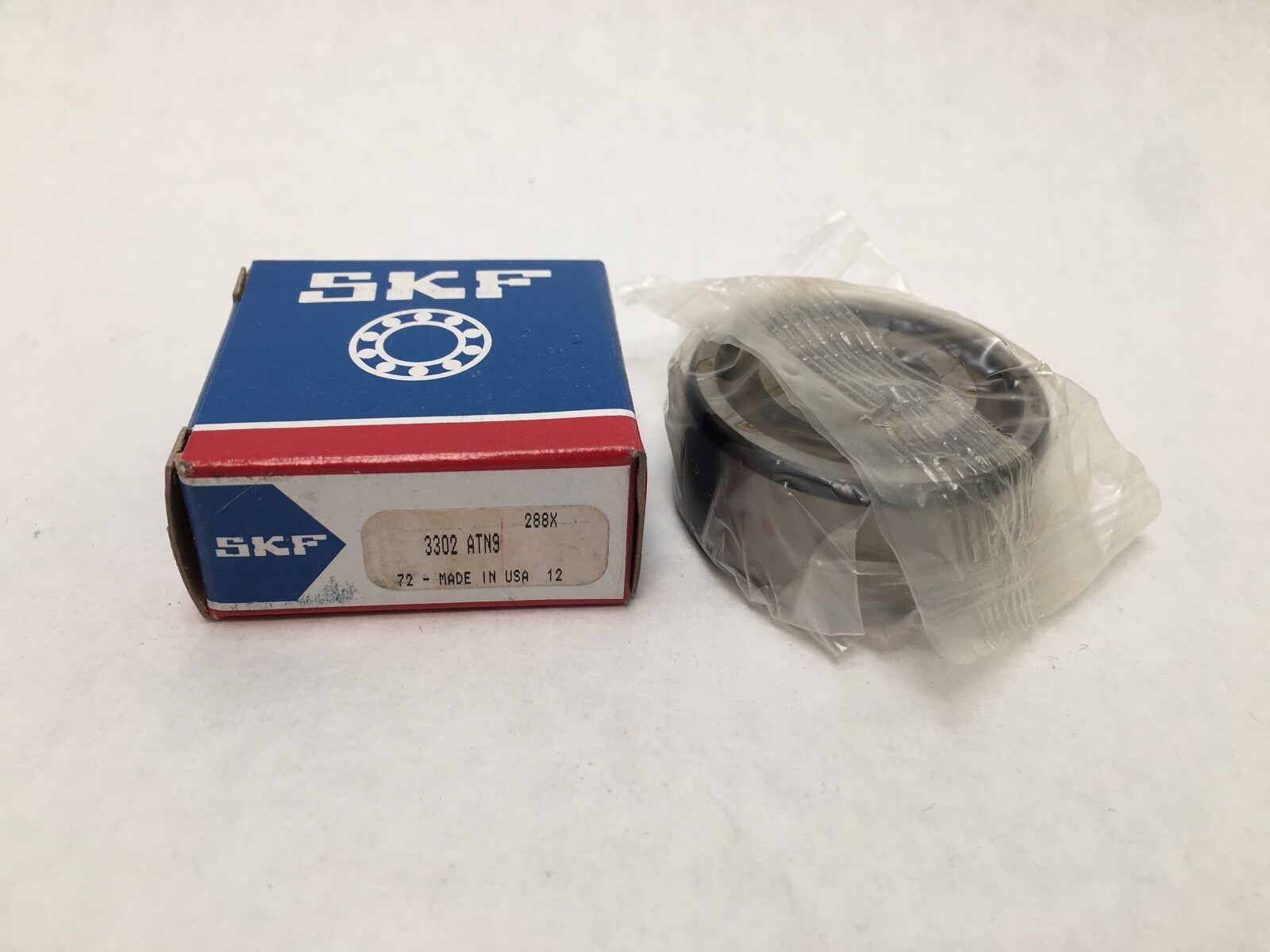

SKF 3302 ATN9 double row angular contact ball bearing, 15 x 42 x 19 mm, 30° contact angle, open, polymer cage, CN axial clearance. SKF 5302 series number.
List Price
$18.16
17 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 3302 ATN9 |
| GTIN | 7316577042484 |
| Model | 3302A TN9 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 15 mm |
| OD | 42 mm |
| Width | 19 mm |
| Material | Bearing Steel |
|---|---|
| Series | 3300 |
| Additional Attributes | Reference speed: 18,000 r/min; SKF US-series number: 5302; Cage: injection moulded polymer (TN9) |
| Dynamic Load Rating | 15.1 kN |
| Static Load Rating | 9.3 kN |
| Rolling Elements | Ball |
| Item Weight | 0.125 kg |
| Cage Material | Non-metallic |
| Limiting Speed | 16000 |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN (normal axial) |
| Harmonization Code | 8482.10.5052 |
| Contact Angle | 30° |
| Mounting Arrangement | Back-to-back (O) |
| Bearing Material | Bearing steel |
| Industry Terms | double row angular contact bearing, 30 degree angular contact, two row ball bearing, 5302 bearing, 3302A bearing |
| Common Misspellings | SKF 3302ATN, 3302 ATN 9, SKF 3302 A TN, 3302-A-TN9 |
| Application Types | Pumps, gearboxes, general machinery shafts |
| Mpn Variants | 3302 ATN9, 3302 A TN9, 3302ATN9, 3302-ATN9, 3302A, 3302 A-TN9 |
| Cross Reference 1 | SKF 5302 |
|---|
SKF 3302 ATN9 is a double row angular contact ball bearing with a 30° contact angle, open on both sides, with a one-piece inner ring and outer ring. Unit Quantity: 1 Pc. Bore Diameter: 15 mm. Outside Diameter: 42 mm. Width: 19 mm. The SKF US-series number is 5302.
3302 — ISO double row angular contact series, 15 mm bore, medium (03) section.
A — standard internal design for this series, 30° contact angle.
TN9 — non-metallic injection moulded polymer cage.
Bore Diameter: 15 mm. Outside Diameter: 42 mm. Width: 19 mm. Number Of Rows: 2. Contact Angle: 30°. Dynamic Load Rating: 15.1 kN. Static Load Rating: 9.3 kN. Reference Speed: 18,000 r/min. Limiting Speed: 16,000 r/min. Cage Material: Non-metallic. Internal Clearance: CN, normal axial. Bearing Material: Bearing steel. Item Weight: 0.125 kg. Closure Type: Open. Lubricant: supplied without lubricant. Relubrication Feature: Without.
Mounting Arrangement: back-to-back (O) arrangement of the contact angles. The bearing carries axial load in both directions plus radial load and tilting moment. Bore Type: Straight.
SKF US-series number: 5302. MPN forms: 3302 A TN9, 3302ATN9, 3302-ATN9, 3302A.
Bore 15 mm, outside diameter 42 mm, width 19 mm, double row with a 30° contact angle.
A is the standard internal design for the 3302 series with a 30° contact angle. TN9 is a non-metallic injection moulded polymer cage.
Dynamic Load Rating 15.1 kN and Static Load Rating 9.3 kN. Reference Speed is 18,000 r/min and Limiting Speed is 16,000 r/min.
