Sandvik CoromantSNMG 642-MR 4325T-Max P Turning Insert SNMG 190608-MR 10 Pcs

Product Description

What this is

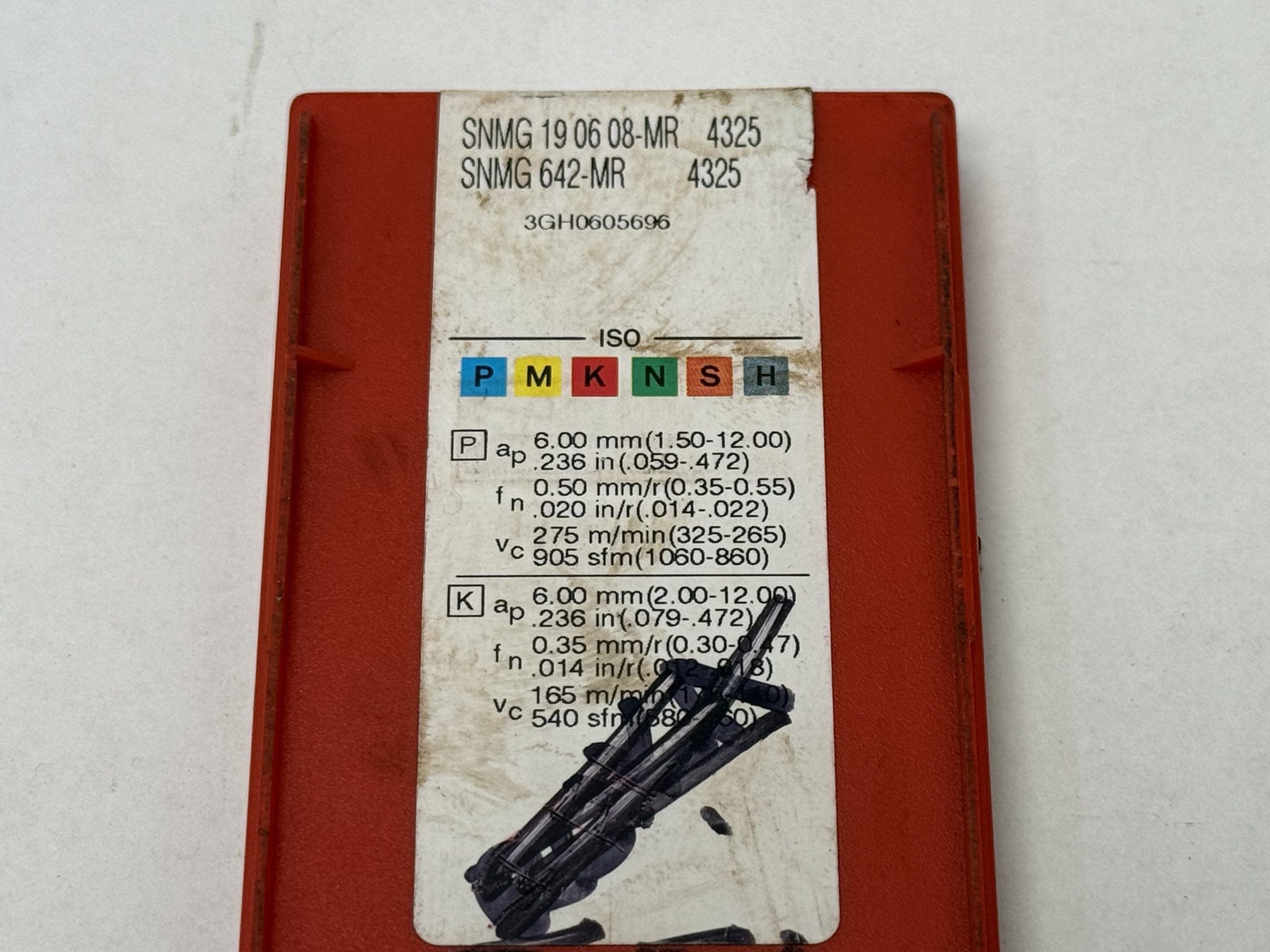

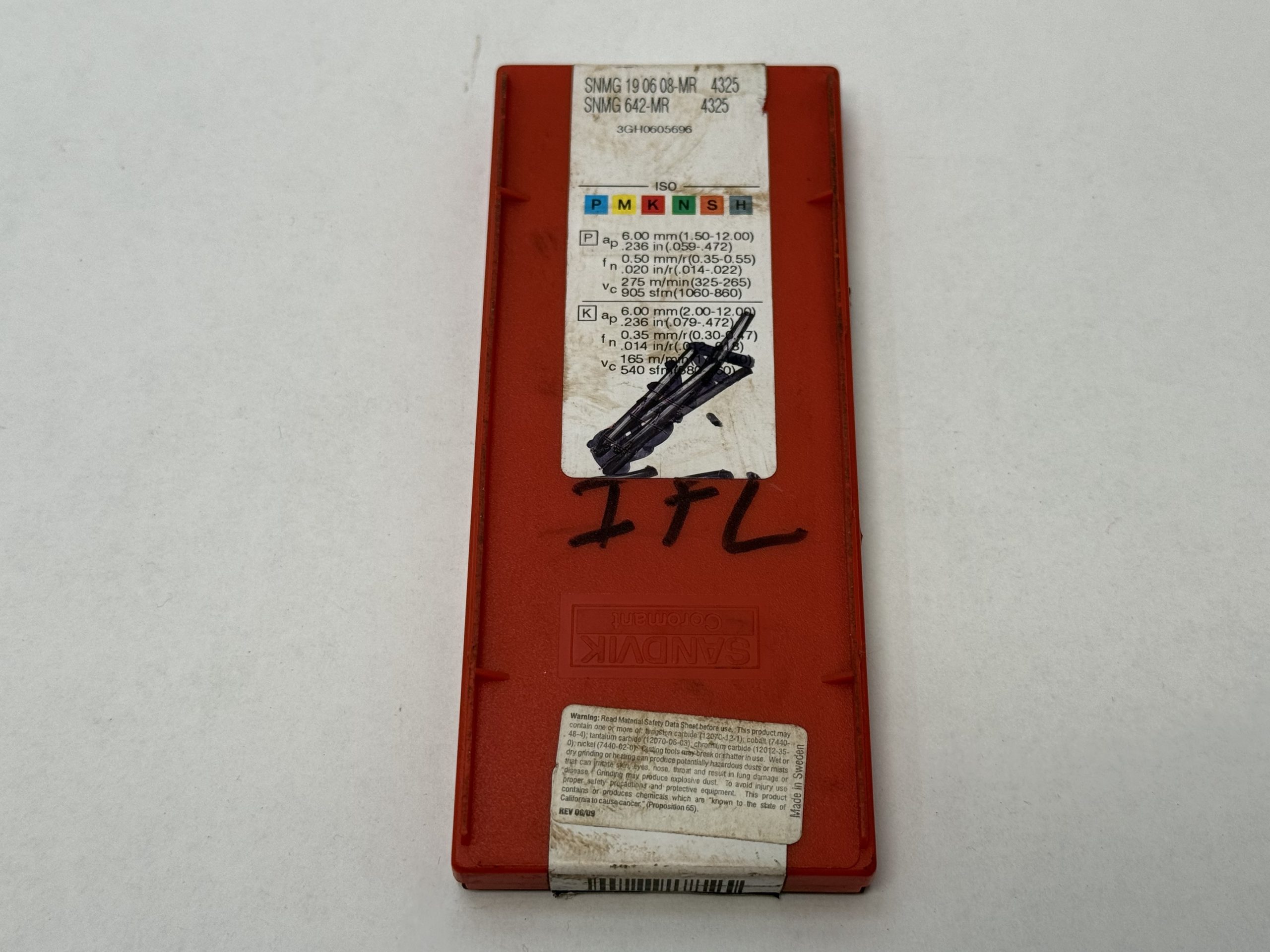

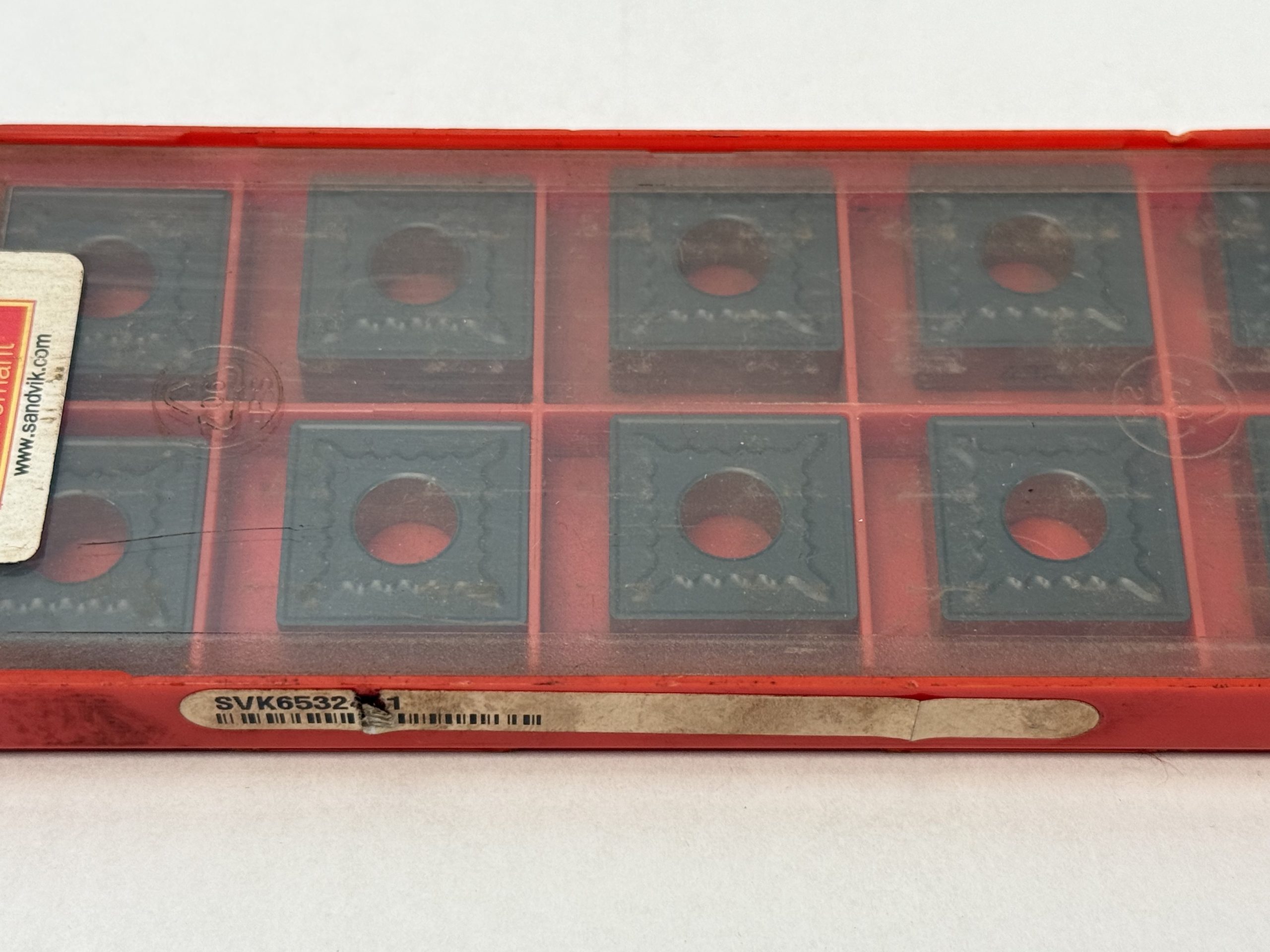

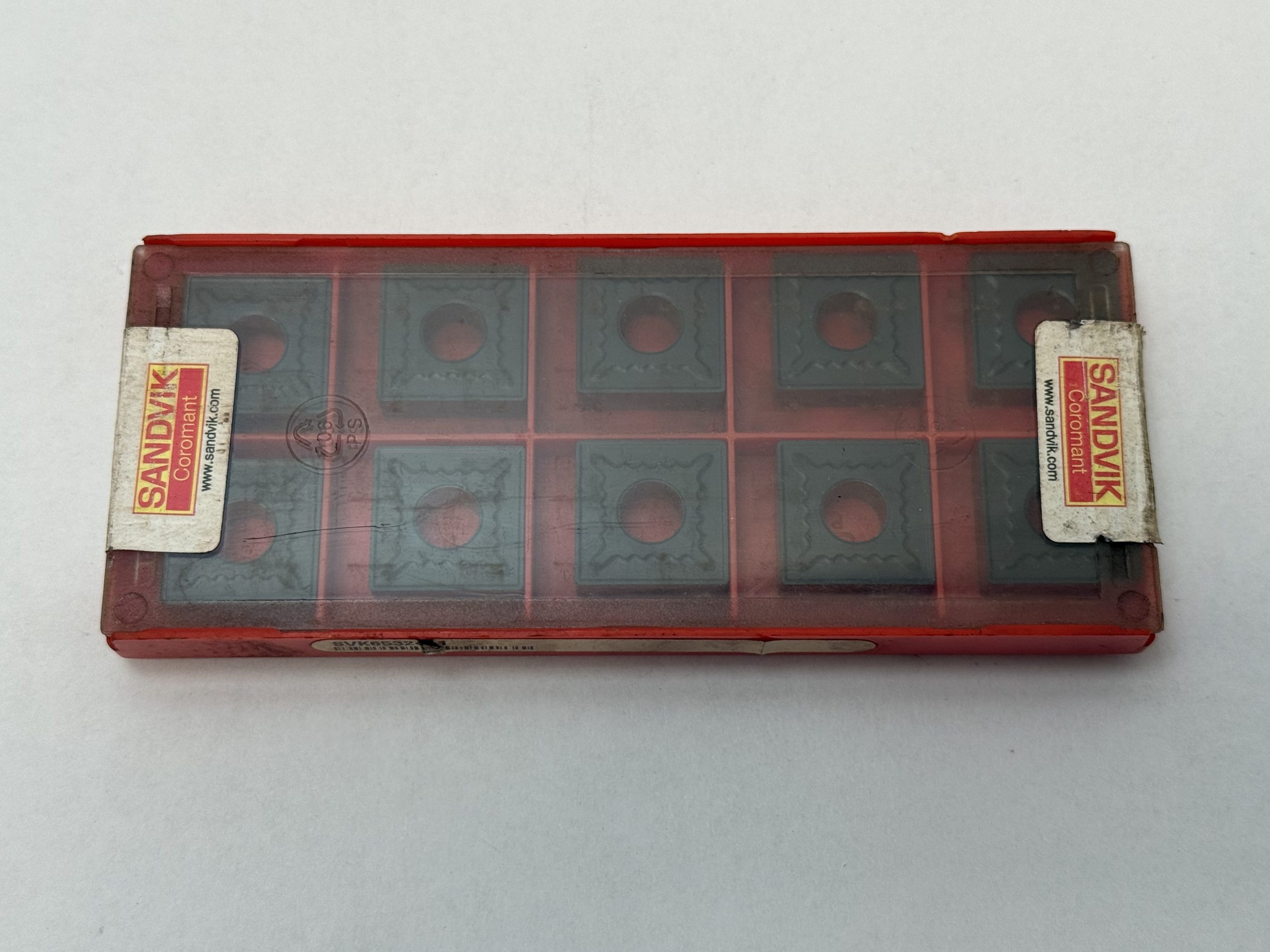

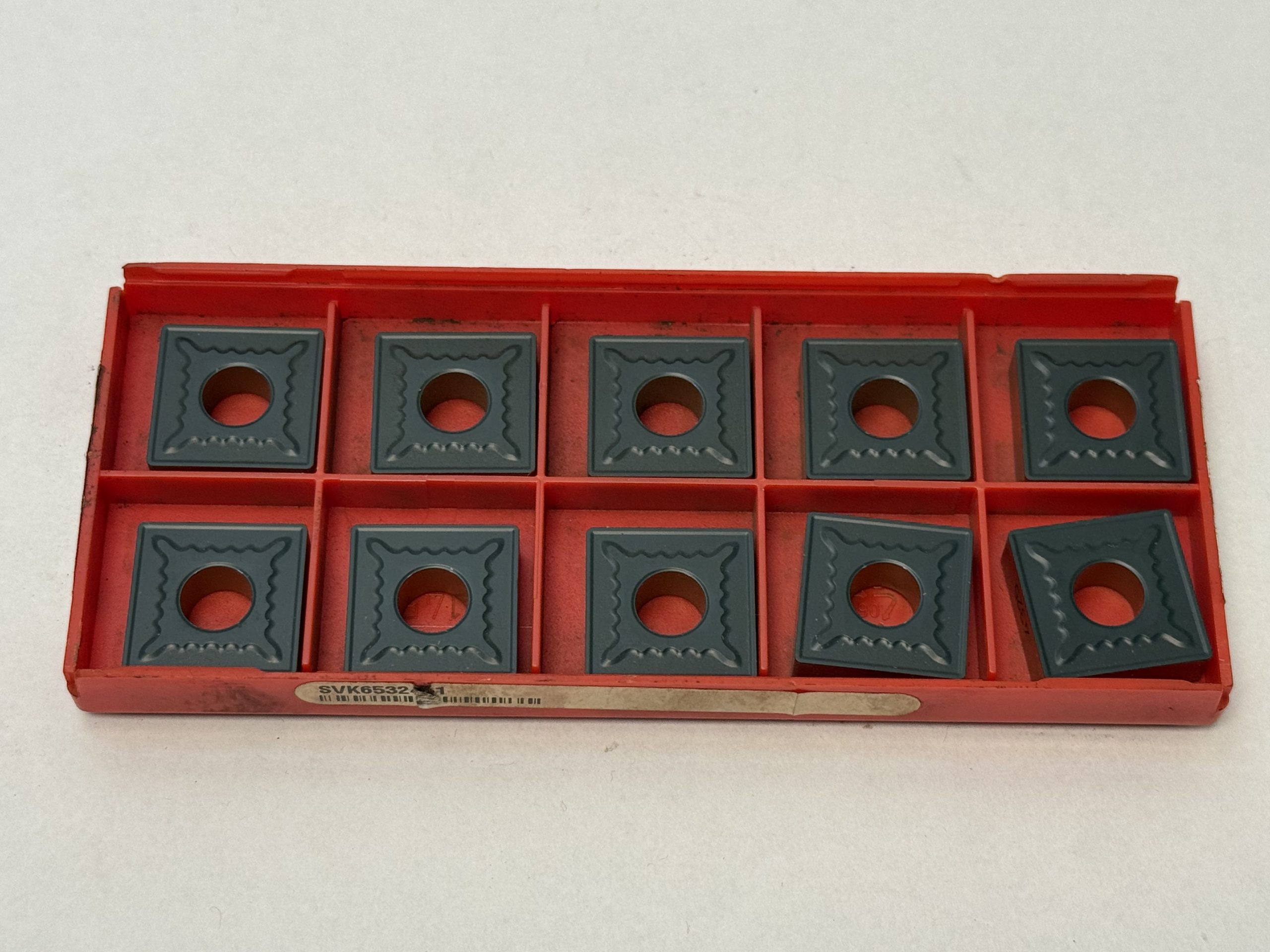

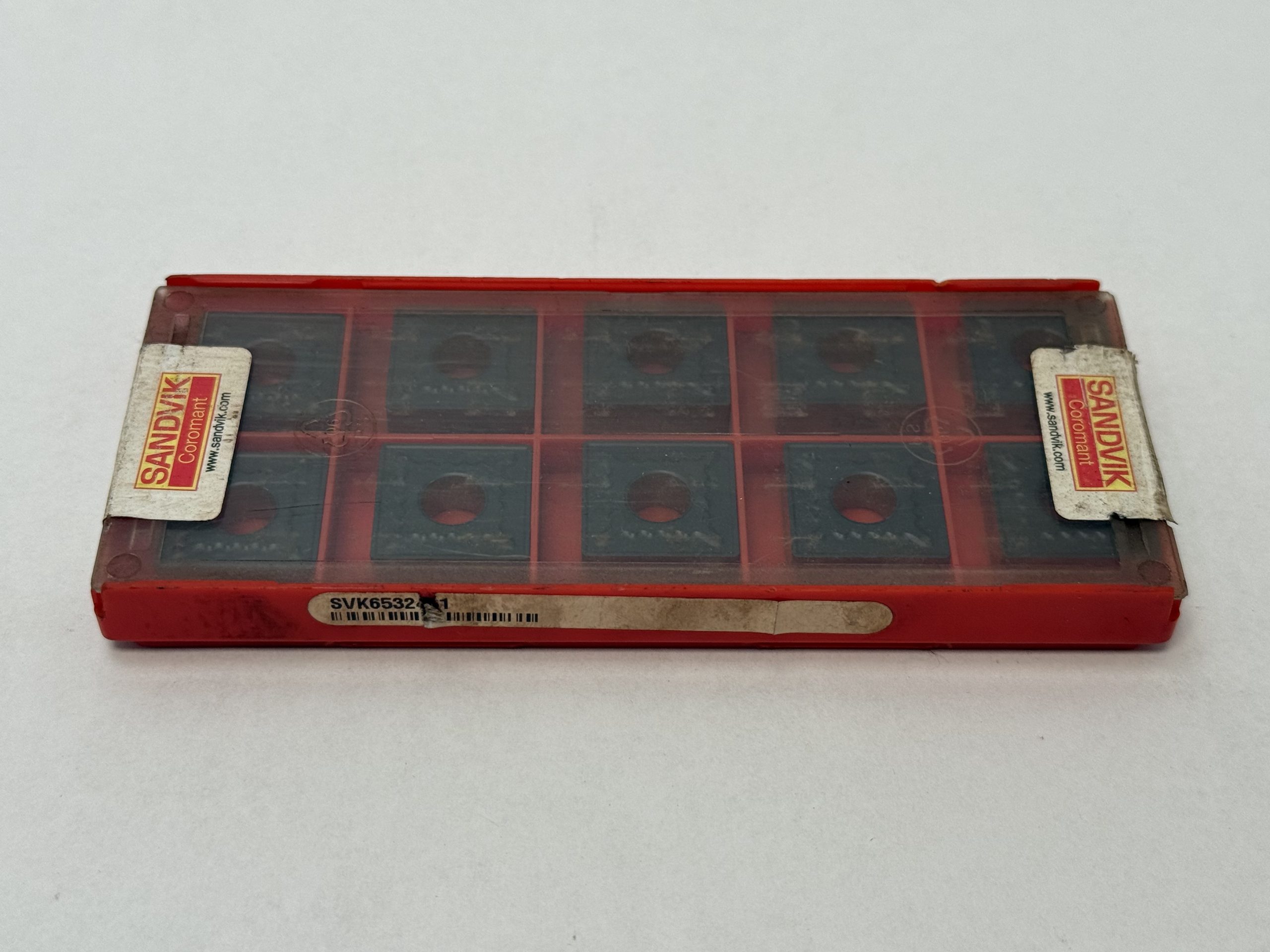

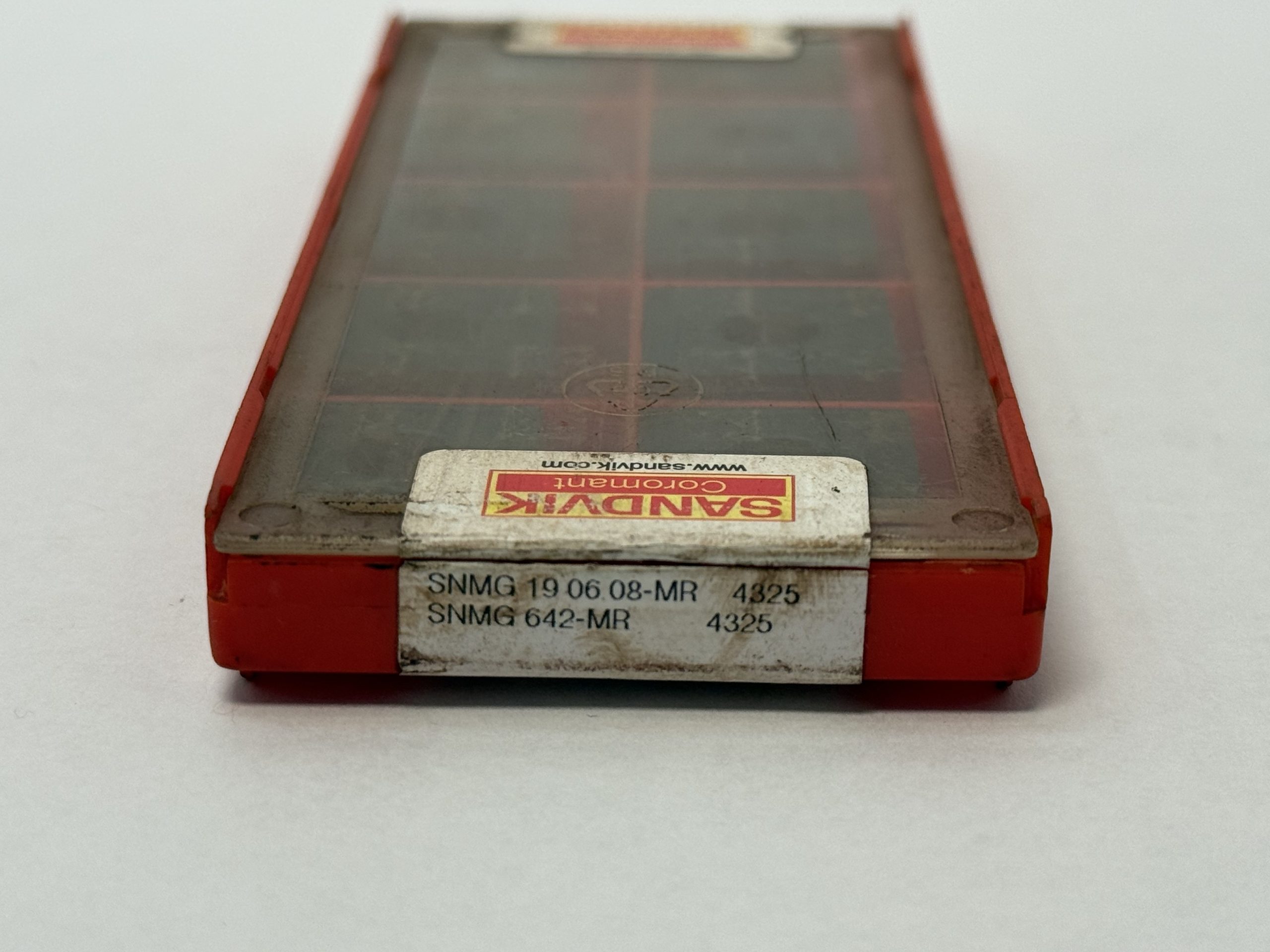

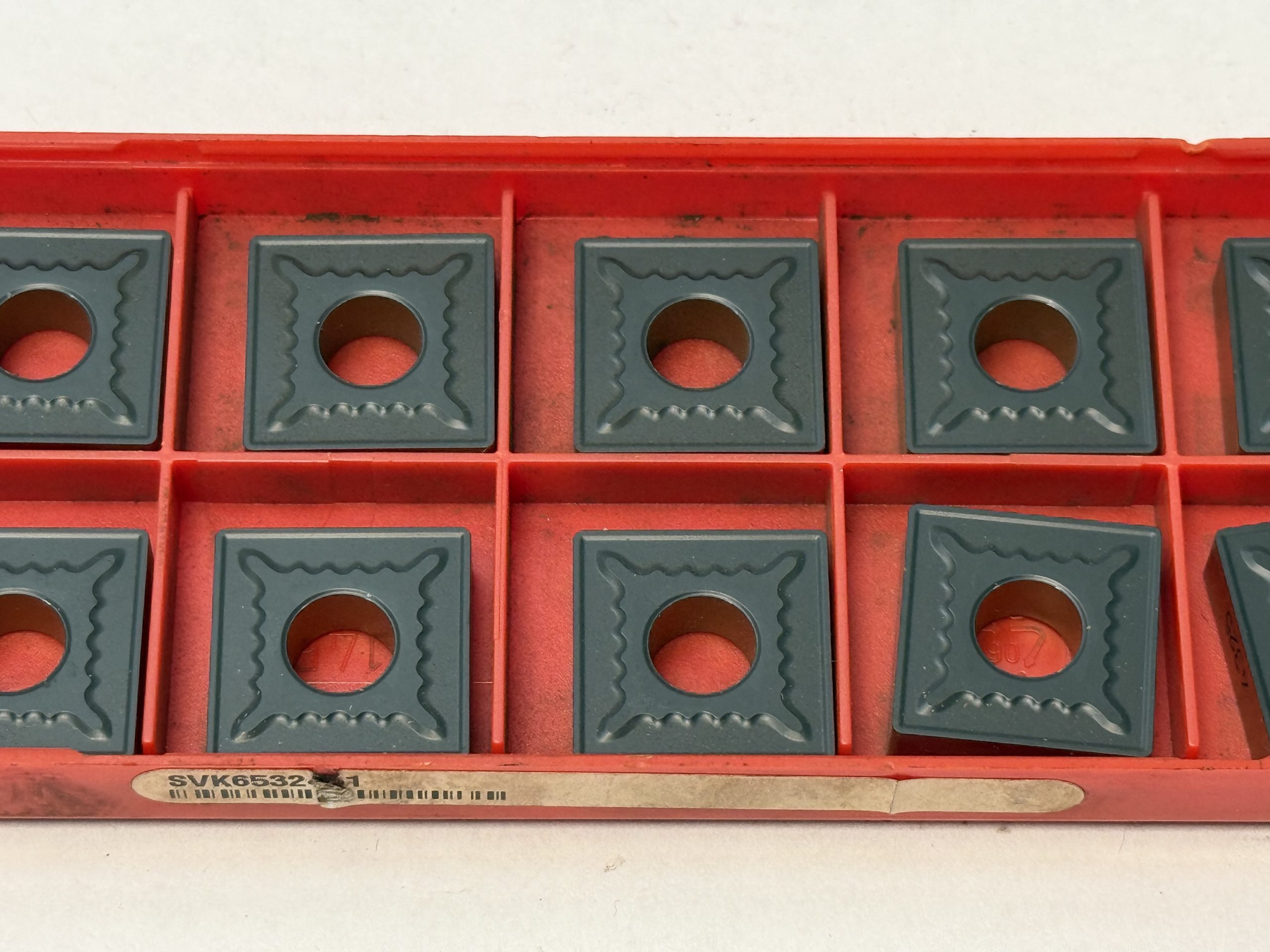

A box of 10 Sandvik Coromant SNMG 642-MR (ISO SNMG 19 06 08-MR) grade 4325 carbide turning inserts for T-Max P holders. The box label carries marker writing and wear. Made in Japan.

How the part number breaks down

• S – square, 90° insert
• N – 0° clearance (negative insert)
• M – tolerance class M
• G – center hole with chipbreakers on both sides
• 642 / 19 06 08 – 3/4 in (19 mm) inscribed circle, 1/4 in (6.35 mm) thick, 1/32 in (0.8 mm) corner radius
• MR – Sandvik’s medium-roughing geometry
• 4325 – Sandvik grade 4325, CVD-coated carbide

Sandvik ordering code on the box label: 3GH0605696.

Item Specifications

• Brand: Sandvik Coromant
• Series: T-Max P
• ISO designation: SNMG 19 06 08-MR
• ANSI designation: SNMG 642-MR
• Grade: 4325, CVD TiCN + Al2O3 + TiN
• Application: P steel and K cast iron
• Box cutting data, steel: ap 6.0 mm (1.5–12), fn 0.50 mm/r (0.35–0.55), vc 275 m/min
• Box cutting data, cast iron: ap 6.0 mm (2–12), fn 0.35 mm/r (0.30–0.47), vc 165 m/min
• Quantity: 10 inserts
• Country of origin: Japan
