Availability:
2 in stock
DEHNguard DG MOD 275 plug-in varistor protection module, Type 2, 275 V AC Uc, 20 kA In, 40 kA Imax. Module only; base part sold separately. 1 Pc.
List Price
$38.99
2 in stock
On the Shelf & Ready to Ship
Ships same day by 6pm ET
No Risk, No Hassle
| MFR / Brand | Dehn |
|---|---|
| MPN | DG MOD 275 |
| Model | 952010 |
| Base Number | DG MOD |
|---|---|
| Industry Terms | surge protective device; SPD; surge arrester; surge protector; overvoltage protection; varistor module; MOV module; Type 2 arrester; Ueberspannungsschutz |
| Common Misspellings | Dehn+Soehne; Dehn Sohne; Den DG MOD 275; DEHNgard; DG MOD-275V |
| Application Types | Main and sub-distribution board surge protection; commercial and functional buildings; industrial low-voltage installations; replacement of spent DEHNguard modules |
| Output Amperage | In 20 kA nominal discharge current; Imax 40 kA maximum discharge current |
| Mpn Variants | DG MOD 275; DG-MOD-275; DGMOD275; DG MOD275; 952010; 952 010 |
| Nominal Rated Input Voltage | 275 V AC maximum continuous operating voltage (Uc) |
| Part Number | DG MOD 275 |
| Mounting Type | Plug-in module for DEHNguard base part |

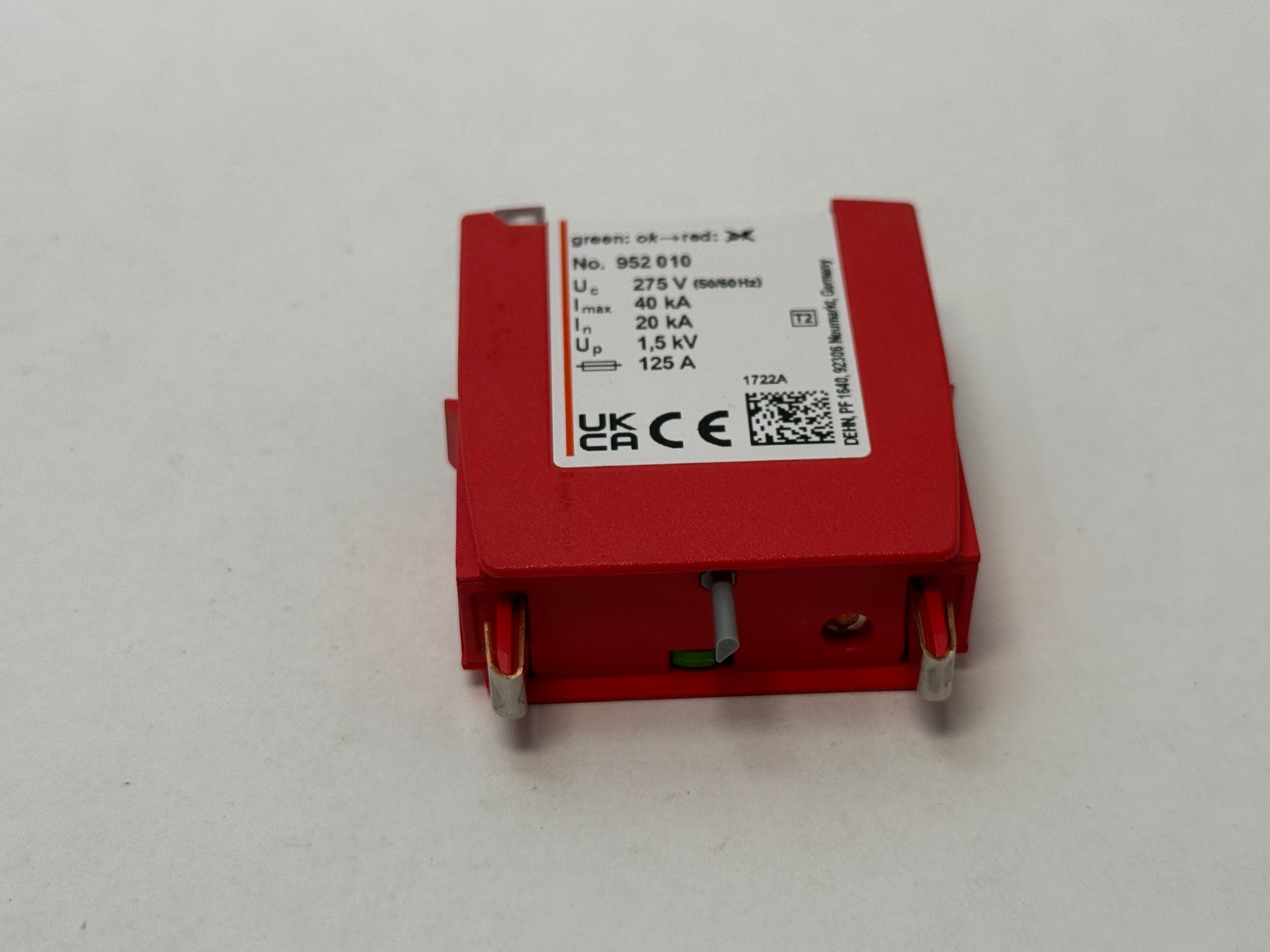

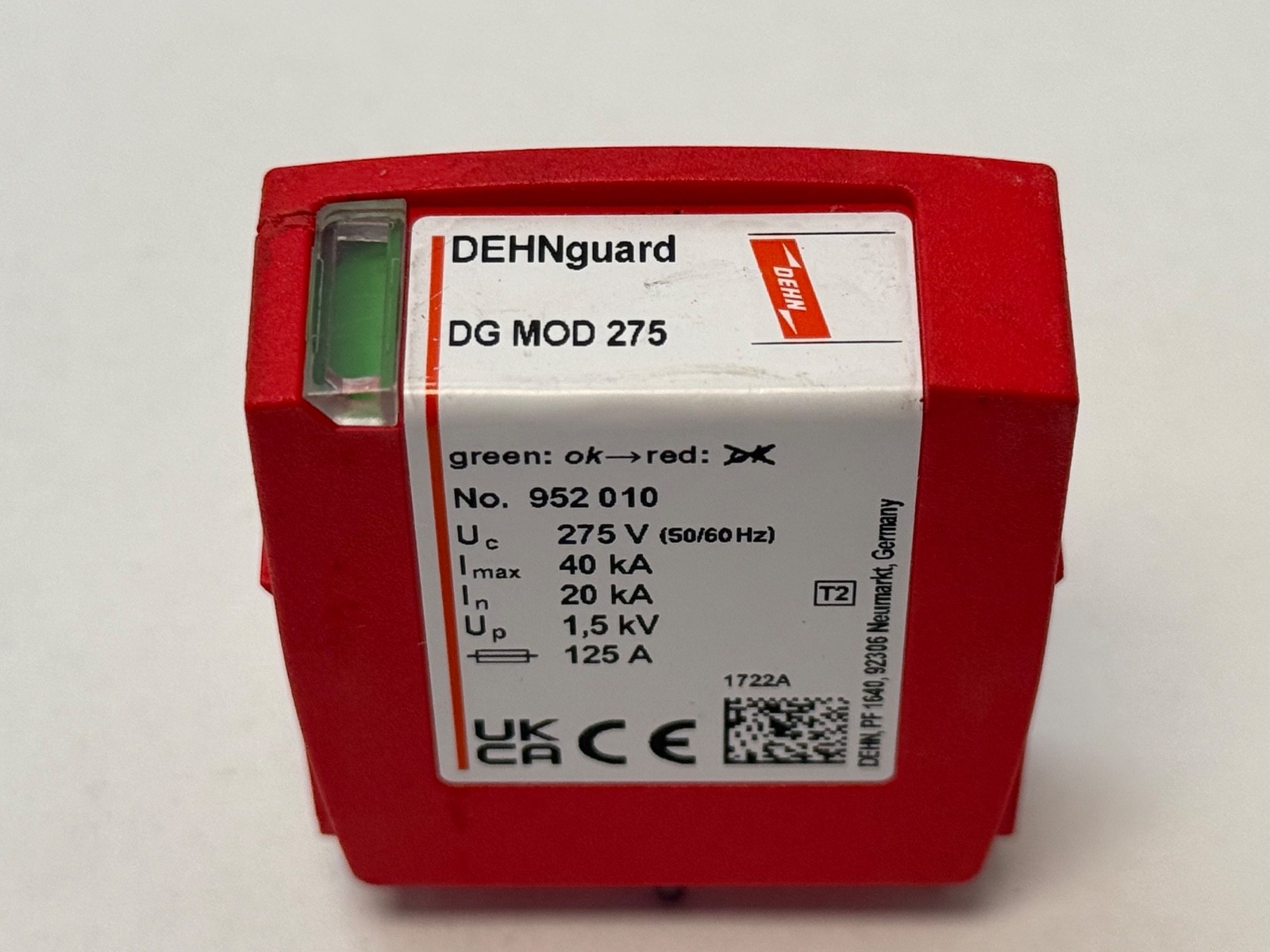

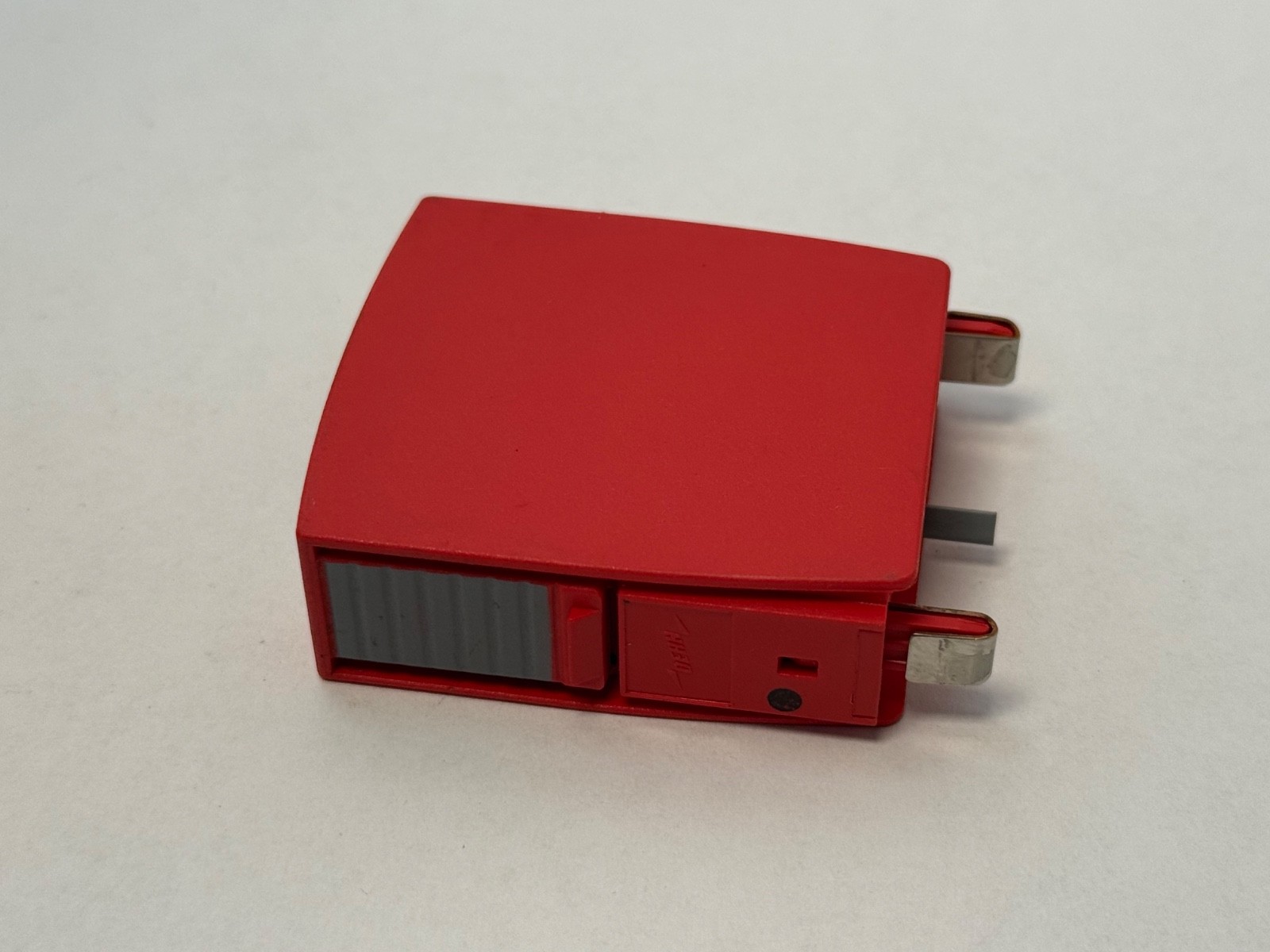

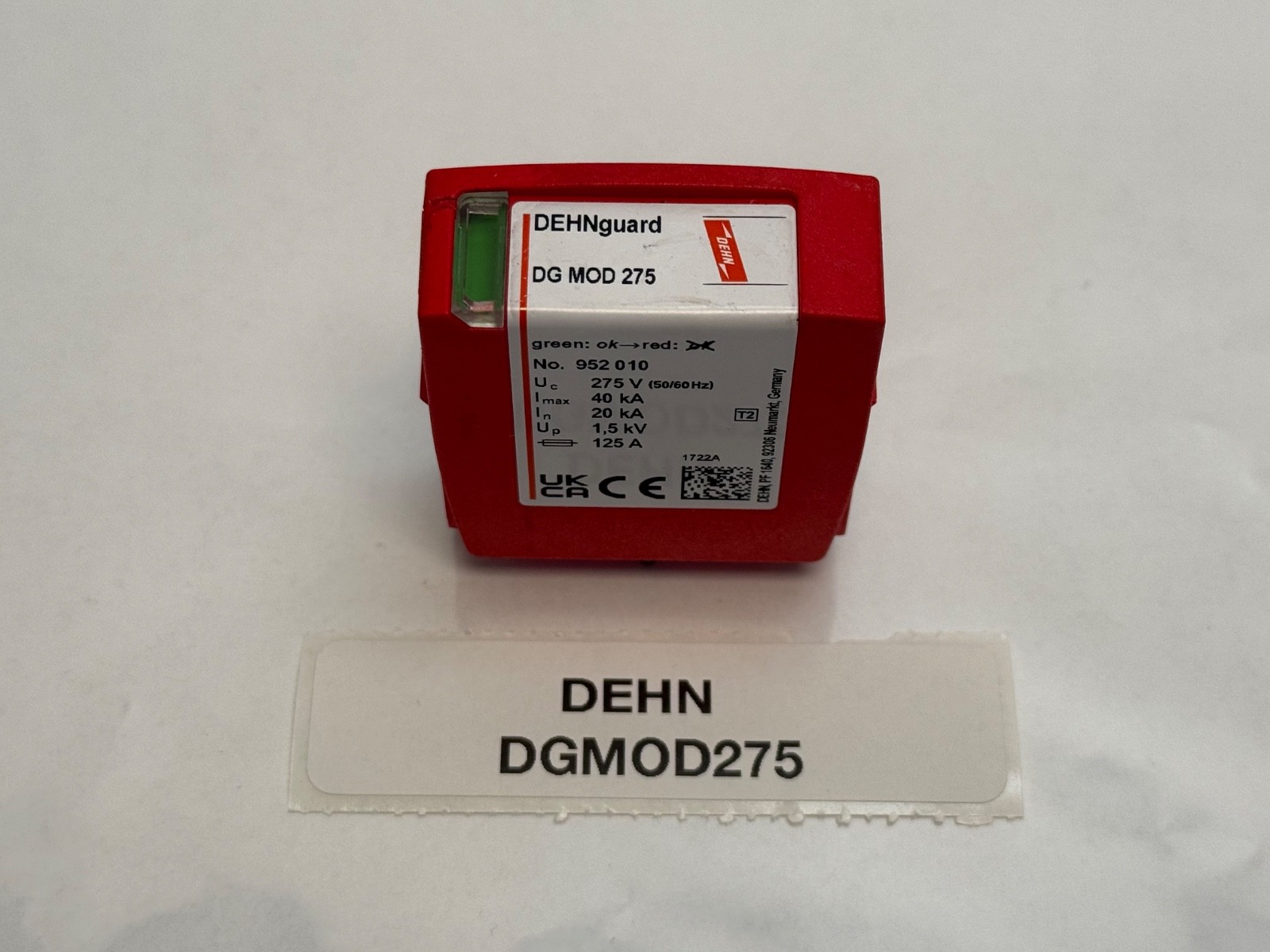

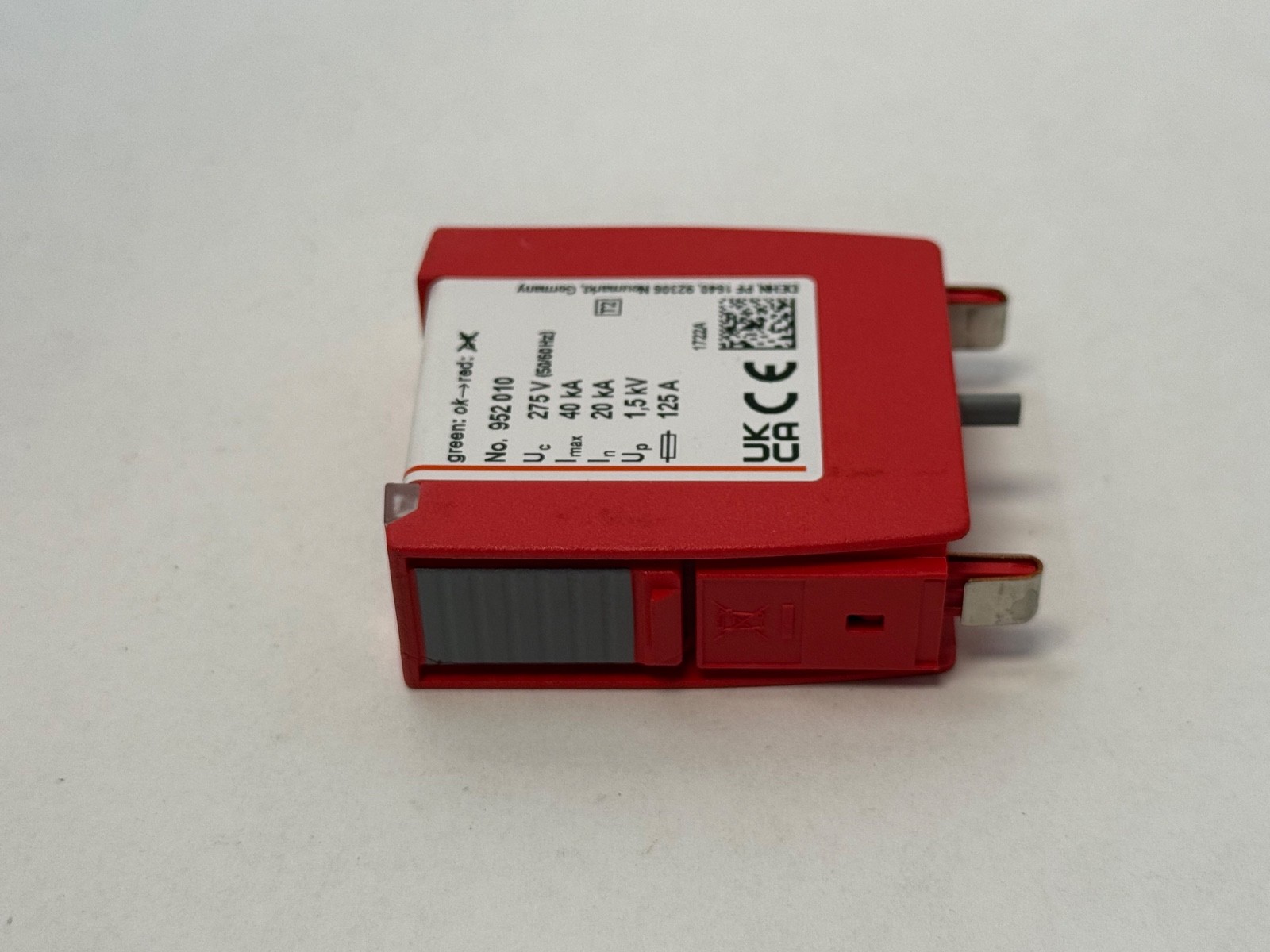

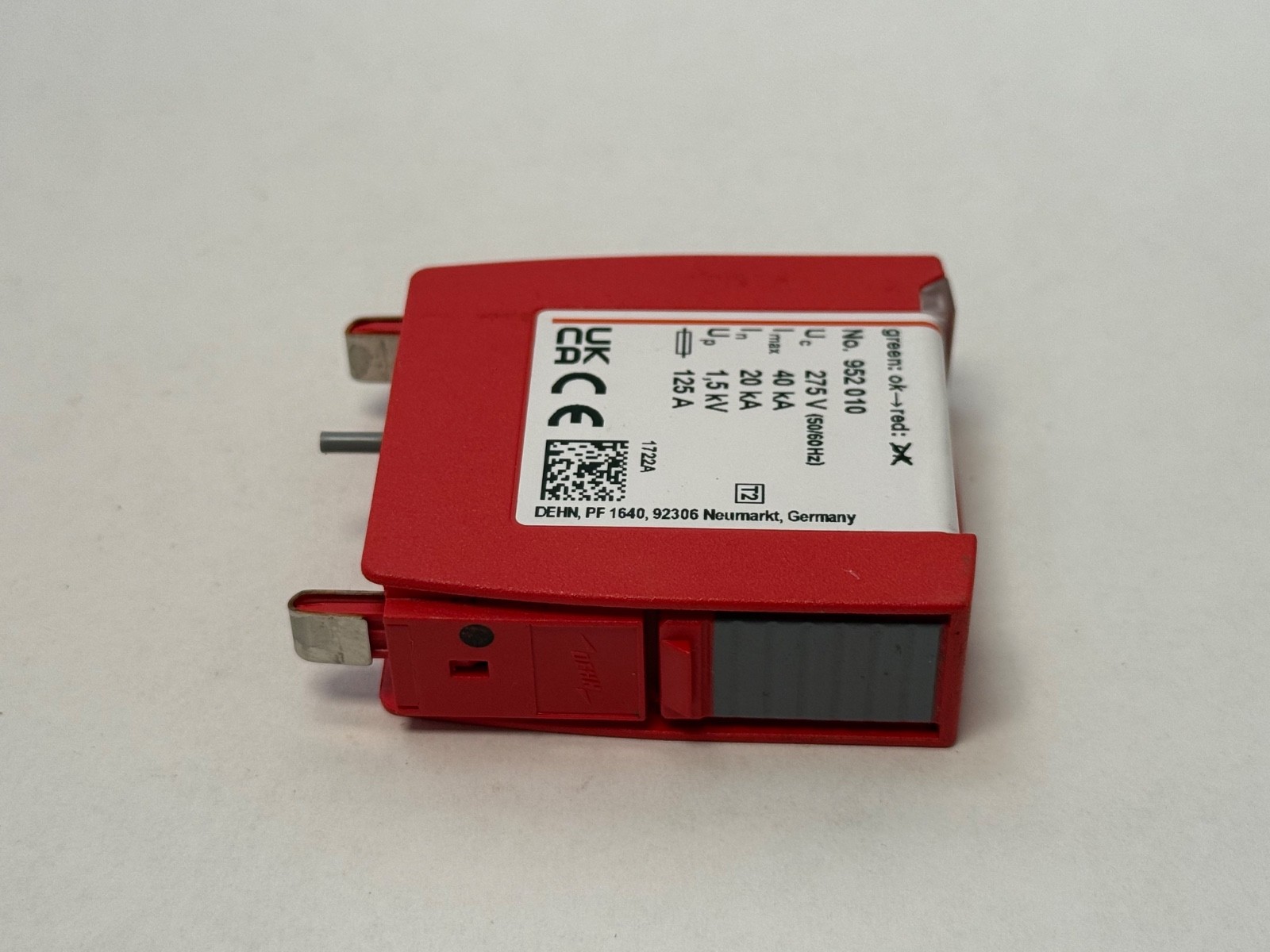

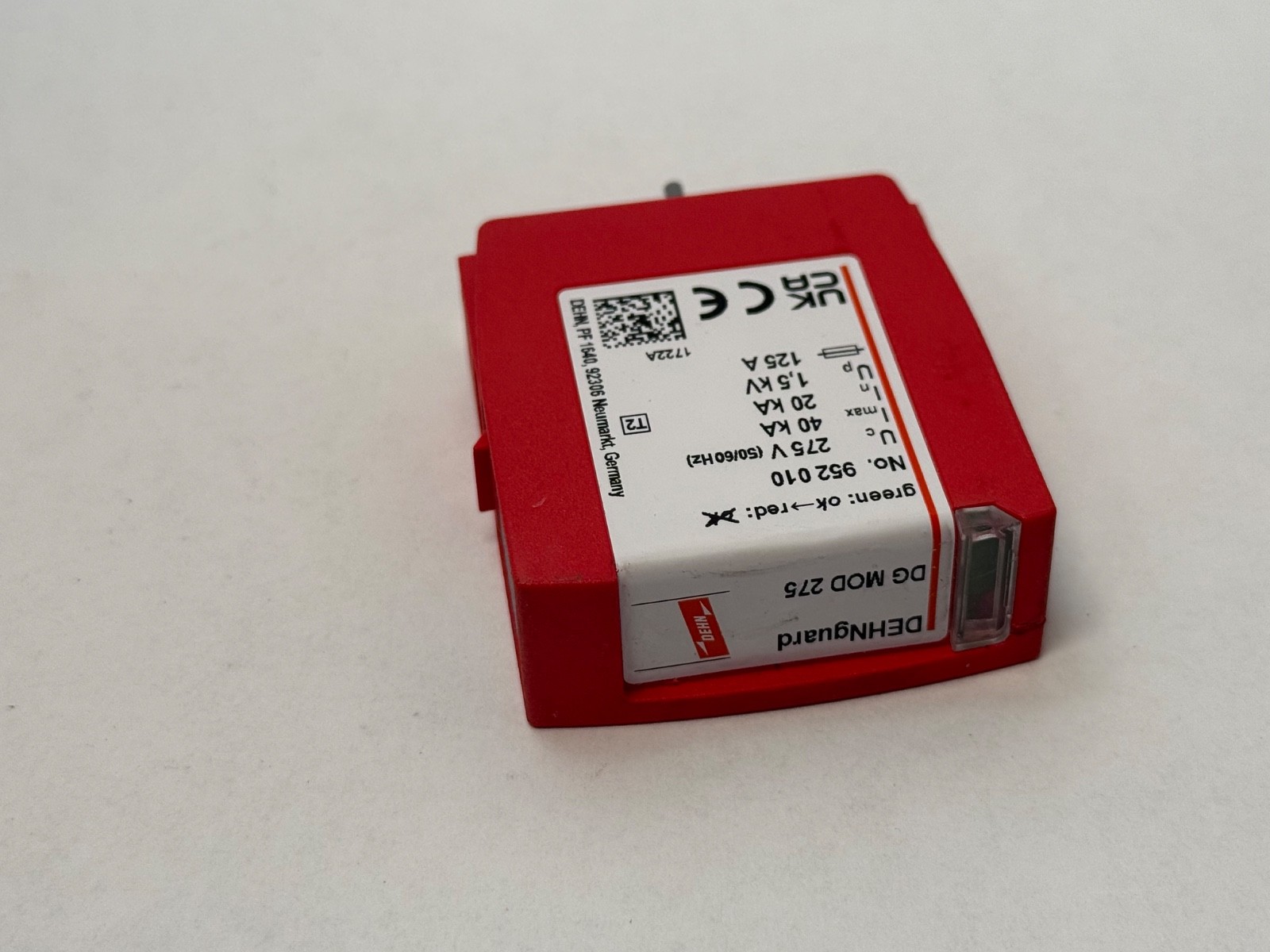

DEHN DG MOD 275, part number 952010, a pluggable varistor protection module for the DEHNguard modular surge arrester system. Type 2 surge protective device to EN 61643-11 for main and sub-distribution boards. Protection module only, sold as 1 Pc; the DEHNguard base part is a separate item.
DG — DEHNguard family, Type 2 varistor-based surge protection for power supply systems.
MOD — protection module only, not a complete arrester.
275 — maximum continuous operating voltage Uc, 275 V AC.
952010 — DEHN part number.
Type: Type 2 surge protective device (SPD) per EN 61643-11, varistor based. Maximum Continuous Operating Voltage Uc: 275 V AC. Nominal Discharge Current In: 20 kA, 8/20 µs. Maximum Discharge Current Imax: 40 kA. Construction: Pluggable protection module for DEHNguard modular base parts. Status Indication: Mechanical indicator and thermal disconnector in the DEHNguard design. Application: Main and sub-distribution boards in low-voltage installations. Series: DEHNguard. Unit Quantity: 1 Pc.
Mounting Type: Plug-in module for DEHNguard base part. The base part stays wired into the distribution board and the module plugs into it. Base parts differ by system earthing arrangement (TN-S, TN-C, TT).
DEHNguard M and S modular base parts accept the DG MOD 275 as the replaceable module for a 275 V AC Uc installation.
Complete arresters with base parts carry their own part numbers, for example DG S 275 (952070).
Other forms of the designation: DG-MOD-275, DGMOD275, DG MOD275, 952 010.
Maximum continuous operating voltage Uc of 275 V AC.
Nominal discharge current In 20 kA and maximum discharge current Imax 40 kA.
No. It is the plug-in protection module only, used with a DEHNguard base part.
