Swivel connector and turnbuckle tensioner with M20 threaded adjuster, 100 mm mounting hole centres and 5/8 in (15.9 mm) clearance through holes.
List Price
$75.40
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Unbranded |
|---|---|
| MPN | 040A01202 M20 |
| Model | 040A01202M20 |
| Condition | New – Open box |
|---|---|
| Base Number | 040A01202 |
| Industry Terms | swivel connector; turnbuckle tensioner; adjustable tension link; swivel eye tensioner; M20 threaded tensioner |
| Common Misspellings | 040A0120 2 M20; 04A01202 M20; 040AO1202 M20; 40A01202M20 |
| Condition Note | 100 mm Mounting Center to Center, 5/8" OD Through Hole Screws, (Shortest Length Through Hole - Through Hole 25") |
| Connector Style | Swivel end fittings with M20 threaded adjuster |
| Bolt Center To Center Length | 100 mm (3.937 in) at shortest setting |
| Shaft Type | M20 external thread |
| Mpn Variants | 040A01202 M20; 040A01202M20; 040A01202-M20; 040A-01202; 040A01202 |
| Design Units | Mixed (metric thread, imperial through holes) |
| Part Number | 040A01202 M20 |
| Mounting Type | Through-hole, two clearance holes for 5/8 in fasteners on 100 mm centres |

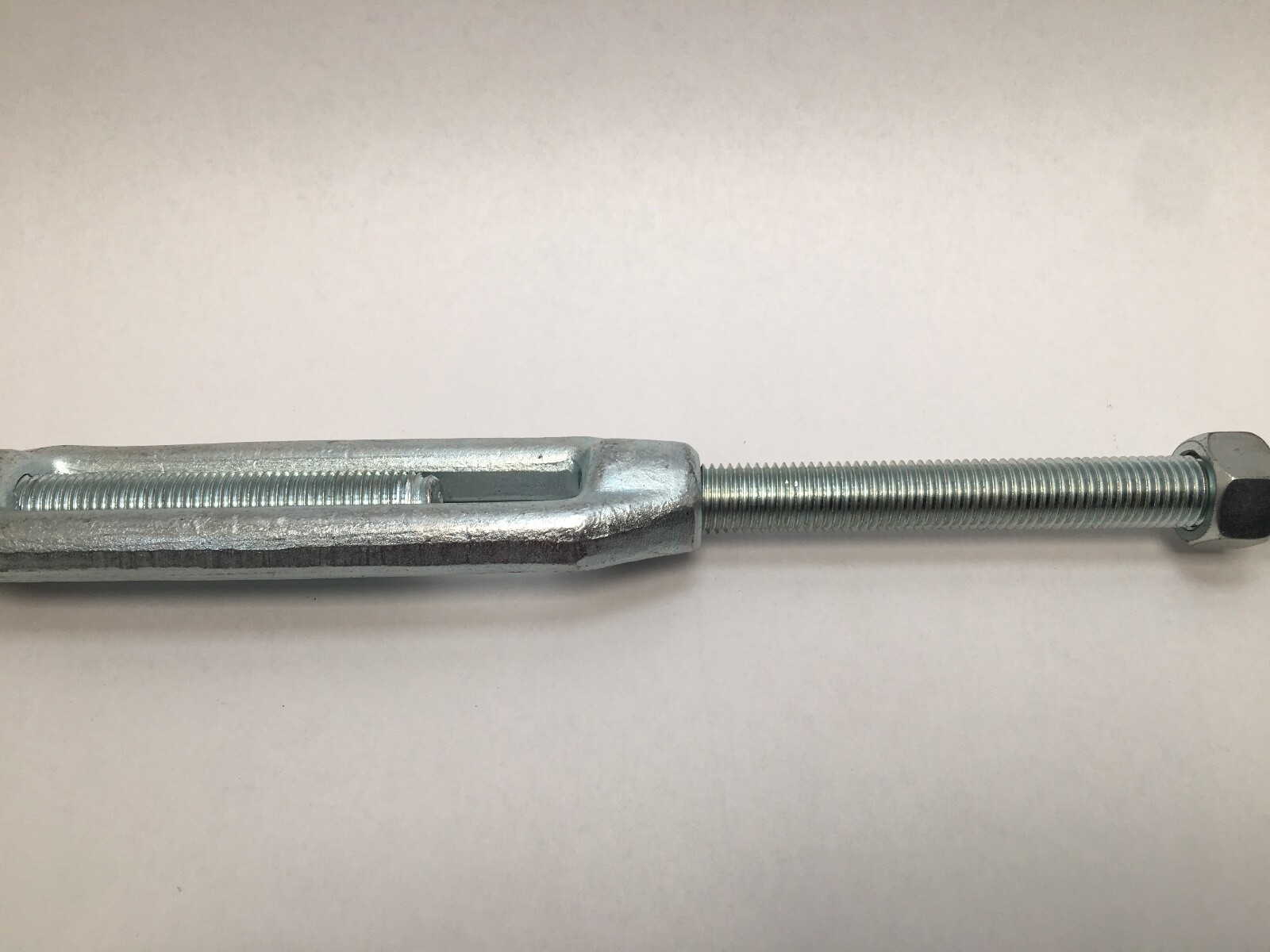

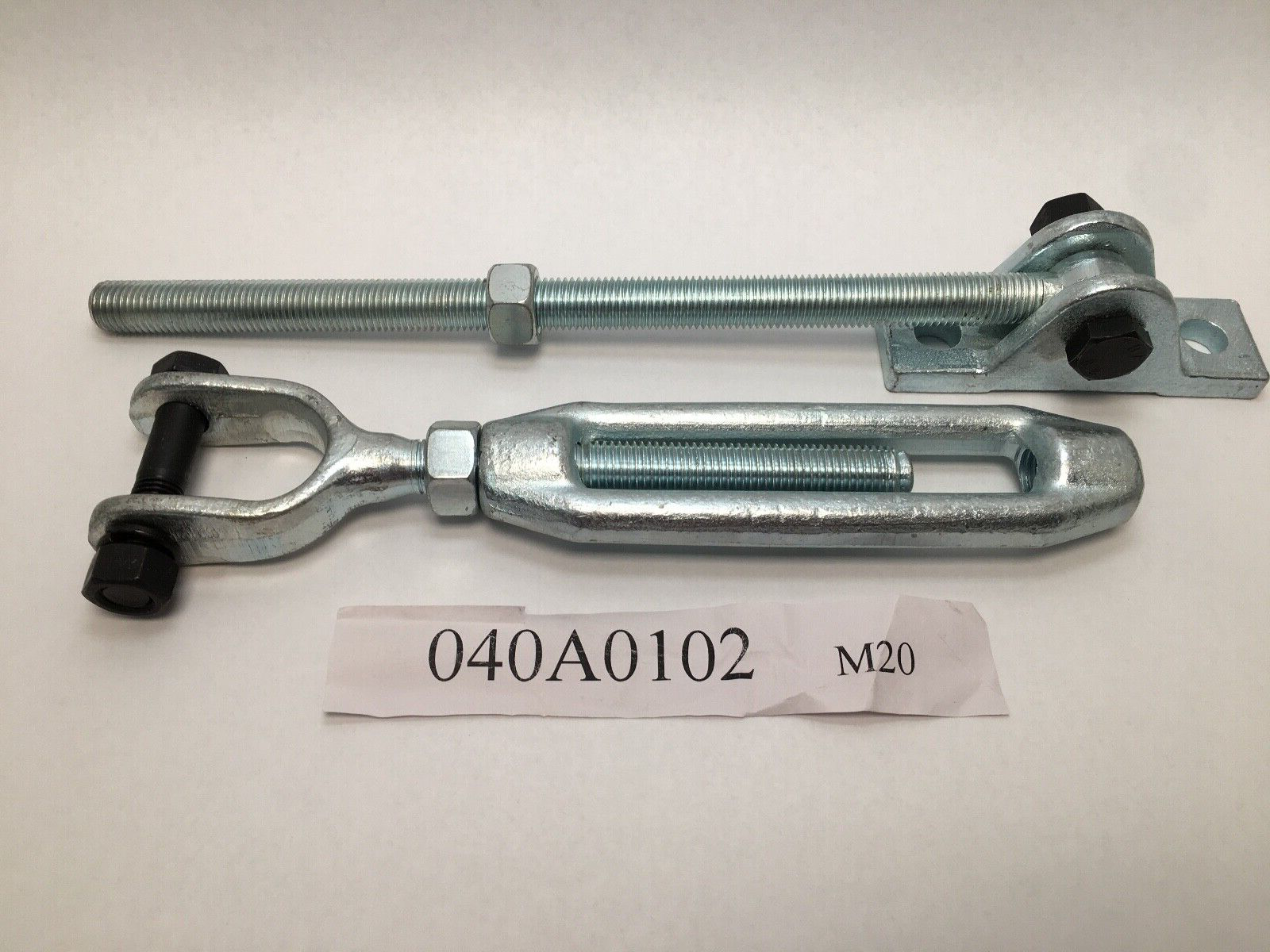

Swivel connector and turnbuckle-style tensioner, part number 040A01202 M20. The body carries an M20 threaded adjuster and swivelling end fittings, each drilled with a clearance through hole for a 5/8 in fastener. Mounting hole centre-to-centre spacing 100 mm.

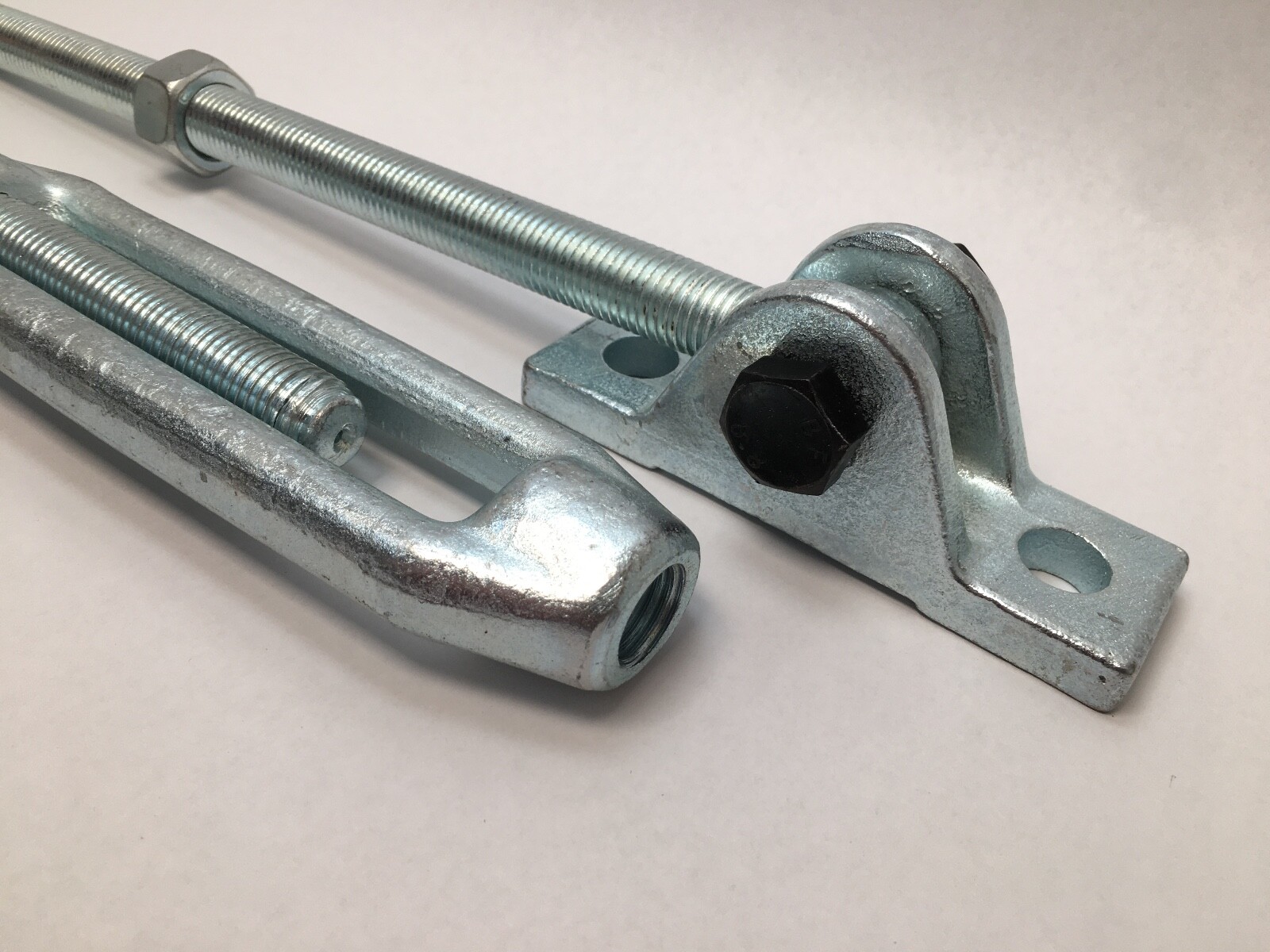

The swivelling ends let the assembly self-align as the anchor points move out of plane, so the load stays axial along the adjuster instead of putting a bending moment into the threads. The M20 thread sets the adjustment resolution and the tensile section: one full turn changes the length by the thread pitch, and load is carried in the thread root. Because both ends swivel, the unit can be set under tension without twisting either anchor.

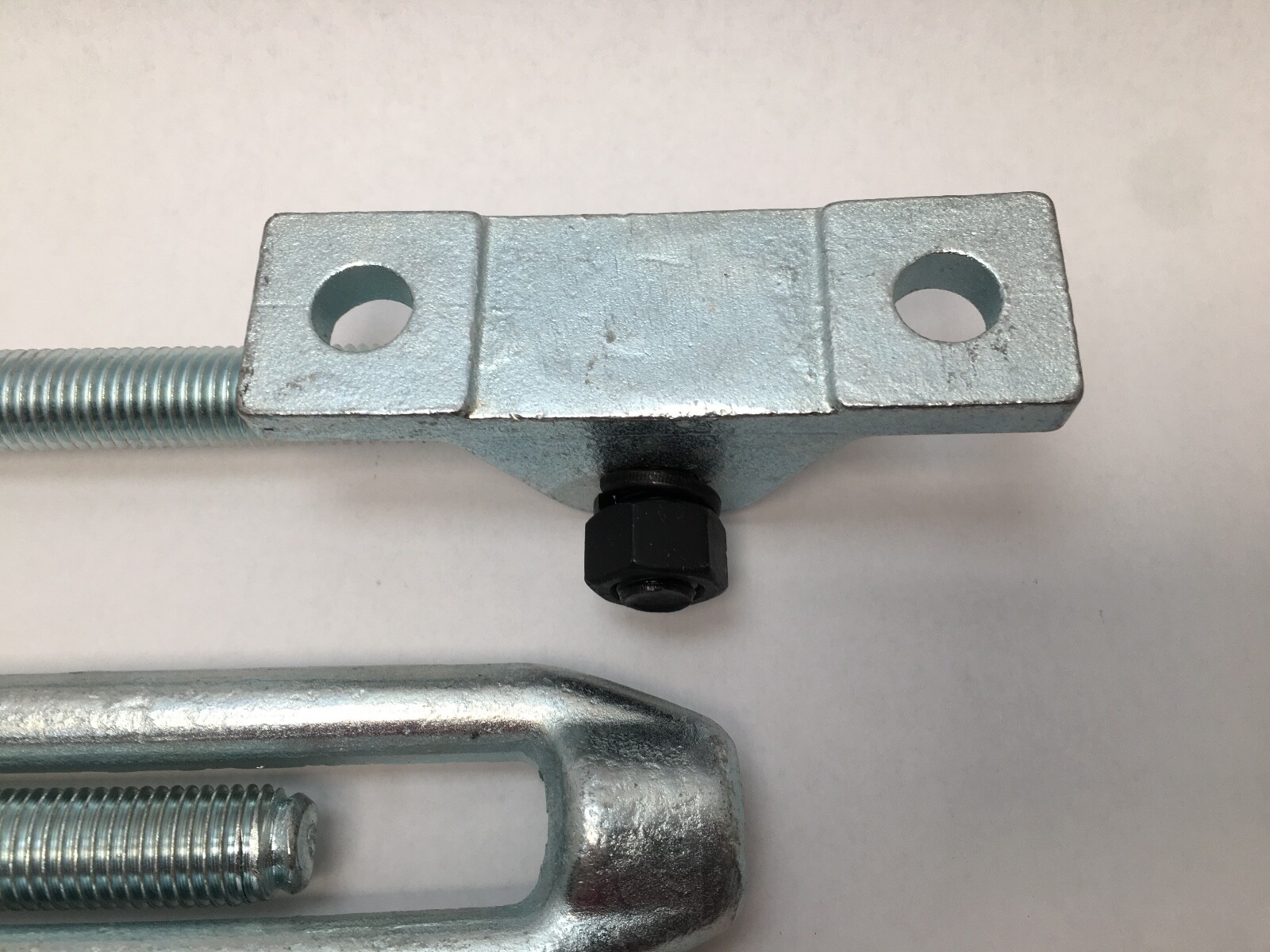

Two clearance through holes sized for 5/8 in (15.9 mm) fasteners, on 100 mm centres at the shortest setting. The through holes accept a shoulder bolt or a pin, and the swivel joints take up angular offset between the two anchors.

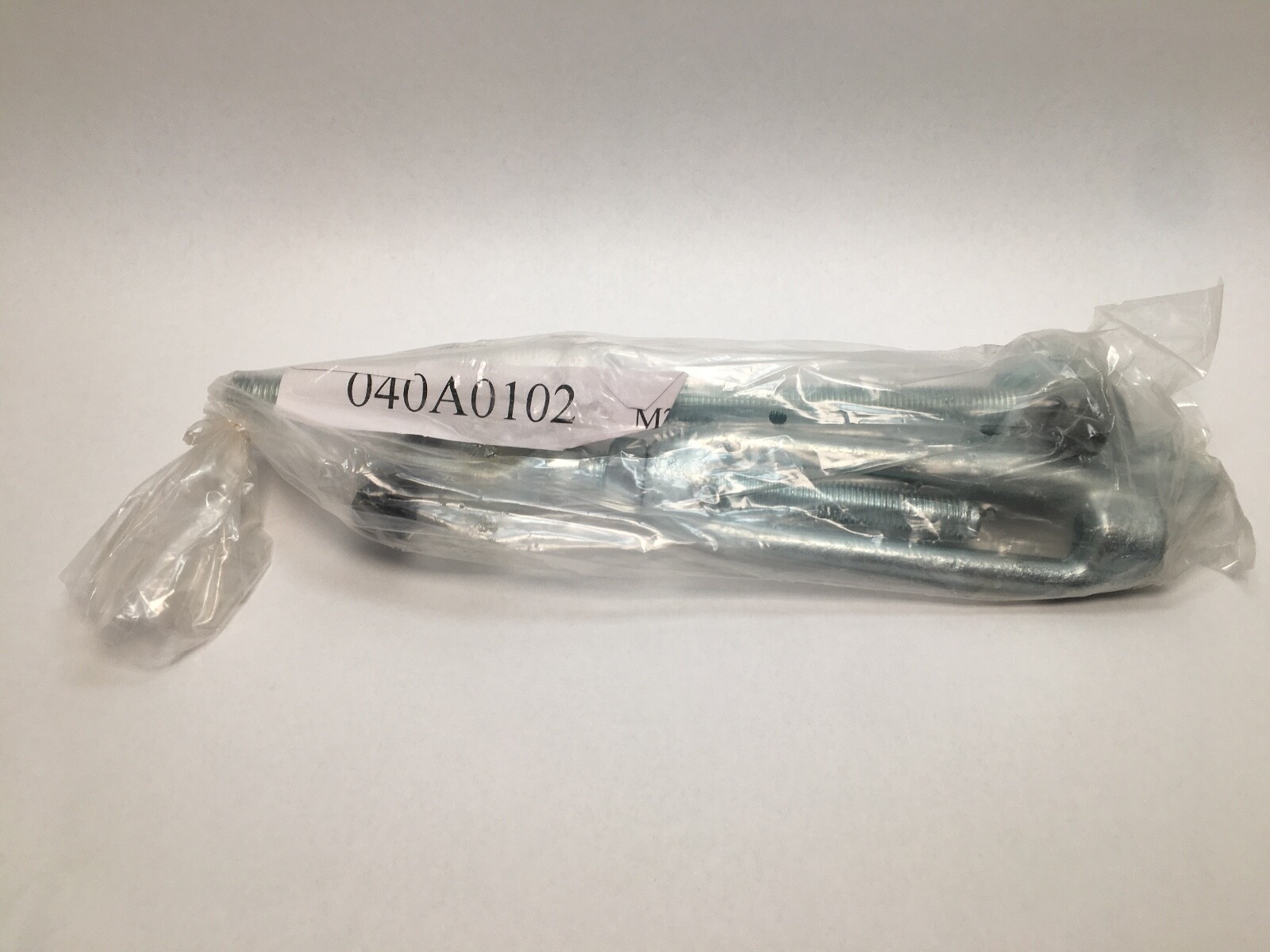

Sold as 1 Pc. Complete assembly: body, M20 threaded adjuster, and both swivel end fittings. Mounting fasteners are separate hardware.
Adjustment is made by rotating the M20 thread with the end fittings restrained. Final tension is set with the swivel joints free to align, then the joint is locked.
