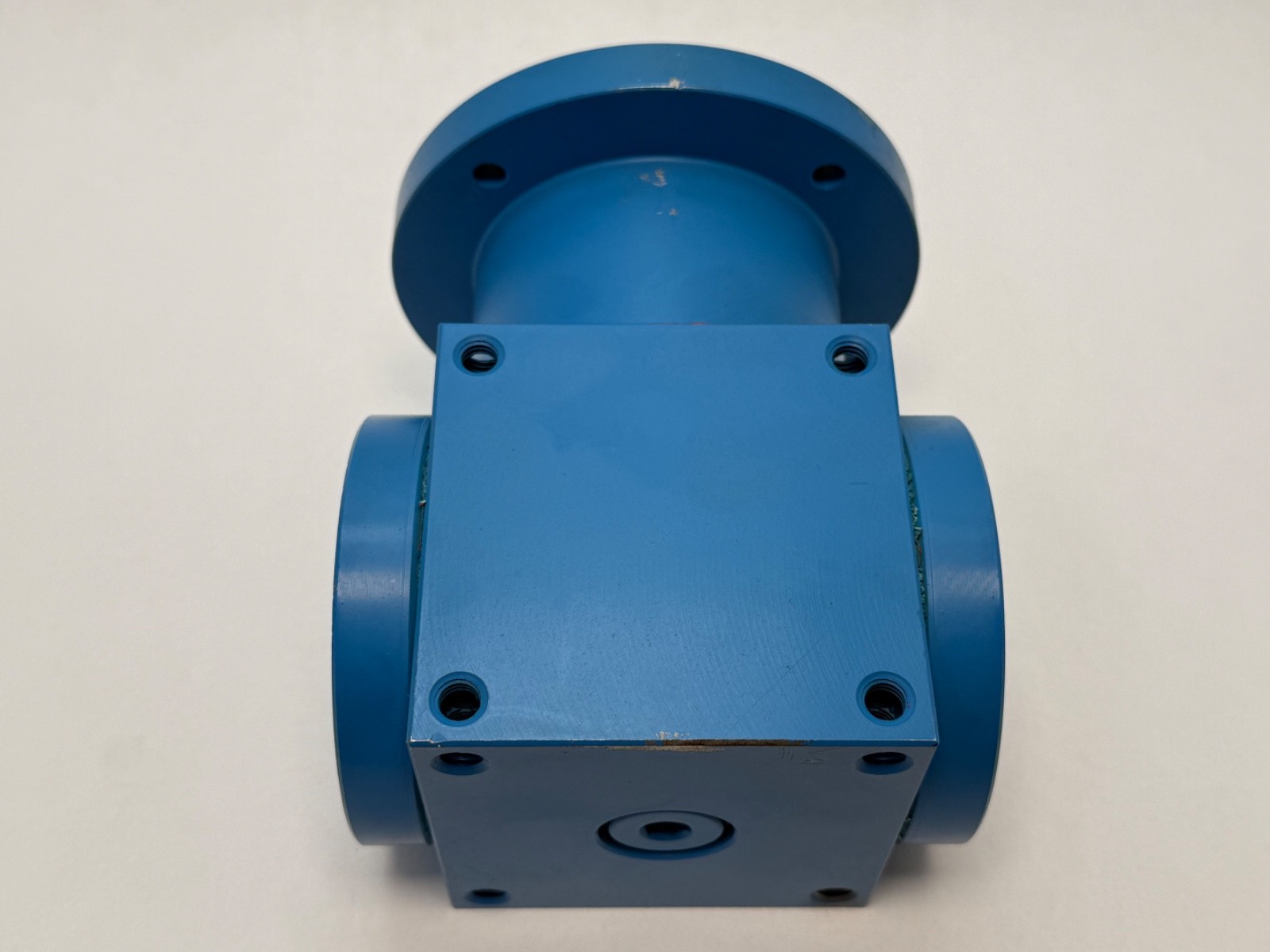

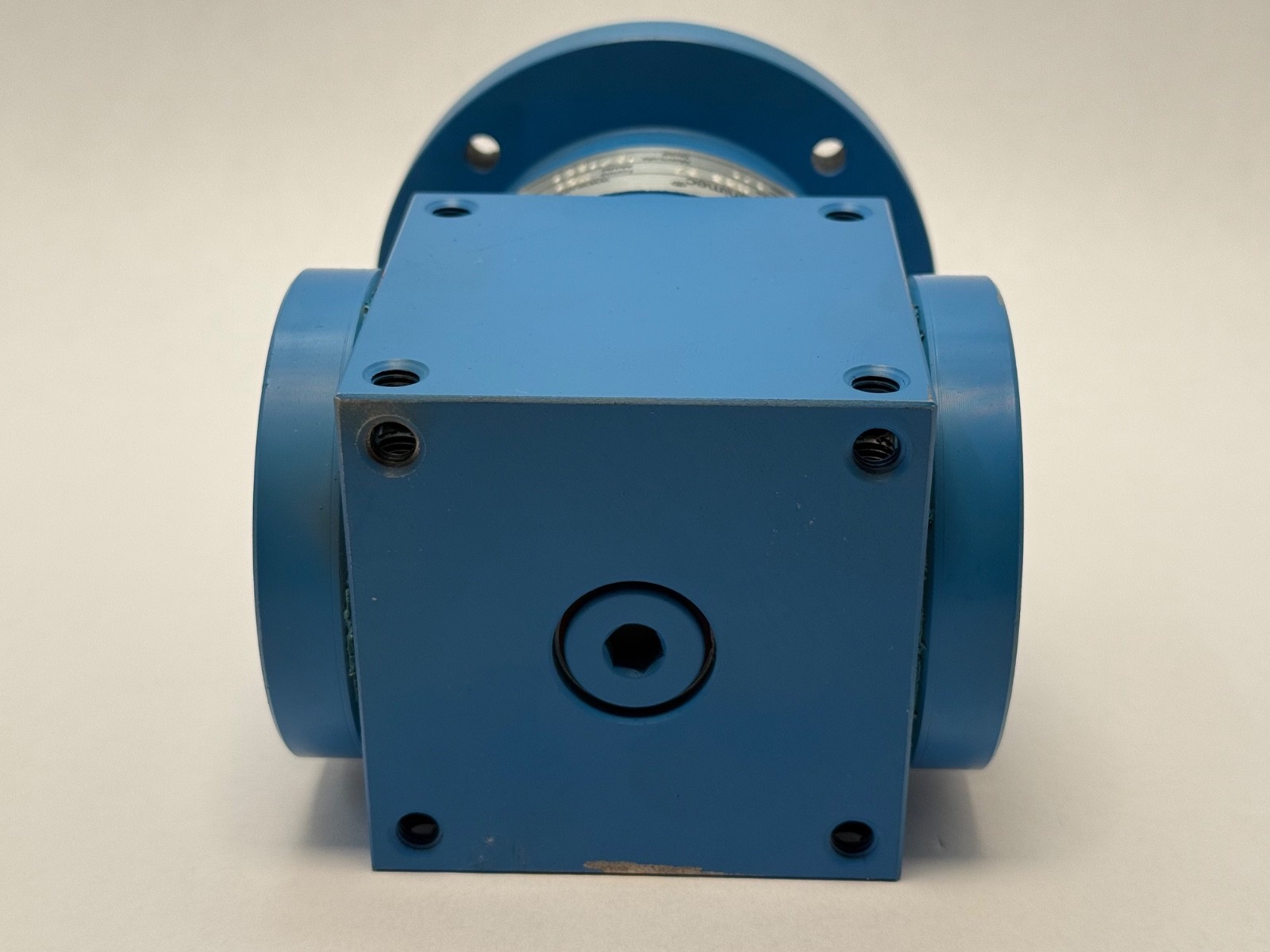

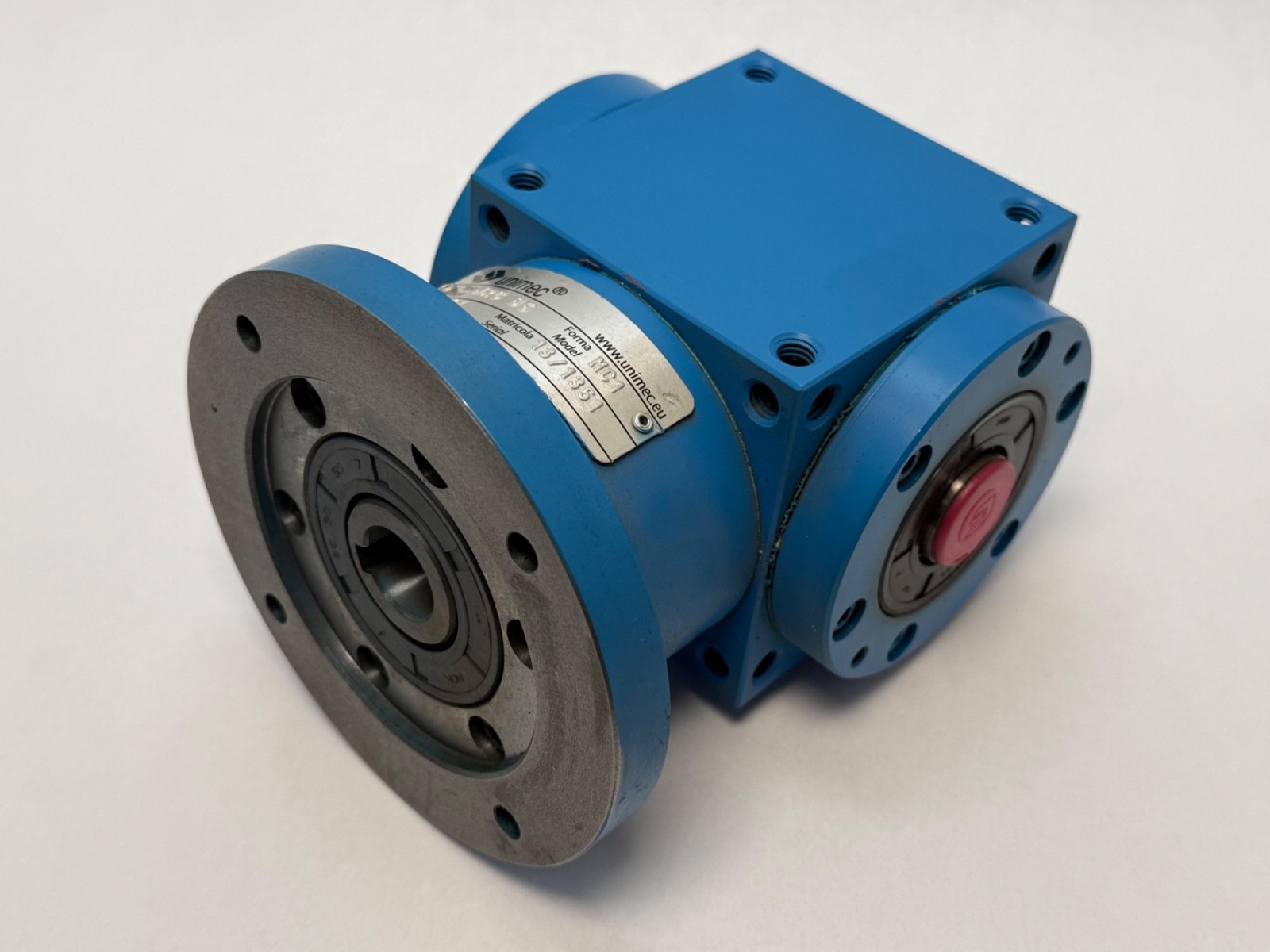

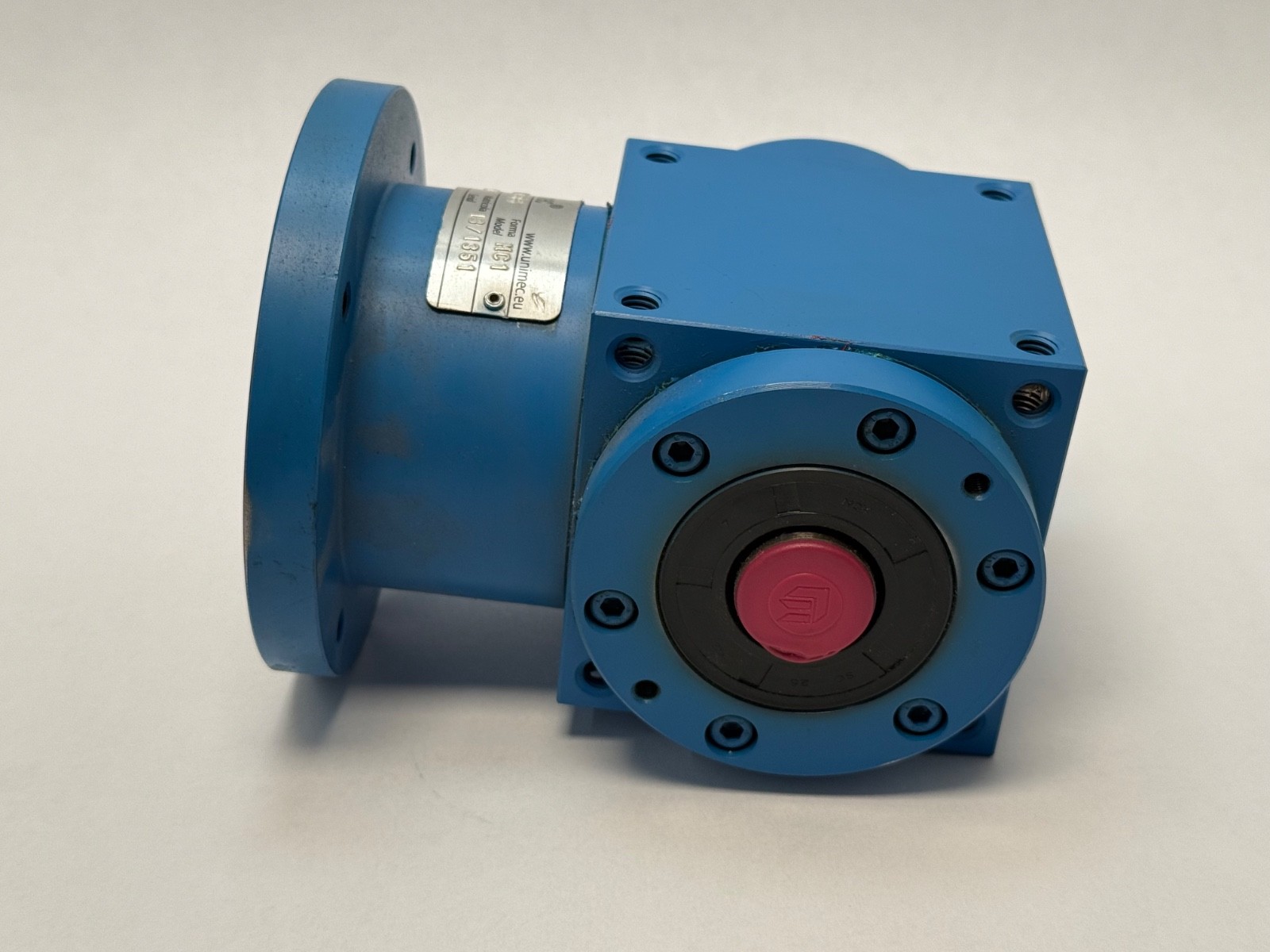

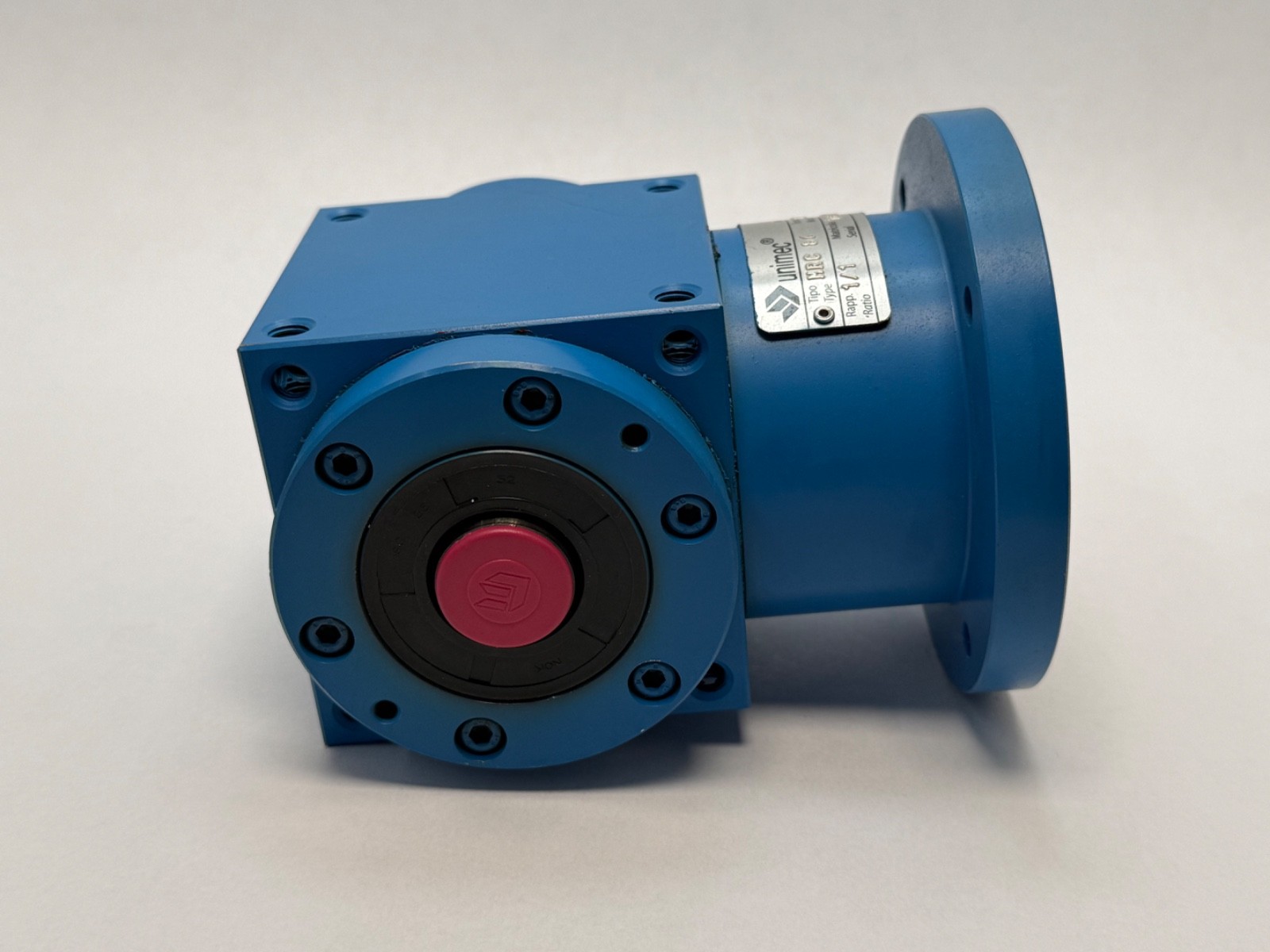

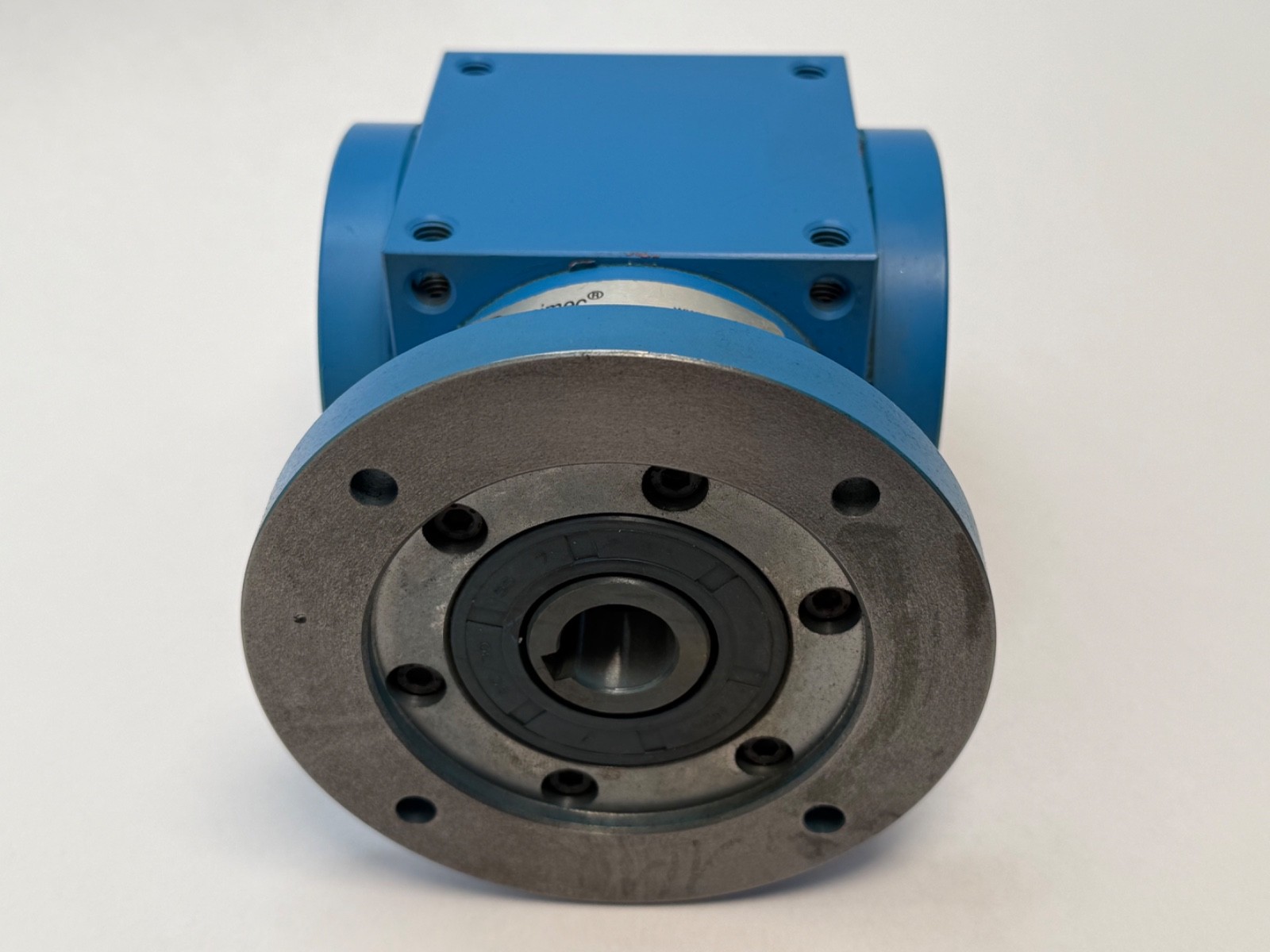

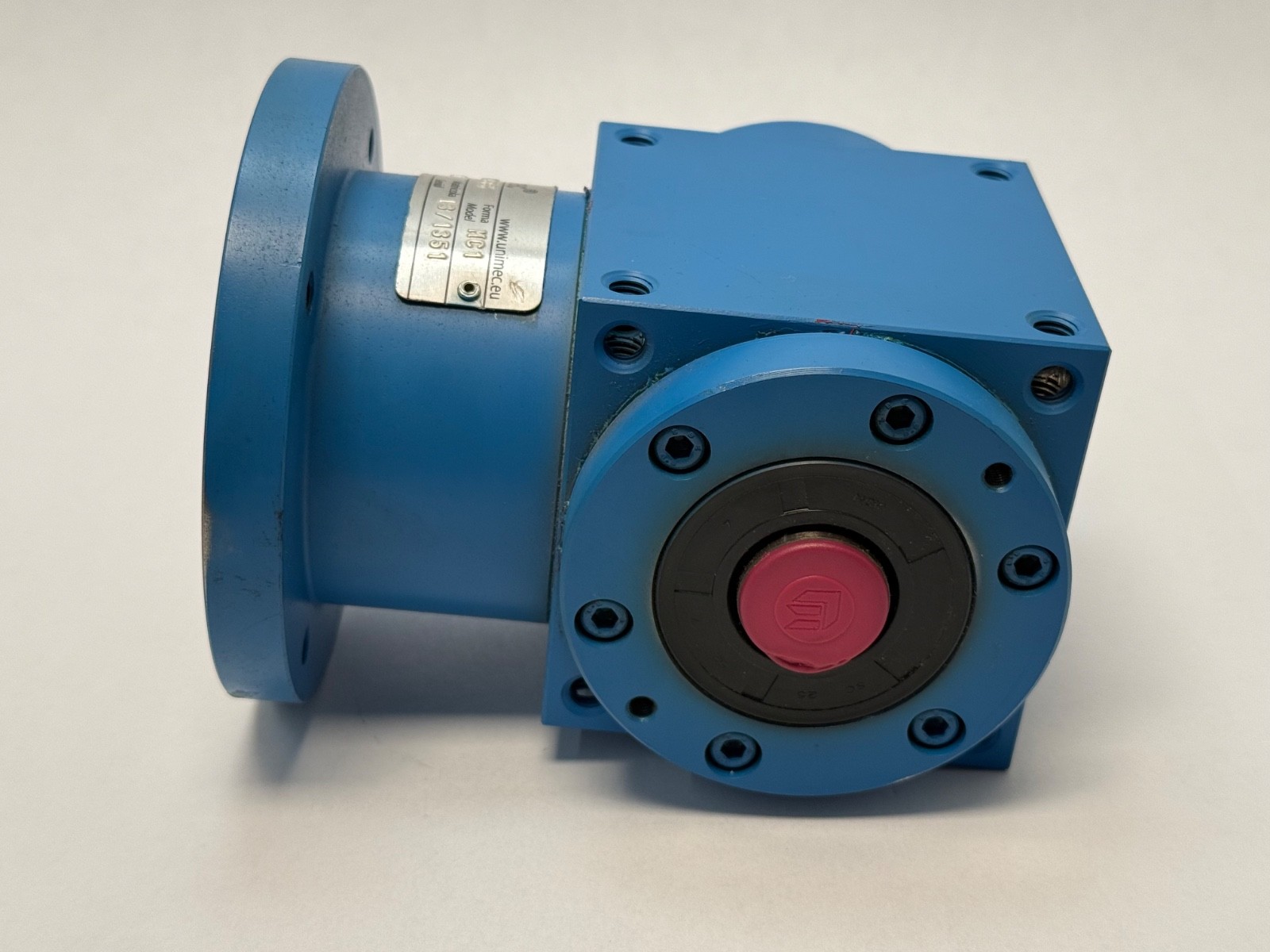

Unimec MRC 86 right angle bevel gearbox, size 86, 1:3 ratio, motor-flanged RC model. Gleason spiral bevel gears, grey cast iron housing, 4,500 rpm max input.
List Price
$244.59
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Unimec |
|---|---|
| MPN | MRC-86 |
| Model | MRC 86 |
| Condition | New – Open box |
|---|---|
| Shaft Orientation | Right Angle |
| Industry Terms | bevel gearbox, right angle gearbox, rinvio angolare, spiral bevel gear reducer, 90 degree gearbox |
| Application Types | Packaging machines, conveyors, screw jack systems, automation drive lines |
| Mpn Variants | MRC-86, MRC86, MRC 86, MRC 86 1/3 |
| Additional Attributes | Housing: GJL 250 grey cast iron; Gears: 17NiCrMo 6-4 casehardened, Gleason; Backlash: 15-20 arcmin; Operating temperature: -10 to 80 C; Max input speed: 4500 rpm |
Unimec MRC 86 right angle bevel gearbox, size 86, motor-flanged version of the RC model. Ratio: 1:3. Shaft Orientation: Right Angle. Maximum Input Speed: 4,500 rpm.

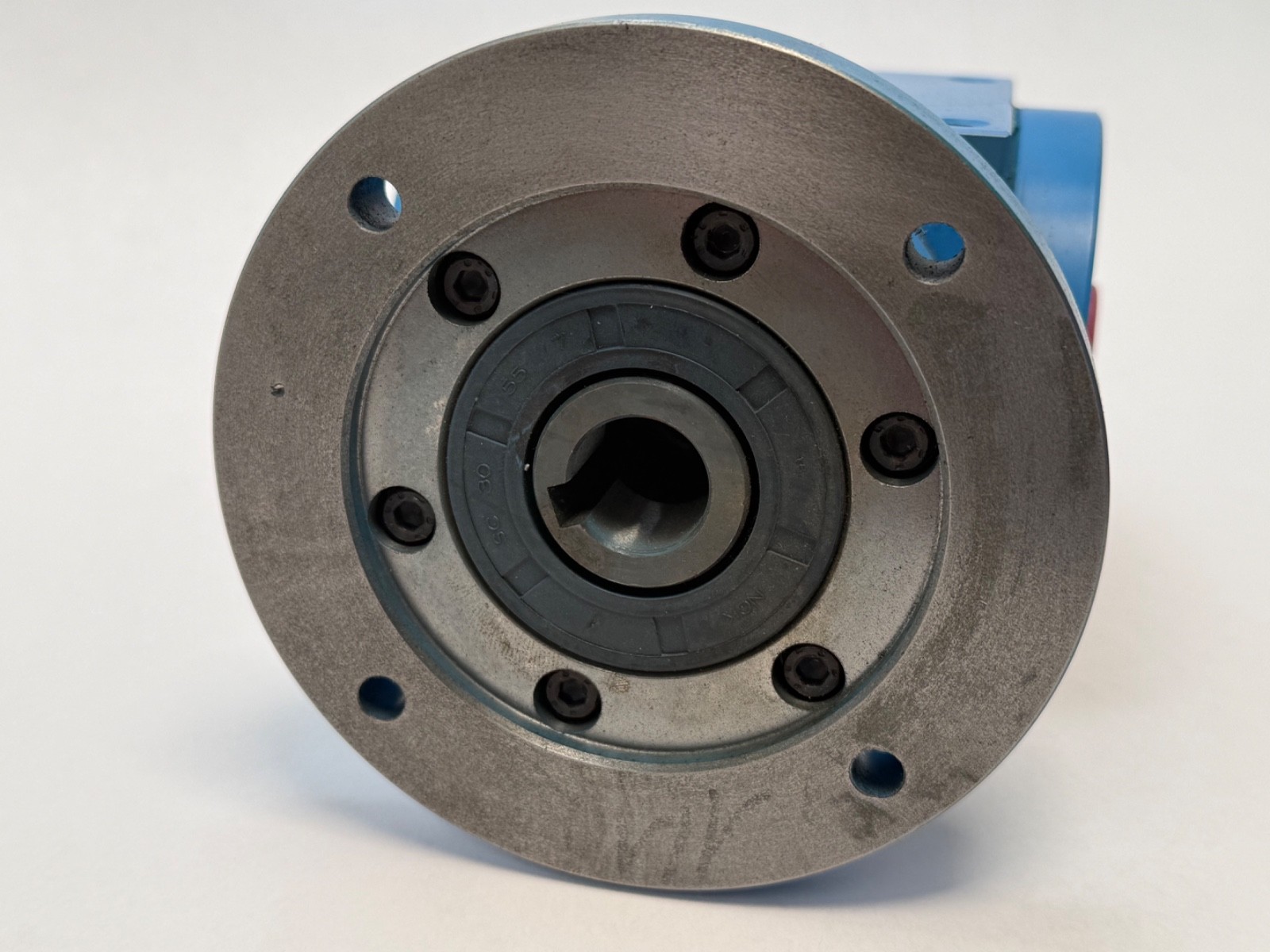

M — Unimec motor model, with flange and bore for direct IEC motor mounting.
RC — Unimec bevel gearbox model RC shaft arrangement.
86 — Unimec gearbox size 86.
Size 86 data from Unimec. Housing: GJL 250 grey cast iron, machined on six faces. Bevel Gears: 17NiCrMo 6-4 casehardened alloy steel, Gleason gears run in pairs. Shafts: C45 carbon steel. Lubricant: Unimec Atir SH150 synthetic oil, 0.1 l. Gear Backlash: 15–20 arcmin. Operating Temperature: -10 to 80 °C. Inertia Moment at 1:3: 37 kg-mm². Phase Between Keys at 1:3: ±6°.

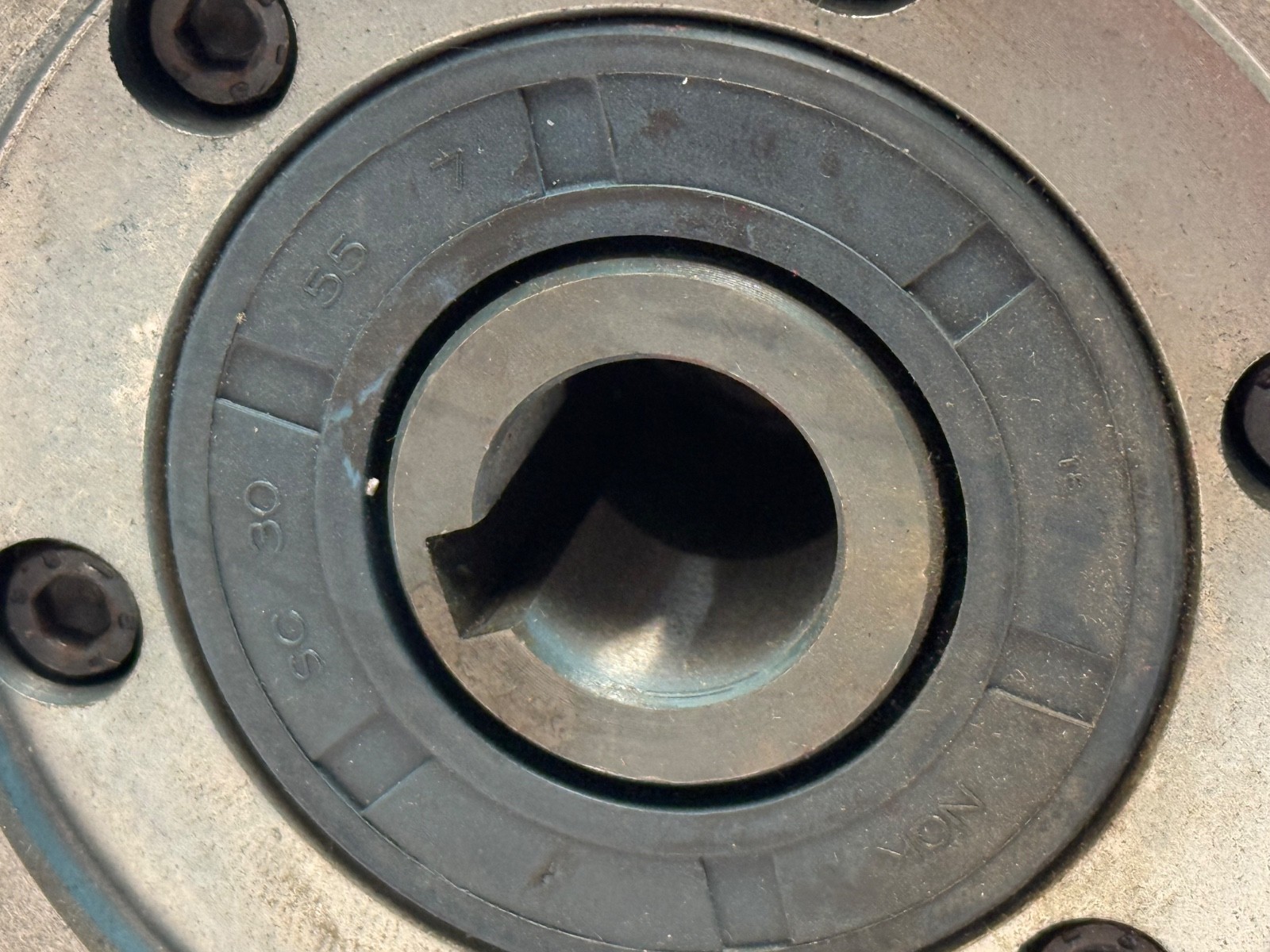

Unimec size 86 motor flange options: IEC 63 B5 (11 mm bore, 95 mm centering), IEC 71 B5/B14 (14 mm bore), IEC 80 B5/B14 (19 mm bore), IEC 90 B5/B14 (24 mm bore).

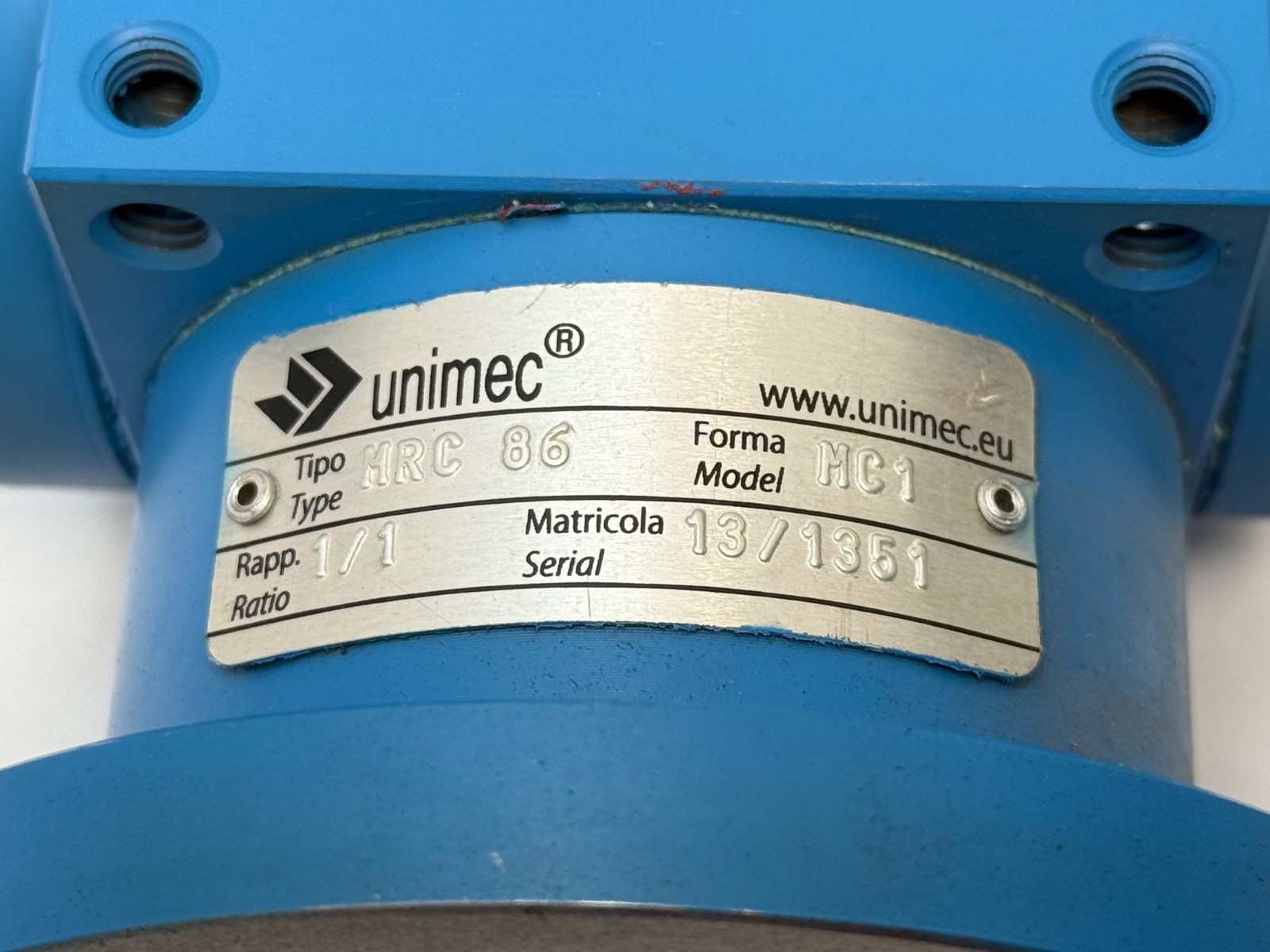

Unit Quantity: 1 Pc. Nameplate marking: MC1.
