FYH BLF206KG5 two-bolt oval flange ball bearing unit, 30 mm bore, set-screw locking, SB206 insert, 90.5 mm bolt centres, M10 bolts. Two pieces.
List Price
$61.12
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FYH |
|---|---|
| MPN | BLF206KG5 |
| Model | BLF-206 K G5 |
| ID | 30 mm |
| Series | BLF |
|---|---|
| Type | Two-Bolt Flange Bearing Unit |
| Material | Zinc Alloy Housing, Chrome Steel Insert |
| Base Number | BLF206 |
| Industry Terms | Two-bolt flange unit, oval flange bearing, lightweight flange unit, flangette |
| Application Types | Light conveyors, packaging machinery, agricultural equipment |
| Bolt Center To Center | 90.5 mm |
| Number Of Bolt Holes | 2 |
| Number Of Bolt Holes For Fasteners | 2 |
| Bore Shaft Size | 30 mm |
| Housing Style | Two-Bolt Oval Flange |
| Locking Method | Set Screws |
| Replacement Insert | SB206 |
| Mpn Variants | BLF206KG5, BLF 206 KG5, BLF-206 K G5, BLF206, SB206 |
| Rolling Elements | Balls |
| Bearing Type | Flange Mount Ball Bearing Unit |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Lubricant | Grease |
| Duty Type | Standard Duty |
| Locking Device | Set Screw |
| Insert Outer Ring | Cylindrical |
| Harmonization Code | 8483.20.40 |
| Housing Material | Zinc Alloy |
| Expansion Type | Non-Expansion |
| Part Number | BLF206KG5 |
| Mounting Type | Two-Bolt Flange Mount |

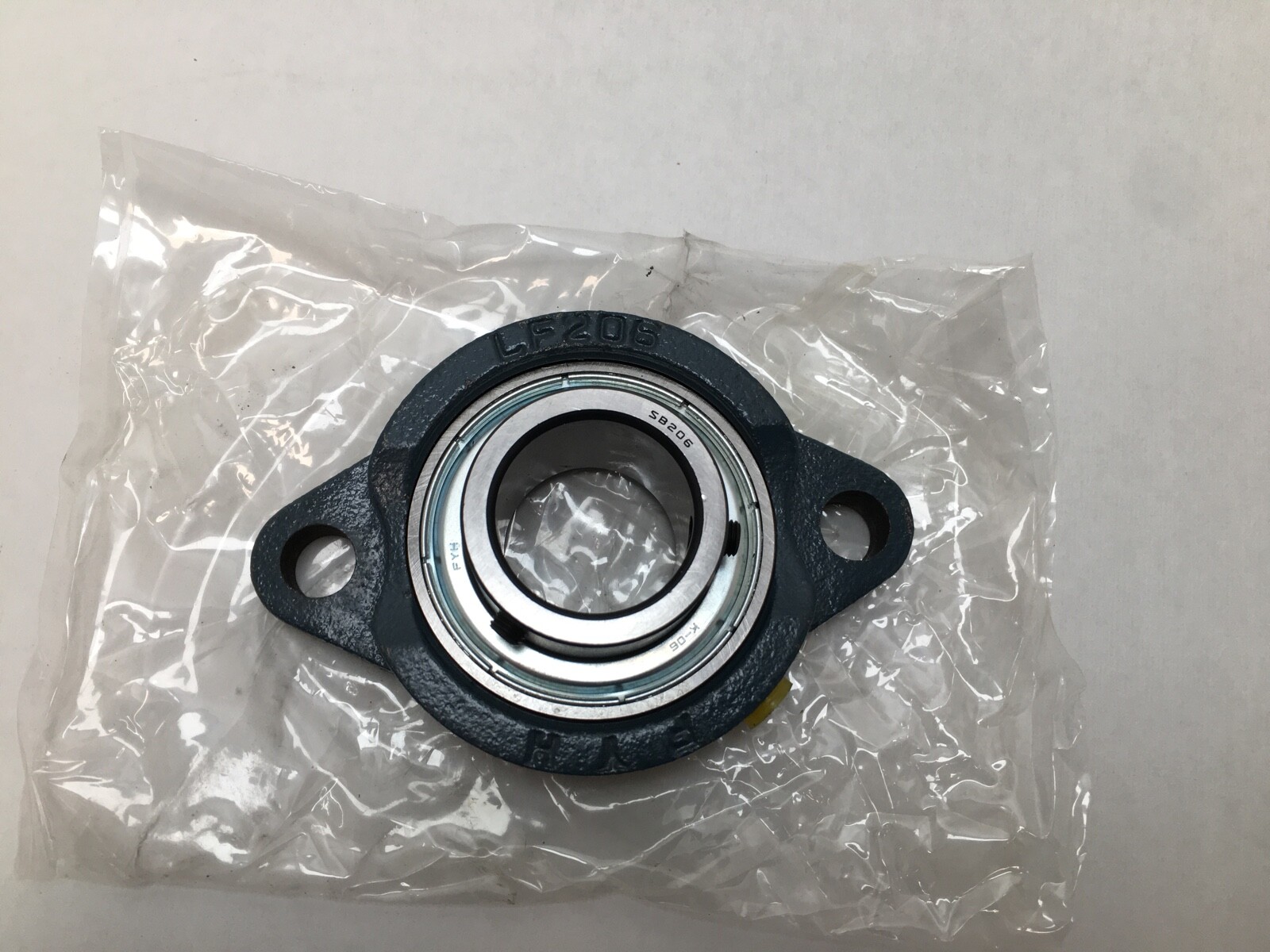

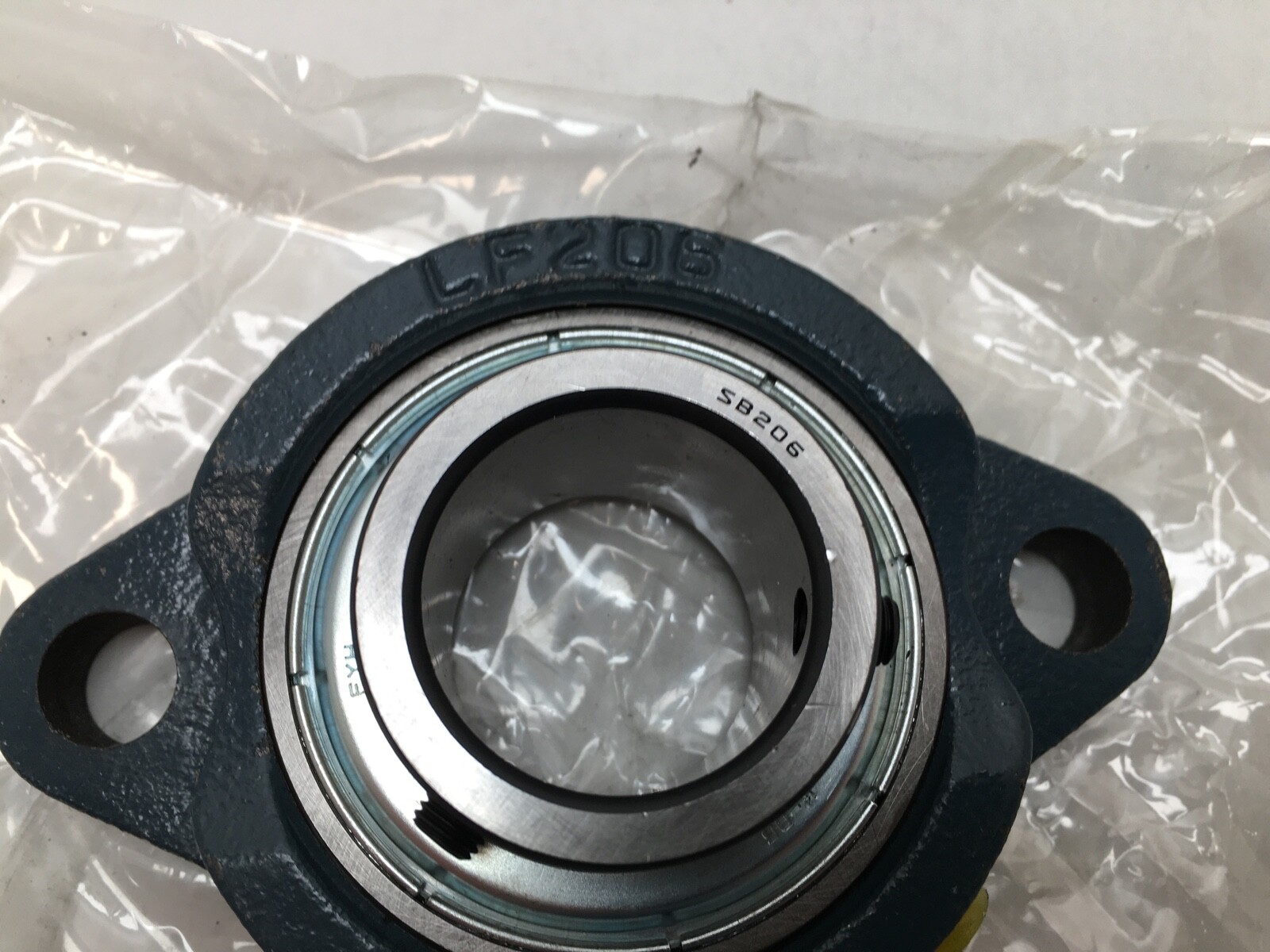

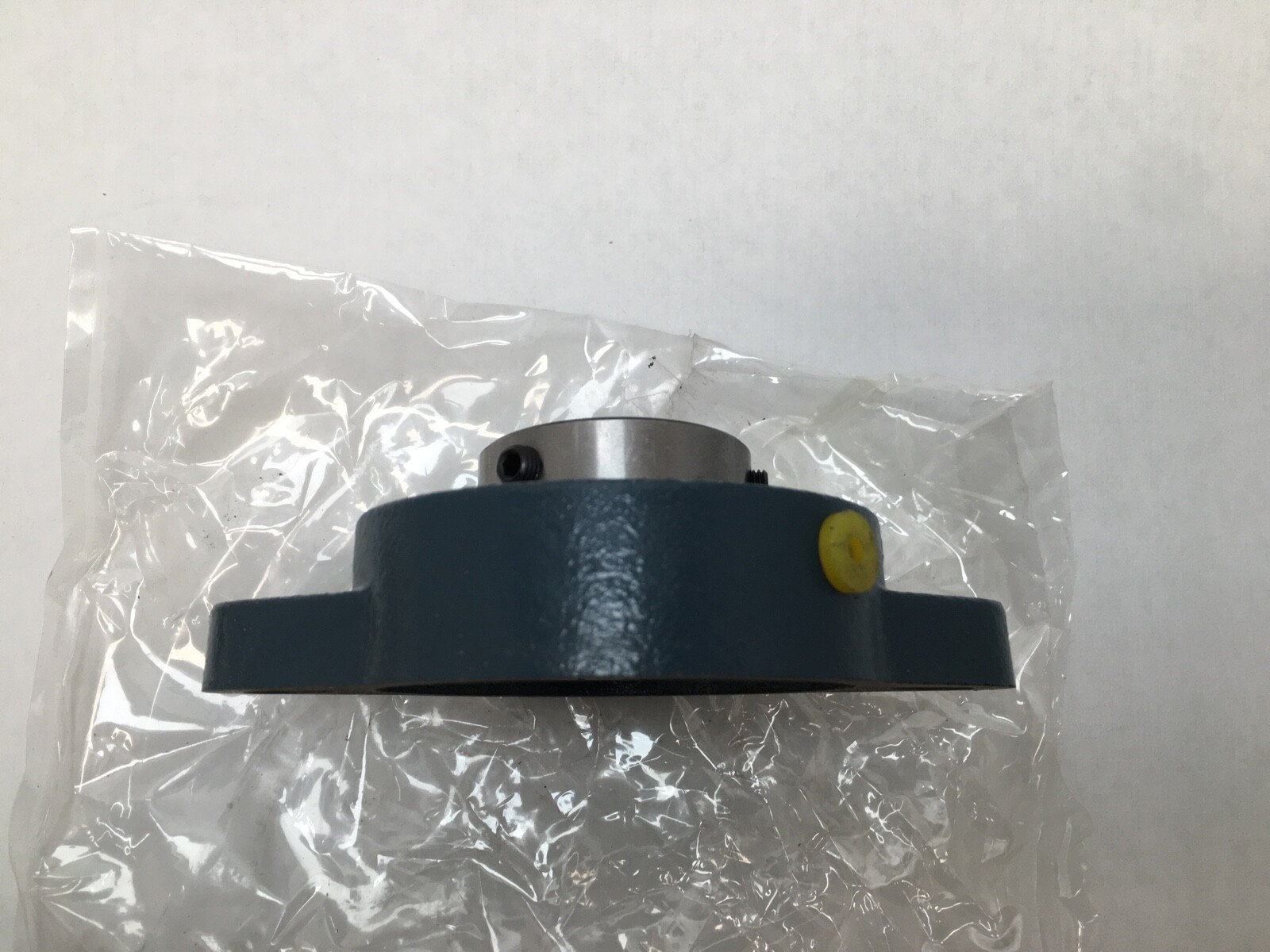

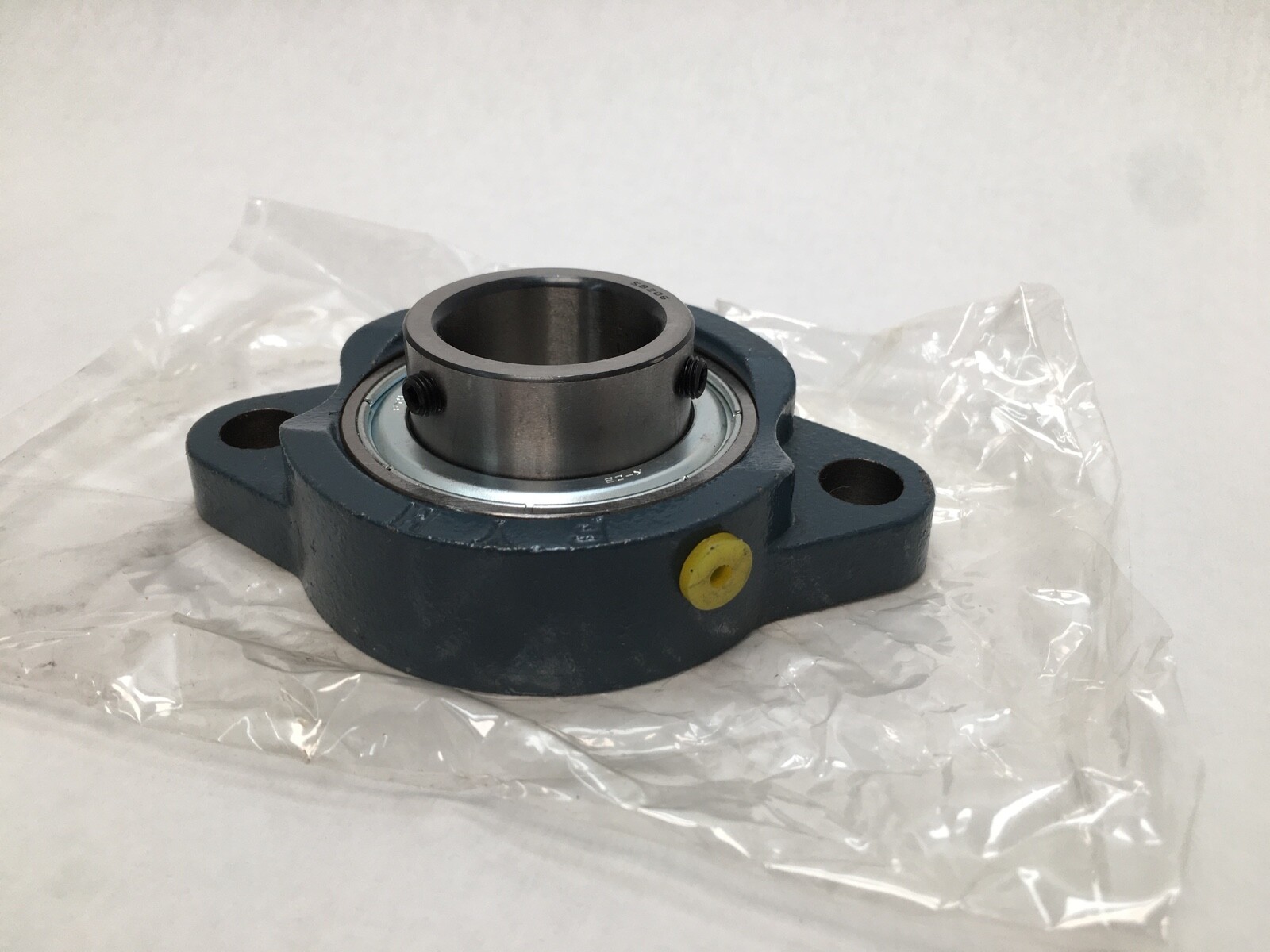

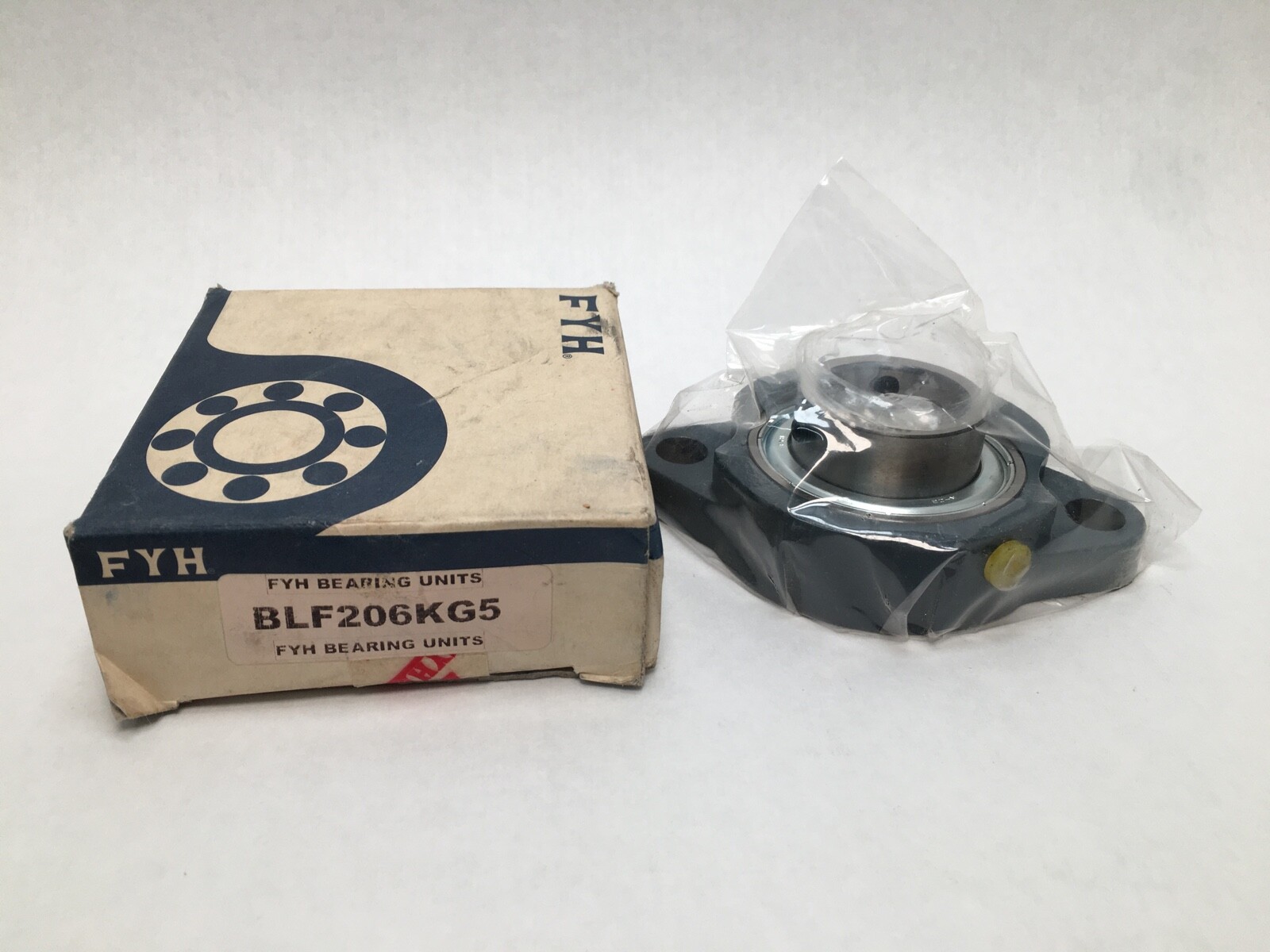

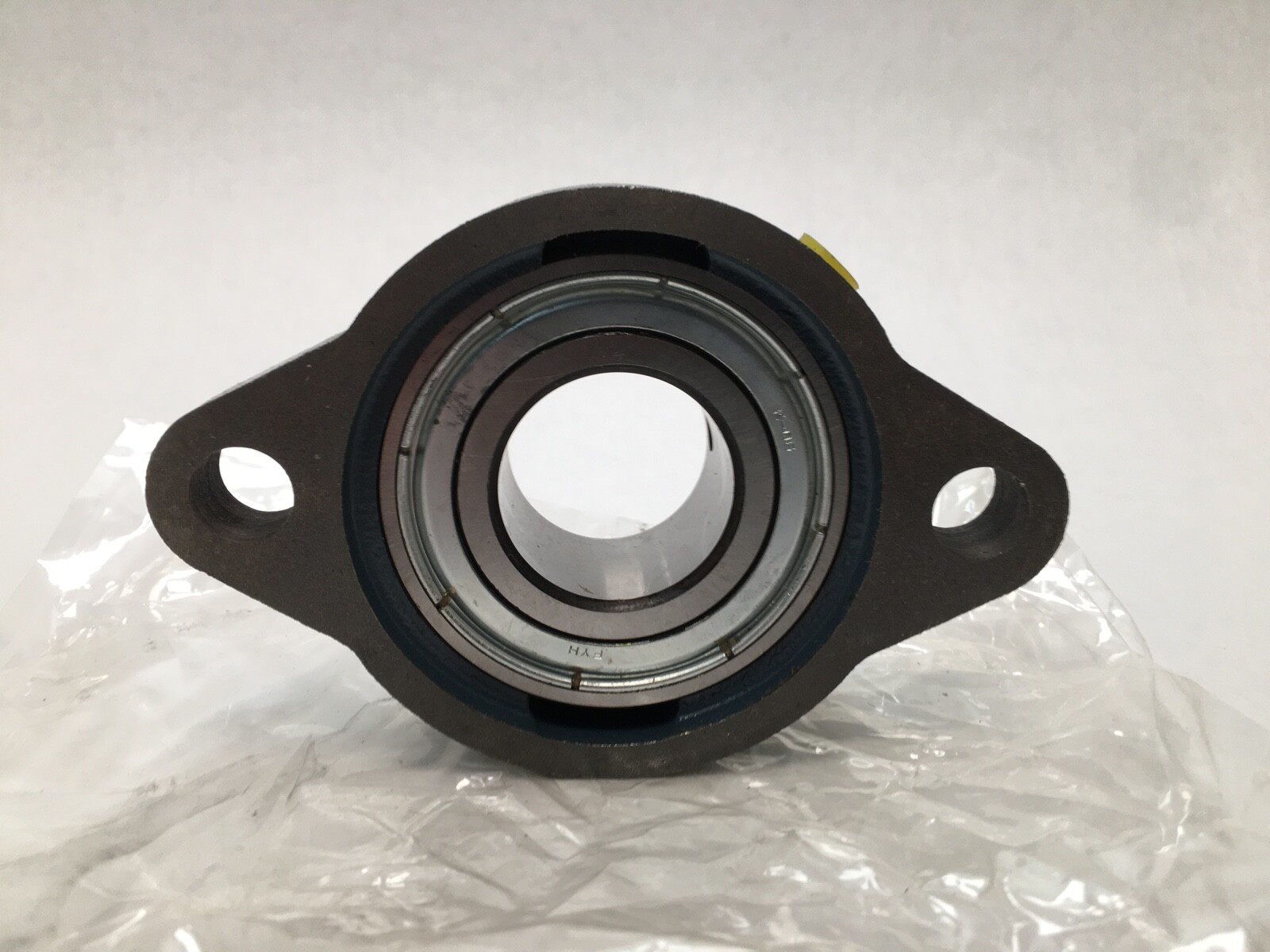

FYH BLF206KG5 mounted ball bearing flange unit with a two-bolt oval flange housing and an SB206 insert bearing. Bore: 30 mm. Locking: set screws in the extended inner ring. Two complete units, each with its insert and housing.
BLF — FYH lightweight two-bolt oval flange unit series.
206 — size code for a 30 mm bore.
SB206 — FYH cylindrical-outside-diameter, set-screw insert bearing.
Housing Style: Two-Bolt Oval Flange. Bolt Count: 2. Bore / Shaft Size: 30 mm. Bore Type: Straight. Locking Method: Set Screws. Bearing Insert: SB206. Insert Outer Ring: Cylindrical. Inner Ring Width: 30 mm. Number Of Rows: 1. Rolling Elements: Balls. Internal Clearance: CN. Seal Type: Rubber seal both sides. Housing Material: Zinc Alloy. Duty: Standard duty. Expansion Type: Non-expansion. Dynamic Load Rating: 19.5 kN (4,390 lbf). Static Load Rating: 11.3 kN (2,540 lbf). Lubricant: grease. Unit Quantity: 2 Pcs.
Bolt Hole Centres: 90.5 mm. Bolt Hole Diameter: 12 mm. Bolt Size: M10. Overall Length: 76 mm. Overall Height: 113 mm. Flange Thickness: 8 mm. Housing Width: 34 mm. Item Weight: 0.57 kg (1.26 lb) each. The housing has a grease fitting for relubrication.
Replacement insert: SB206. Also written BLF206KG5, BLF 206 KG5, BLF-206 K G5 and BLF206.
The bore is 30 mm, straight, locked to the shaft with set screws.
Two bolt holes, 12 mm in diameter, on 90.5 mm centres for M10 bolts.
The SB206, a cylindrical-outside-diameter ball bearing insert with rubber seals on both sides.
