Availability:
2 in stock

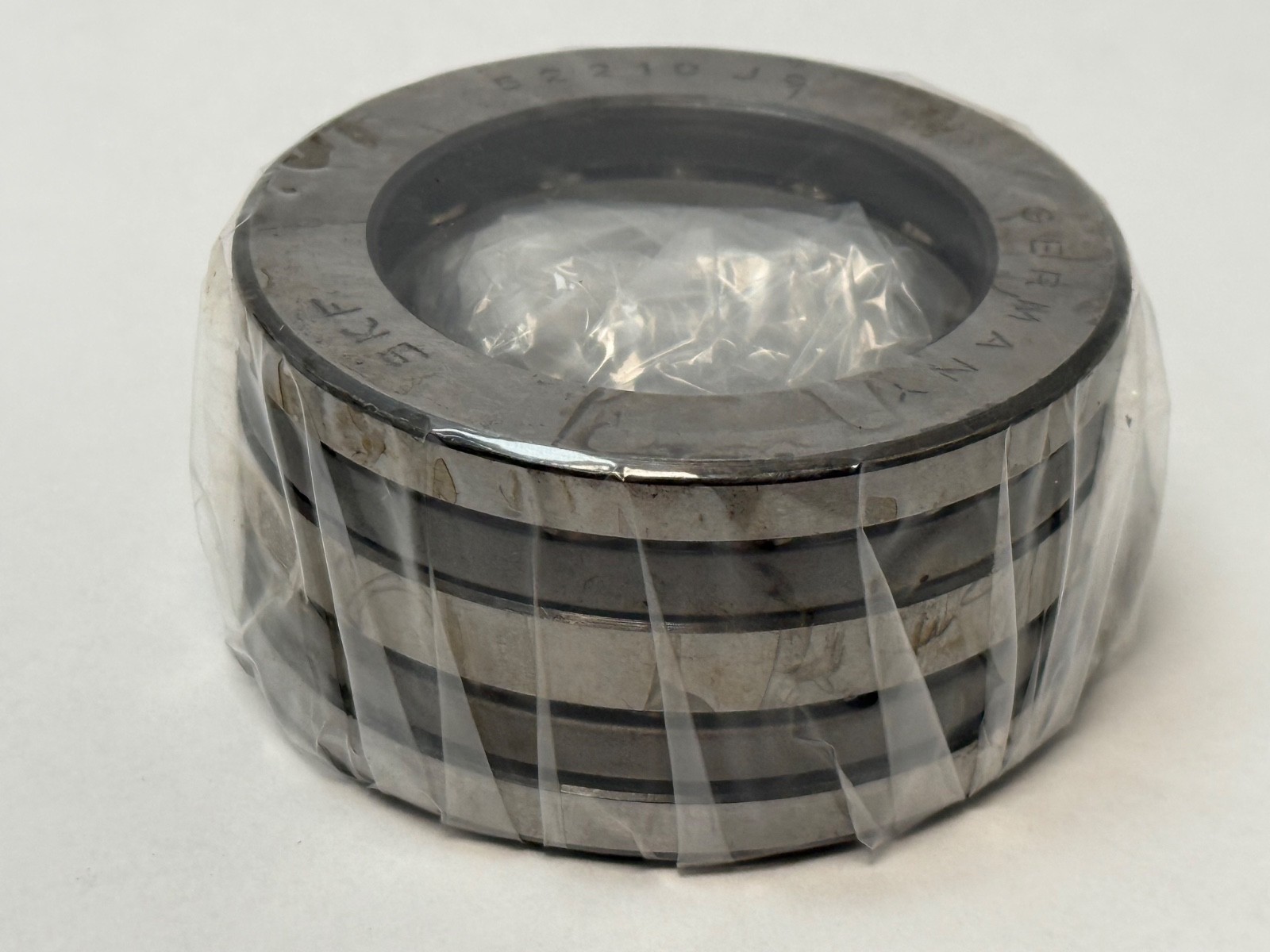

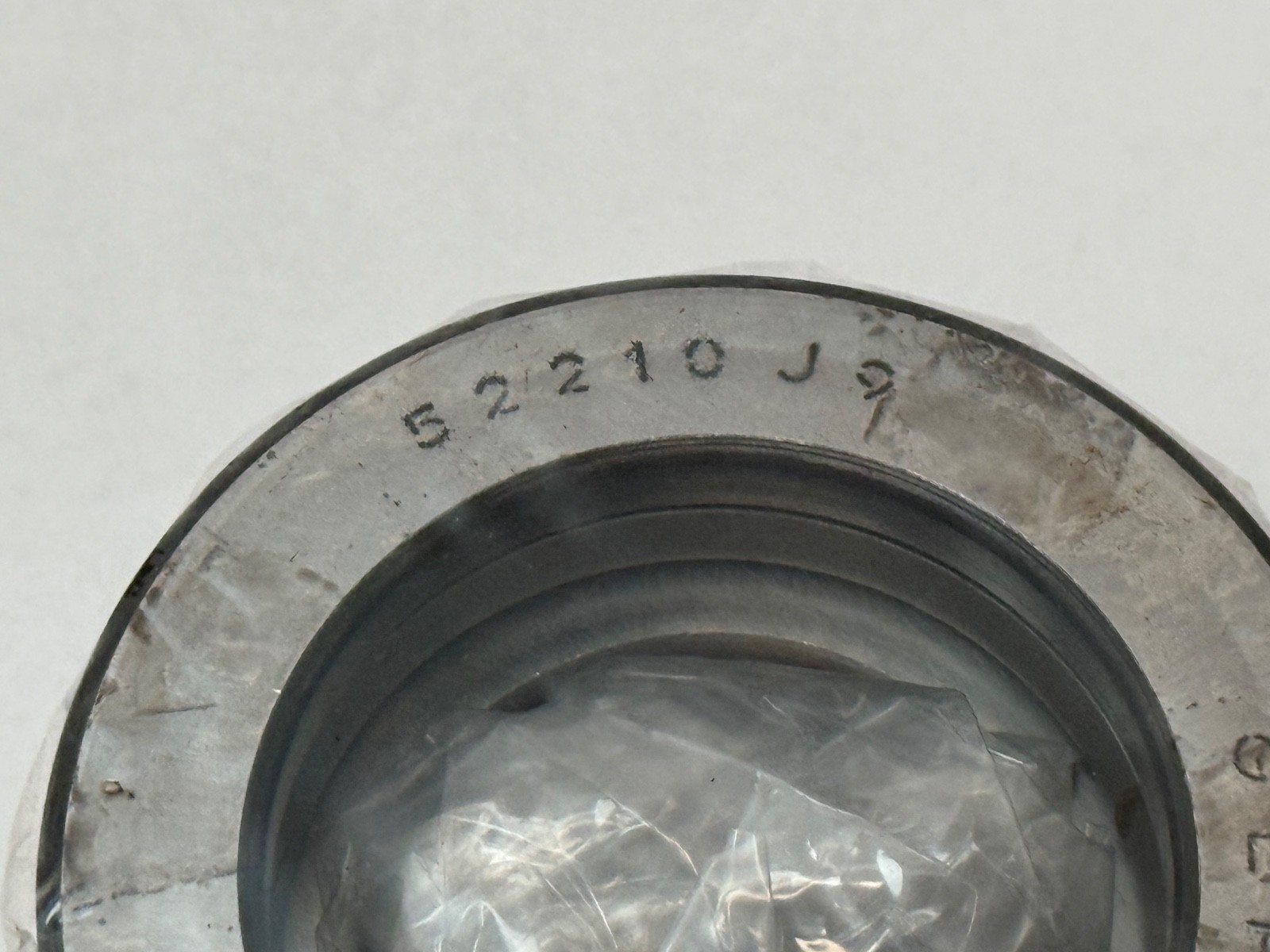

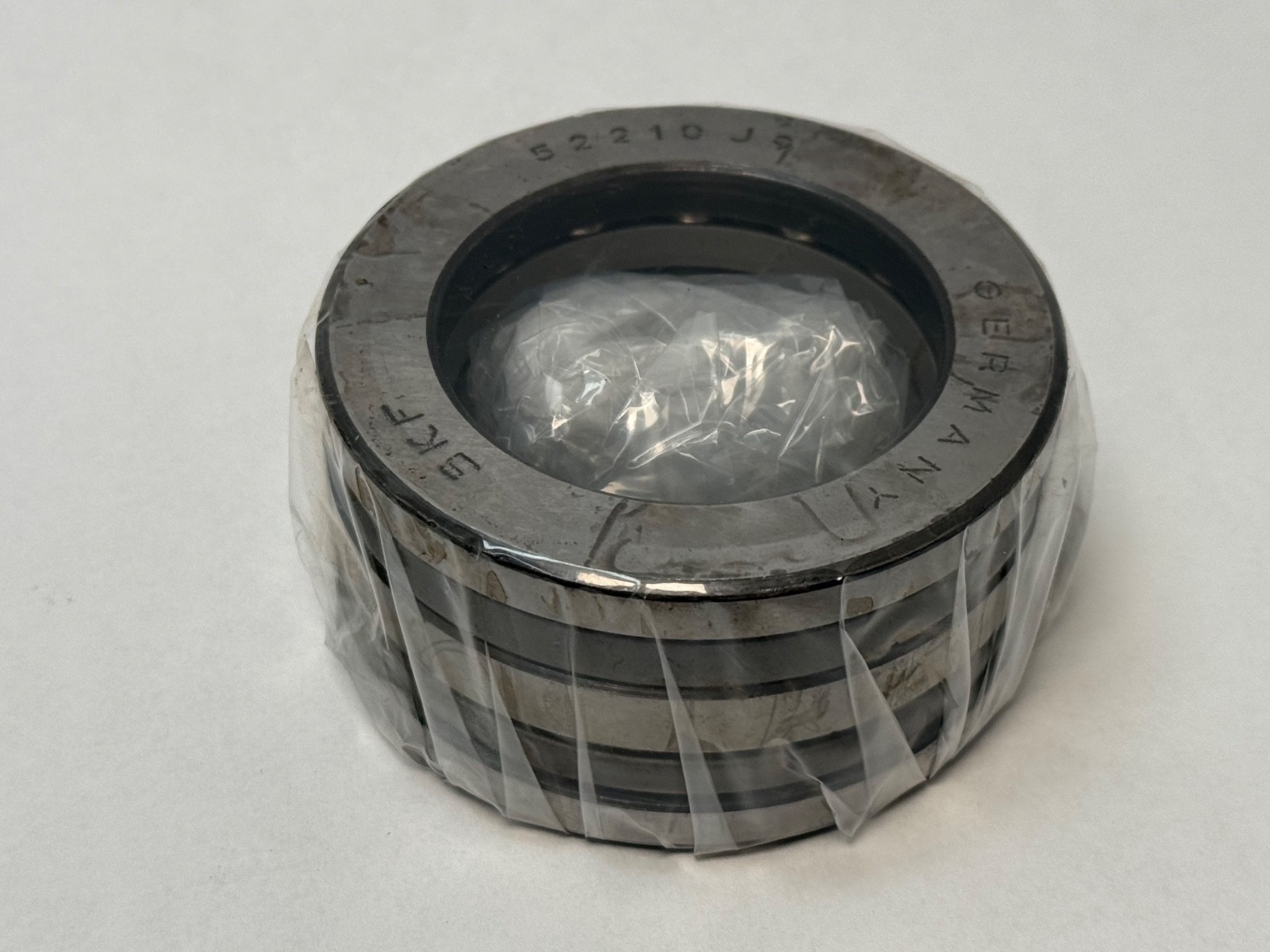

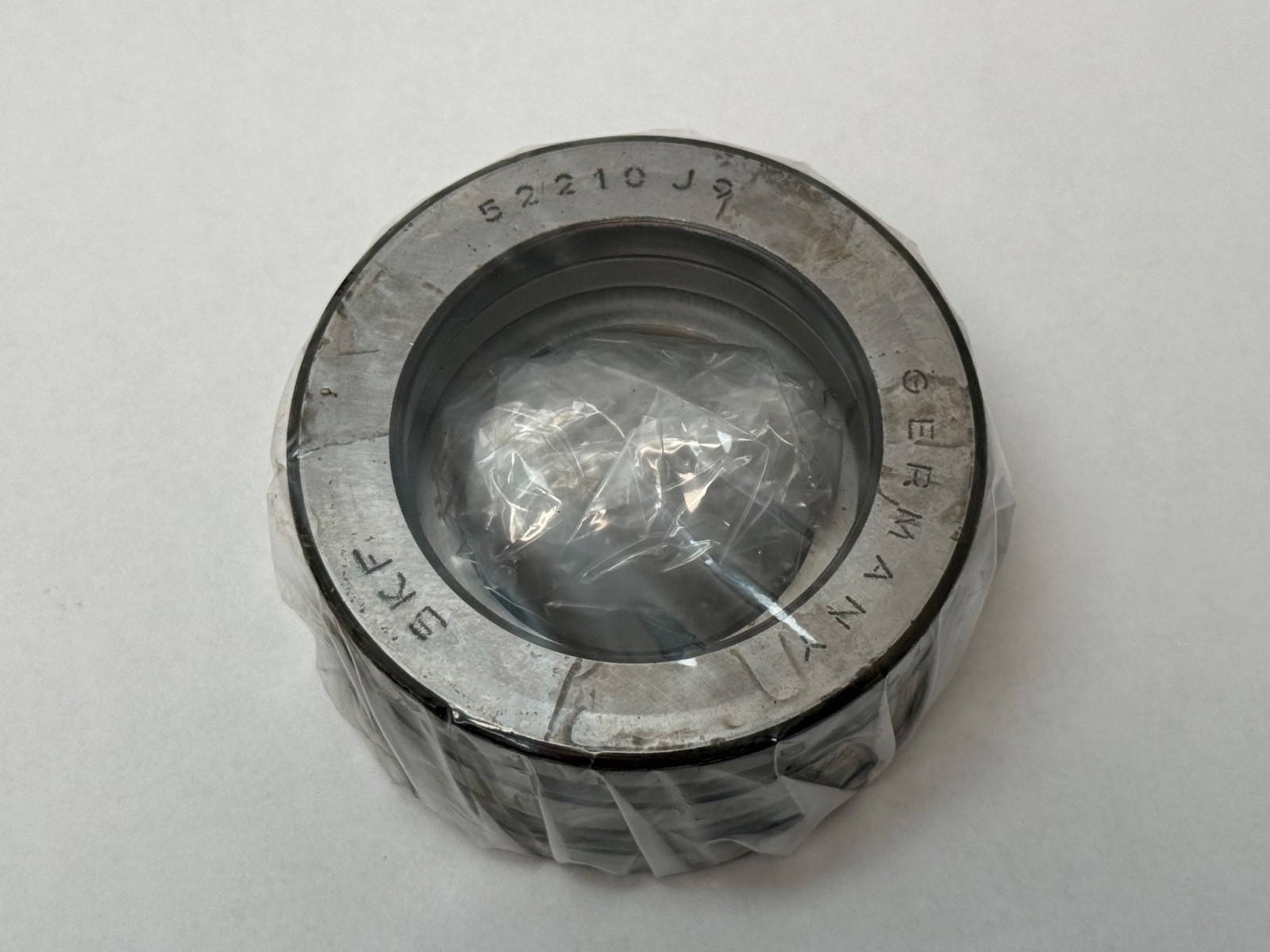

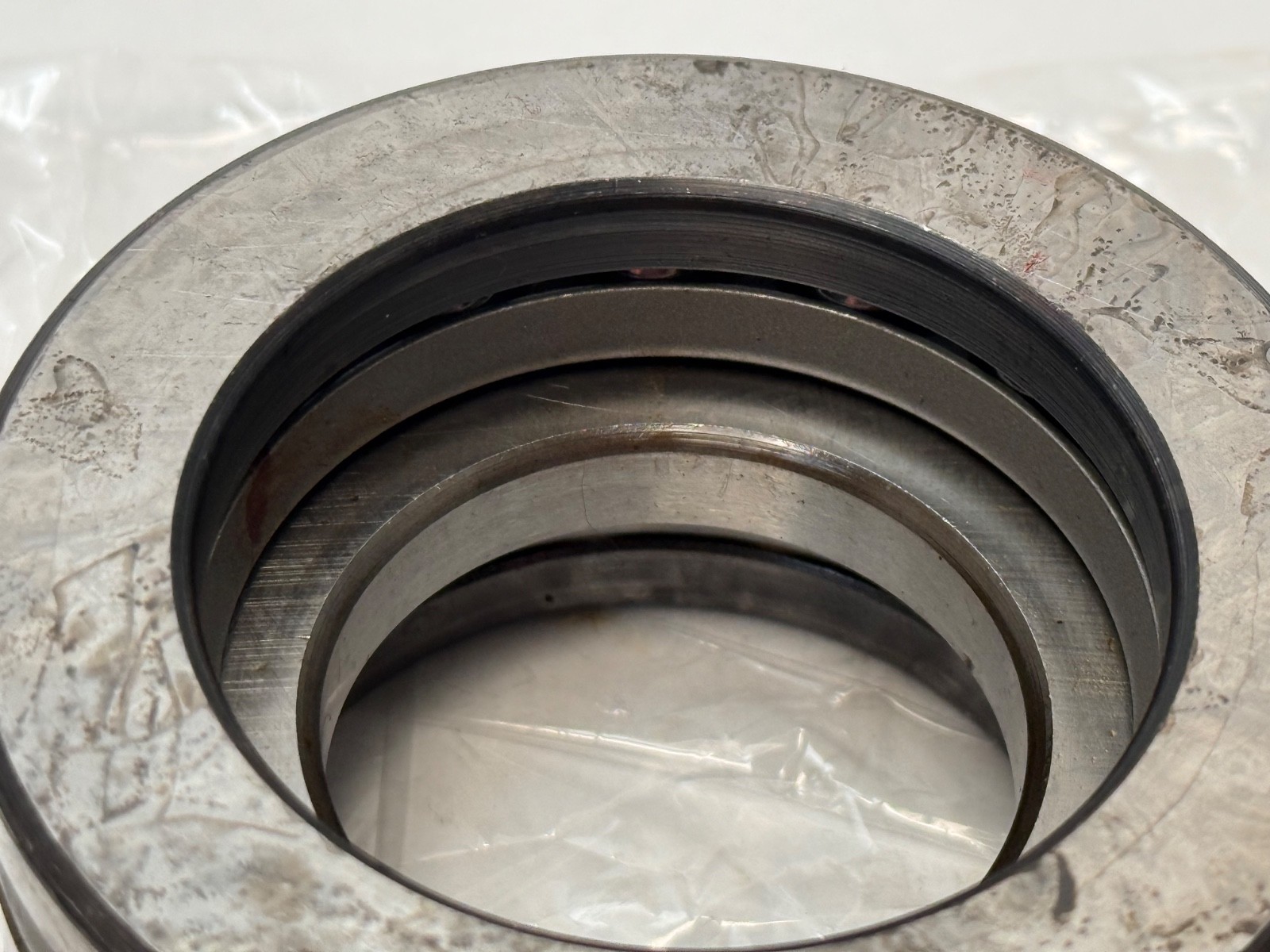

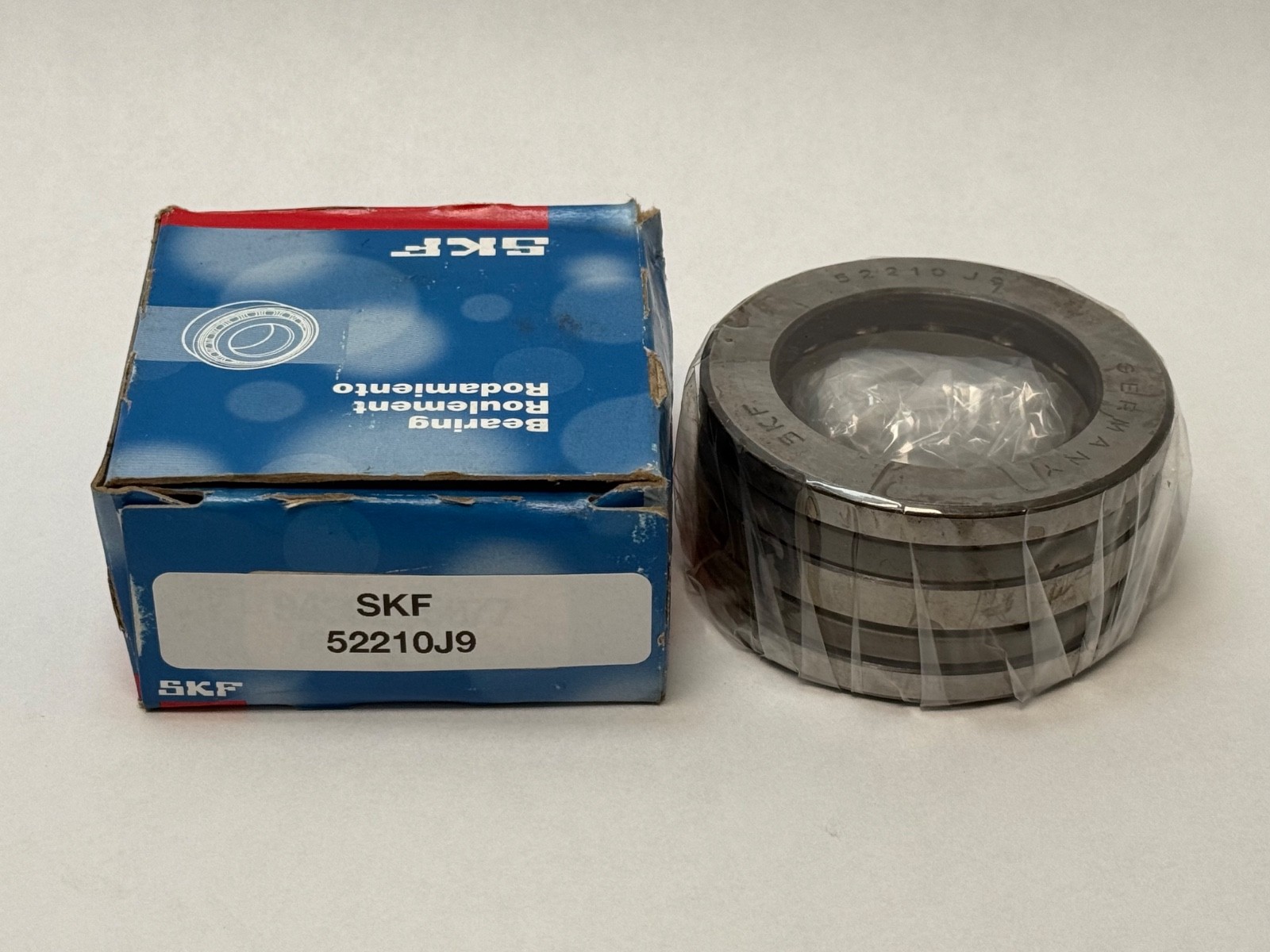

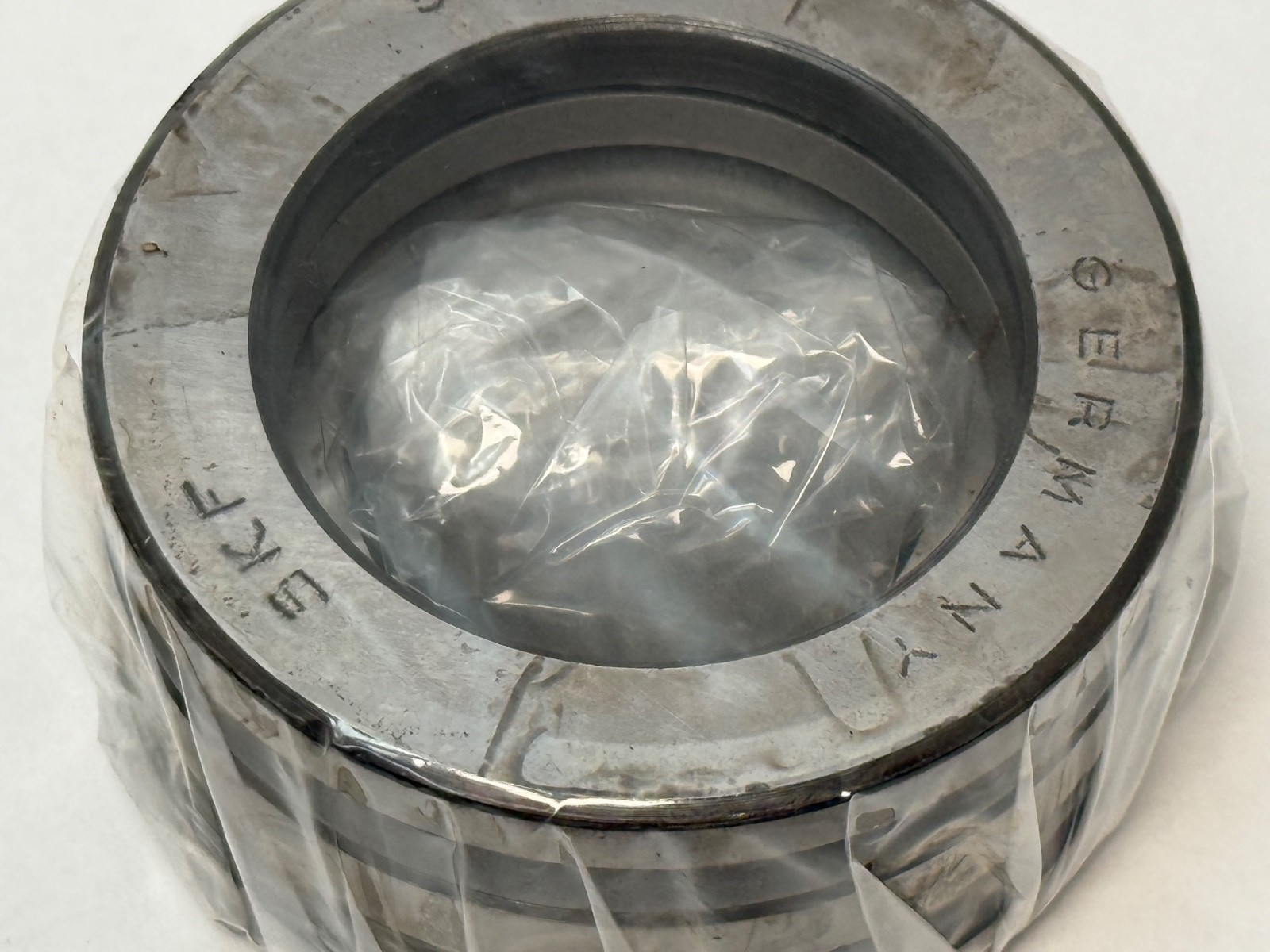

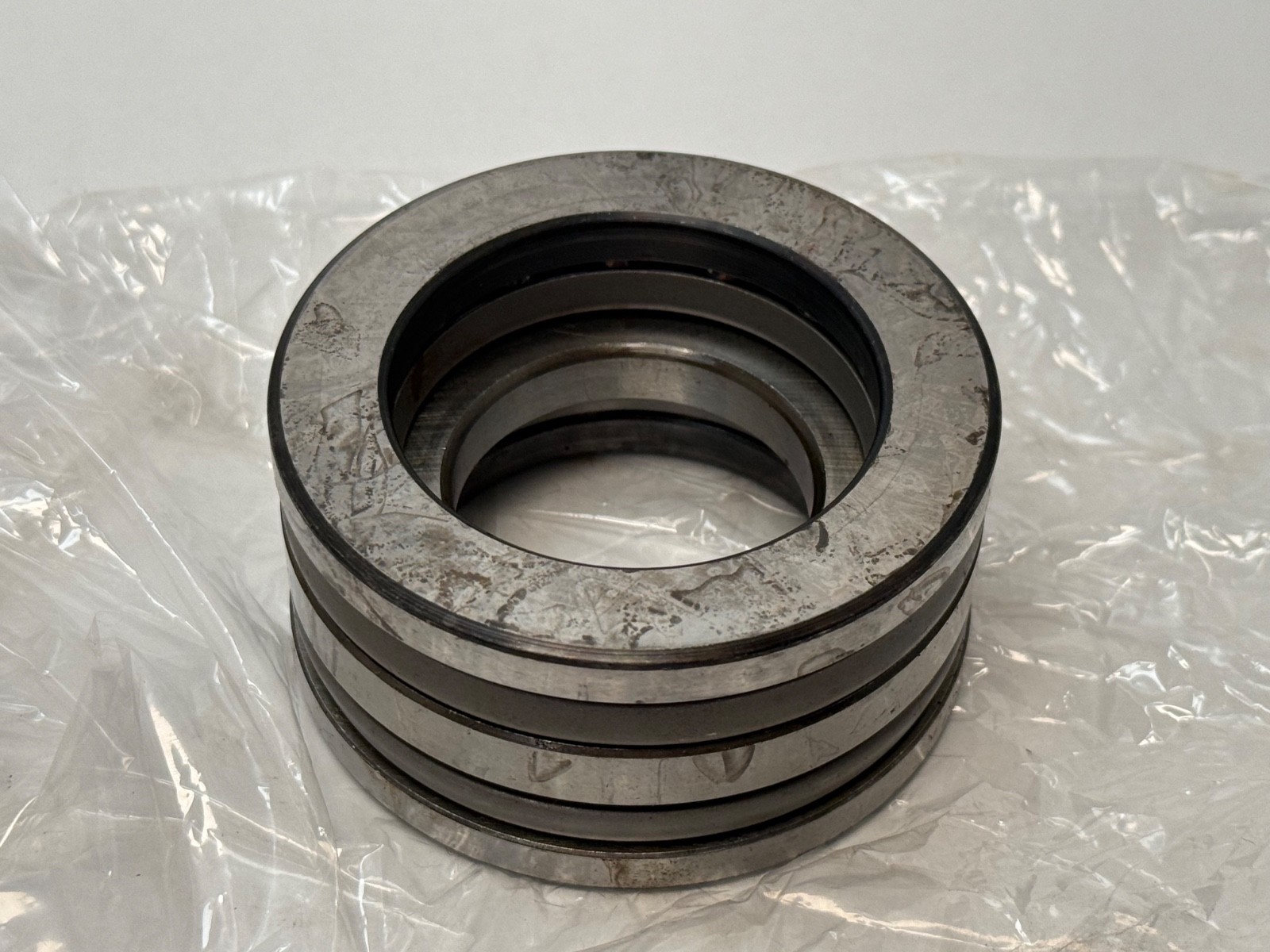

SKF 52210 J9 double-direction thrust ball bearing, 40 x 78 x 39 mm, five-piece separable, flat housing washers, 49.4 kN dynamic, 116 kN static axial.
List Price
$42.49
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| Model | 52210 J9 |
| ID | 40 mm |
| OD | 78 mm |
| Width | 39 mm |
| Material | Chrome Steel |
|---|---|
| Base Number | 52210 |
| Total Width | 39 mm |
| Bore Shaft Size | 40 mm |
| Mpn Variants | 52210J9; 52210-J9; 52210 J9; 52210 |

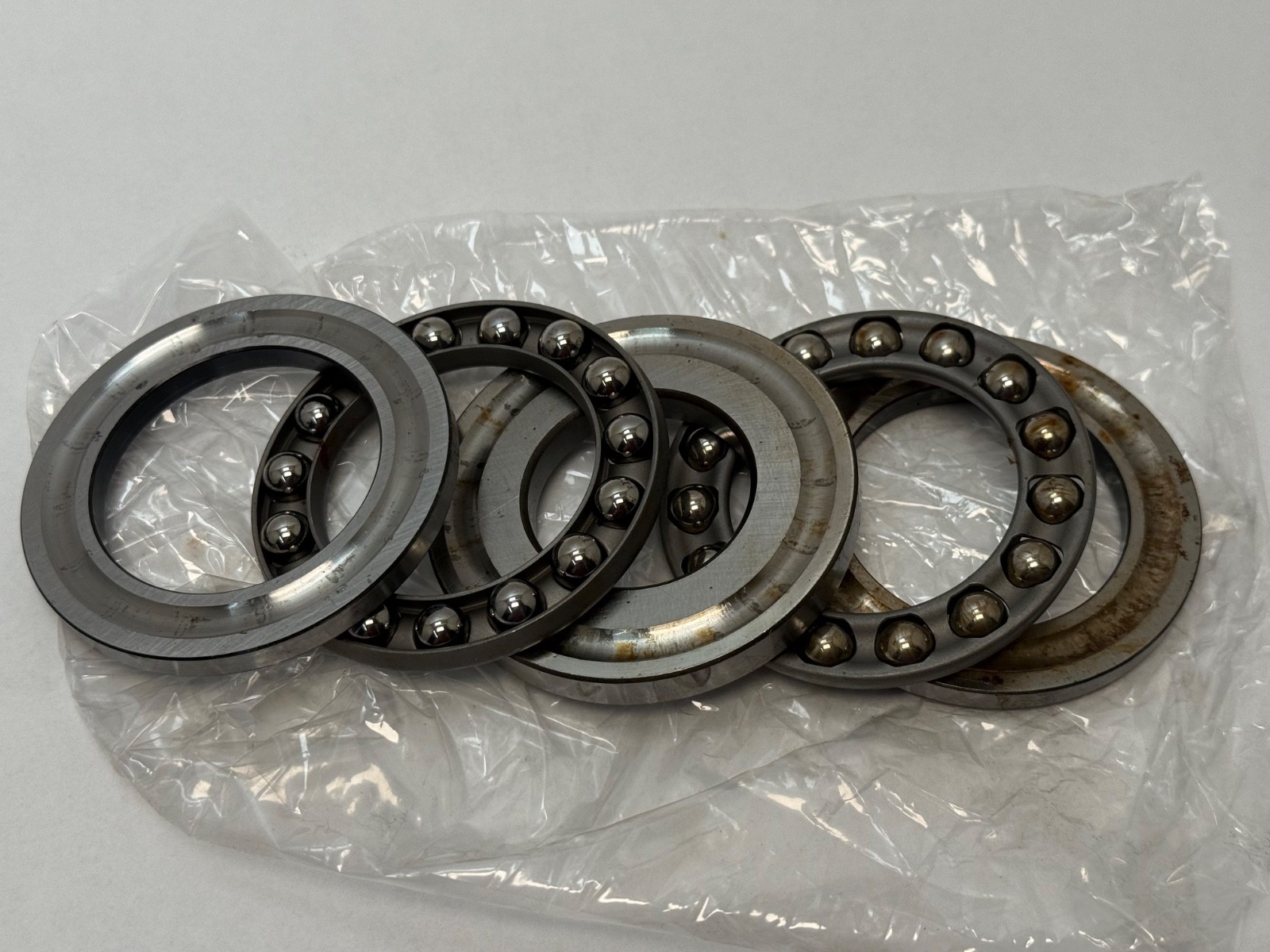

| Arrangement Configuration | Five-piece separable: one shaft washer, two housing washers, two ball and cage assemblies |
| Additional Attributes | Flat housing locating washers, to DIN 715 / ISO 104 |
| Dynamic Load Rating | 49.4 kN axial |
| Static Load Rating | 116 kN axial |
| Series | 522 |
| Rolling Elements | Ball |
| Bearing Type | Thrust Ball Bearing, double direction, Open |
| Item Weight | 1.57 lb (0.71 kg) |
| Limiting Speed | 4500 |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Mounting Arrangement | Double direction |
| Design Units | Metric |
| Bearing Material | Chrome Steel |
| Part Number | 52210 J9 |
| Cross Reference 1 | SKF 54210 (sphered housing washer) |
|---|---|
| Cross Reference 2 | FAG 52210 |
SKF 52210 J9 double-direction grooved thrust ball bearing. Bore: 40 mm. Outside Diameter: 78 mm. Overall Height: 39 mm. Rolling Elements: Ball. Number Of Rows: 2 thrust rows. Bore Type: Straight. Closure Type: Open. Bearing Material: Chrome steel. Unit Quantity: 1 Pc. One complete bearing: one central shaft washer, two housing washers and two ball-and-cage thrust assemblies.
522 — the double-direction thrust ball bearing series with flat housing washers, to DIN 715 / ISO 104.
10 — bore code 10 in that series, giving the 40 x 78 x 39 mm envelope.
Dynamic Axial Load Rating: 49.4 kN. Static Axial Load Rating: 116 kN. Limiting Speed: 4 500 r/min. Item Weight: 0.71 kg (1.57 lb). Series: 522. Base Number: 52210. Mounting Arrangement: Double direction. Arrangement: five-piece separable, one shaft washer, two housing washers, two ball and cage assemblies. Housing washers: flat, to DIN 715 / ISO 104.

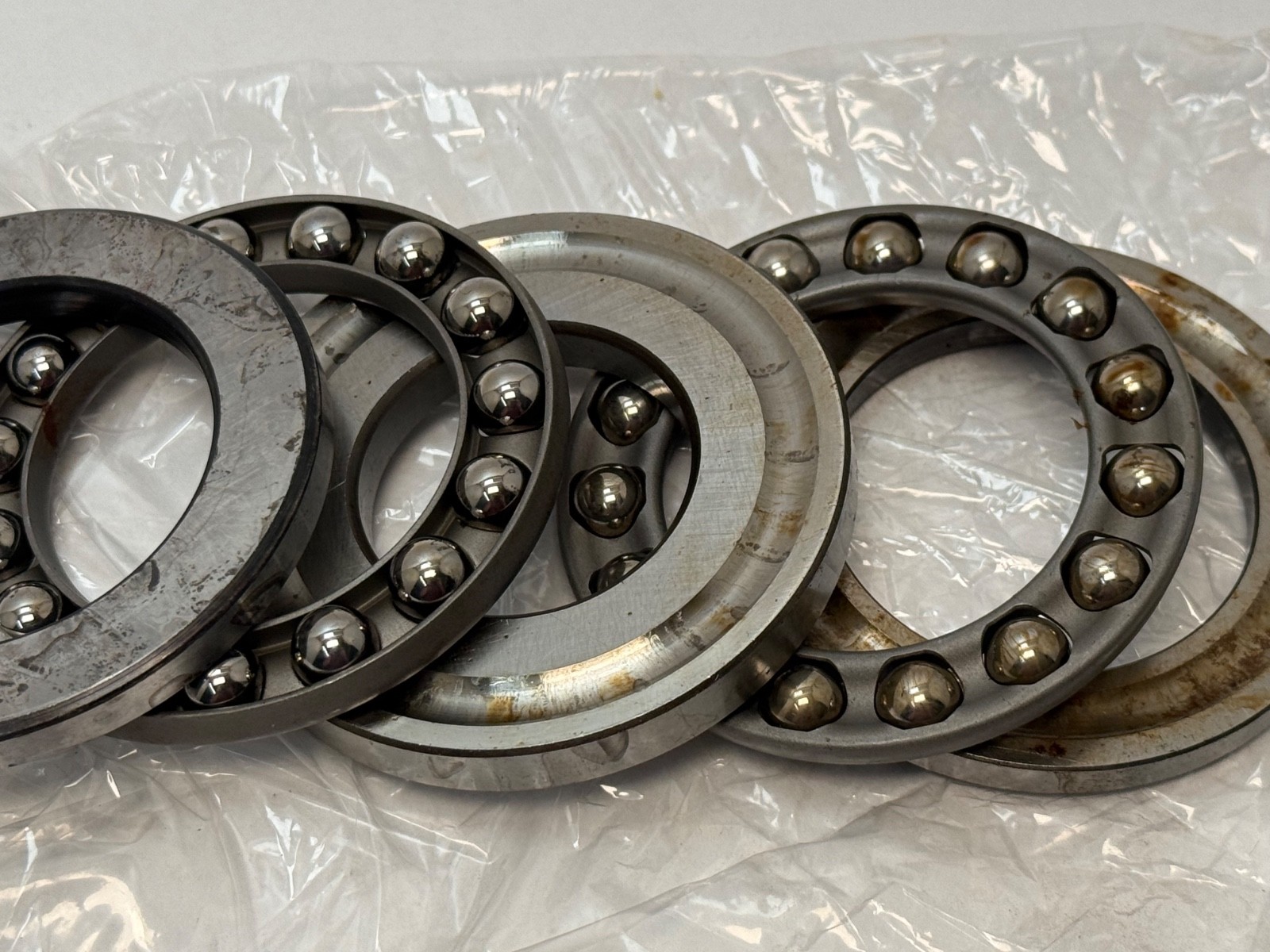

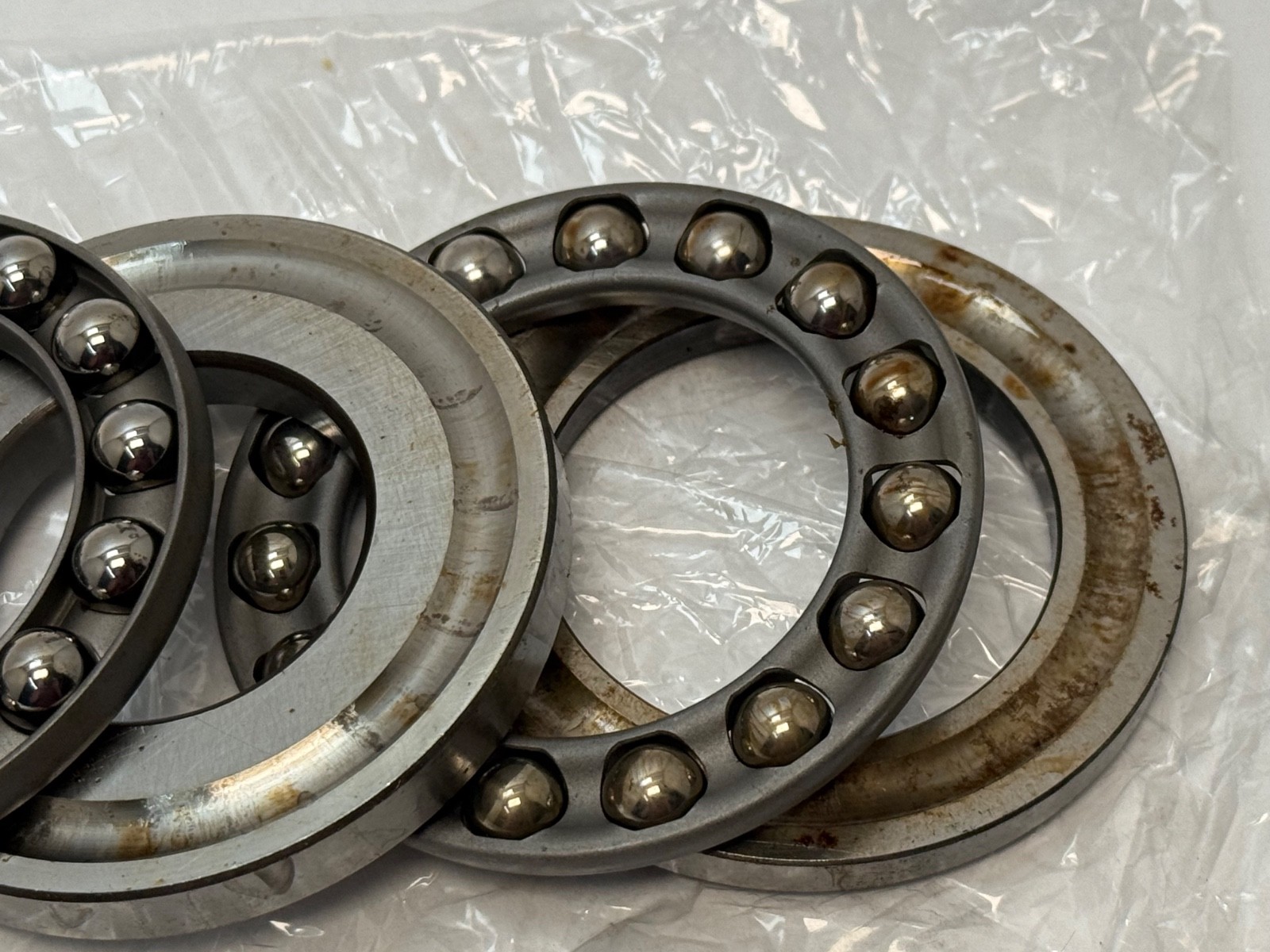

Bore: 40 mm. Outside Diameter: 78 mm. Overall Height: 39 mm. Assembly height: 39 mm. Housing washer outside diameter: 78 mm. Central shaft washer bore: 40 mm. The washers and both ball-and-cage assemblies separate.
SKF 54210 — sphered housing washer version. SKF 51210 — single-direction bearing on the same bore. FAG, NSK and NTN 52210 share the 40 x 78 x 39 mm envelope to DIN 715; load ratings differ between makers and the figures above are the SKF values. Number forms: 52210J9, 52210-J9, 52210 J9, 52210.
What are the dimensions of the SKF 52210 J9?
Bore: 40 mm. Outside Diameter: 78 mm. Overall Height: 39 mm.
What are the axial load ratings of the SKF 52210 J9?
Dynamic Axial Load Rating: 49.4 kN. Static Axial Load Rating: 116 kN.
What does the SKF 52210 J9 consist of?

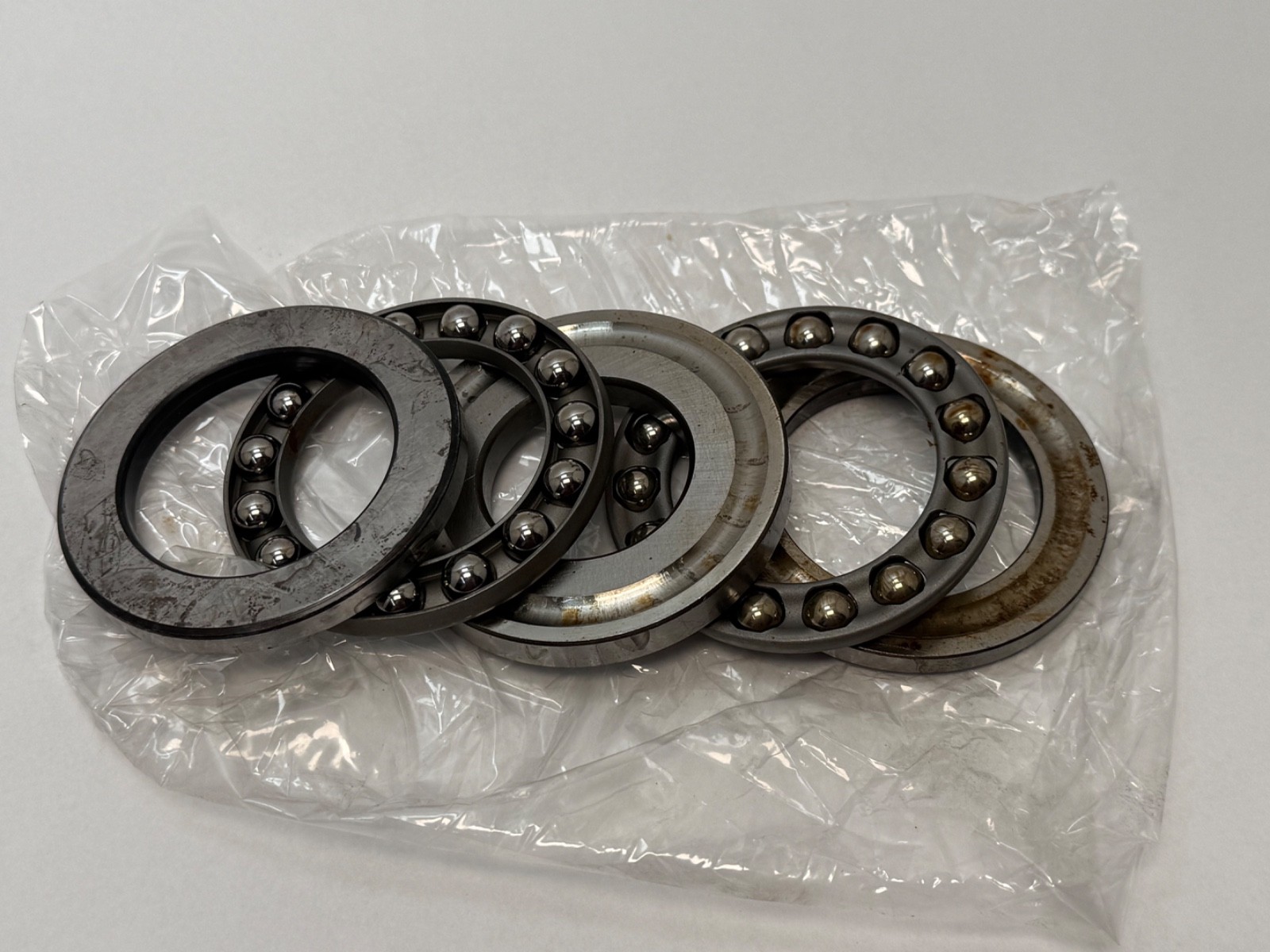

One central shaft washer, two flat housing washers and two ball-and-cage thrust assemblies.
