Availability:
3 in stock
Axial cylindrical roller thrust bearing, 2-5/8 in bore x 4-11/32 in OD x 1 in overall height, inch series, open, pure thrust load in one direction. 1 Pc.
List Price
$121.42
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | INA |
|---|---|
| GTIN | 035373112241 |
| Model | RT-622 |
| Base Number | RT622 |
|---|---|
| Industry Terms | thrust bearing, axial bearing, cylindrical roller thrust bearing, roller thrust washer bearing, axial cylindrical roller bearing, inch series thrust bearing |
| Common Misspellings | INA RT-662, RT662, INA RT 6 22, RTG22, RT62 2 |
| Application Types | Vertical shaft thrust positions, gearbox thrust faces, screw jacks, turntables, press and machine tool thrust locations |
| Bore Shaft Size | 2-5/8 in (2.625 in / 66.68 mm) |
| Mpn Variants | RT622, RT-622, RT 622, INARLT622, RT622 INA |
| Bearing Type | Axial cylindrical roller bearing (cylindrical roller thrust bearing) |
| Number Of Rows | 1 |
| Bore Type | Straight, clearance fit |
| Harmonization Code | 8482.50.00 |
| Part Number | RT622 |

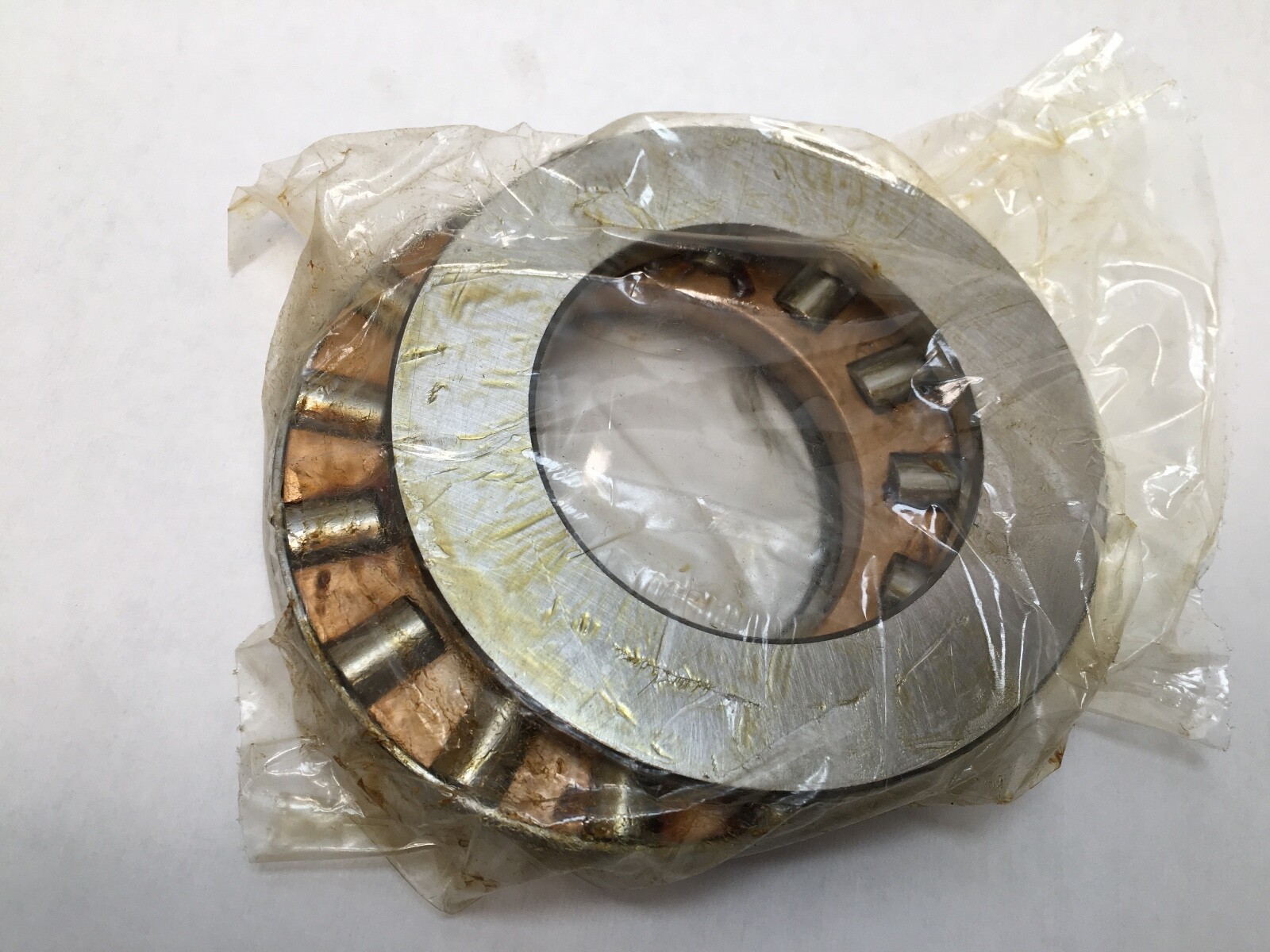

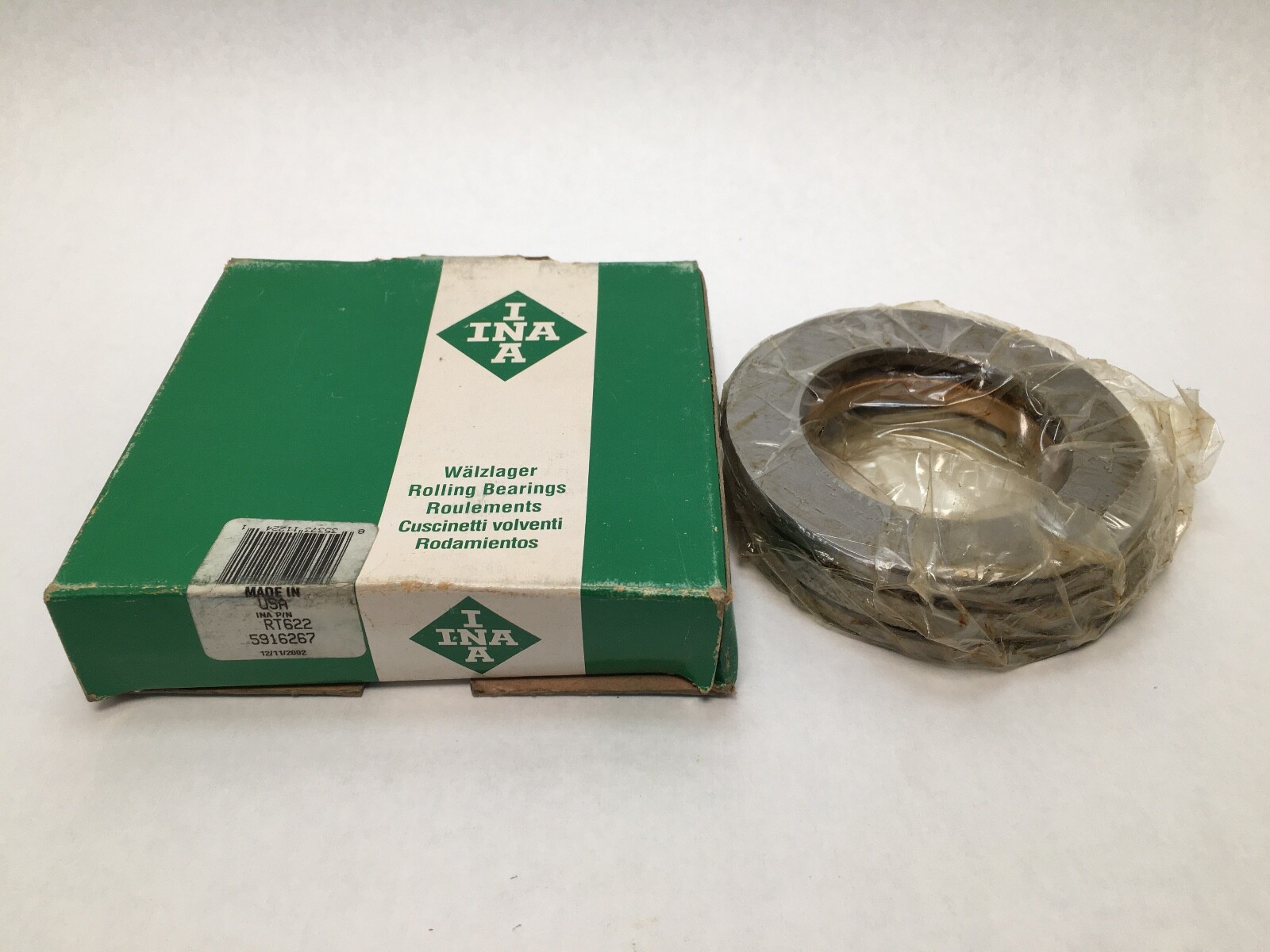

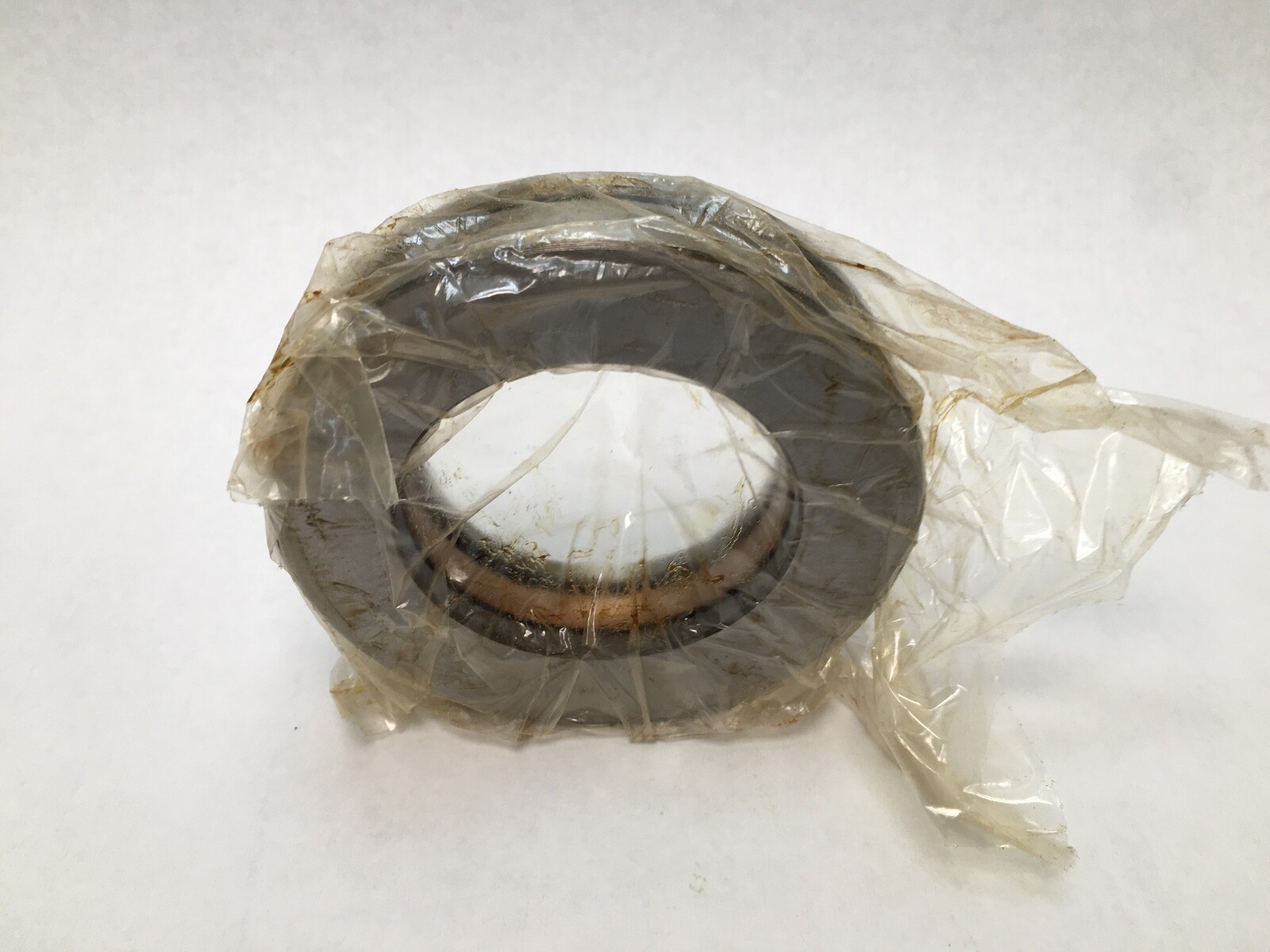

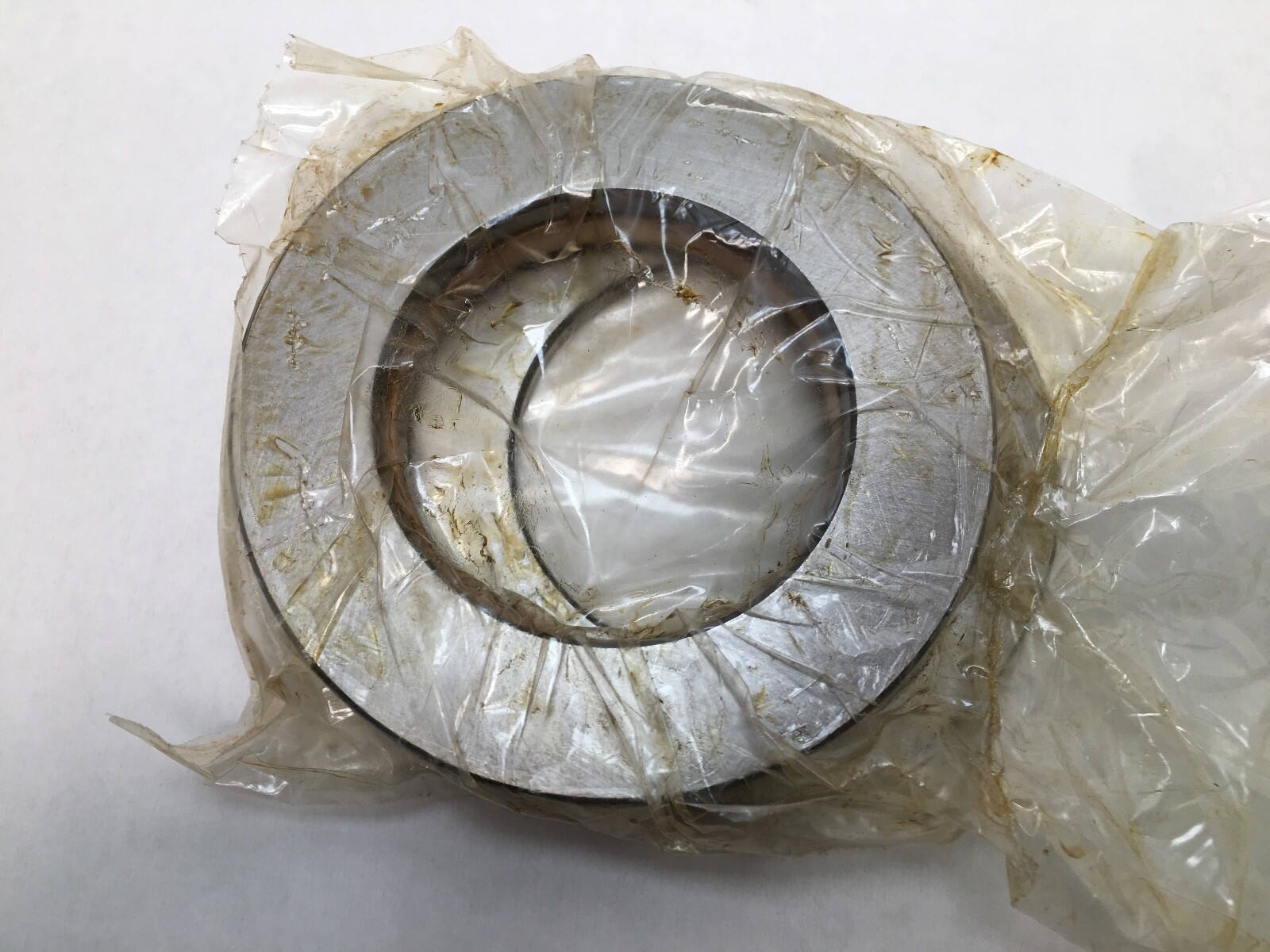

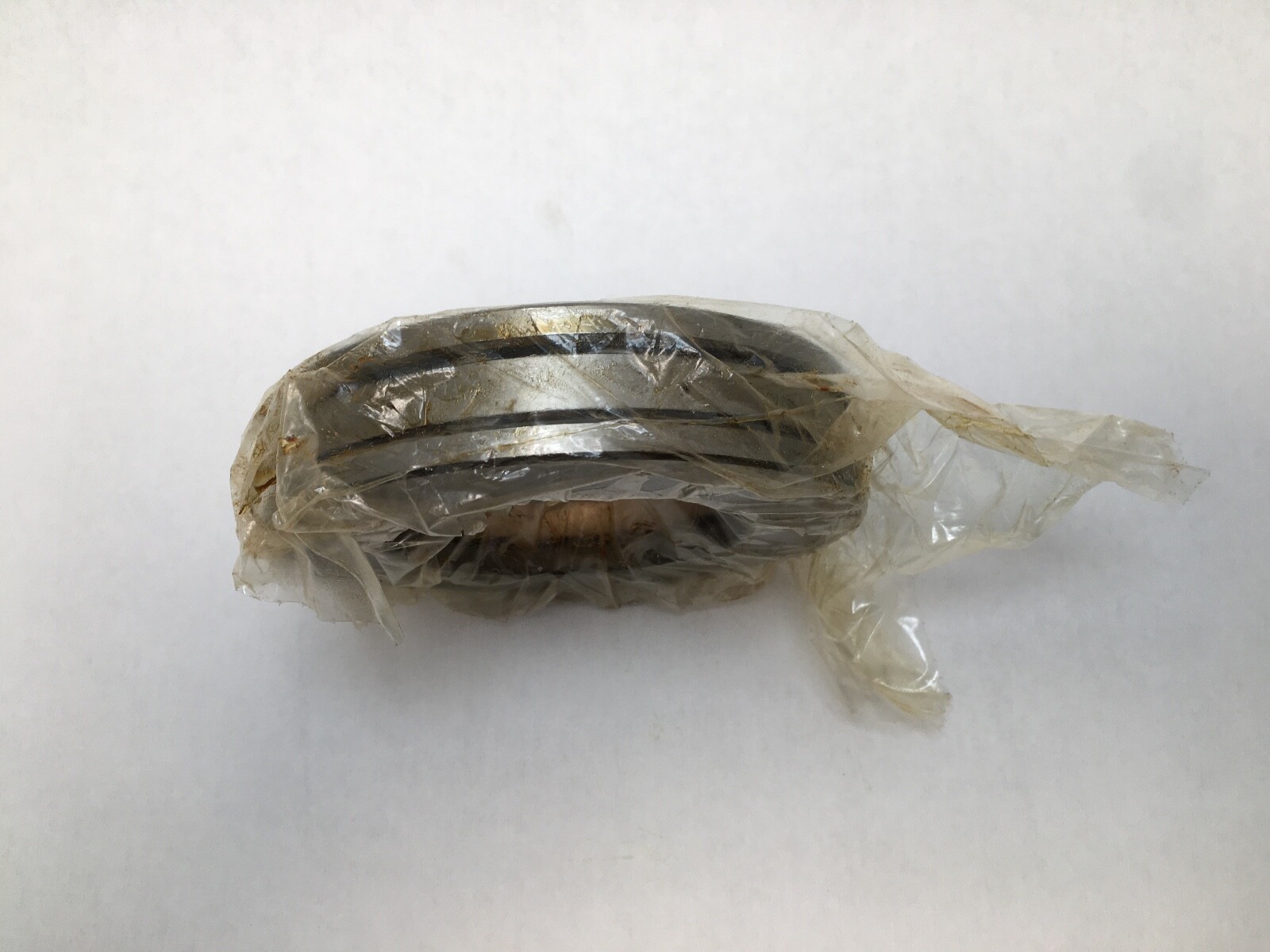

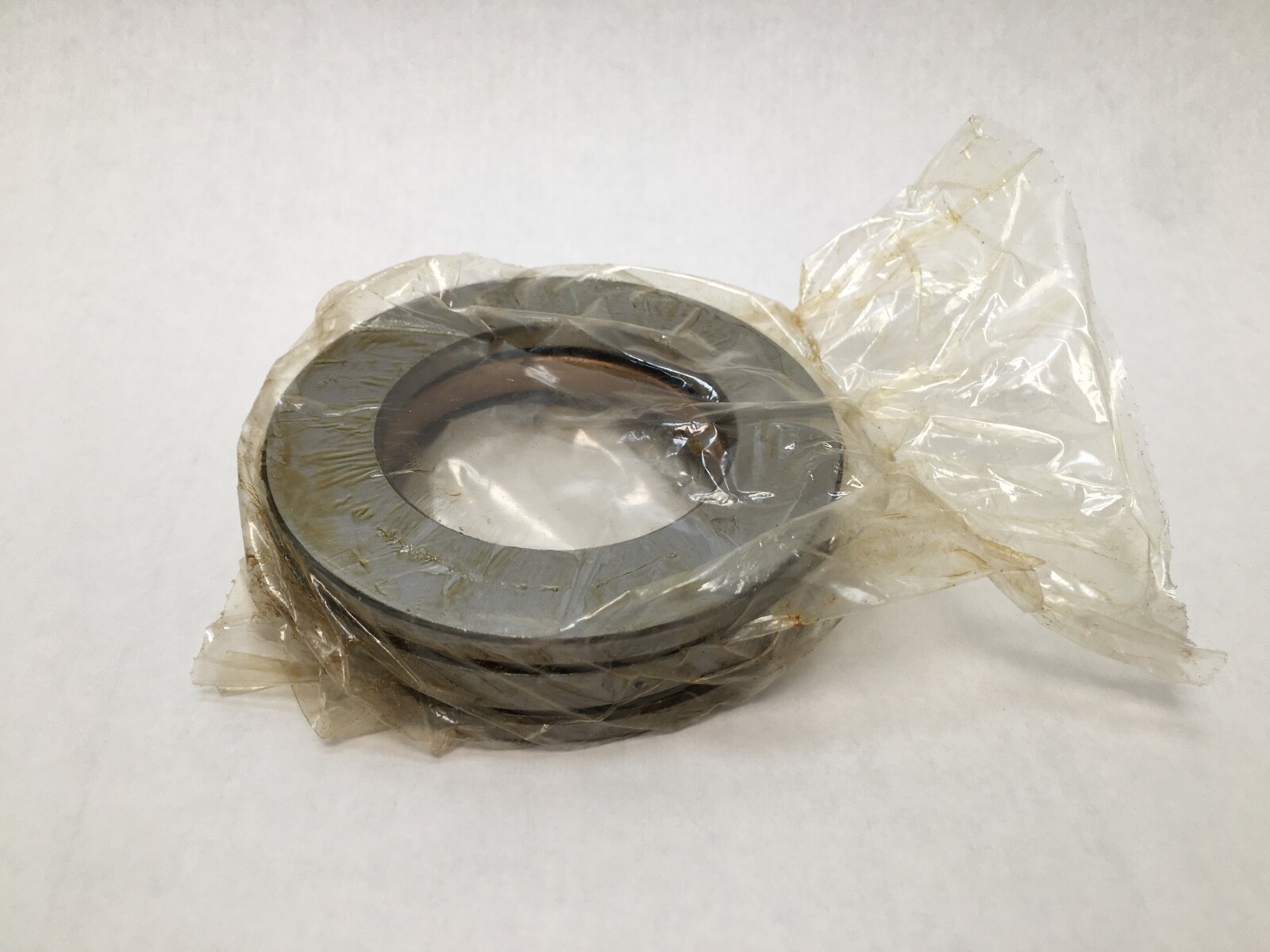

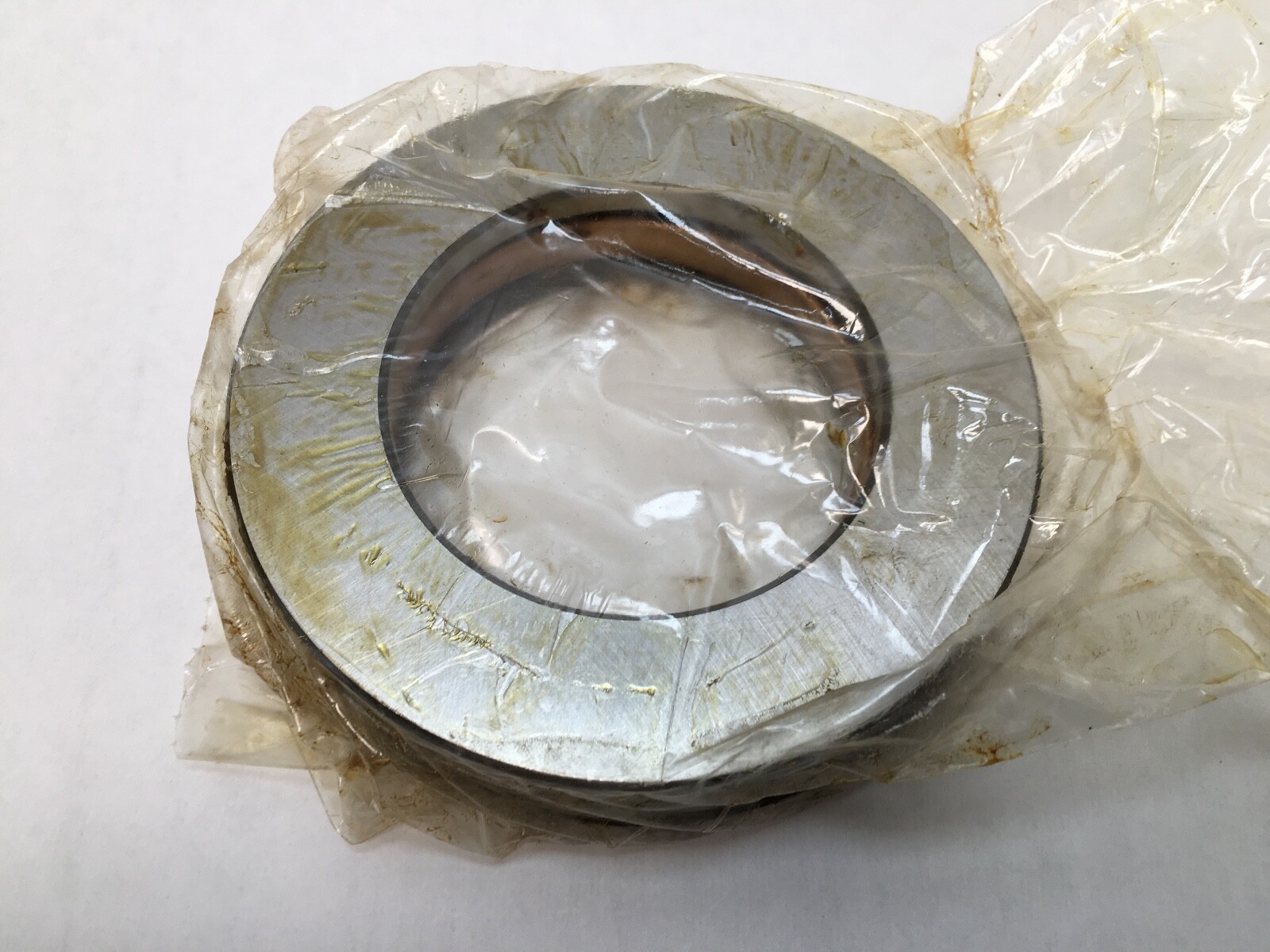

An INA RT622 axial cylindrical roller bearing — a thrust bearing, not a radial one. It measures 2-5/8 in bore by 4-11/32 in outside diameter by 1 in overall stack height, in INA’s inch RT series. The rolling elements are cylindrical rollers laid radially in a flat plane between two flat raceway washers, so the bearing carries load along the shaft axis and takes no radial load at all.
An RT-series axial bearing is a stack of three elements: a shaft washer, a housing washer, and a cylindrical roller and cage assembly running between them. The washers are flat, hardened and ground on their raceway faces and have no lips or ribs. The 1 in figure is the assembled height of the complete stack, and the 2-5/8 in bore figure is the washer bore, which clears the shaft rather than gripping it.
Cylindrical roller thrust bearings carry very high axial load in a short axial length, well above a ball thrust bearing of the same envelope, because line contact replaces point contact. The trade is speed: the rollers scrub against the flat raceways at a velocity that varies across their length, so limiting speed is low and continuous oil supply matters. Thrust is taken in one direction only, and a second bearing or a shoulder handles the return load. Radial location comes from a separate radial bearing, never from this one.
1 Pc. One RT622 axial bearing, in inch dimensions rather than metric. The metric construction is INA’s 811-series, where the pieces carry separate numbers — K811.. for the roller and cage set, WS811.. for the shaft washer, GS811.. for the housing washer.
Washer bore fit: clearance fit on the shaft. Washer orientation: both washers run square to the shaft axis, and the squareness of the housing and shaft shoulders governs whether all the rollers share the load. Minimum load: a minimum axial load is required to keep the roller set from skidding.
Torrington and Timken carried the same inch RT numbering for axial cylindrical roller bearings. The number 5916267 is a distributor and OEM stock number for the same part. Metric 811-series and 812-series axial bearings cover different bore and height combinations and are different sizes, as are the AXK needle-roller axial cages, which use needles instead of cylindrical rollers and have a lower rating.
